House Plan: 2883 ft², 1.5 Stories, 3 Beds, 2.5 Baths
House Plan: 2883 ft², 1.5 Stories, 3 Beds, 2.5 Baths House Plan: 2883 ft², 1.5 Stories, 3 Beds, 2.5 Baths
4
Concept
Construction documents are prepared for the following countries:

House Plan: 2883 ft², 1.5 Stories, 3 Beds, 2.5 Baths

Plan
79252C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
268
Total Heated m²
2 + 1
Baths + 1/2 Baths
3 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

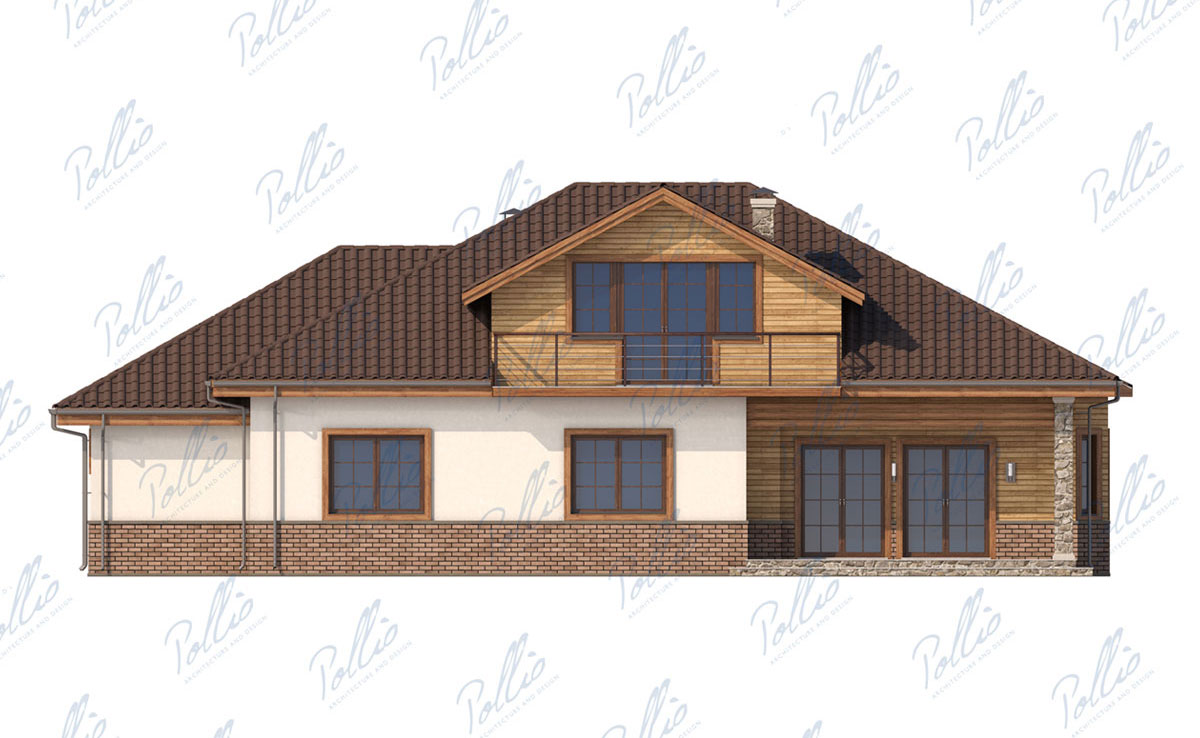

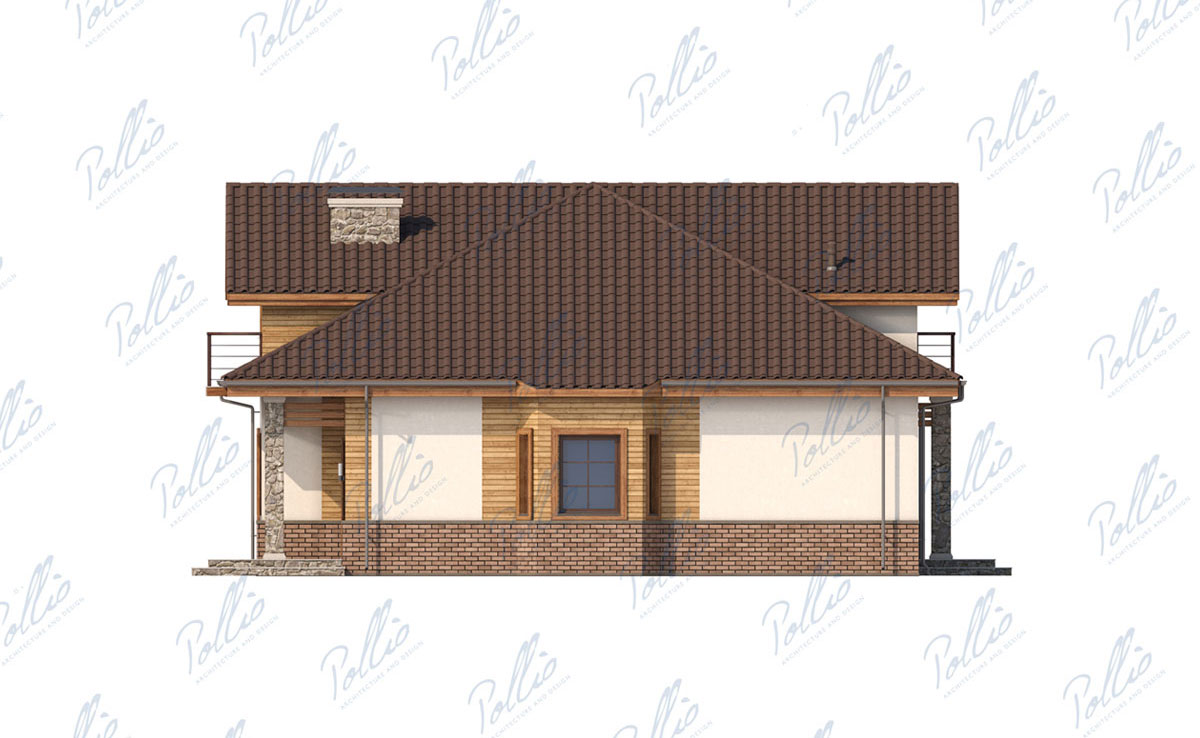

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

If you would like to modify this house plan, you have two options:

1. Modifications by the Original Architect: Work directly with the original architect to purchase a modified digital concept, then forward it to your local architect to order the construction documents.

2. Modifications by Your Local Architect: Purchase the digital concept as-is, work with your local architect to make changes, and then proceed with ordering the construction documents.

Floor Plans

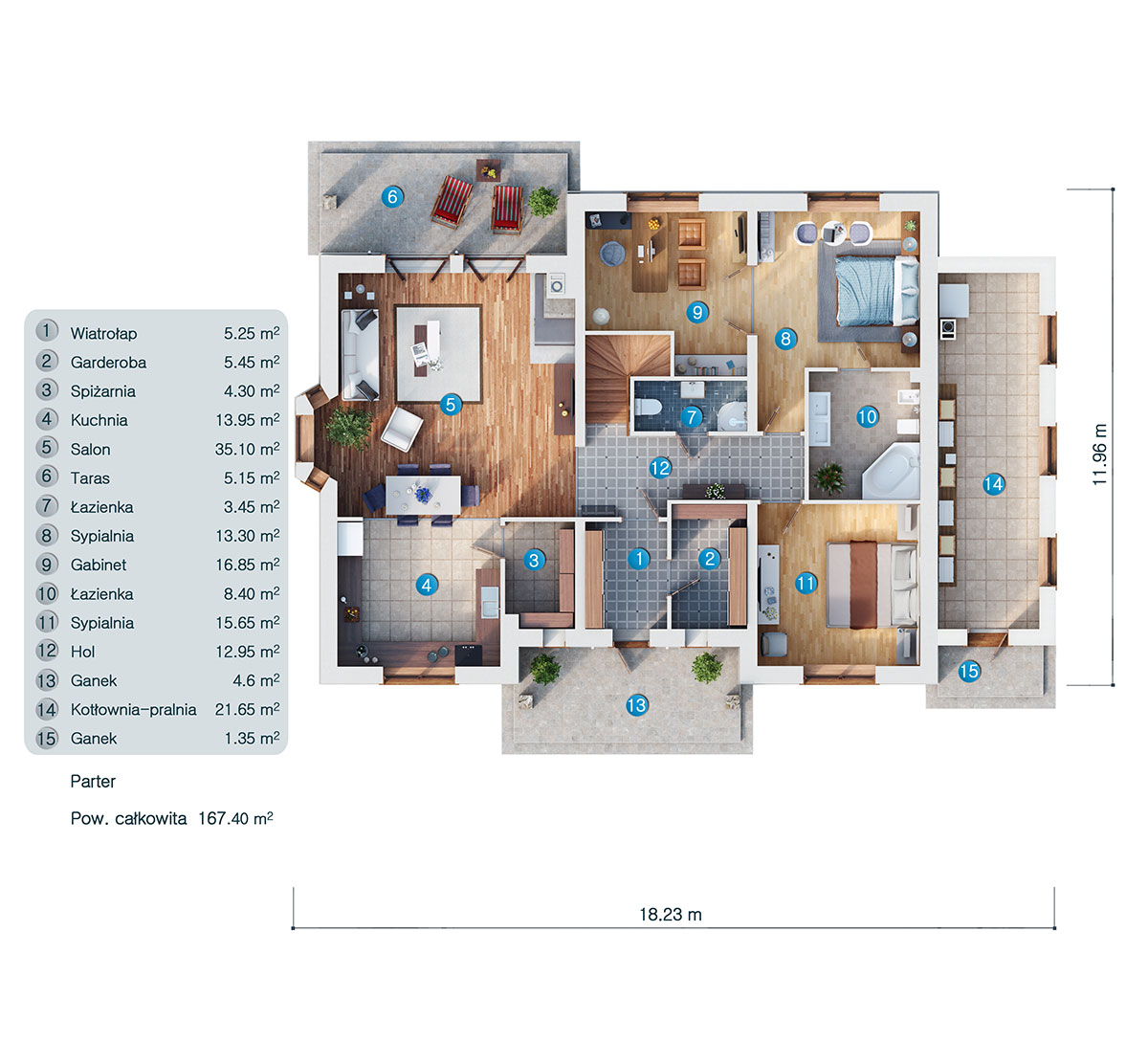

First Floor
79252C - First Floor

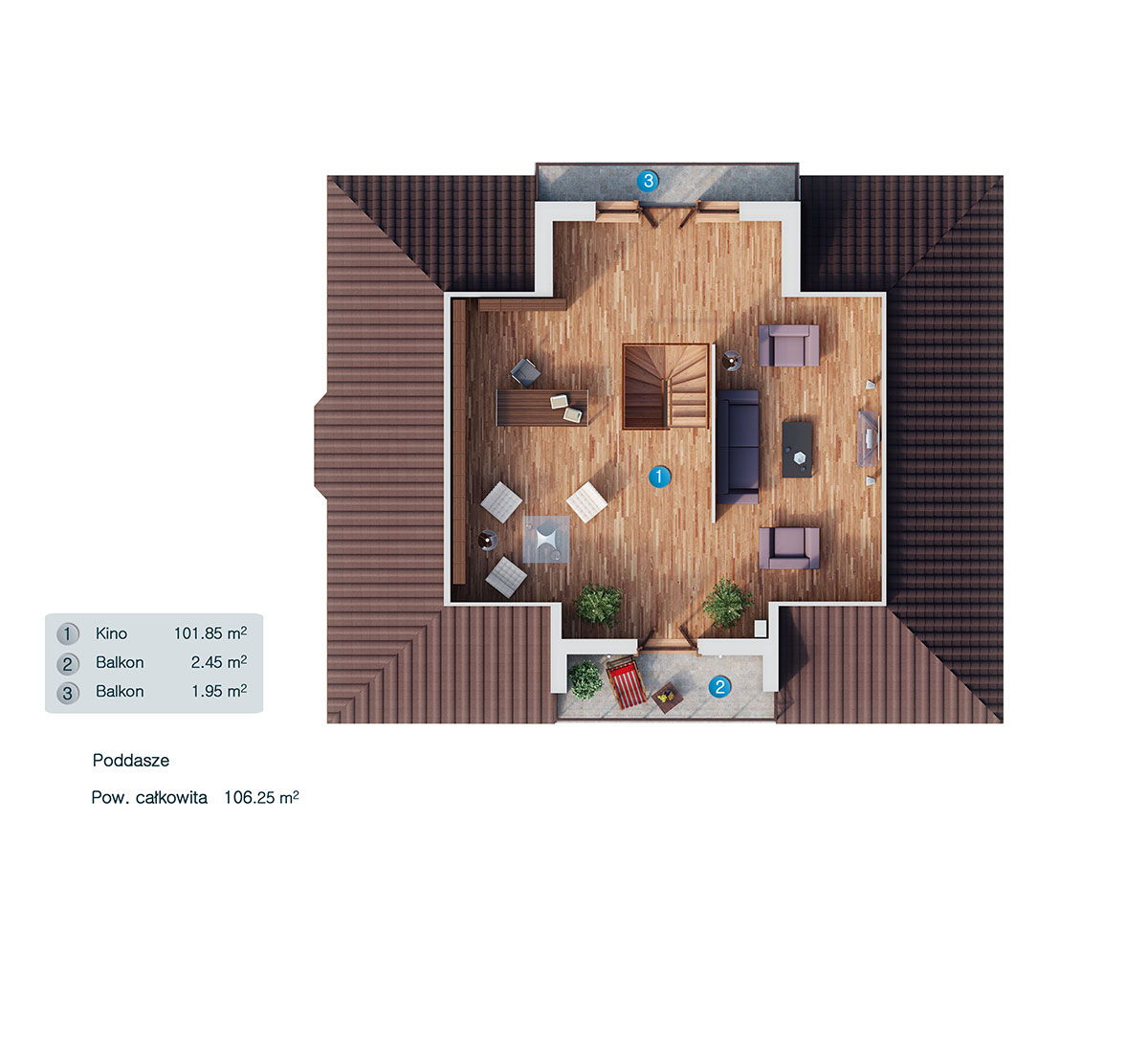

Second Floor
79252C - Second Floor
Full Specs & Features
Area
Total Unheated: 0 m²
Basement: 0 m²
Bonus: 0 m²
Total Heated: 268 m²
Dimensions
Depth 11.96 m
Width 18.56 m
Exterior Wall Framing
Block / CMU
Wood-framed
Ceramic Block
Calcium silicate block
Exterior Wall Materials
Brick
Stucco
Rooms
Full bathrooms : 2
Half bathrooms : 1
Bedrooms : 3
Game Room
Library
Foundation
Slab
Block Stem Wall
Concrete Stem Wall
Garage
9: 0 m²
Cars: 0
Roof
Roof Area: 3301.83m²
Roof Pitch : 7/12 (30°)
Architect
Pollio Pollio Residential Architect
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept Delete key
zł1077.36
Subtotal
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.






Oops!
No one found.
Construction Cost

Calculated Value

$ 1.232.110

Lot not included
