5,503 Sq Ft Lake 1.5-Story Mansion Plan with Pool, 3 Bedrooms, 5 Bathrooms and Carport
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

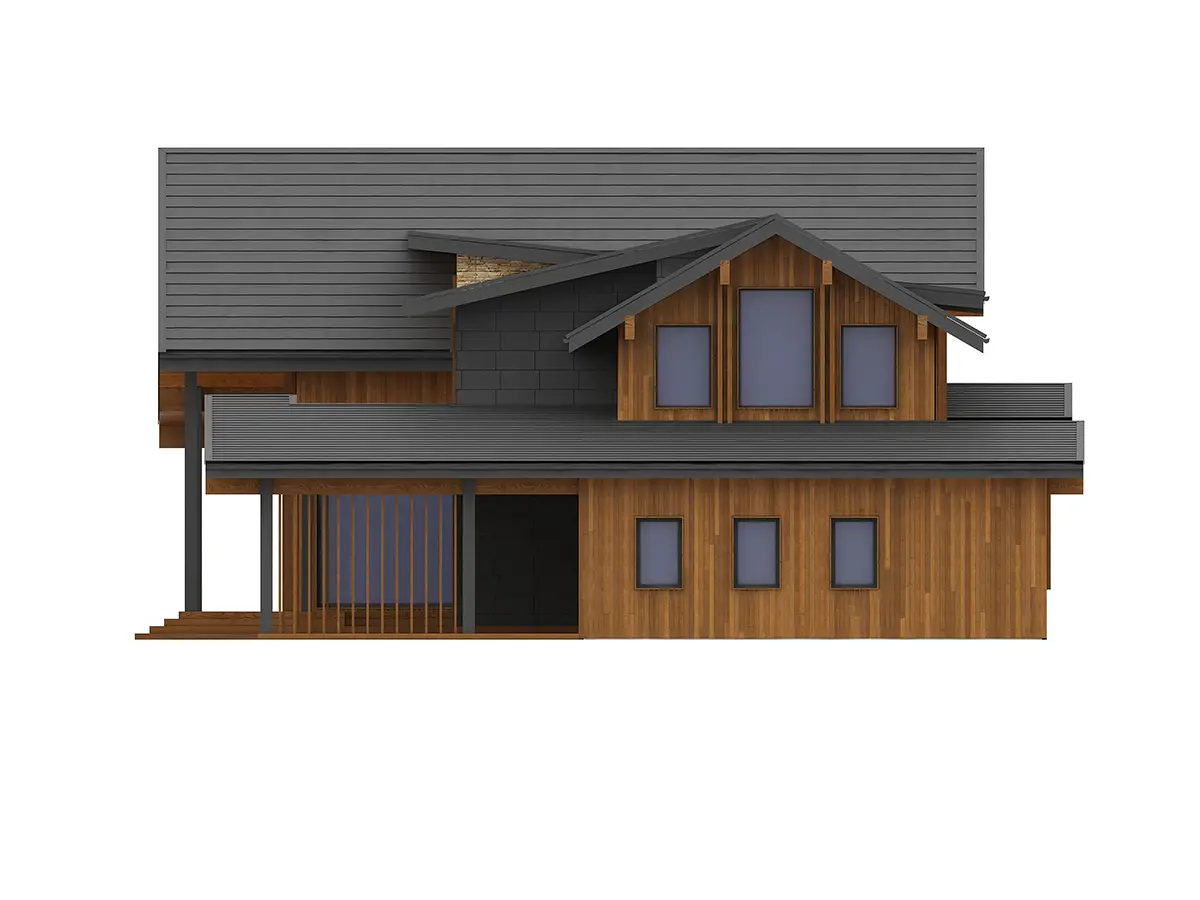

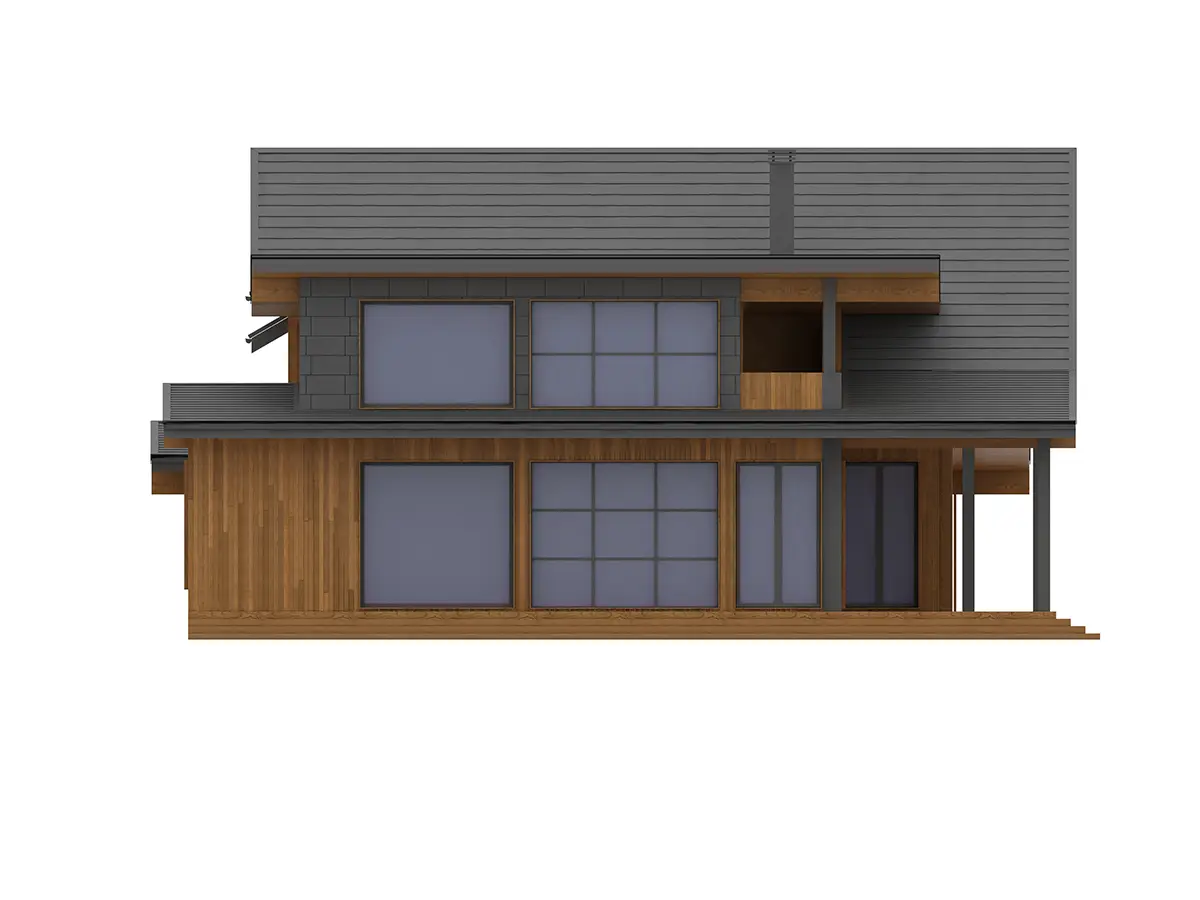

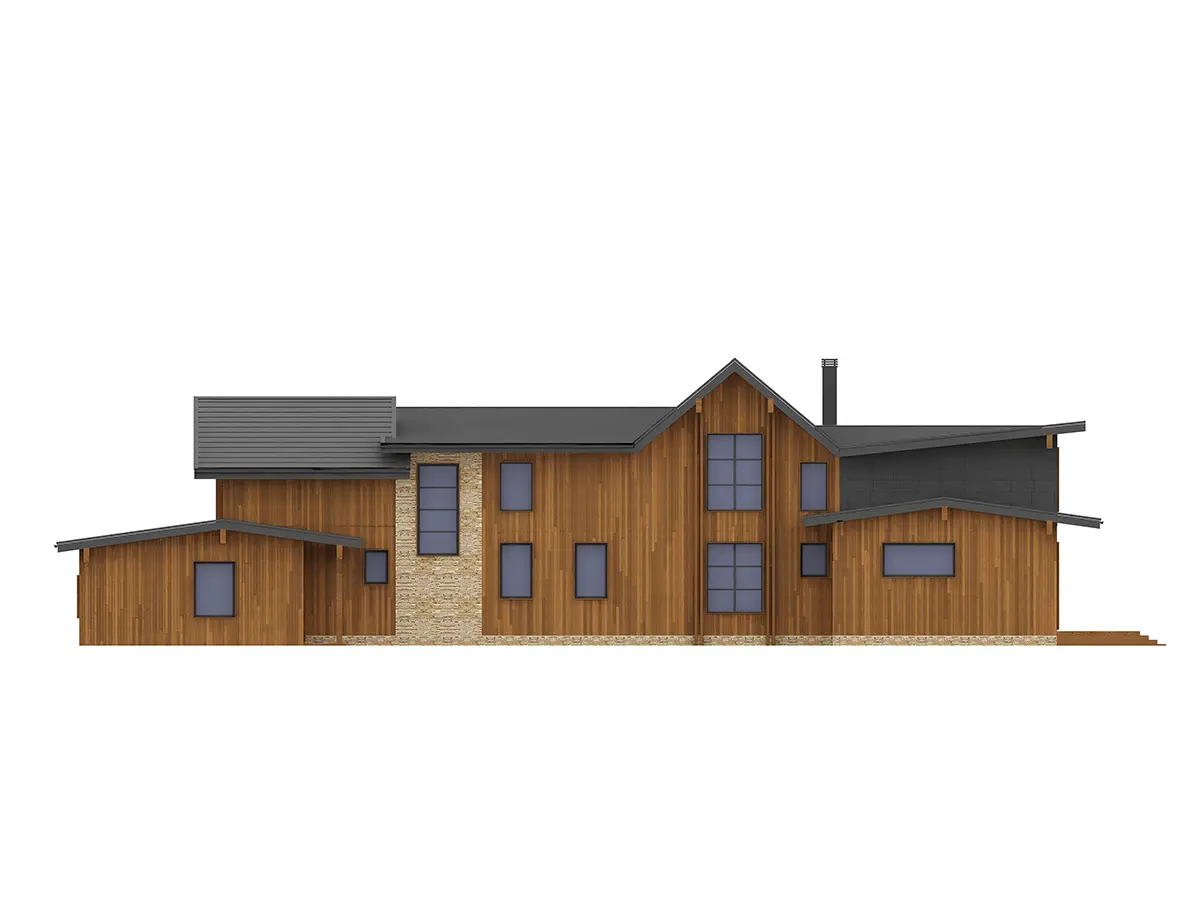

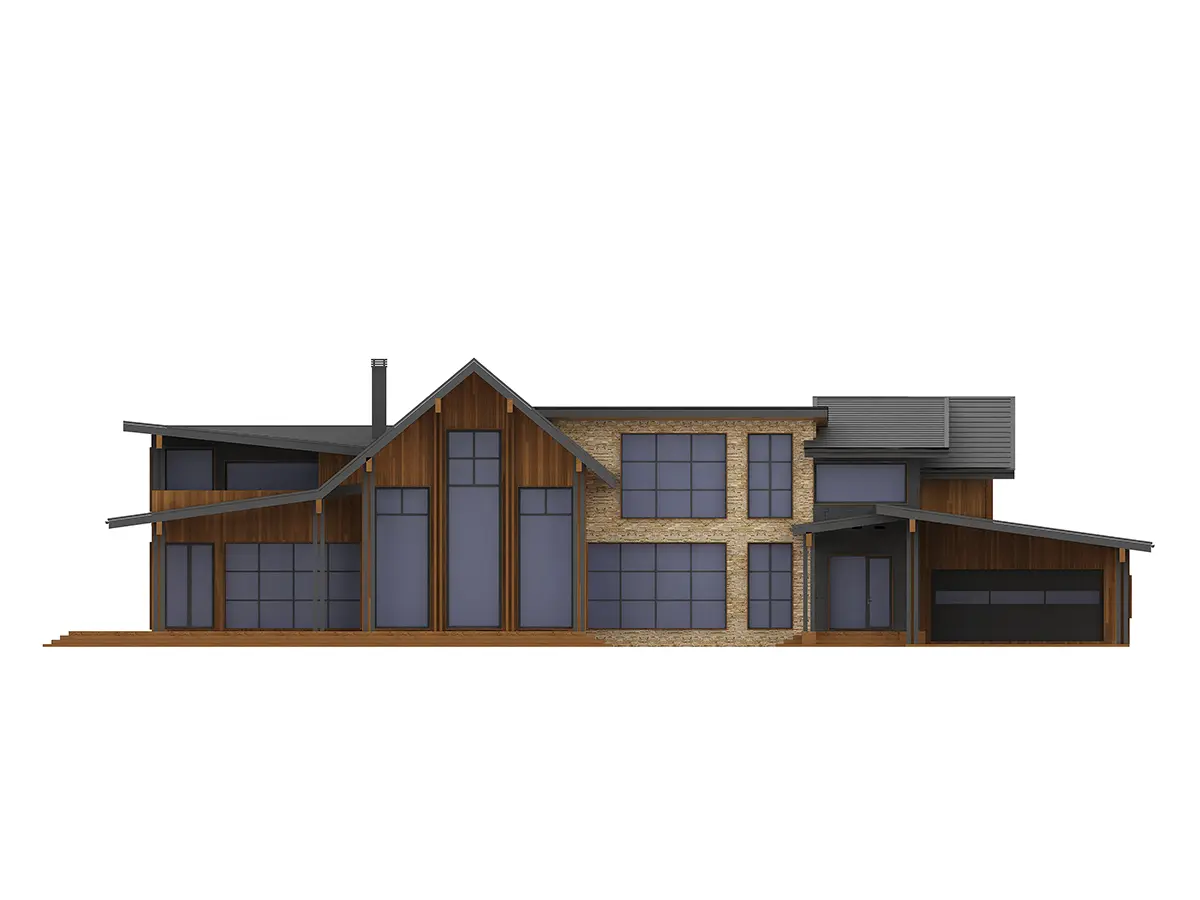

Plan 82647R is a 3-bedroom two-story mountain house plan with the scale and presence of a true mansion: 5,503 Sq Ft spread over two levels, a chalet and lake style exterior, and a hip & valley roof that breaks the large volume into calm, sheltering planes. Stone/brick veneer anchors the base while wood siding warms the upper walls, and the house measures 103'6" wide and 54'0" deep. Five full bathrooms, a two-car garage and a long list of leisure rooms make it a single-family home designed for a large household and frequent guests.

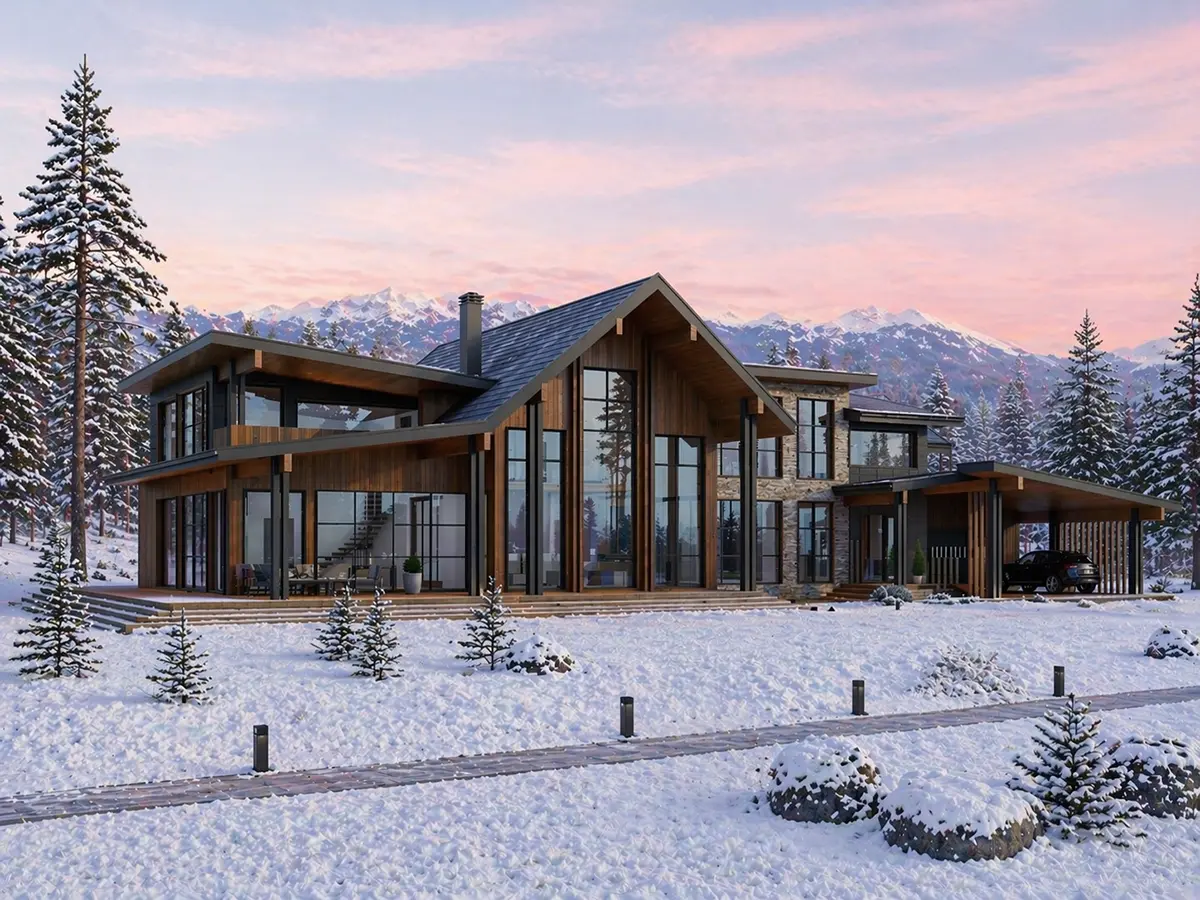

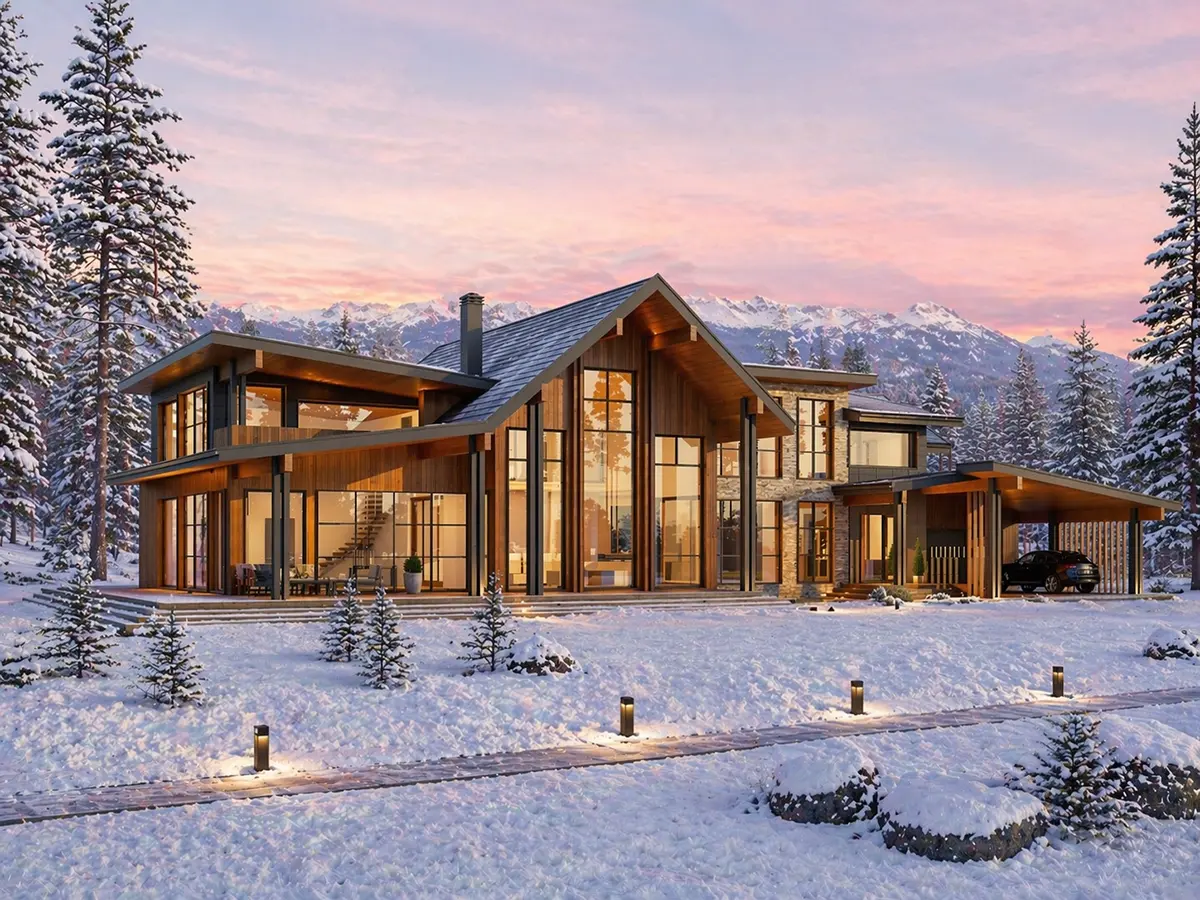

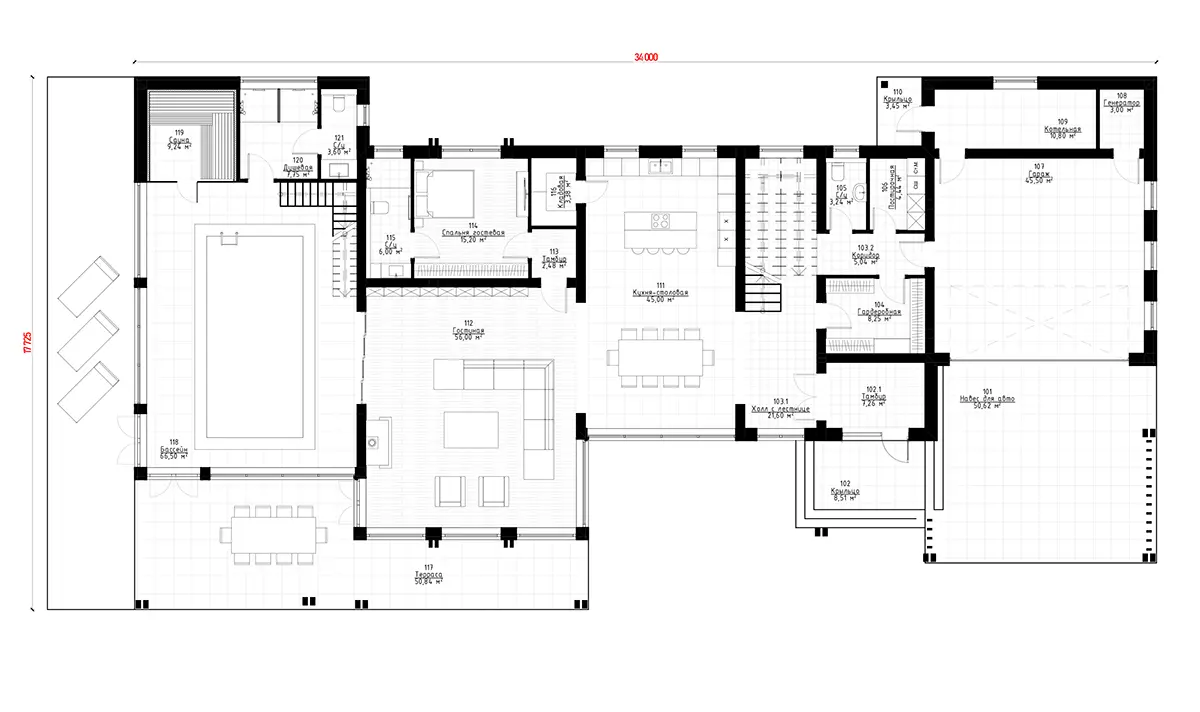

The entry leads into a closed floor plan, where each room keeps its own character instead of dissolving into one open space. The large family room is the heart of the main level, with a fireplace, vaulted ceilings and an open-to-below volume that links it visually with the second floor. Panoramic and floor-to-ceiling windows, along with a corner window, bring the surrounding landscape inside, and on a winter evening the hearth and the tall glass make the room feel both grand and sheltered. The large kitchen is built for real cooking and gatherings: a central island, a walk-in pantry for bulk storage and a breakfast nook for quick morning meals.

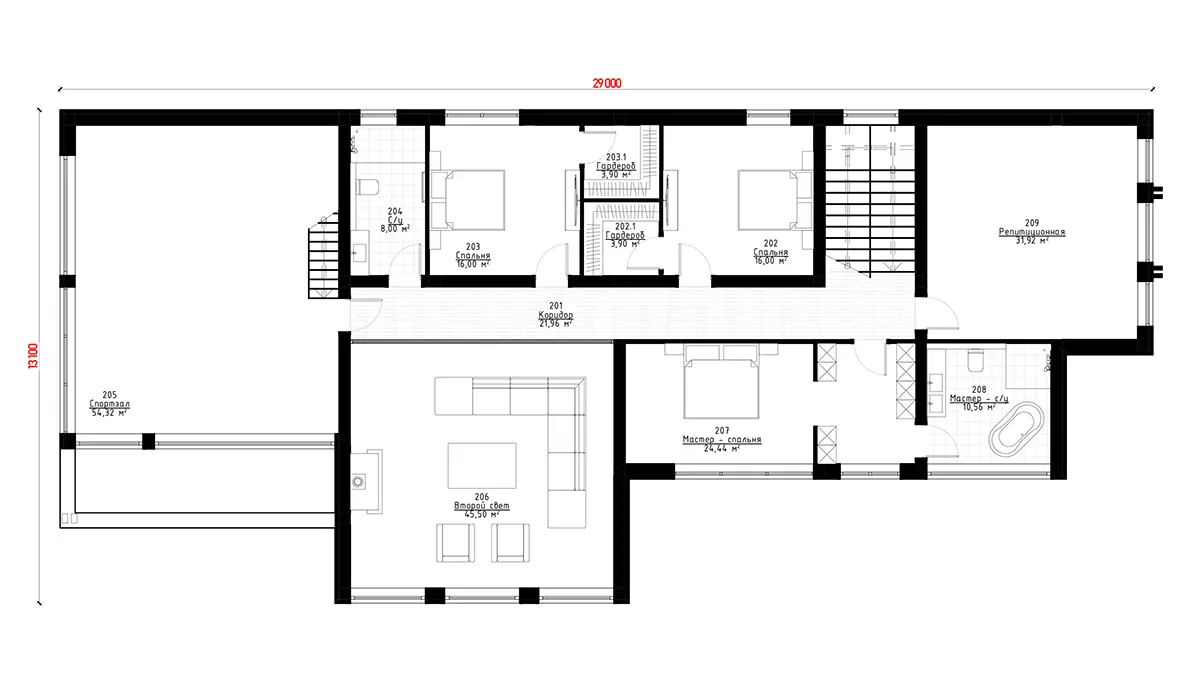

The bedrooms are clustered for a quiet sleeping wing, and the master suite sits on the second floor, with a walk-in closet. An in-law suite gives parents or long-staying guests their own comfortable quarters, and with five full bathrooms no one has to share. Practical spaces are well thought out: the laundry is on the main floor, close to daily life, and a separate utility room handles mechanical equipment and storage. For leisure, the plan adds an exercise room, a sauna, a game room and a pool, so fitness, relaxation and entertainment all stay at home.

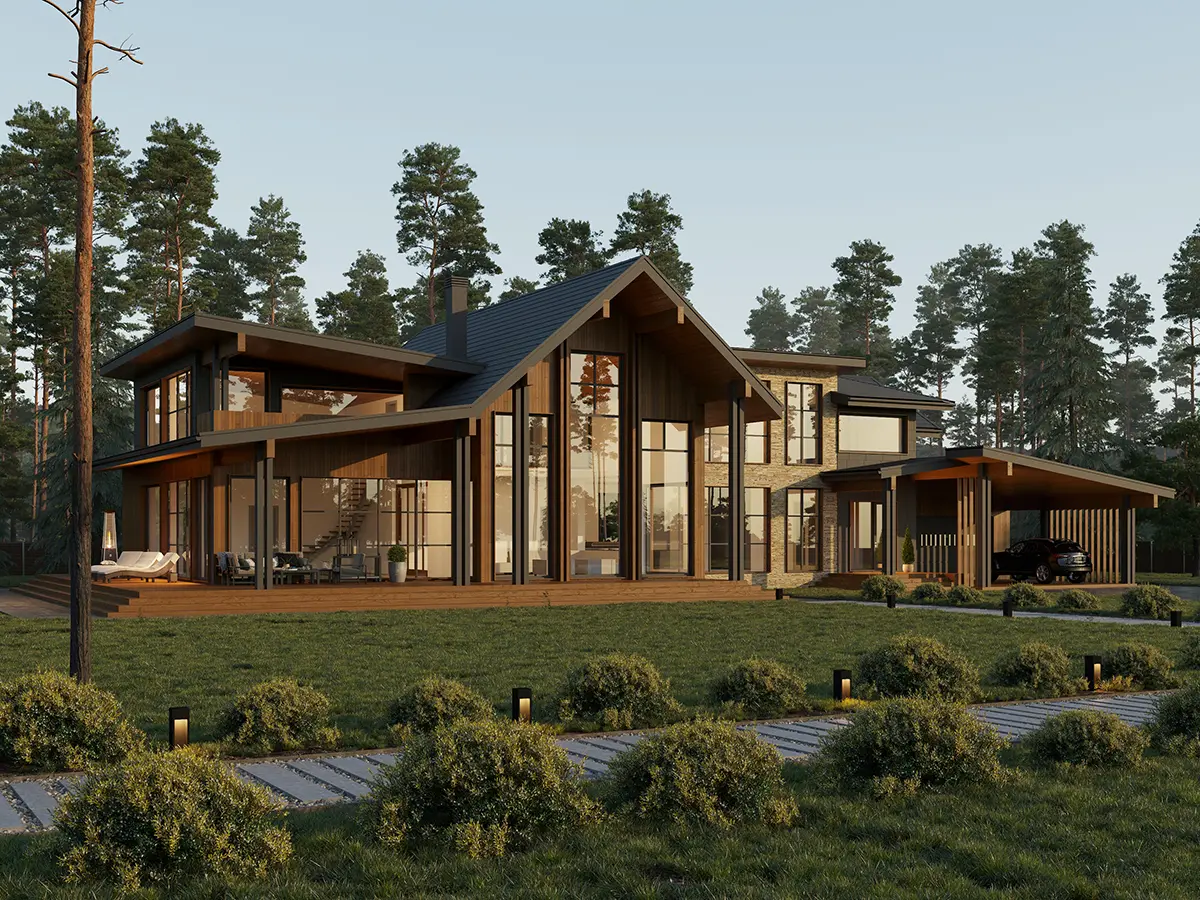

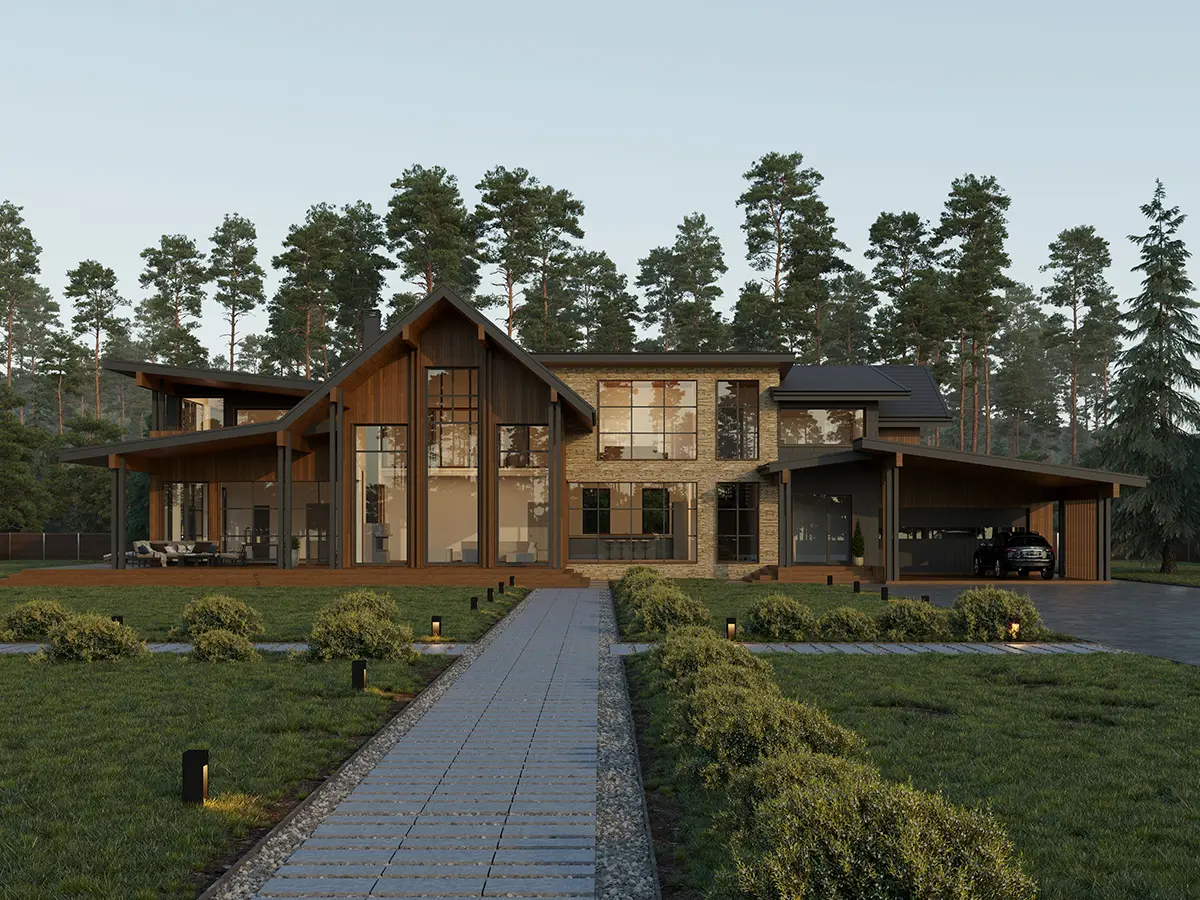

Outside, a covered front porch welcomes visitors and offers a sheltered place to sit, while the deck extends living into the open air for summer dinners and lake-view mornings. The front-entry two-car garage includes space upstairs that can serve as a hobby room or extra storage, and a carport provides additional covered parking for a boat trailer or a third vehicle. Built without a basement, this lake house plan keeps every amenity above grade, combining rustic mountain materials with the comfort of a refined year-round residence.
