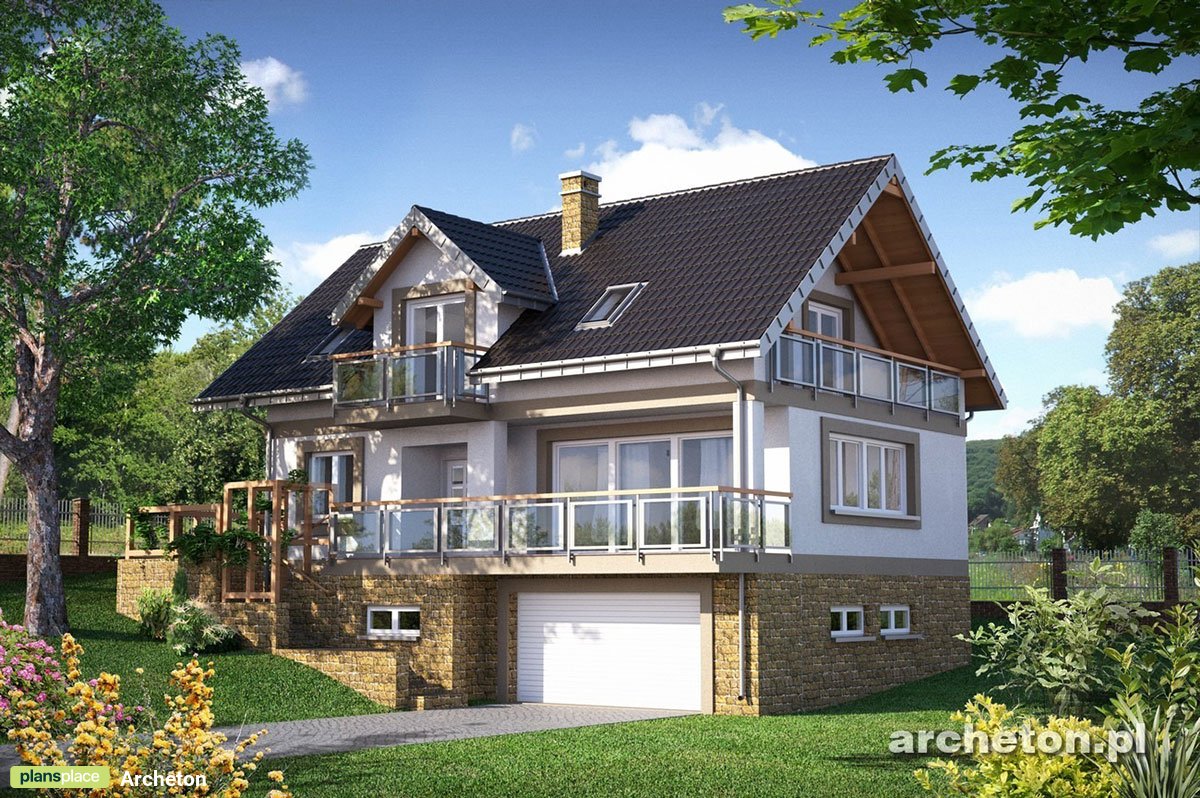

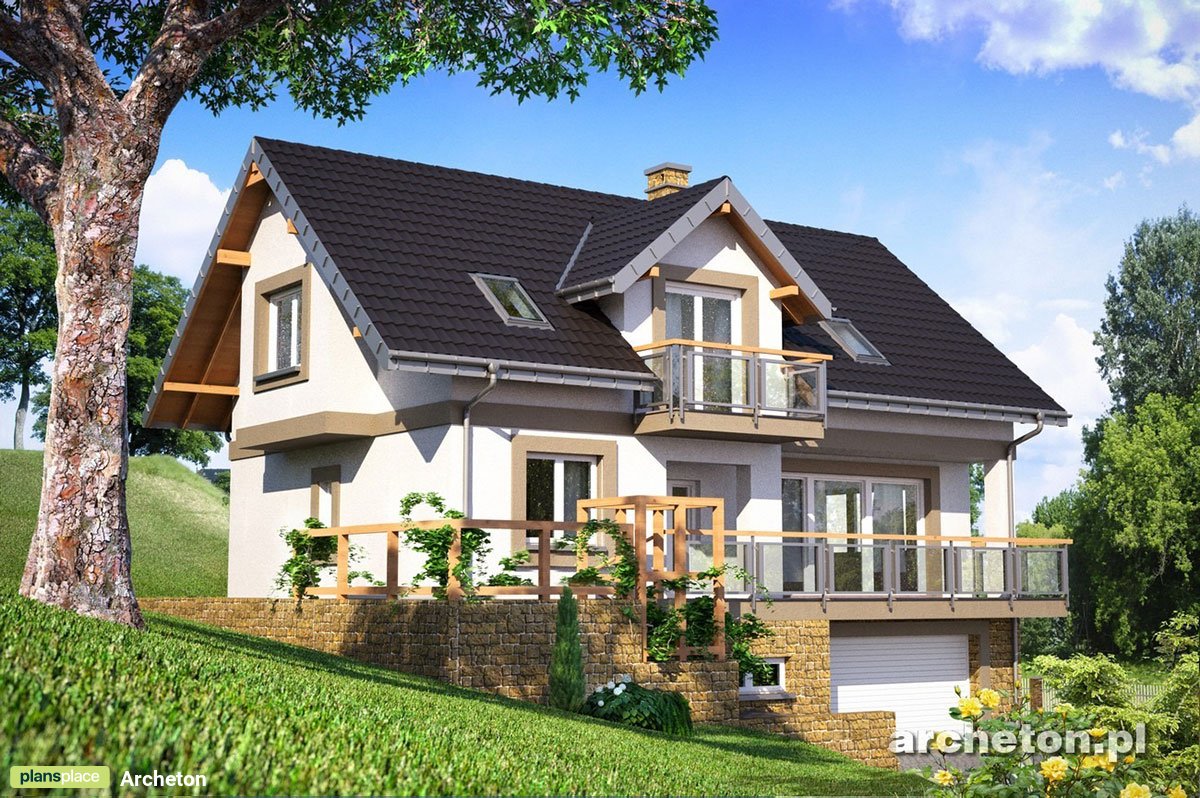

Sloped Lot House Plan with Walkout Basement and Garage
Sloped Lot House Plan with Walkout Basement and Garage Sloped Lot House Plan with Walkout Basement and Garage
5
Construction documents are prepared for the following countries:

Sloped Lot House Plan with Walkout Basement and Garage

Plan
30934R
Complete
Unsigned & Unsealed
DC None
Key Specs
155
Total Heated m²
3 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
2
Cars
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.


If you’d like to modify this plan by this foreign architect, you have two options:
Work directly with the original architect (if the language barrier isn’t an issue), then purchase a modified digital editable file (DGT Concept) and forward it to your local architect.
or
Purchase a DGT Concept from the original architect, send the file to your local architect, modify the plan together, and then order the construction documents.

Floor Plans

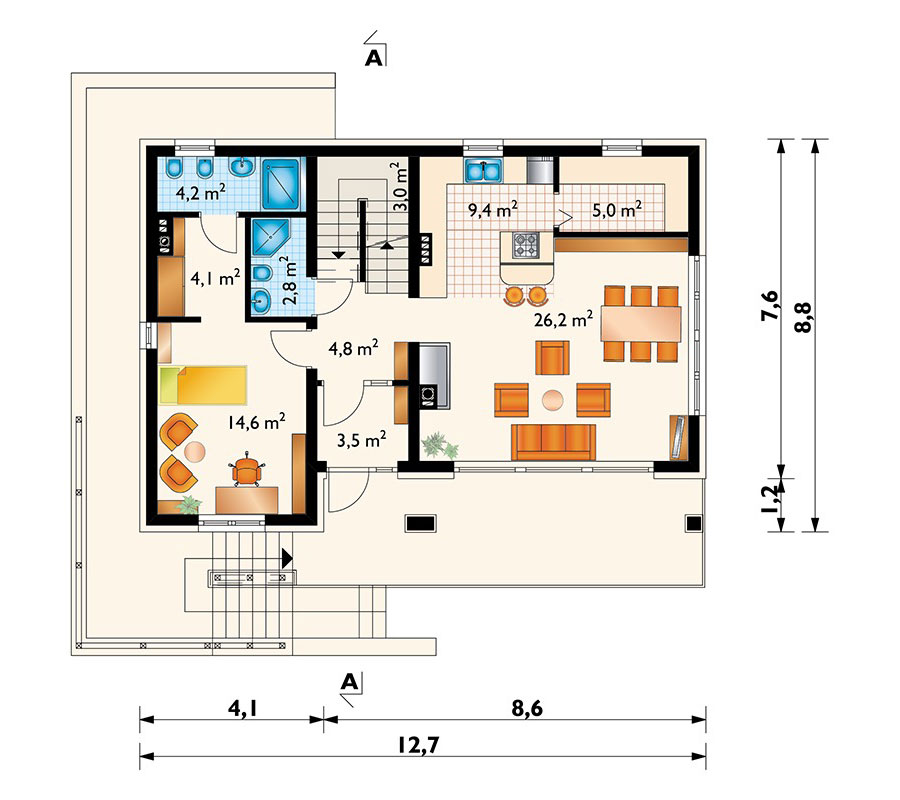

First Floor
30934R - First Floor

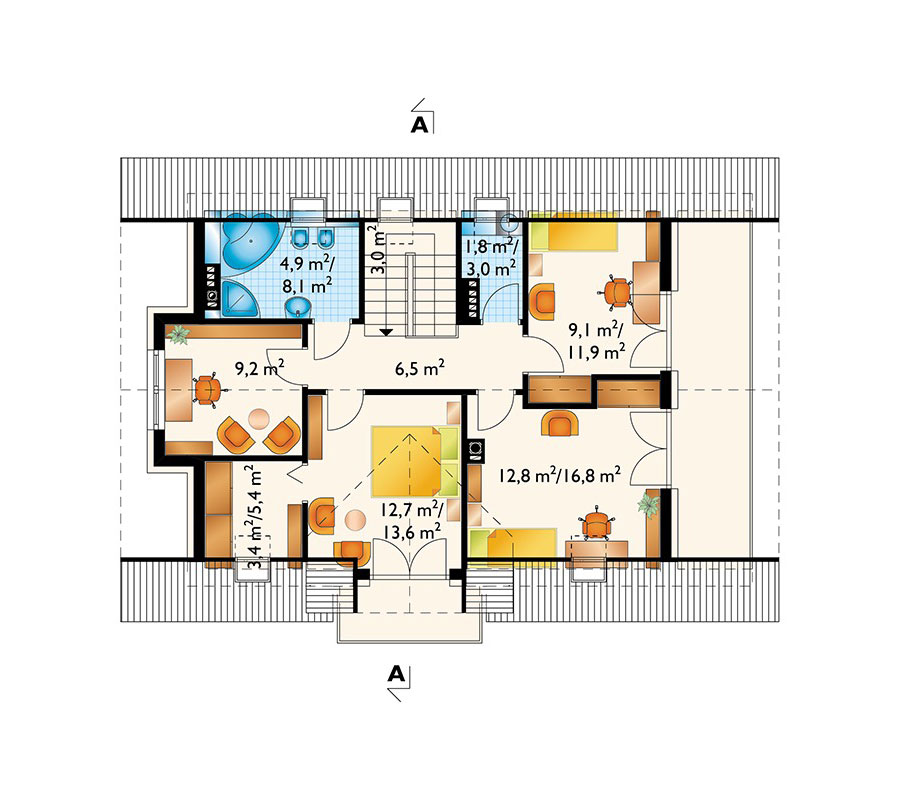

Second Floor
30934R - Second Floor

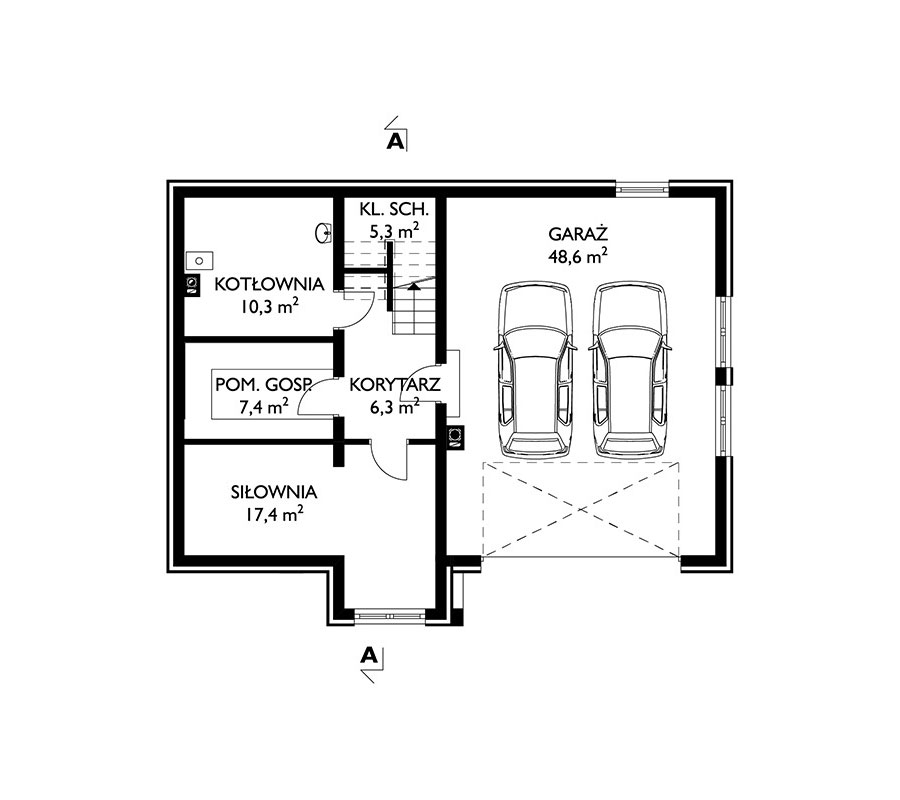

Basement
30934R - Basement
Full Specs & Features
Area
Total Heated: 155 m²
Total Unheated: 95 m²
Basement: 95 m²
Bonus: 0 m²
Dimensions
Depth 10.50 m
Width 13.60 m
Height 10.60 m
Exterior Wall Framing
Wood-framed
Ceramic Block
Aerated Concrete Block
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 3
Half bathrooms: 0
Bedrooms: 4
Furnace room
Exercise Room
Laundry
Entry
Home Office
Storage
In-Law Suite
Walk In Closet
Foundation
Daylight Basement
Architectural Style
European
Traditional
Exterior Features
Balcony
Wrap Around Porch
Deck
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Garage
9: 0 m²
Cars: 2
Drive Under
Front Entry
Roof
Roof Area: 2303.48m²
Gable
Skylight
Dormer
Ridge parallel to street
Roof Pitch: 10/12 (40°)
Architect
Archeton Archeton Architecture Firm country with code pl Poland
country with code pl Poland
Lesser Poland Voivodeship, Kraków, ul. Cystersów 9 31-553
+48122950577
https://archeton.pl/
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell DGT files or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.
