Narrow Lot House Plan with Gable Roof and 4 Bedrooms
Narrow Lot House Plan with Gable Roof and 4 Bedrooms Narrow Lot House Plan with Gable Roof and 4 Bedrooms
7
Construction documents are prepared for the following countries:

Narrow Lot House Plan with Gable Roof and 4 Bedrooms

Plan
41450R
Complete
Unsigned & Unsealed
DC None
Key Specs
111
Total Heated m²
2 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
0
Cars
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

If you would like to modify this house plan, you have two options:

1. Modifications by the Original Architect: Work directly with the original architect to purchase a modified digital concept, then forward it to your local architect to order the construction documents.

2. Modifications by Your Local Architect: Purchase the digital concept as-is, work with your local architect to make changes, and then proceed with ordering the construction documents.

Video
Floor Plans

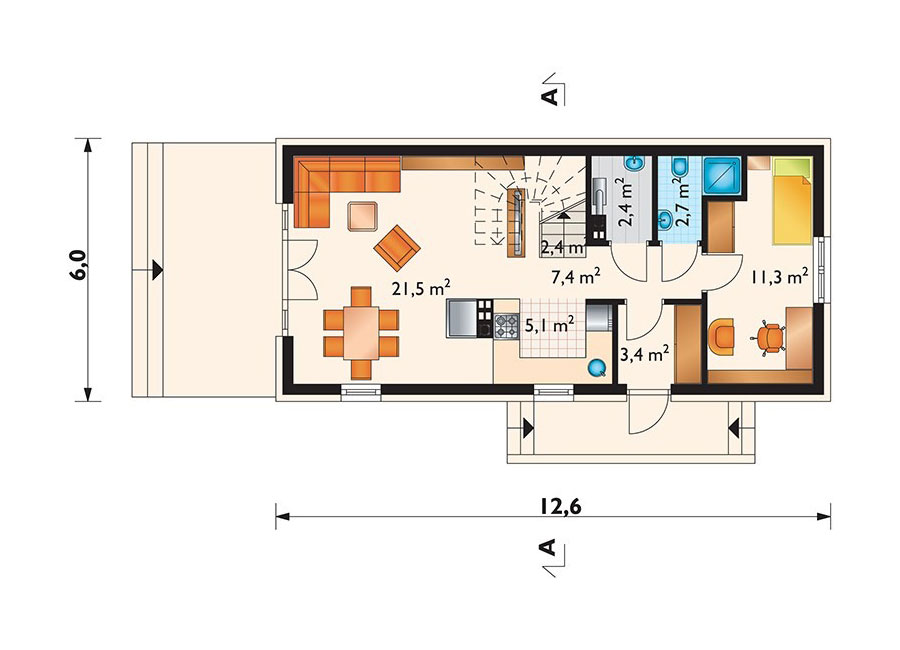

First Floor
41450R - First Floor

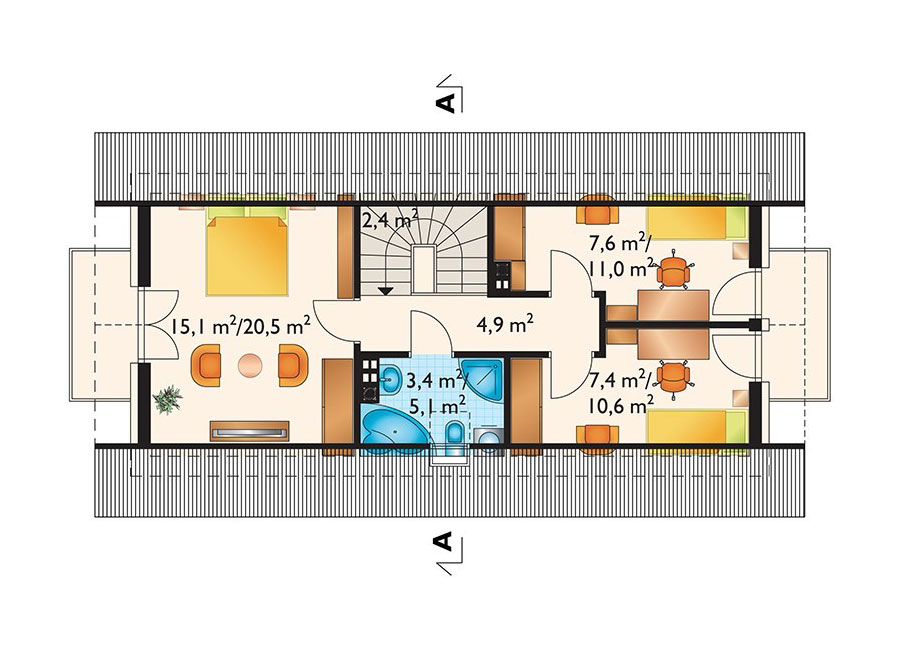

Second Floor
41450R - Second Floor
Full Specs & Features
Area
Total Heated: 111 m²
Total Unheated: 0 m²
Basement: 0 m²
Bonus: 0 m²
Dimensions
Depth 6.00 m
Width 12.60 m
Height 7.50 m
Exterior Wall Framing
Ceramic Block
Aerated Concrete Block
Exterior Wall Materials
Wood
Stucco
Rooms
Full bathrooms : 2
Half bathrooms : 0
Bedrooms : 4
Furnace room
Entry
Foundation
Slab
Concrete Stem Wall
Architectural Style
European
Lake
Mountain
Traditional
Transitional
Exterior Features
Balcony
Deck
Interior Features
Fireplace in Family Room
Split Bedrooms
Open Floor Plan
Kitchen and Dining
Breakfast Nook
Garage
9: 0 m²
Cars: 0
Roof
Roof Area: 1496.18m²
Gable
Skylight
Ridge parallel to street
Roof Pitch : 10/12 (40°)
Architect
Archeton Archeton Architecture Firm country with code pl Poland
country with code pl Poland
Lesser Poland Voivodeship, Kraków, ul. Cystersów 9 31-553
+48122950577
https://archeton.pl/
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell digital concept or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.
