2300 Sq Ft House Plan with Four Gables and Garage
2300 Sq Ft House Plan with Four Gables and Garage 2300 Sq Ft House Plan with Four Gables and Garage
6
Construction documents are prepared for the following countries:

2300 Sq Ft House Plan with Four Gables and Garage

Plan
59133R
Complete
Unsigned & Unsealed
CAD None
Key Specs
216
Total Heated m²
3 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
2
Cars
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.


If you’d like to modify this plan by this foreign architect, you have two options:
Work directly with the original architect (if the language barrier isn’t an issue), then purchase a modified digital editable file (CAD Concept) and forward it to your local architect.
or
Purchase a CAD Concept from the original architect, send the file to your local architect, modify the plan together, and then order the construction documents.

Video
Floor Plans
First Floor

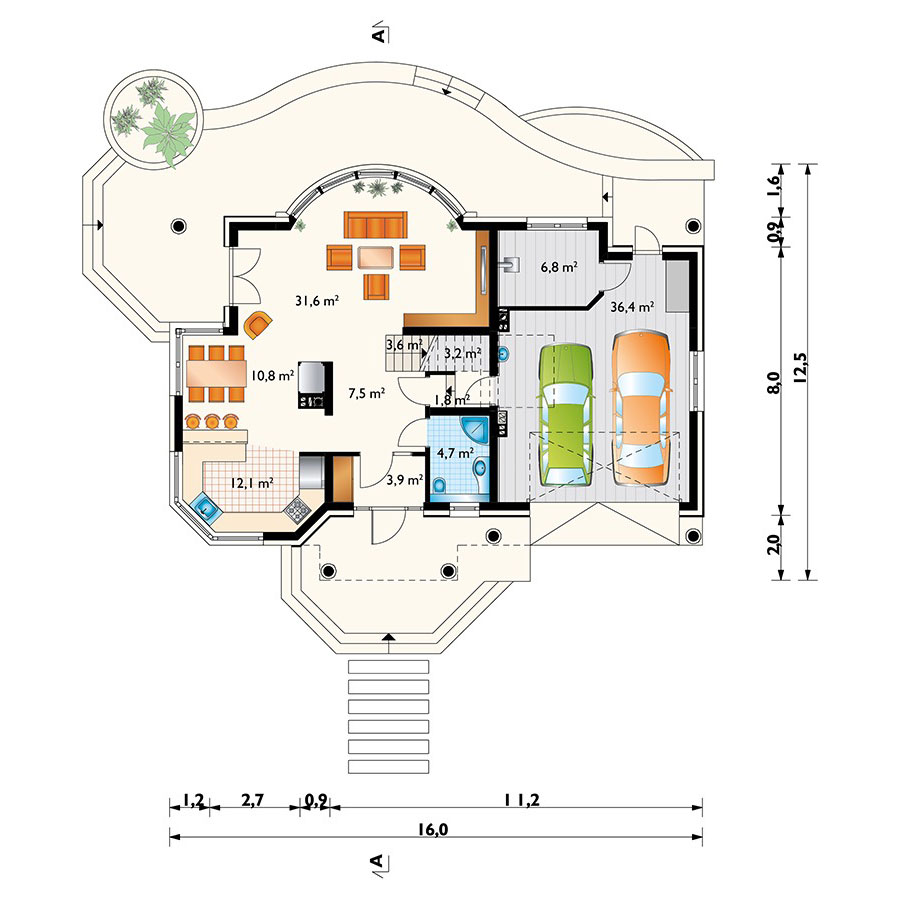

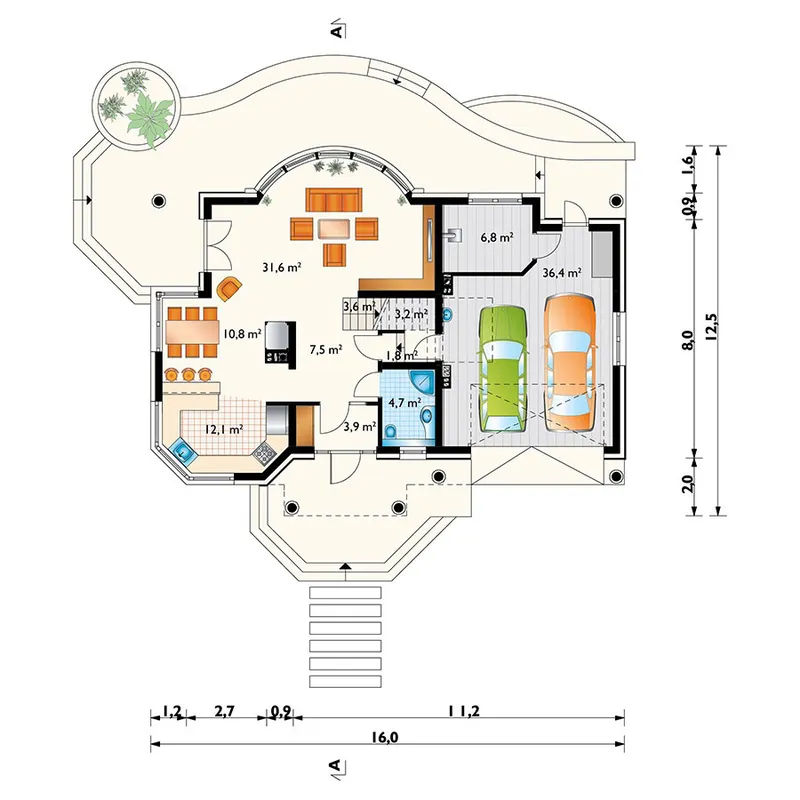

59133R - First Floor
Second Floor

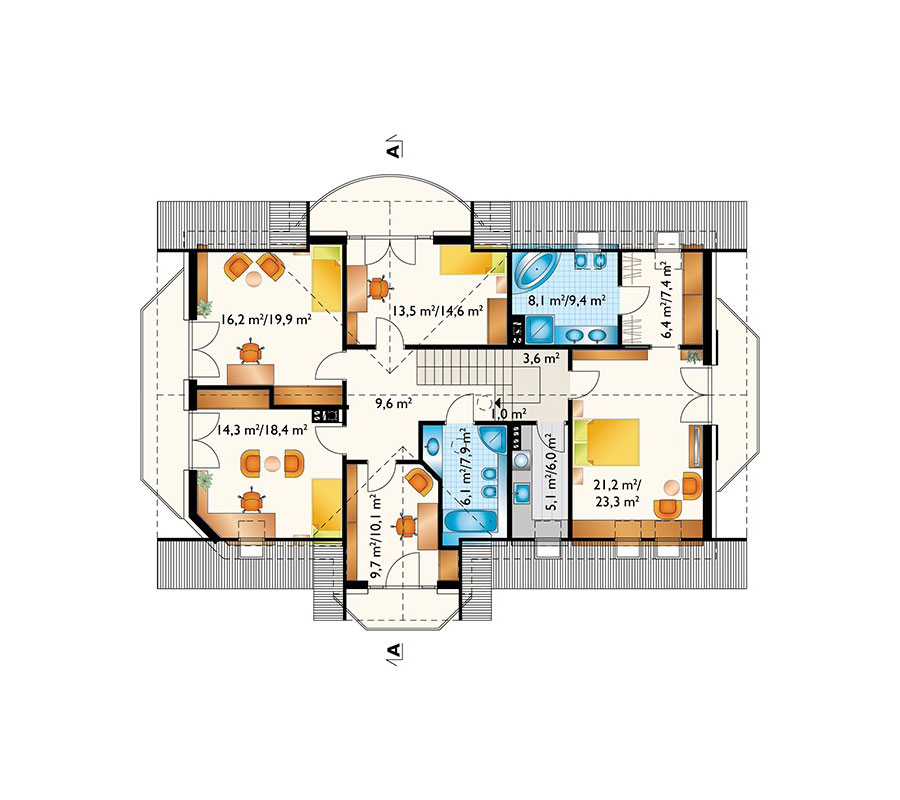

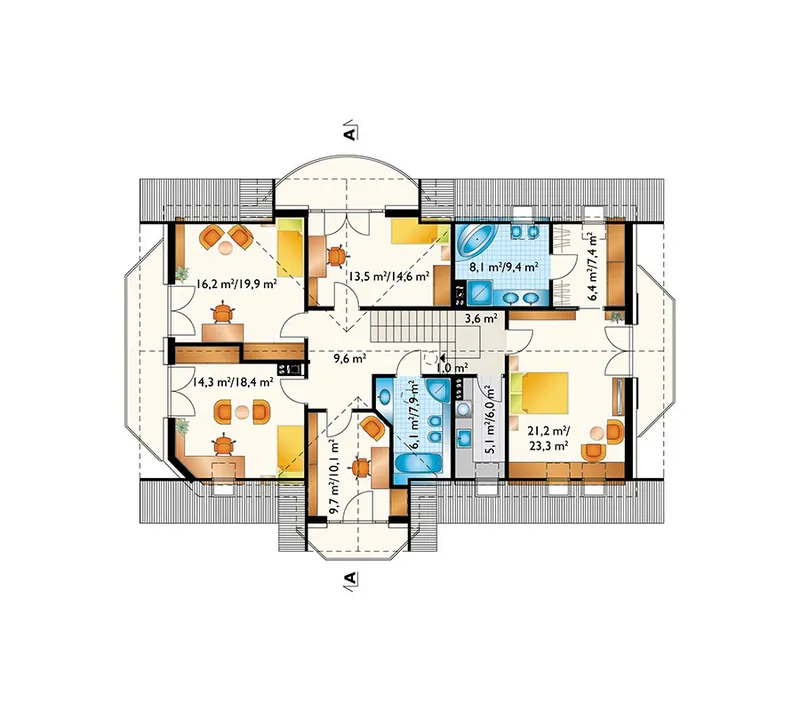

59133R - Second Floor
Full Specs & Features
Area
Total Heated: 216 m²
Total Unheated: 36 m²
Basement: 0 m²
Bonus: 0 m²
Dimensions
Depth 12.50 m
Width 16.00 m
Height 9.10 m
Exterior Wall Framing
Wood-framed
Ceramic Block
Aerated Concrete Block
Exterior Wall Materials
Wood
Stucco
Rooms
Full bathrooms: 3
Half bathrooms: 0
Bedrooms: 4
Furnace room
Laundry
Entry
Home Office
Storage
Walk In Closet
Foundation
Slab
Concrete Stem Wall
Architectural Style
Classical
European
Greek Revival
Traditional
Exterior Features
Balcony
Deck
Bay Window
Portico
Corner Window
Large Windows
Floor-to-Ceiling Windows
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Split Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Kitchen and Dining
Breakfast bar
Breakfast Nook
Corner Window
Garage
9: 36 m²
Cars: 2
Garage with Upstairs
Front Entry
Roof
Roof Area: 3003.13m²
Gable
Skylight
Dormer
Ridge parallel to street
Roof Pitch: 11/12 (43°)
Architect
Archeton Archeton Architecture Firm country with code pl Poland
country with code pl Poland
Lesser Poland Voivodeship, Kraków, ul. Cystersów 9 31-553
+48122950577
https://archeton.pl/
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell CAD files or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.
