2-Story Flat Roof House Plan with Basement Garage
2-Story Flat Roof House Plan with Basement Garage 2-Story Flat Roof House Plan with Basement Garage
9
Construction documents are prepared for the following countries:

2-Story Flat Roof House Plan with Basement Garage

Plan
77478R
Complete
Unsigned & Unsealed
DC None
Key Specs
116
Total Heated m²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
2
Cars
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.


If you’d like to modify this plan by this foreign architect, you have two options:
Work directly with the original architect (if the language barrier isn’t an issue), then purchase a modified digital editable file (DGT Concept) and forward it to your local architect.
or
Purchase a DGT Concept from the original architect, send the file to your local architect, modify the plan together, and then order the construction documents.

Floor Plans

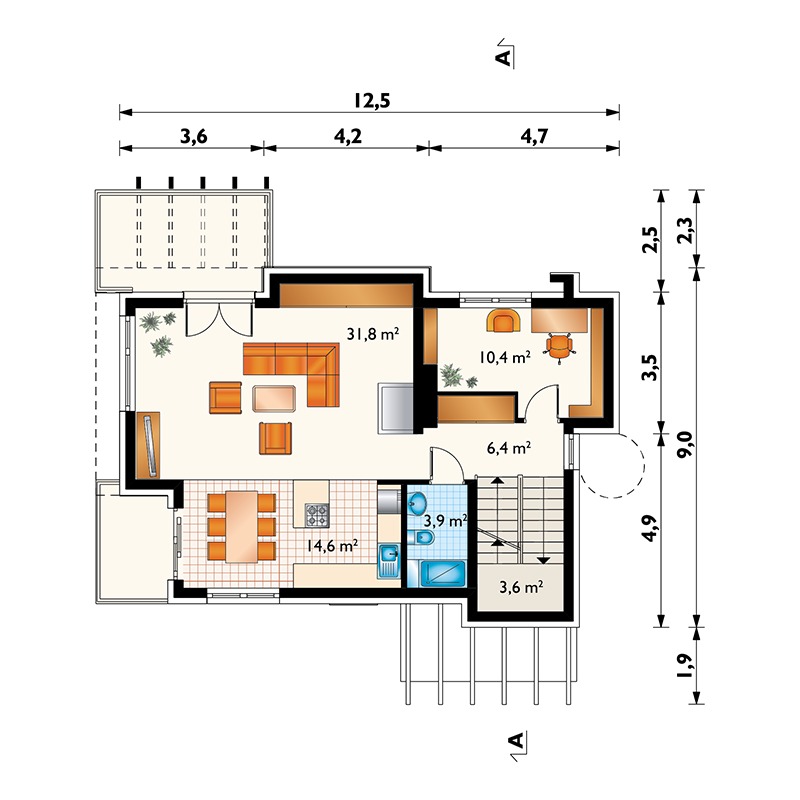

First Floor
77478R - First Floor

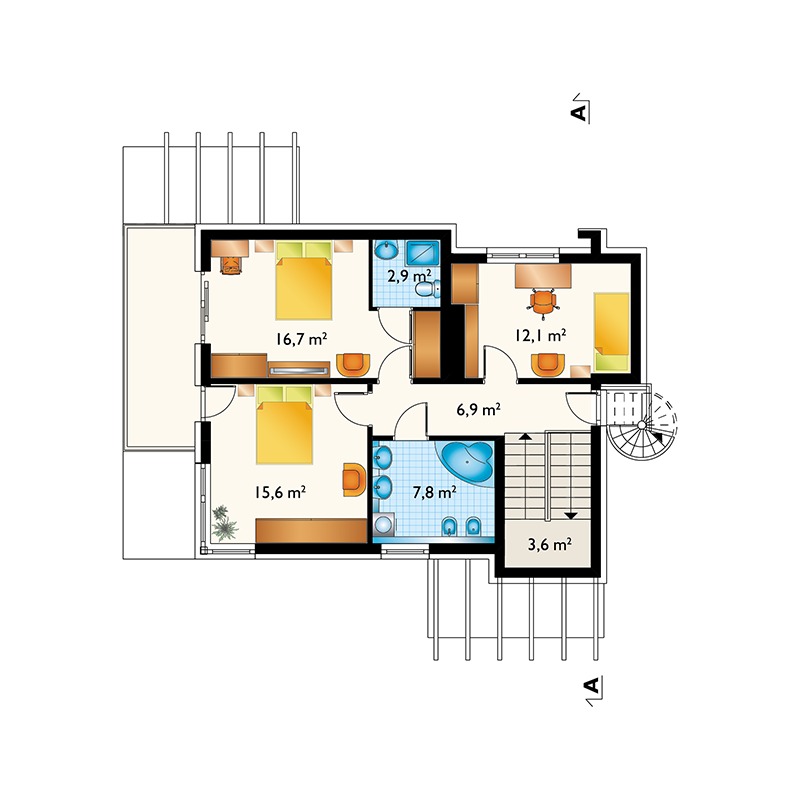

Second Floor
77478R - Second Floor
Basement
77478R - Basement
Full Specs & Features
Area
Total Heated: 116 m²
Total Unheated: 86 m²
Basement: 66 m²
Bonus: 0 m²
Dimensions
Depth 9.00 m
Width 12.50 m
Height 8.50 m
Exterior Wall Framing
Ceramic Block
Aerated Concrete Block
Exterior Wall Materials
Wood
Stucco
Rooms
Full bathrooms: 3
Half bathrooms: 0
Bedrooms: 3
Furnace room
Entry
Home Office
Foundation
Daylight Basement
Architectural Style
Contemporary
European
Mediterranean
Minimalism
Modern
Exterior Features
Balcony
Large Windows
Floor-to-Ceiling Windows
Interior Features
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Kitchen and Dining
Breakfast Nook
Island
Garage
9: 21 m²
Cars: 2
Drive Under
Front Entry
Roof
Roof Area: 710.42m²
Flat
Roof Pitch: 1/12 (5°)
Architect
Archeton Archeton Architecture Firm country with code pl Poland
country with code pl Poland
Lesser Poland Voivodeship, Kraków, ul. Cystersów 9 31-553
+48122950577
https://archeton.pl/
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell DGT files or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.
