House Plan with 3 Bedrooms on Second Floor and 1-Car Garage
House Plan with 3 Bedrooms on Second Floor and 1-Car Garage House Plan with 3 Bedrooms on Second Floor and 1-Car Garage
6
Construction documents are prepared for the following countries:

House Plan with 3 Bedrooms on Second Floor and 1-Car Garage

Plan
99613R
Complete
Unsigned & Unsealed
CAD None
Key Specs
160
Total Heated m²
2 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
1
Cars
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.


If you’d like to modify this plan by this foreign architect, you have two options:
Work directly with the original architect (if the language barrier isn’t an issue), then purchase a modified digital editable file (CAD Concept) and forward it to your local architect.
or
Purchase a CAD Concept from the original architect, send the file to your local architect, modify the plan together, and then order the construction documents.

Video
Floor Plans

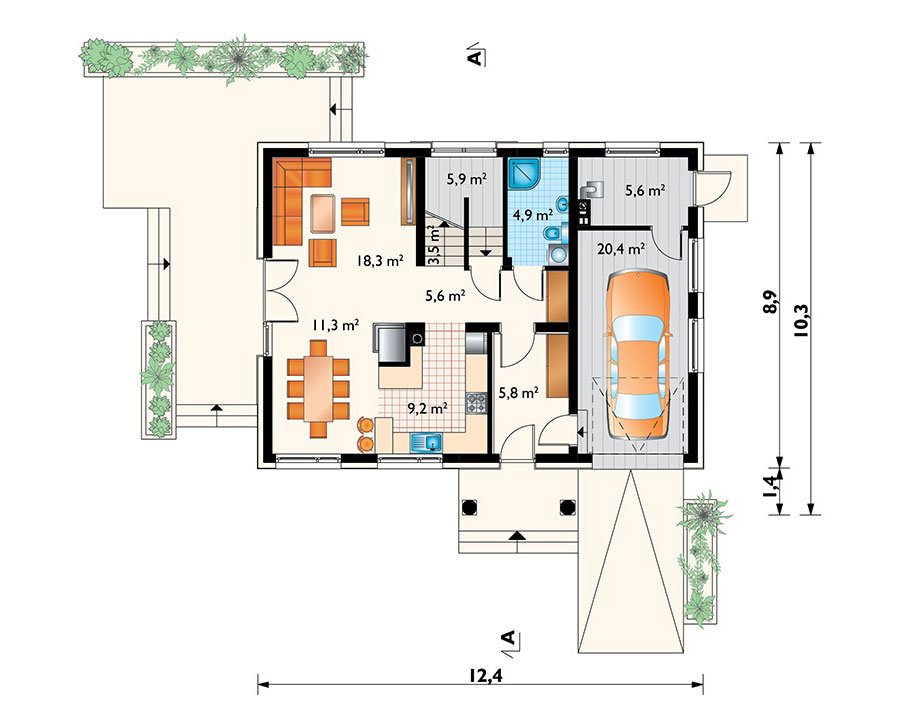

First Floor
99613R - First Floor

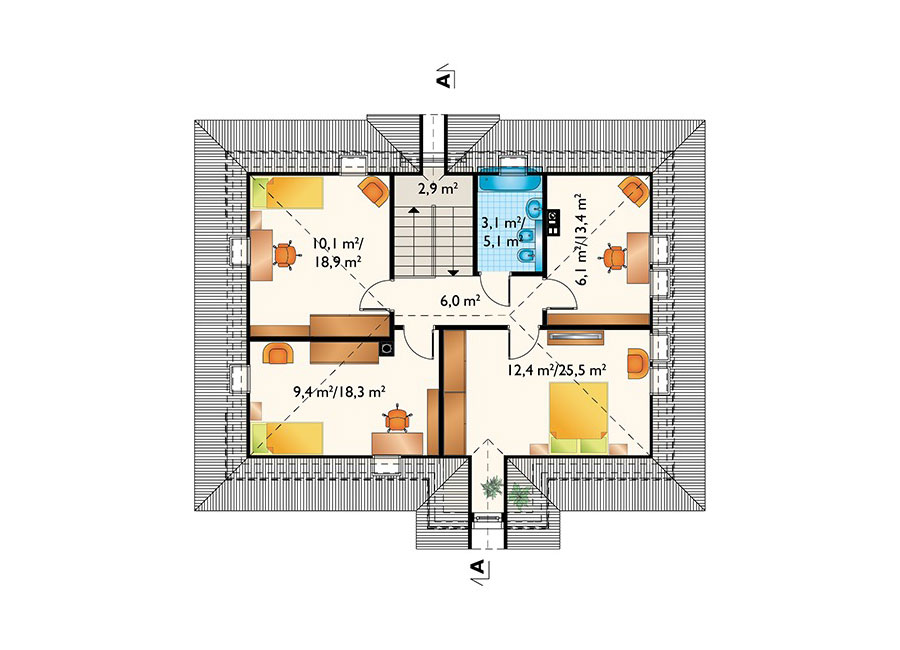

Second Floor
99613R - Second Floor
Full Specs & Features
Area
Total Heated: 160 m²
Total Unheated: 19 m²
Basement: 0 m²
Bonus: 0 m²
Dimensions
Depth 10.30 m
Width 12.40 m
Height 7.90 m
Exterior Wall Framing
Ceramic Block
Aerated Concrete Block
Exterior Wall Materials
Wood
Stucco
Rock/Stone
Rooms
Full bathrooms: 2
Half bathrooms: 0
Bedrooms: 3
Furnace room
Entry
Home Office
Storage
Foundation
Slab
Concrete Stem Wall
Architectural Style
Classical
Cottage
European
Greek Revival
Traditional
Exterior Features
Covered Front Porch
Deck
Portico
Interior Features
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Closed Floor Plan
Kitchen and Dining
Breakfast bar
Breakfast Nook
Garage
9: 19 m²
Cars: 1
Garage with Upstairs
Front Entry
Roof
Roof Area: 1991.32m²
Hip
Ridge parallel to street
Roof Pitch: 9/12 (37°)
Architect
Archeton Archeton Architecture Firm country with code pl Poland
country with code pl Poland
Lesser Poland Voivodeship, Kraków, ul. Cystersów 9 31-553
+48122950577
https://archeton.pl/
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell CAD files or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.
