House Plan: 1588 ft², 1.5 Stories, 3 Beds, 2.5 Baths, 1-Car Garage
House Plan: 1588 ft², 1.5 Stories, 3 Beds, 2.5 Baths, 1-Car Garage House Plan: 1588 ft², 1.5 Stories, 3 Beds, 2.5 Baths, 1-Car Garage
6
Construction documents are prepared for the following countries:

House Plan: 1588 ft², 1.5 Stories, 3 Beds, 2.5 Baths, 1-Car Garage

Plan
40639R
Complete
Unsigned & Unsealed
DC Available
Key Specs
1588
Total Heated ft²
2 + 1
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars
United States Canada
Architectural (A)

Front Perspective

Detailed Floor Plans

Roof Plans

House And Detail Cross-Sections

Exterior Elevations

Structural (S)

Foundation and Basement

Standard Construction Details

Electrical (E)

Electrical Plan

Architectural (A)

Front Perspective

Detailed Floor Plans

Roof Plans

House And Detail Cross-Sections

Exterior Elevations

Structural (S)

Foundation and Basement

Standard Construction Details

Electrical (E)

Electrical Plan

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

If you would like to modify this house plan, you have two options:

1. Modifications by the Original Architect: Work directly with the original architect to purchase a modified digital concept, then forward it to your local architect to order the construction documents.

2. Modifications by Your Local Architect: Purchase the digital concept as-is, work with your local architect to make changes, and then proceed with ordering the construction documents.

Floor Plans

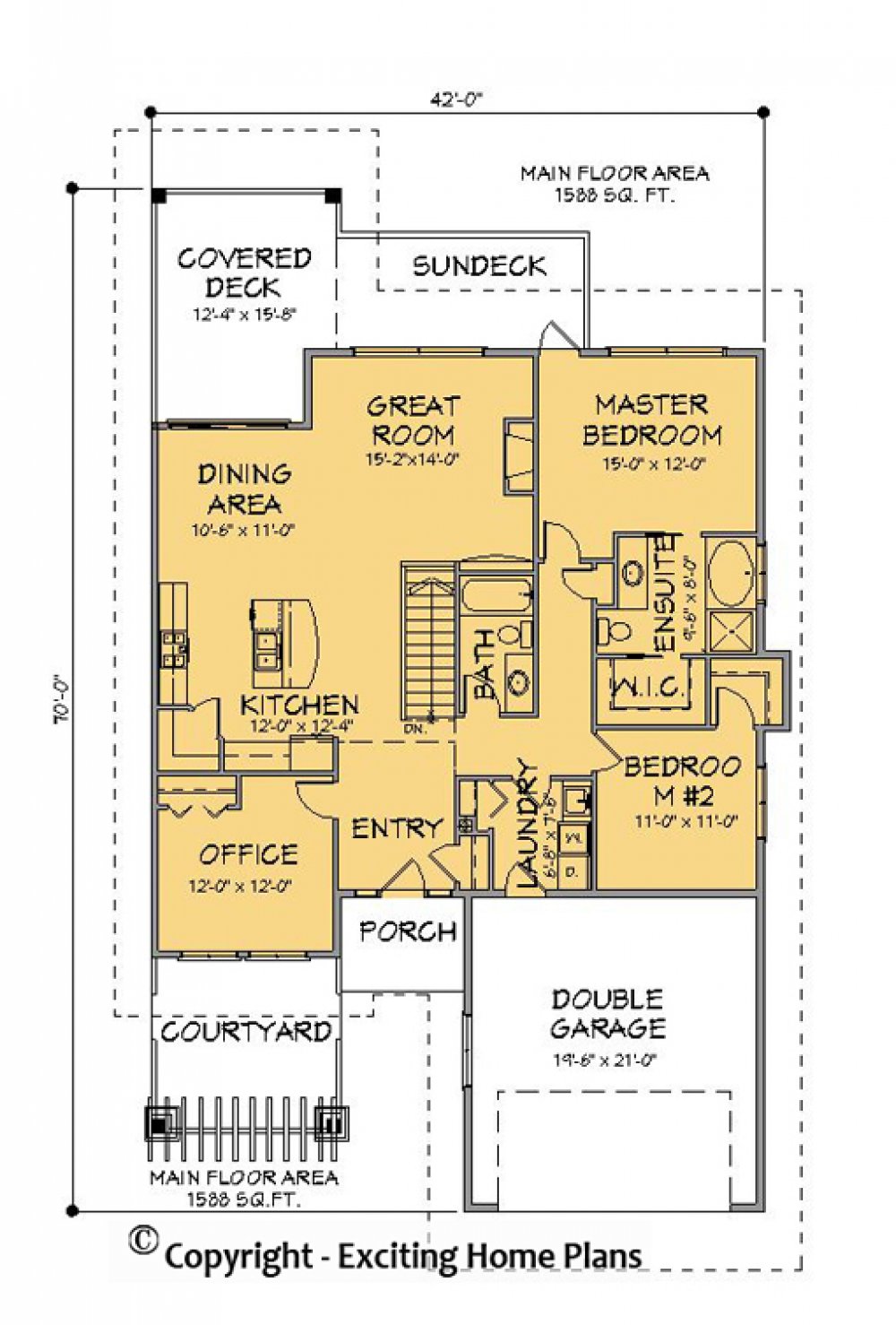

First Floor
40639R - First Floor

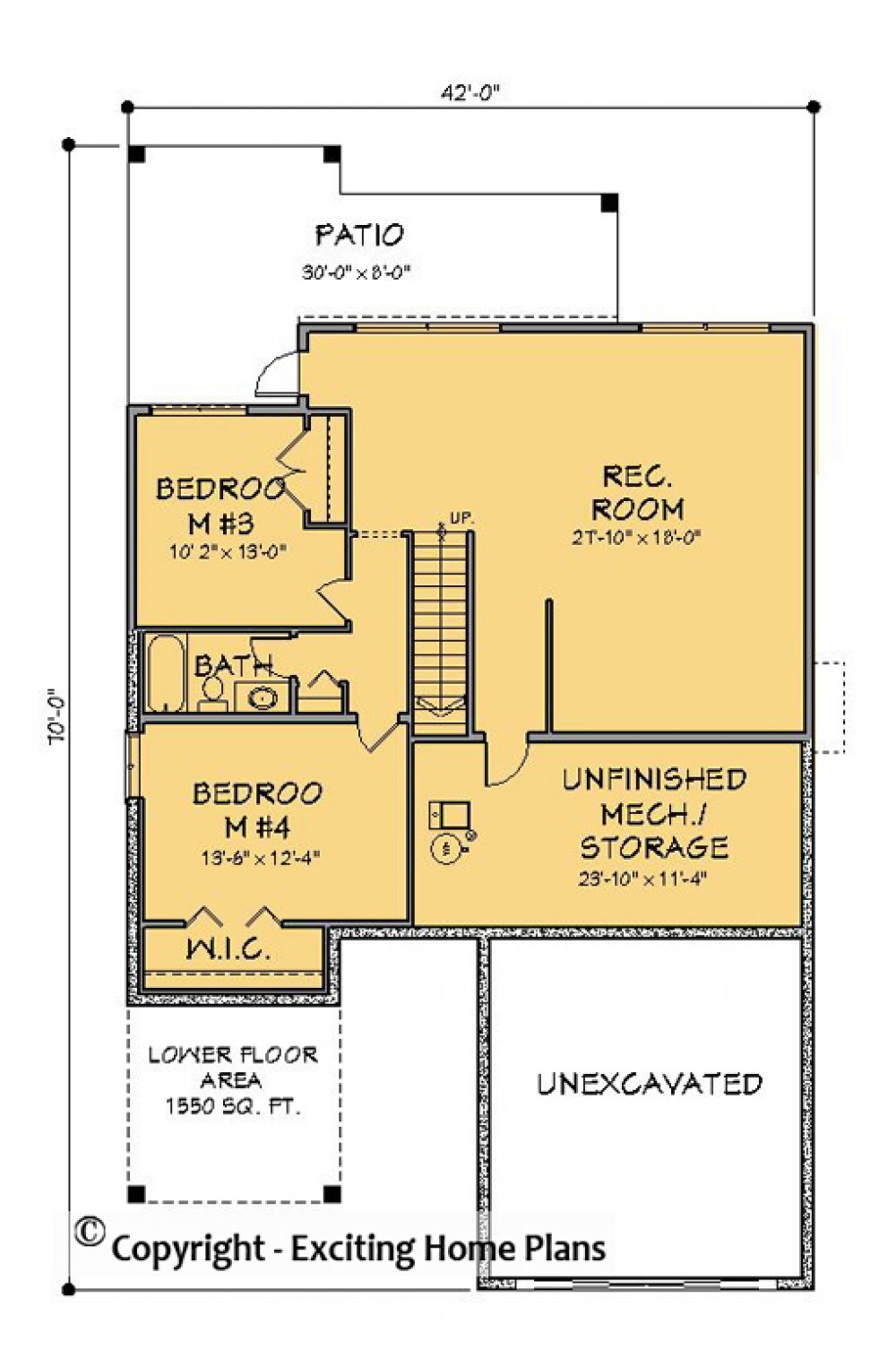

Basement
40639R - Basement
Full Specs & Features
Area
First Floor: 1588 ft²
Second Floor: 0 ft²
Third Floor: 0 ft²
Basement: 1211 ft²
Bonus: 0 ft²
Total Structure: 3219 ft²
Total Heated: 1588 ft²
Dimensions
Depth 70'0" ft
Width 42'0" ft
Exterior Wall Framing
Wood-framed
Exterior Wall Materials
Siding
Stucco
Rock/Stone
Rooms
Full bathrooms : 2
Half bathrooms : 1
Bedrooms : 3
Exercise Room
Laundry
Media Room
Foundation
Walkout Basement
Garage
9: 420 ft²
Cars: 1
Roof
Roof Area: 0.00ft²
Architect
Exciting Home Plans Exciting Home Plans Architecture Firm country with code ca Canada
country with code ca Canada
British Columbia, Vancouver
+18885436668
https://www.excitinghomeplans.com/
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept Delete key
$300
Subtotal
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
