If you want to buy a plan from a foreign architect, you have two options:
1. You finalize the plan with its architect (if the language barrier is not a problem), and then buy a modified electronic editable file (CAD Concept) to forward it to your local architect.
2. Buy a CAD Concept from the plan architect, forward the file to your local architect, modify the plan with them, and order the construction documents.
You can choose a local architect in the recommendations on this page on the right below or on the Architects page. If there are no architects from your country on Plansplace, use your local websites to find one.

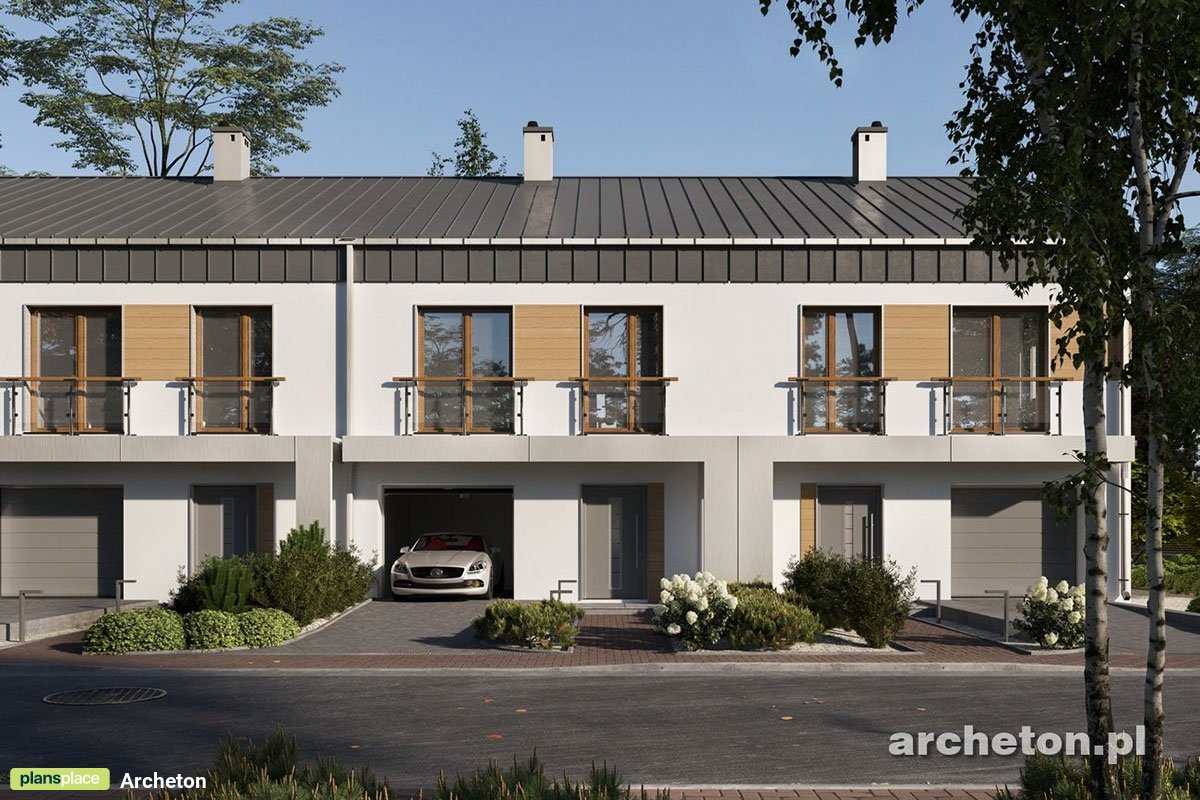

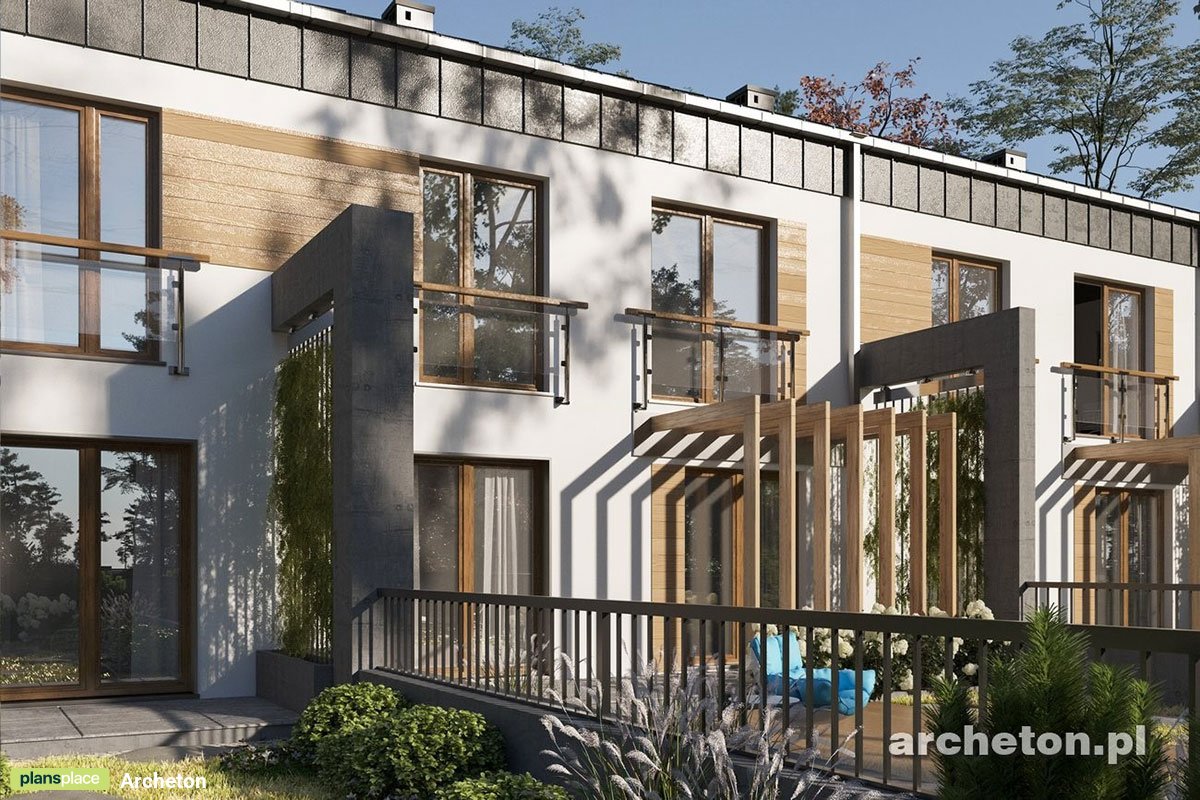

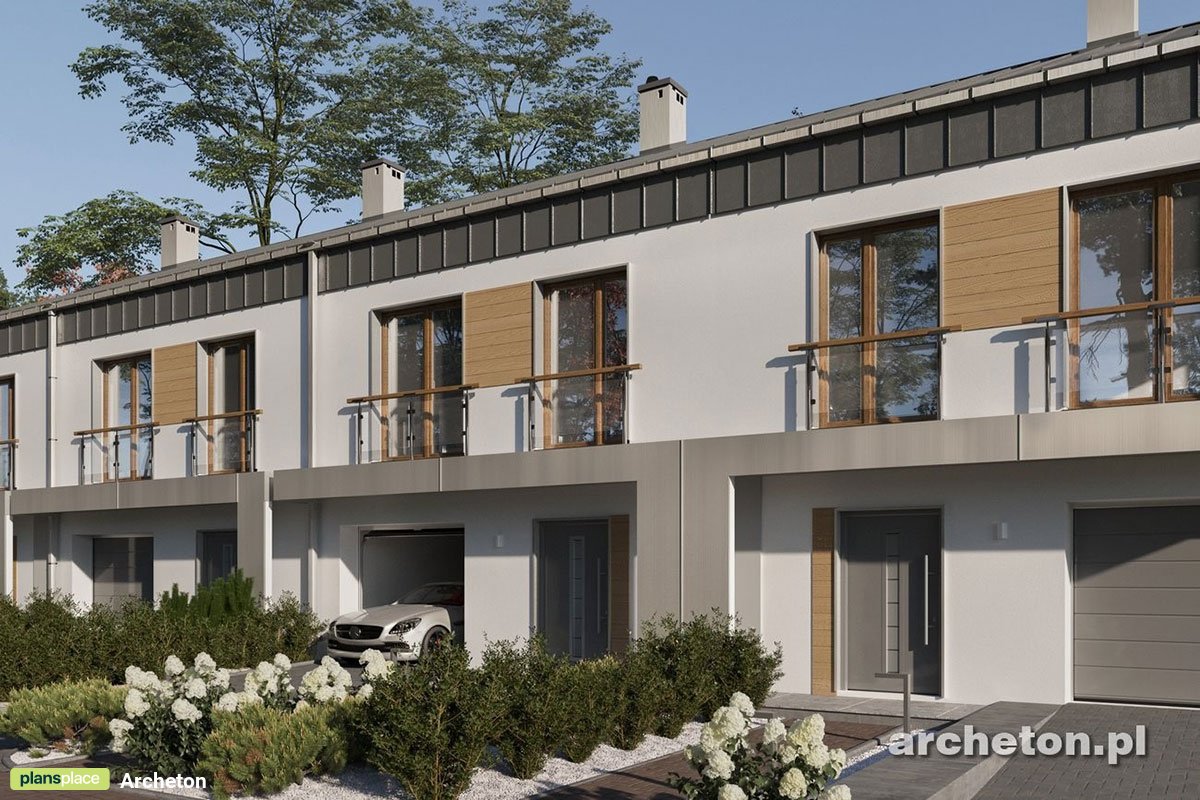

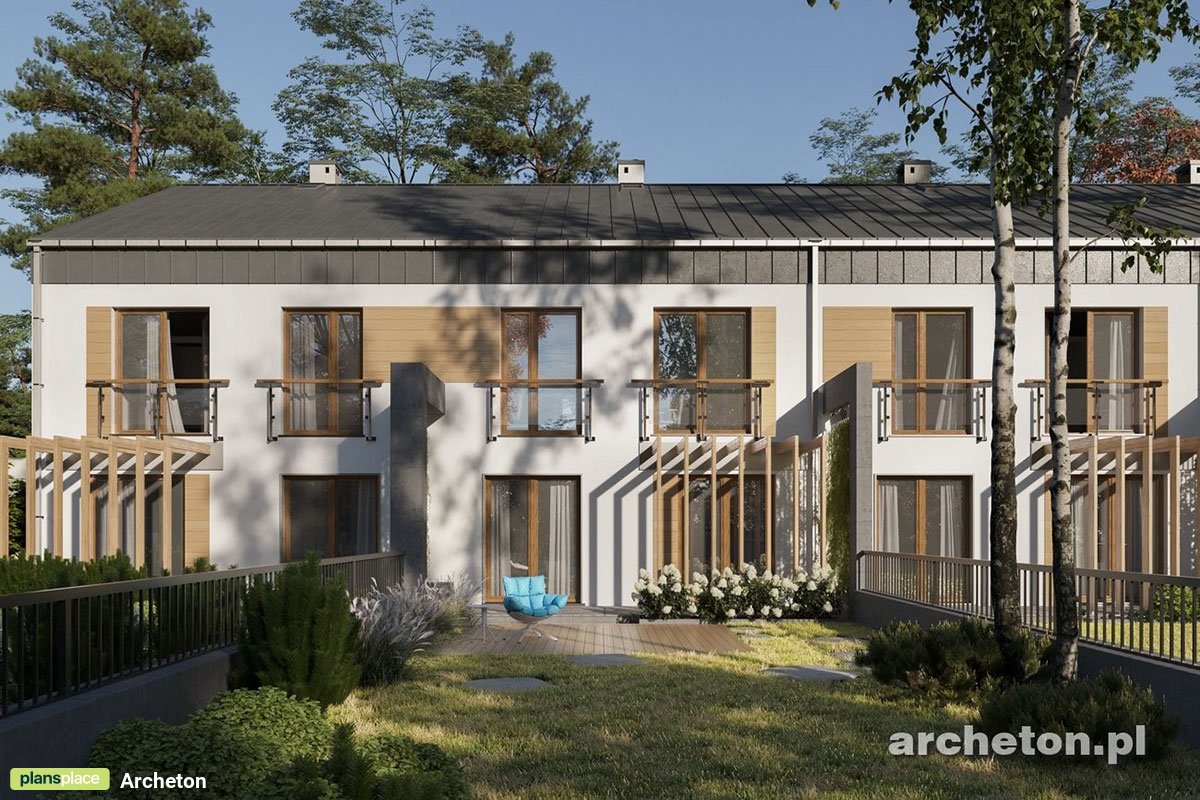

4-Bedroom Townhouse Plan with Bonus Level and 1-Car Garage
Plan
44042R
Prepared
Stamped & Signatured
CAD
Concept
Key Specs
1489
Total Heated Area sq ft
730
Total Unheated Area sq ft
21'9"
WIDTH
40'2"
DEPTH
1
BATHS
1
1/2 BATHS
4
BEDS
1
CARS
The plan architect is not from your country!
Projekt architektoniczno-budowlany zawiera
opis techniczny
rzuty wszystkich kondygnacji
rzut więźby dachowej
rzut dachu
przekroje
elewacje
Projekt techniczny zawiera
projekt konstrukcji
projekt instalacji sanitarnych
projekt instalacji elektrycznej
projekt instalacji wentylacji mechanicznej
Do projektu dodajemy bezpłatnie
teczka do przechowywania dokumentacji projektowej
dziennik budowy
tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety
zgodę na wprowadzenie zmian do projektu
dokumentację projektową w plikach pdf
Need to change something?
This house plan can be modified to suit your family's lifestyle and/or your lot specifics.
The plan architect is not from your country!
If you want to modify a plan from a foreign architect, you have two options:
You finalize the plan with its architect (if the language barrier is not a problem), and then buy a modified electronic editable CAD file to give it to your local architect.
or
Buy a CAD file from the plan architect, give the file to your local architect, modify the plan with them, and order the construction documents.
Floor Plans

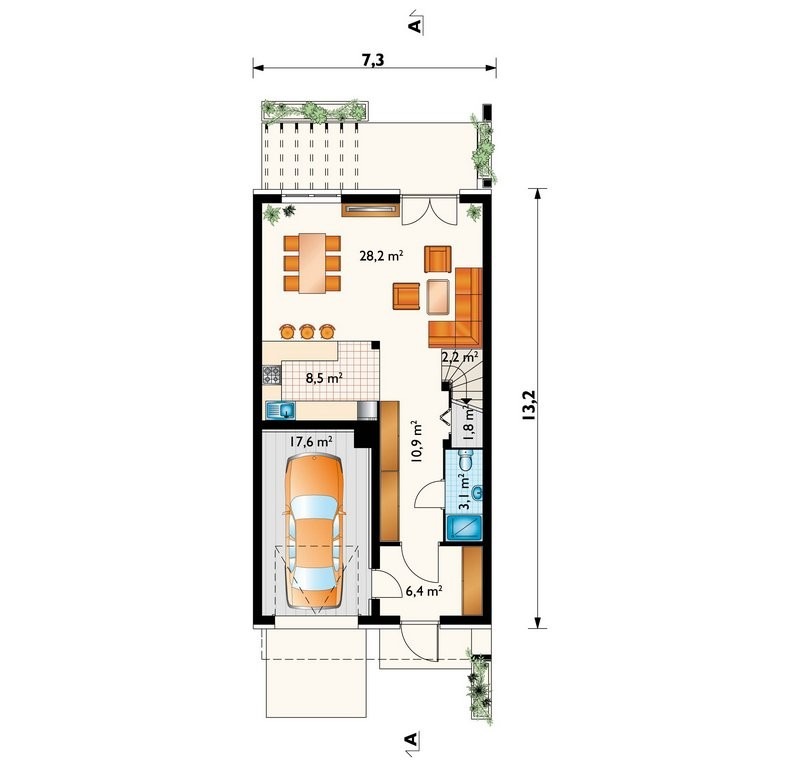

First Floor

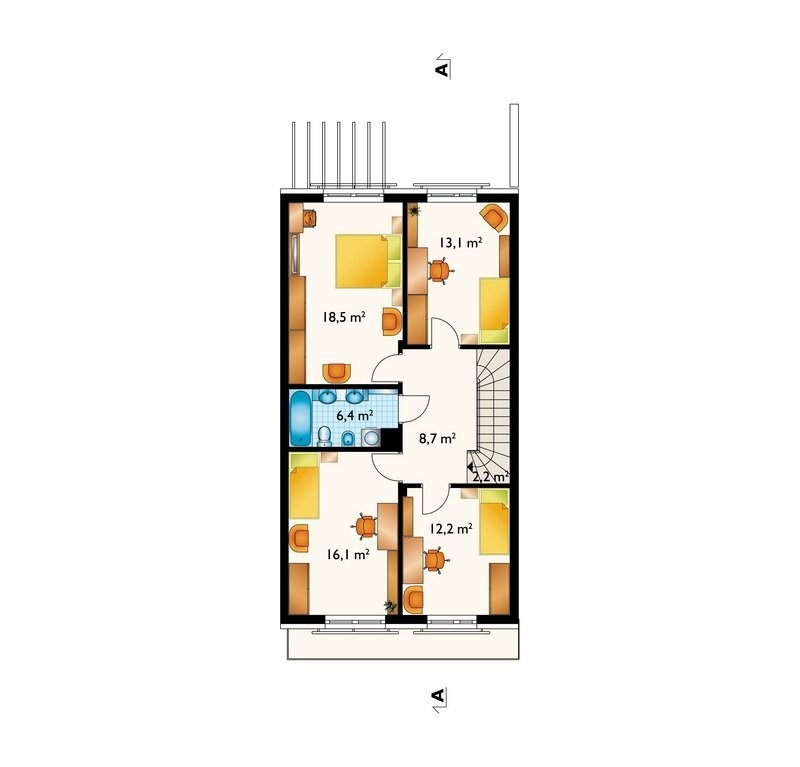

Second Floor

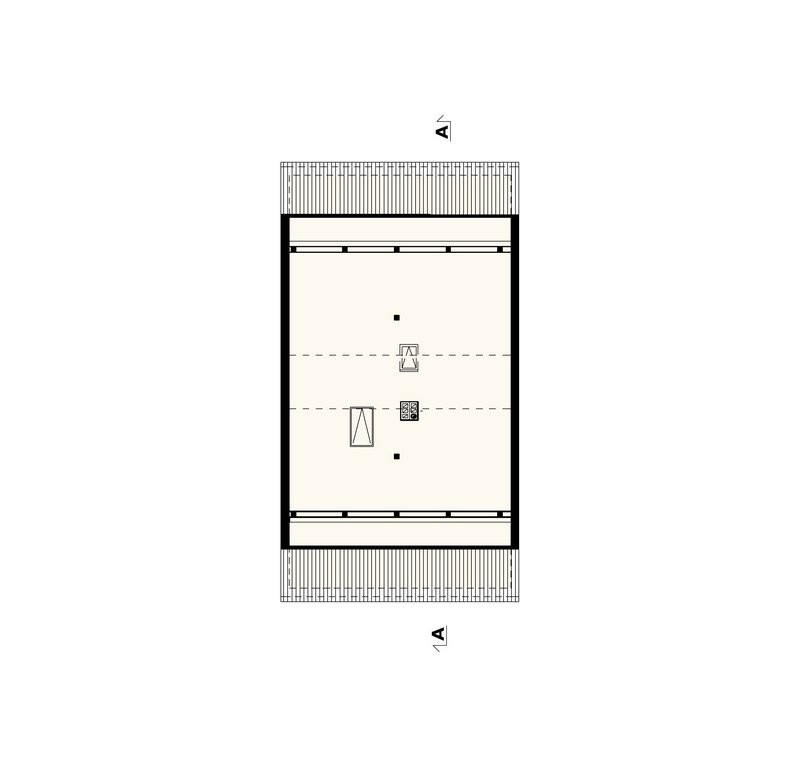

Third Floor
Full Specs & Features
Area
Total Heated Area:
1489 sq ft
Total Unheated Area:
730 sq ft
Poddasze do adaptacji/Strych:
540 sq ft
Dimensions
Depth : 40'2" ft
Width : 21'9" ft
Height : 30'5" ft
Exterior Wall Framing
Ceramic Block
Exterior Wall Materials
Stucco
Rooms
Mudroom
Bonus Level Upstairs
Foundation
Concrete Stem Wall
Architectural Style
Barn
Contemporary
European
Modern
Outdoor Options
Deck
Interior Options
Second Floor Master
Clustered Bedrooms
Jack & Jill Bath
Open Floor Plan
Large Family Room
Kitchen and Dining
Butler Walk-in Pantry
Eating Bar
Breakfast Nook
Garage
Garage Area: 189 sq ft
Cars: 1
Garage with Upstairs
Front Entry
Roof
Roof Area: 1109 sq ft
Gable
Roof Pitch: 6/12
