2000 Sq Ft Home Plan with Basement, Corner Deck and Garage
2000 Sq Ft Home Plan with Basement, Corner Deck and Garage 2000 Sq Ft Home Plan with Basement, Corner Deck and Garage
5
Construction documents are prepared for the following countries:

2000 Sq Ft Home Plan with Basement, Corner Deck and Garage

Plan
18501R
Complete
Unsigned & Unsealed
DC None
Key Specs
180
Total Heated m²
2 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
1
Cars
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.


If you’d like to modify this plan by this foreign architect, you have two options:
Work directly with the original architect (if the language barrier isn’t an issue), then purchase a modified digital editable file (DGT Concept) and forward it to your local architect.
or
Purchase a DGT Concept from the original architect, send the file to your local architect, modify the plan together, and then order the construction documents.

Floor Plans

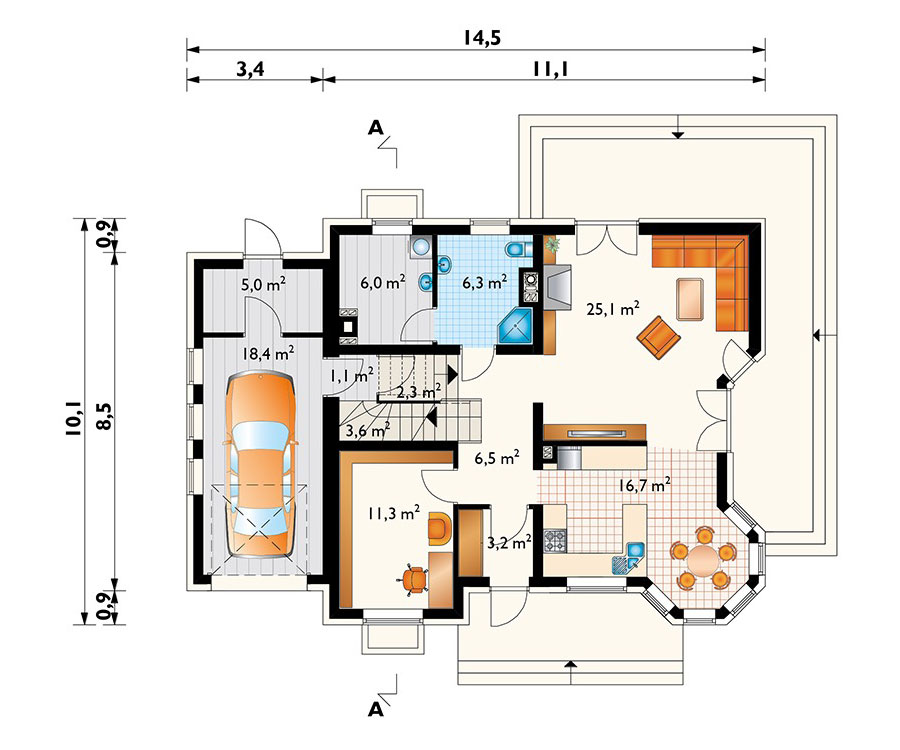

First Floor
18501R - First Floor

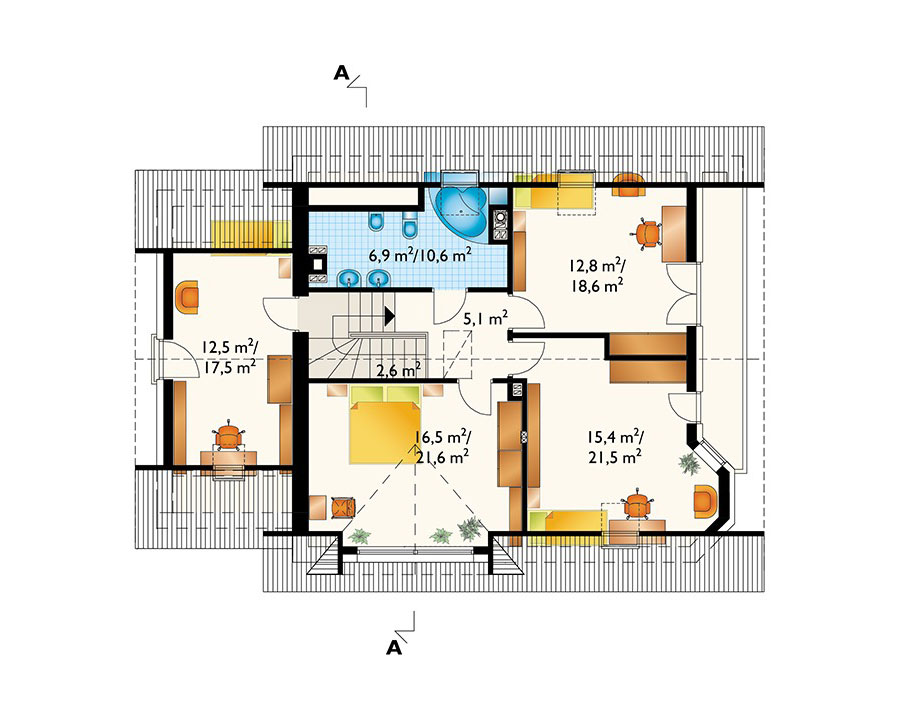

Second Floor
18501R - Second Floor

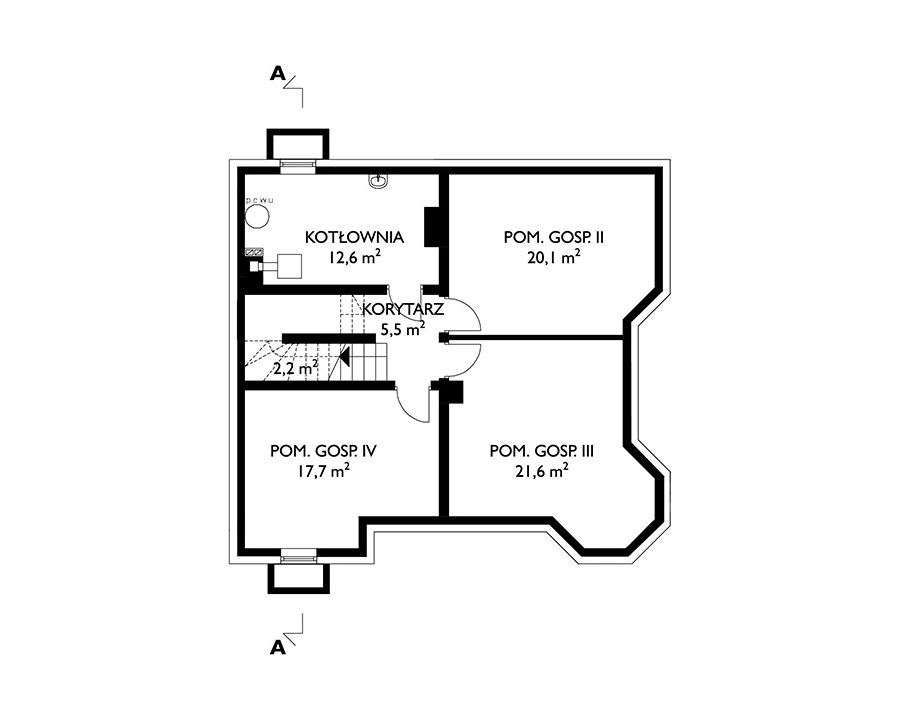

Basement
18501R - Basement
Full Specs & Features
Area
Total Heated: 180 m²
Total Unheated: 103 m²
Basement: 80 m²
Bonus: 0 m²
Dimensions
Depth 10.20 m
Width 14.50 m
Height 8.70 m
Exterior Wall Framing
Ceramic Block
Aerated Concrete Block
Exterior Wall Materials
Stucco
Rooms
Full bathrooms: 2
Half bathrooms: 0
Bedrooms: 4
Furnace room
Laundry
Entry
Home Office
Storage
Workshop
Foundation
Slab
Concrete Stem Wall
Architectural Style
European
Traditional
Exterior Features
Balcony
Deck
Bay Window
Interior Features
Laundry On Main Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Closed Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Kitchen and Dining
Breakfast Nook
Garage
9: 23 m²
Cars: 1
Garage with Upstairs
Front Entry
Roof
Roof Area: 2497.23m²
Gable
Skylight
Dormer
Ridge parallel to street
Roof Pitch: 10/12 (40°)
Architect
Archeton Archeton Architecture Firm country with code pl Poland
country with code pl Poland
Lesser Poland Voivodeship, Kraków, ul. Cystersów 9 31-553
+48122950577
https://archeton.pl/
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell DGT files or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.
