Home Plan with Bonus Room and Bay Window Breakfast Nook

Plan
72347R
Complete
Signed & Sealed
DC None
Key Specs
1841
Total Heated ft²
2 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
1
Cars
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

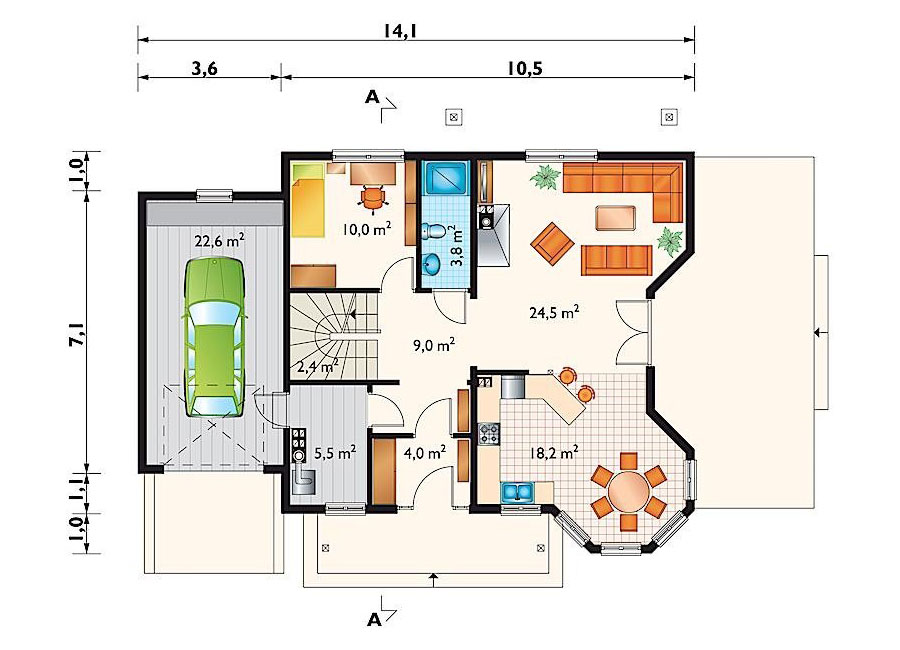

Main Floor
Main Floor 1 – Home Plan with Bonus Room above Garage

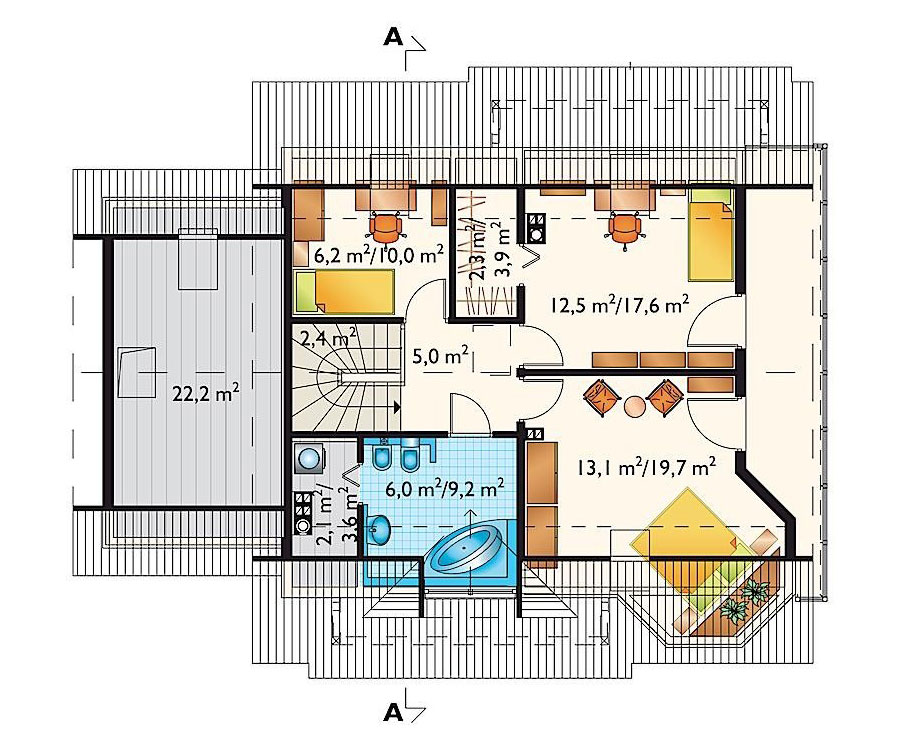

Second Floor
Second Floor 1 – Home Plan with Bonus Room above Garage
Full Specs & Features
Area
Total Unheated: 482.22 ft²
Bonus: 238.96 ft²
Total Heated: 1840.63 ft²
Dimensions
Depth: 31'1" ft
Width: 43'0" ft
Height: 24'7" ft
Garage
Area: 243 ft²
Cars: 1
Attached
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Exterior Wall Framing
Ceramic Block (Optional)
Aerated Concrete Block (Optional)
Wood-framed
Exterior Wall Materials
Stucco
Rooms
Full bathrooms: 2
Bedrooms: 3
Utility room
Bonus/Flex Room
Laundry
Entry
Home Office
Kitchen and Dining
Breakfast bar
Breakfast Nook
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Deck
Bay Window
Architectural Style
European
Traditional
Roof
Roof Area: 2357.30 ft²
Gable
Skylight
Dormer
Ridge parallel to street
Roof Pitch: 10/12 (40°)

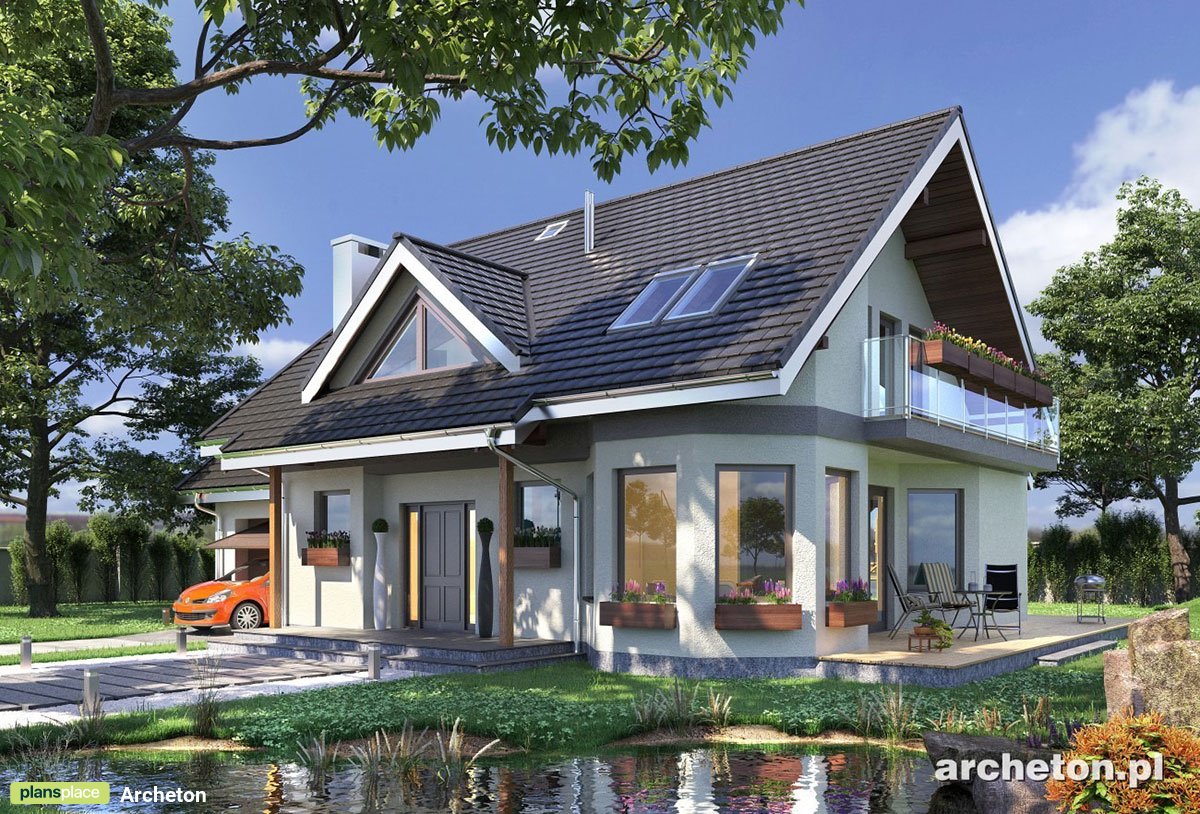

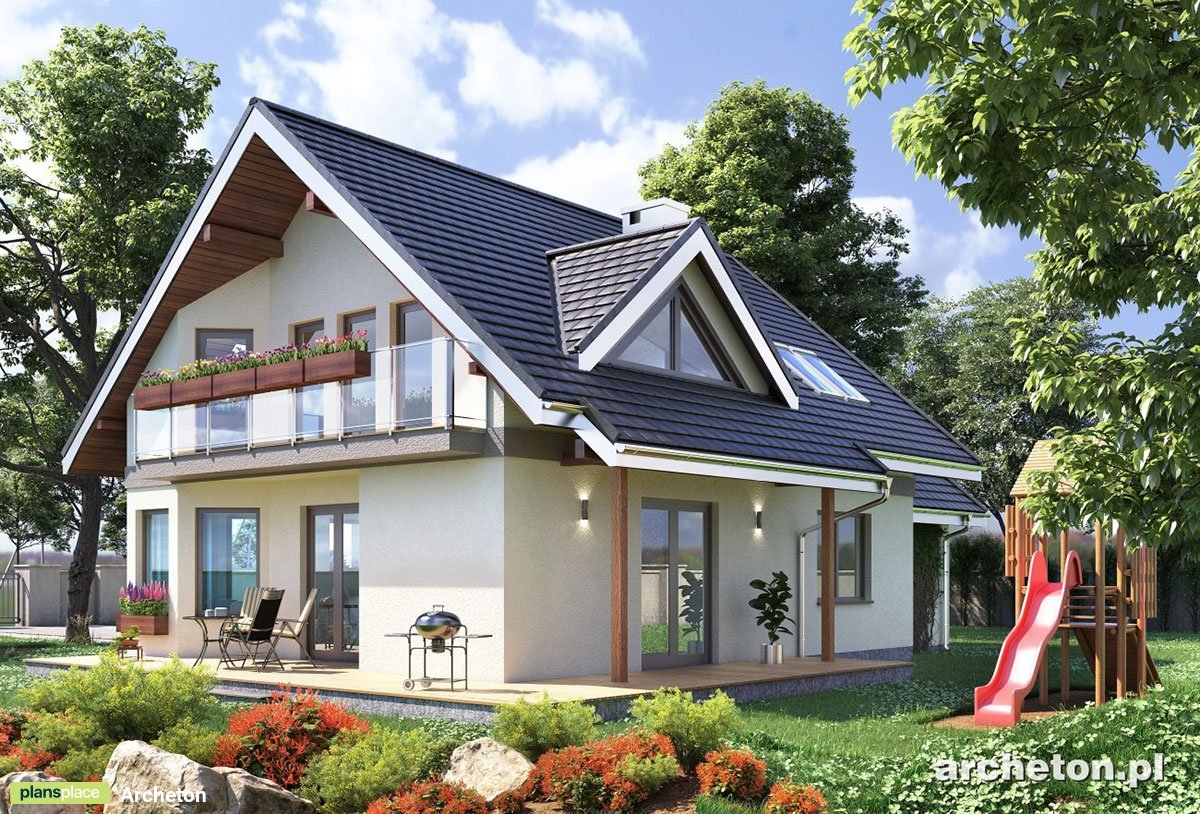

Plan 72347R is a 3-bedroom two-story house plan in the European and Traditional style, offering 1841 ft² under a steep gable roof with a 10/12 pitch, dormers and a skylight. Stucco exterior walls and a ridge running parallel to the street give this single-family home a calm, well-balanced facade. The house measures 43'0" wide and 31'1" deep, with a height of 24'7". It is designed with wood frame walls, and clay block or aerated concrete construction is also available on request.

The entry leads into an open floor plan where the family room, the kitchen and the dining space flow into one another. A fireplace in the family room gives the main floor its focal point, the natural place to gather on a winter evening. The large kitchen is made for everyday family life: a breakfast bar for quick meals and conversation with the cook, and a breakfast nook for slower mornings over coffee. A home office provides a dedicated place for remote work or household paperwork, so the living areas stay free for family time.

The master suite is on the second floor, and the bedrooms are clustered together, which keeps parents close to children and separates the sleeping quarters from the daytime activity below. Two full bathrooms serve the household. The laundry is located on the second floor, right where clothes and linens are used, so there are no baskets to carry up and down the stairs. A bonus/flex room adapts to changing needs as a playroom, a guest space, a hobby room or a media corner, while a separate utility room keeps the mechanical equipment out of sight. For anyone searching for a 3 bedroom house plan that balances shared and private space, this layout is a practical choice.

Outside, the house stands on strip footings and has no basement; a slab foundation is also available. A one-car attached garage with front entry offers sheltered parking and storage close to the house. A bay window adds depth and extra daylight to the facade, a balcony gives the upper floor its own outdoor spot, and a deck extends the living space outdoors for summer meals and quiet evenings. Together, these details make this European house plan with a fireplace a refined, comfortable home for year-round family living.

Architect
Archeton Archeton Architecture Firm country with code pl Poland
country with code pl Poland
Lesser Poland Voivodeship, Kraków, ul. Cystersów 9
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell digital concept or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.

Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
