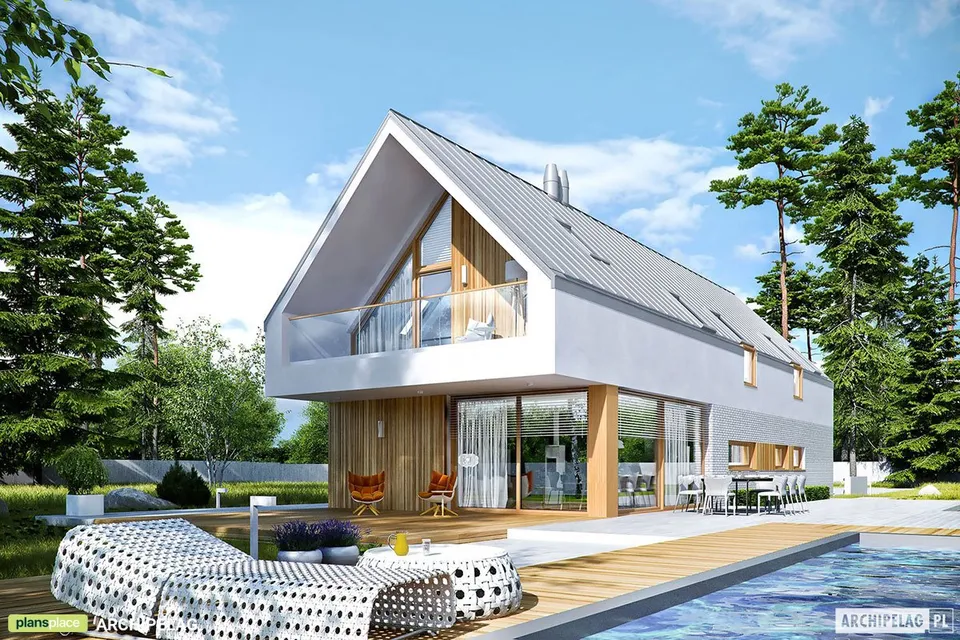

Narrow Lot Barn House Plan with Master Suite Upstairs
Narrow Lot Barn House Plan with Master Suite Upstairs Narrow Lot Barn House Plan with Master Suite Upstairs
11
Construction documents are prepared for the following countries:

Narrow Lot Barn House Plan with Master Suite Upstairs

Plan
89684R
Complete
Unsigned & Unsealed
DC None
Key Specs
164
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
2
Cars
Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

Floor Plans

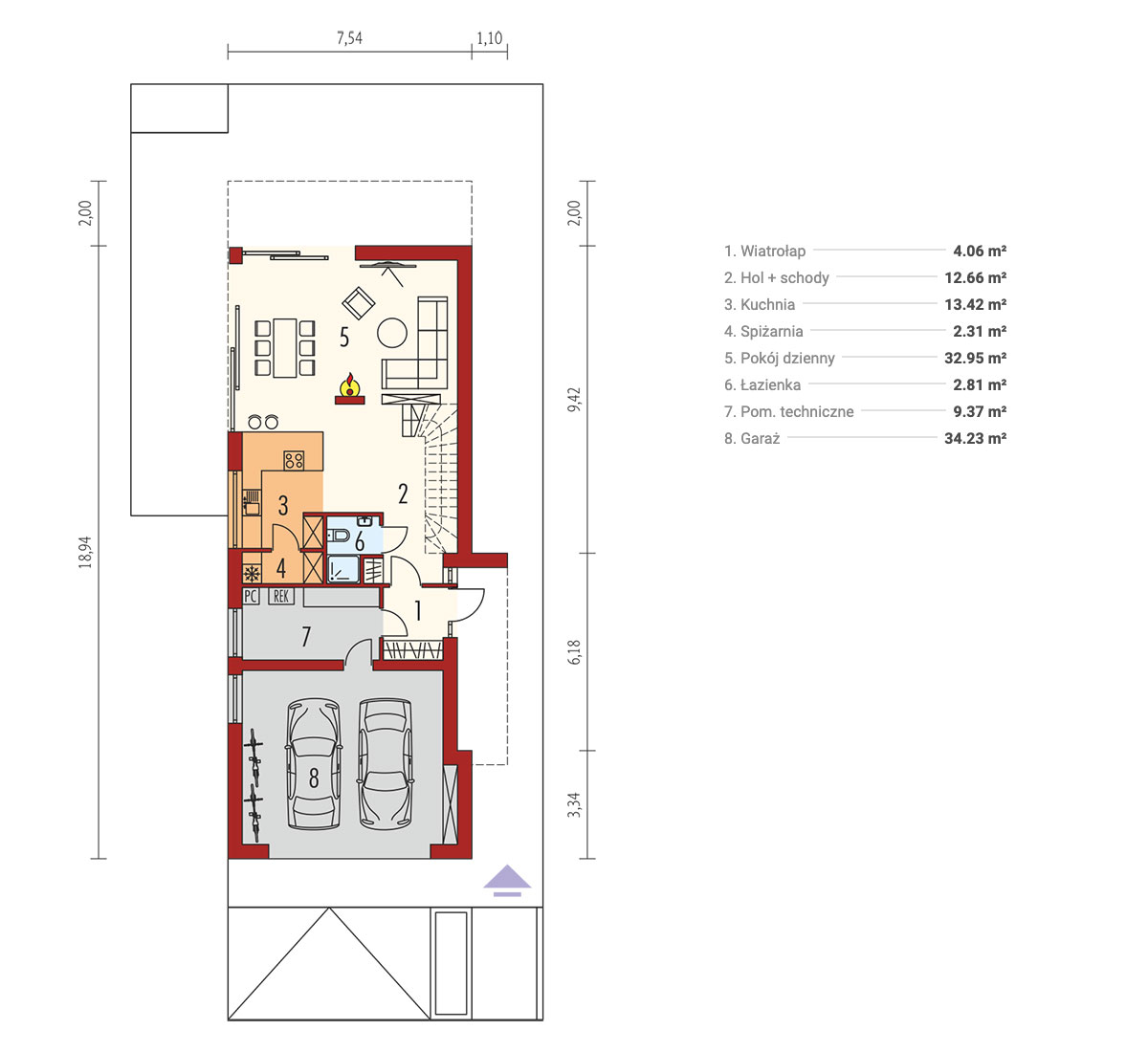

Main Floor
89684R - Main Floor

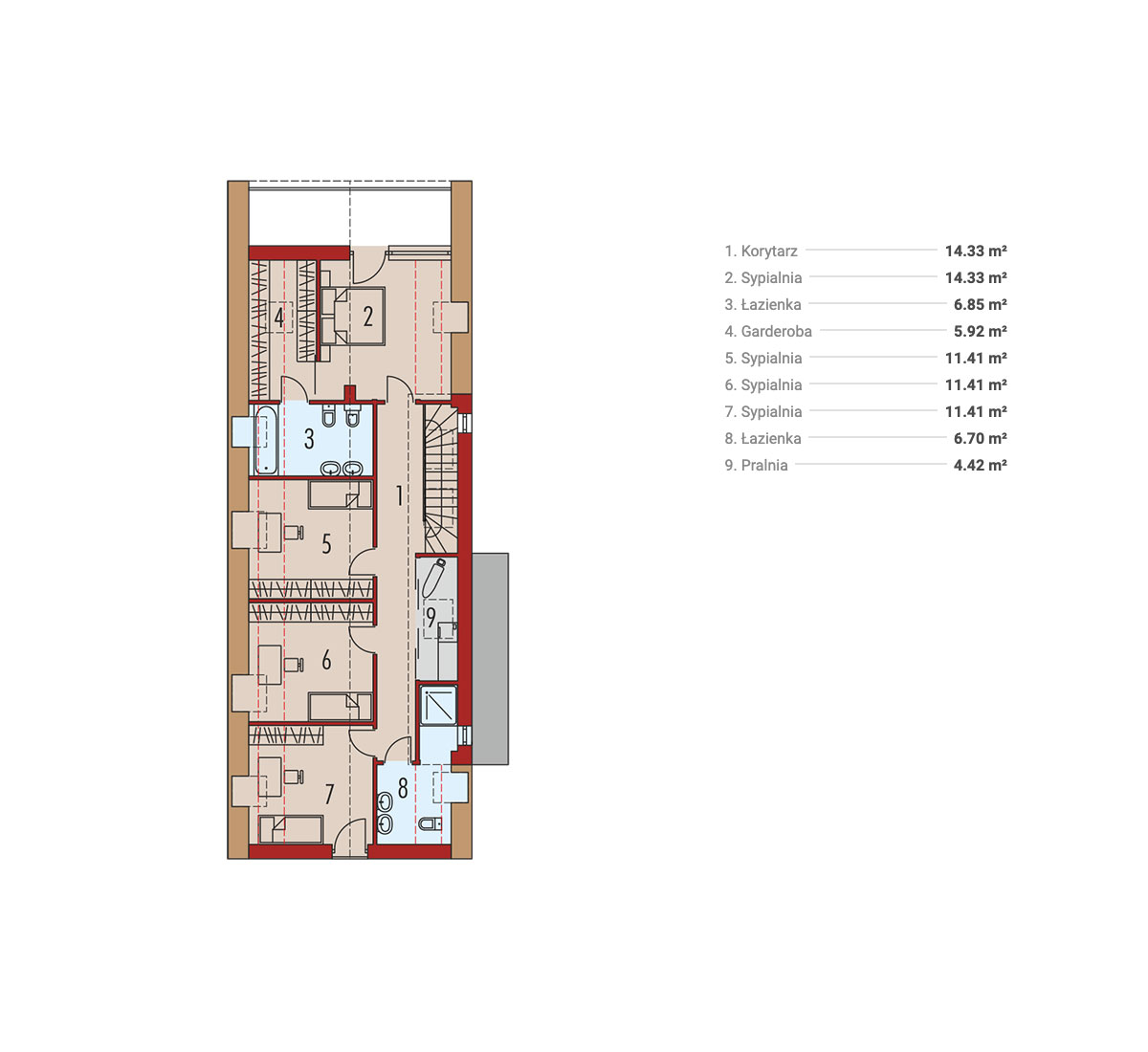

Second Floor
89684R - Second Floor
Full Specs & Features
Area
Total Unheated: 368.45 ft²
Total Heated: 1769.16 ft²
Dimensions
Depth: 63'8" ft
Width: 23'0" ft
Height: 25'5" ft
Exterior Wall Materials
Stone/Brick Veneer
Wood
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Laundry
Entry
Walk In Closet
Architectural Style
Barn
Contemporary
European
Modern
Exterior Features
Balcony
Wrap Around Porch
Covered Rear Porch
Deck
Corner Window
Panoramic Windows
Window Walls
Large Windows
Floor-to-Ceiling Windows
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Vaulted ceilings
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Garage
Area: 368 ft²
Cars: 2
Garage with Upstairs
Front Entry
Roof
Roof Area: 1905.21 ft²
Gable
Skylight
Dormer
Ridge perpendicular to street
Roof Pitch: 12/12 (45°)
Architect
ARCHIPELAG ARCHIPELAG Architecture Firm country with code pl Poland
country with code pl Poland
Lower Silesian Voivodeship, Wrocław, ul. Aleksandra Ostrowskiego 9/318
+48717983800
https://www.archipelag.pl/
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

How much will it cost to build?
Cost-to-Build Report
$95
This report will provide you with cost estimates based on location and building materials.
