1500 Sq Ft House Plan with Two Story Great Room and Loft

Plan
41986R
Prepared
Stamped & Signatured
CAD Concept
Key Specs
1537
Total Heated Area sq ft
678
Total Unheated Area sq ft
51'3"
WIDTH
56'2"
DEPTH
2
BATHS
0
1/2 BATHS
3
BEDS
2
CARS
The plan architect is not from your country!
If you want to buy a plan from a foreign architect, you have two options:
1. You finalize the plan with its architect (if the language barrier is not a problem), and then buy a modified electronic editable CAD file to give it to your local architect.
2. Buy a CAD file from the plan architect, give the file to your local architect, modify the plan with them, and order the construction documents.

You can select a local architect in the recommendations on this page on the right below or on the Architects page. If there are no architects from your country on Plansplace, use your local websites to find one.
Rysunki architektoniczne, konstrukcyjne i instalacyjne:

rzut fundamentów

rzuty parteru i kolejnych kondygnacji

rzut stropów i nadproży

rzut więźby dachowej

rzut dachu

przekroje

zestawienie stolarki drzwiowej i okiennej

detale konstrukcji

projekty instalacji

Opisy techniczne architektoniczno-konstrukcyjne oraz opisy wewnętrznych instalacji sanitarnych i elektrycznych:

opis techniczny części architektonicznej projektu

opis techniczny konstrukcji

opisy instalacji

Opisy i dokumentacja zawierają:

charakterystykę energetyczną budynku

charakterystykę ekologiczną

informację o planie b.i o.z.

analizę porównawczą dwóch źródeł energii

oświadczenia projektantów

liczne informacje formalno-prawne

Materiały pomocnicze:

obliczenia konstrukcyjne

zestawienie elementów więźby dachowej

zestawienie materiałów do podstawowych instalacji sanitarnych, grzewczych i gazowych

zestawienie stali do zbrojenia elementów żelbetowych

widoki więźby i stropów w 3D

Need to change something?

This house plan can be modified to suit your family's lifestyle and/or your lot specifics.

The plan architect is not from your country!


If you want to modify a plan from a foreign architect, you have two options:
You finalize the plan with its architect (if the language barrier is not a problem), and then buy a modified electronic editable CAD file to give it to your local architect.
or
Buy a CAD file from the plan architect, give the file to your local architect, modify the plan with them, and order the construction documents.

Floor Plans
First Floor

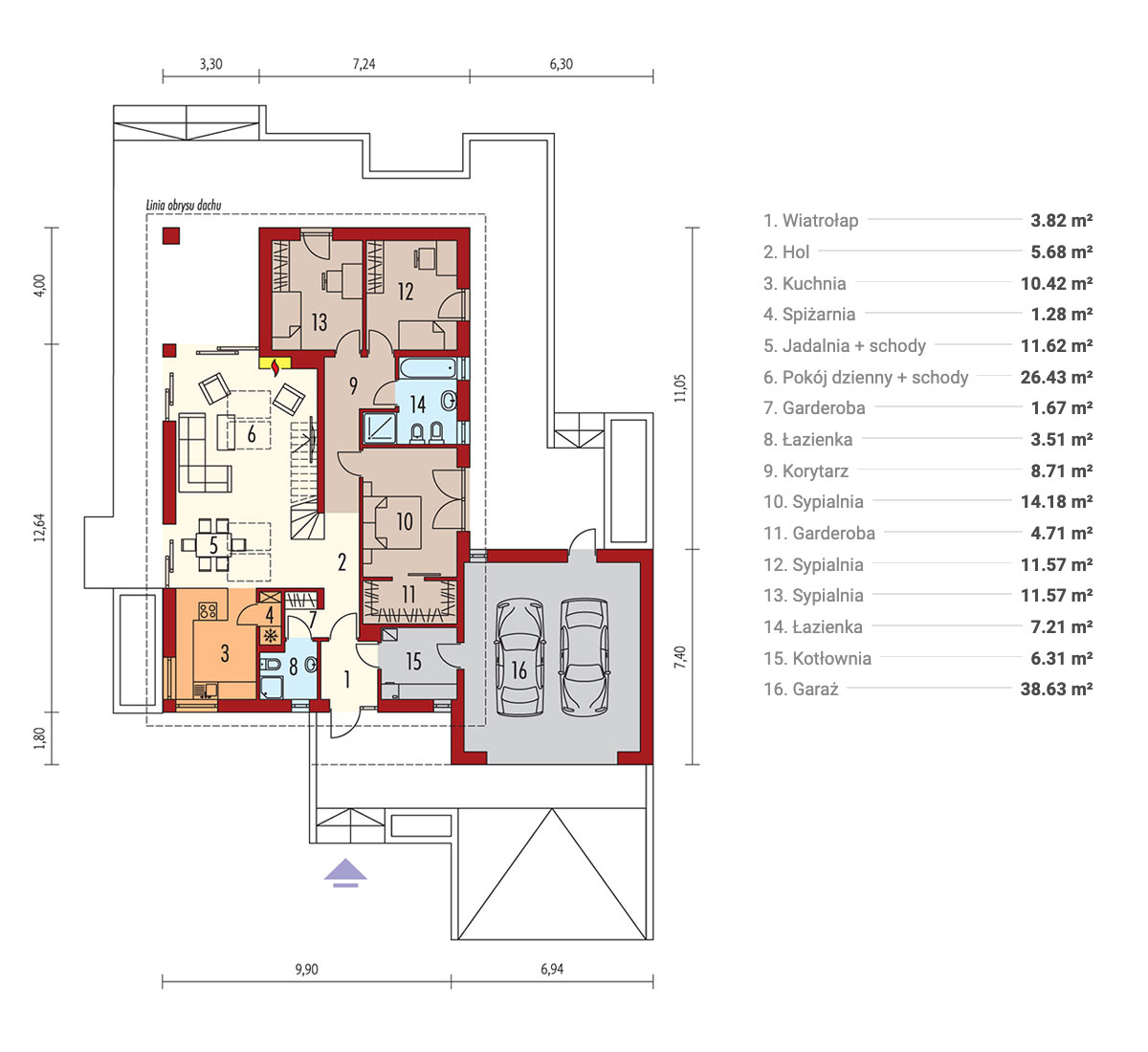

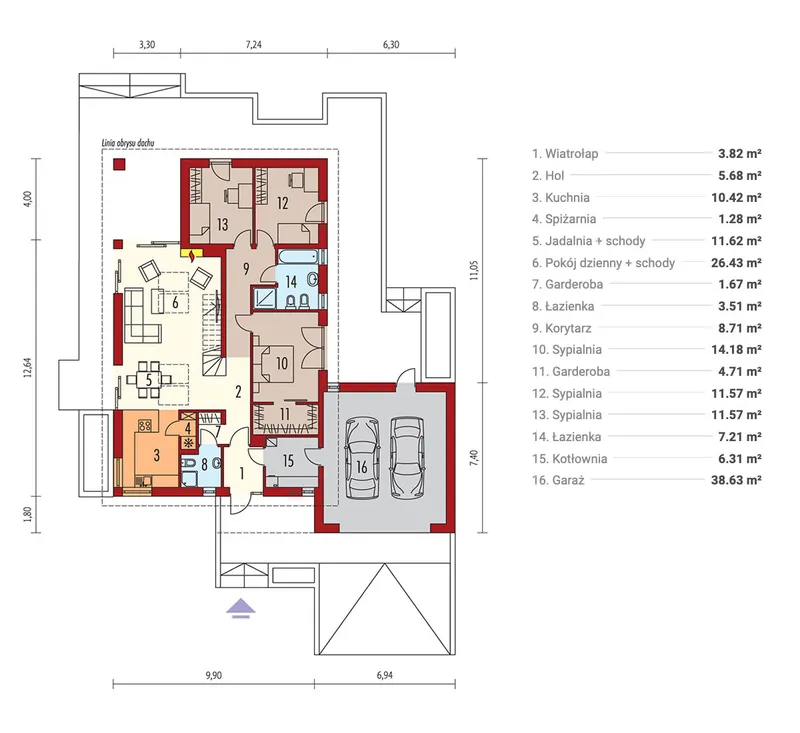

41986R - First Floor
Second Floor

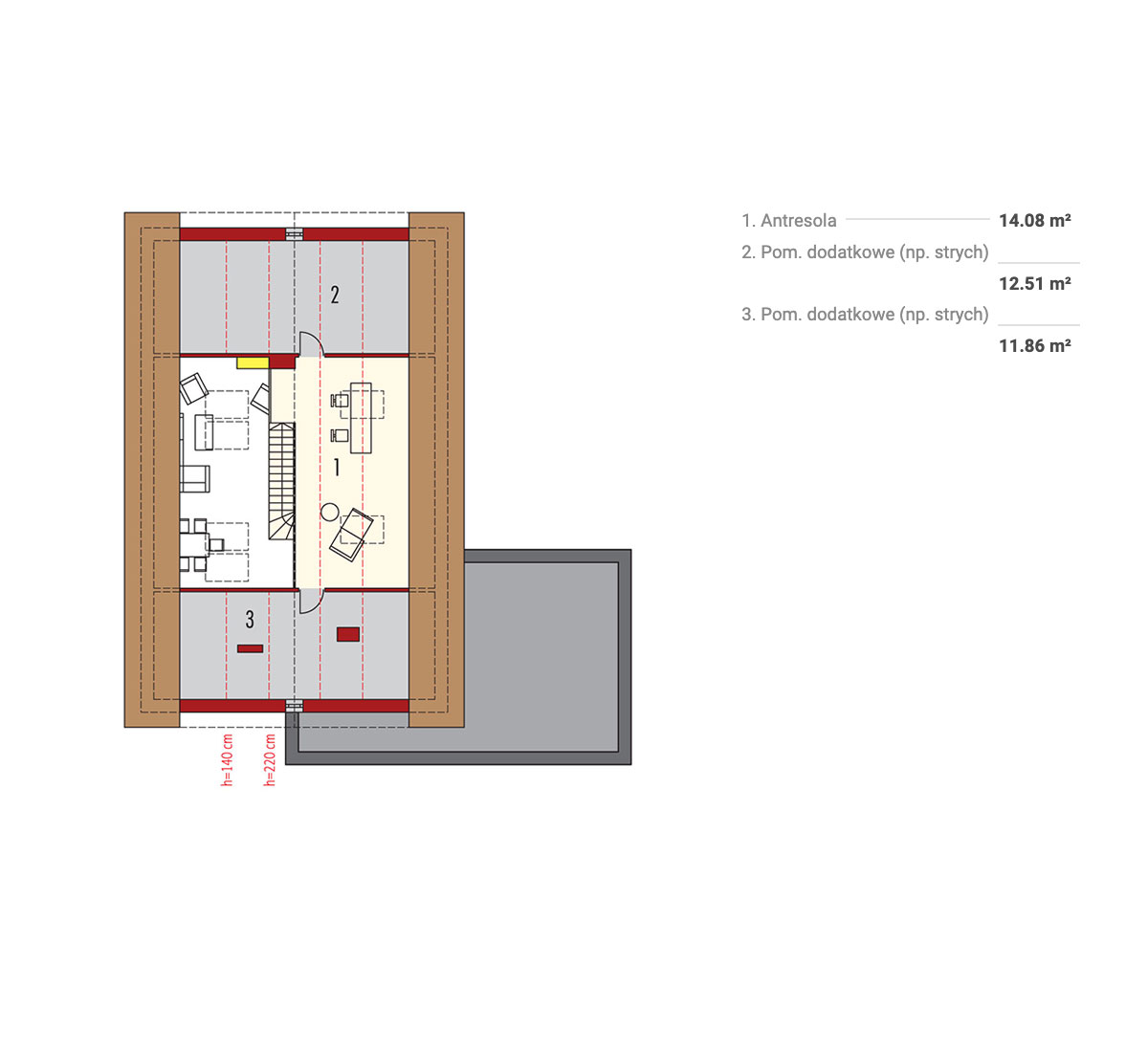

41986R - Second Floor
Full Specs & Features
Area
Total Heated Area: 1537 sq ft
Total Unheated Area: 678 sq ft
Poddasze do adaptacji/Strych: 262 sq ft
Dimensions
Depth : 56'2" ft
Width : 51'3" ft
Height : 23'9" ft
Exterior Wall Framing
Ceramic Block
Exterior Wall Materials
Stone/Brick Veneer
Wood
Rooms
Furnace Room
Bonus/Flex Room
Mudroom
Foundation
Concrete Stem Wall
Architectural Style
Contemporary
European
Modern
Transitional
Outdoor Options
Wrap Around Porch
Covered Rear Porch
Deck
Corner Window
Large Windows
Floor-to-Ceiling Windows
Interior Options
Fireplace in Family Room
Main Floor Master
Clustered Bedrooms
Walk In Closet
Jack & Jill Bath
Open to Below
Loft
Open Floor Plan
Large Family Room
Kitchen and Dining
Butler Walk-in Pantry
Eating Bar
Breakfast Nook
Corner Window
Garage
Garage Area: 416 sq ft
Cars: 2
Attached
Front Entry
Roof
Roof Area: 2583 sq ft
Gable
Skylight
Roof Pitch: 8/12
