4-Bedroom, Barn Style House with Open Floor Plan and Sauna
4-Bedroom, Barn Style House with Open Floor Plan and Sauna 4-Bedroom, Barn Style House with Open Floor Plan and Sauna
15
Construction documents are prepared for the following countries:

4-Bedroom, Barn Style House with Open Floor Plan and Sauna

Plan
67834R
Complete
Signed & Sealed
DC None
Key Specs
255
Total Heated m²
3 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
2
Cars
Rysunki architektoniczne, konstrukcyjne i instalacyjne:

rzut fundamentów

rzuty parteru i kolejnych kondygnacji

rzut stropów i nadproży

rzut więźby dachowej

rzut dachu

przekroje

zestawienie stolarki drzwiowej i okiennej

detale konstrukcji

projekty instalacji

Opisy techniczne architektoniczno-konstrukcyjne oraz opisy wewnętrznych instalacji sanitarnych i elektrycznych:

opis techniczny części architektonicznej projektu

opis techniczny konstrukcji

opisy instalacji

Opisy i dokumentacja zawierają:

charakterystykę energetyczną budynku

charakterystykę ekologiczną

informację o planie b.i o.z.

analizę porównawczą dwóch źródeł energii

oświadczenia projektantów

liczne informacje formalno-prawne

Materiały pomocnicze:

obliczenia konstrukcyjne

zestawienie elementów więźby dachowej

zestawienie materiałów do podstawowych instalacji sanitarnych, grzewczych i gazowych

zestawienie stali do zbrojenia elementów żelbetowych

widoki więźby i stropów w 3D

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.


If you’d like to modify this plan by this foreign architect, you have two options:
Work directly with the original architect (if the language barrier isn’t an issue), then purchase a modified digital editable file (DGT Concept) and forward it to your local architect.
or
Purchase a DGT Concept from the original architect, send the file to your local architect, modify the plan together, and then order the construction documents.

Floor Plans
First Floor

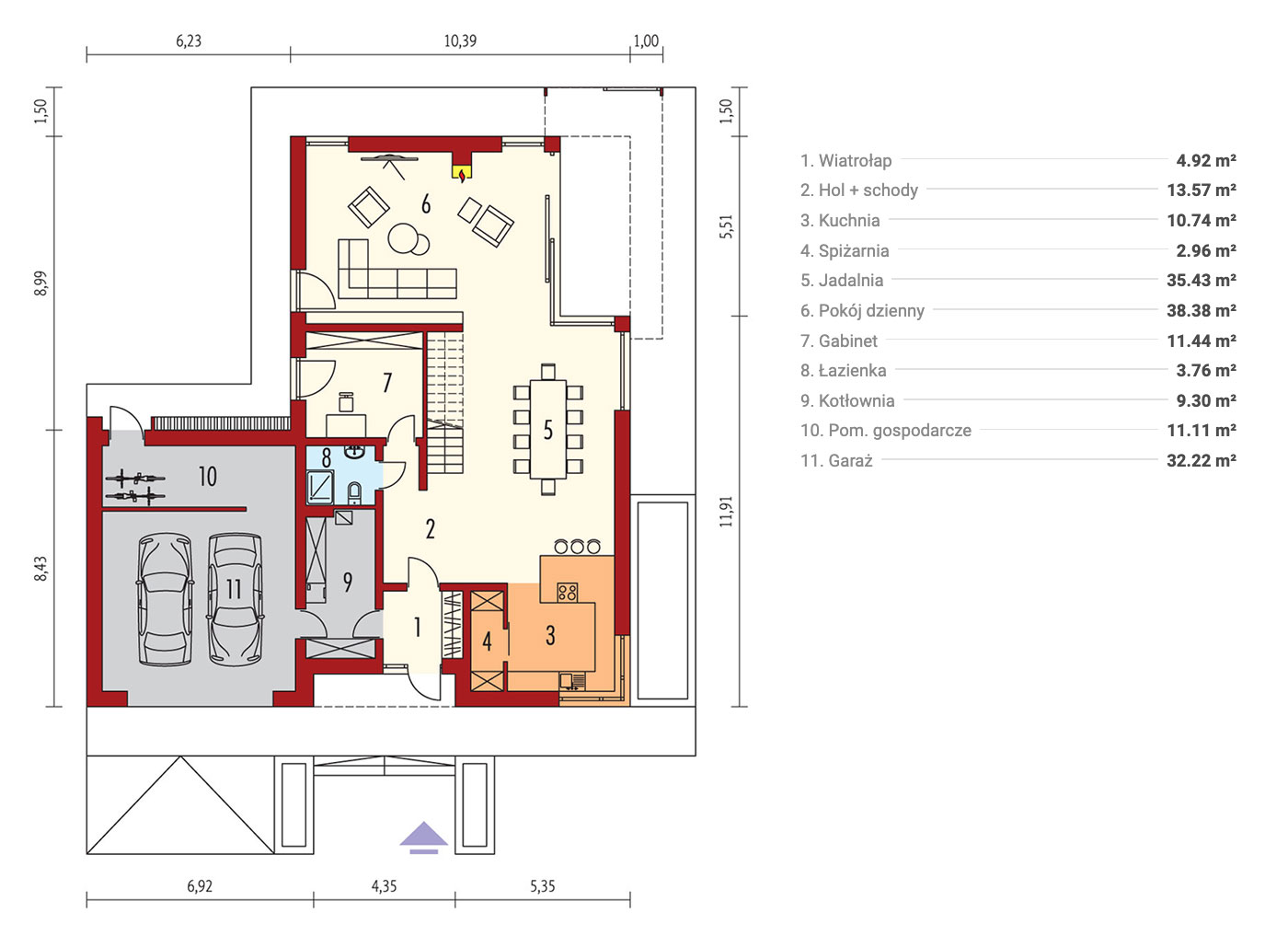

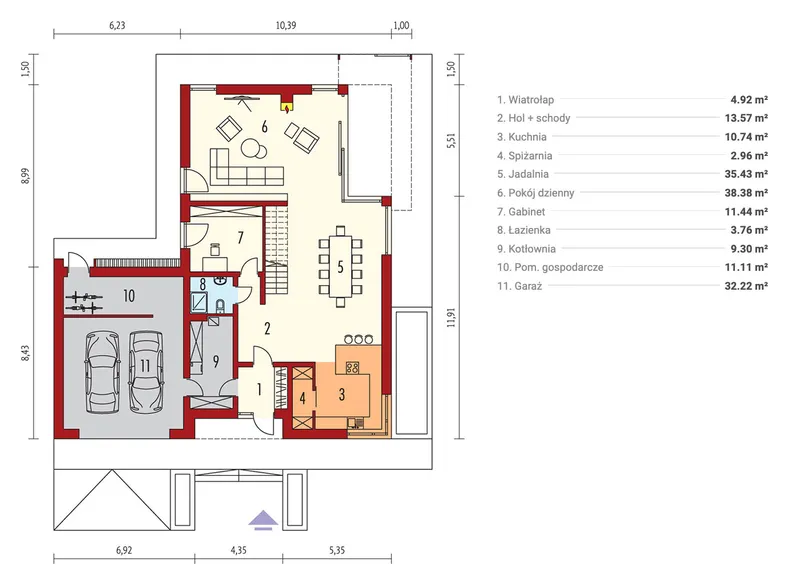

67834R - First Floor
Second Floor

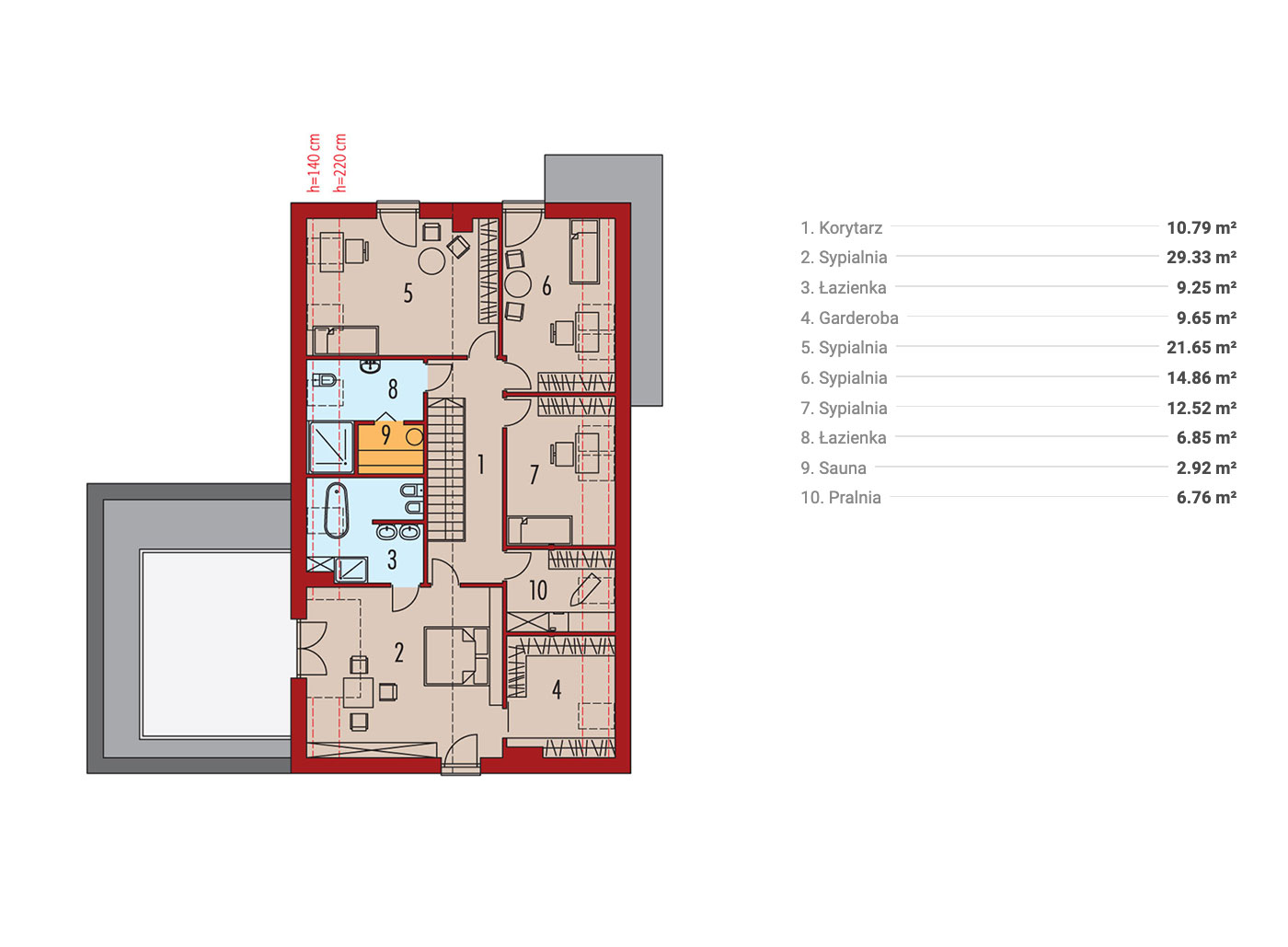

67834R - Second Floor
Full Specs & Features
Area
Total Heated: 255 m²
Total Unheated: 43 m²
Basement: 0 m²
Bonus: 0 m²
Dimensions
Depth 18.92 m
Width 17.62 m
Height 10.03 m
Exterior Wall Framing
Ceramic Block
Aerated Concrete Block
Exterior Wall Materials
Brick
Wood
Rooms
Full bathrooms: 3
Half bathrooms: 0
Bedrooms: 4
Furnace room
Laundry
Entry
Home Office
Sauna
Storage
Walk In Closet
Foundation
Slab
Concrete Stem Wall
Architectural Style
Barn
Contemporary
English
European
Modern
Exterior Features
Balcony
Wrap Around Porch
Deck
Corner Window
Panoramic Windows
Garage rooftop deck
Large Windows
Floor-to-Ceiling Windows
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Corner Window
Garage
9: 43 m²
Cars: 2
Attached
Front Entry
Roof
Roof Area: 2529.52m²
Gable
Skylight
Ridge perpendicular to street
Roof Pitch: 12/12 (45°)
Architect
ARCHIPELAG ARCHIPELAG Architecture Firm country with code pl Poland
country with code pl Poland
Lower Silesian Voivodeship, Wrocław, ul. Mariana Smoluchowskiego 56/3
+48717983800
https://www.archipelag.pl/
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell DGT files or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.

How much will it cost to build?
Cost-to-Build Report
$ 95
This report will provide you with cost estimates based on location and building materials.
Modifications
67401R DC None 255 m 2 17.62 Width 18.92 Depth 1.5 Stories 3 Bathrooms 4+1 Bedrooms 2 Cars $ 2255 $ 95 Cost-to-Build Report
95876R DC None 255 m 2 17.60 Width 18.90 Depth 1.5 Stories 3 Bathrooms 4+1 Bedrooms 2 Cars $ 2255 $ 95 Cost-to-Build Report
More Plans By This Architect
All Architect's plans
50202R DC None 232 m 2 22.24 Width 12.74 Depth 1.5 Stories 3 Bathrooms 4+1 Bedrooms 2 Cars $ 2337 $ 95 Cost-to-Build Report
47218R DC None 107 m 2 14.00 Width 15.40 Depth 1 Story 1 Bathrooms 2 Bedrooms 1 Cars $ 1223 $ 95 Cost-to-Build Report
