European House Plan with Bay Window and 3 Balconies

Plan
35091R
Complete
Signed & Sealed
DC None
Key Specs
1820
Total Heated ft²
2 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
1
Cars
Projekt architektoniczno-budowlany zawiera

opis techniczny

rzuty wszystkich kondygnacji

rzut więźby dachowej

rzut dachu

przekroje

elewacje

Projekt techniczny zawiera

projekt konstrukcji

projekt instalacji sanitarnych

projekt instalacji elektrycznej

projekt instalacji wentylacji mechanicznej

Do projektu dodajemy bezpłatnie

teczka do przechowywania dokumentacji projektowej

dziennik budowy

tablicę informacyjną na budowę - po otrzymaniu projektu domu i wypełnieniu ankiety

zgodę na wprowadzenie zmian do projektu

dokumentację projektową w plikach pdf

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

plan_plan_package_title

Video
Floor Plans

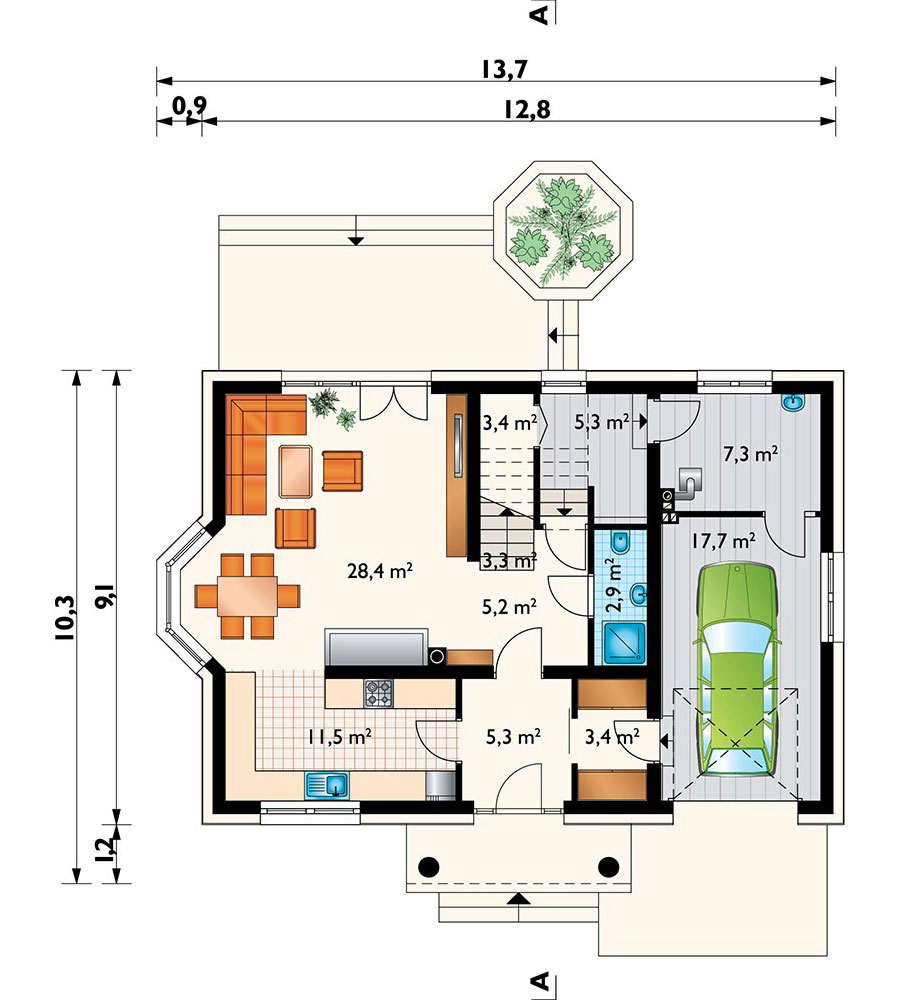

Main Floor
Main Floor 1 – European House Plan with Bay Window

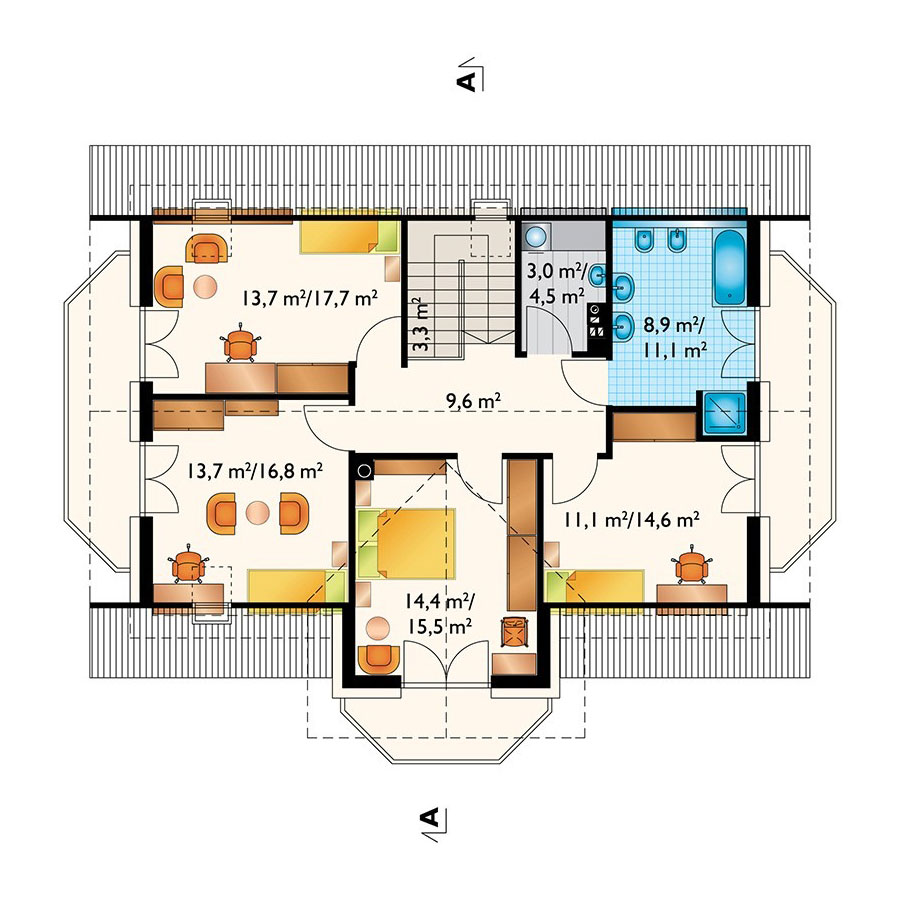

Second Floor
Second Floor 1 – European House Plan with Bay Window
Full Specs & Features
Area
Total Unheated: 190.52 ft²
Total Heated: 1820.18 ft²
Dimensions
Depth: 27'7" ft
Width: 41'8" ft
Height: 26'2" ft
Garage
Area: 191 ft²
Cars: 1
Garage with Upstairs
Front Entry
Foundation
Ławy
Płyta (Optional)
Exterior Wall Framing
Pustak ceramiczny
Beton komórkowy (Optional)
Szkieletowe (Optional)
Exterior Wall Materials
Wood
Stucco
Rooms
Full bathrooms: 2
Bedrooms: 4
Utility room
Laundry
Entry
Storage
Kitchen and Dining
Breakfast Nook
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Closed Floor Plan
Large Family Room (>270 ft²)
Exterior Features
Balcony
Deck
Bay Window
Portico
Architectural Style
Cottage
European
Greek Revival
Traditional
Roof
Roof Area: 2217.37 ft²
Gable
Skylight
Dormer
Ridge parallel to street
Roof Pitch: 10/12 (40°)

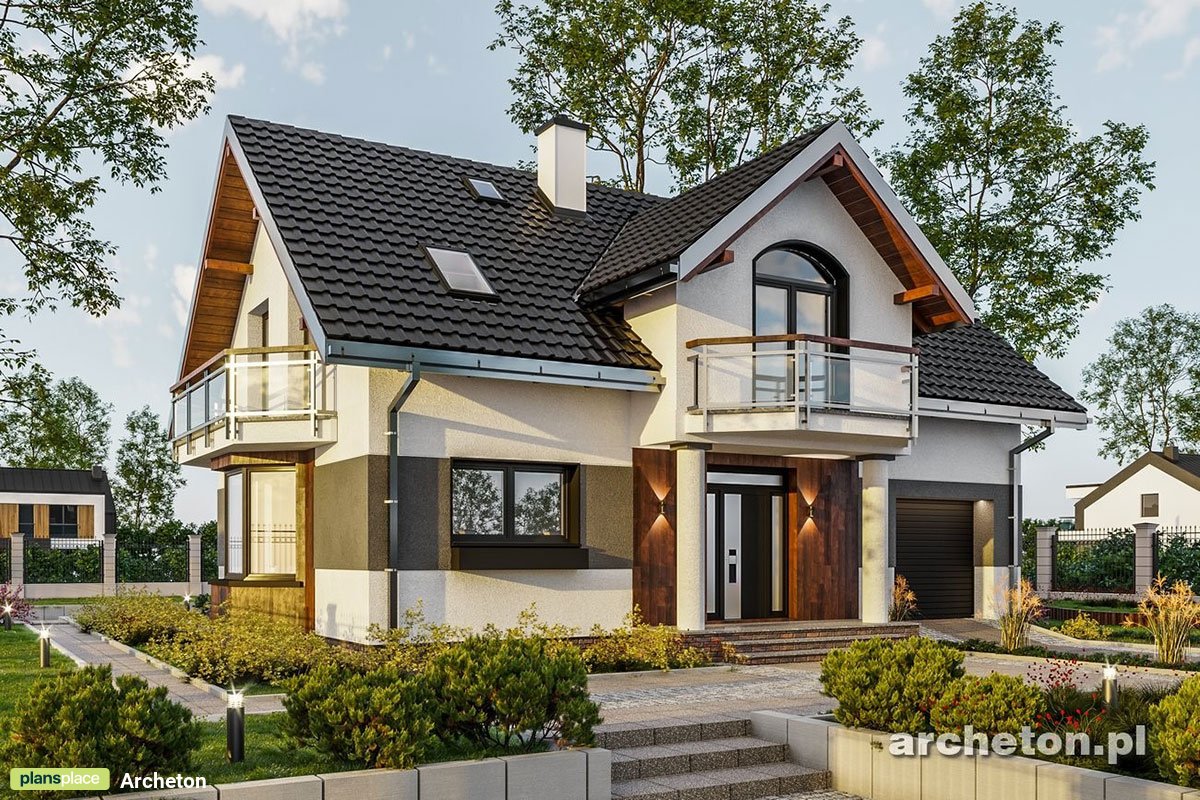

Plan 35091R is a 4-bedroom 2-story house plan that brings Cottage charm together with European and Greek Revival detailing, offering 1820 ft² beneath a steep 10/12 (40°) gable roof accented with dormers and skylights. Wood and stucco dress the exterior walls of this traditional single-family home, and the roof ridge runs parallel to the street, giving the facade a calm, balanced profile. The house measures 41'8" wide and 27'7" deep, with a height of 26'2".

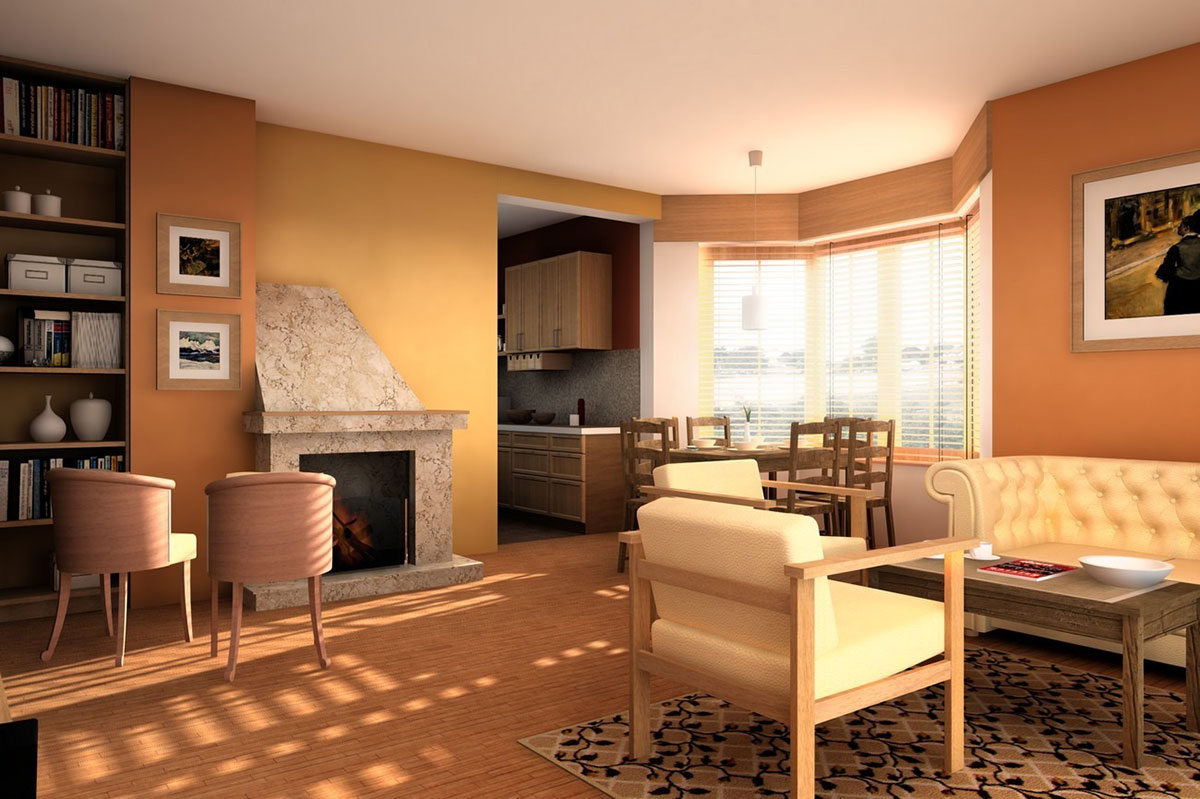

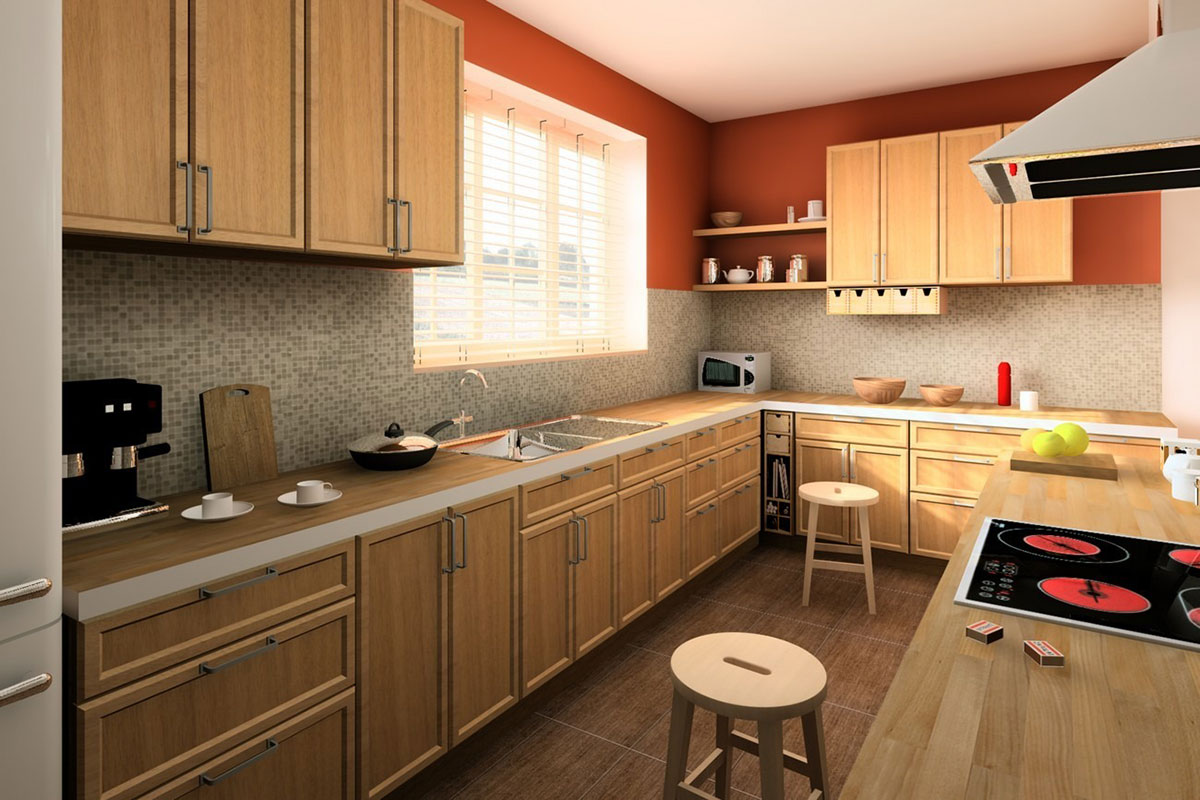

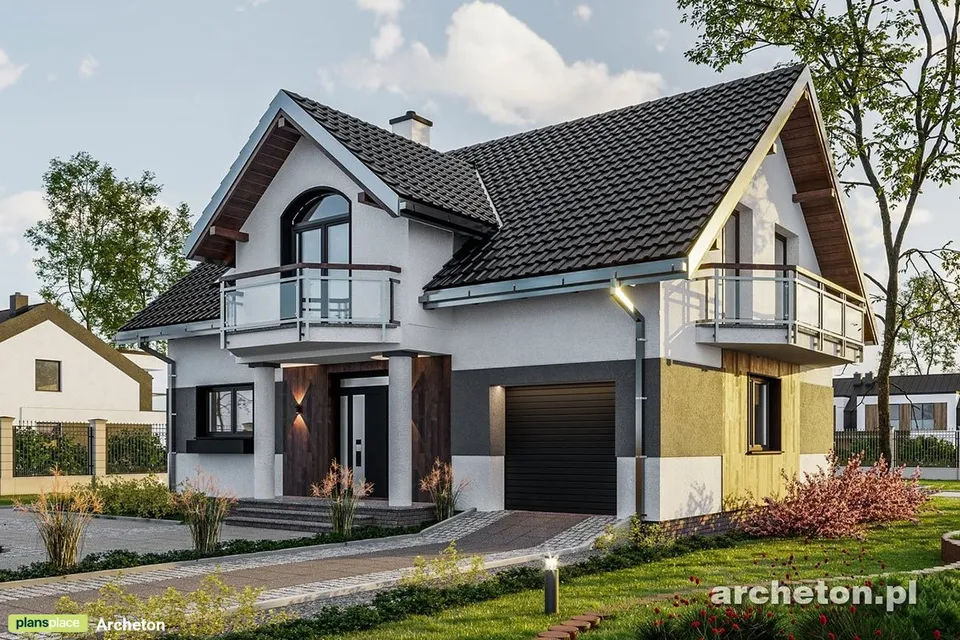

A classic portico shelters the front door and opens into a proper entry, so coats and boots stay out of the main rooms. The closed floor plan gives every room its own purpose. On the ground floor, the large family room is the center of daily life, anchored by a fireplace that draws everyone together on winter evenings. The kitchen stands as a separate room, keeping cooking noise and aromas apart from the living area, and its breakfast nook is ready for quick morning coffee or homework after school. A bay window adds depth and character to the elevation.

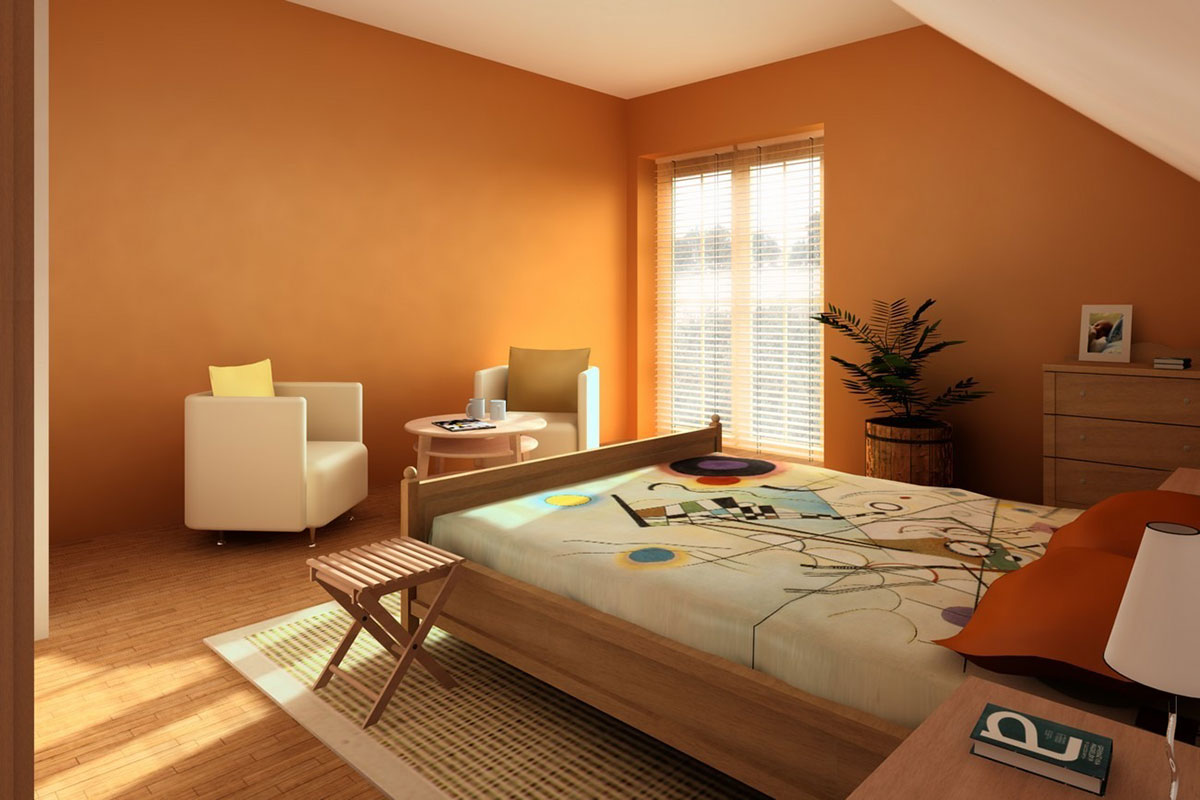

Upstairs, the second floor master shares the level with the other bedrooms, which are clustered close together so parents stay within easy reach of the children. Two full bathrooms serve the household. The laundry is also on the second floor, right where clothes and linens are used, so baskets never have to travel up and down the stairs. Dormers and skylights bring daylight into the upper floor, while a utility room and dedicated storage keep mechanical equipment and seasonal belongings neatly out of sight.

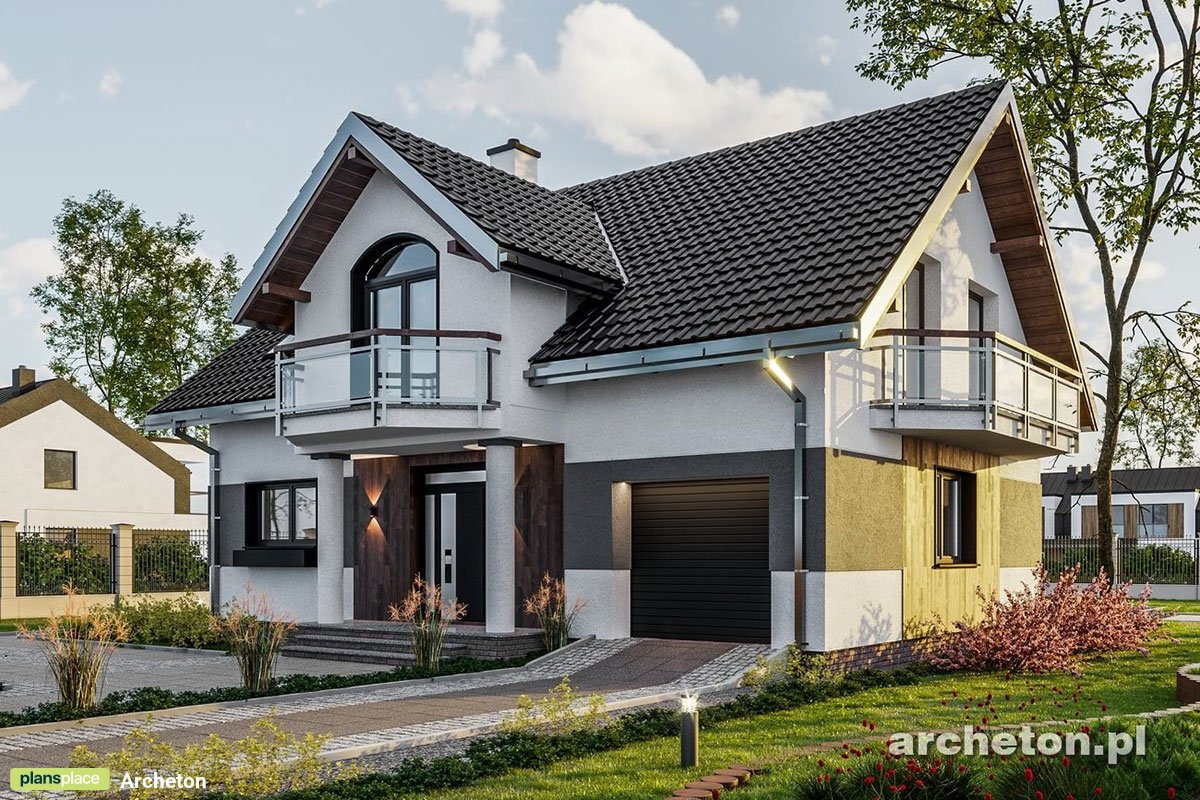

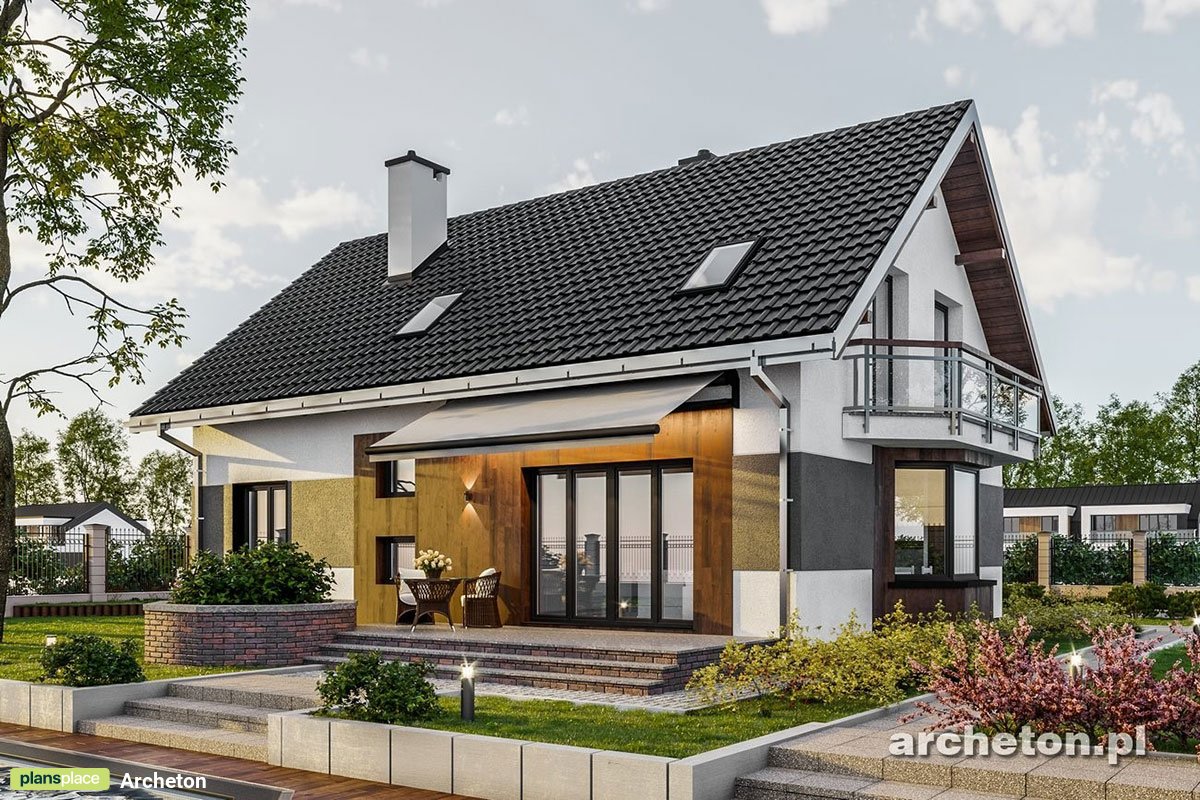

The attached one-car garage has a front entry and space above it, adding valuable room without enlarging the footprint. Out back, a deck extends living outdoors for summer meals, and a balcony offers a private spot to step out from the upper level. The house has no basement and stands on strip footings, with a slab foundation also available on request. The walls are designed in clay block masonry, and the plan can also be prepared for aerated concrete or wood frame construction.
