1,902 Sq Ft L-Shaped Single-Story Barndominium Plan with 4 Bedrooms, 3 Bathrooms and Carport
222
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

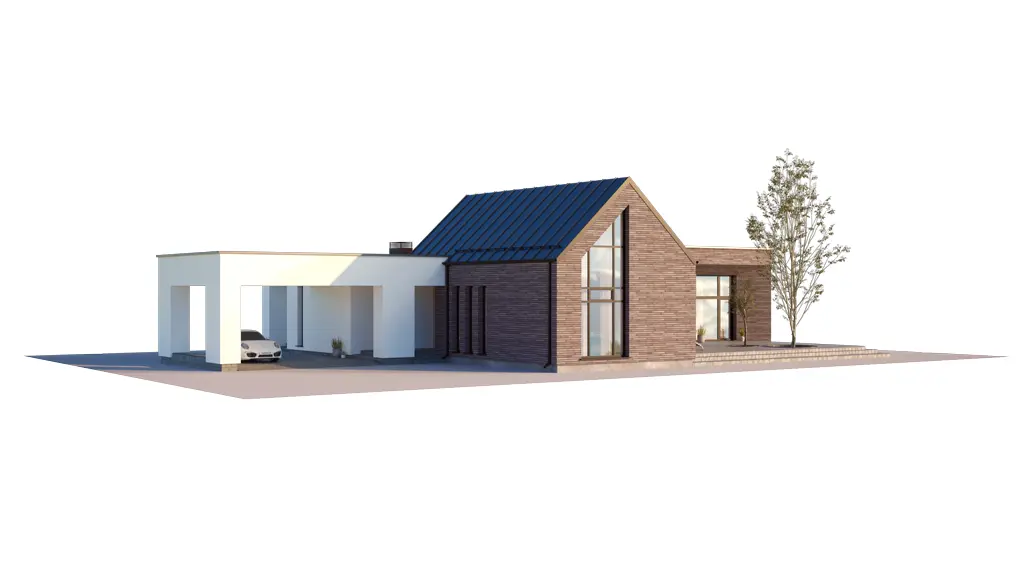

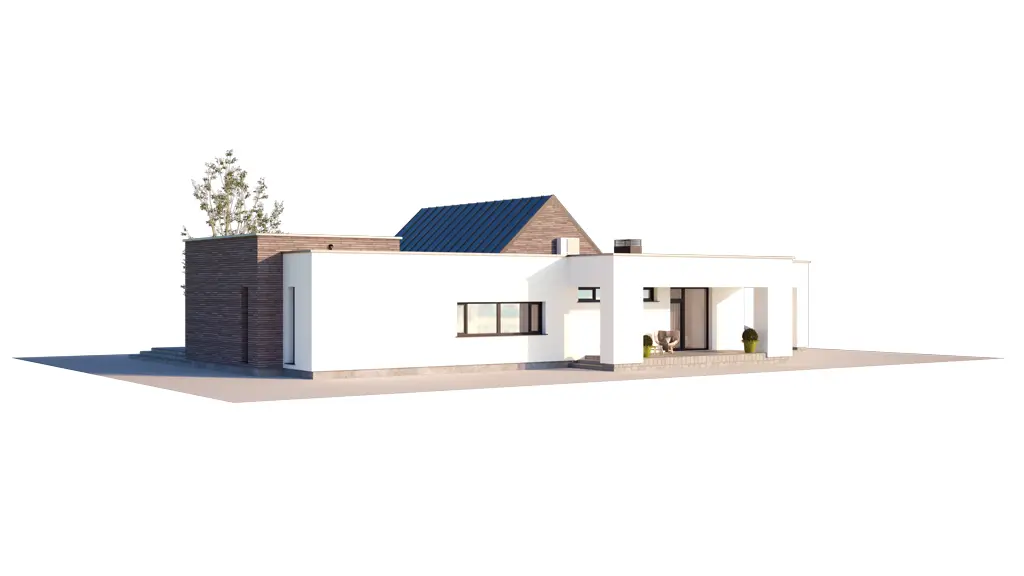

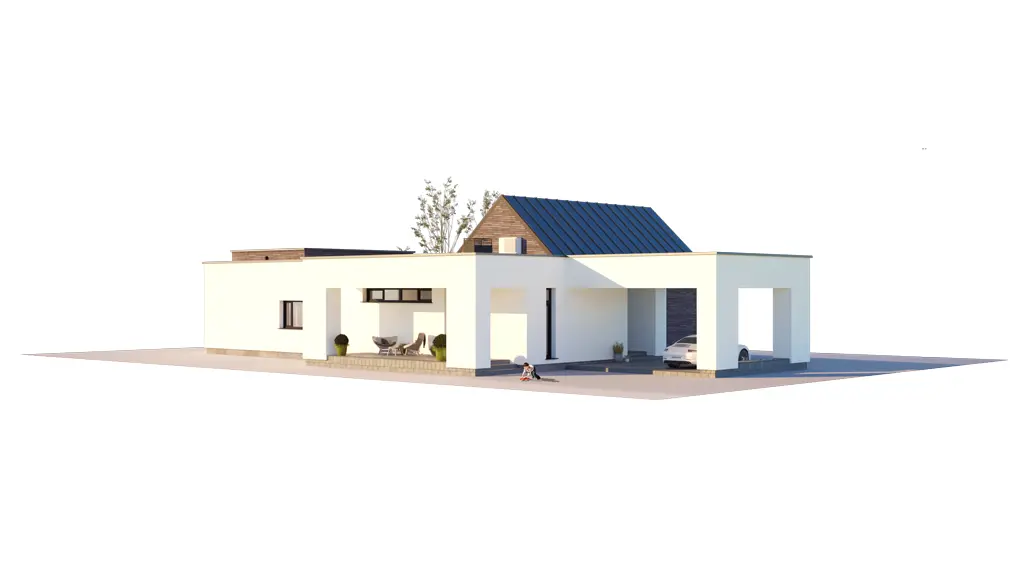

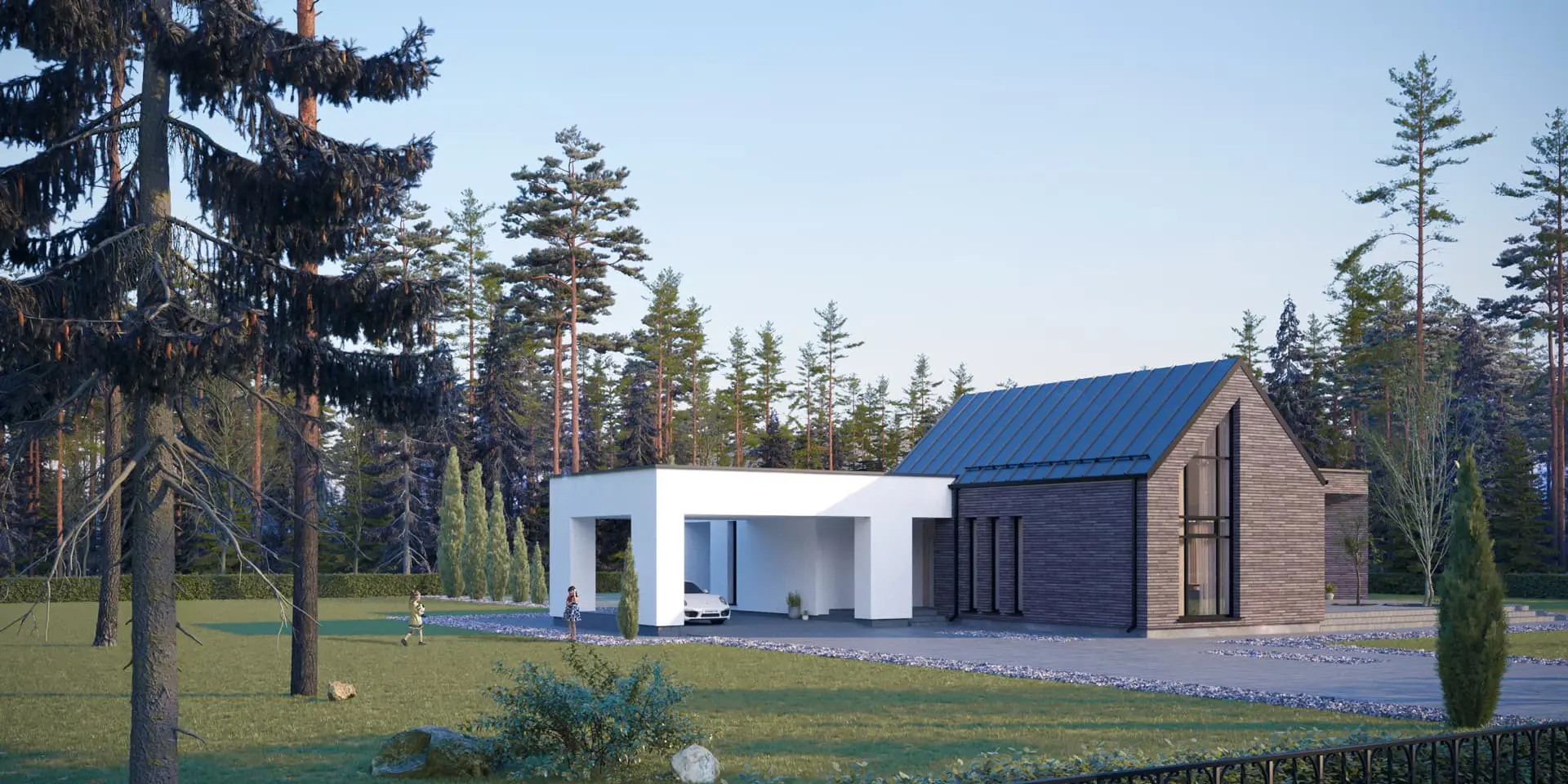

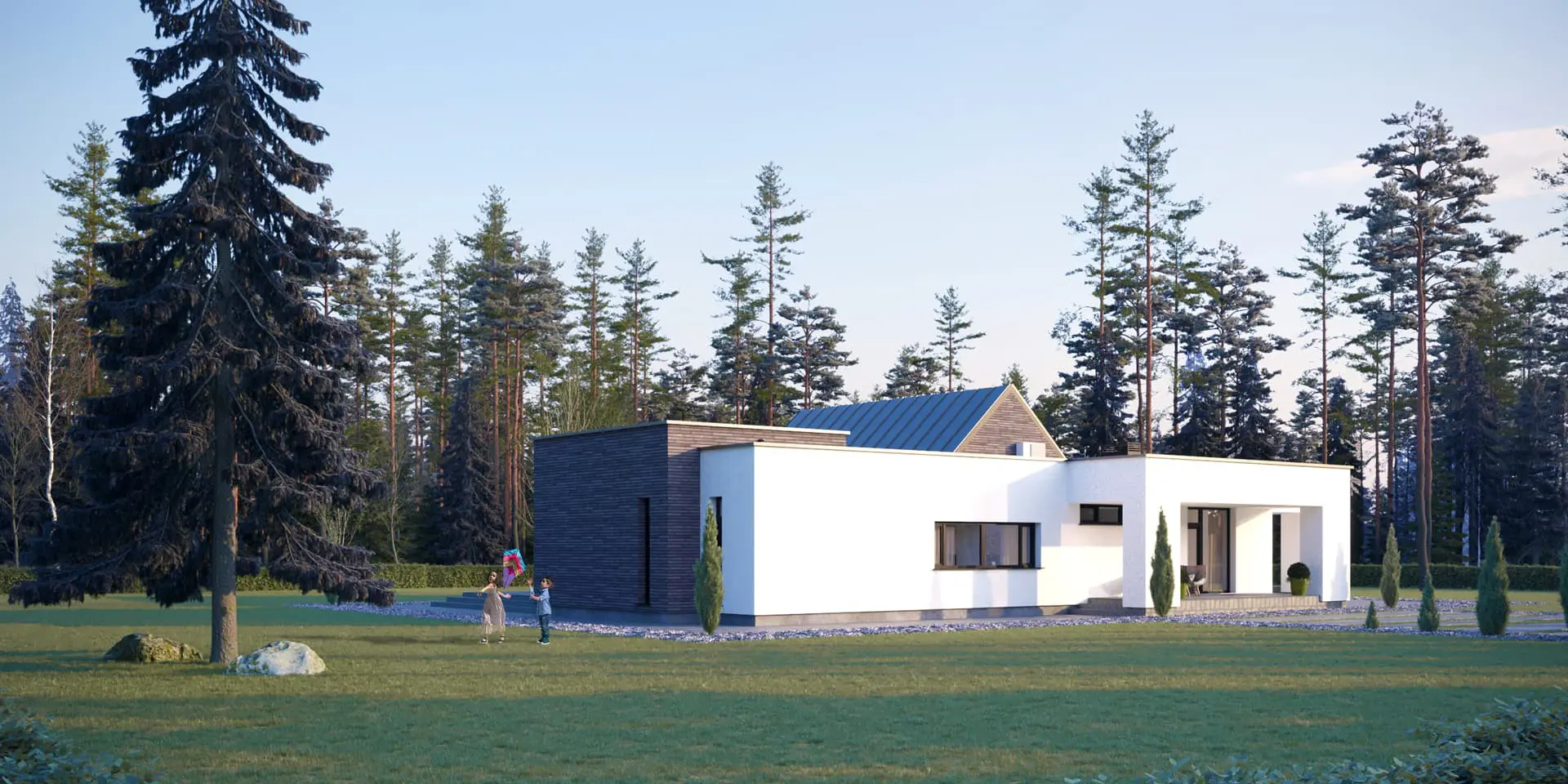

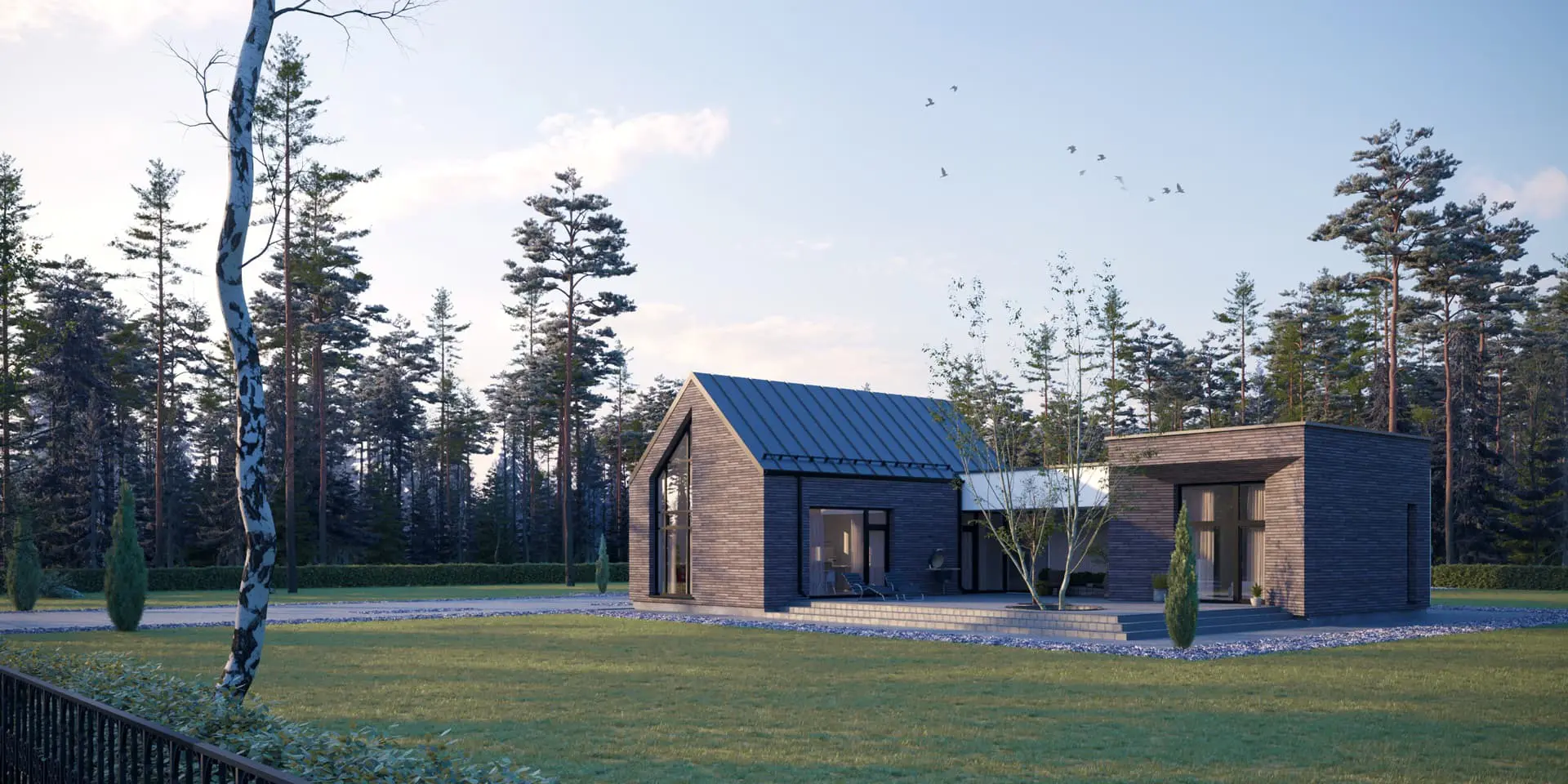

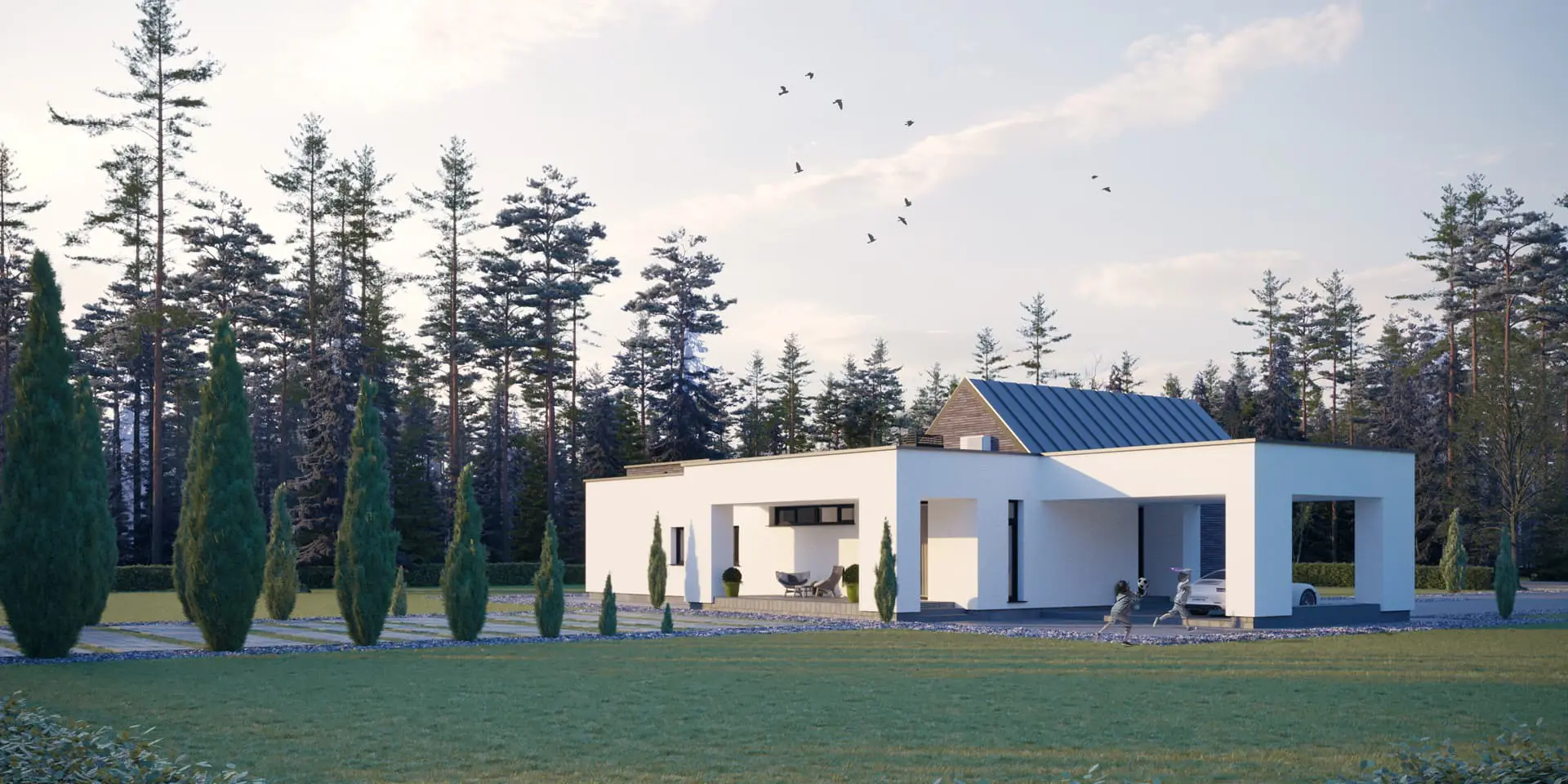

The 78321R house design concept is an L-shaped single-story barndominium with a total heated area of 1,902 Sq Ft, 4 bedrooms, 3 bathrooms and a carport for two cars. Designed as a single-family home for 4 to 6 people, it keeps every room on one level. The gable roof with an 11/12 pitch, combined with flat roof sections, runs with its ridge parallel to the street for a calm front elevation. The house measures 90'1" wide and 61'8" deep.

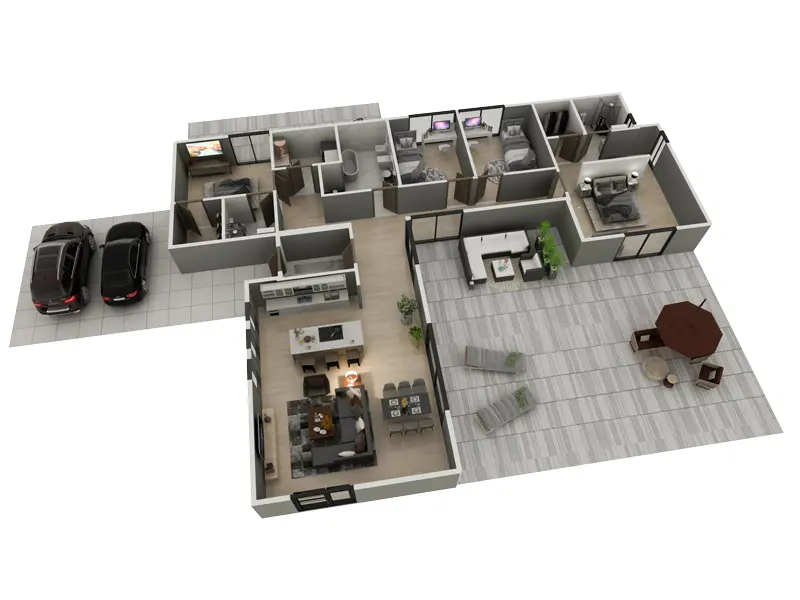

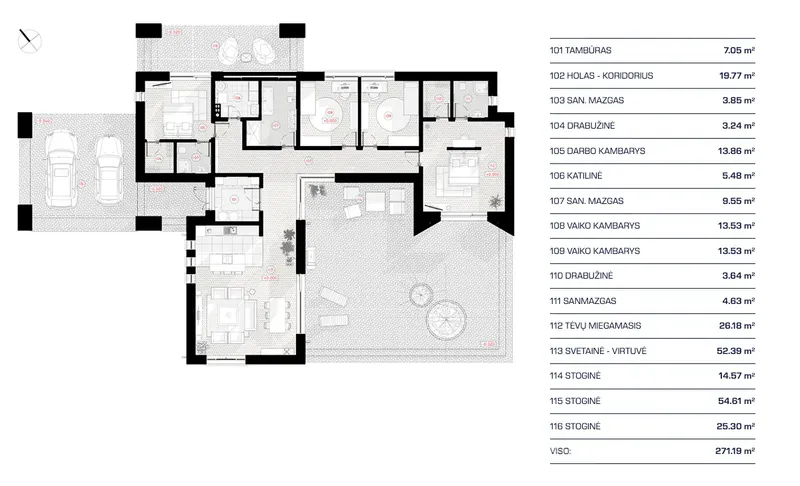

The entry opens into an open floor plan where the large great room, the dining area and the kitchen share one space under vaulted ceilings that add volume. The large kitchen has an island for meal prep, and a breakfast nook serves quick everyday meals. Large windows, floor-to-ceiling windows and a corner window fill the living areas with daylight.

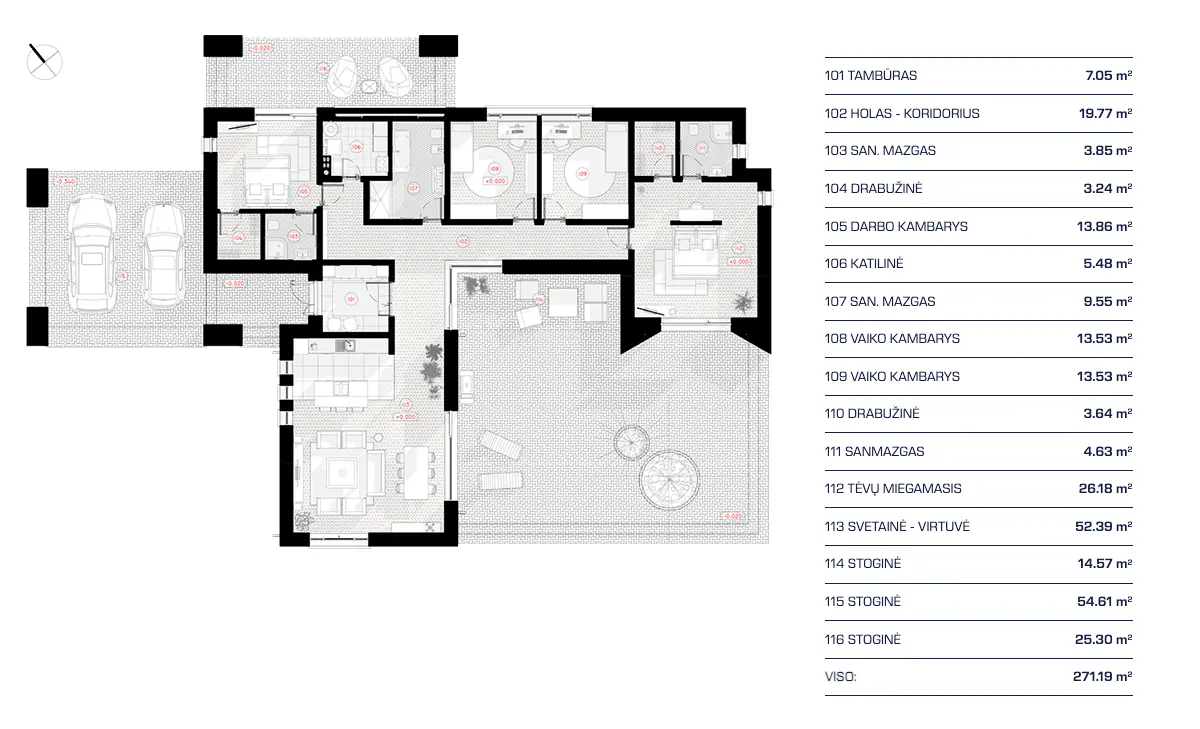

The bedrooms are clustered on the main floor, which keeps the private zone compact. Two primary suites give parents and guests equal comfort, and a walk-in closet keeps clothing organized. Three full bathrooms shorten the morning rush, and the laundry sits in the utility room, away from the living spaces.

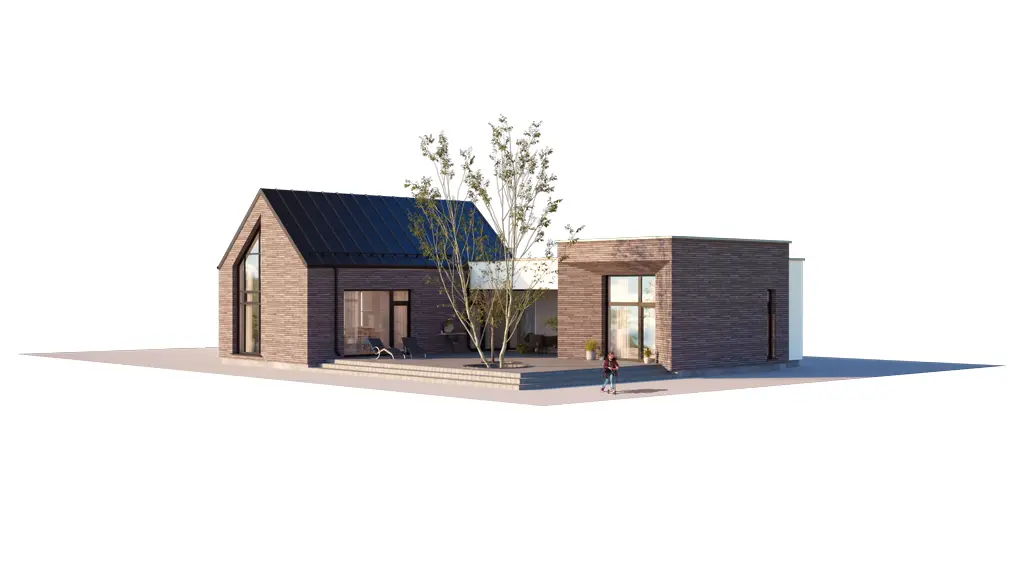

A covered side porch offers shade, while the patio and the deck extend the living areas into the yard. Stone or brick veneer with stucco gives the exterior a durable finish. The project uses a slab foundation, with pile, strip or block foundations as options; the exterior walls are calcium silicate block, with aerated concrete, ceramic block or wood frame as alternatives. The figures: a total heated area of 1,902 Sq Ft, 4 bedrooms, 3 bathrooms and a 2-car carport.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
