1,667 Sq Ft Traditional L-Shaped Single-Story House Plan with 3 Bedrooms, 2 Bathrooms and 2-Car Garage
222
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

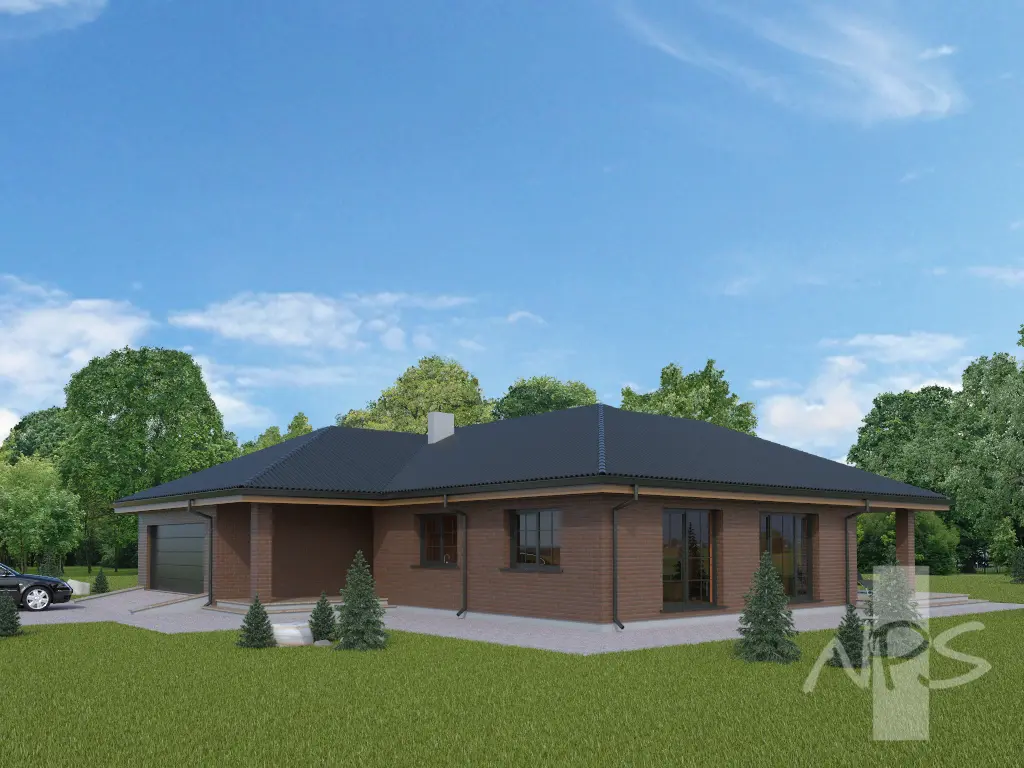

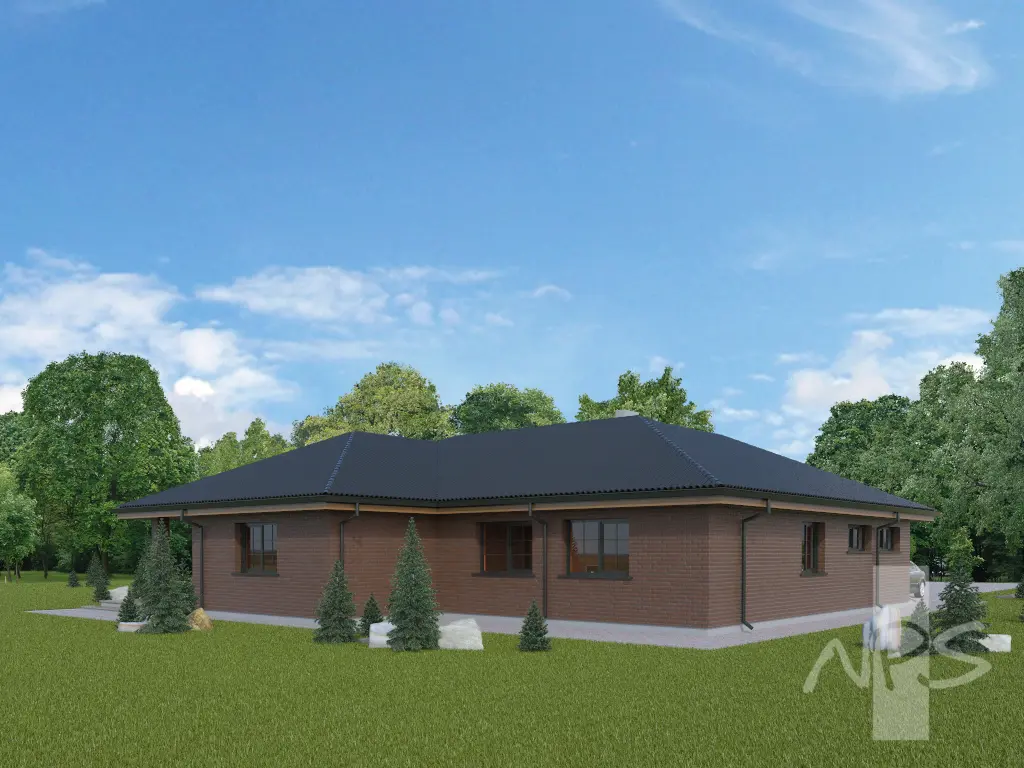

Digital house design concept 32957R is a Traditional single-family home on one story with an L-shaped footprint and Total Heated 1,667 Sq Ft. It holds 3 bedrooms and 2 full bathrooms for a household of 3-4 people. The hip and valley roof with a 6/12 (26°) pitch sheds rain and snow evenly on every side.

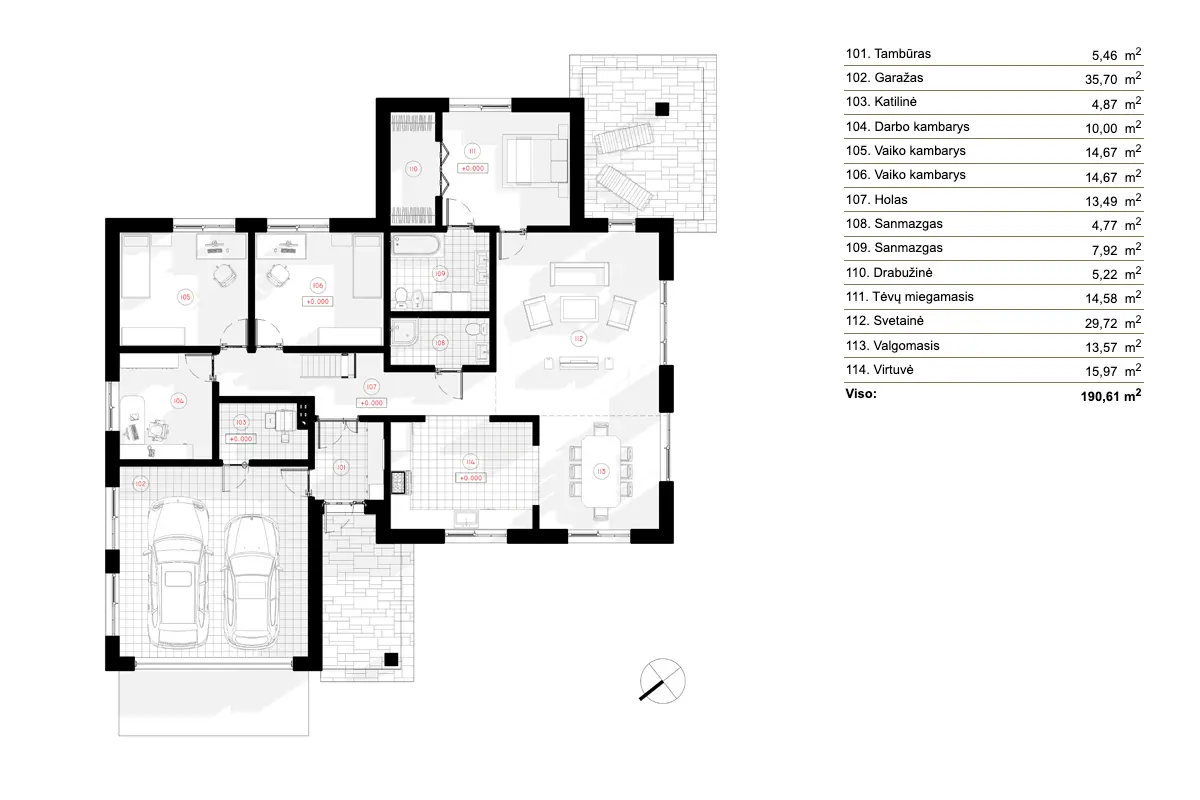

An entry welcomes guests and keeps outdoor clutter away from the living spaces. The closed floor plan separates the large kitchen from the large family room, so cooking smells and noise stay out of the seating area. A breakfast nook in the kitchen handles everyday meals, and a home office gives a quiet place for remote work or study. Large windows and floor-to-ceiling windows bring daylight deep into the rooms.
Split bedrooms place the primary bedroom on one side of the layout and the two secondary bedrooms on the other, giving parents and children their own privacy. The primary bedroom has a walk-in closet for clothes and seasonal items, and two full bathrooms shorten the morning wait. A utility room keeps laundry and cleaning supplies out of the main rooms.

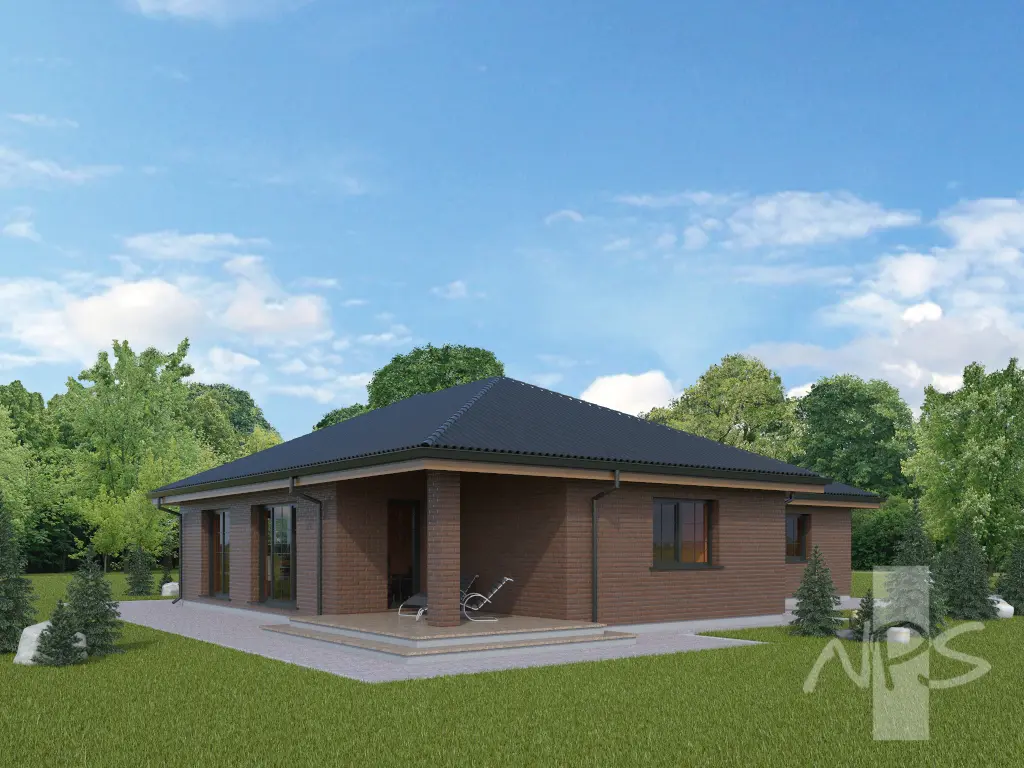

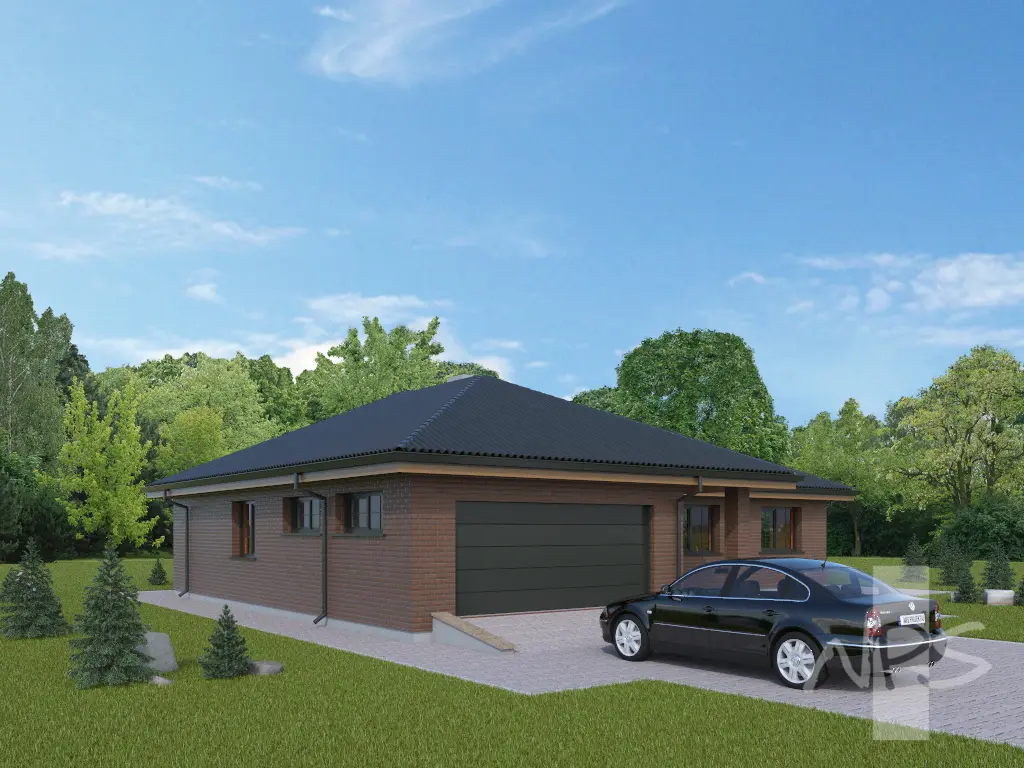

A covered rear porch extends outdoor living in any weather. The front-entry 2-car garage projects forward of the facade, with its doors facing the street. The exterior wears a durable stone/brick veneer over calcium silicate block walls, with aerated concrete, ceramic block or timber frame as alternatives. The main foundation is a bored pile foundation suited to weaker soils, and slab, strip or block foundations are available options. At 54'2" wide and 54'6" deep, the house offers Total Heated 1,667 Sq Ft, 3 bedrooms, 2 bathrooms and a 2-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
