1,831 Sq Ft Traditional L-Shaped Single-Story House Plan with 3 Bedrooms, 2 Bathrooms and 2-Car Garage
222
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

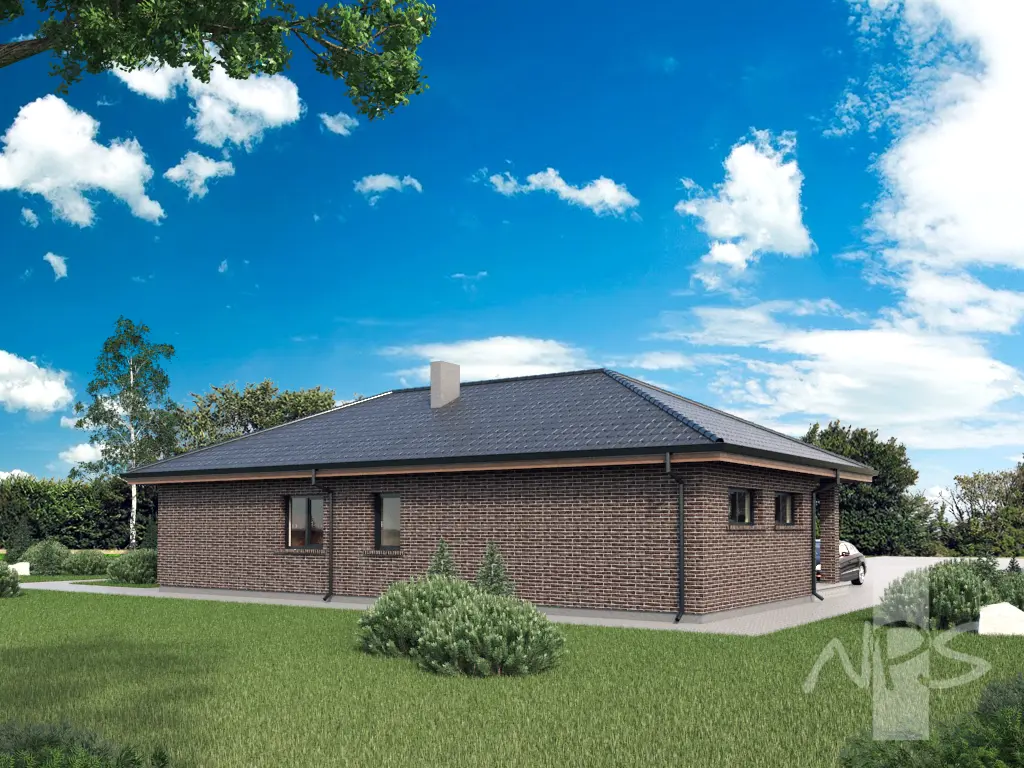

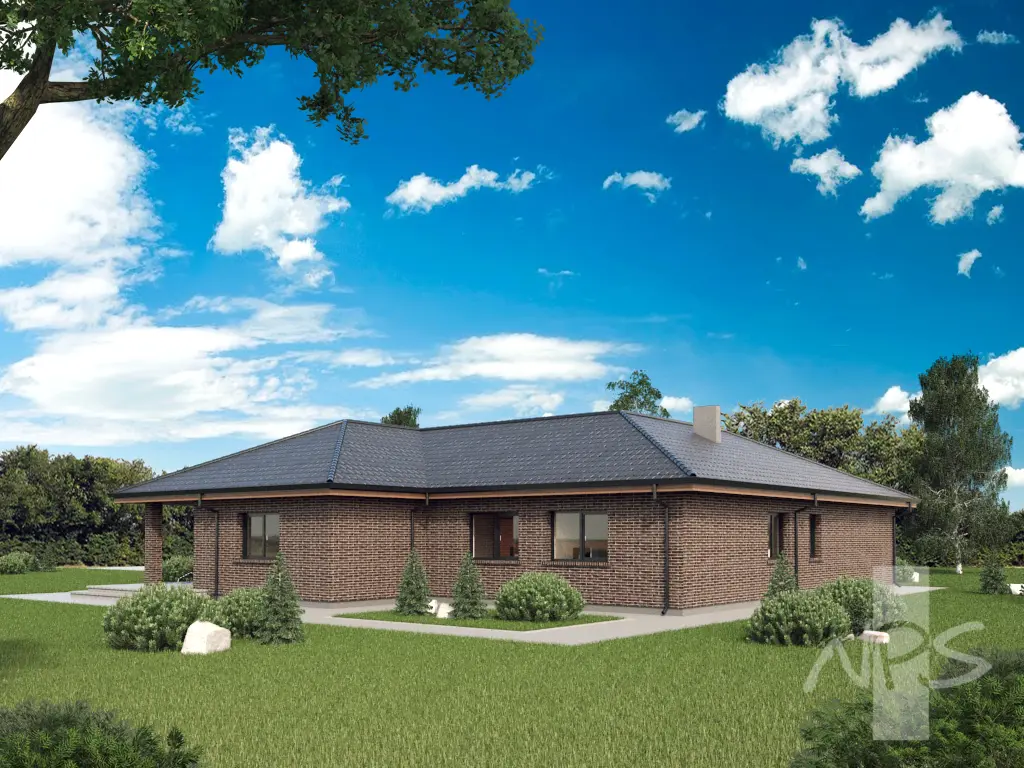

House design concept 64264R is a Traditional single-story, single-family home with an L-shaped footprint and a Total Heated 1,831 Sq Ft, designed for 3-4 people. It has 3 bedrooms, 2 bathrooms and a 2-car garage under a hip and valley roof with a 6/12 (26°) pitch, which protects the facade on every side. Brick and stone veneer give the exterior a durable finish that needs no painting. The footprint measures 62'9" wide by 55'8" deep.

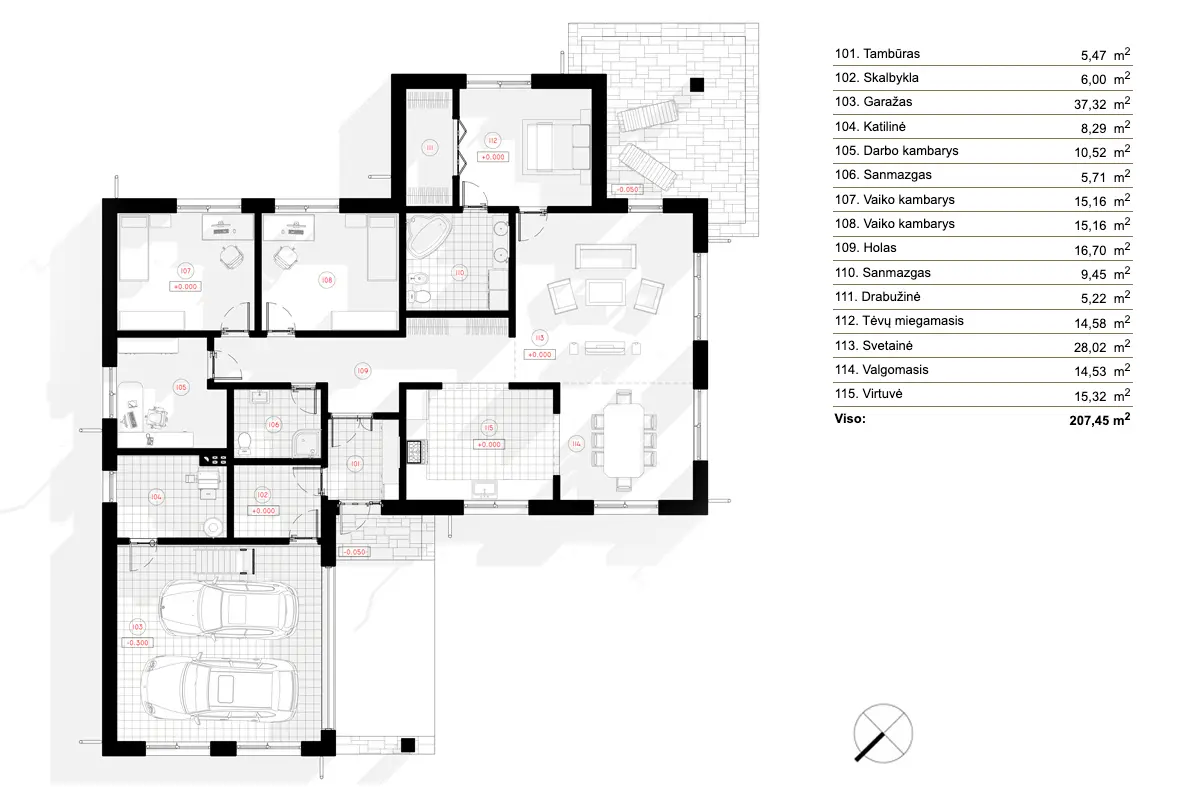

An entry off the covered front porch keeps coats and shoes out of the living spaces. The closed floor plan gives each room its own walls: the large family room stays quiet, and the large kitchen keeps cooking smells and noise contained. A breakfast nook in the kitchen handles everyday meals, large and floor-to-ceiling windows bring daylight deep into the rooms, and a home office provides a separate place for remote work.
The bedrooms are clustered on one level, so parents stay close to the children's rooms. The primary bedroom has a walk-in closet that frees the room from bulky wardrobes, and two full bathrooms shorten the morning routine. Laundry on the main floor, a utility room and a storage room keep household chores away from the living areas.

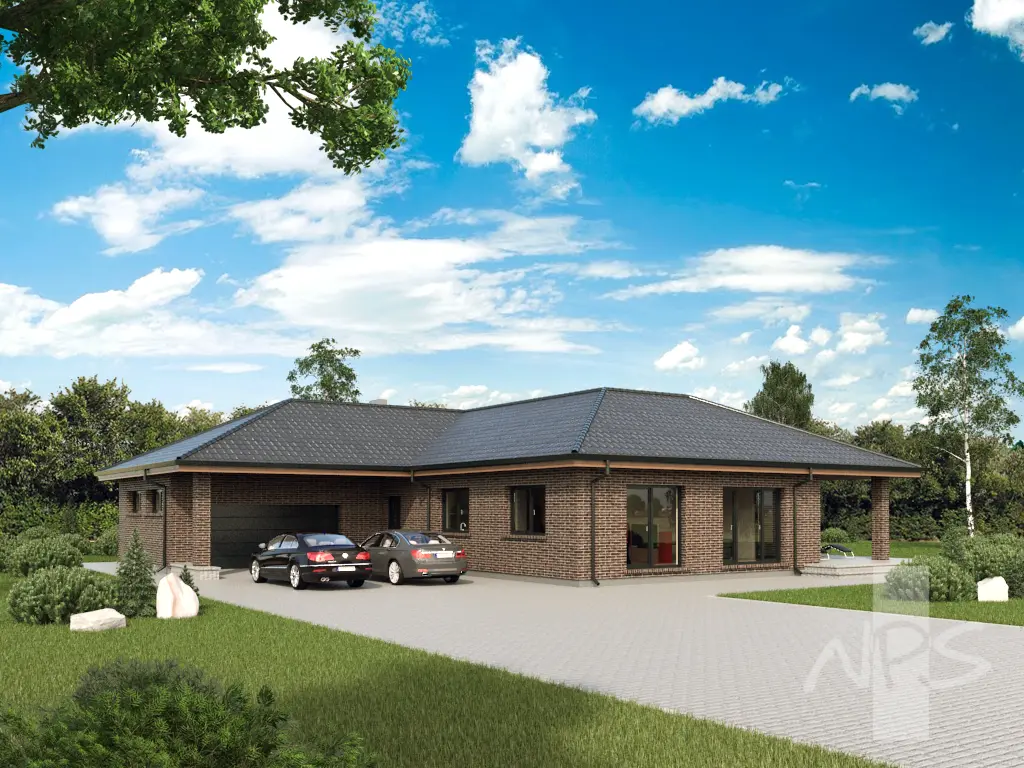

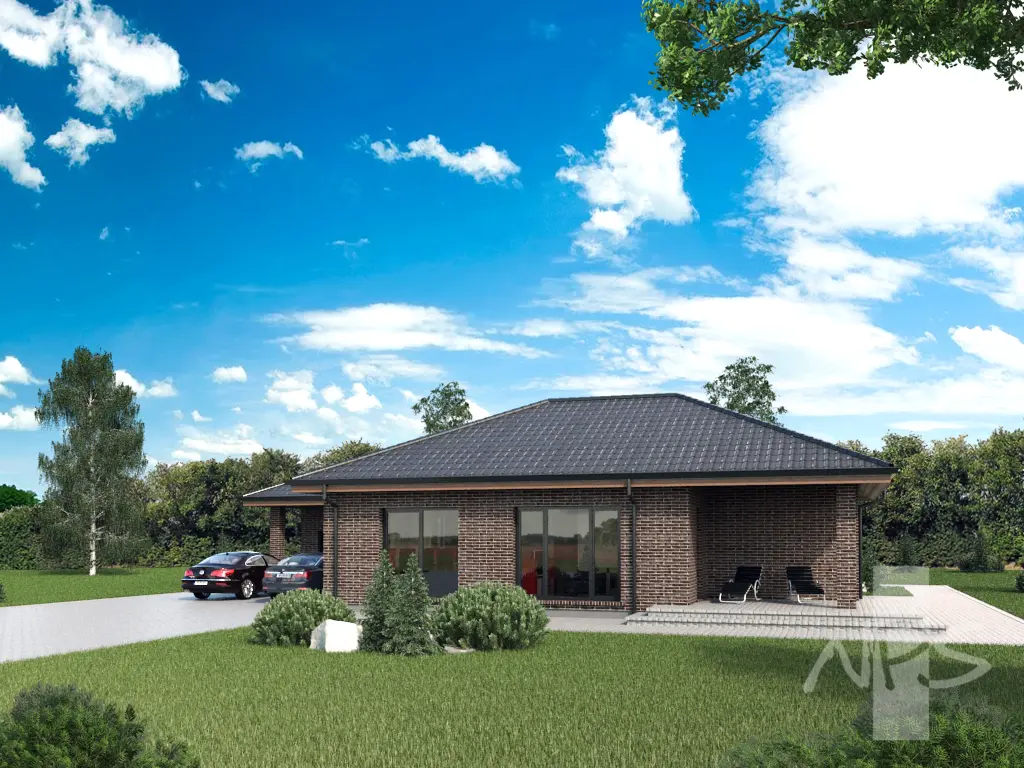

The covered rear porch extends outdoor living in any weather, and the courtyard organizes the arrival. The 2-car garage extends forward with a courtyard entry, turning the garage doors away from the street. The main foundation is a bored pile foundation, with slab, strip footing or block foundations as options; exterior walls are calcium silicate block, with aerated concrete, ceramic block or wood frame as alternatives. In figures: Total Heated 1,831 Sq Ft, 3 bedrooms, 2 bathrooms and a 2-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
