1,328 Sq Ft Modern L-Shaped Single-Story House Plan with 3 Bedrooms, 1.5 Bathrooms and 1-Car Garage
222
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

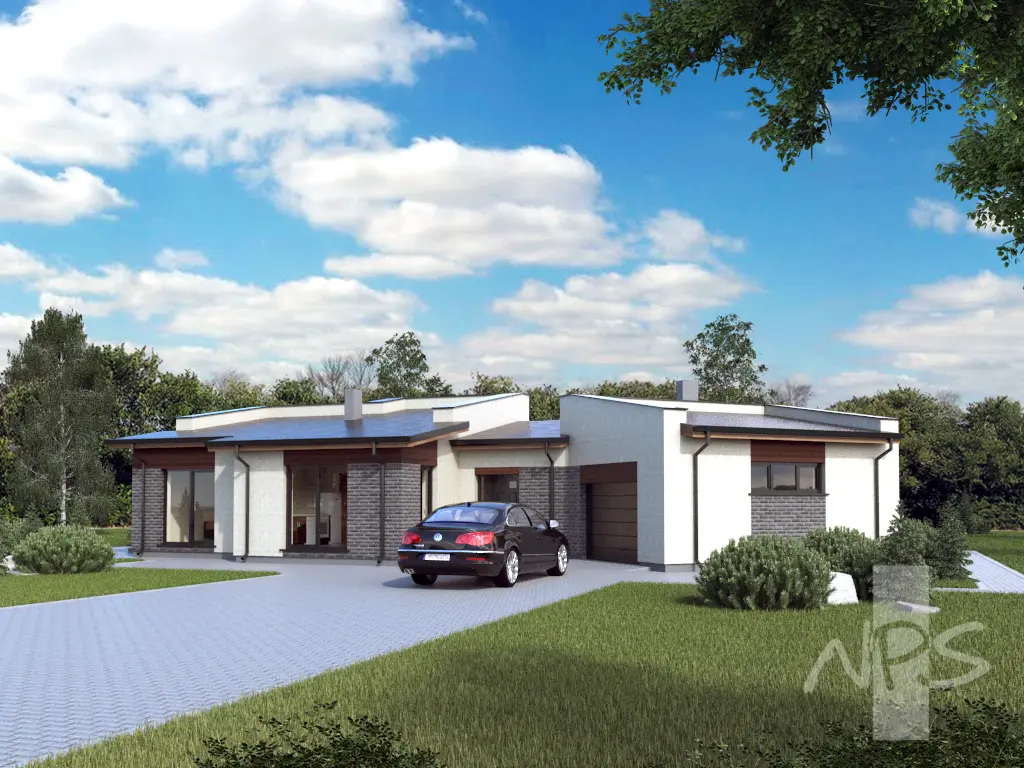

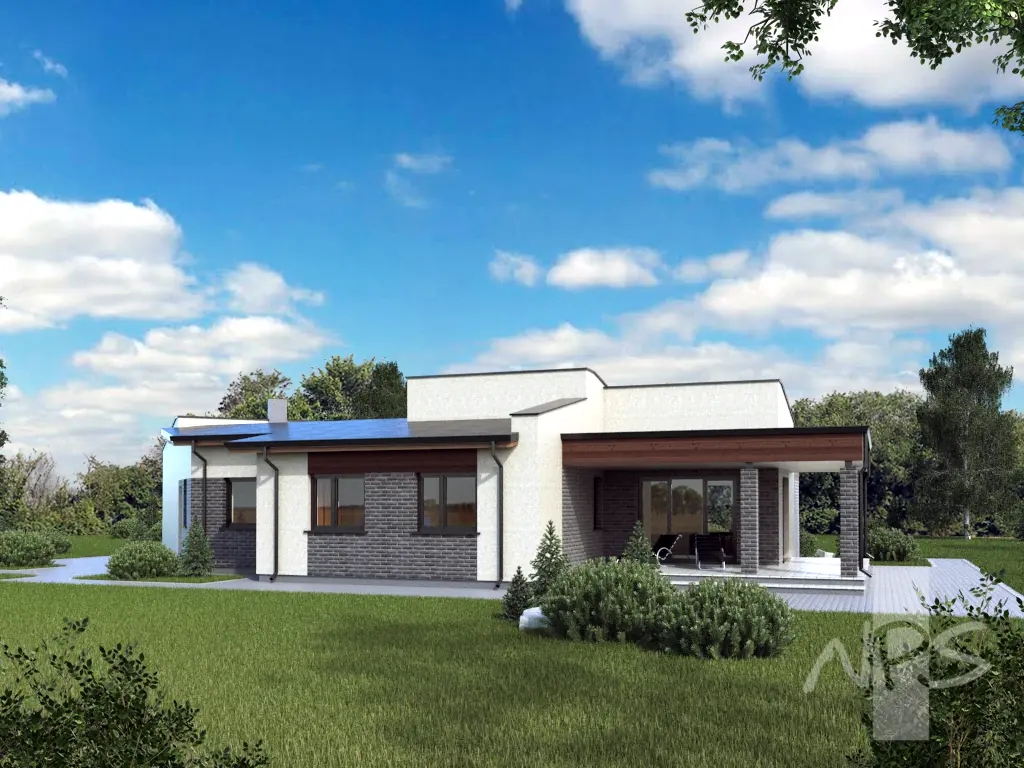

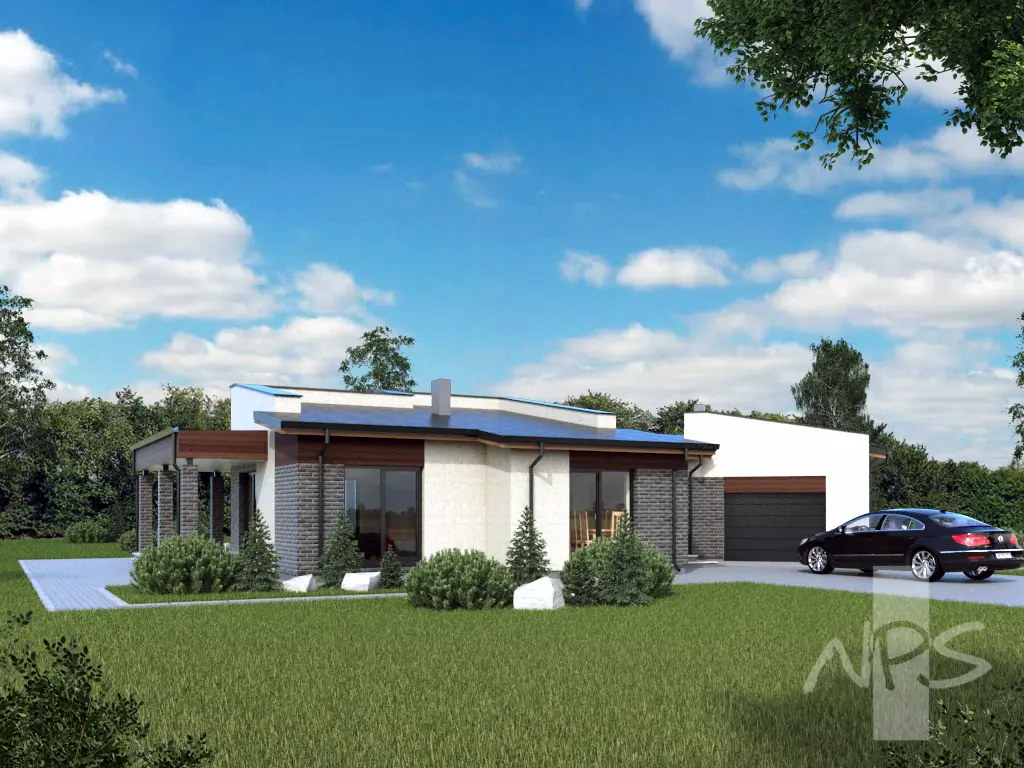

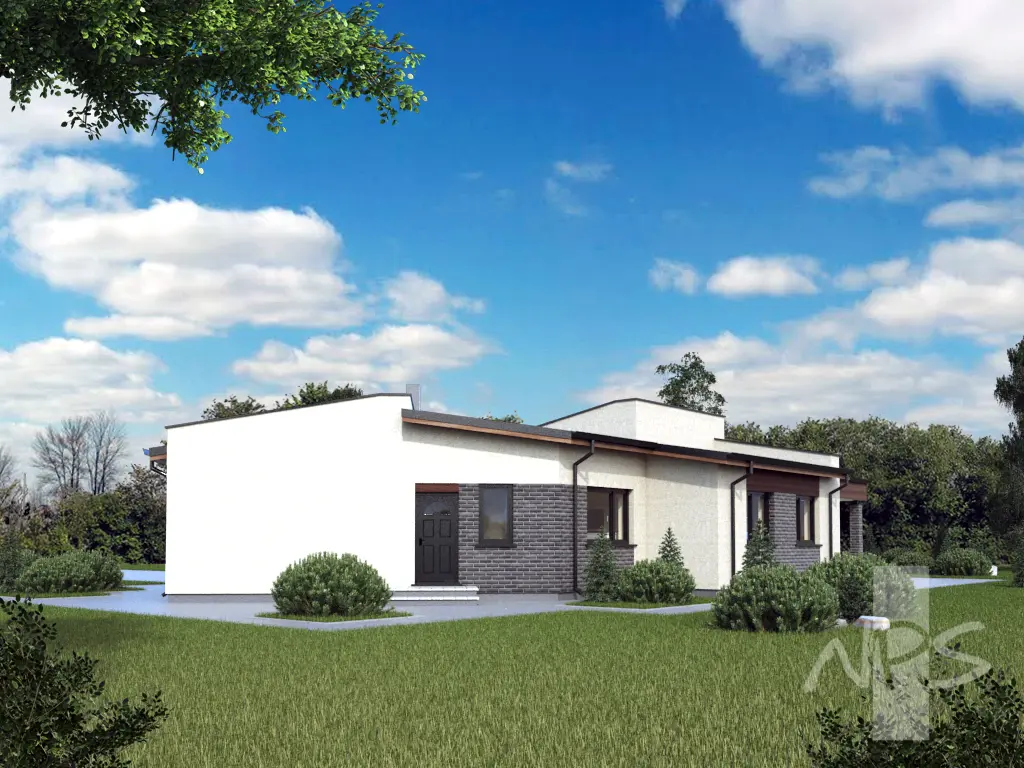

House design concept 11793R is a Modern L-shaped single-story single-family home with 3 bedrooms, sized for 3-4 people. A low-slope shed roof and a facade of stone/brick veneer and stucco give the house a clean, crisp silhouette. The L-shaped footprint measures 73'9" wide by 56'8" deep and shapes the outdoor space around the house.

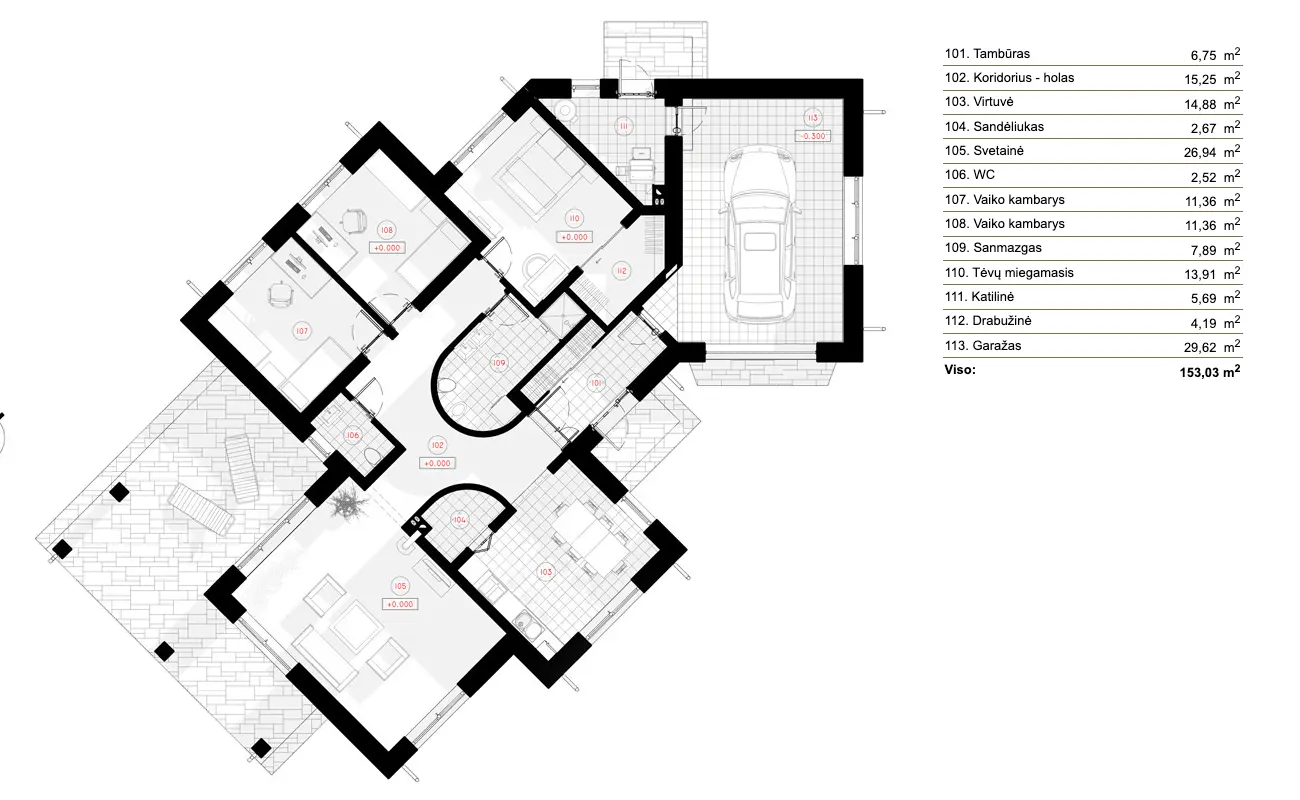

The entry receives guests and keeps outdoor wear away from the living spaces. The large family room sits under vaulted ceilings and opens to daylight through floor-to-ceiling windows, so it feels spacious. The closed floor plan keeps the large kitchen separate from the family room, so cooking stays out of the relaxing zone. A breakfast nook serves quick everyday meals, the walk-in pantry stores supplies in one place, and large windows bring natural light into the rooms.
The three bedrooms are clustered on one level, which keeps parents close to young children. The primary bedroom has a walk-in closet that frees the room from bulky wardrobes. One full bathroom and a half bath ease morning traffic, and the utility room keeps household equipment out of the living spaces.
The covered side porch offers a shaded spot outdoors in any weather. The front-entry garage holds one car and is reached straight from the front of the lot. The main foundation is bored piles, with slab, strip or block foundations as options to match the soil. The exterior walls are framed in sand-lime (silicate) block, with aerated concrete, ceramic blocks or frame construction as alternatives. In figures: Total Heated 1,328 Sq Ft, 3 bedrooms, 1.5 bathrooms and a 1-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
