1,448 Sq Ft Traditional L-Shaped Single-Story House Plan with 3 Bedrooms, 1 Bathroom and 1-Car Garage
222
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

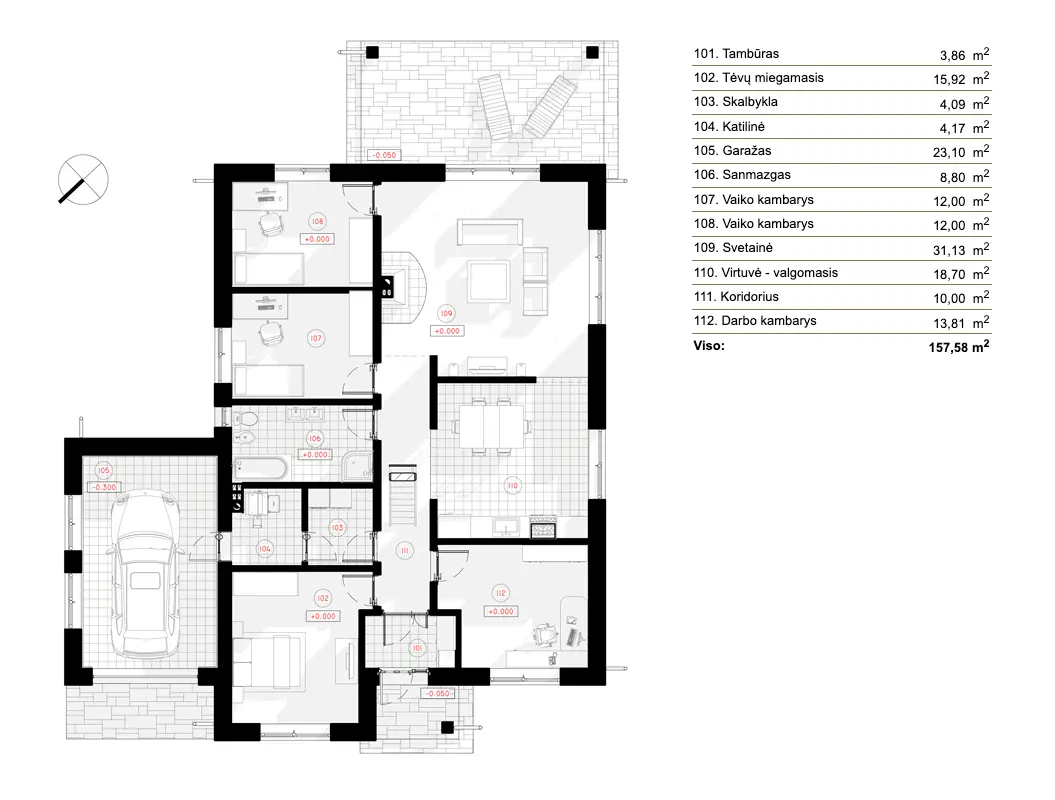

Design concept 53103R is a Traditional L-shaped single-story home with total heated 1,448 Sq Ft, 3 bedrooms, 1 bathroom and a 1-car garage for a household of 3-4 people, available for purchase as a digital house design concept. The single family home sits under a hip and valley roof with a 3/12 (14°) pitch, and its footprint measures 46'3" wide by 59'4" deep.
An entry receives guests and keeps the living spaces out of view of the front door. The large family room centers on a fireplace that gathers everyone on cool evenings. The closed floor plan gives the large kitchen a room of its own, so cooking smells stay away from the family room, while a breakfast nook offers a spot for everyday meals. A home office provides a quiet, flexible room for remote work or study.
The night zone stays on the same level. Split bedrooms place the primary bedroom apart from the two secondary bedrooms, giving parents more privacy. All three bedrooms share one full bathroom. A laundry on the main floor and a separate utility room keep household chores out of the living areas.

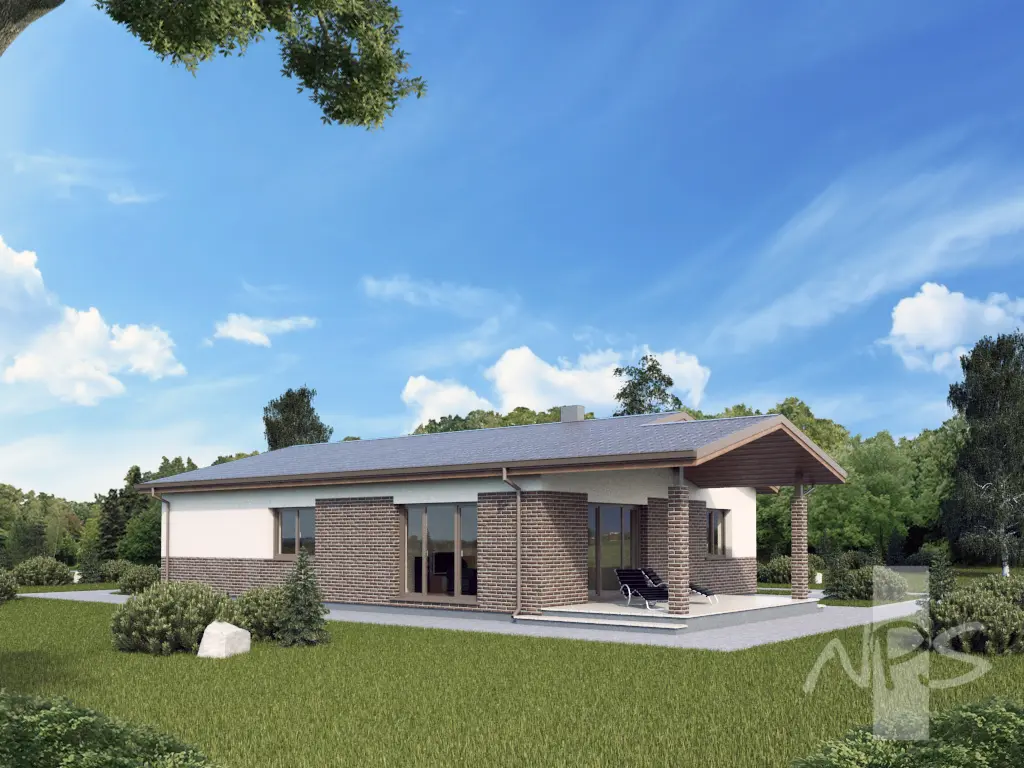

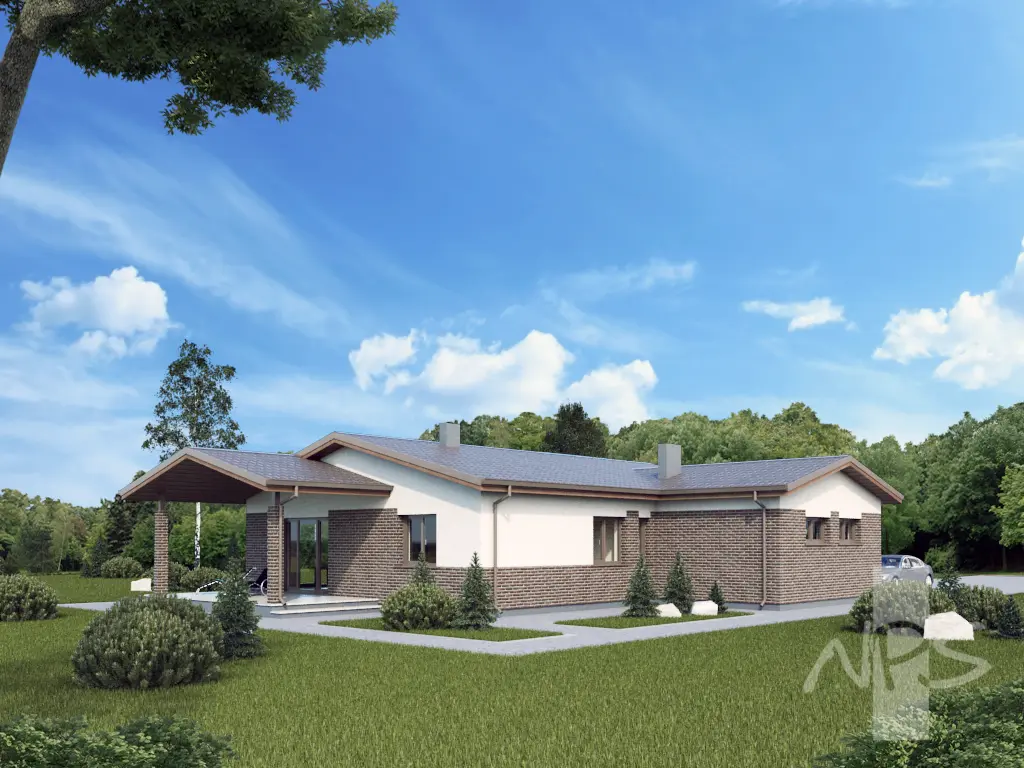

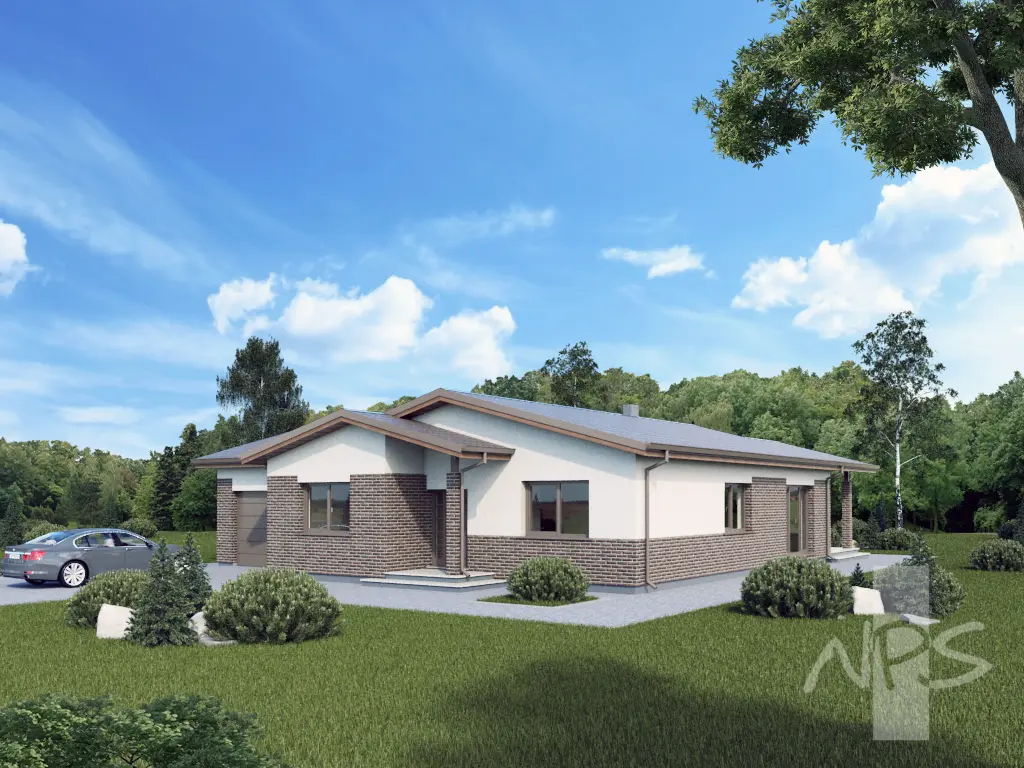

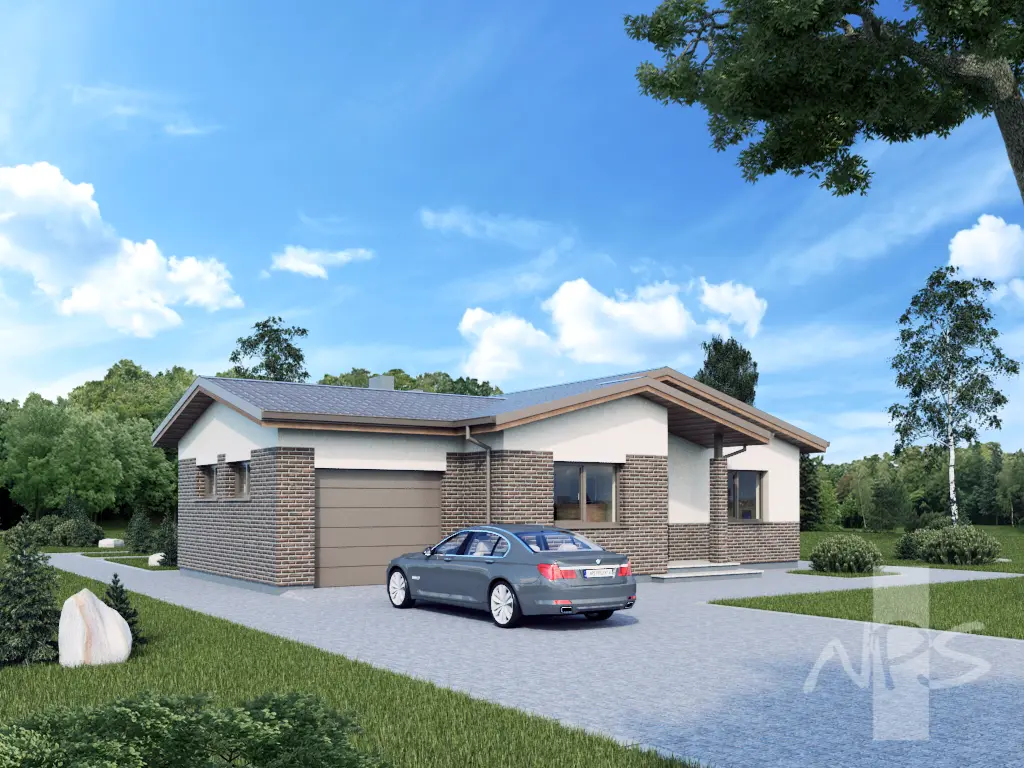

A covered rear porch provides a sheltered place to sit outside in any weather, away from the street. The attached 1-car garage with front entry keeps the driveway short. Stone/brick veneer and stucco give the exterior a durable, traditional finish. The main foundation is bored piles, with slab, strip footing or block foundations as options; the exterior walls are planned in sand-lime block, with aerated concrete, ceramic block or frame construction as alternatives. In figures: total heated 1,448 Sq Ft, 3 bedrooms, 1 bathroom and a 1-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
Advanced Drafting & Design Co. Mooresville US$ 7,238
My Home Floor Plans Rosemead US$ 1,150
Plan & Simple LLC Austin US$ 2,896
