1,490 Sq Ft Traditional T-Shaped Single-Story House Plan with 3 Bedrooms, 2 Bathrooms and 1-Car Garage

Plan
27824C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1490
Total Heated ft²
2 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

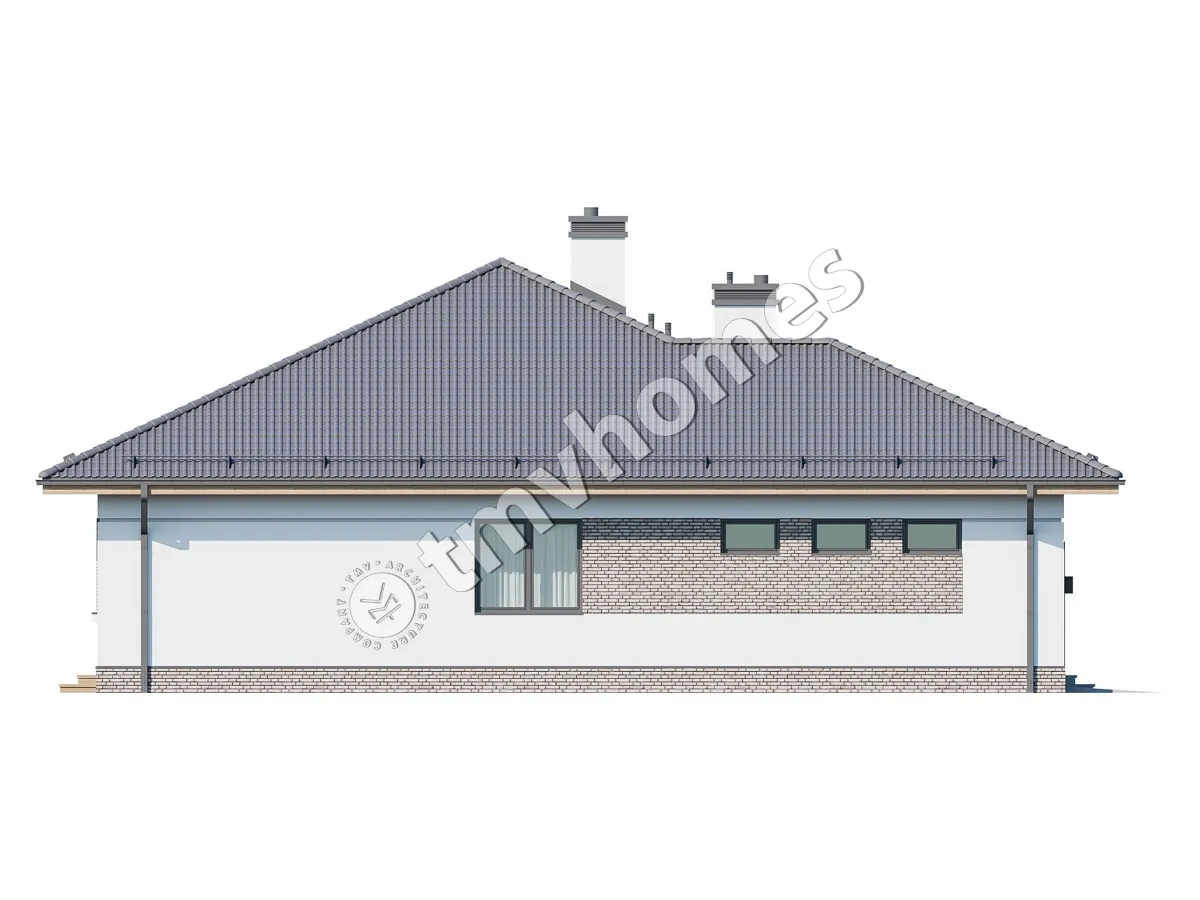

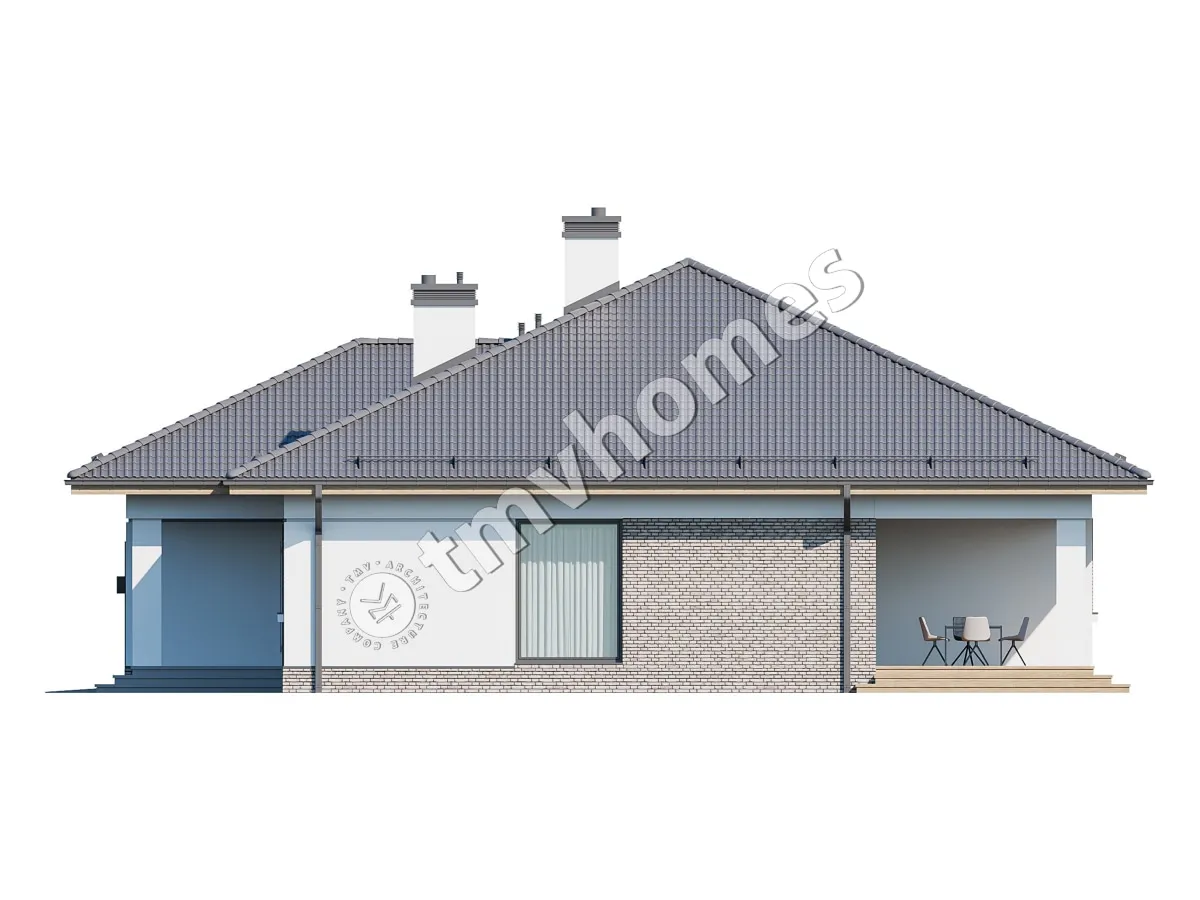

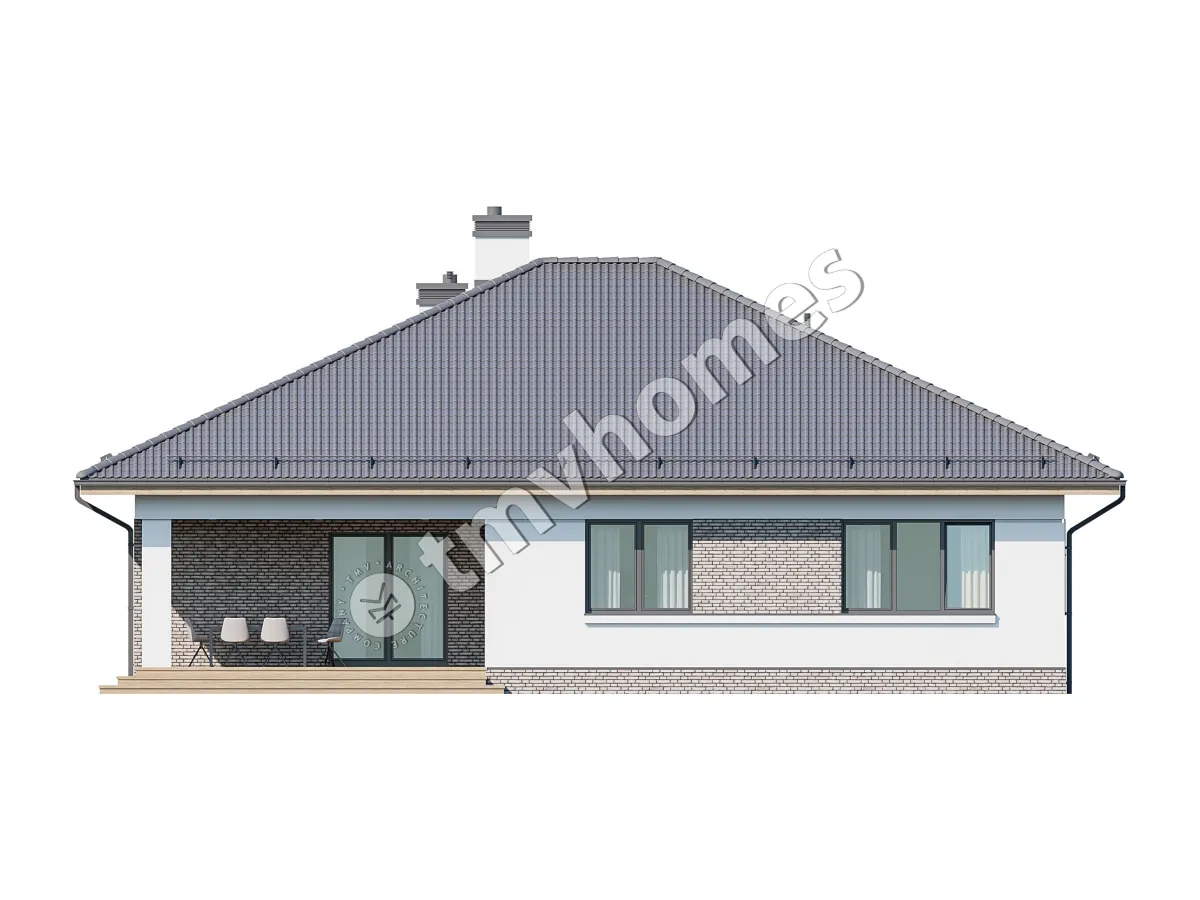

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

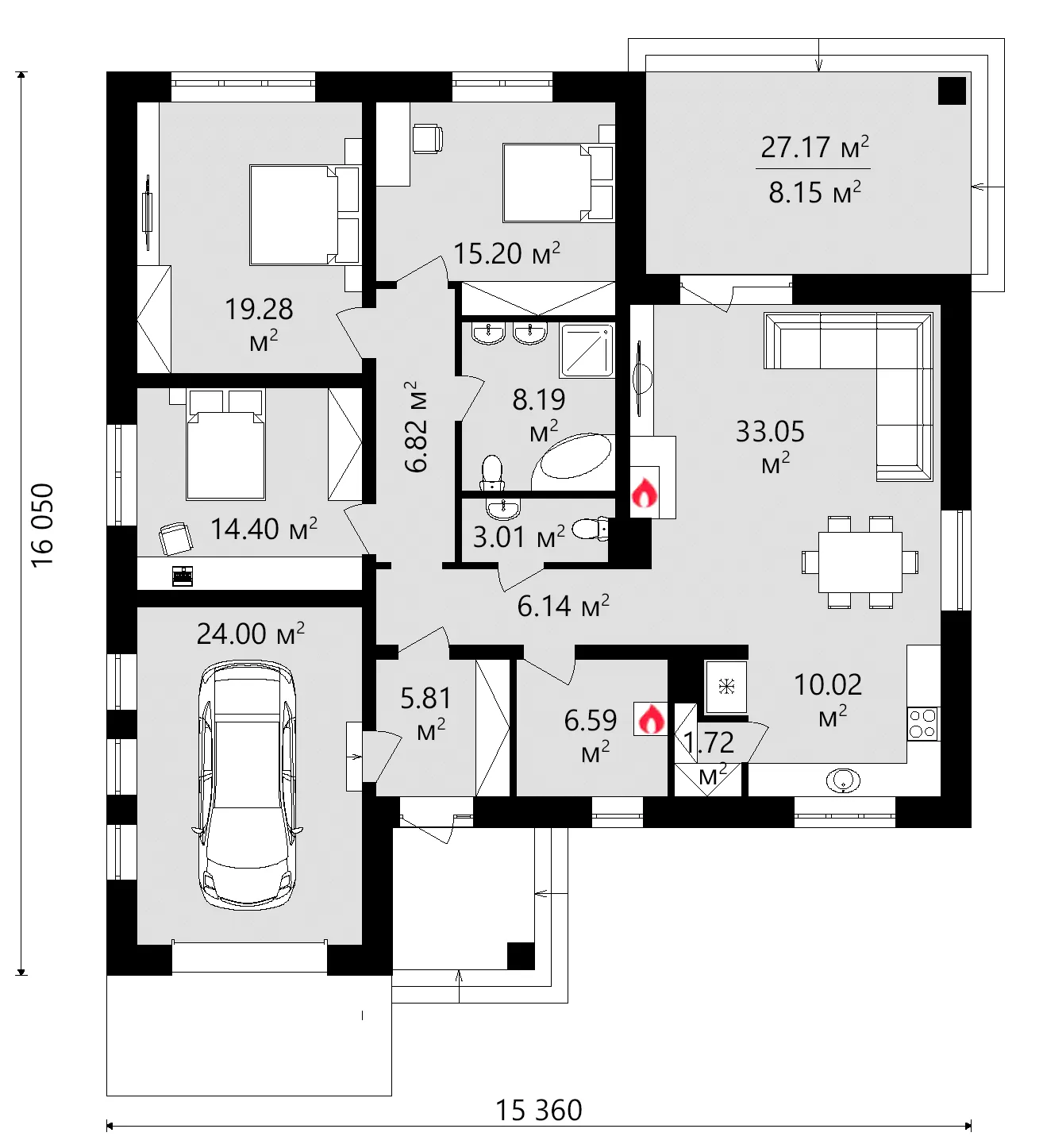

Floor Plans
Main Floor

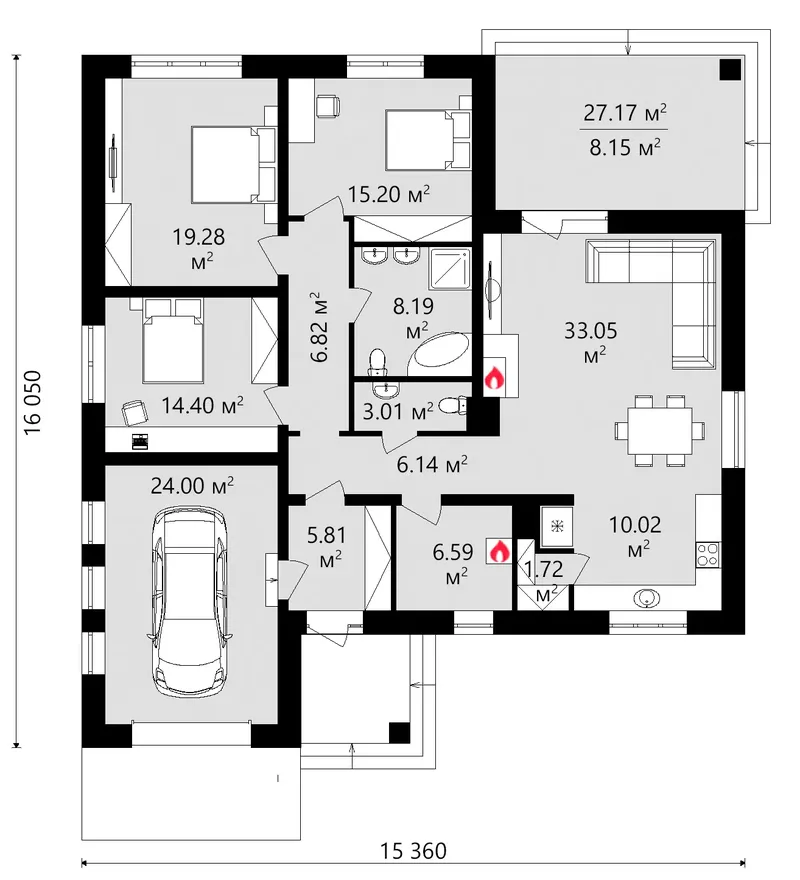

Main Floor 12 – 1,490 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 1-Car Garage – 27824C
Full Specs & Features
Area
Total Unheated: 258.33 ft²
Total Heated: 1489.51 ft²
Dimensions
Depth: 48'9" ft
Width: 46'8" ft
Height: 21'9" ft
Garage
Area: 258 ft²
Cars: 1
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 2
Bedrooms: 3
Utility room
Entry
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Interior Features
Fireplace in Family Room
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Exterior Features
Covered Rear Porch
Architectural Style
Bungalow
European
Traditional
Roof
Roof Area: 3261.46 ft²
Hip & Valley
Roof Pitch: 6/12 (26°)

The 27824C digital house design concept, available for purchase, is a Traditional T-shaped single-story home with Total Heated 1,490 Sq Ft, 3 bedrooms, 2 bathrooms and a 1-car garage under a hip and valley roof. Designed as a single family home for 3-4 people, the layout keeps every room on one level, so daily life runs without stairs. The footprint measures 46'8" wide by 48'9" deep, and the T-shape gives the plan distinct wings.

An entry receives guests and keeps coats and shoes away from the living area. The open floor plan joins the large family room, the kitchen and the breakfast nook into one shared space, so whoever cooks stays part of the conversation. A fireplace in the family room adds warmth on cool evenings, and a walk-in pantry stores groceries in bulk and keeps the counters clear.

The three bedrooms are clustered together in their own wing, close enough for parents to hear small children at night. Two full bathrooms share the morning routine, so nobody waits in line. A utility room keeps household equipment and chores out of the living spaces.

The covered rear porch provides a shaded spot for outdoor meals in any weather. The front-entry garage holds one car and shortens the way from the street. Stone/brick veneer and stucco give the facades a durable, low-maintenance finish, and the 6/12 (26°) roof pitch sheds rain and snow quickly. The exterior walls are designed in aerated concrete block, with clay hollow block or calcium silicate block as options; strip footings form the standard foundation, with a slab or a concrete block foundation as alternatives. Total Heated 1,490 Sq Ft, 3 bedrooms, 2 bathrooms and a 1-car garage sum up the home.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
