2,698 Sq Ft Prairie 2-Story Family House Plan with 4 Bedrooms and 3 Bathrooms

Plan
19745C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2698
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

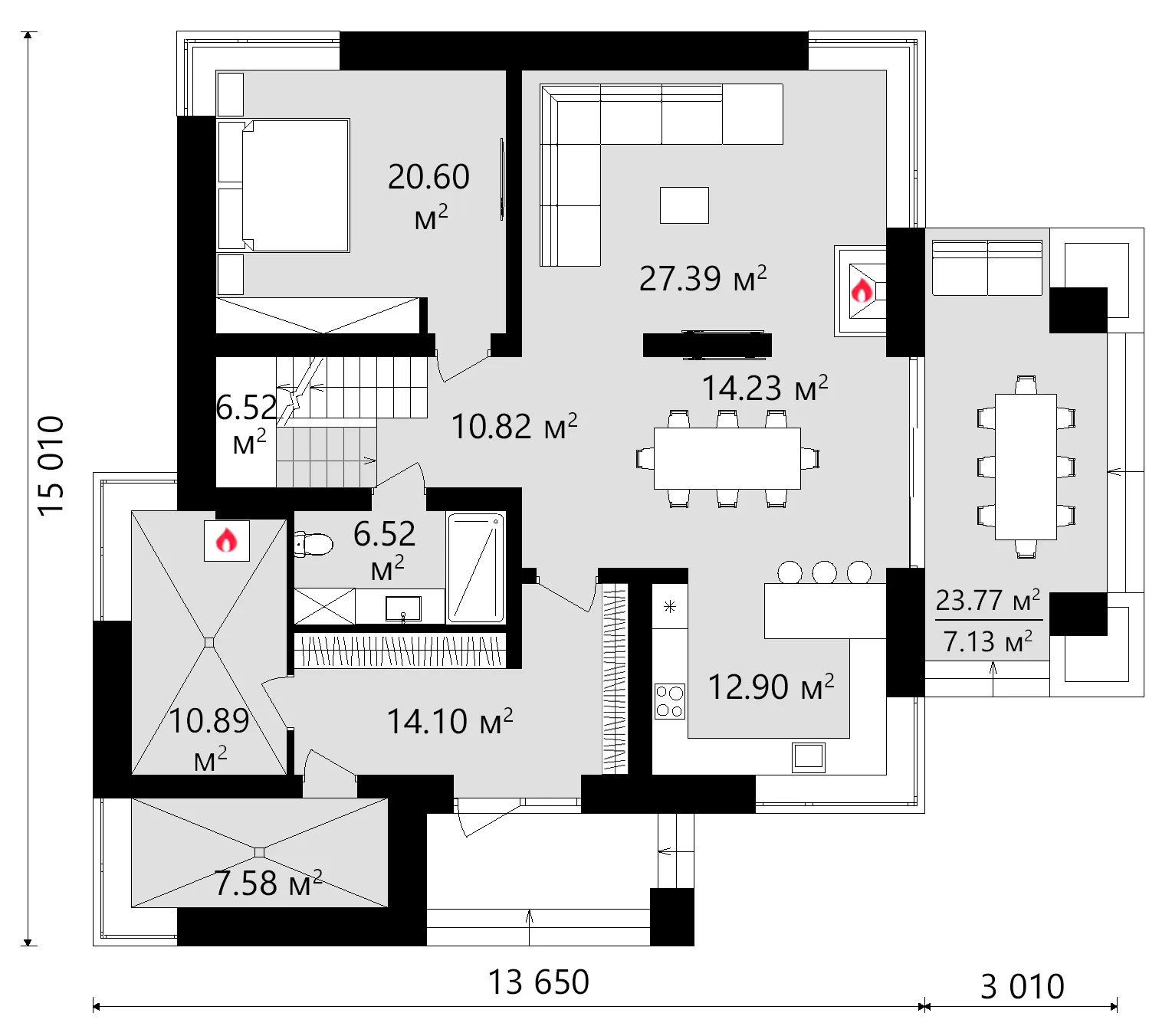

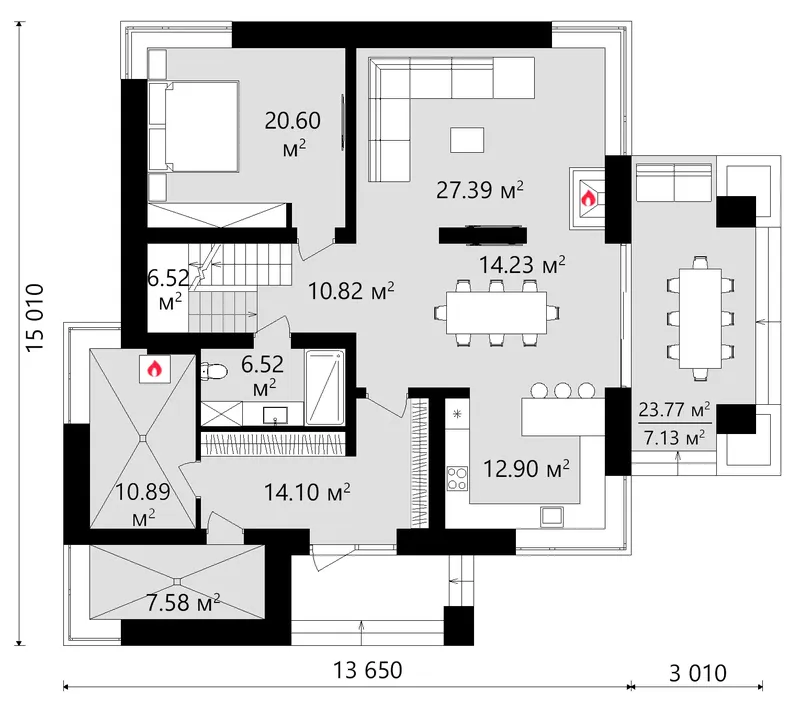

Main Floor
Main Floor 12 – 2,698 Sq Ft Prairie 2-Story Family House Plan with 4 Bedrooms and 3 Bathrooms – 19745C

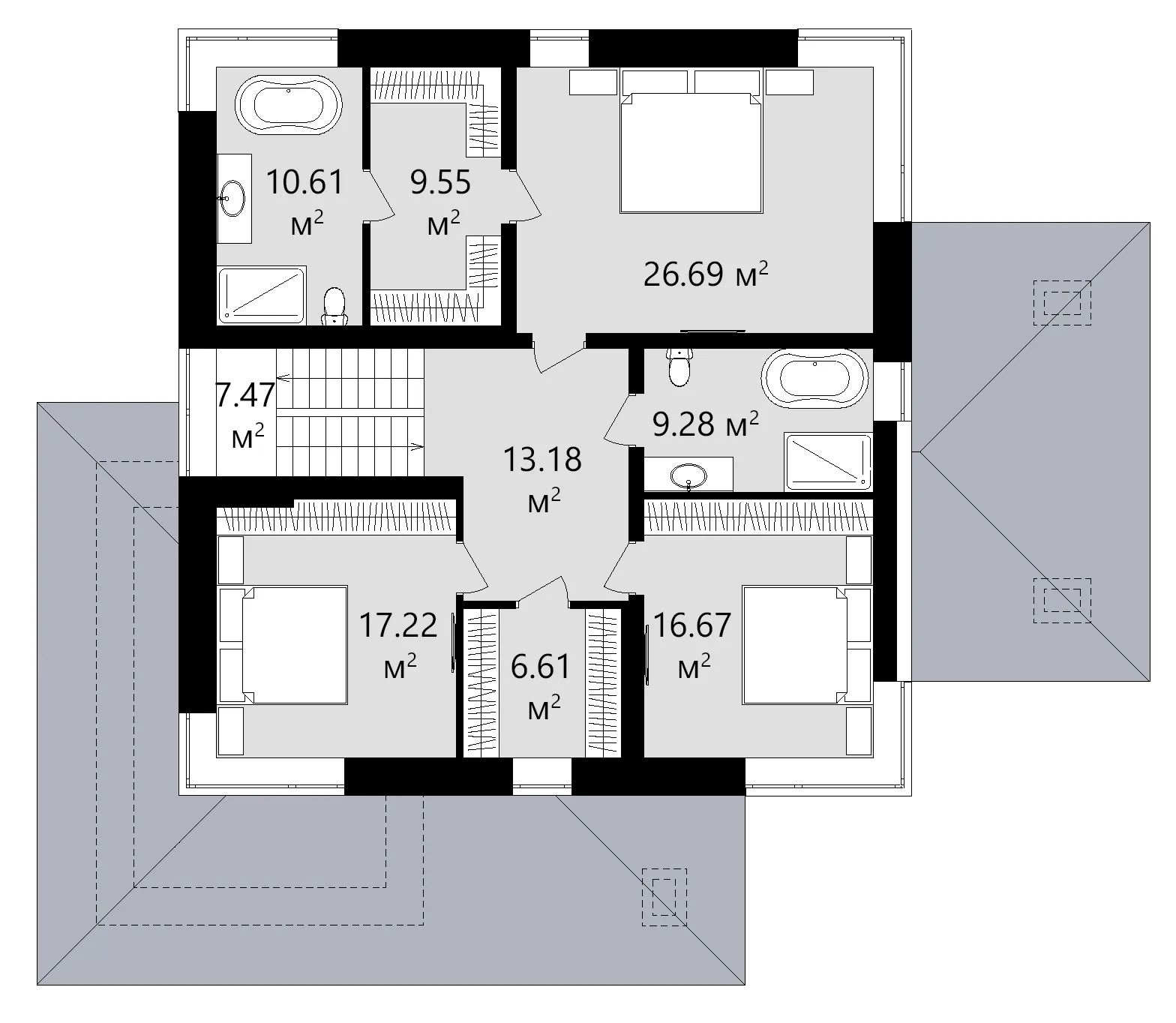

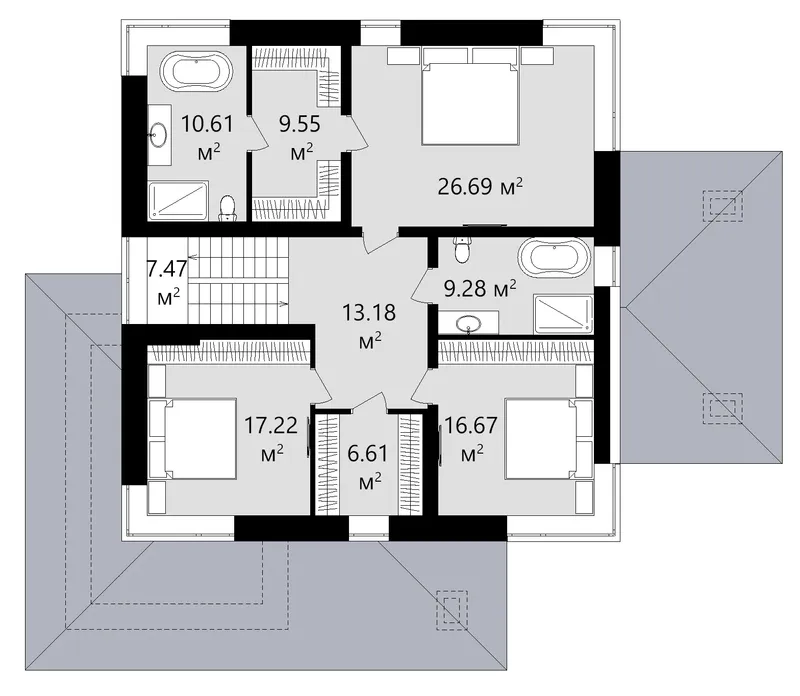

Second Floor
Second Floor 13 – 2,698 Sq Ft Prairie 2-Story Family House Plan with 4 Bedrooms and 3 Bathrooms – 19745C
Full Specs & Features
Area
Total Heated: 2697.97 ft²
Dimensions
Depth: 45'7" ft
Width: 50'6" ft
Height: 30'4" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Brick
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Entry
Storage
Walk In Closet
Kitchen and Dining
Breakfast bar
Corner Window
Interior Features
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Corner Window
Covered Side Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Prairie

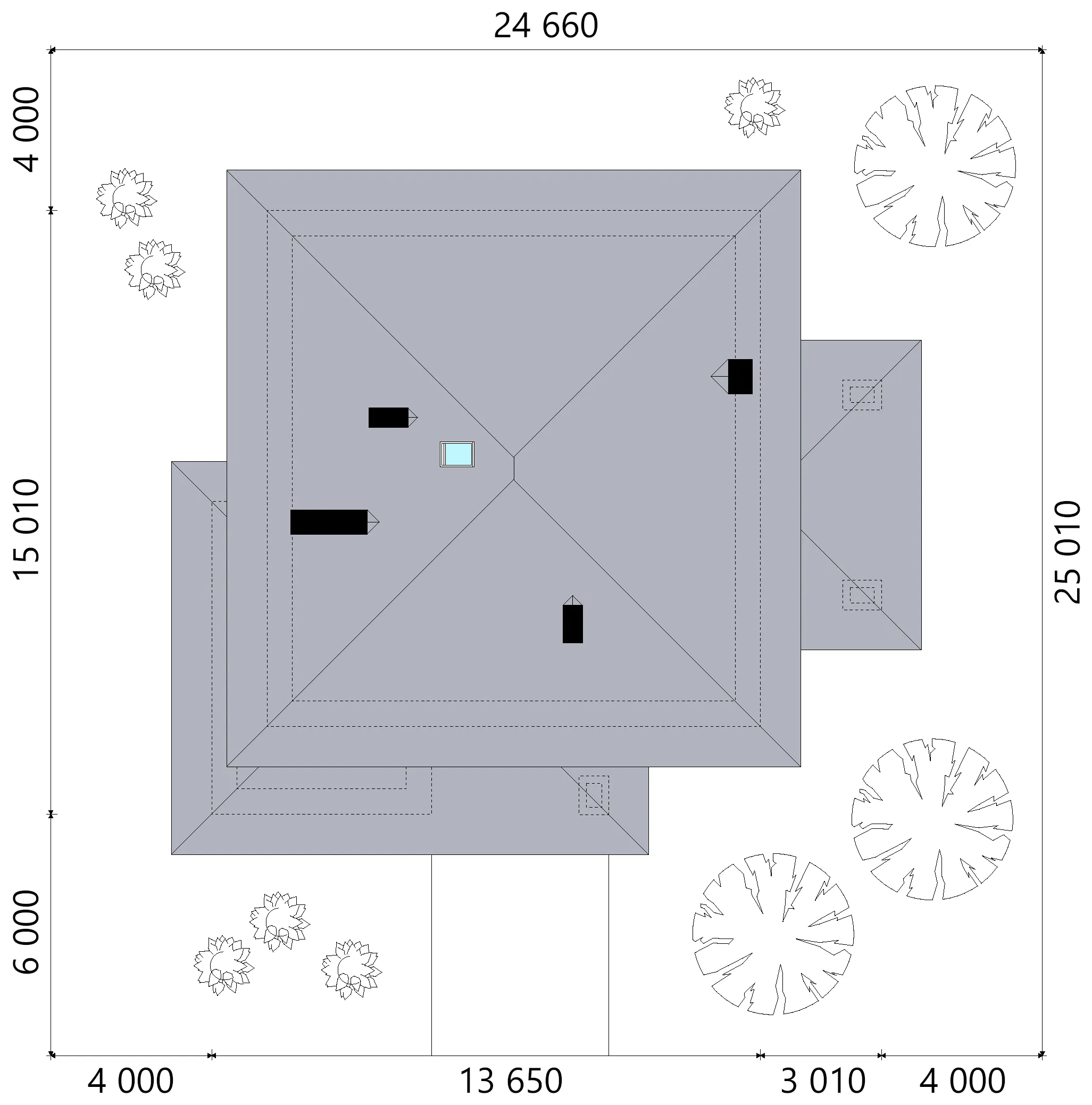

Roof
Roof Area: 3454.25 ft²
Hip
Pyramid
Roof Pitch: 5/12 (22°)

The digital house design concept 19745C presents a two-story Prairie family home with a Total Heated 2,698 Sq Ft, 4 bedrooms and 3 full bathrooms. The single-family layout suits a household of 4-6 people. A brick exterior keeps upkeep low, and a hip roof with a 5/12 (22°) pitch shelters the walls on every side and gives the house its horizontal Prairie profile.

The entry leads into an open floor plan that joins the great room and the kitchen into one space for everyday family life. The large great room centers on a fireplace for evenings together, while floor-to-ceiling windows bring daylight deep into the room. The large kitchen has a breakfast bar for quick meals and a corner window that brightens it from two sides.

All bedrooms are clustered on the second floor, which keeps the sleeping quarters quiet and away from daytime activity. The primary suite includes a walk-in closet for organized clothing storage, and three full bathrooms spare the family morning lines. A utility room and a separate storage room keep household equipment and seasonal items out of the living spaces.

A covered front porch welcomes guests and protects the entry from the weather, and a covered side porch adds a second shaded spot for sitting outside. Large windows connect the rooms with the yard. The footprint measures 50'6" wide by 45'7" deep. The base design uses strip footings, with a slab or concrete block foundation as options, and exterior walls of aerated concrete, with clay hollow block or sand-lime block as alternatives. In figures: Total Heated 2,698 Sq Ft, 4 bedrooms and 3 bathrooms.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
