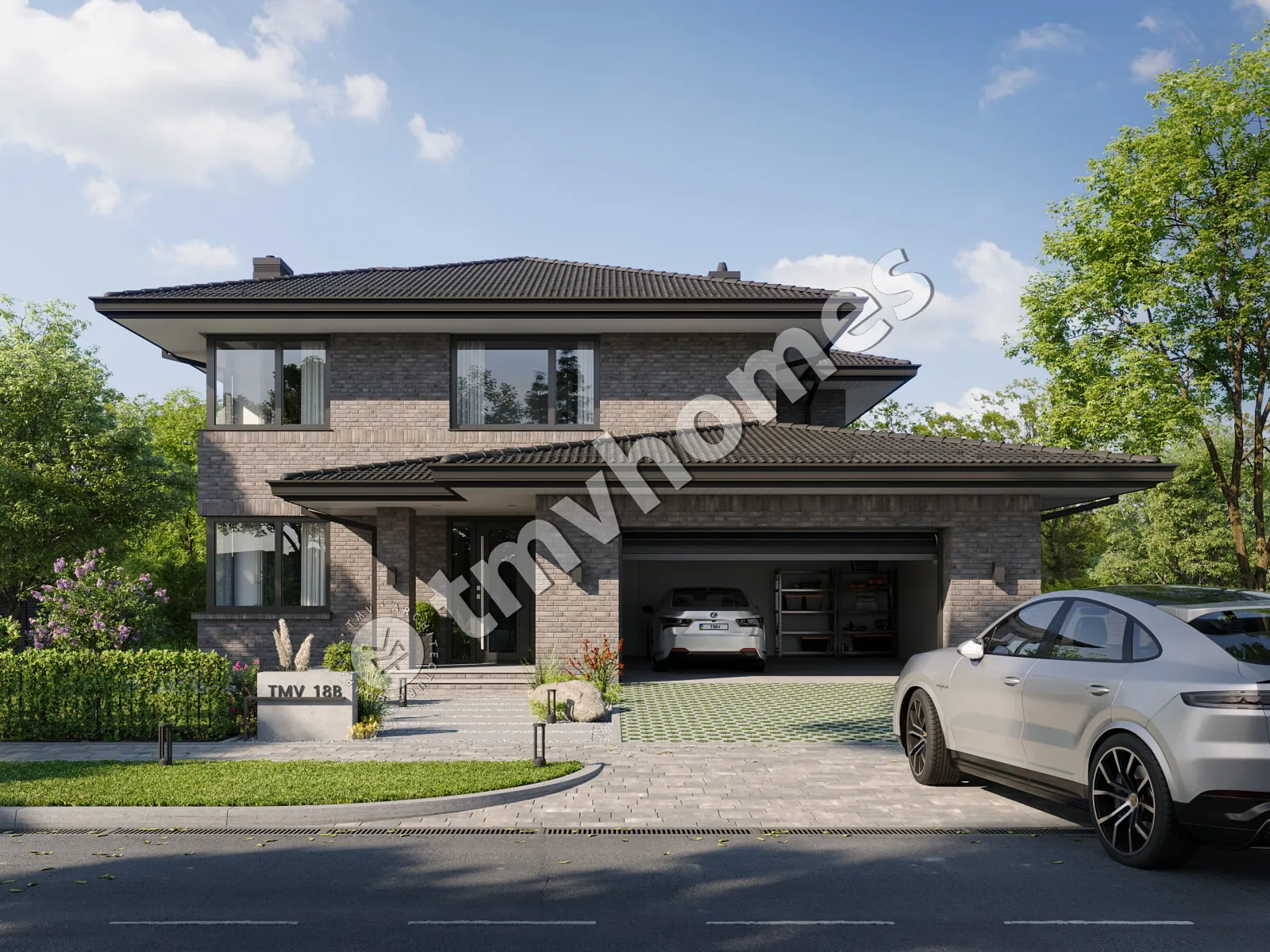

Renderings 2 – 2,884 Sq Ft Prairie 2-Story House Plan with 5 Bedrooms and 2 Bathrooms – 38878C

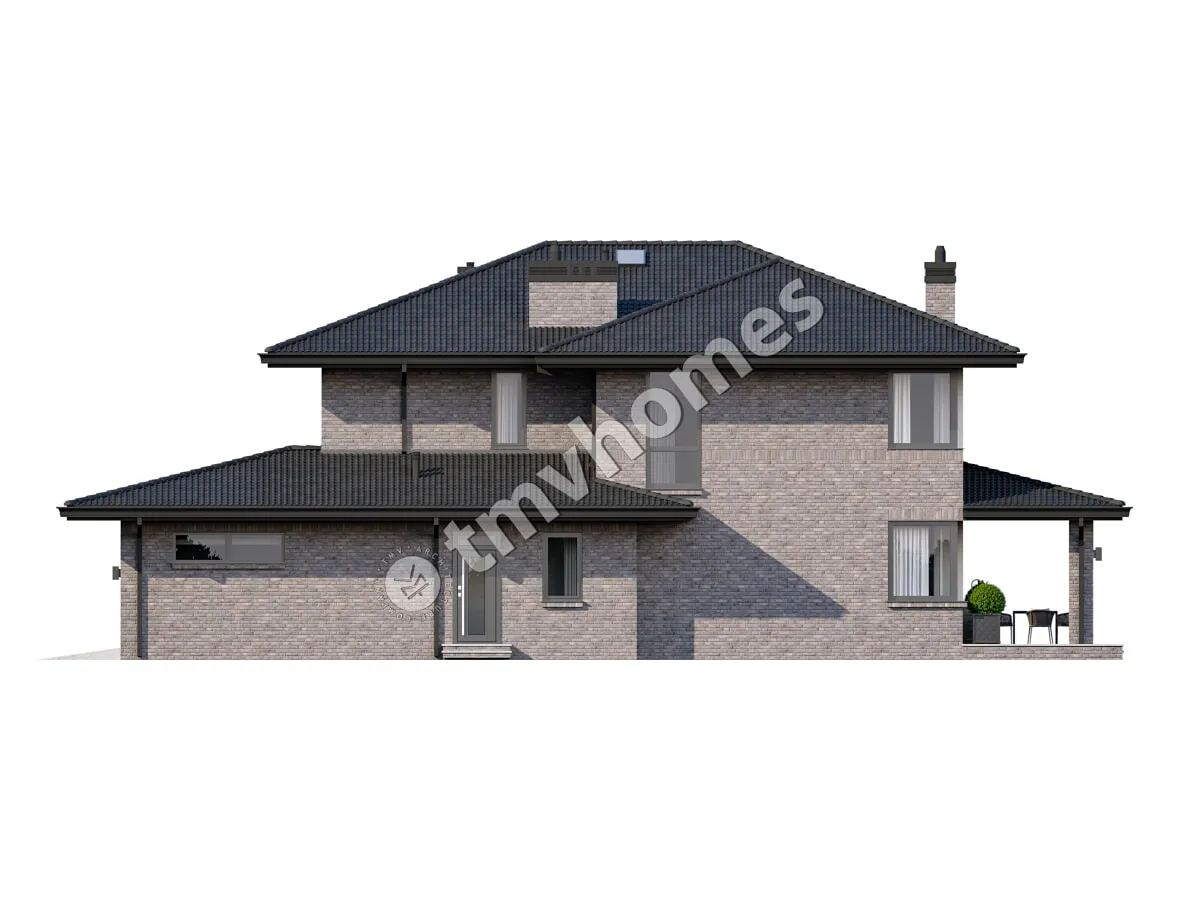

Renderings 5 – 2,884 Sq Ft Prairie 2-Story House Plan with 5 Bedrooms and 2 Bathrooms – 38878C Renderings 11 – 2,884 Sq Ft Prairie 2-Story House Plan with 5 Bedrooms and 2 Bathrooms – 38878C
6
Concept
Construction documents are prepared for the following countries:

2,884 Sq Ft Prairie 2-Story House Plan with 5 Bedrooms, 2 Bathrooms and 2-Car Garage

Plan
38878C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2884
Total Heated ft²
2 + 0
Baths + 1/2 Baths
5 + 0
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

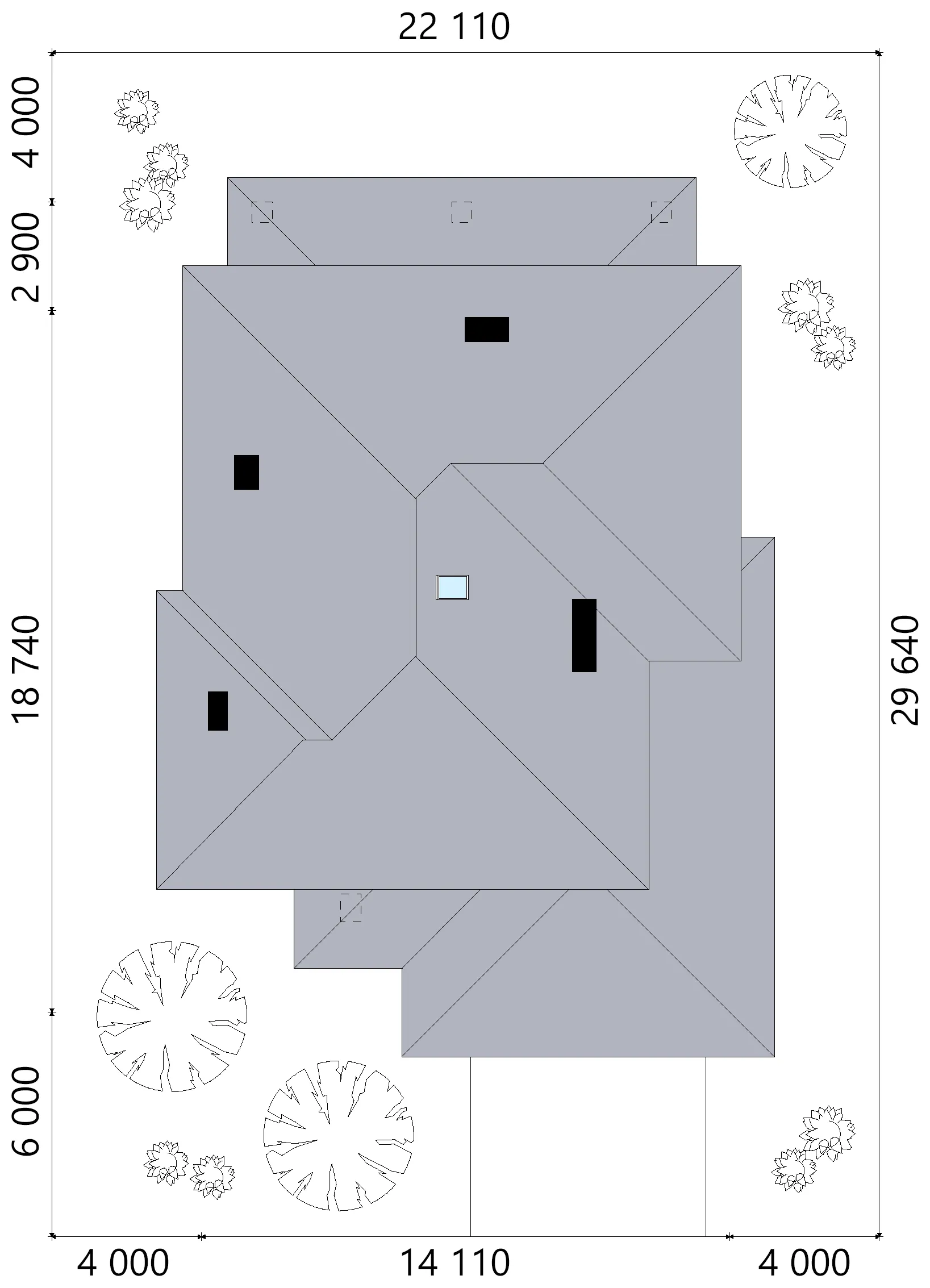

Rzut dachu

Przekroje

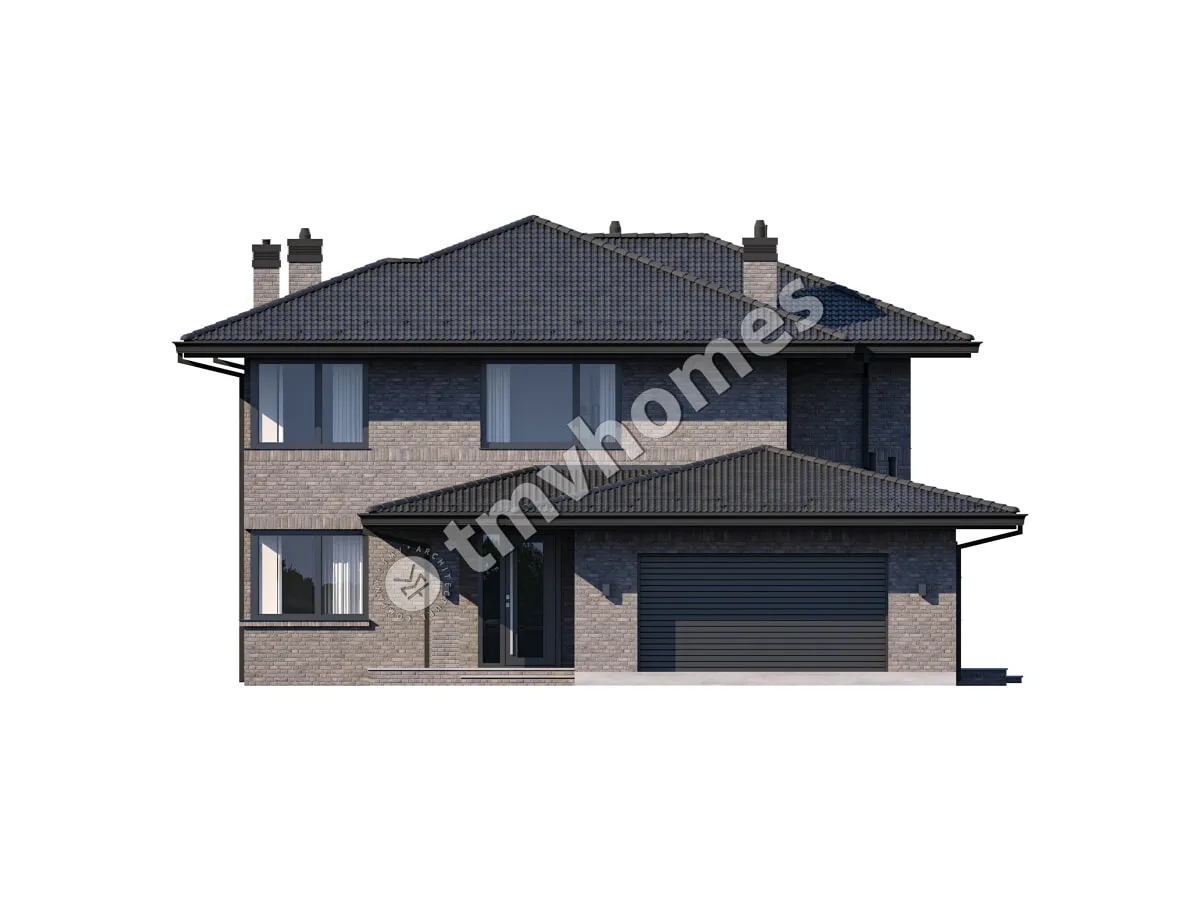

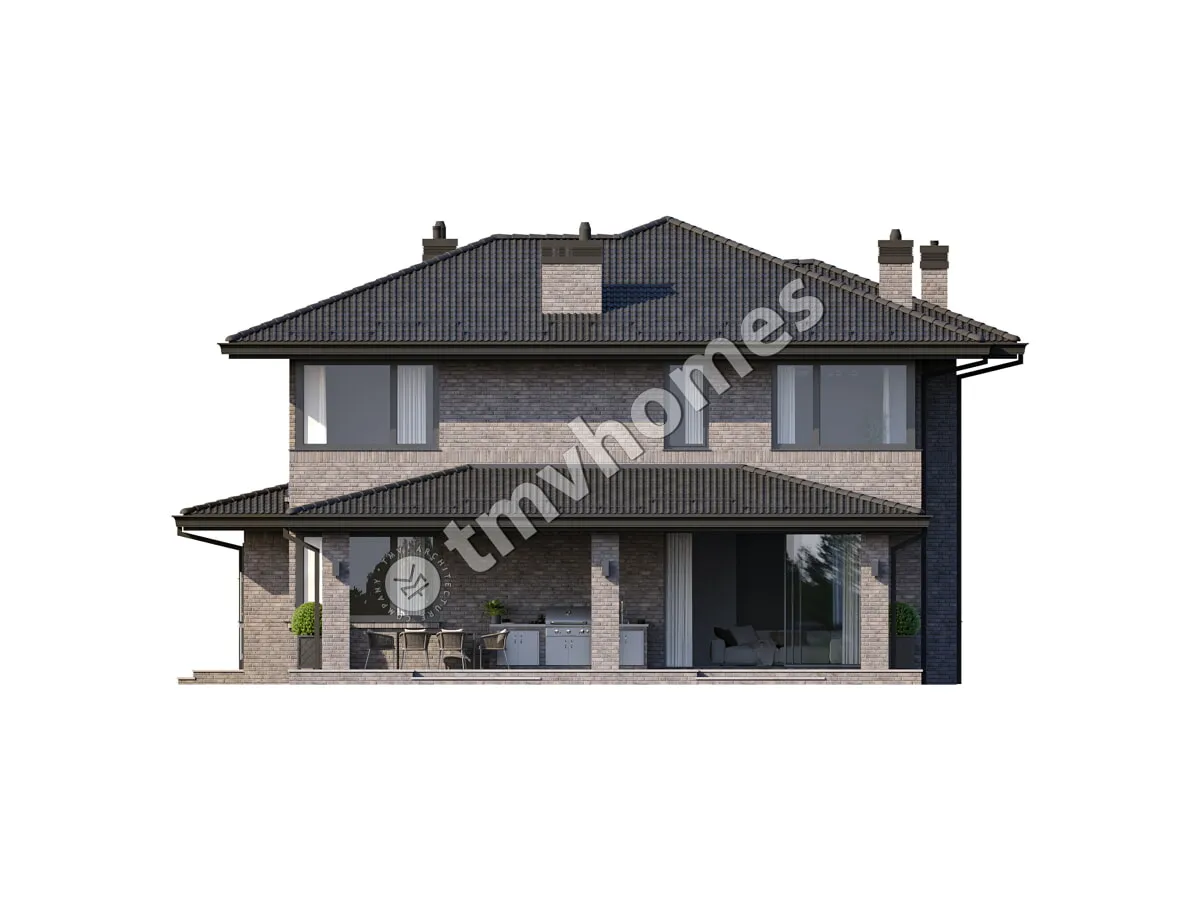

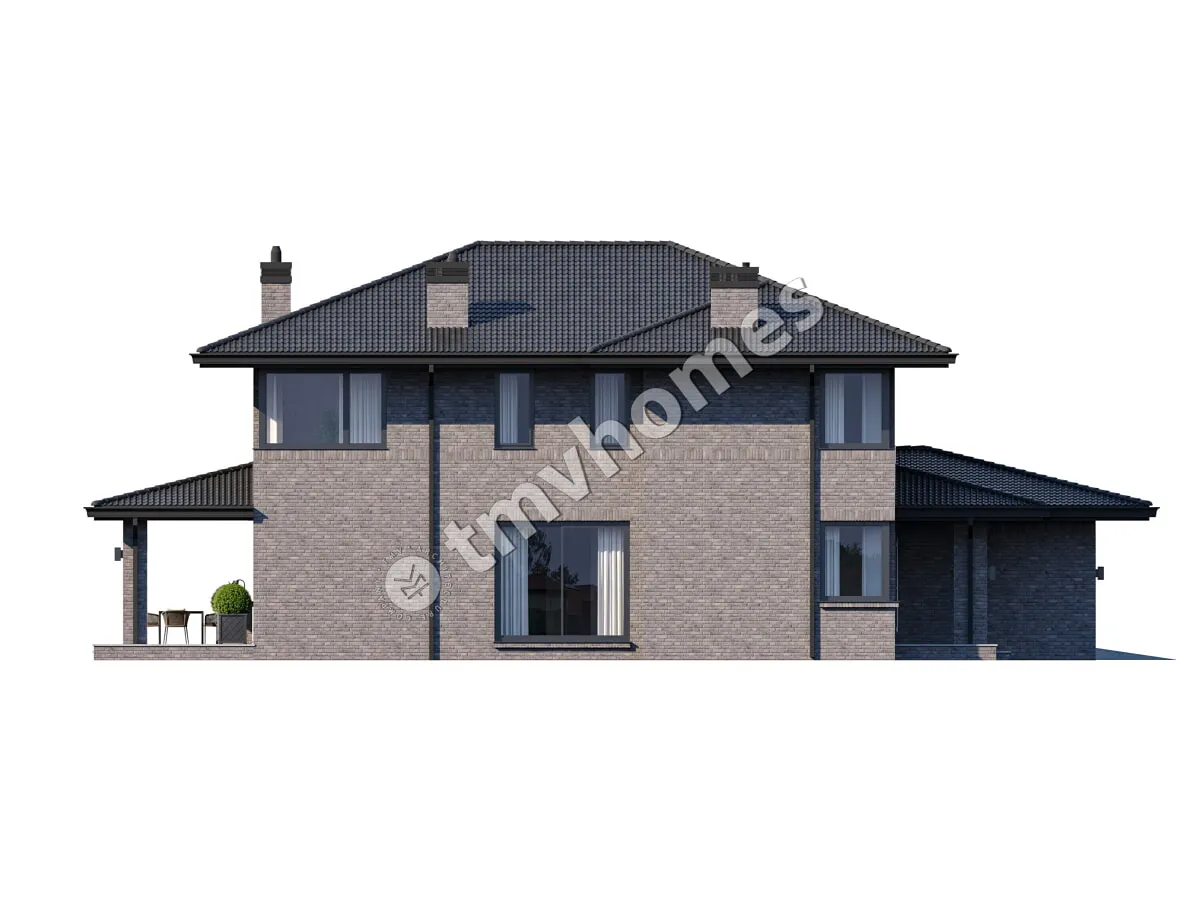

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

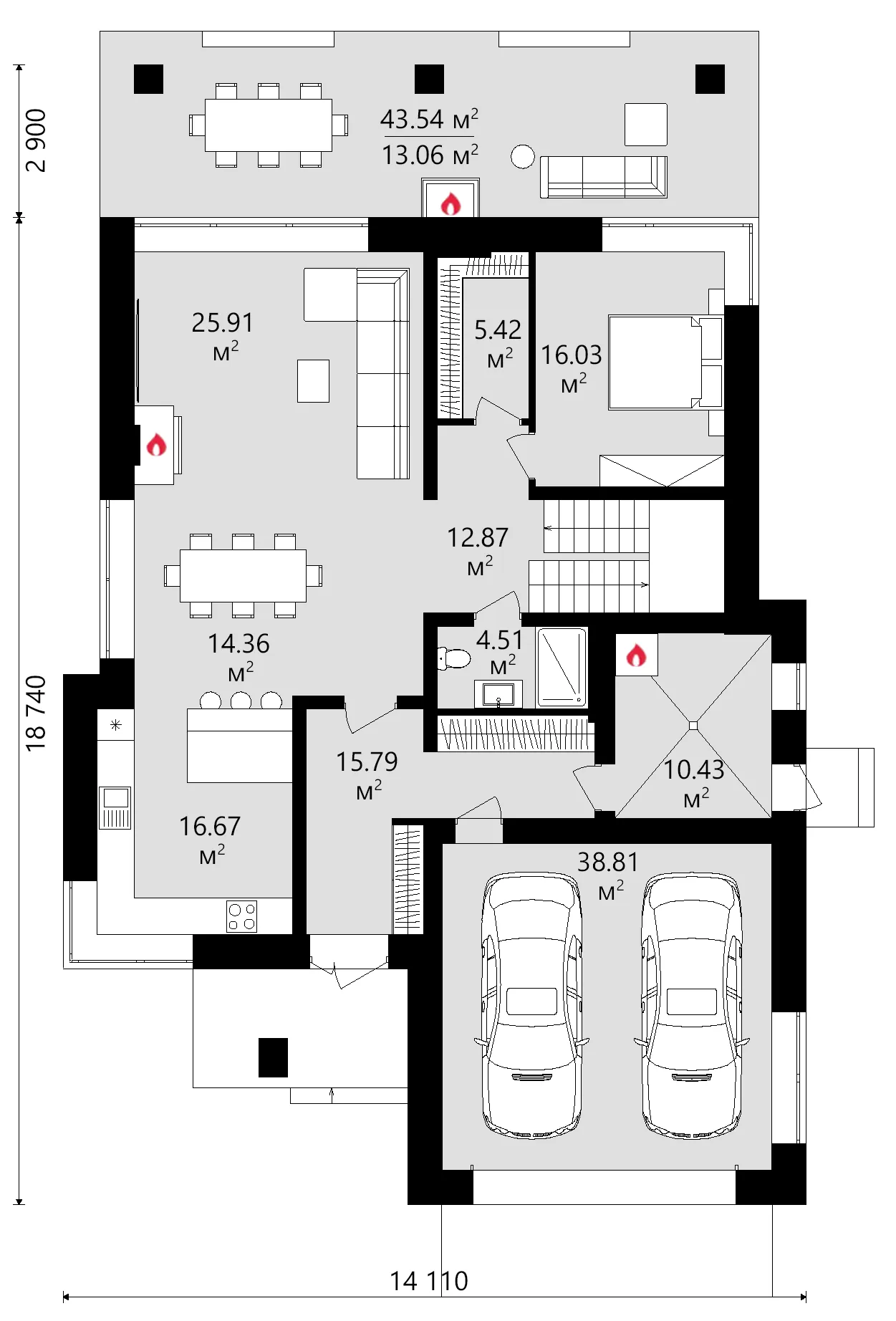

Main Floor

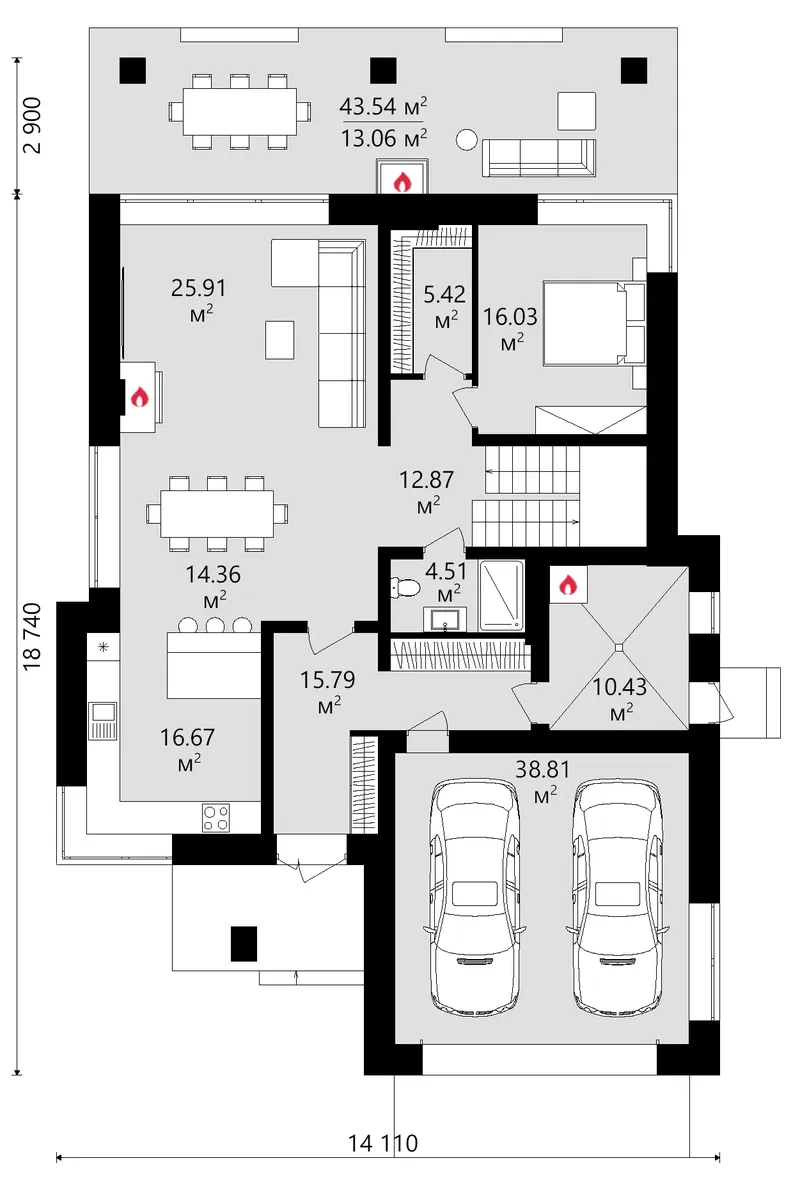

Main Floor 6 – 2,884 Sq Ft Prairie 2-Story House Plan with 5 Bedrooms and 2 Bathrooms – 38878C

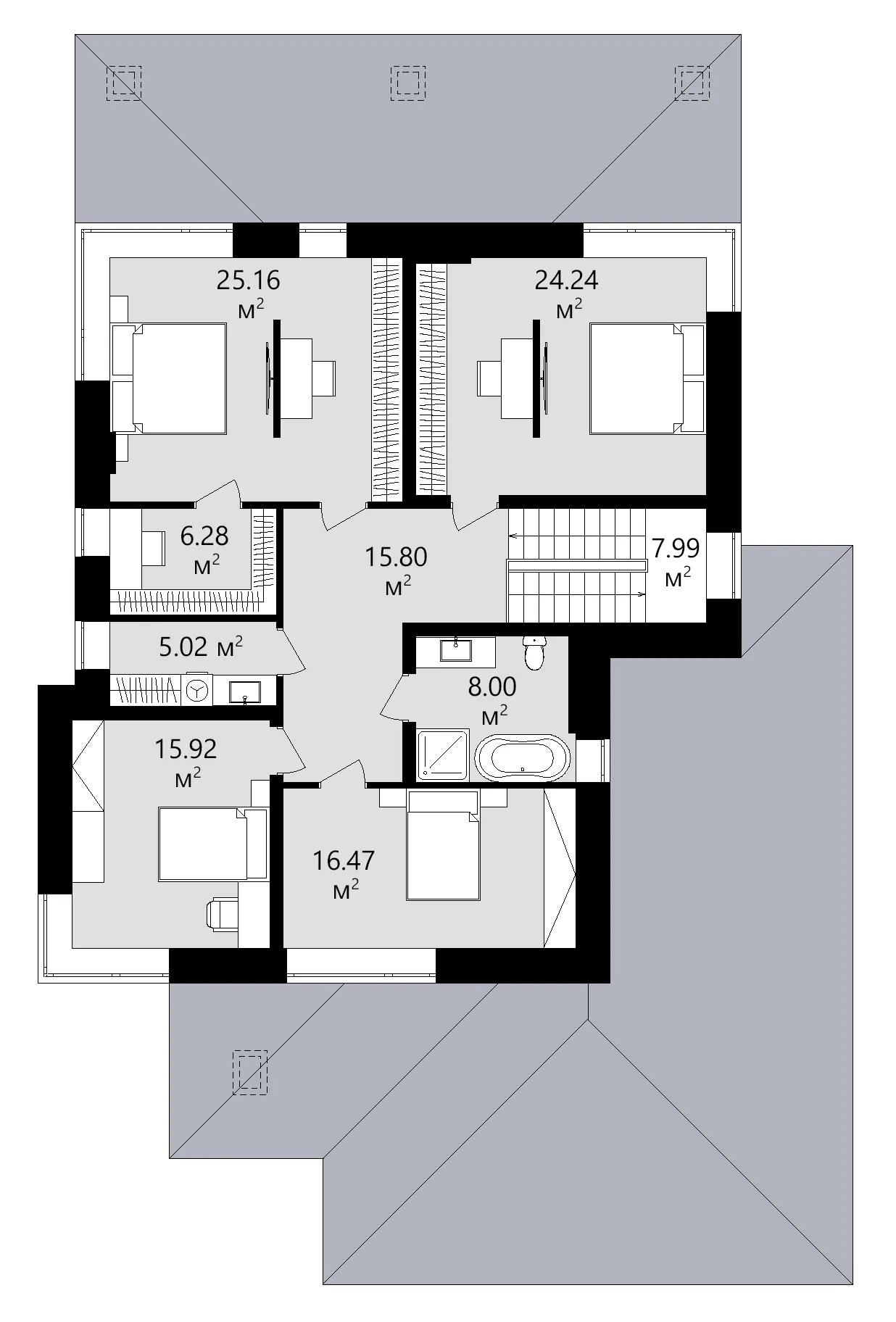

Second Floor

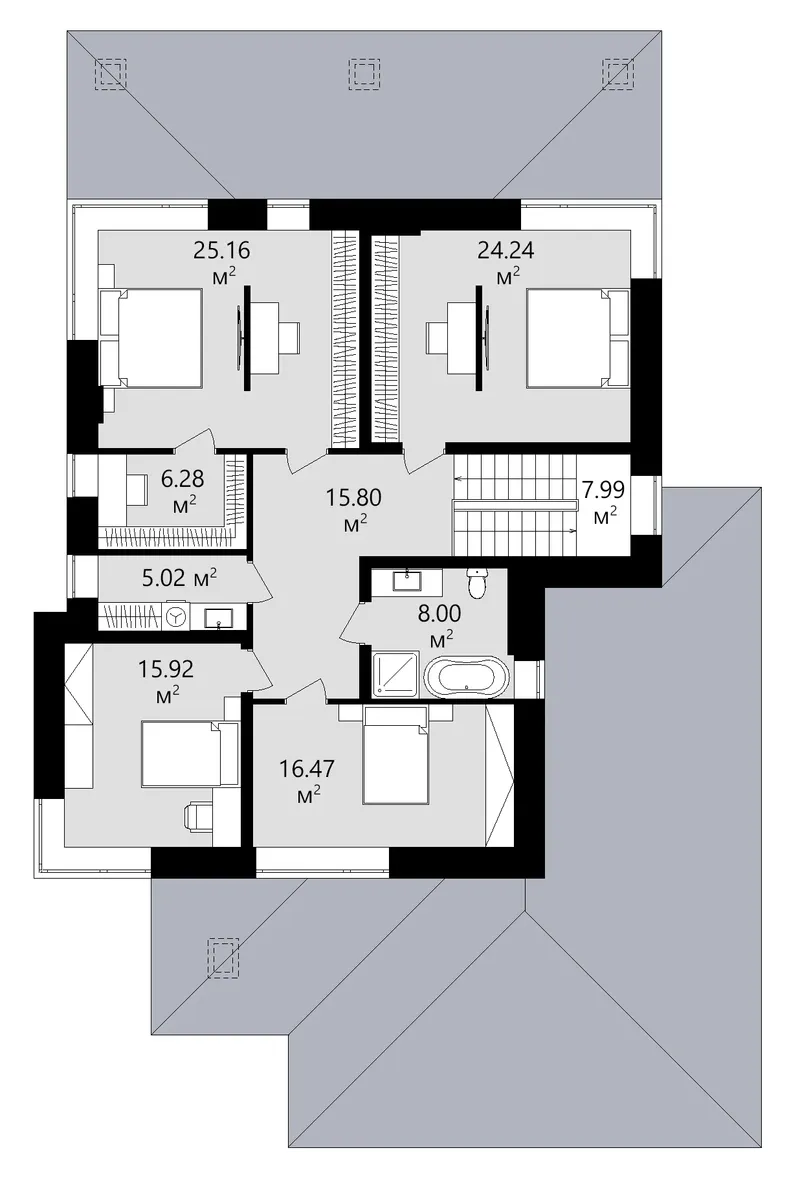

Second Floor 9 – 2,884 Sq Ft Prairie 2-Story House Plan with 5 Bedrooms and 2 Bathrooms – 38878C
Full Specs & Features
Area
Total Unheated: 417.75 ft²
Total Heated: 2883.87 ft²
Dimensions
Depth: 66'0" ft
Width: 43'0" ft
Height: 28'0" ft
Garage
Area: 418 ft²
Cars: 2
Front Entry
Extension Forward
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Brick
Rooms
Full bathrooms: 2
Bedrooms: 5
Utility room
Laundry
Entry
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Island
Corner Window
Interior Features
Laundry Second Floor
Fireplace in Family Room
2 Master Suites
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Outdoor Fireplace
Outdoor Kitchen
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Prairie
Roof
Roof Area: 4330.86 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

House design concept 38878C is a Prairie 2-story single-family home with Total Heated 2,884 Sq Ft, designed for a household of 6-8 people. Brick facades and a hip and valley roof with a 5/12 (22°) pitch give the house the low, horizontal lines typical of Prairie design. Two of the five bedrooms are primary suites, so two couples or two generations enjoy equal comfort.

The entry leads into an open floor plan that keeps the family room and kitchen in one shared space. A fireplace anchors the large family room for evenings at home. The large kitchen works around an island with a breakfast bar for quick meals, and a breakfast nook with a corner window offers a bright spot for everyday dining. Large windows and floor-to-ceiling windows fill the day zone with daylight.

The bedrooms are clustered together, keeping everyone within a few steps of each other at night. A walk-in closet keeps clothing out of the sleeping area, and two full bathrooms serve the household. The laundry sits on the second floor, saving trips up and down the stairs with baskets, while a separate utility room keeps household equipment away from the living spaces.

Out back, a covered rear porch with an outdoor kitchen and an outdoor fireplace extends cooking and gatherings outside into cool evenings. The front-entry 2-car garage extends forward of the house, giving a direct approach from the driveway. The main foundation is strip footings, with slab or block foundation options, and the exterior walls are aerated concrete, with clay block or sand-lime block as alternatives. At 43'0" wide and 66'0" deep, the layout offers Total Heated 2,884 Sq Ft, 5 bedrooms, 2 bathrooms and a 2-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1544
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
