Renderings 2 – 2,916 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 60565C
Renderings 3 – 2,916 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 60565C Renderings 4 – 2,916 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 60565C
8
Concept
Construction documents are prepared for the following countries:

2,916 Sq Ft Modern 2-Story House Plan with 4 Bedrooms, 3 Bathrooms and 2-Car Garage

Plan
60565C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2916
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

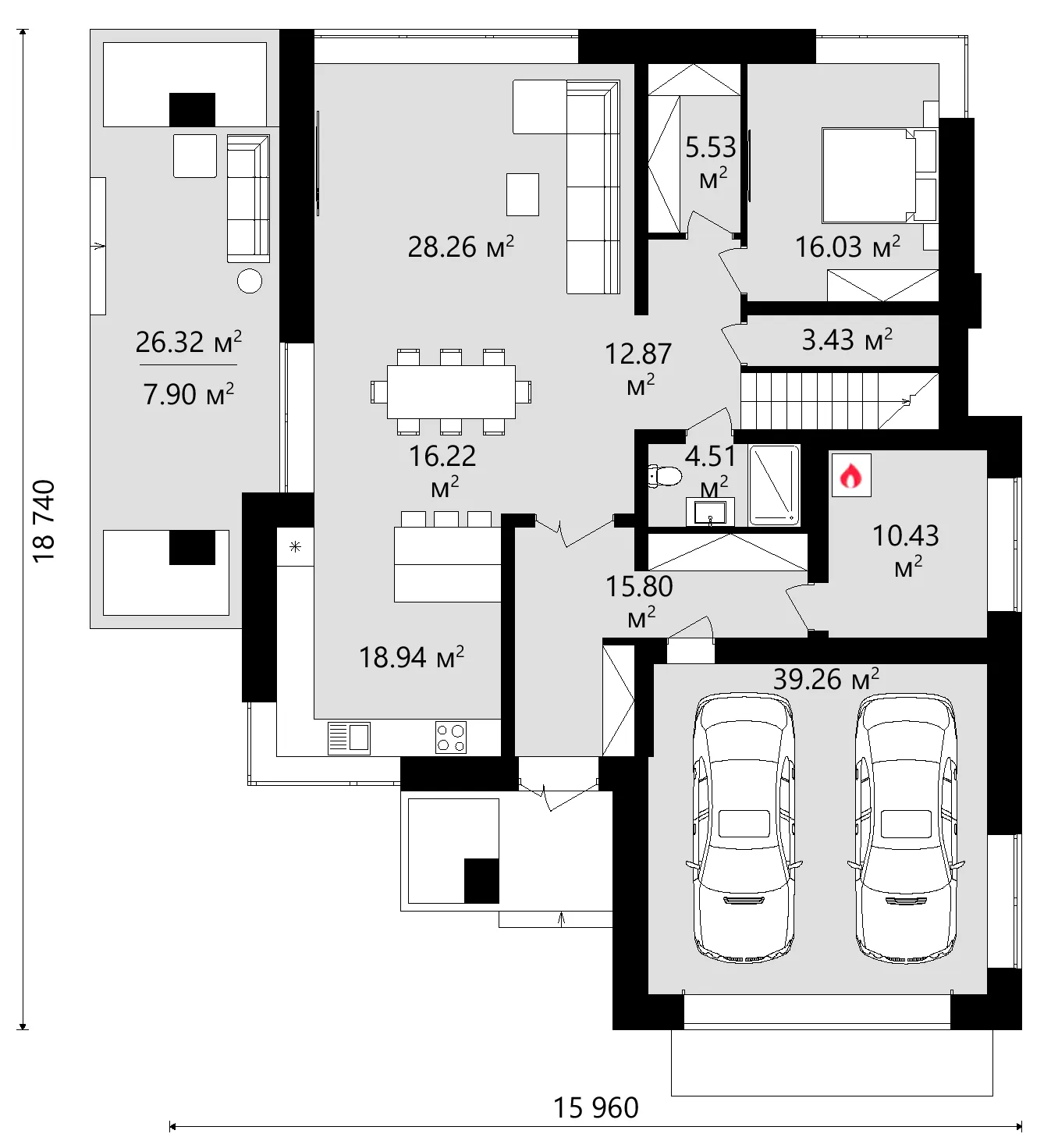

Main Floor
Main Floor 13 – 2,916 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 60565C

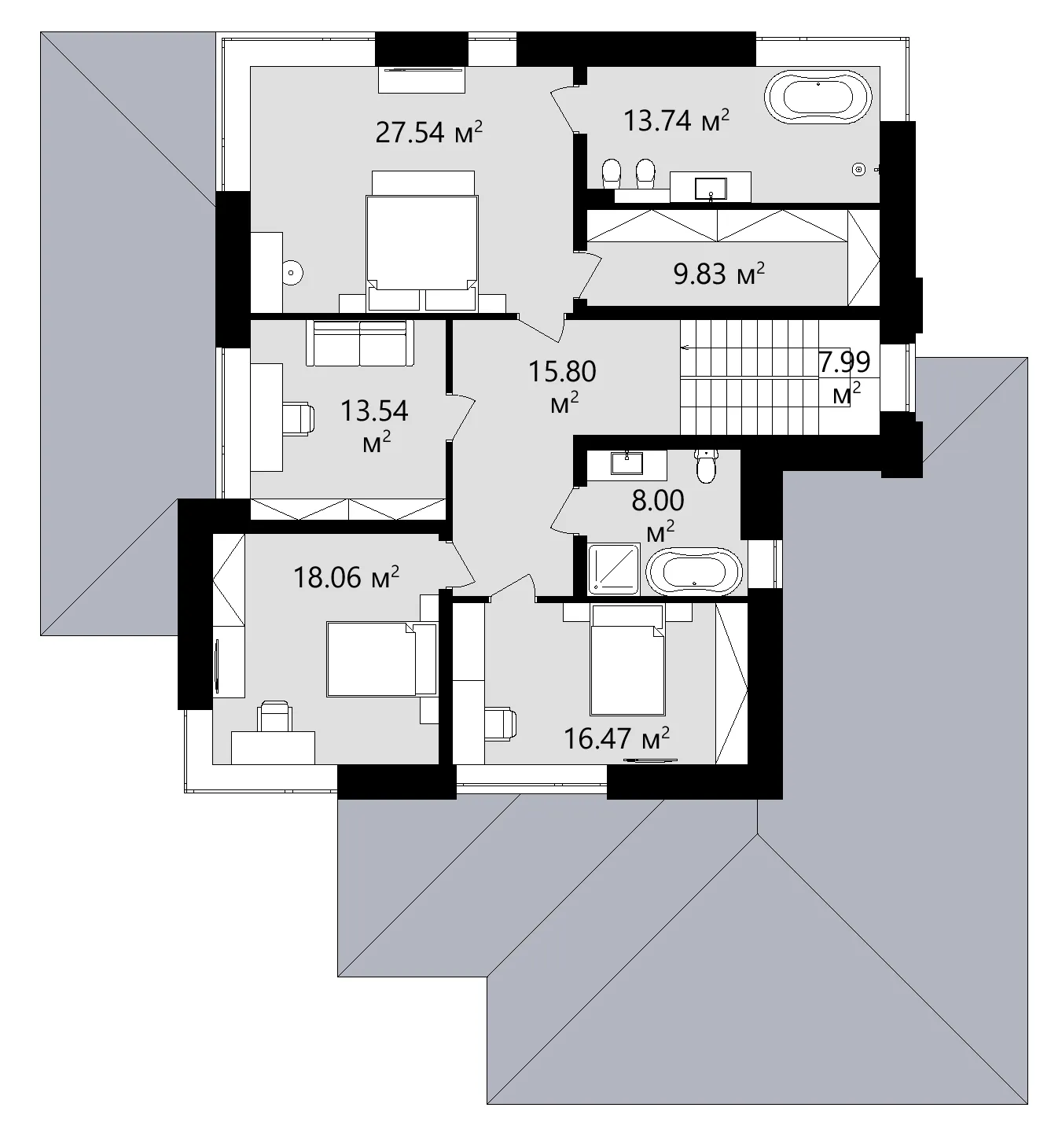

Second Floor
Second Floor 14 – 2,916 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 60565C
Full Specs & Features
Area
Total Unheated: 422.59 ft²
Total Heated: 2915.73 ft²
Dimensions
Depth: 57'1" ft
Width: 48'6" ft
Height: 27'2" ft
Garage
Area: 423 ft²
Cars: 2
Attached
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Entry
Home Office
Storage
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Island
Corner Window
Interior Features
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Corner Window
Covered Side Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern
Roof

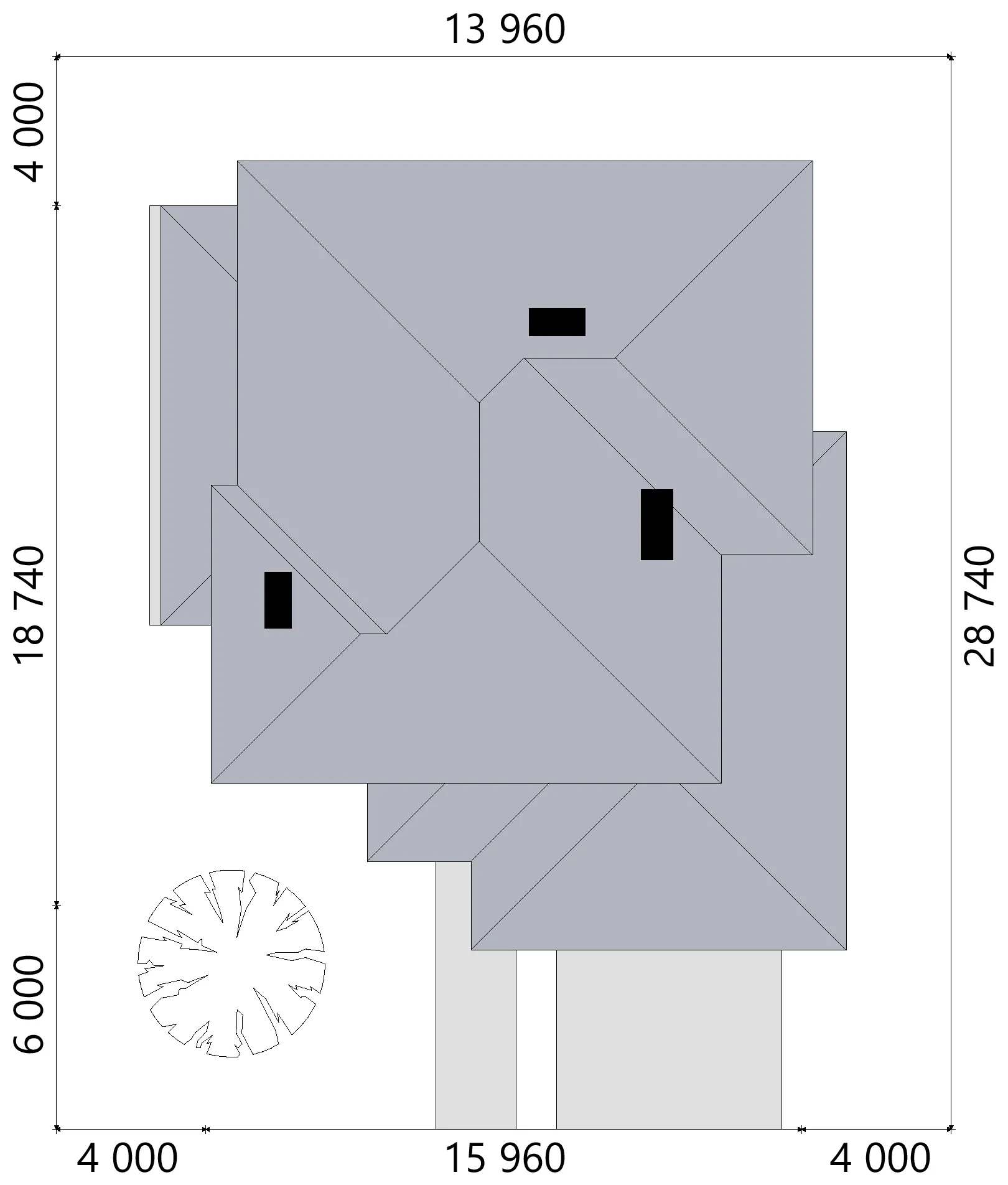

Roof Area: 4334.20 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

The digital house design concept 60565C is a modern two-story single-family home with Total Heated 2,916 Sq Ft, 4 bedrooms, 3 bathrooms and an attached 2-car garage. A hip and valley roof with a 5/12 (22°) pitch and stone/brick veneer walls give the house a clean, modern outline. The layout suits a family of 4-6 people who want shared space downstairs and quiet rooms upstairs.

The entry opens to an open floor plan where a large great room and a large kitchen share one space, so cooking never cuts you off from the family. The kitchen island and breakfast bar handle quick meals, while the breakfast nook by a corner window gathers everyone for breakfast. Large windows and floor-to-ceiling windows bring in plenty of daylight. A home office on the main floor lets you work away from the bedrooms.

All bedrooms are clustered on the second floor, which keeps parents close to the children at night. The primary bedroom has a walk-in closet that keeps clothes organized. Three full bathrooms shorten the morning rush, and a utility room and a storage room keep household equipment out of the living areas.

A covered side porch offers a sheltered spot outdoors. The attached front-entry garage protects two cars from the weather. A width of 48'6" and a depth of 57'1" make it easy to check the fit on your lot. The foundation is designed as strip footings, with slab or concrete block options; the exterior walls are aerated concrete, with clay block or calcium silicate block options. In figures: Total Heated 2,916 Sq Ft, 4 bedrooms, 3 bathrooms and a 2-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1544
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
