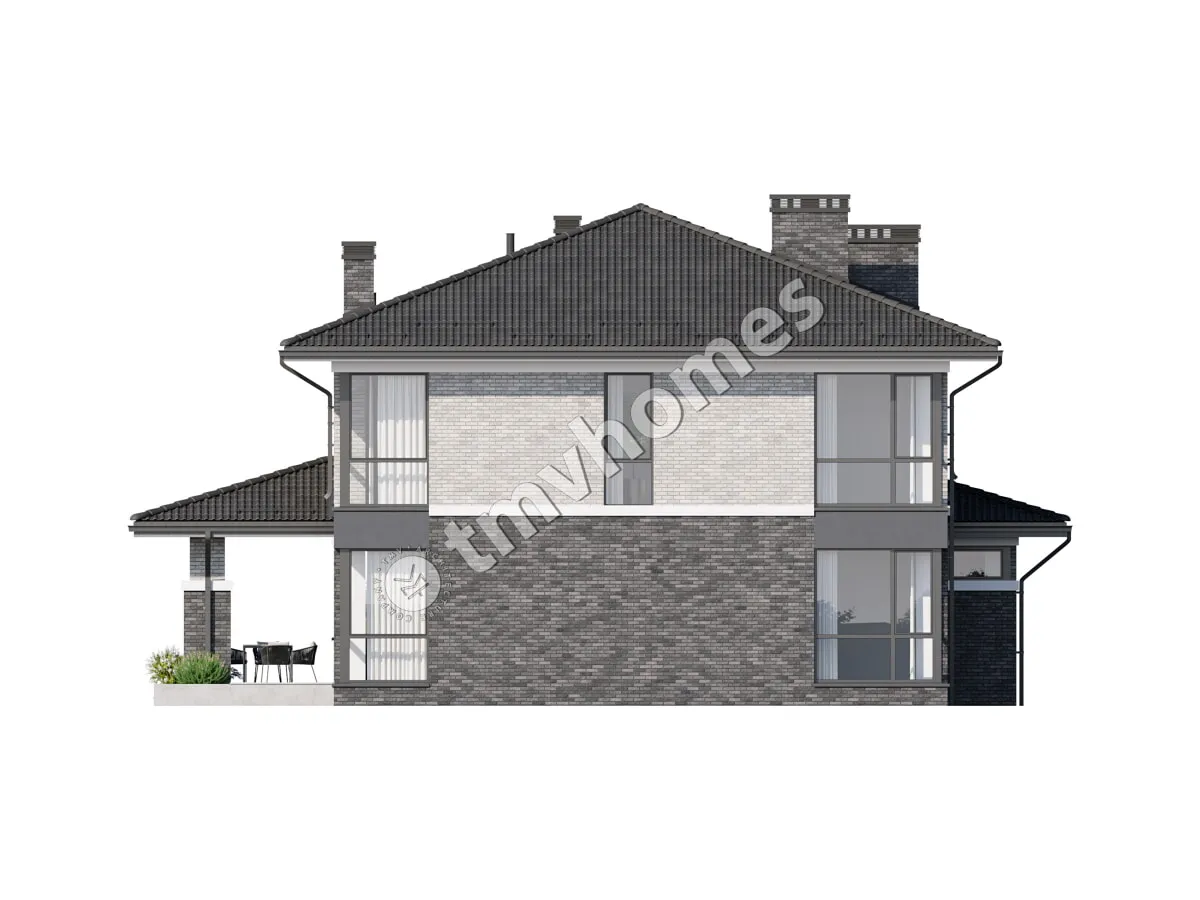

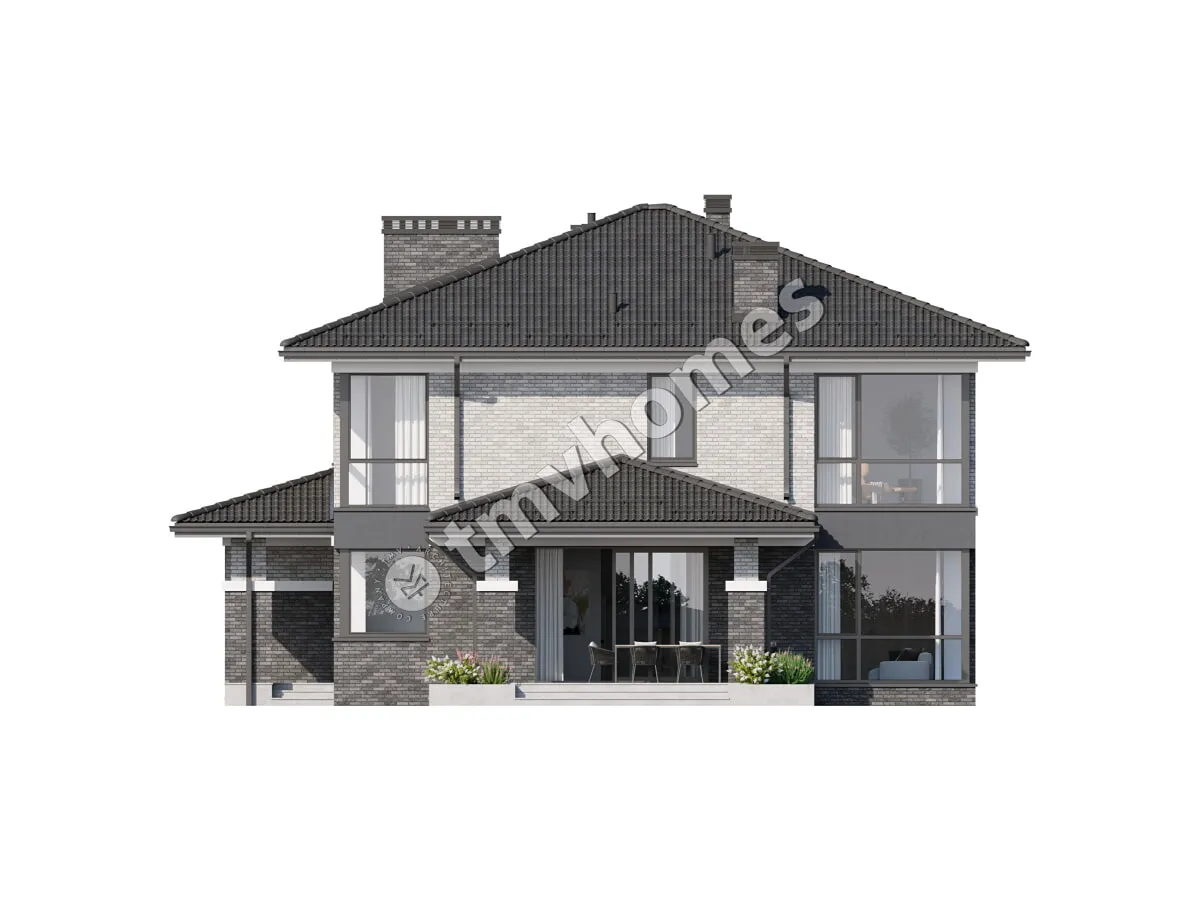

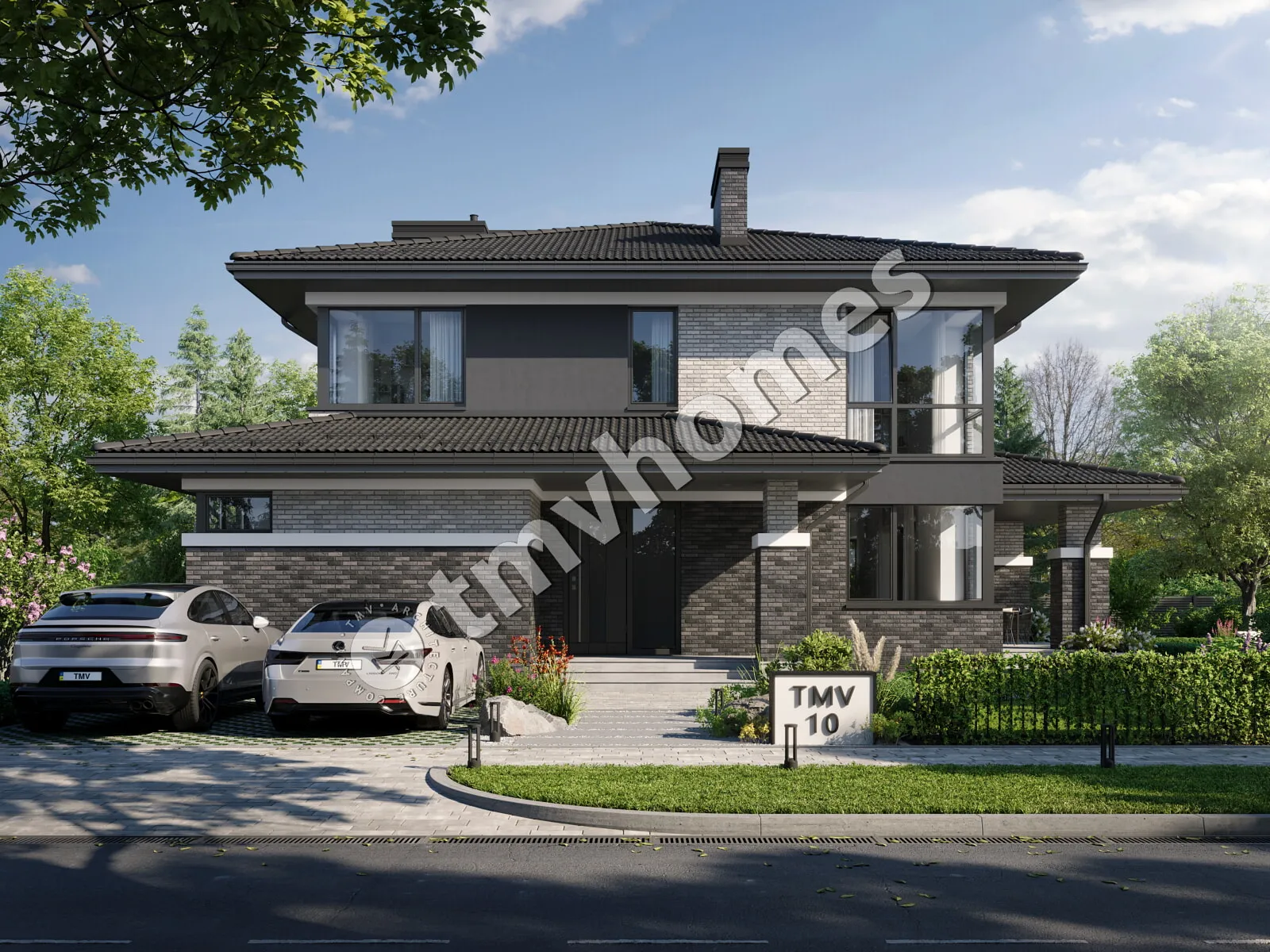

Renderings 2 – 2,698 Sq Ft Prairie 2-Story House Plan with Basement, 4 Bedrooms and 3 Bathrooms – 82053C

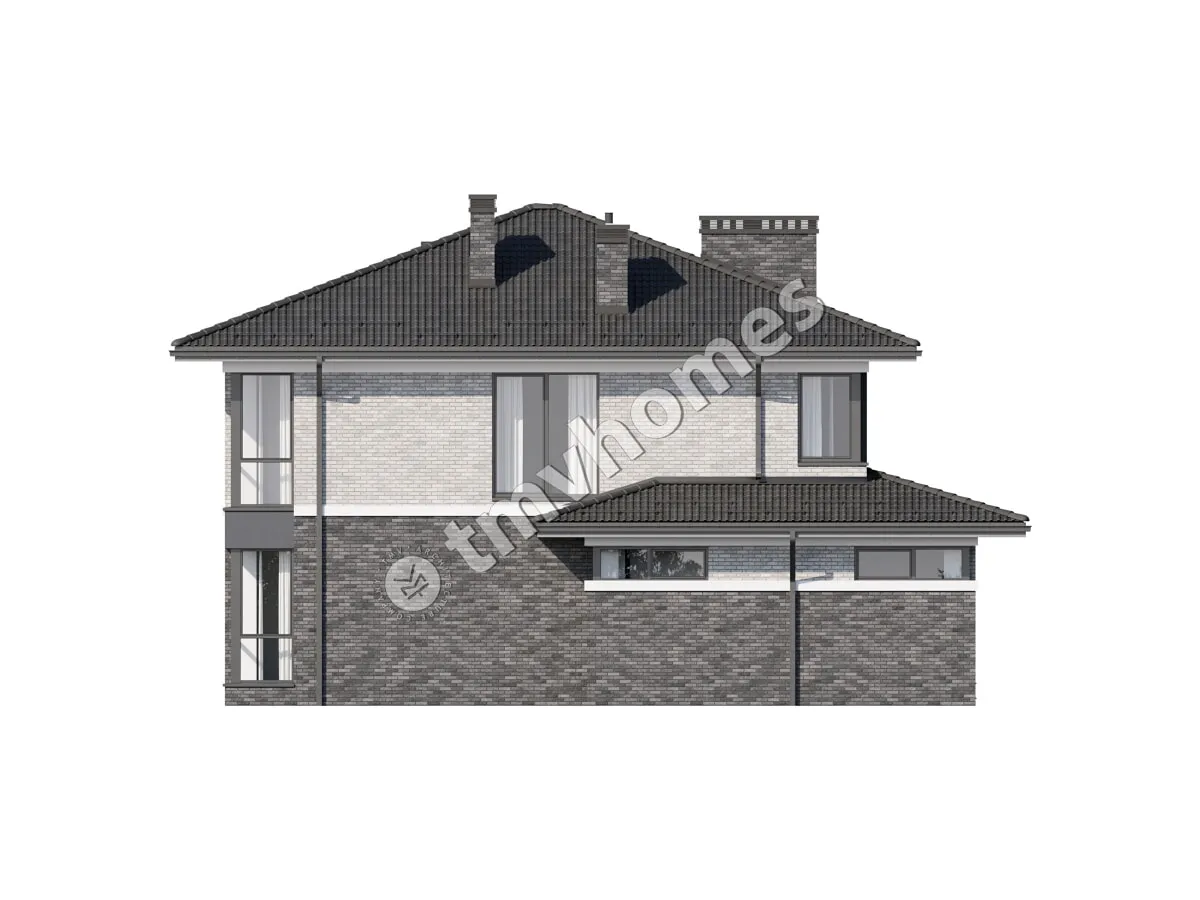

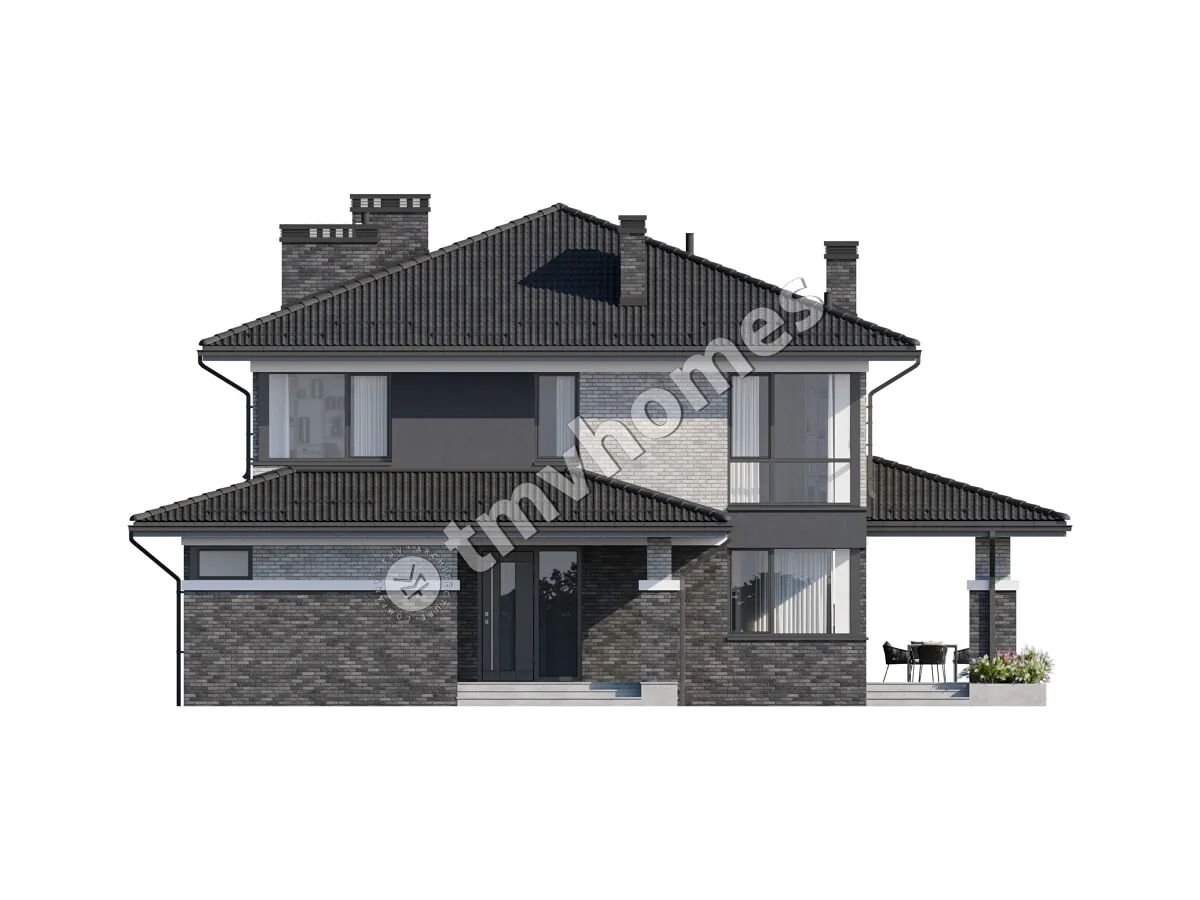

Renderings 3 – 2,698 Sq Ft Prairie 2-Story House Plan with Basement, 4 Bedrooms and 3 Bathrooms – 82053C Renderings 4 – 2,698 Sq Ft Prairie 2-Story House Plan with Basement, 4 Bedrooms and 3 Bathrooms – 82053C
8
Concept
Construction documents are prepared for the following countries:

2,698 Sq Ft Prairie 2-Story House Plan with Basement, 4 Bedrooms and 3 Bathrooms

Plan
82053C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2698
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

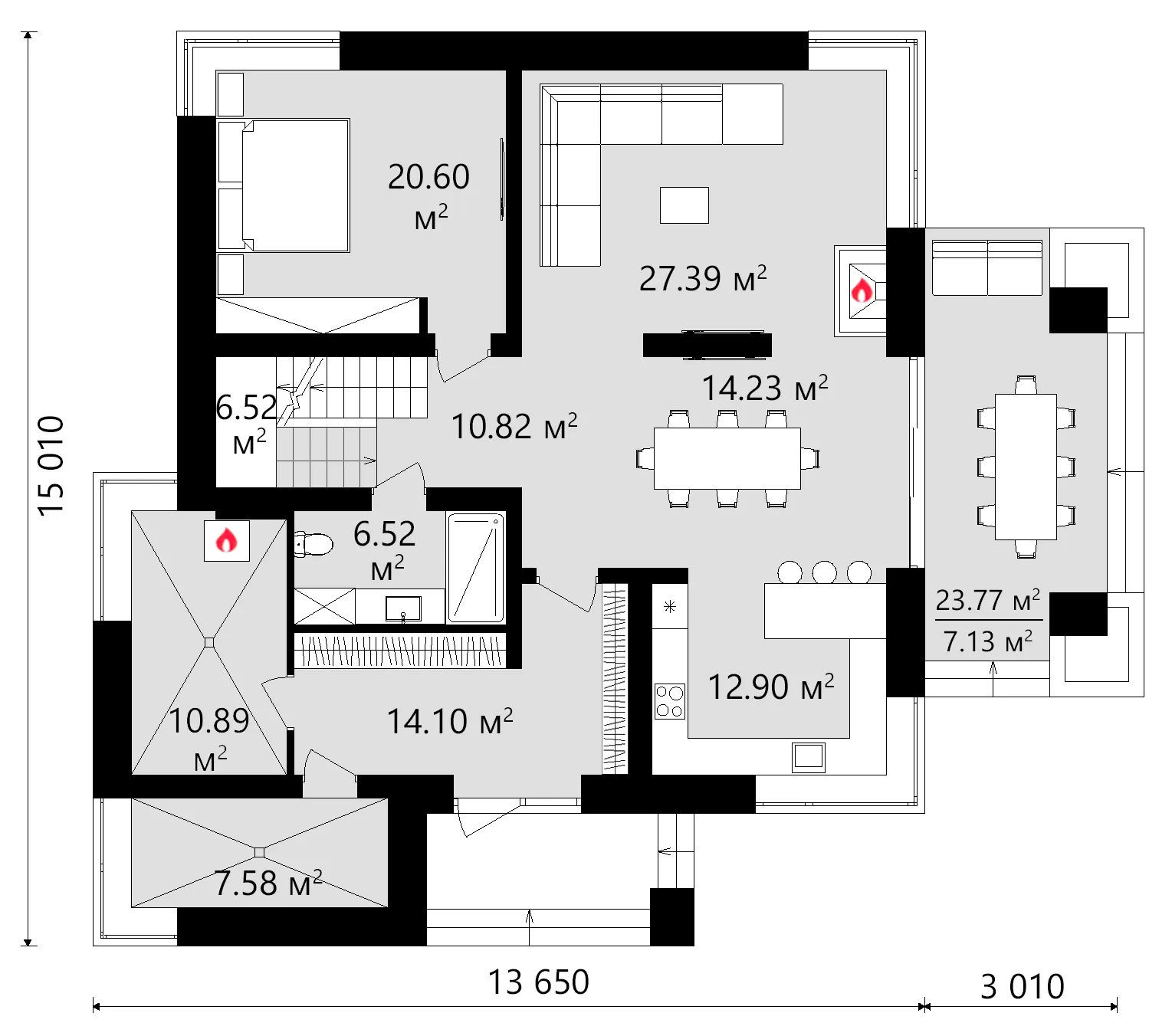

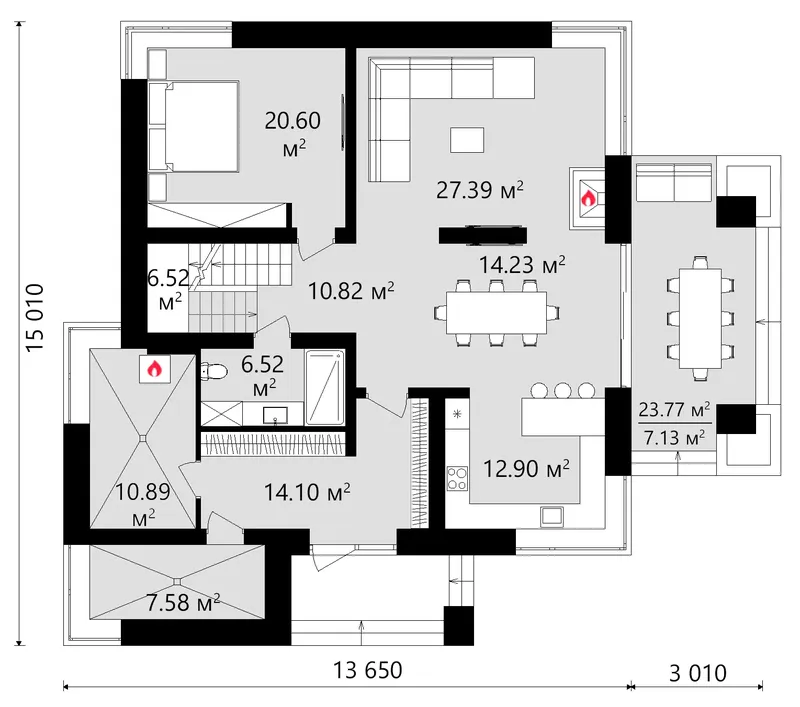

Main Floor
Main Floor 13 – 2,698 Sq Ft Prairie 2-Story House Plan with Basement, 4 Bedrooms and 3 Bathrooms – 82053C

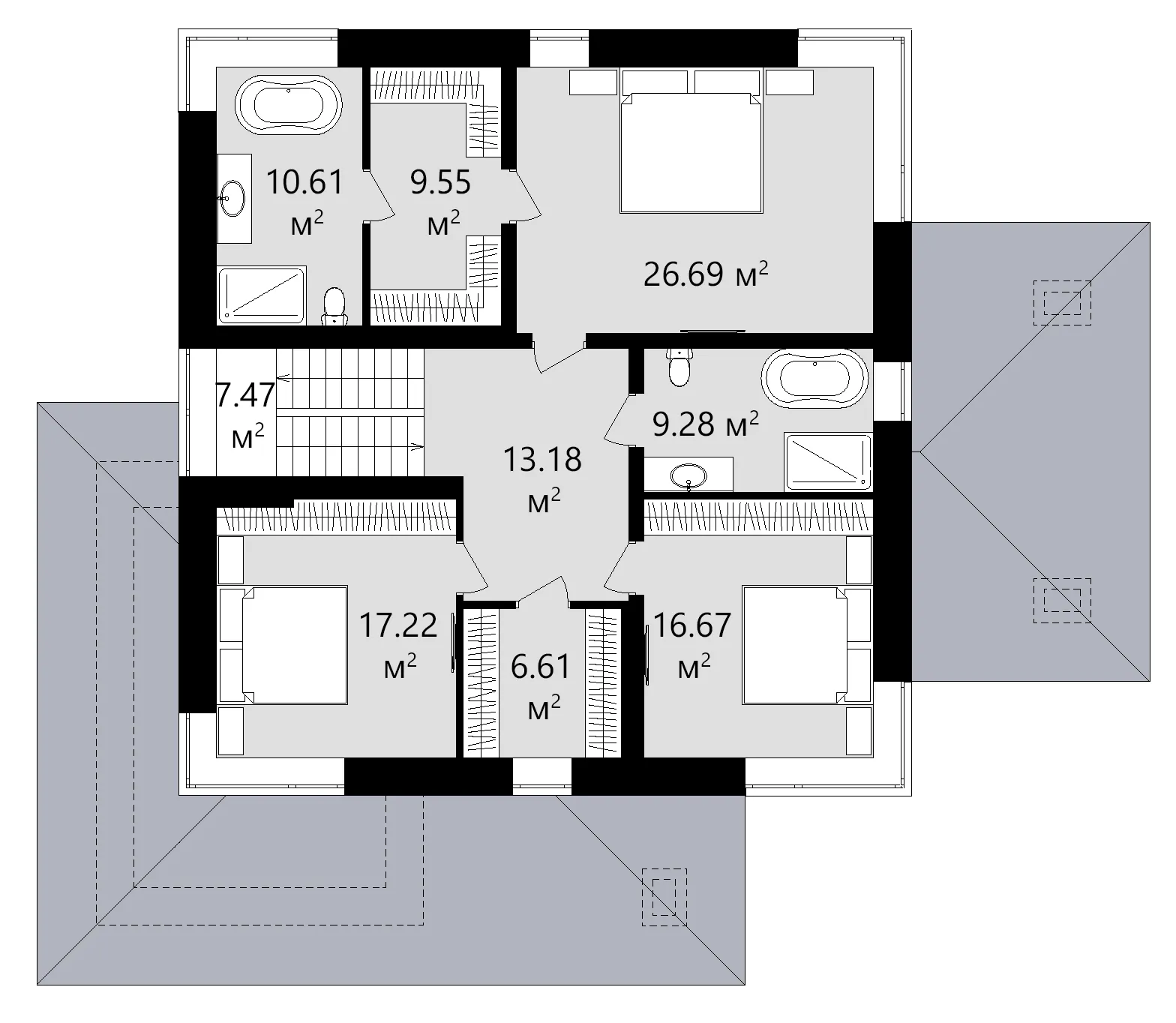

Second Floor
Second Floor 14 – 2,698 Sq Ft Prairie 2-Story House Plan with Basement, 4 Bedrooms and 3 Bathrooms – 82053C

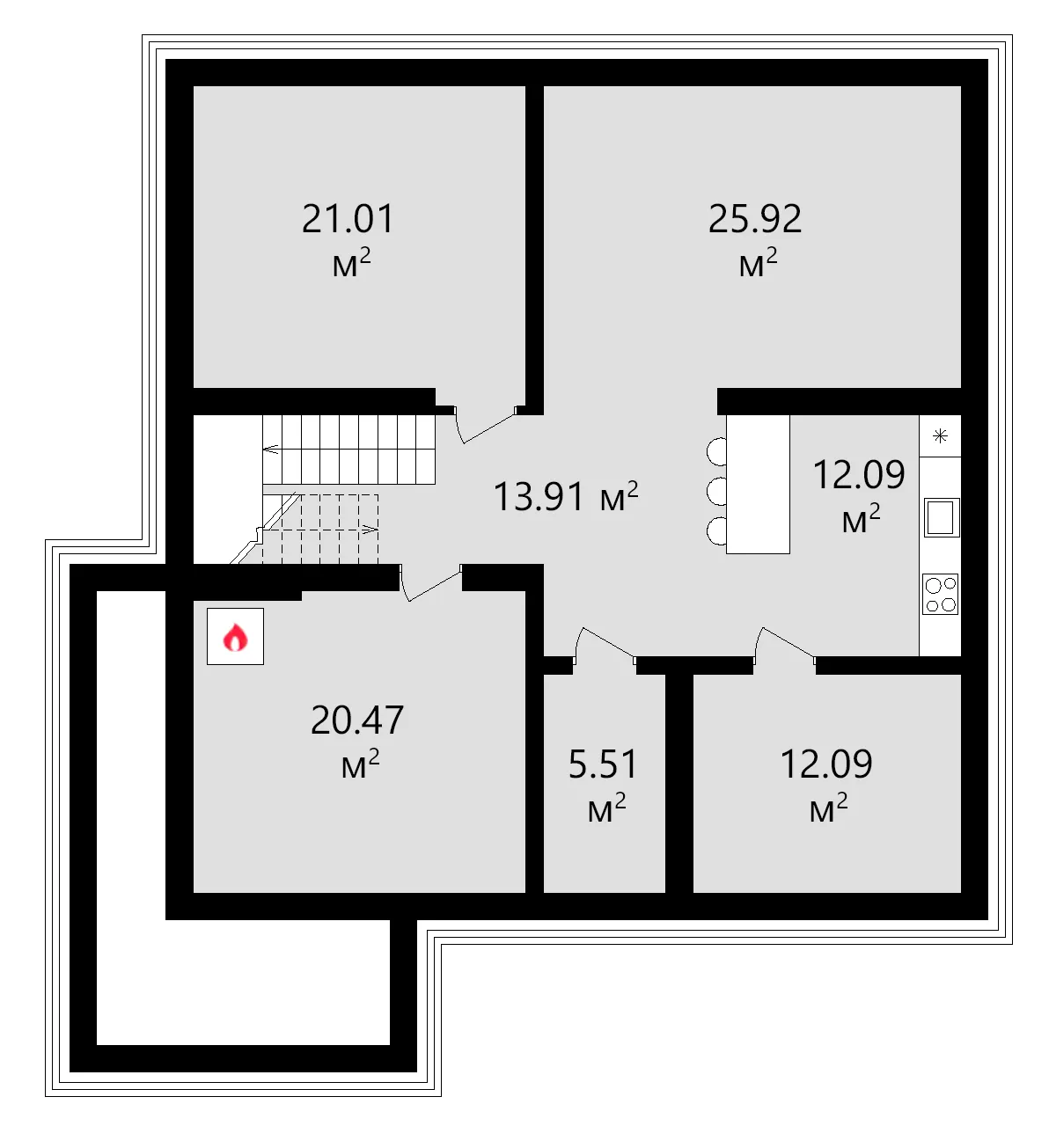

Basement
Basement 12 – 2,698 Sq Ft Prairie 2-Story House Plan with Basement, 4 Bedrooms and 3 Bathrooms – 82053C
Full Specs & Features
Area
Total Unheated: 1089.95 ft²
Basement: 1089.95 ft²
Total Heated: 2697.97 ft²
Dimensions
Depth: 45'8" ft
Width: 50'6" ft
Height: 30'4" ft
Foundation
Concrete Stem Wall (Optional)
Slab (Optional)
Block Stem Wall (Optional)
Full Basement
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Entry
Storage
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Corner Window
Interior Features
Laundry Lower Level
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Corner Window
Covered Side Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Prairie

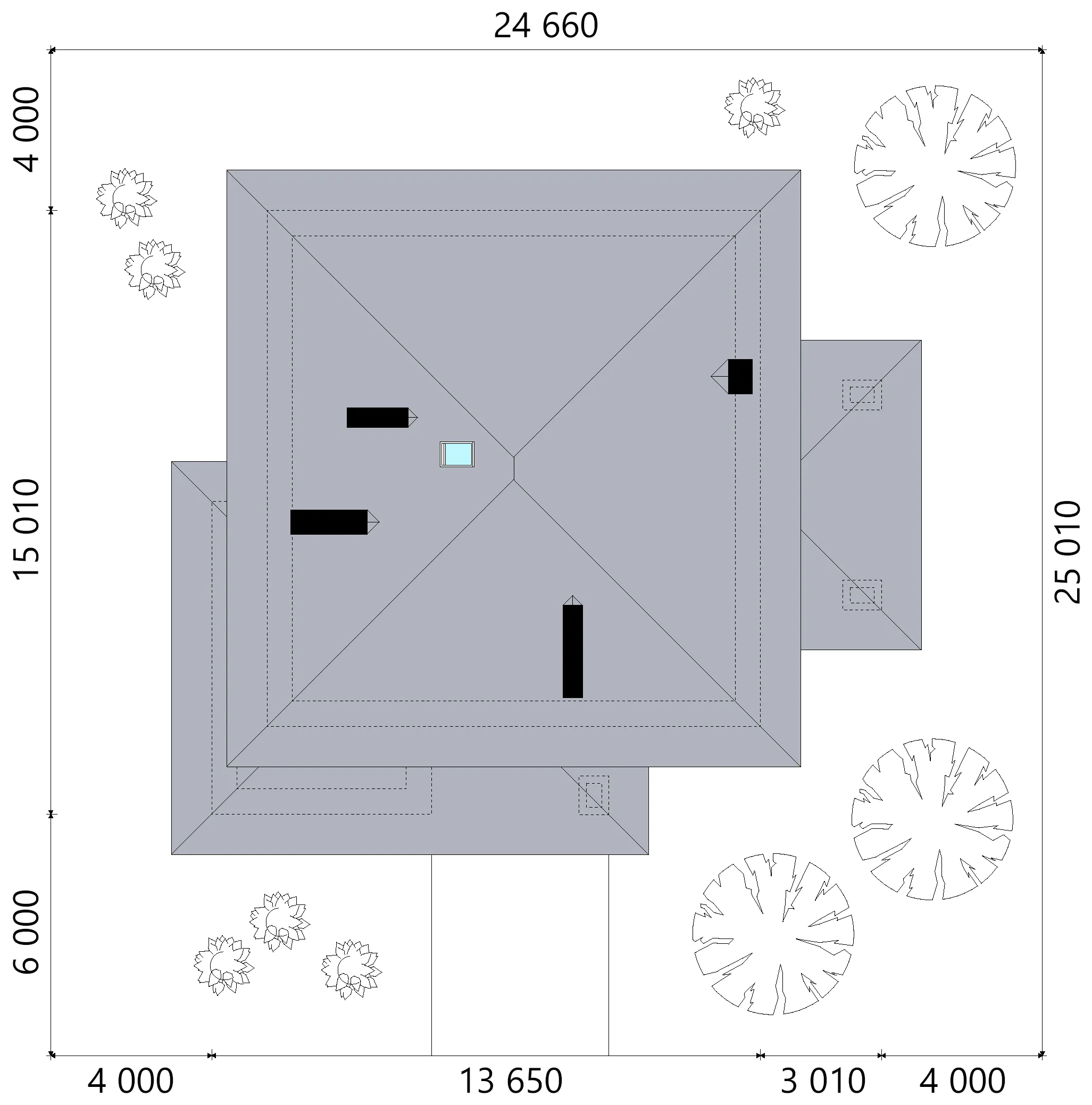

Roof
Roof Area: 3454.25 ft²
Hip
Skylight
Roof Pitch: 5/12 (22°)

The 82053C is a Prairie 2-story digital house design concept with basement, offering Total Heated 2,698 Sq Ft, 4 bedrooms and 3 bathrooms for a family of 4-6 people. The single-family home has a square footprint of 50'6" by 45'8", which makes it easy to place on the lot. A hip roof with a skylight brings daylight inside, and the stone/brick veneer keeps the exterior durable for years.

The entry opens to an open floor plan where the large family room with a fireplace flows into the kitchen, so the family stays together. The large kitchen offers a breakfast bar for quick meals and a breakfast nook lit by a corner window. Large windows and floor-to-ceiling windows fill the living area with natural light.

All four bedrooms are clustered on the second floor, keeping the sleeping area quiet and apart from daily activity. The second-floor primary bedroom includes a walk-in closet that keeps clothing out of the room. Three full bathrooms shorten the morning rush, and a storage room holds seasonal items.

The covered side porch provides a sheltered spot to relax outdoors. The laundry and the utility room are on the lower level, keeping chores away from the living spaces. The basement is the main foundation, and the plan also allows strip footings, a slab or a concrete block foundation to suit the site. Exterior walls are designed in autoclaved aerated concrete, with clay hollow block or calcium silicate block as alternatives. In figures: Total Heated 2,698 Sq Ft, 4 bedrooms and 3 full bathrooms.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1842
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
