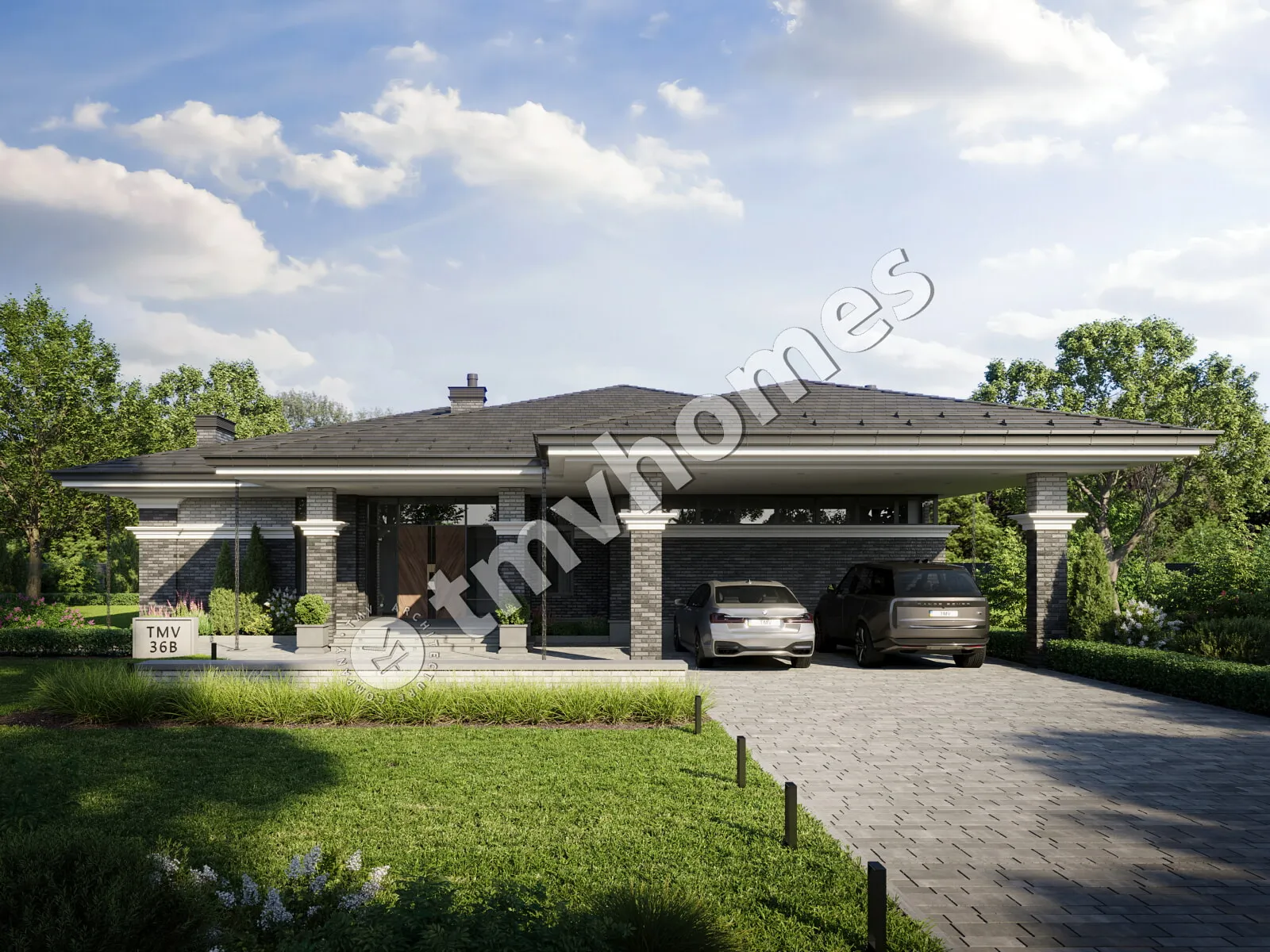

Renderings 2 – 2,254 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 87558C

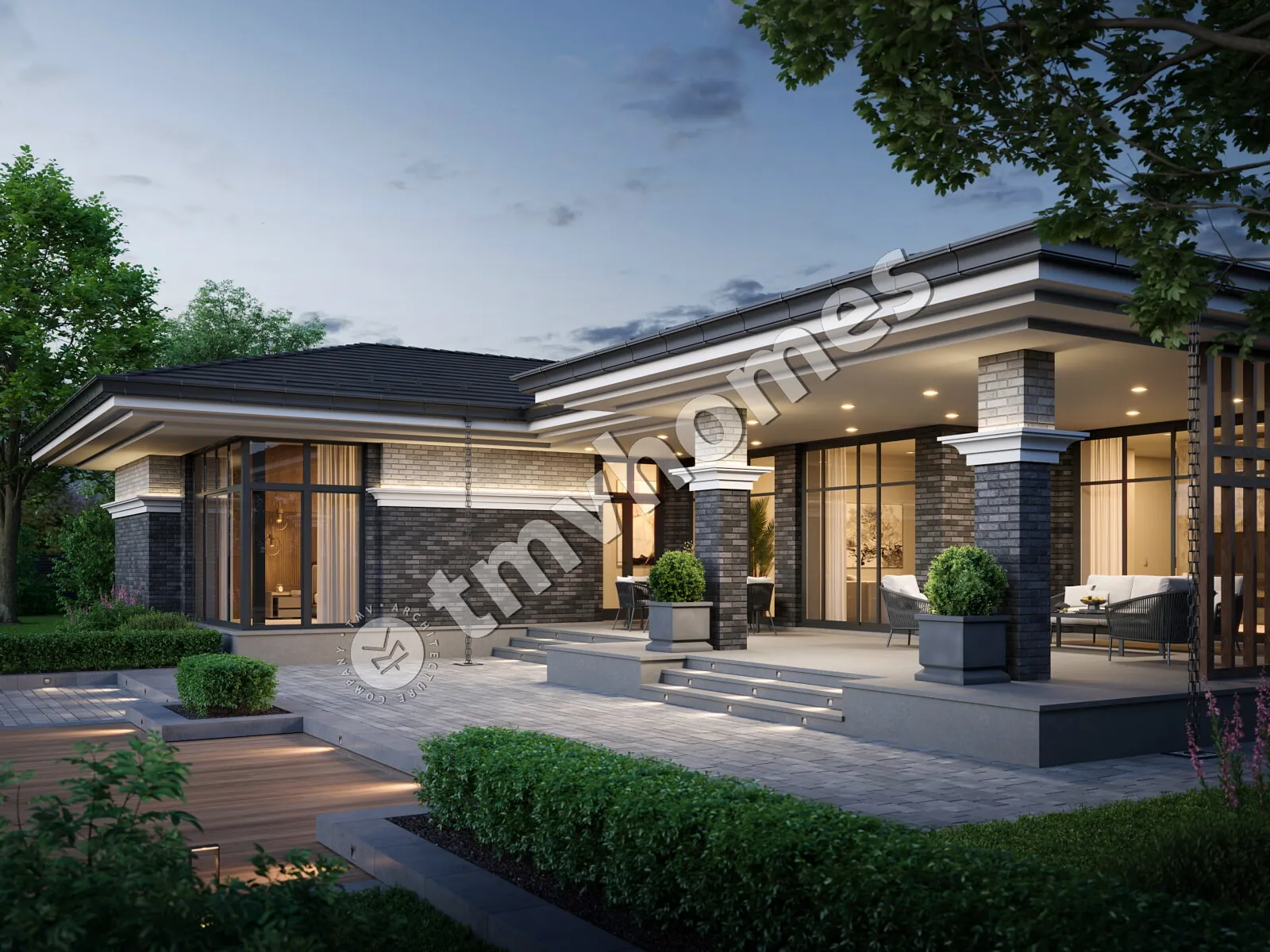

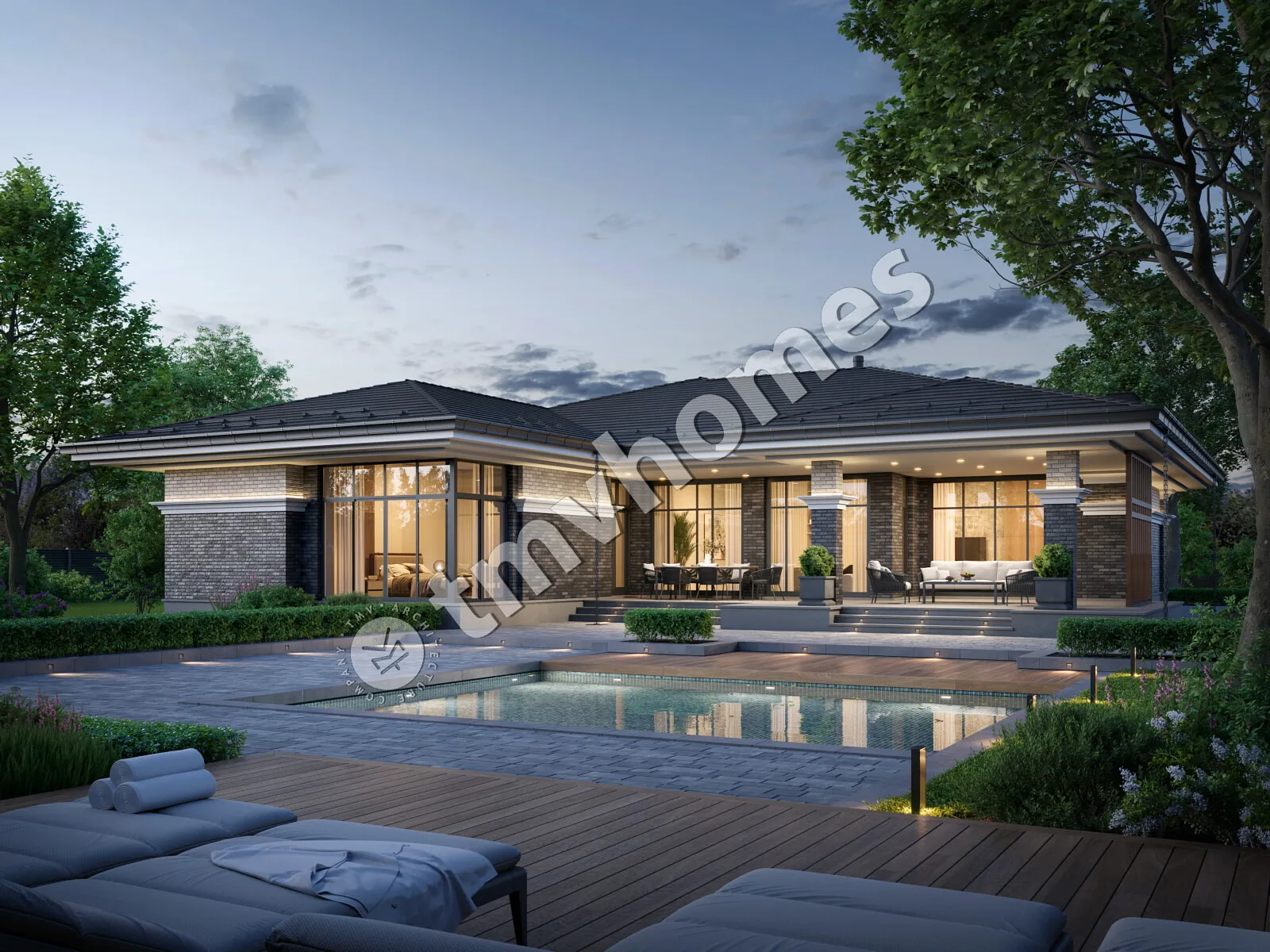

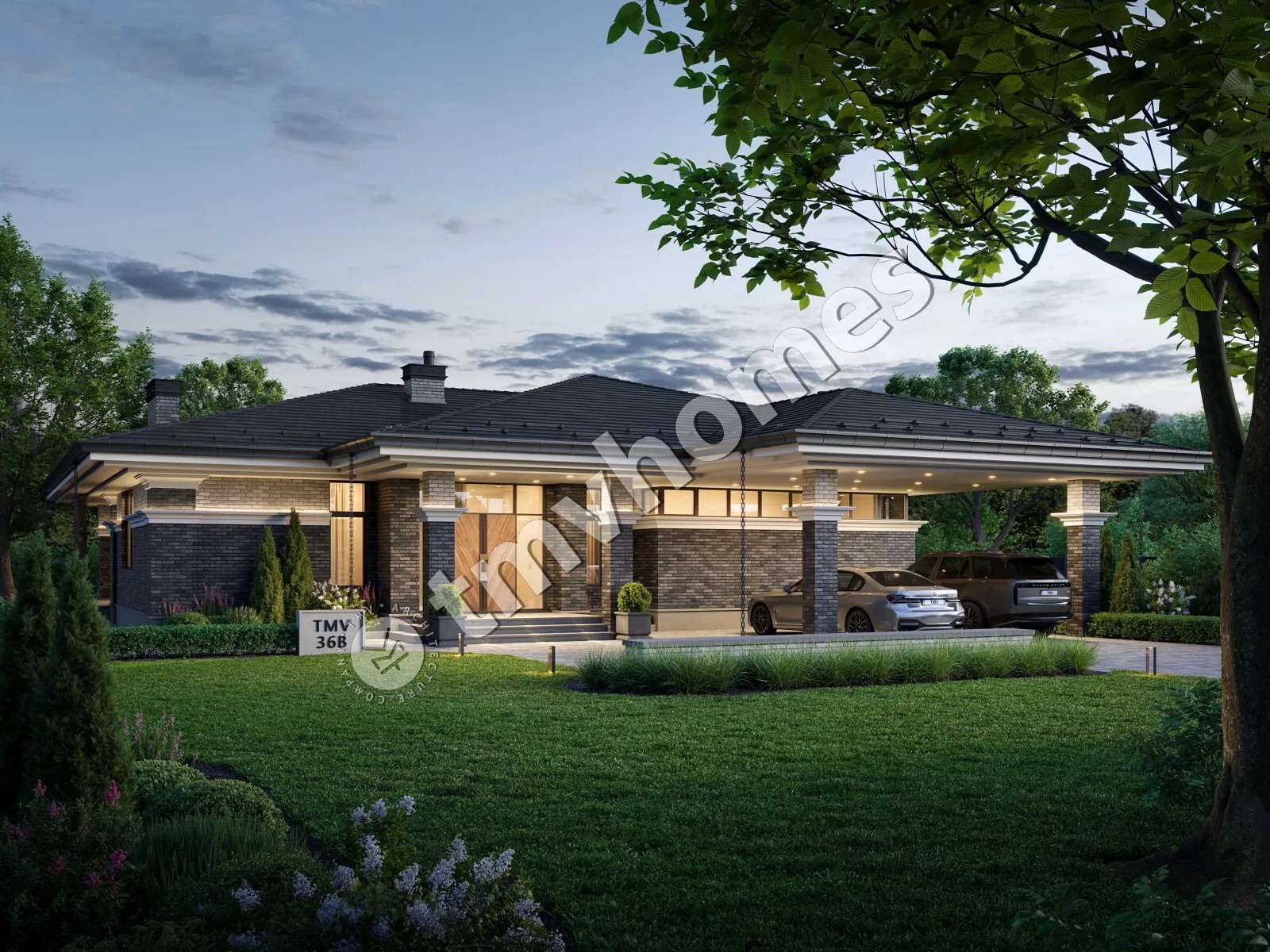

Renderings 3 – 2,254 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 87558C Renderings 4 – 2,254 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 87558C
7
Concept
Construction documents are prepared for the following countries:

2,254 Sq Ft Prairie T-Shaped Single-Story House Plan with 3 Bedrooms, 3 Bathrooms and Carport

Plan
87558C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2254
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

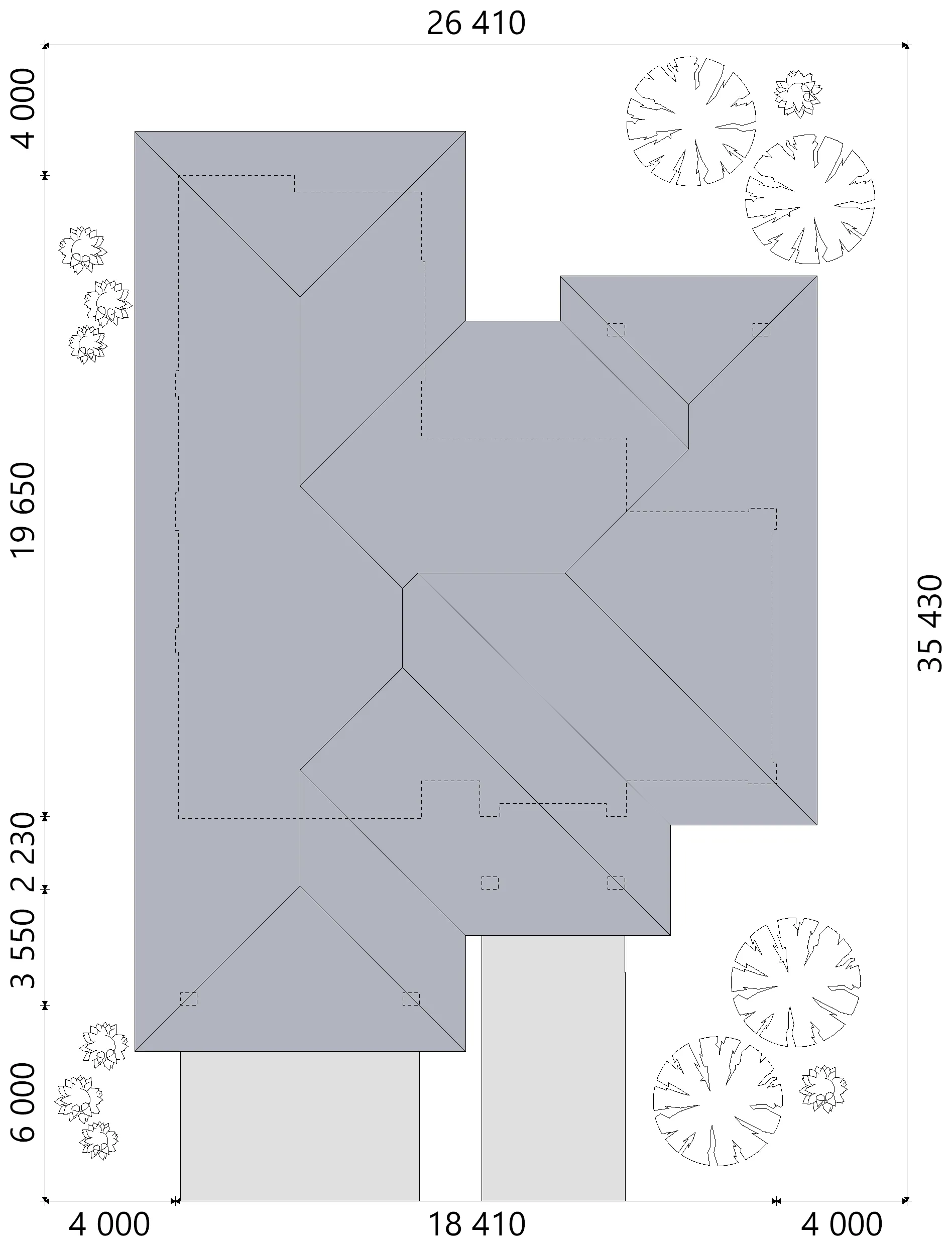

Rzut dachu

Przekroje

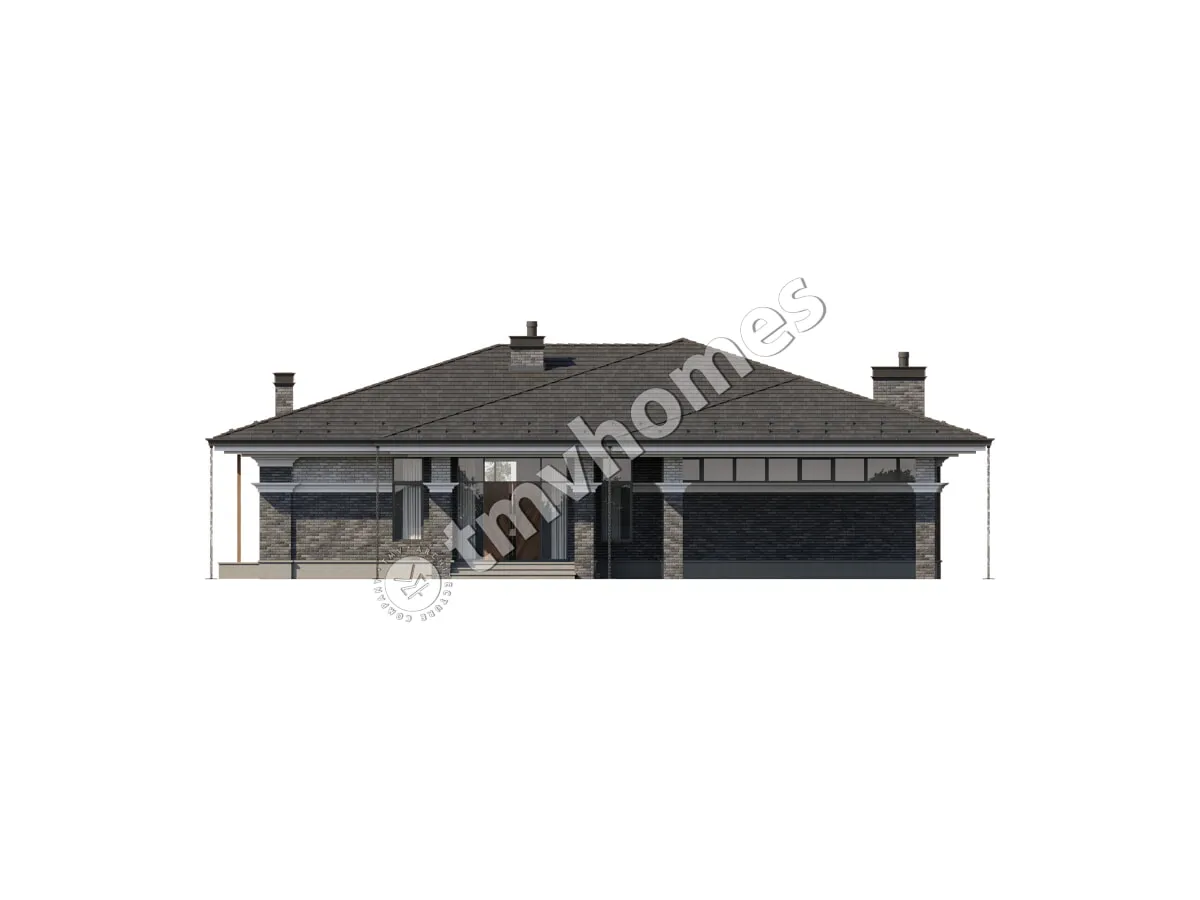

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

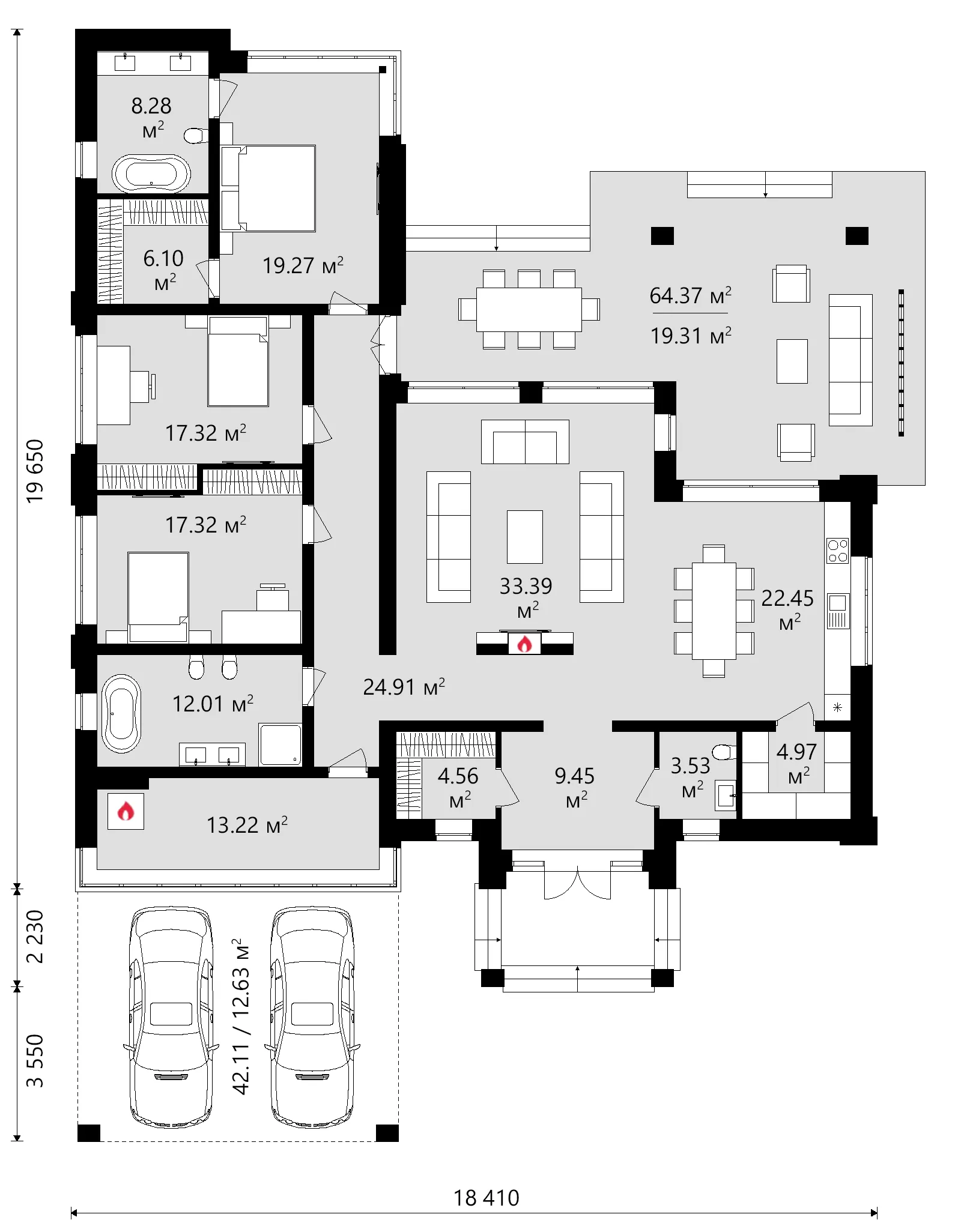

Floor Plans
Main Floor
Main Floor 13 – 2,254 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 87558C
Full Specs & Features
Area
Total Heated: 2254.07 ft²
Dimensions
Depth: 77'5" ft
Width: 55'8" ft
Height: 19'7" ft
Garage
Cars: 2
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Interior Features
Fireplace in Family Room
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Prairie
Traditional
Roof
Roof Area: 5481.63 ft²
Hip & Valley
Roof Pitch: 4/12 (18°)

House design concept 87558C is a Prairie, T-shaped single-story home with a Total Heated 2,254 Sq Ft, available for purchase as a digital house design concept. Three bedrooms and three full bathrooms on one level suit a family of 3-4 people, while the hip and valley roof with a 4/12 (18°) pitch and the stone/brick veneer give the single family home a low, grounded silhouette.

The entry receives guests and leads into an open floor plan where the large family room, the kitchen and the breakfast nook share one space for everyday life. A fireplace anchors the family room, and large windows, floor-to-ceiling windows and a corner window bring daylight deep into the day zone. The large kitchen gives room for several cooks, and the walk-in pantry keeps supplies out of sight.

The bedrooms are clustered in one wing, so parents stay close to the children at night. The main floor primary suite means daily life runs without stairs, and its walk-in closet keeps clothes organized in one place. Three full bathrooms keep morning routines from overlapping, and the utility room separates household equipment from the living spaces.

A covered front porch shelters the entry from rain, and a covered rear porch offers a shaded spot for outdoor meals. The carport holds two cars and protects them from snow and sun. The project is based on strip footings, with slab and block foundation options, and on aerated concrete walls, with clay hollow block or calcium silicate block as alternatives. With a width of 55'8" and a depth of 77'5", the house suits a wide lot. In figures: Total Heated 2,254 Sq Ft, 3 bedrooms, 3 bathrooms and a 2-car carport.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1270
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
