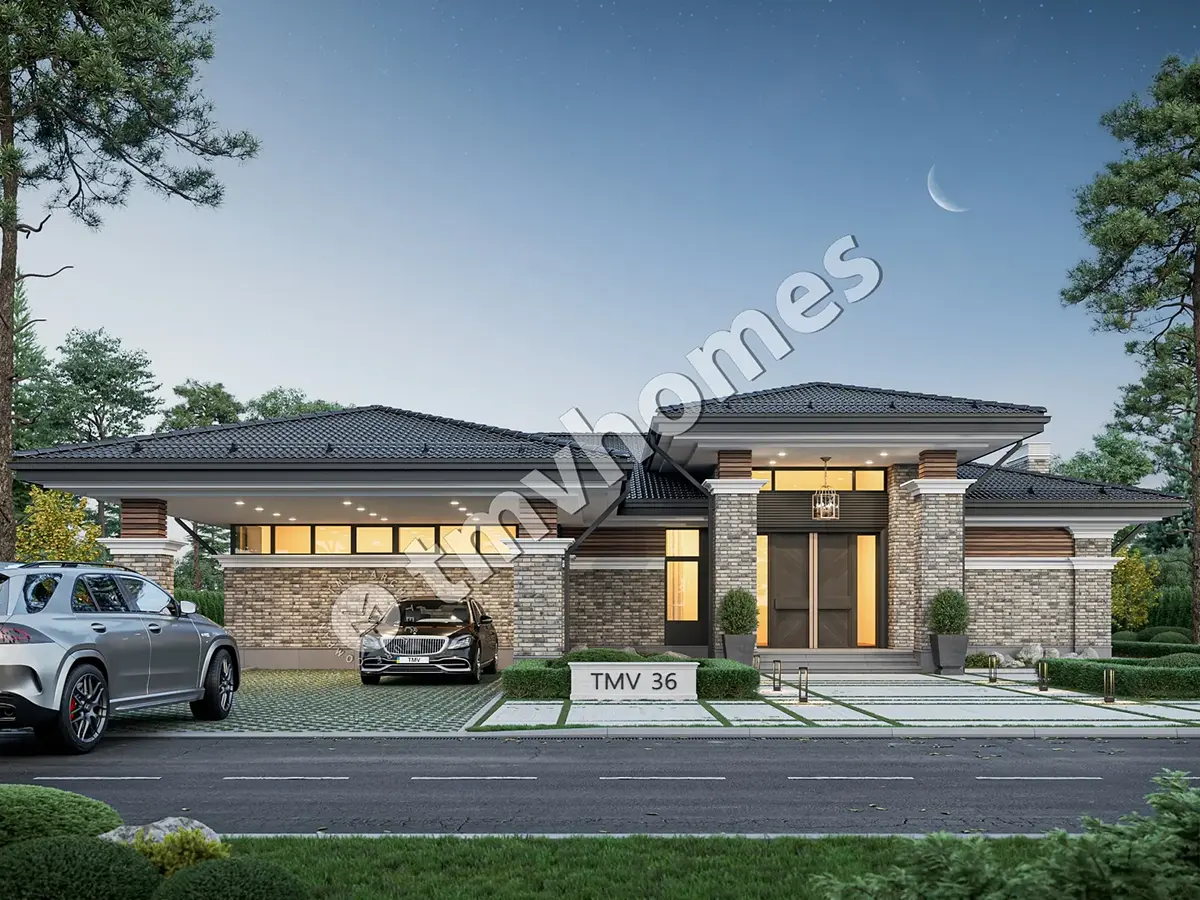

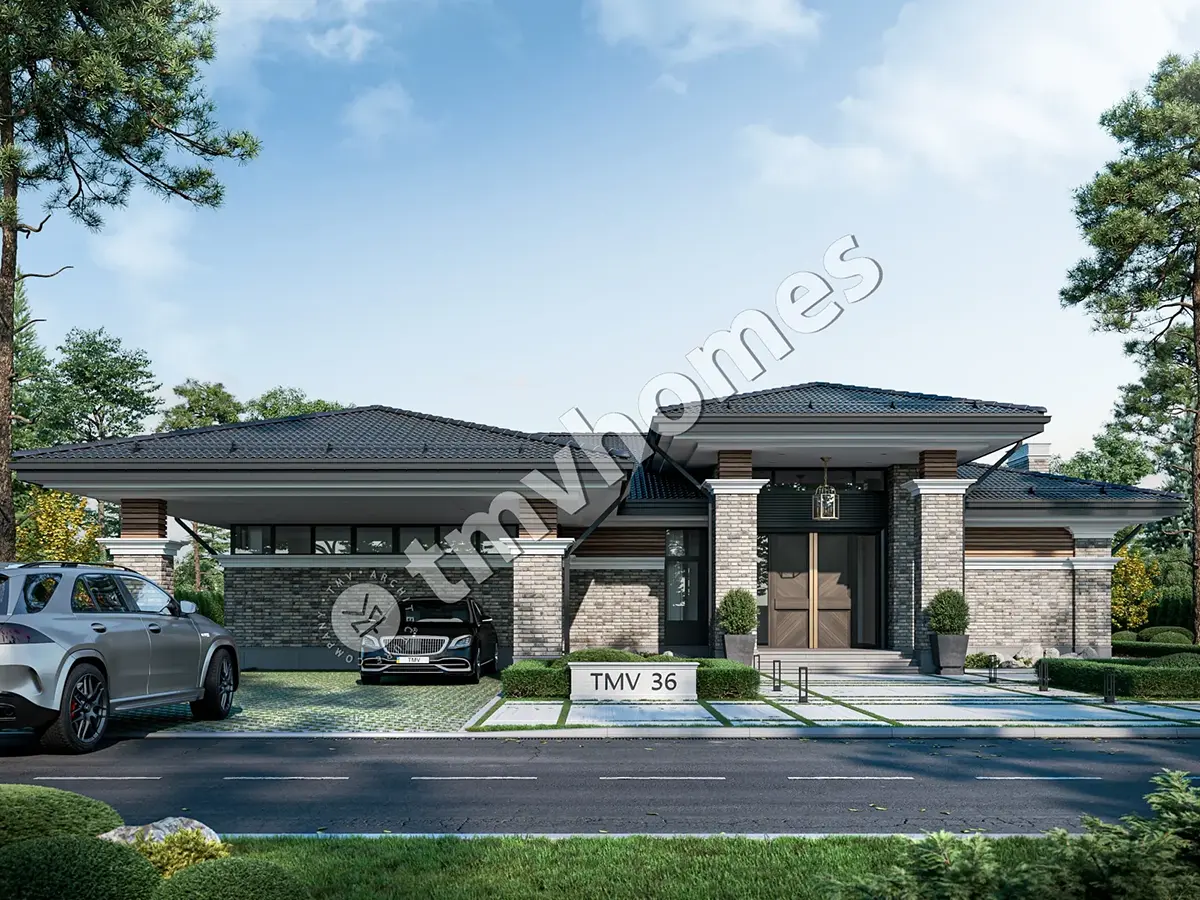

Renderings 2 – 2,330 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 74397C
Renderings 3 – 2,330 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 74397C Renderings 4 – 2,330 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 74397C
11
Concept
Construction documents are prepared for the following countries:

2,330 Sq Ft Prairie T-Shaped Single-Story House Plan with 3 Bedrooms, 3 Bathrooms and Carport

Plan
74397C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2330
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

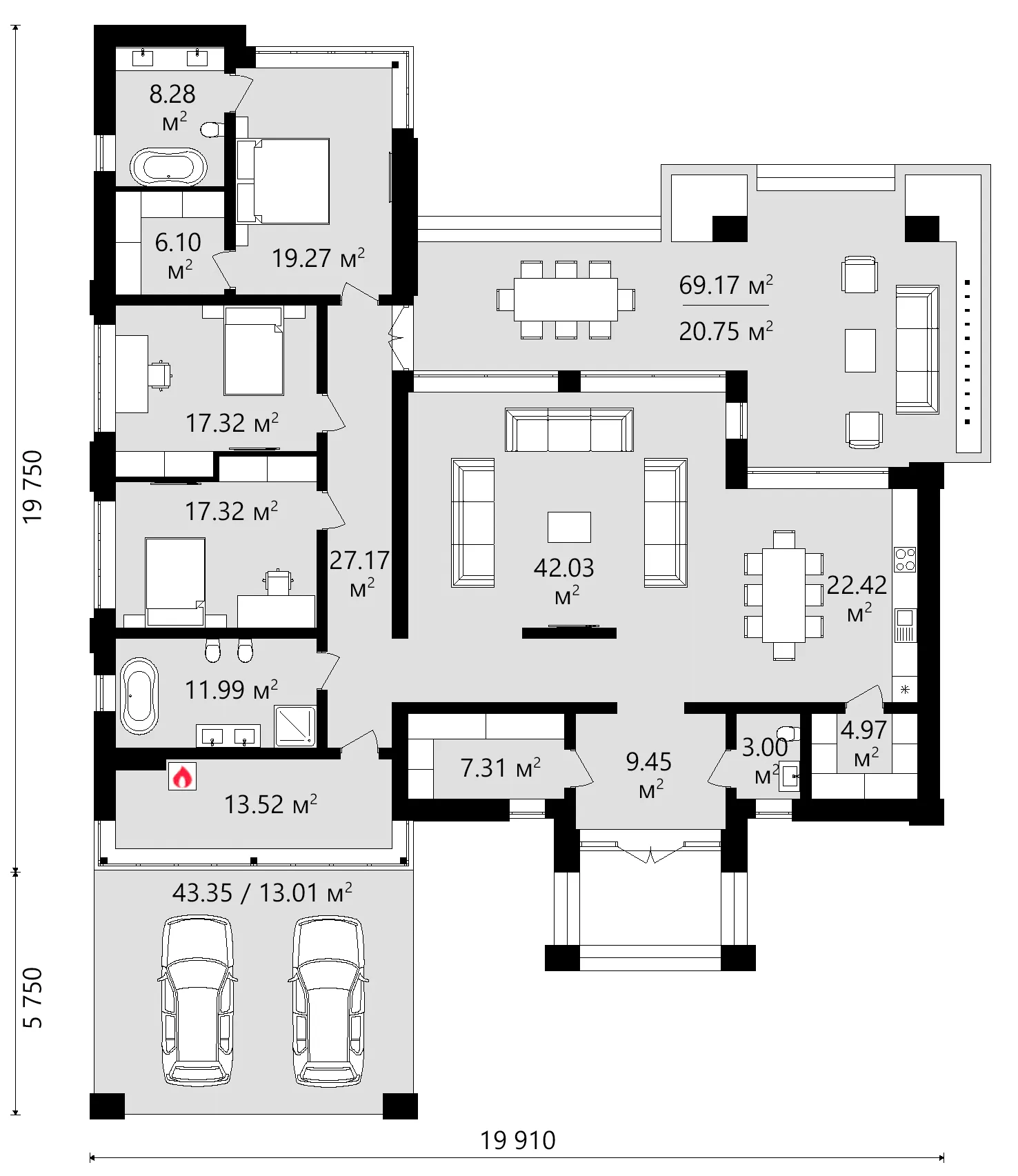

Floor Plans
Main Floor
Main Floor 17 – 2,330 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and 3 Bathrooms – 74397C
Full Specs & Features
Area
Total Heated: 2329.63 ft²
Dimensions
Depth: 77'7" ft
Width: 60'7" ft
Height: 17'6" ft
Garage
Cars: 2
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Brick
Wood
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Interior Features
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Corner Window
Panoramic Windows
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Prairie
Traditional

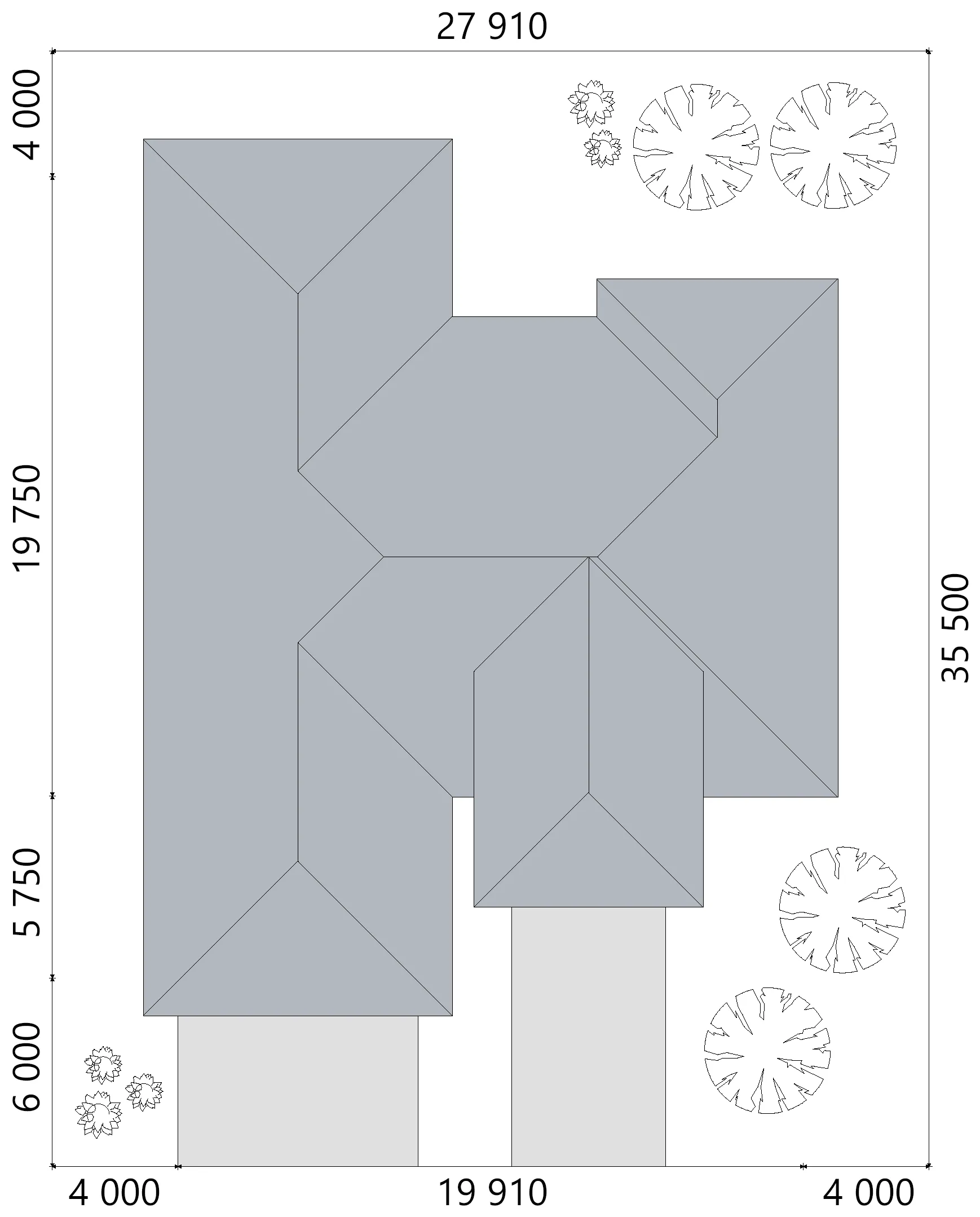

Roof
Roof Area: 4999.51 ft²
Hip & Valley
Roof Pitch: 4/12 (18°)

The digital house design concept 74397C describes a single-story Prairie home with a total heated area of 2,330 Sq Ft, 3 bedrooms and 3 bathrooms, designed for a family of 3-4 people. The T-shaped single-family layout is 60'7" wide and 77'7" deep. Its 4/12 hip-and-valley roof keeps the profile low and horizontal.

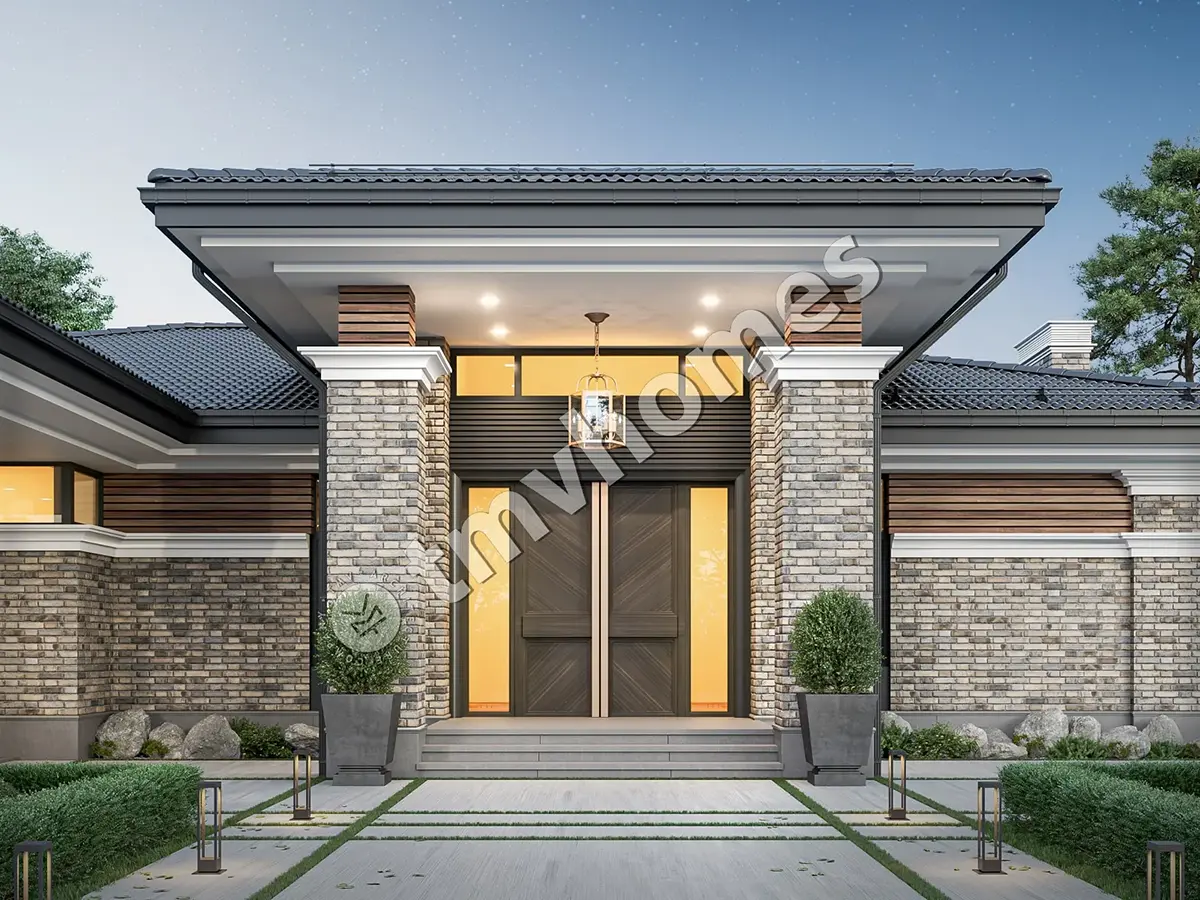

The entry leads into an open floor plan where the great room flows into a large kitchen, so whoever cooks stays part of the conversation. A breakfast nook handles quick weekday meals, and a walk-in pantry keeps supplies out of sight. Floor-to-ceiling, panoramic and large windows, plus a corner window, bring daylight deep into the living spaces.

The bedrooms are clustered together, which keeps parents close to the children at night. The primary suite has a walk-in closet, and three full bathrooms mean no morning queue. A separate utility room keeps household tasks away from the living areas.

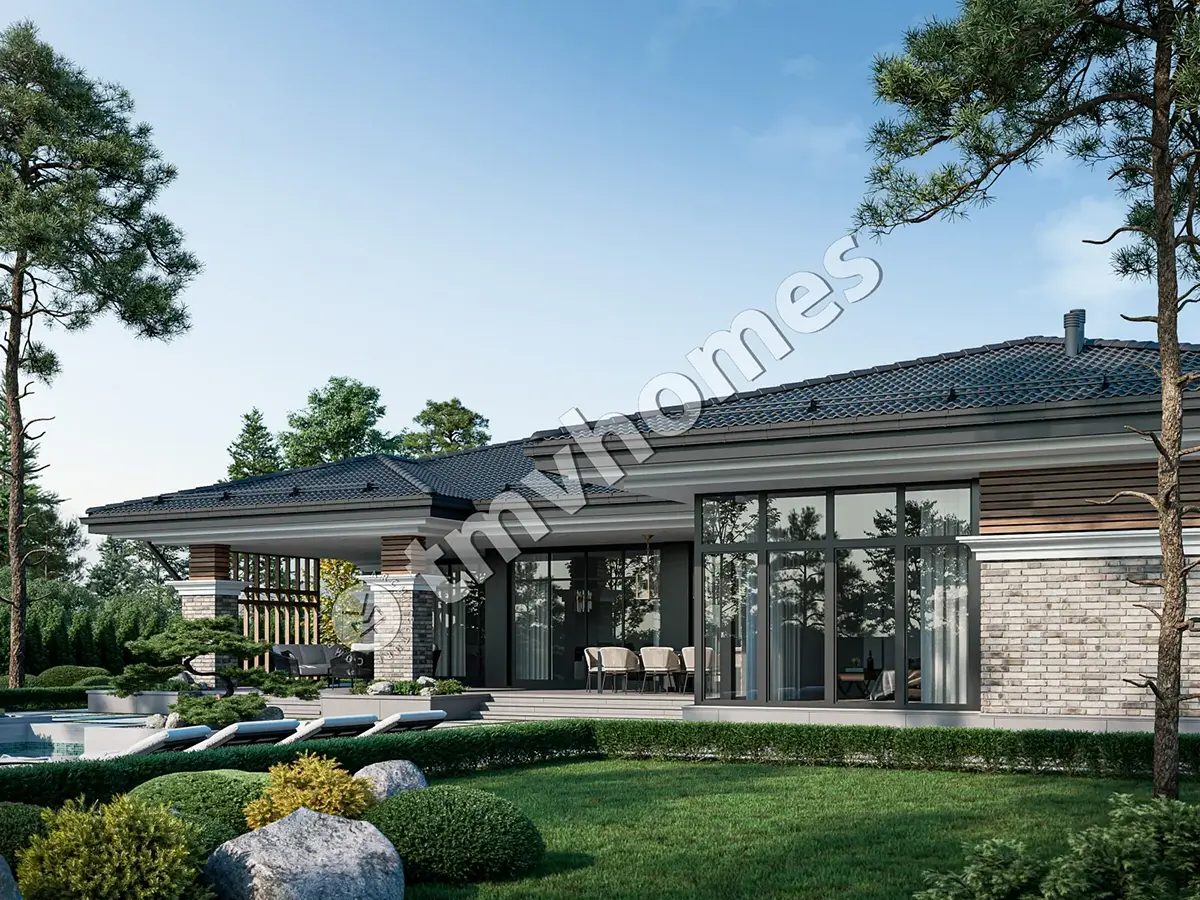

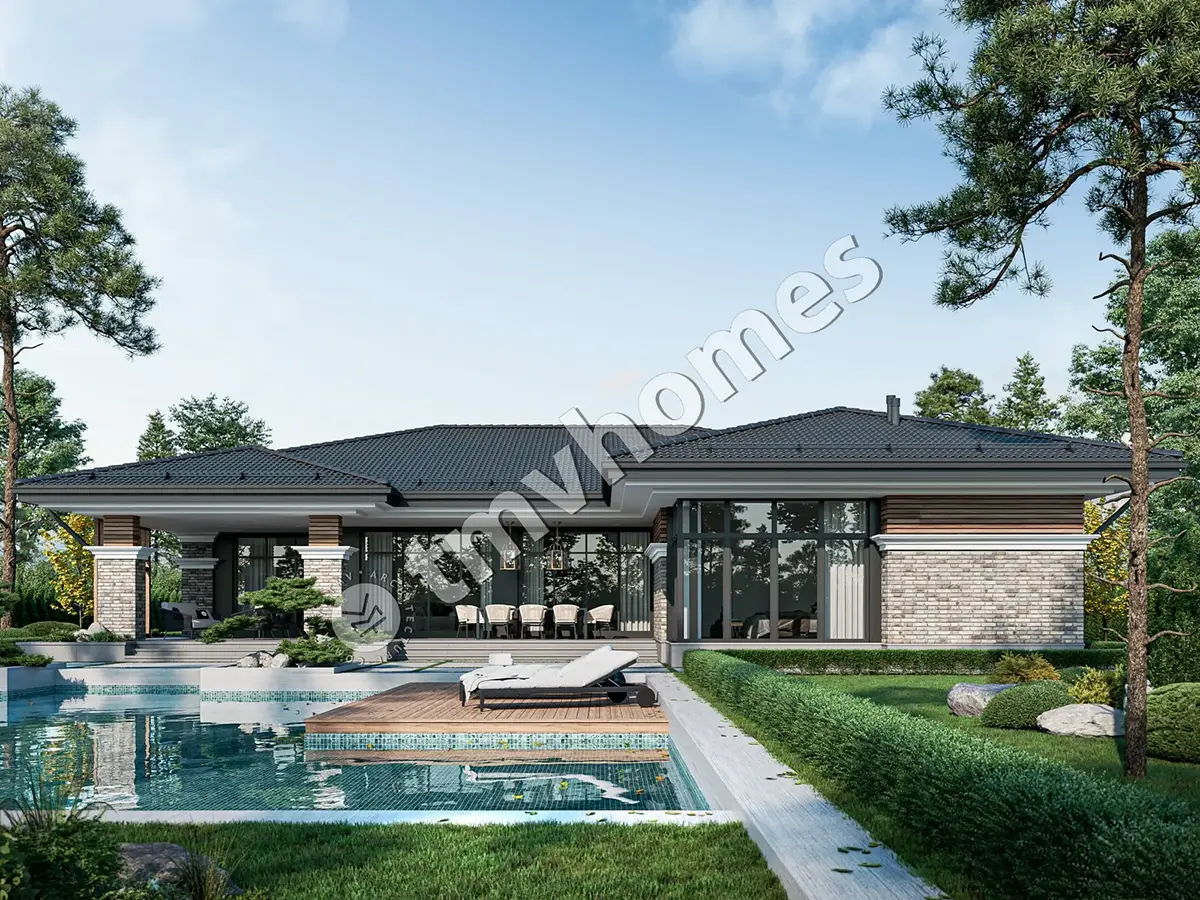

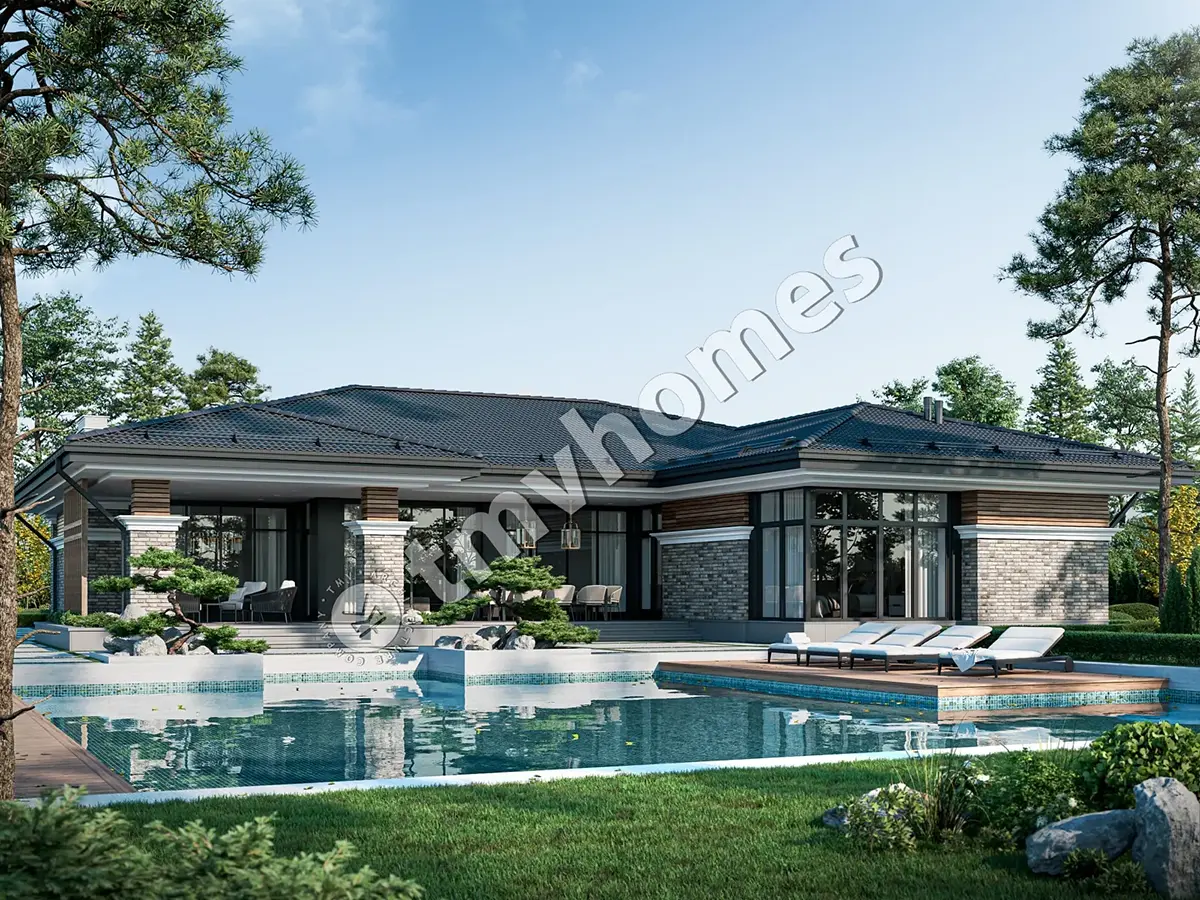

A covered rear porch lets you spend time outdoors even when it rains. The carport shelters two cars. The exterior combines brick and wood siding. The exterior walls are designed in autoclaved aerated concrete, with ceramic hollow block or sand-lime block as alternatives. Strip footings are standard, and a slab or block foundation is an option. In figures: total heated area 2,330 Sq Ft, 3 bedrooms, 3 bathrooms and a 2-car carport.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
