Renderings 3 – 2,613 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and Carport – 40614C

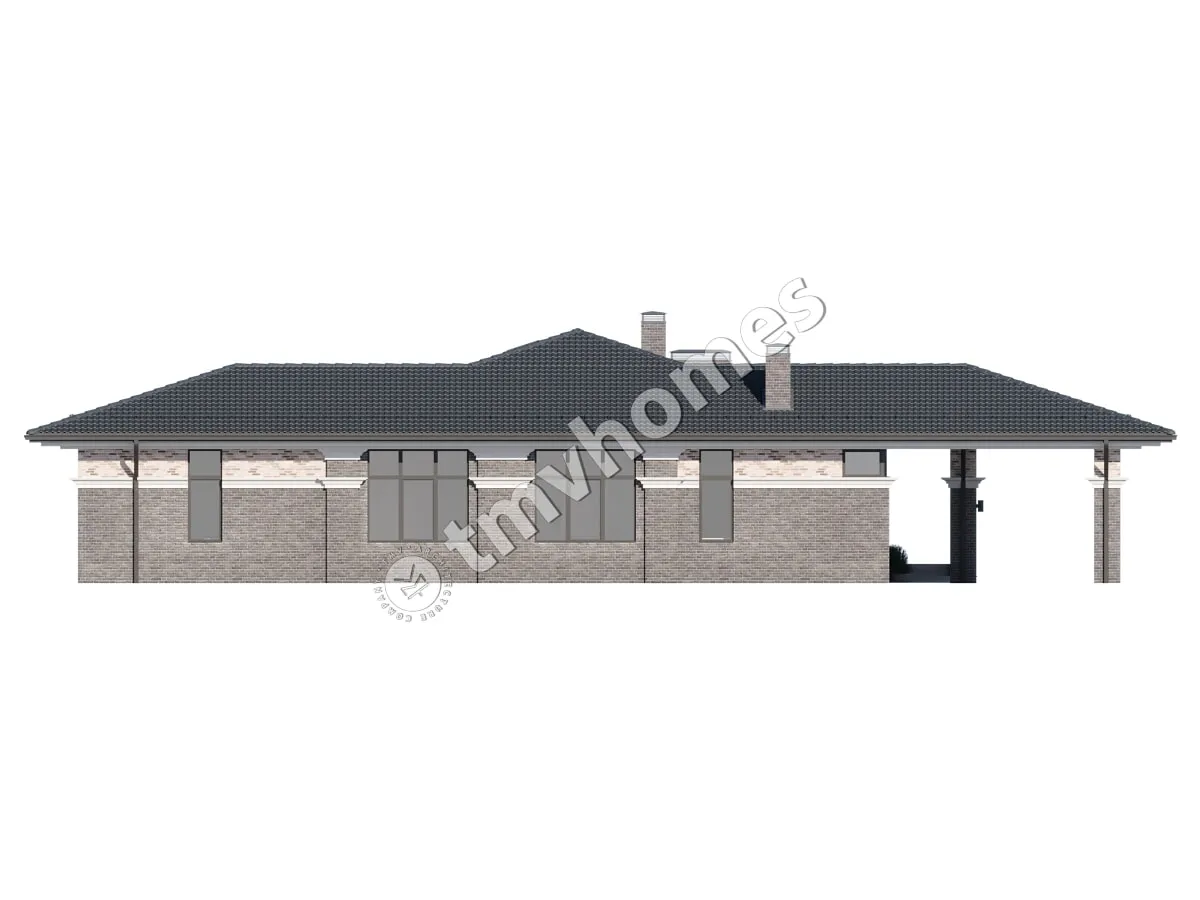

Renderings 9 – 2,613 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and Carport – 40614C Renderings 10 – 2,613 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and Carport – 40614C
4
Concept
Construction documents are prepared for the following countries:

2,613 Sq Ft Prairie T-Shaped Single-Story House Plan with 3 Bedrooms, 3 Bathrooms and Carport

Plan
40614C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2613
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

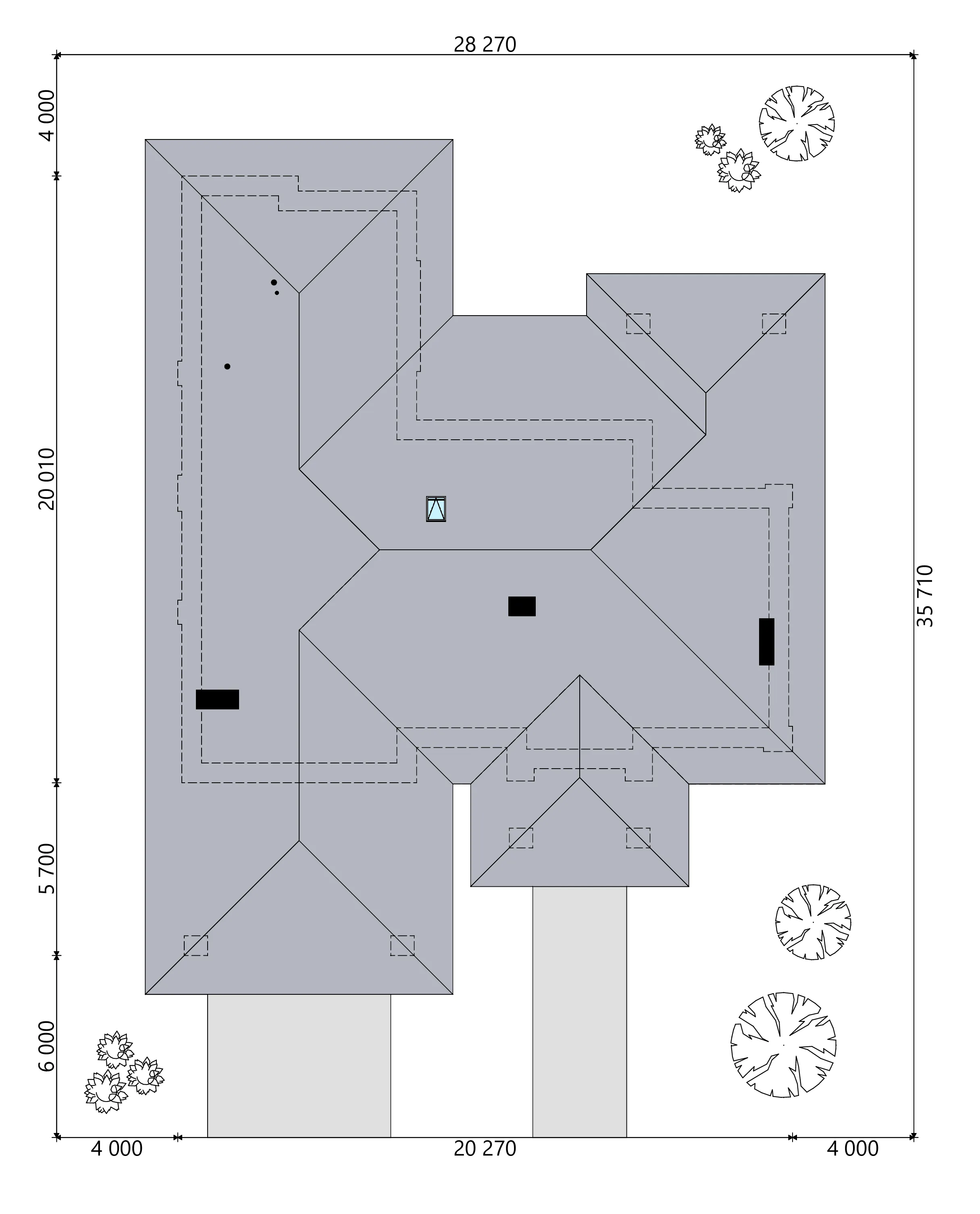

Rzut dachu

Przekroje

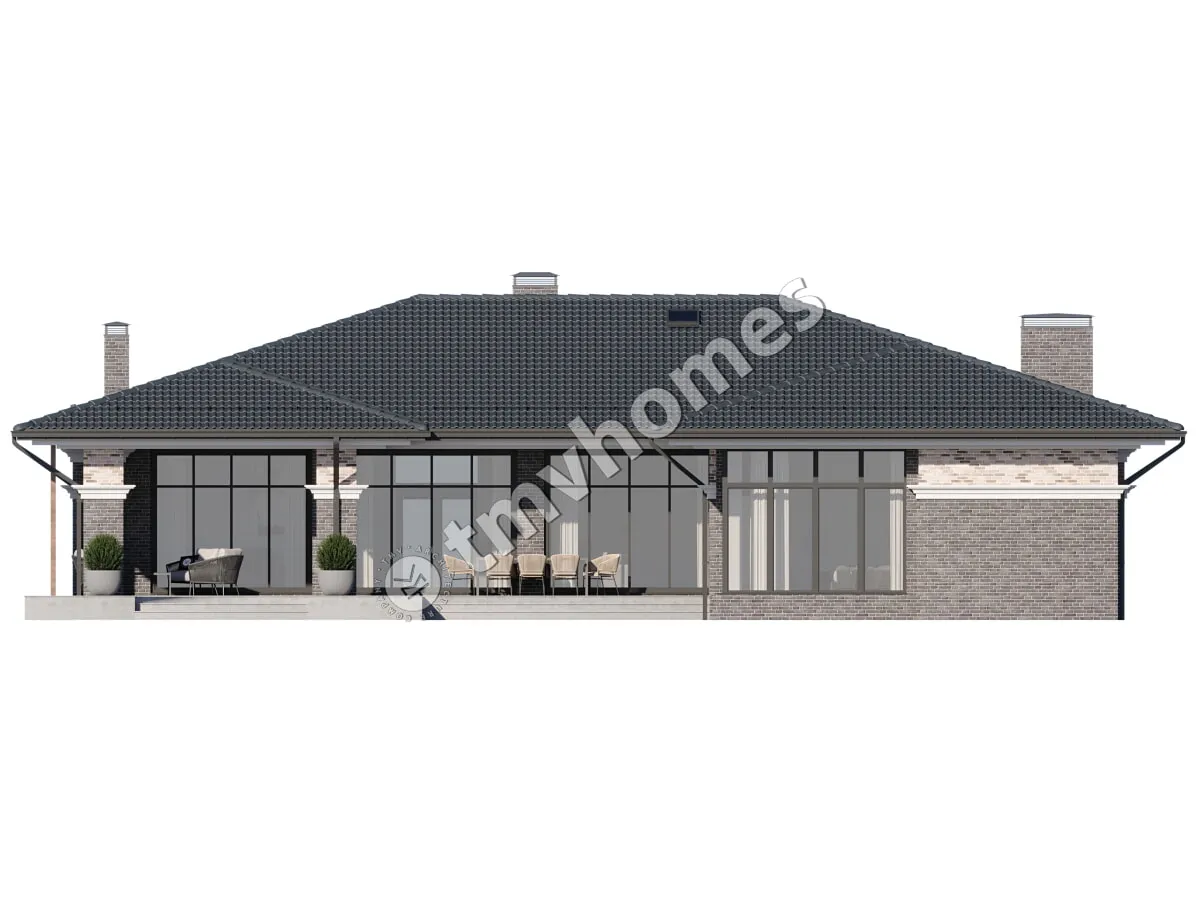

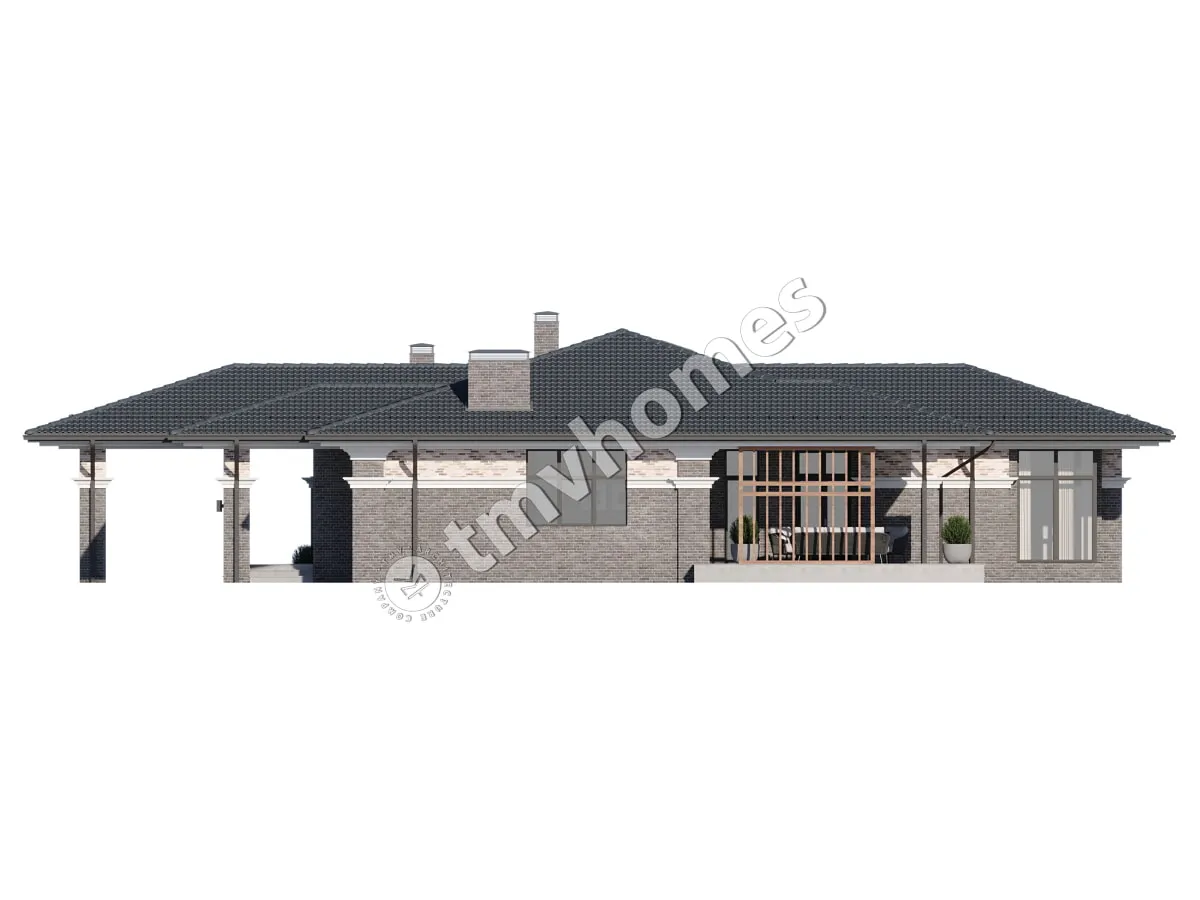

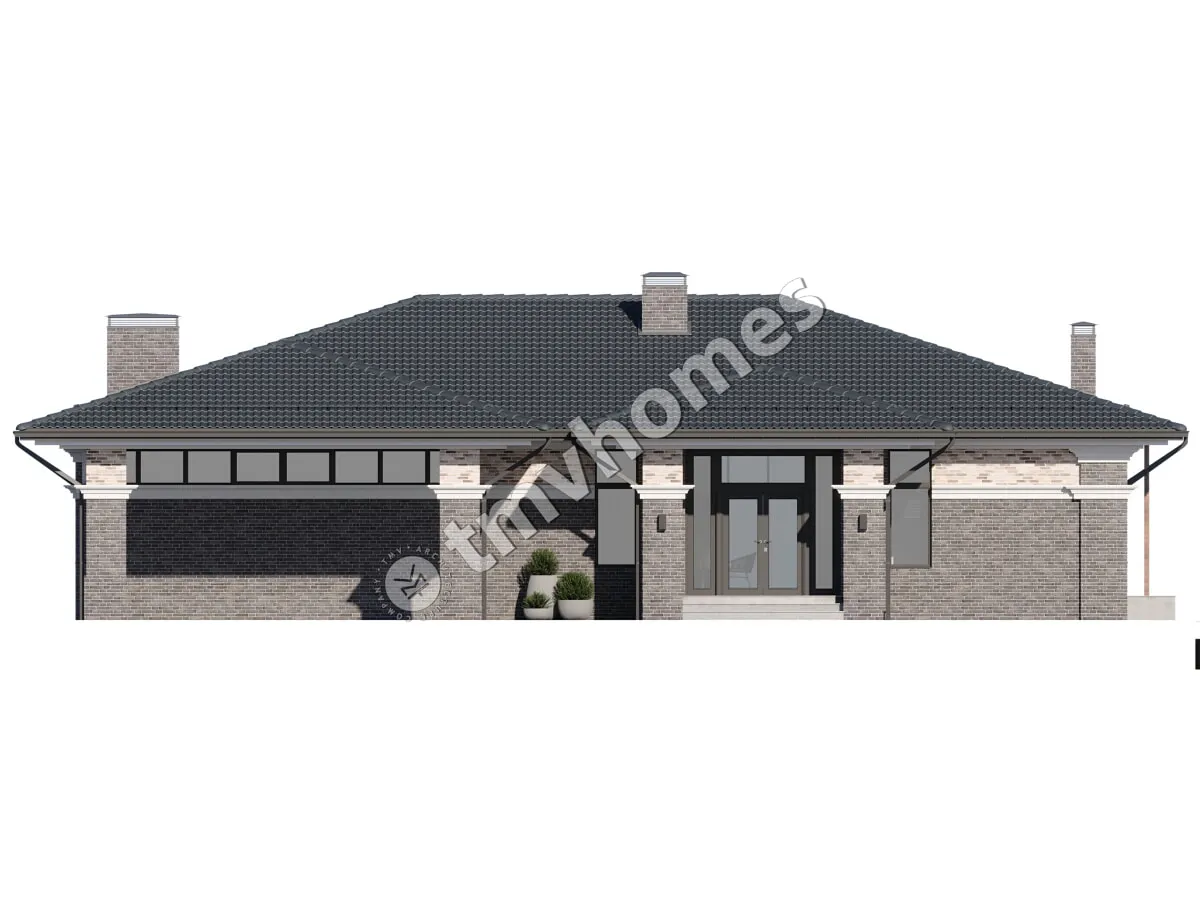

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

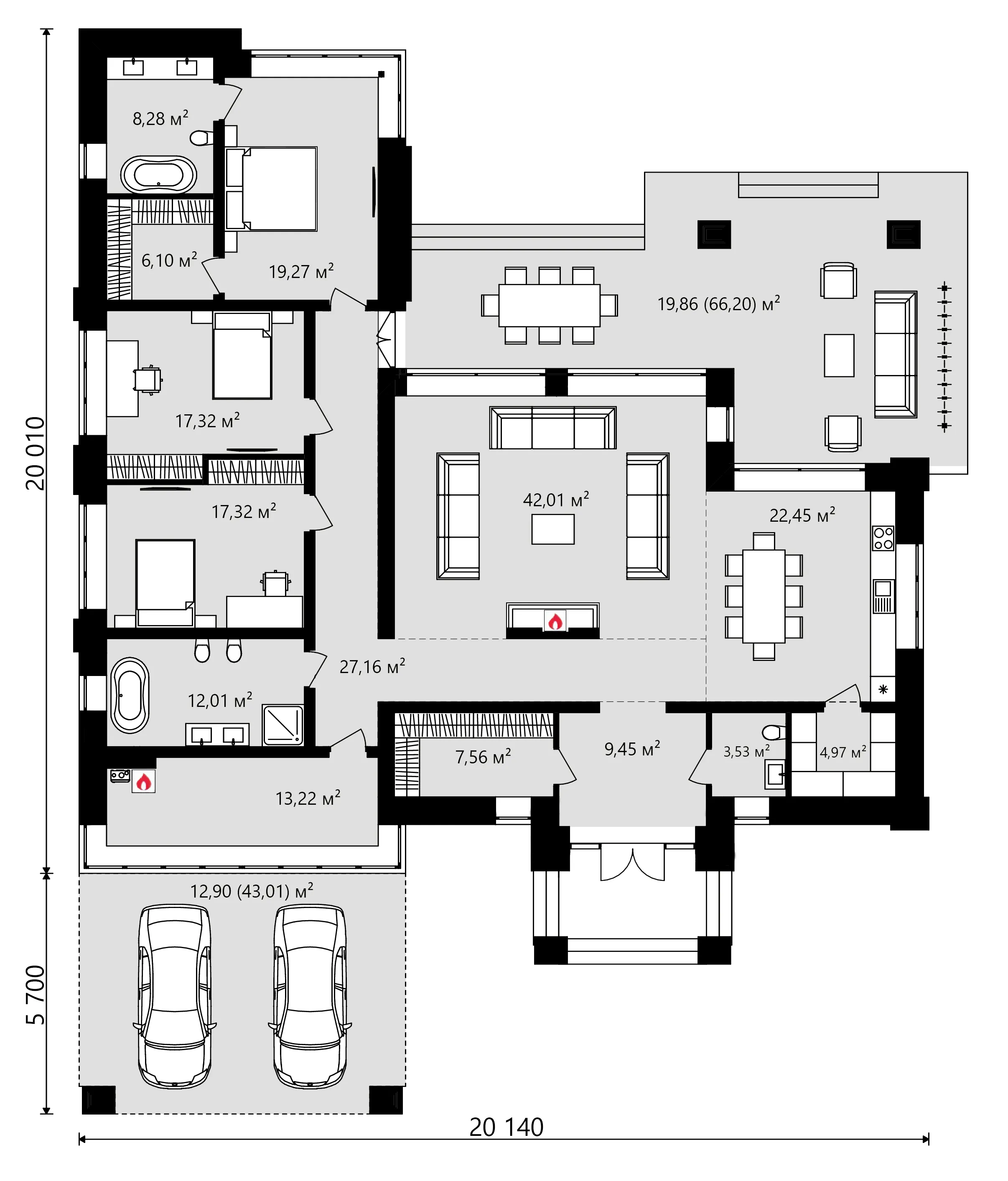

Main Floor

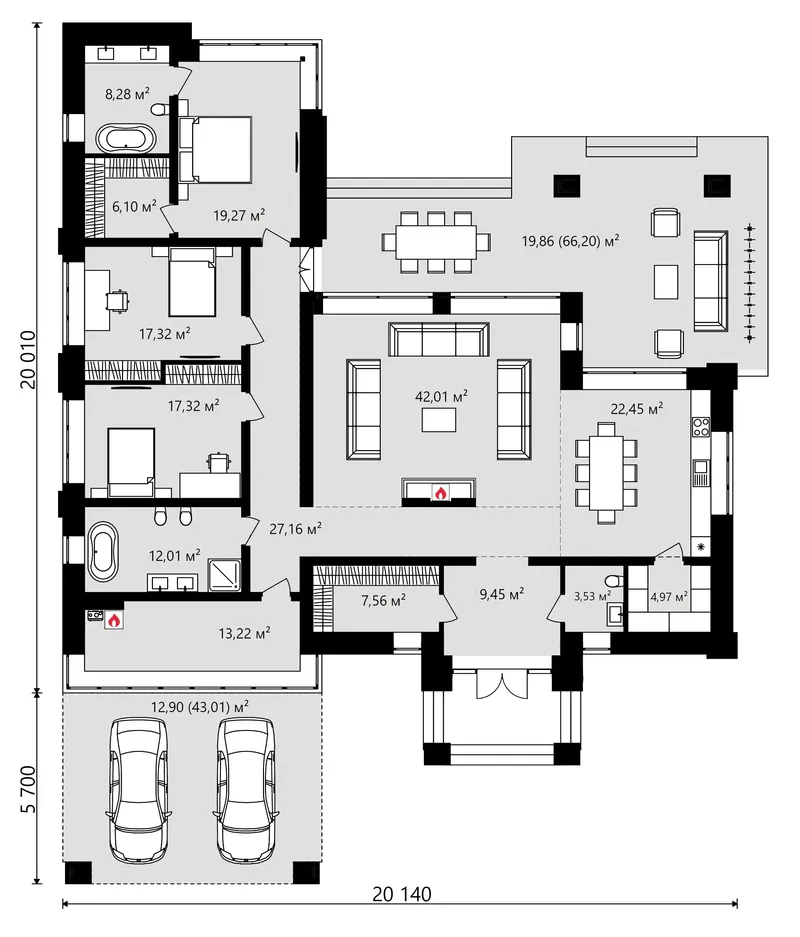

Main Floor 5 – 2,613 Sq Ft Prairie Single-Story House Plan with 3 Bedrooms and Carport – 40614C
Full Specs & Features
Area
Total Heated: 2613.05 ft²
Dimensions
Depth: 78'4" ft
Width: 61'4" ft
Height: 17'6" ft
Garage
Cars: 2
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Interior Features
Fireplace in Family Room
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Covered Rear Porch
Corner Window
Panoramic Windows
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern
Prairie
Roof
Roof Area: 5782.05 ft²
Hip & Valley

House design concept 40614C is a Prairie-style, T-shaped single-story single-family home with Total Heated 2,613 Sq Ft, 3 bedrooms, 3 bathrooms and a carport, designed for 3-4 people. The hip and valley roof and the stone/brick veneer exterior stand up well to the weather, and the T shape gives more rooms an exterior wall for windows.

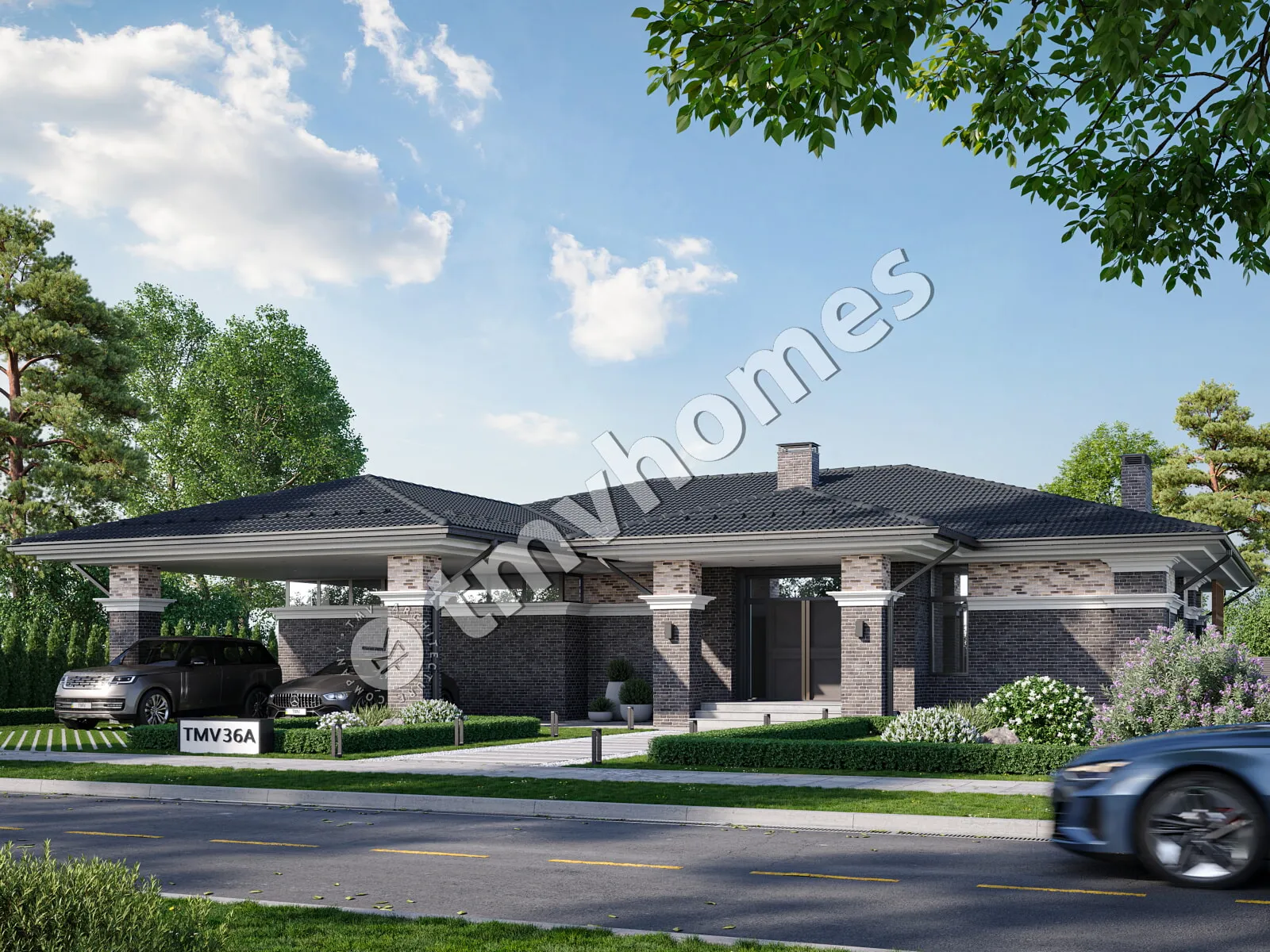

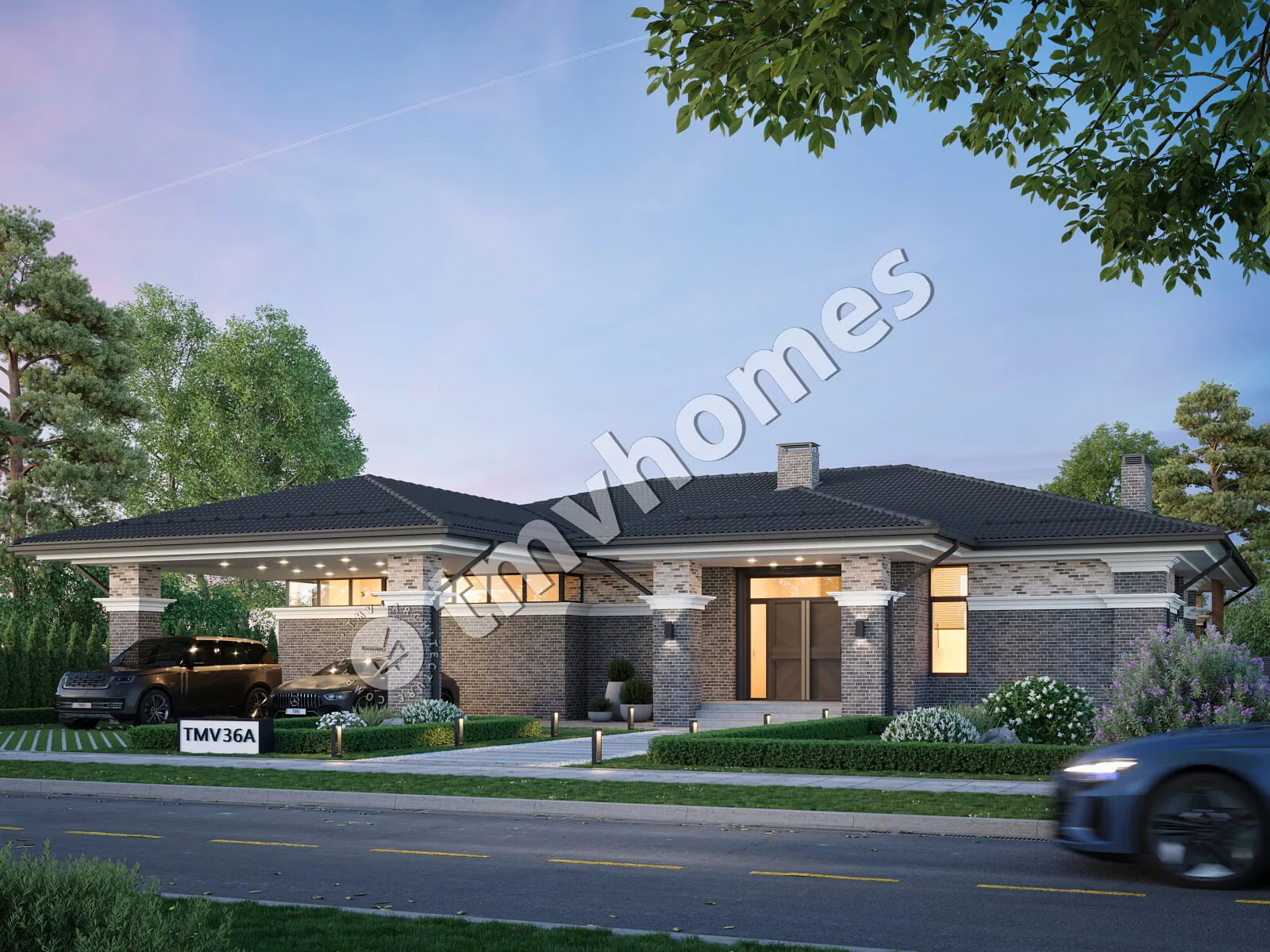

A covered front porch leads to the entry, which keeps coats and shoes out of the living area. The open floor plan joins a large great room with a fireplace to a large kitchen, so the cook stays part of the conversation. A breakfast nook handles everyday meals, and a walk-in pantry keeps supplies off the counters. Floor-to-ceiling windows, panoramic windows and a corner window bring daylight deep into the day zone.

All bedrooms are on one level and clustered together, so parents stay close to the children. The primary suite on the main floor has a walk-in closet that keeps clothing organized and out of sight. Three full bathrooms shorten the morning rush, and a utility room keeps household chores away from the living space.

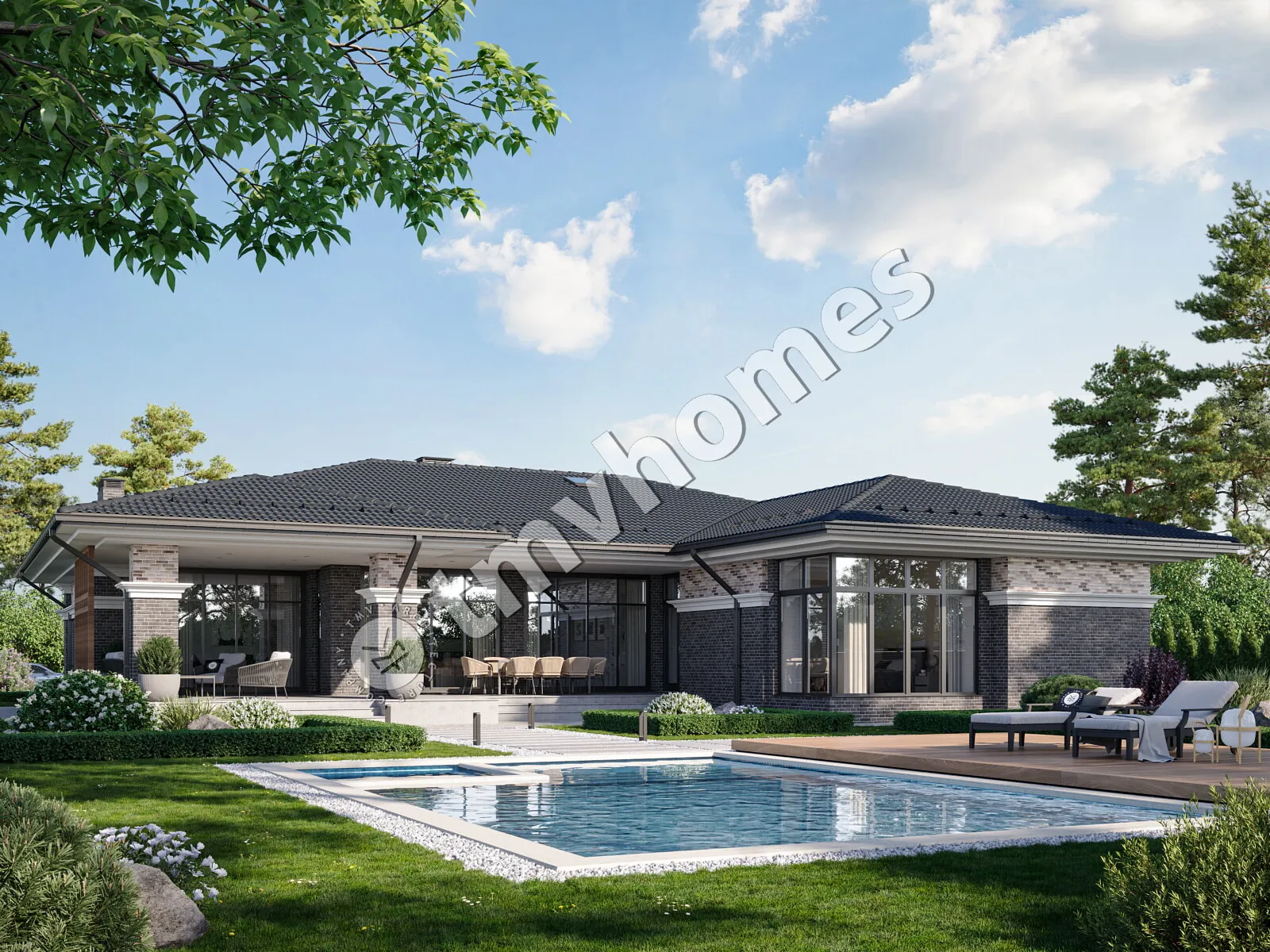

A covered rear porch adds a sheltered place to relax outdoors. The carport shelters two cars from rain and snow. The house stands on strip footings, with a slab or concrete block foundation as options; the walls are autoclaved aerated concrete, with clay block or sand-lime block as alternatives. The footprint is 61'4" wide and 78'4" deep. In figures: Total Heated 2,613 Sq Ft, 3 bedrooms, 3 bathrooms and a 2-car carport.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1270
