2,884 Sq Ft Traditional 2-Story House Plan with Basement, 5 Bedrooms, 2 Bathrooms and 2-Car Garage
Opis techniczny

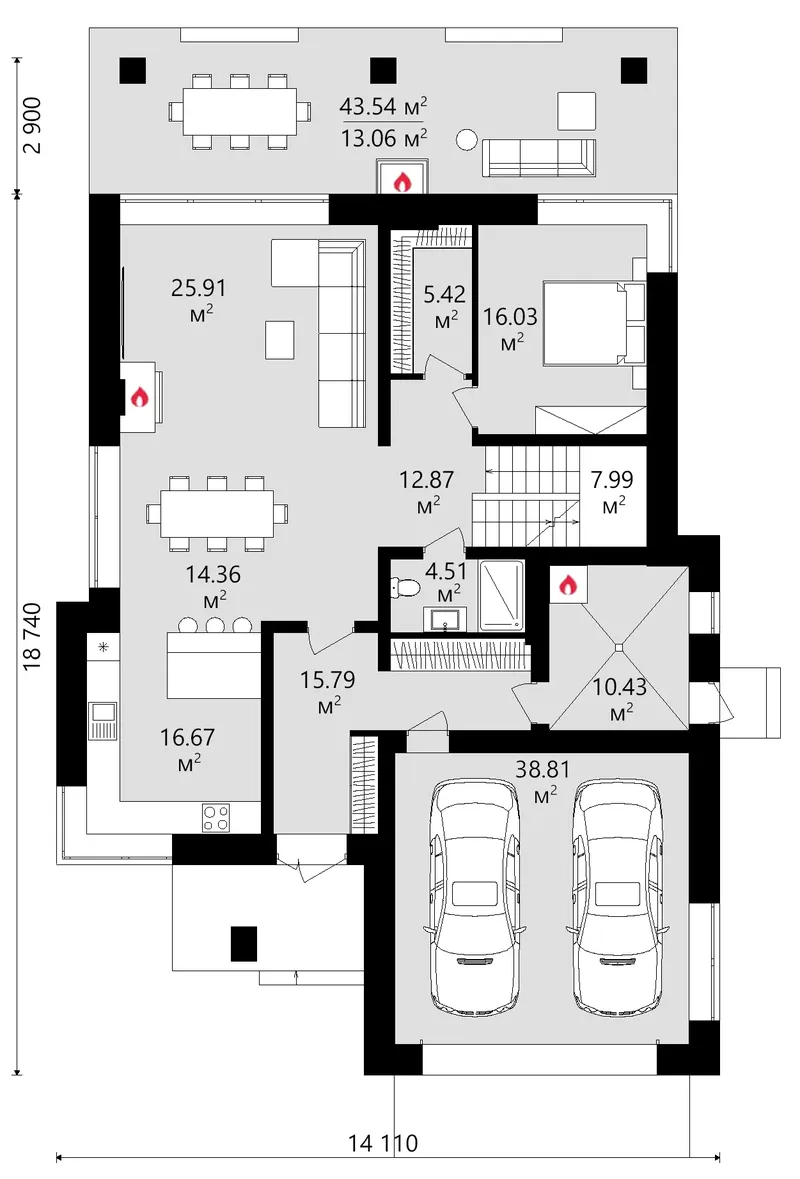

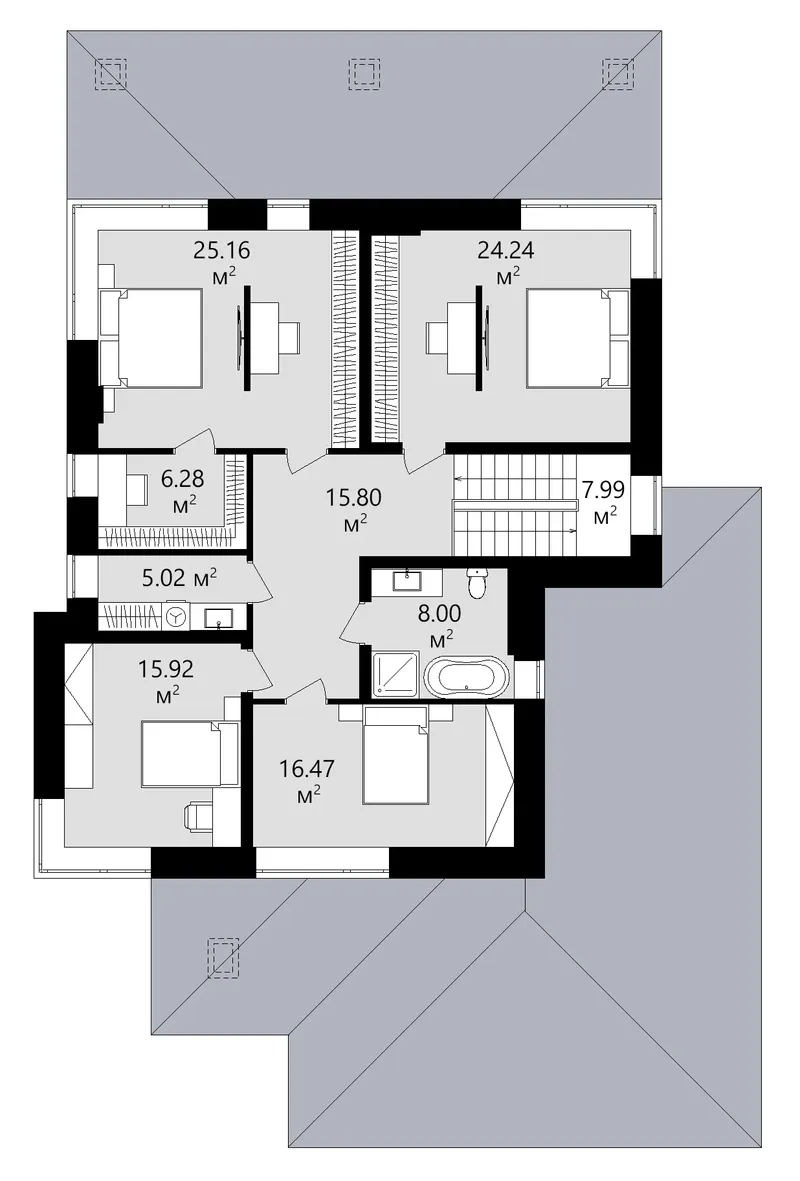

Rzuty kondygnacji
Rzut więźby dachowej

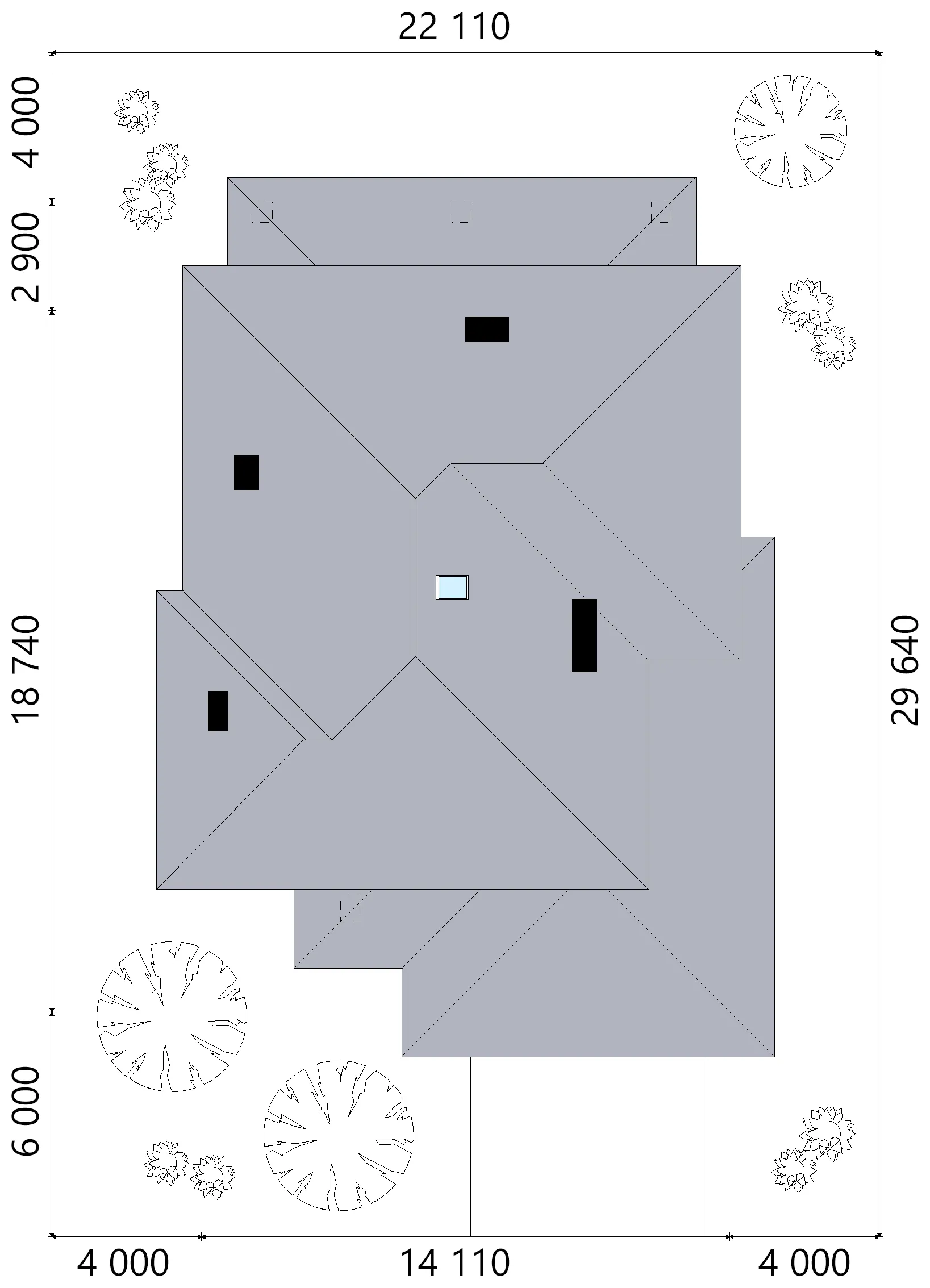

Rzut dachu
Przekroje

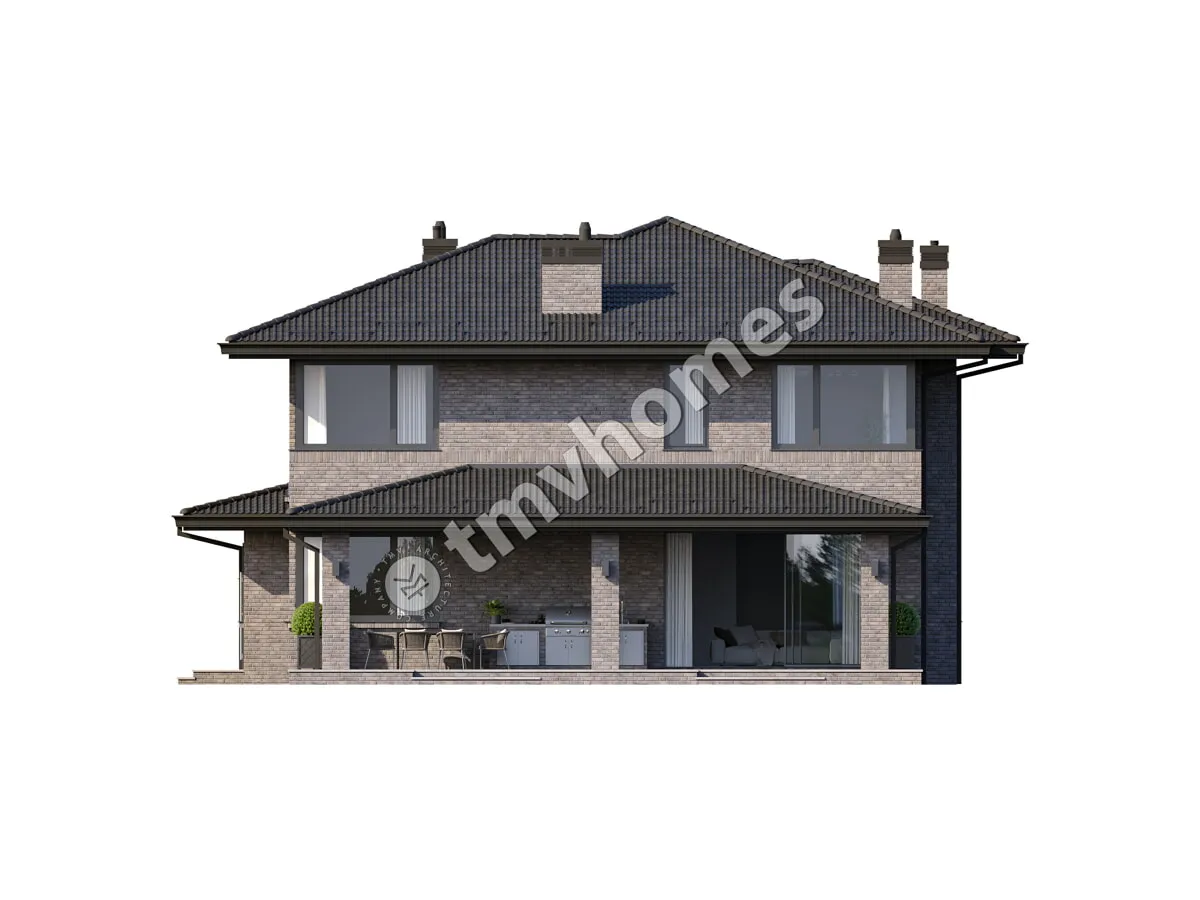

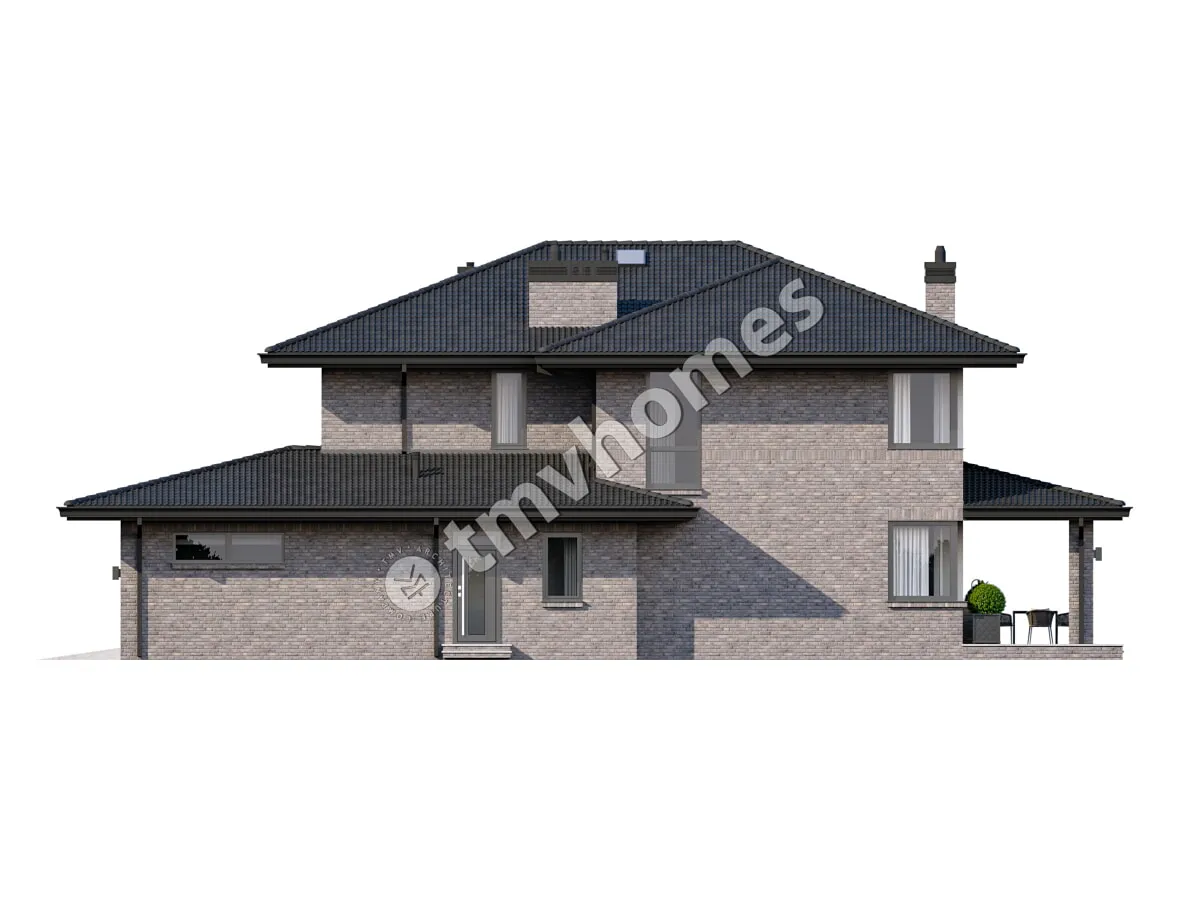

Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny

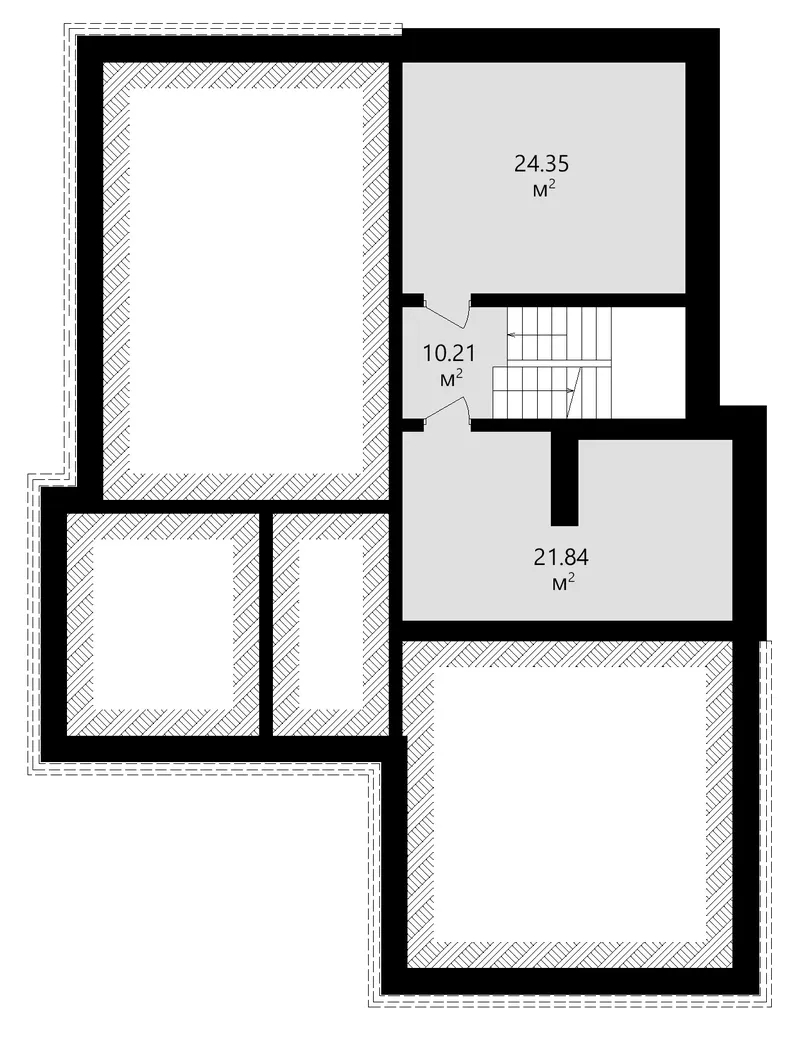

Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.
House design concept 20434C is a Traditional 2-story single-family home with a basement, Total Heated 2,884 Sq Ft, 5 bedrooms and 2 bathrooms, sized for 6-8 people. Brick walls and a hip and valley roof with a 5/12 (22°) pitch give the house a durable, classic exterior, and a skylight adds daylight. The layout is 43'0" wide and 66'0" deep.

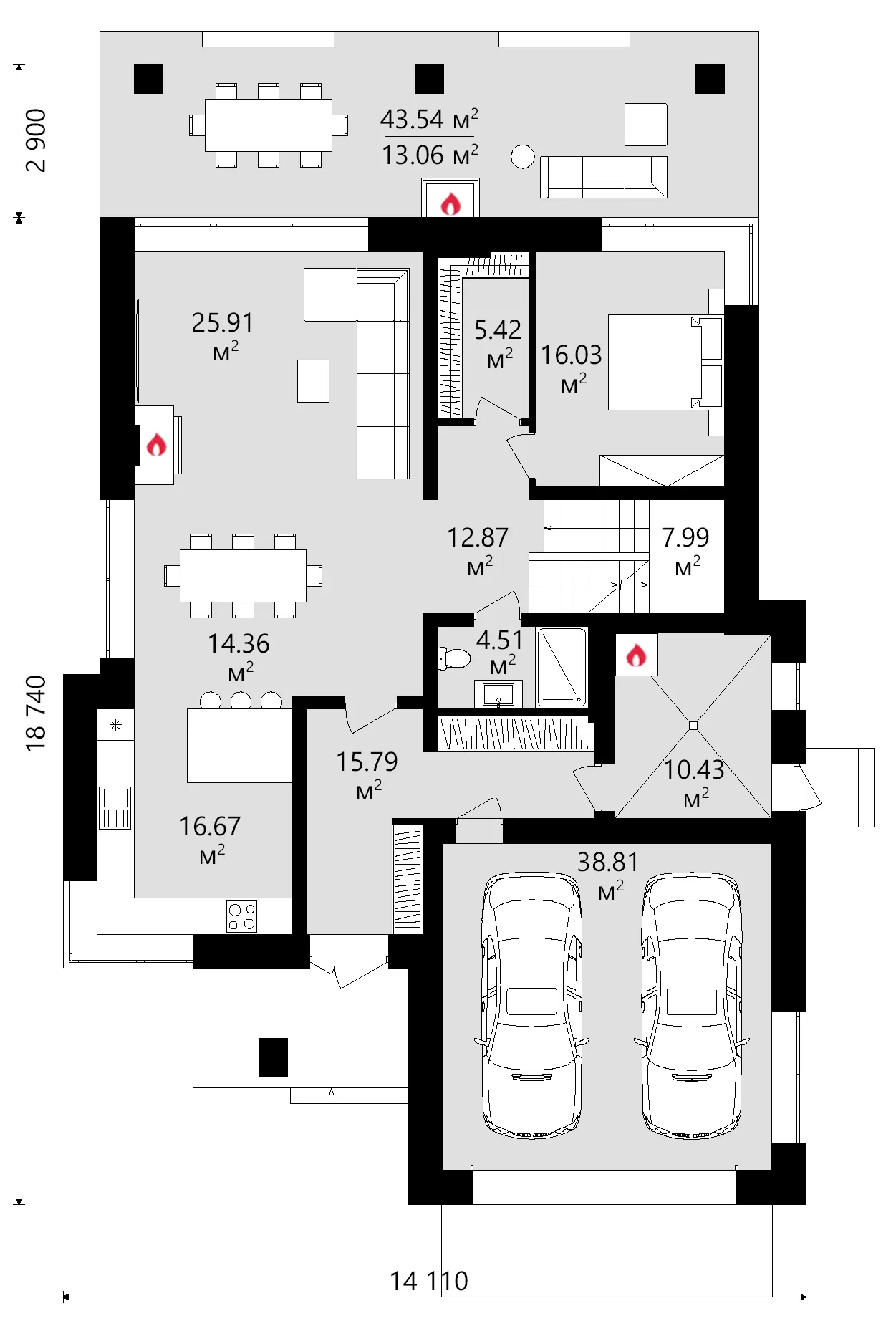

The entry leads into an open floor plan, so the family room and kitchen stay connected. The large family room gathers everyone around its fireplace. The large kitchen centers on an island with a breakfast bar for quick meals, while the breakfast nook sits by a corner window. Large and floor-to-ceiling windows fill the day zone with light.

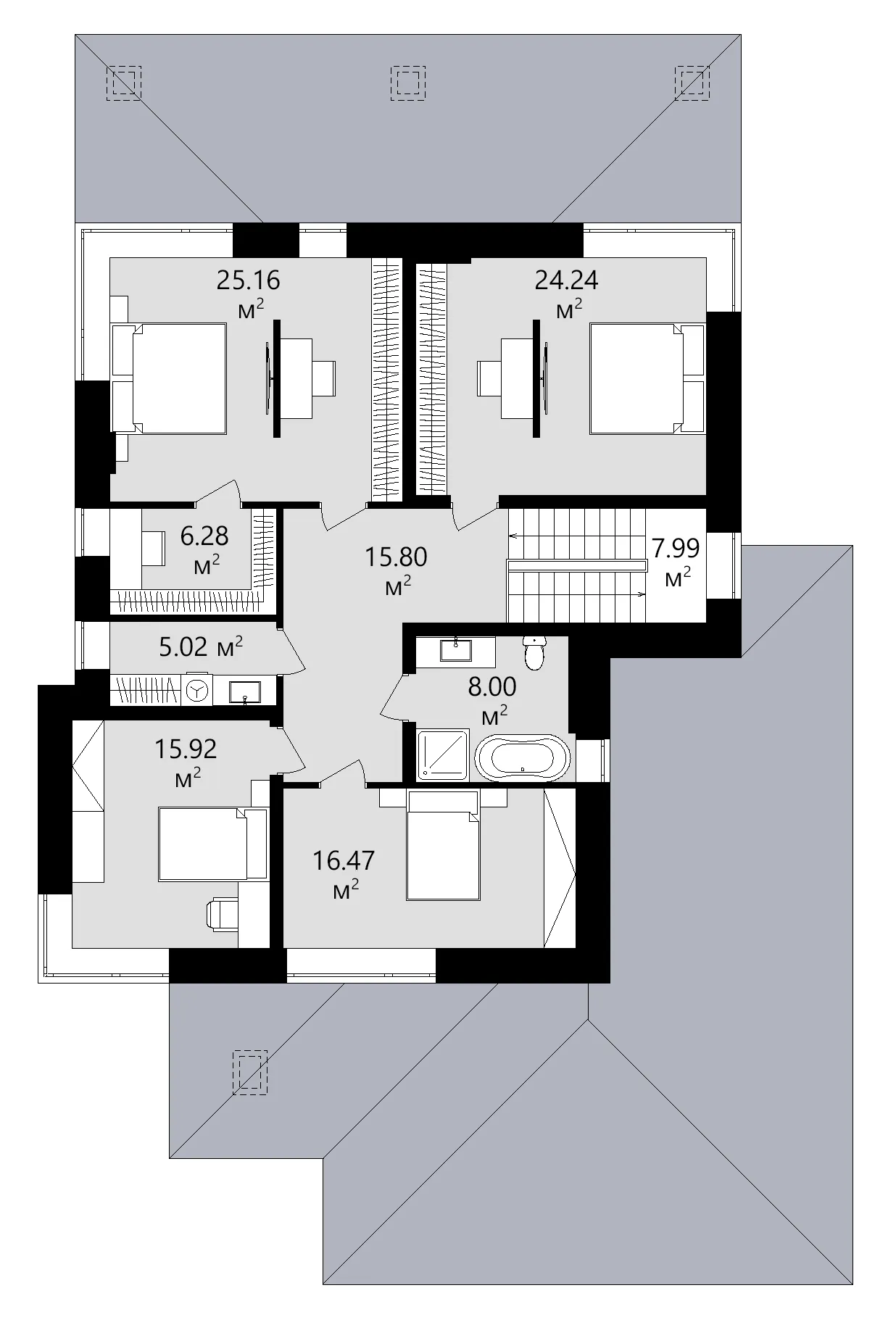

The bedrooms are clustered on the second floor, keeping parents close to the children. Two primary suites suit two generations or long-term guests, and a walk-in closet keeps clothing out of the bedroom. The second-floor laundry saves carrying baskets on the stairs, and storage and a utility room keep household items in order.
The covered rear porch holds an outdoor kitchen and an outdoor fireplace for meals outside. The front-entry 2-car garage extends forward, keeping the driveway short. The basement adds space below the main floor; strip footings, a slab or a block foundation are optional. Walls are aerated concrete, with ceramic block or sand-lime block as alternatives. In figures: Total Heated 2,884 Sq Ft, 5 bedrooms, 2 bathrooms and a 2-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
