2,872 Sq Ft Prairie T-Shaped 2-Story House Plan with 4 Bedrooms, 4 Bathrooms and 1-Car Garage
Opis techniczny
Rzuty kondygnacji

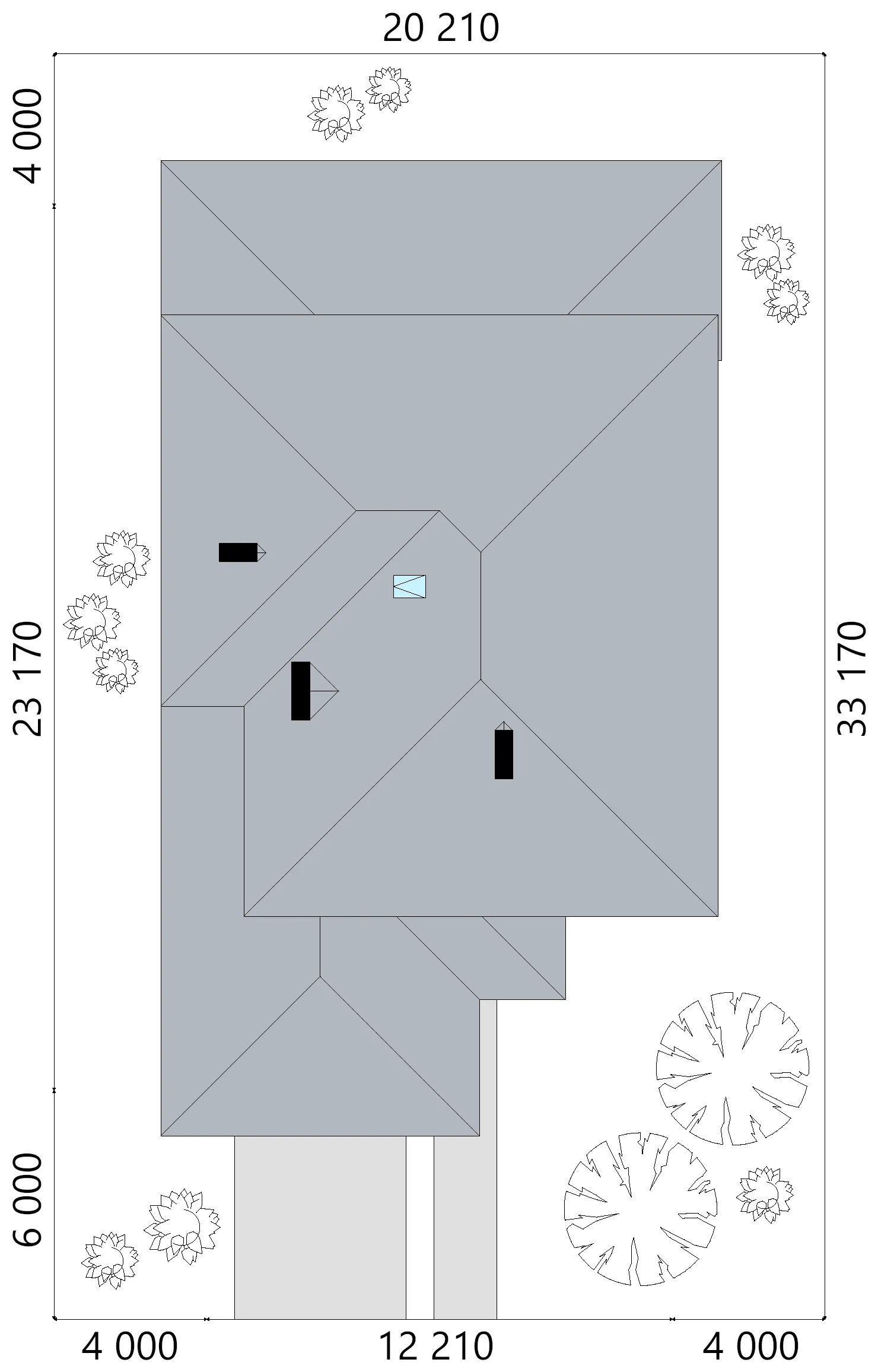

Rzut więźby dachowej
Rzut dachu
Przekroje

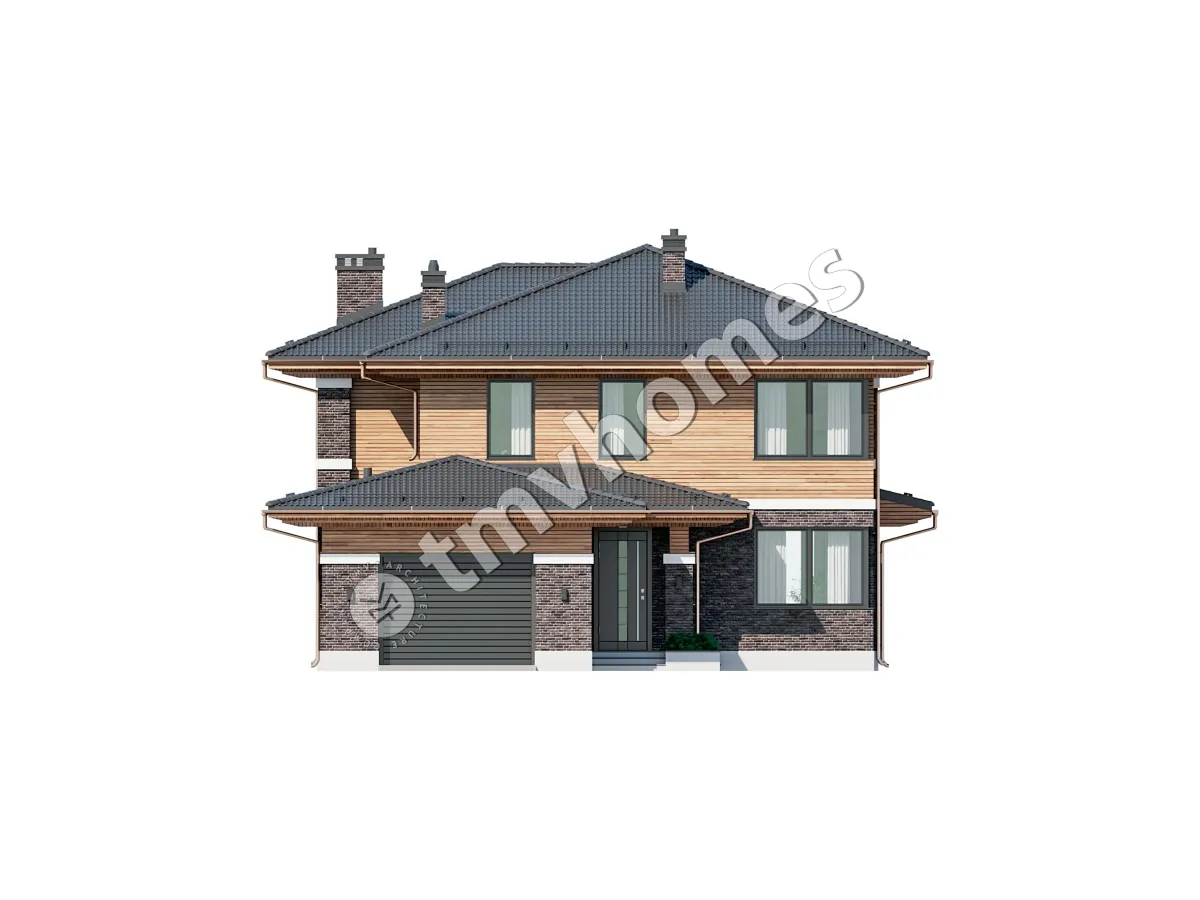

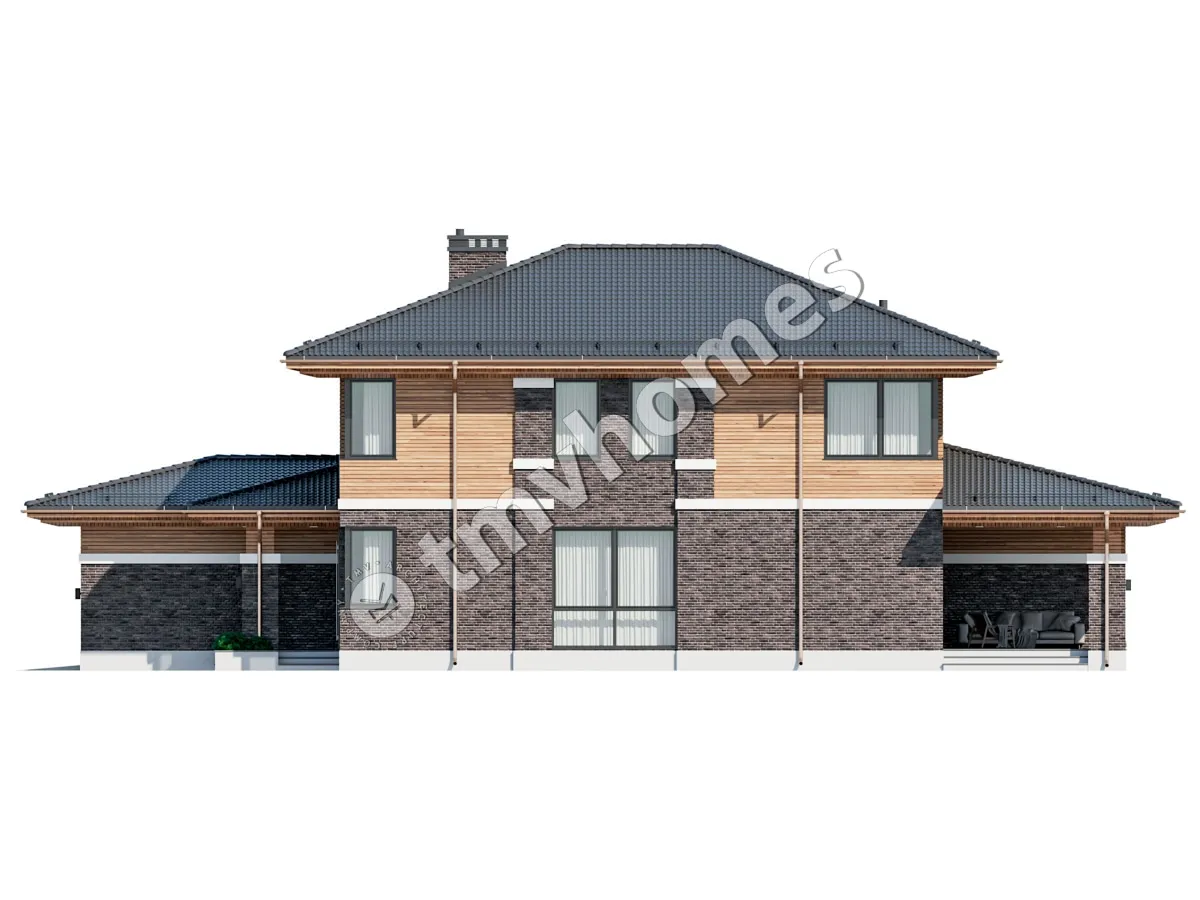

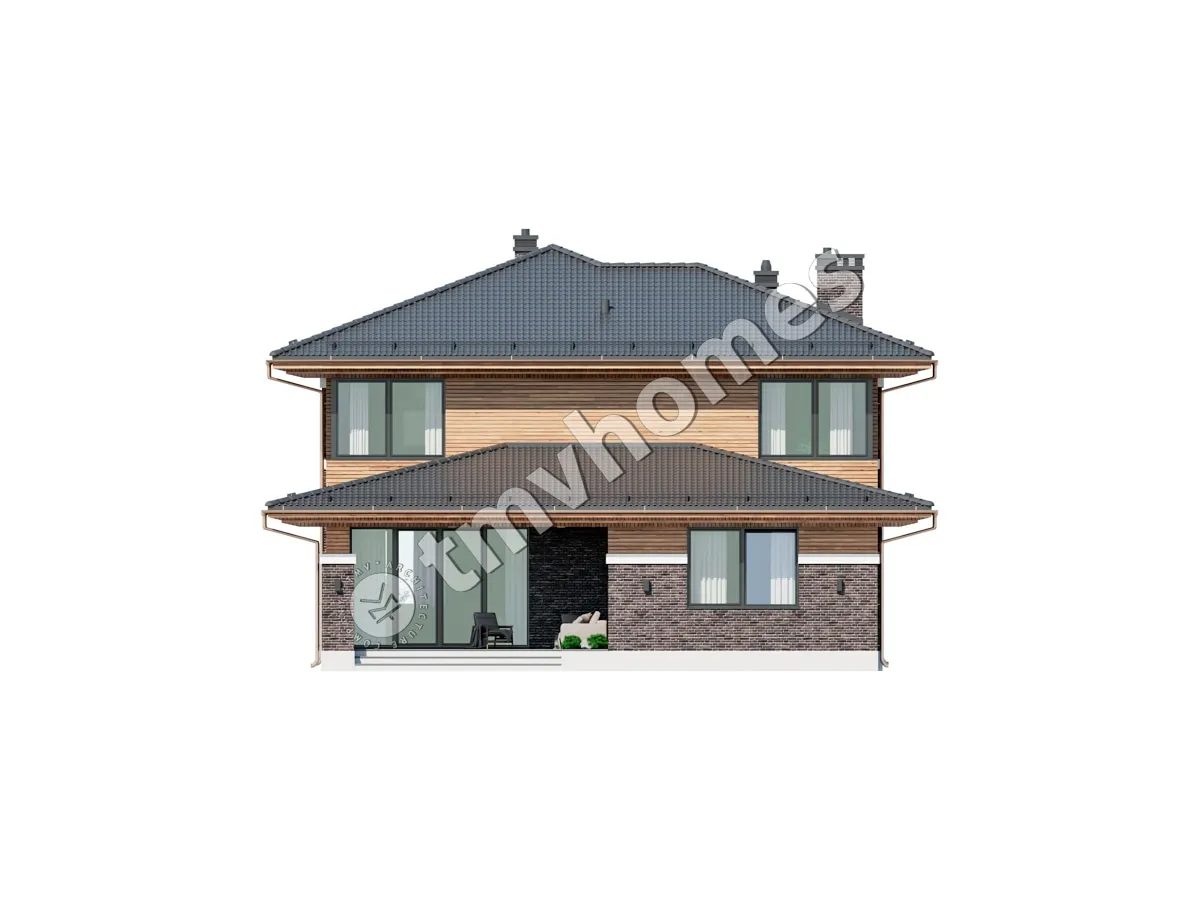

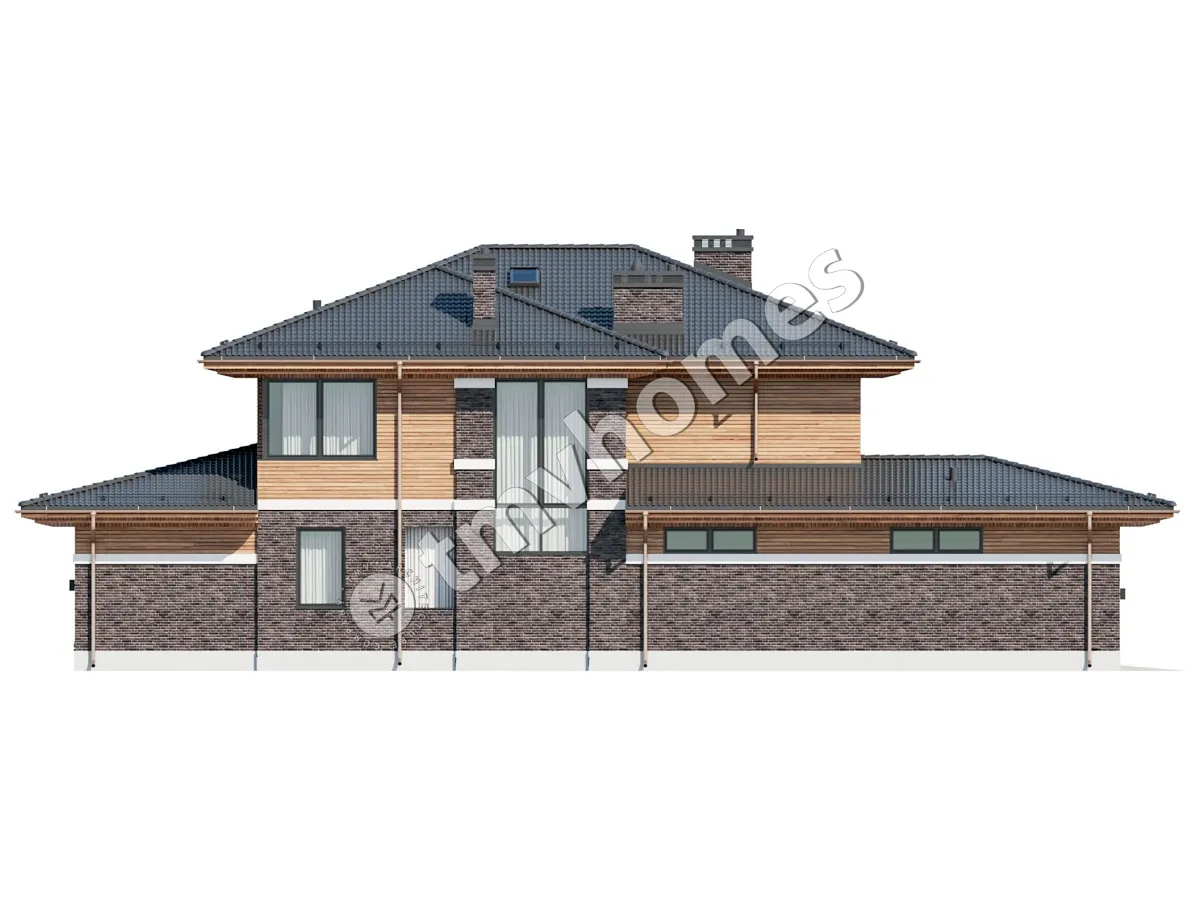

Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

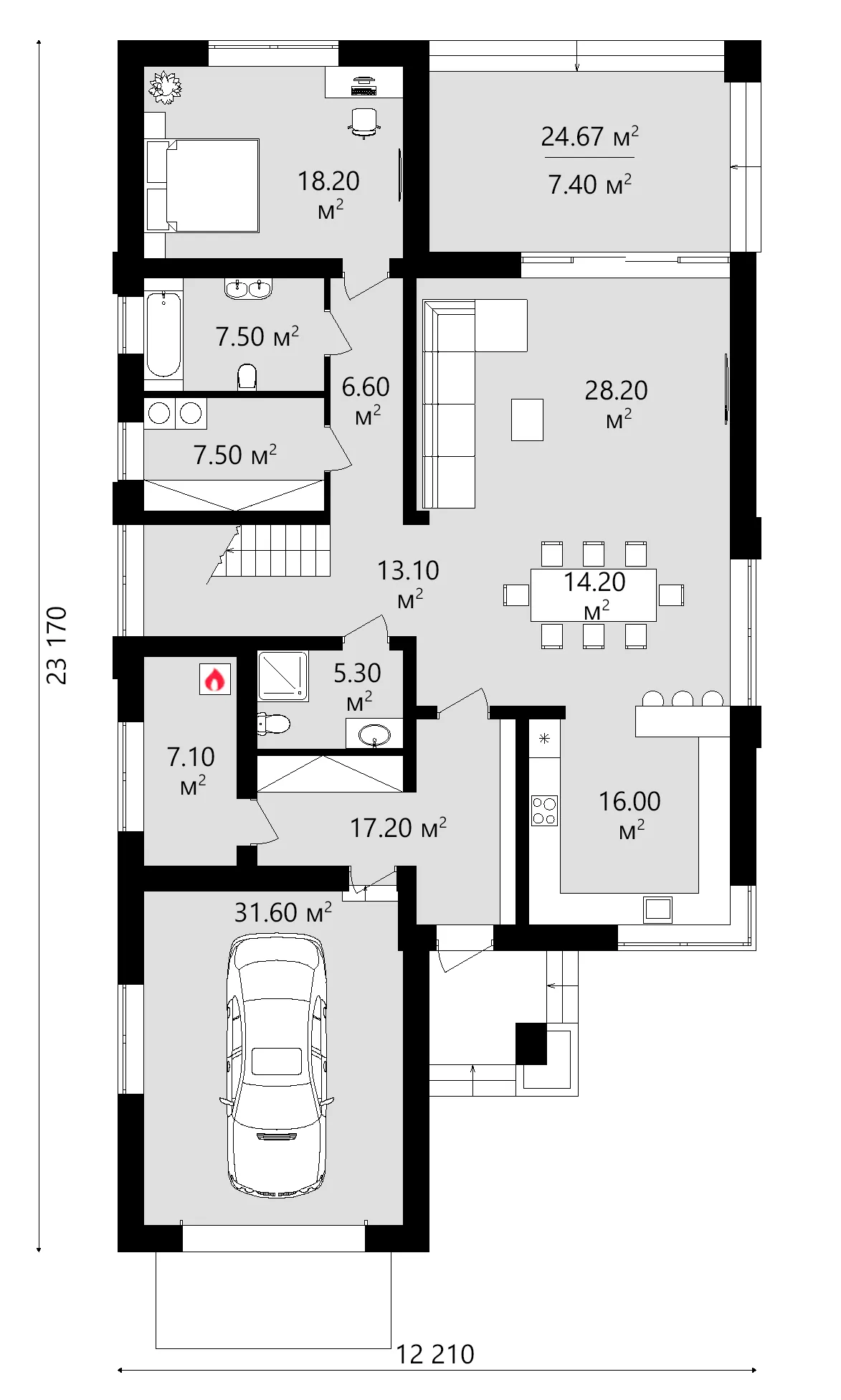

Digital house design concept 66535C, available for purchase, is a Prairie-style, T-shaped 2-story home with Total Heated 2,872 Sq Ft, 4 bedrooms, 4 bathrooms and a 1-car garage. Designed as a single-family home for 4–6 people, it pairs a hip and valley roof with a stone/brick veneer and wood exterior, giving the facade a layered, grounded look.
The entry leads into an open floor plan where the large family room and the large kitchen share one space, so whoever cooks stays part of the conversation. A breakfast bar handles quick meals, while the breakfast nook with its corner window offers a bright spot for a sit-down breakfast. Large and floor-to-ceiling windows bring daylight deep into the living areas.

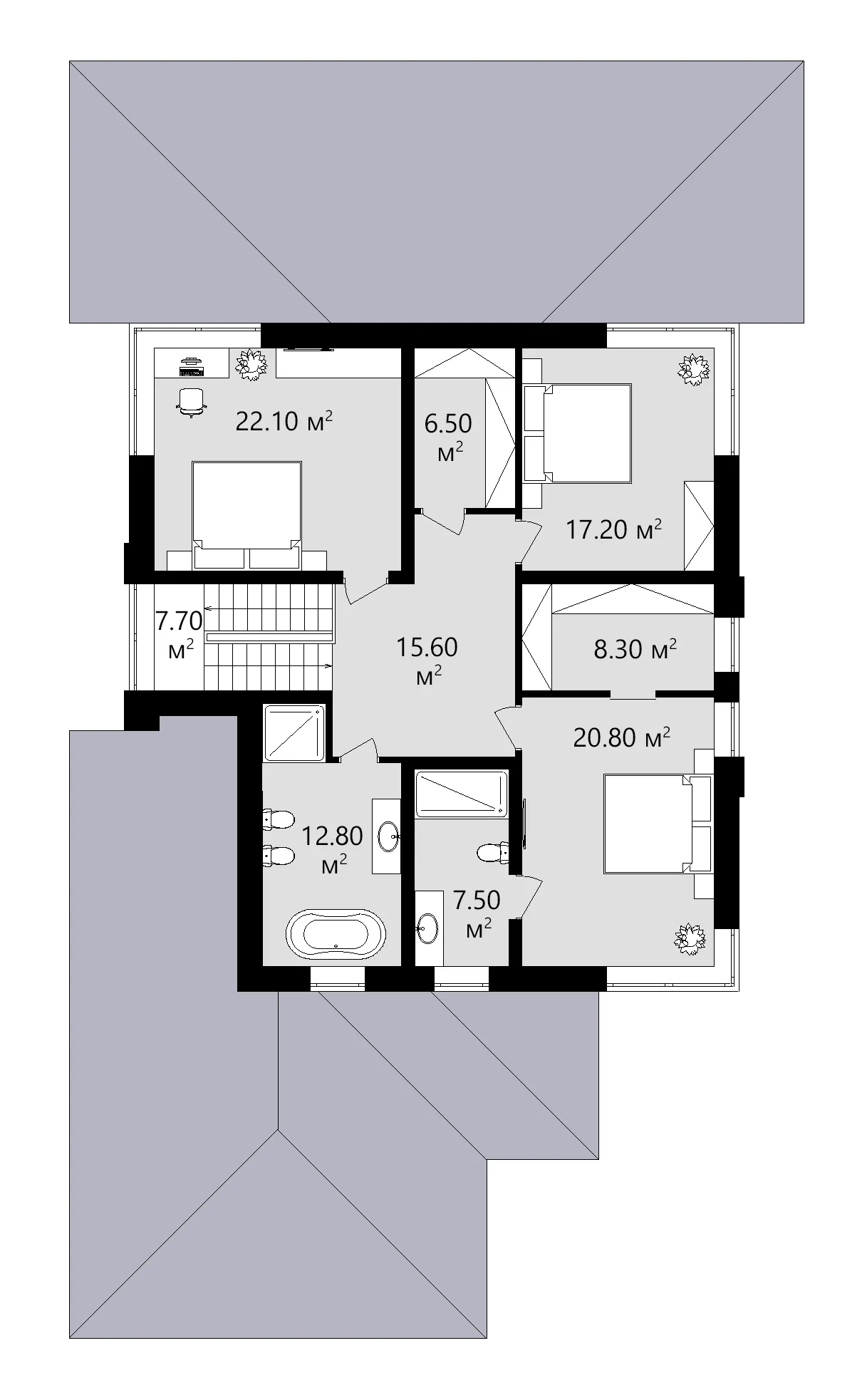

The primary suite with a walk-in closet is on the second floor, and the other bedrooms are clustered nearby, so parents stay close to the children. Four full bathrooms mean nobody waits in the morning. A laundry and a utility room keep household chores away from the living spaces.
The covered rear porch extends outdoor living in any weather. The front-entry garage for one car is extended forward, buffering the living spaces from the street. The roof has a 3/12 (14°) pitch, and the house measures 37'2" wide by 70'6" deep. The base design uses strip footings, with slab or concrete block foundation options; the exterior walls are aerated concrete, with clay hollow block or calcium silicate block as alternatives. In total, the plan offers Total Heated 2,872 Sq Ft, 4 bedrooms, 4 bathrooms and a 1-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
Advanced Drafting & Design Co. Mooresville US$ 14,360
My Home Floor Plans Rosemead US$ 1,600
Plan & Simple LLC Austin US$ 5,744
