Main Images 2 – 2-Story House Plan 2619 ft², 4 Beds — 53150C
Main Images 3 – 2-Story House Plan 2619 ft², 4 Beds — 53150C Main Images 4 – 2-Story House Plan 2619 ft², 4 Beds — 53150C
8
Concept
Construction documents are prepared for the following countries:

2-Story House Plan 2619 ft²: 4 Beds, 3 Baths, Open Floor Plan, without Garage

Plan
53150C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2619
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

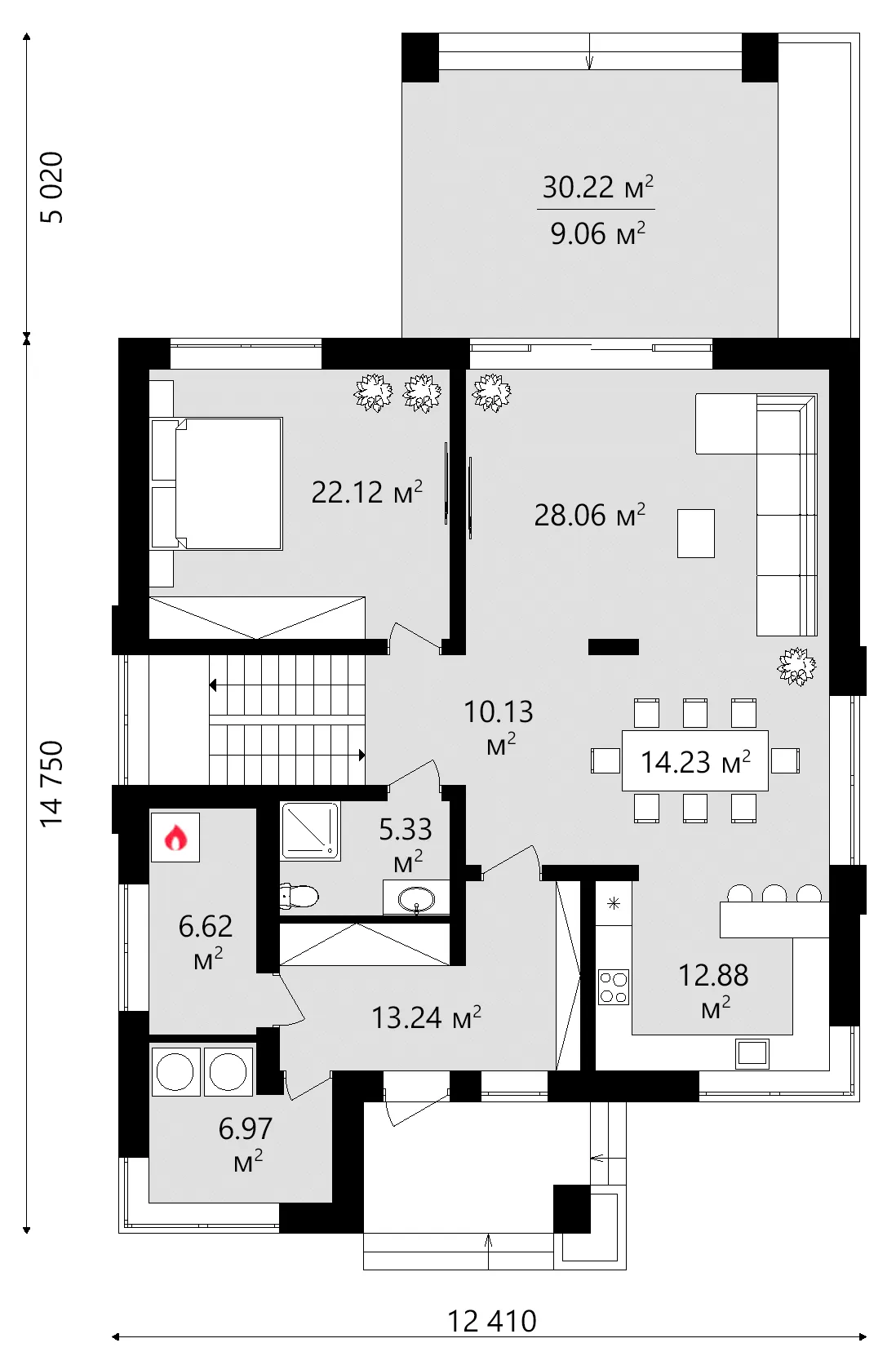

Main Floor
Main Floor 8 – 2-Story House Plan 2619 ft², 4 Beds — 53150C

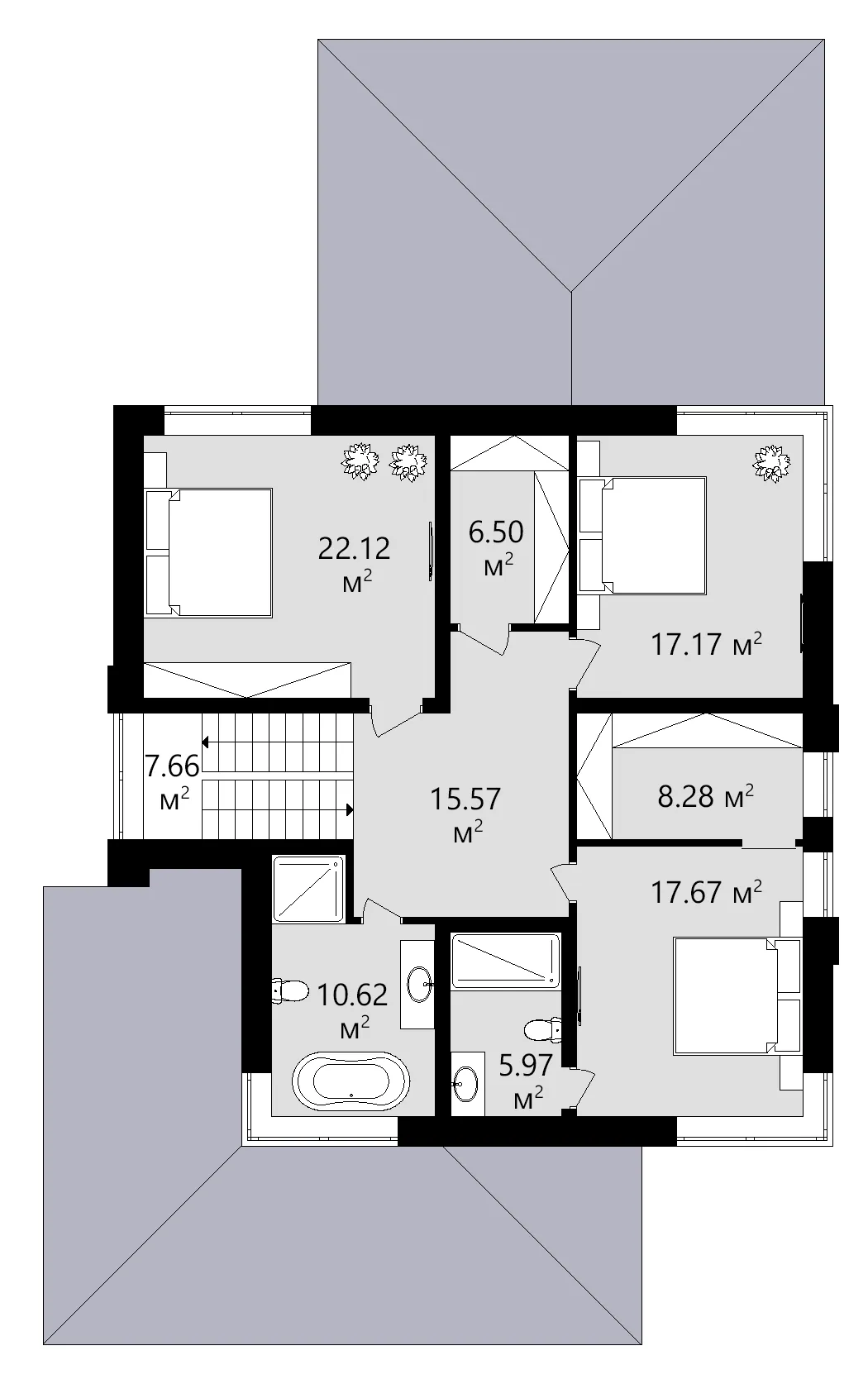

Second Floor
Second Floor 11 – 2-Story House Plan 2619 ft², 4 Beds — 53150C
Full Specs & Features
Area
Total Heated: 2618.86 ft²
Dimensions
Depth: 60'3" ft
Width: 37'8" ft
Height: 28'7" ft
Foundation
Ławy
Płyta (Optional)
Z bloczków (Optional)
Exterior Wall Framing
Beton komórkowy
Pustak ceramiczny (Optional)
Bloczek silikatowy (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Laundry
Entry
Storage
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Corner Window
Interior Features
Laundry On Main Floor
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern

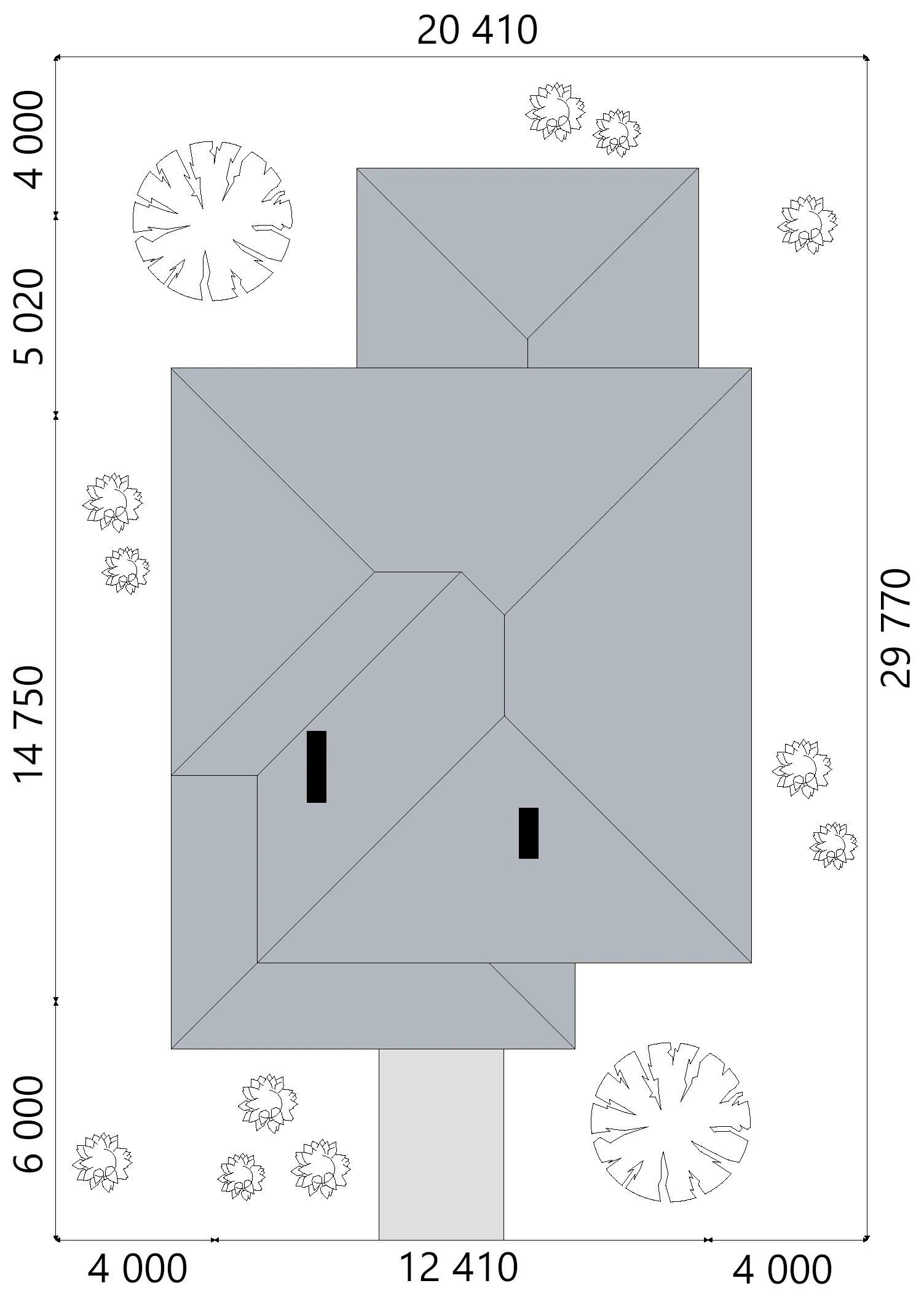

Roof
Roof Area: 3587.83 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

Plan 53150C is a 4-bedroom 3-story house plan with 2619 ft² of living space, designed in a contemporary, European and modern style beneath a hip & valley roof with a 5/12 (22°) pitch. Stone/brick veneer and wood cover the exterior walls, giving this single-family home a crisp, layered facade. The house is 37'8" wide and 60'3" deep, with a height of 28'7", and it stacks its rooms over three levels. Four bedrooms and three full bathrooms make it a practical modern house plan for a growing family.

The front door opens into an entry that leads to an open floor plan, where the large family room and the kitchen share one generous space. The large kitchen centers on a breakfast bar for quick meals and easy conversation while dinner is being made, and a breakfast nook beside a corner window catches the first light of the morning. Large windows and floor-to-ceiling windows run through the living areas, so the main level stays bright and connected to the outdoors in every season.

The private rooms sit apart from the daily bustle. The second floor master suite has its own walk-in closet, and the bedrooms are clustered together, which keeps the sleeping side of the house quiet and close to the children's rooms. Three full bathrooms serve the four bedrooms, so busy mornings run without a queue. With the laundry on the main floor, along with a utility room and storage, everyday chores stay on the ground level and away from the bedrooms.

At the back of the house, a covered rear porch extends the living space outside, a sheltered spot for summer dinners or a slow coffee on a rainy afternoon. The home stands on strip footings, and the plan is also available with a slab or a concrete block foundation. The exterior walls are framed in aerated concrete, with clay hollow block or calcium silicate block offered as options. This is a house plan without a garage and without a basement, built around a well-organized interior and a facade of stone, brick and wood.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1343
