2,751 Sq Ft Modern 2-Story Family House Plan with 4 Bedrooms and 3 Bathrooms
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

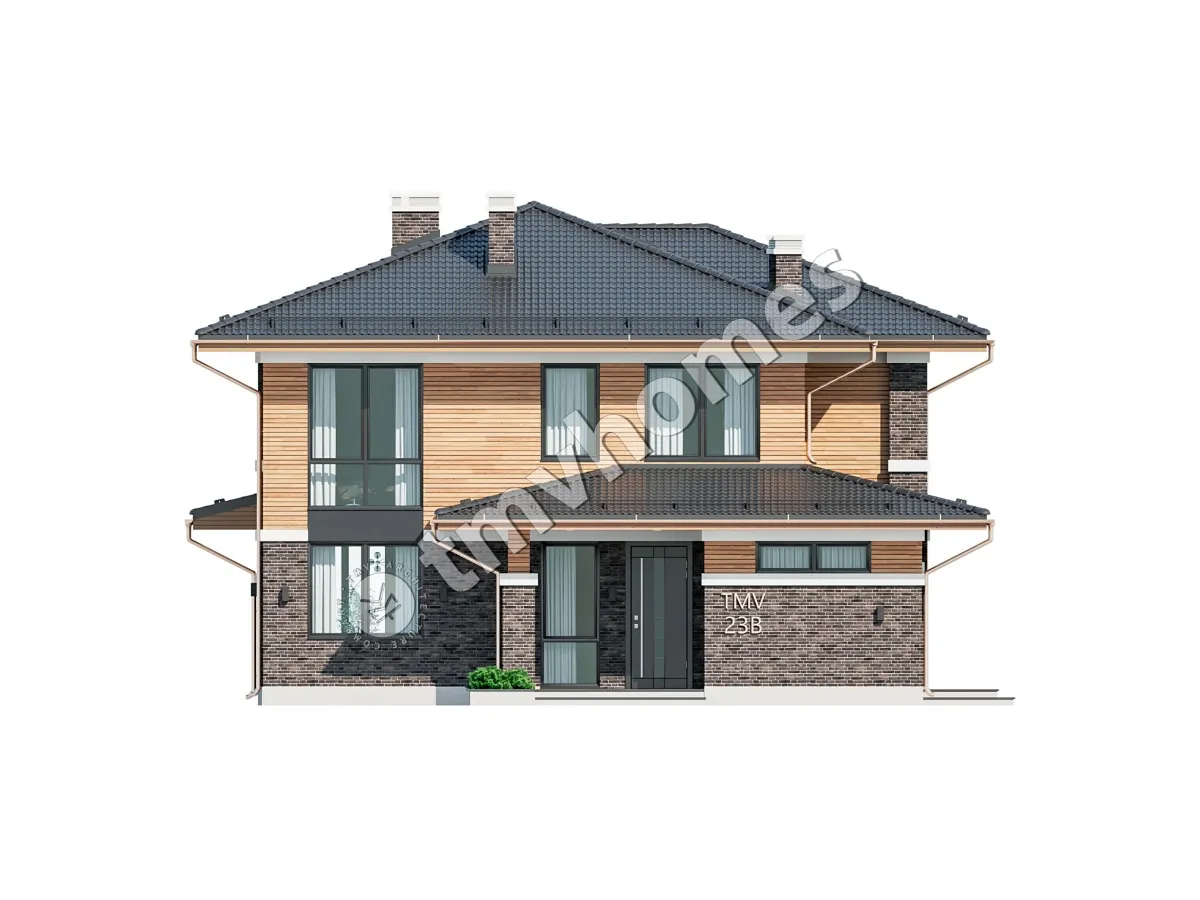

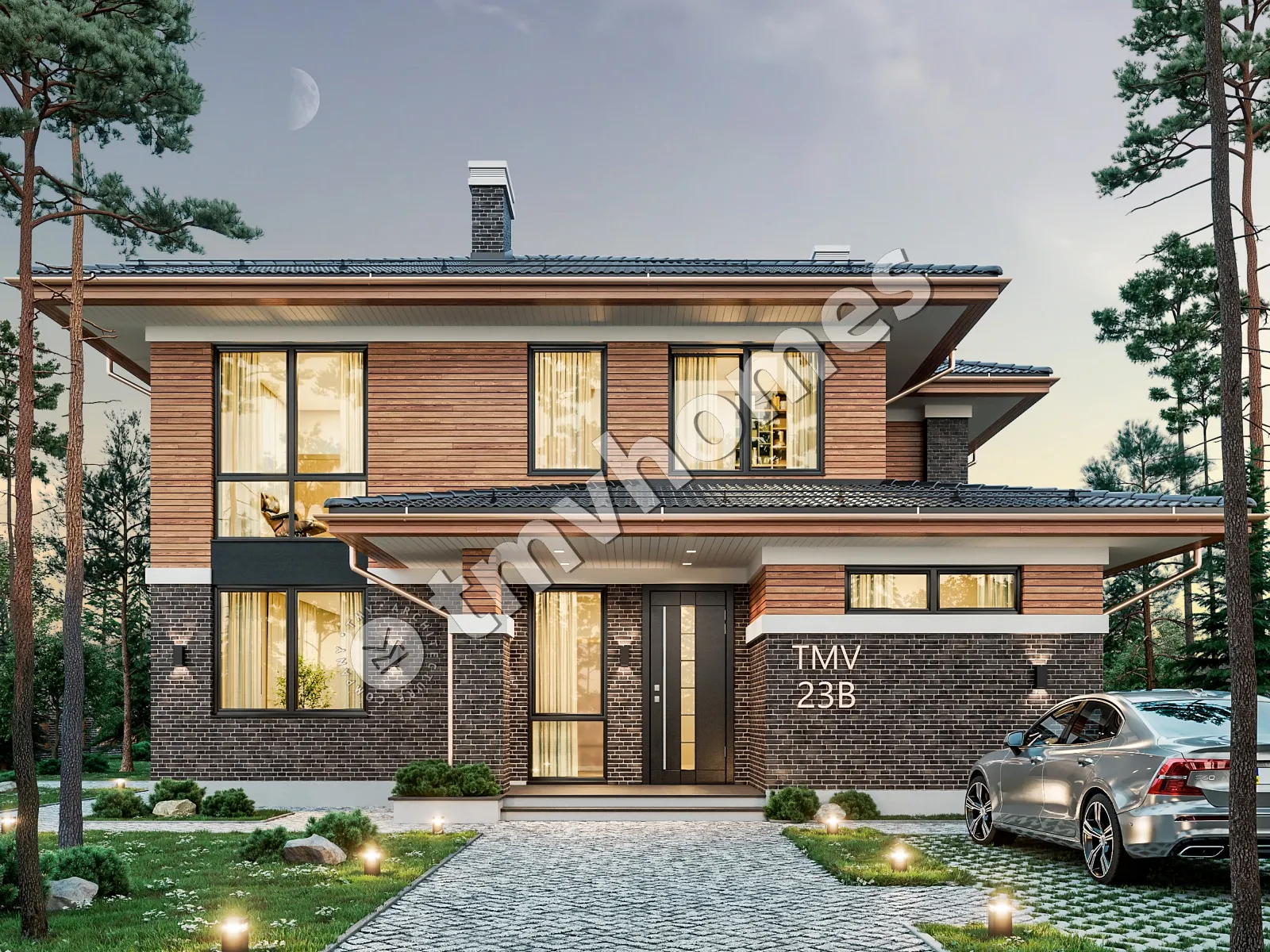

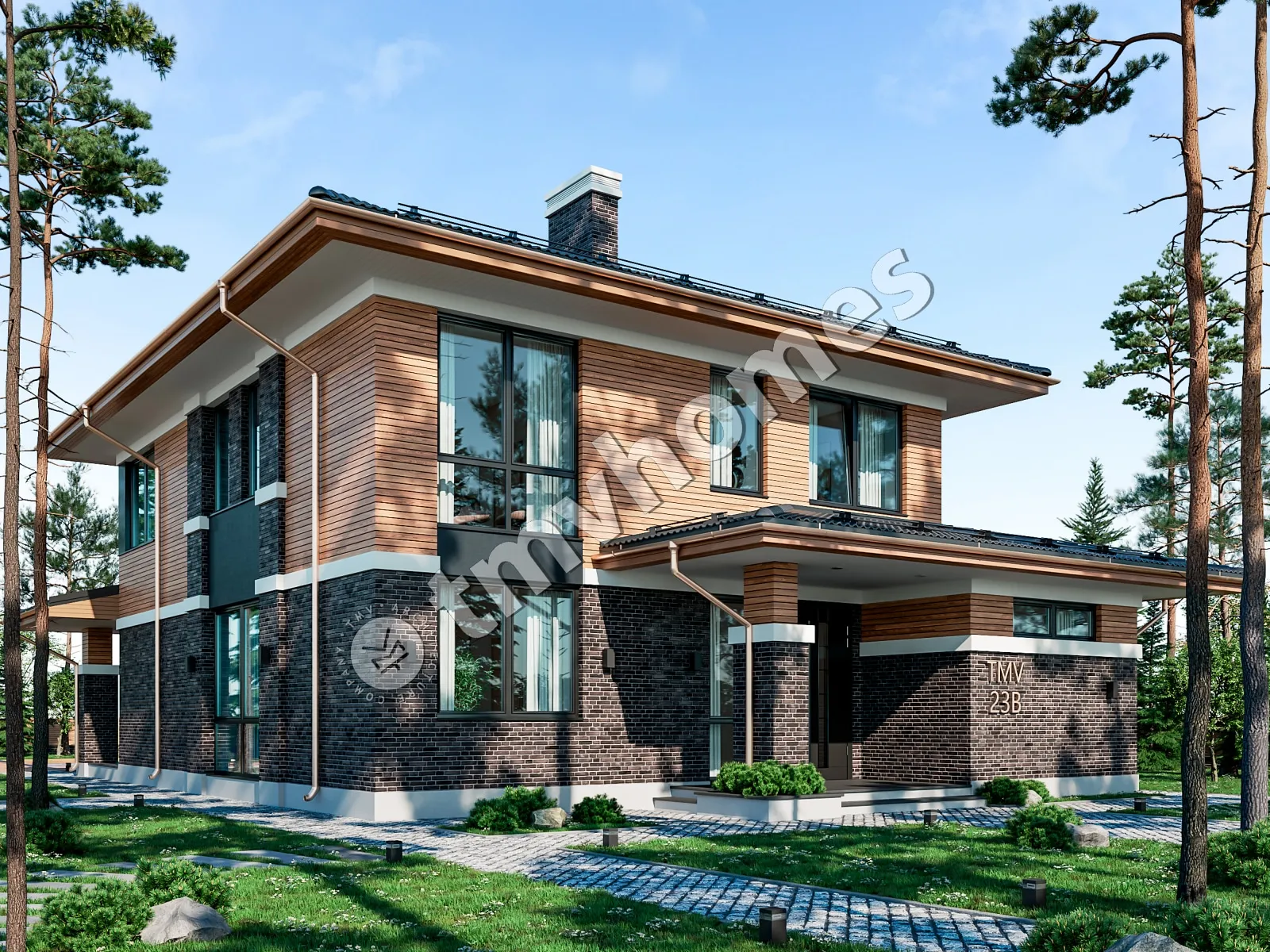

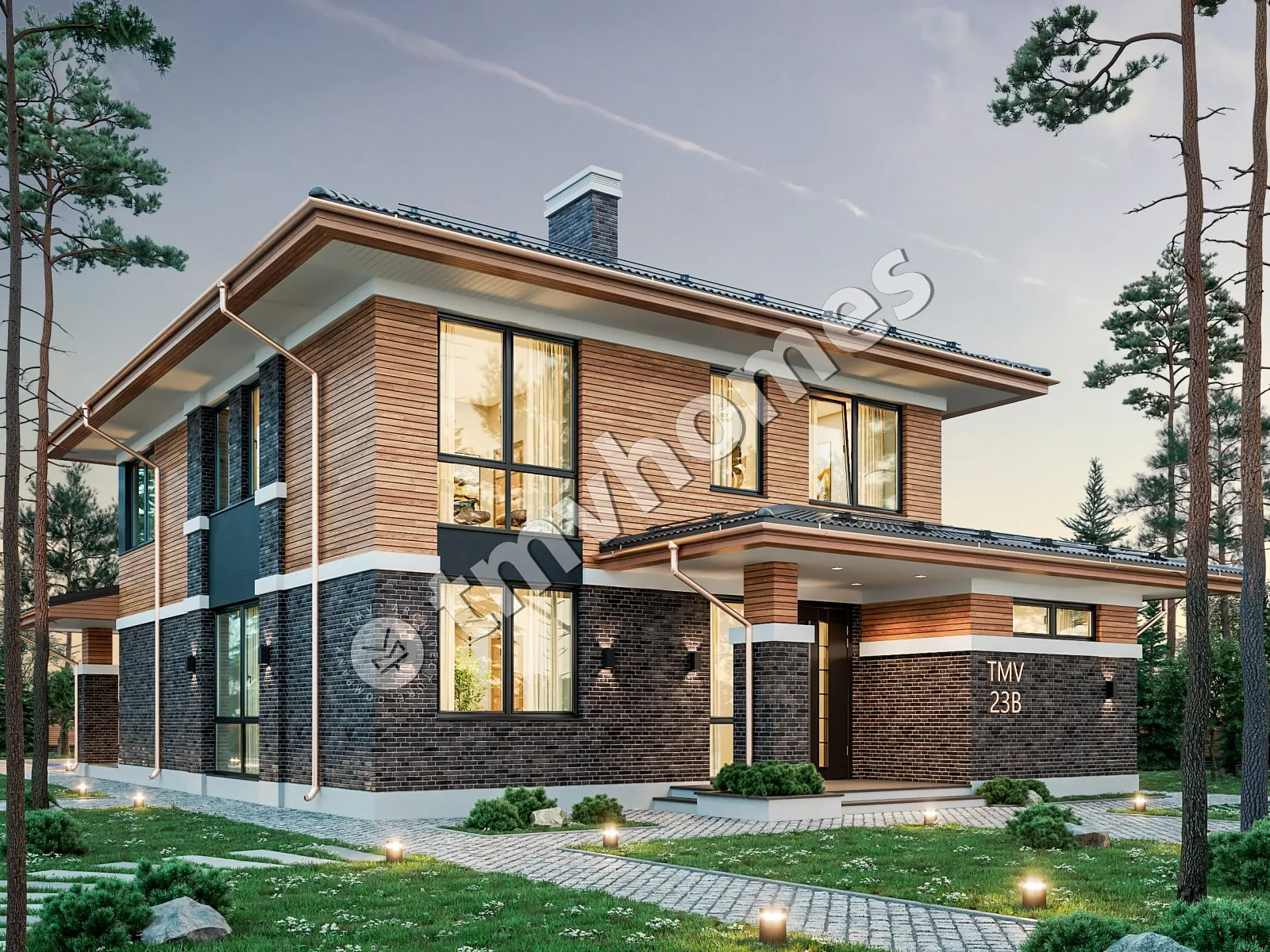

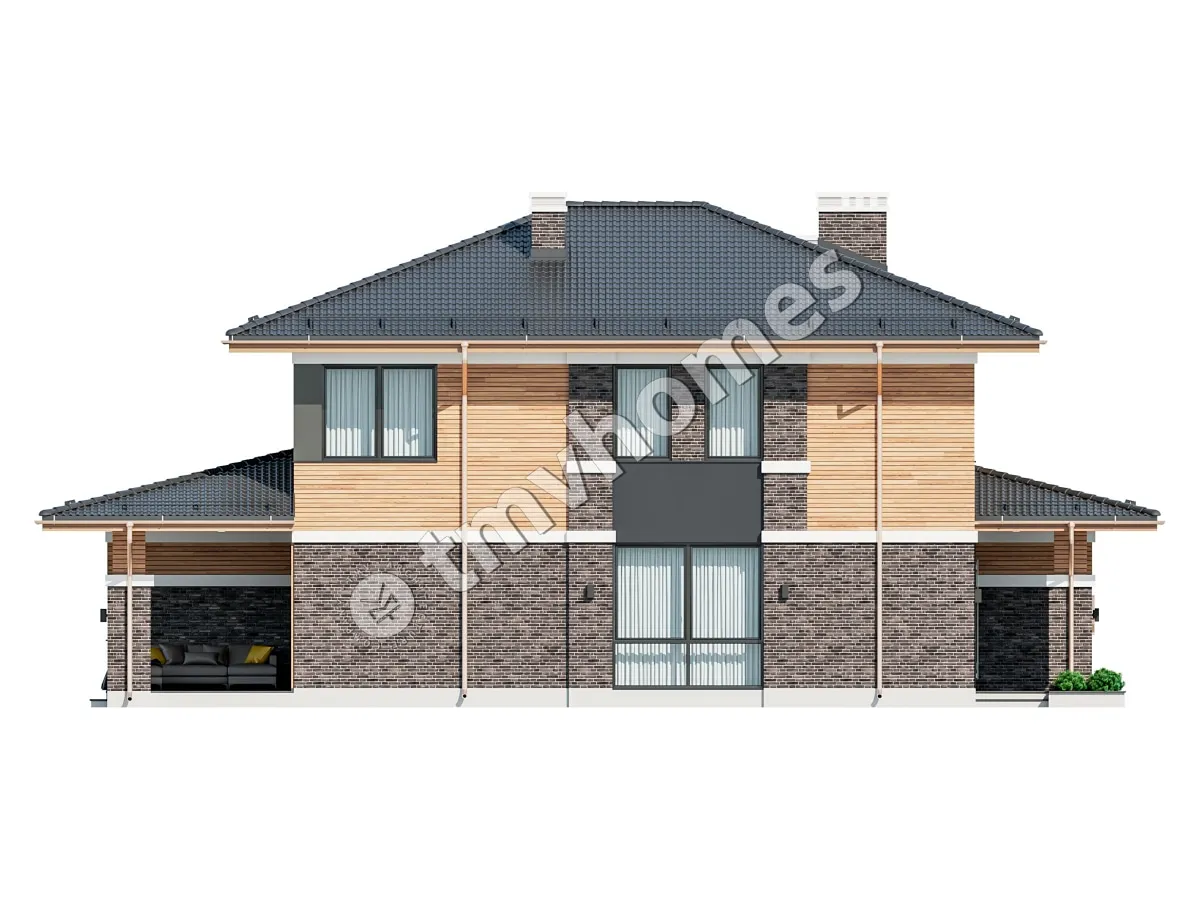

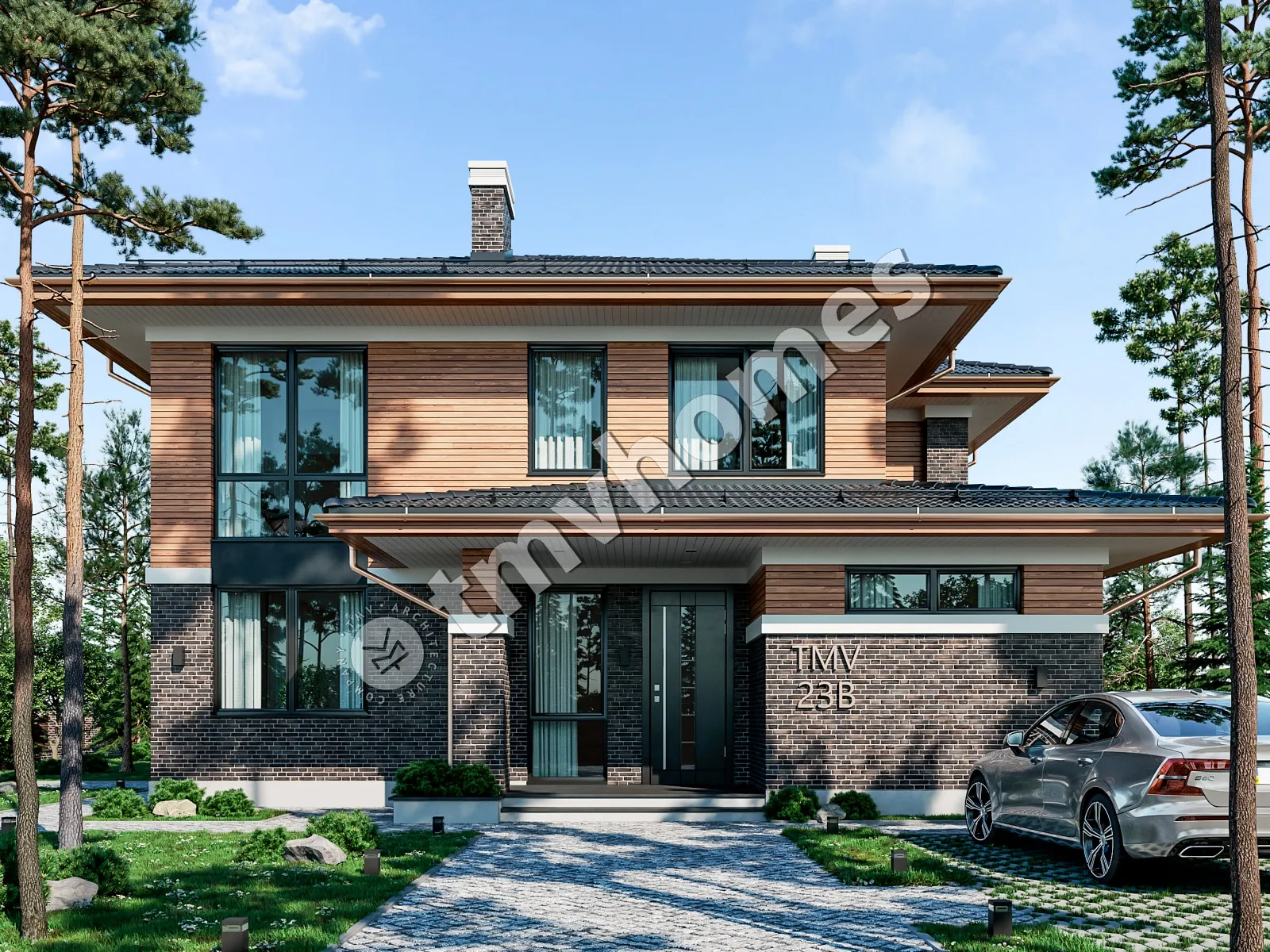

Plan 29699C is a 4-bedroom three-story house plan that blends Contemporary, European and Modern design across 2,751 Sq Ft, set under a low hip & valley roof with a 3/12 (14°) pitch. The facade pairs brick with wood, while large windows, floor-to-ceiling glazing and a corner window give the volume crisp, open lines. This single-family home measures 37'8" wide and 55'5" deep, with a height of 28'2", and fits 4 bedrooms and 3 full bathrooms into its three levels.

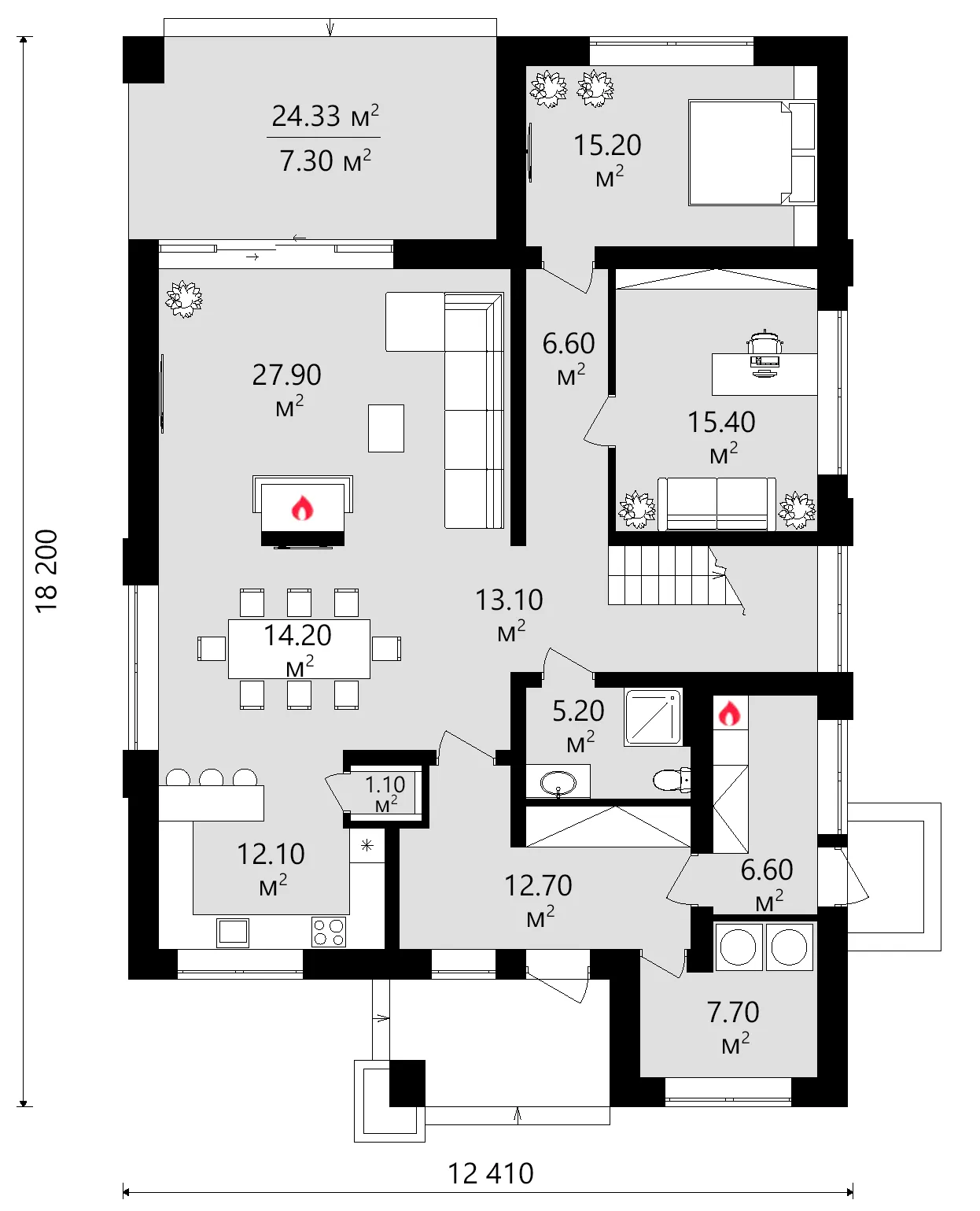

The entry opens into an open floor plan built around a large family room with a fireplace, the natural gathering place for the whole household. The large kitchen works as the hub of daily life. A breakfast bar handles quick meals and keeps the cook in the conversation, and a walk-in pantry keeps supplies organized and out of sight. Floor-to-ceiling windows draw daylight deep into the shared space, and on winter evenings the fire pulls everyone together. A dedicated home office gives a quiet room for remote work, reading or homework.

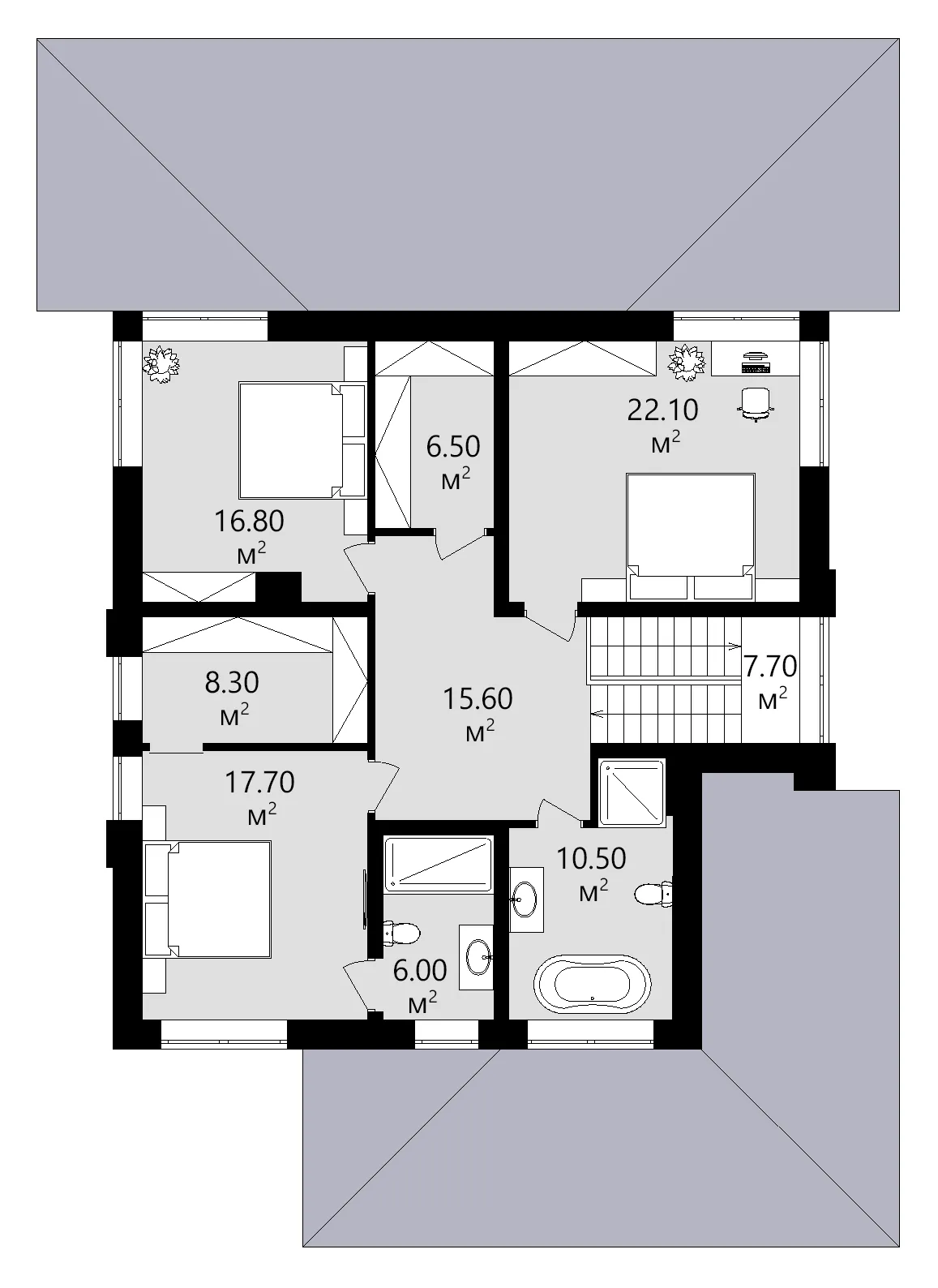

The four bedrooms are clustered, which keeps the sleeping area close-knit and suits families with young children. The master suite stands apart with its own fireplace and a walk-in closet, a rare touch of comfort for a private retreat. Three full bathrooms ease the morning rush. The practical side is well covered too: the laundry sits on the main floor, and a separate utility room keeps mechanical equipment and household storage in one place.

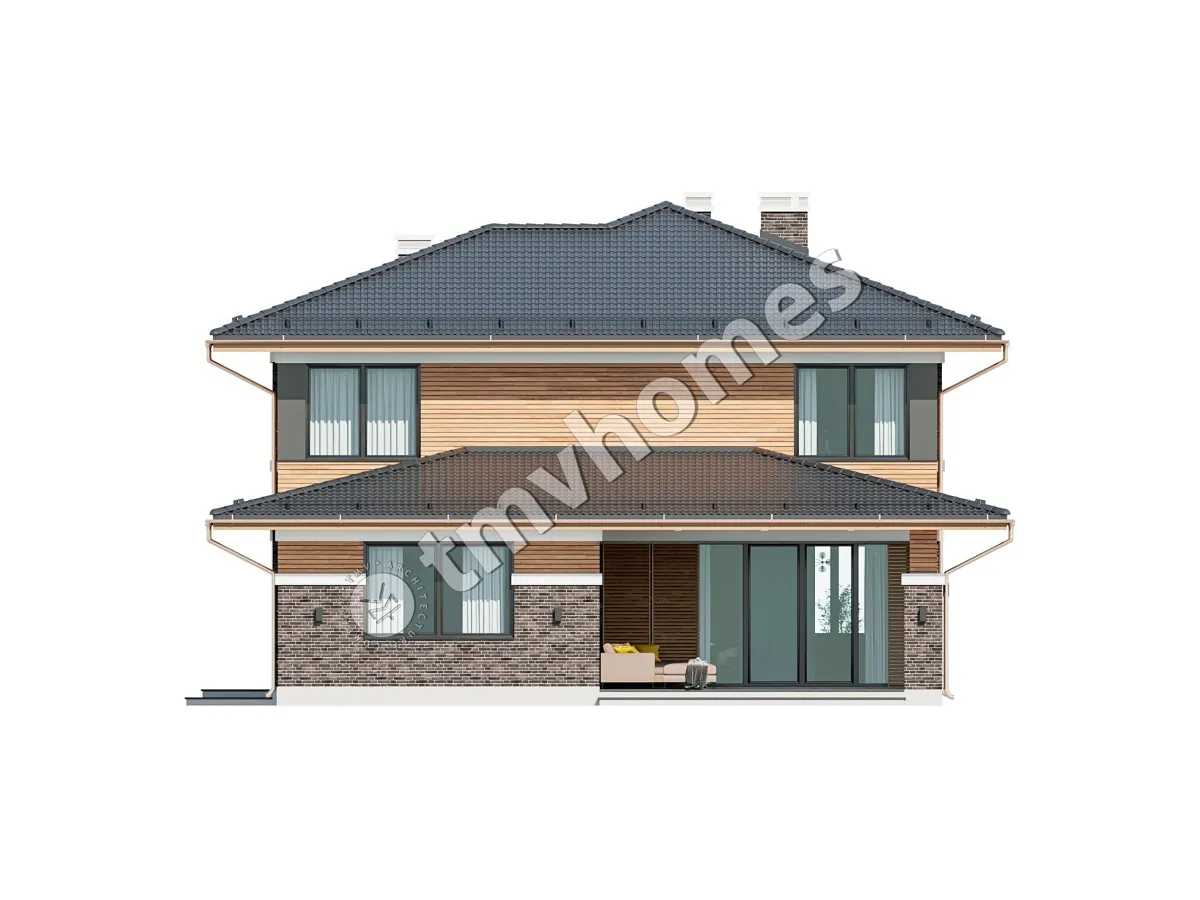

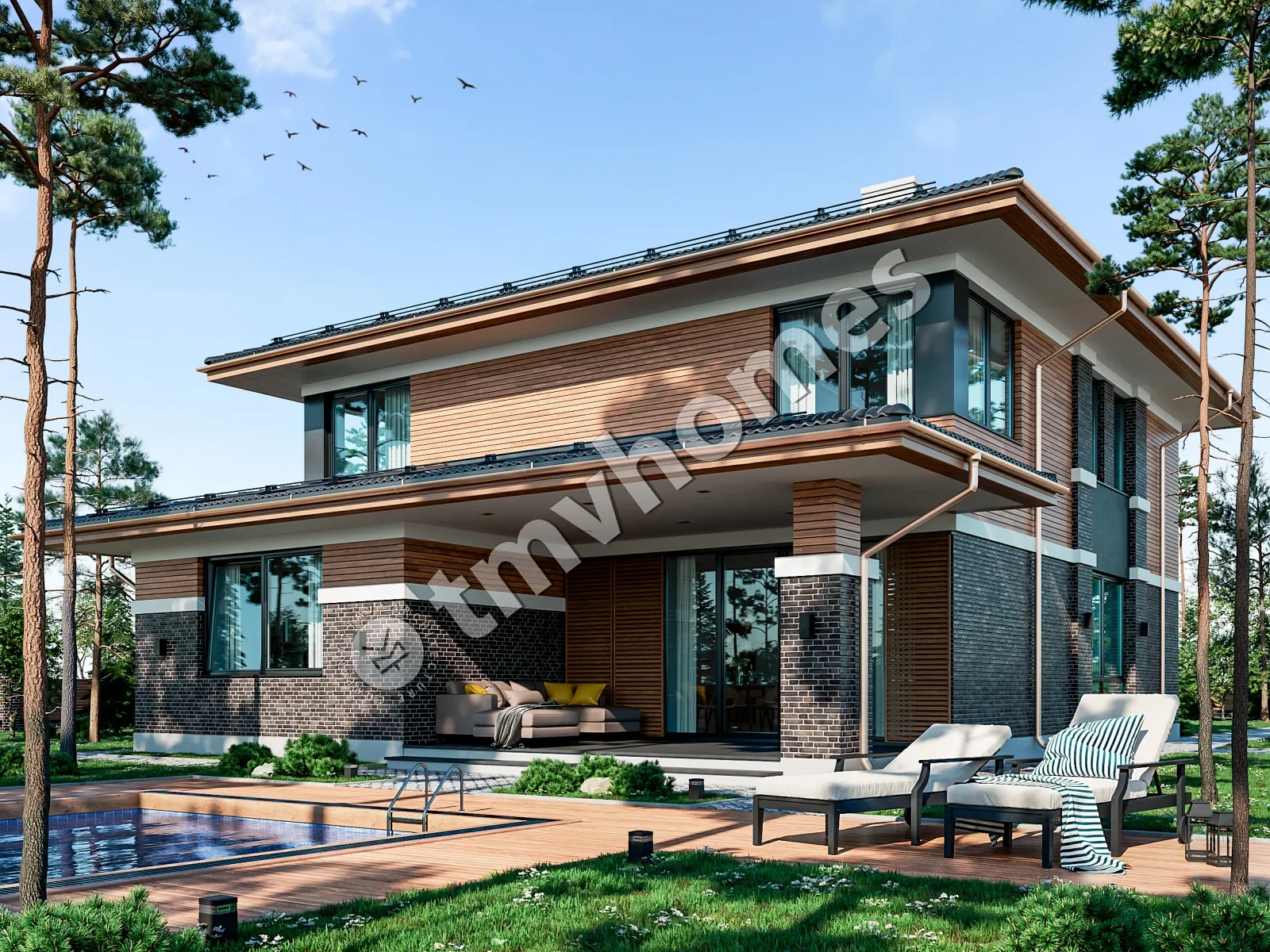

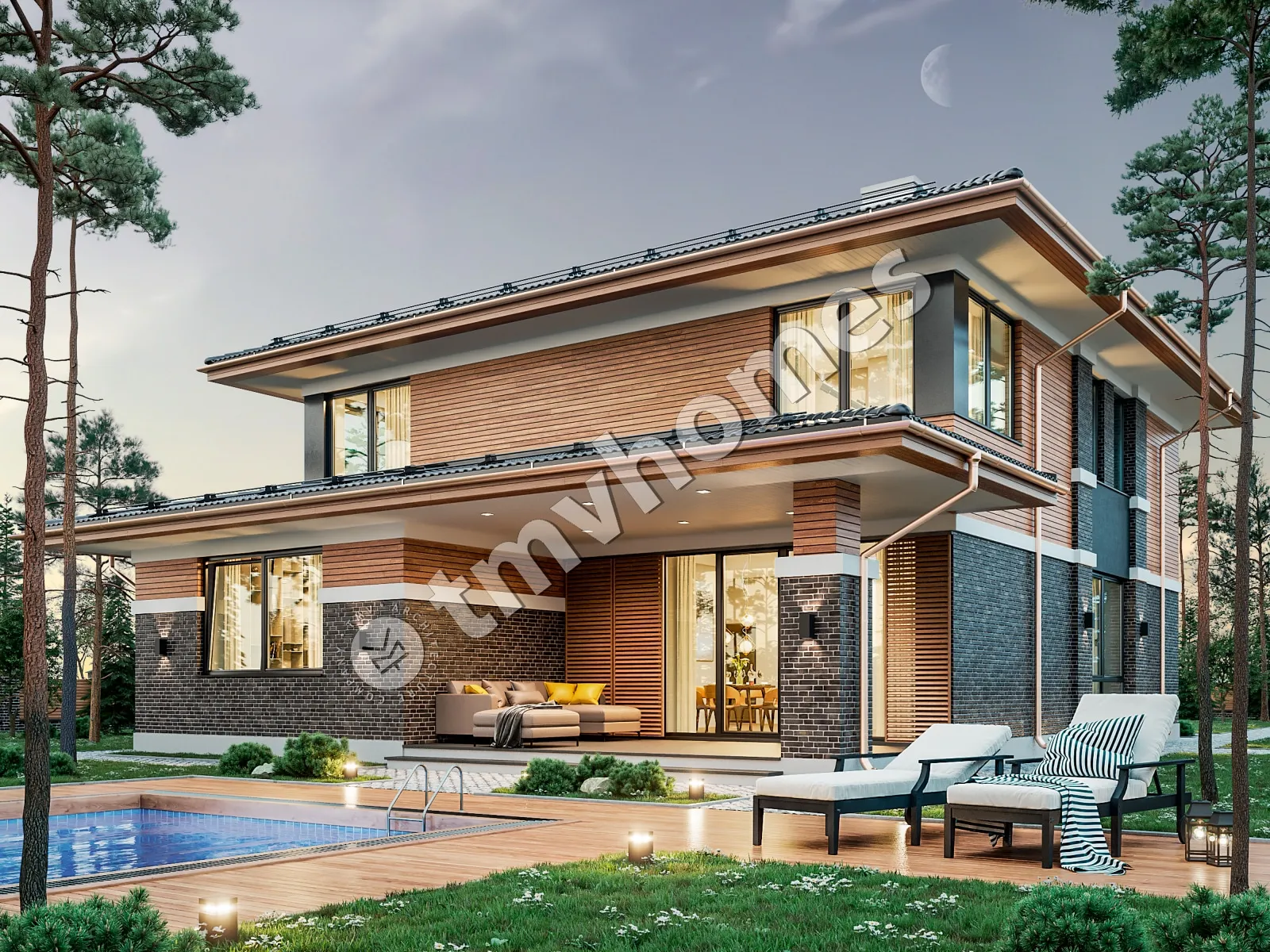

Out back, a covered rear porch extends daily life outdoors, a sheltered spot for morning coffee or long summer dinners. The house stands on strip footings, and the plan is also available with a slab or a concrete block foundation on request. Exterior walls are framed in aerated concrete, with clay block or sand-lime block offered as alternatives. The design includes no garage and no basement, keeping the focus on the living areas. For a family looking for a modern 3 story house plan with fireplace, generous glass and four bedrooms, 29699C offers a balanced, livable layout.
