3,002 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

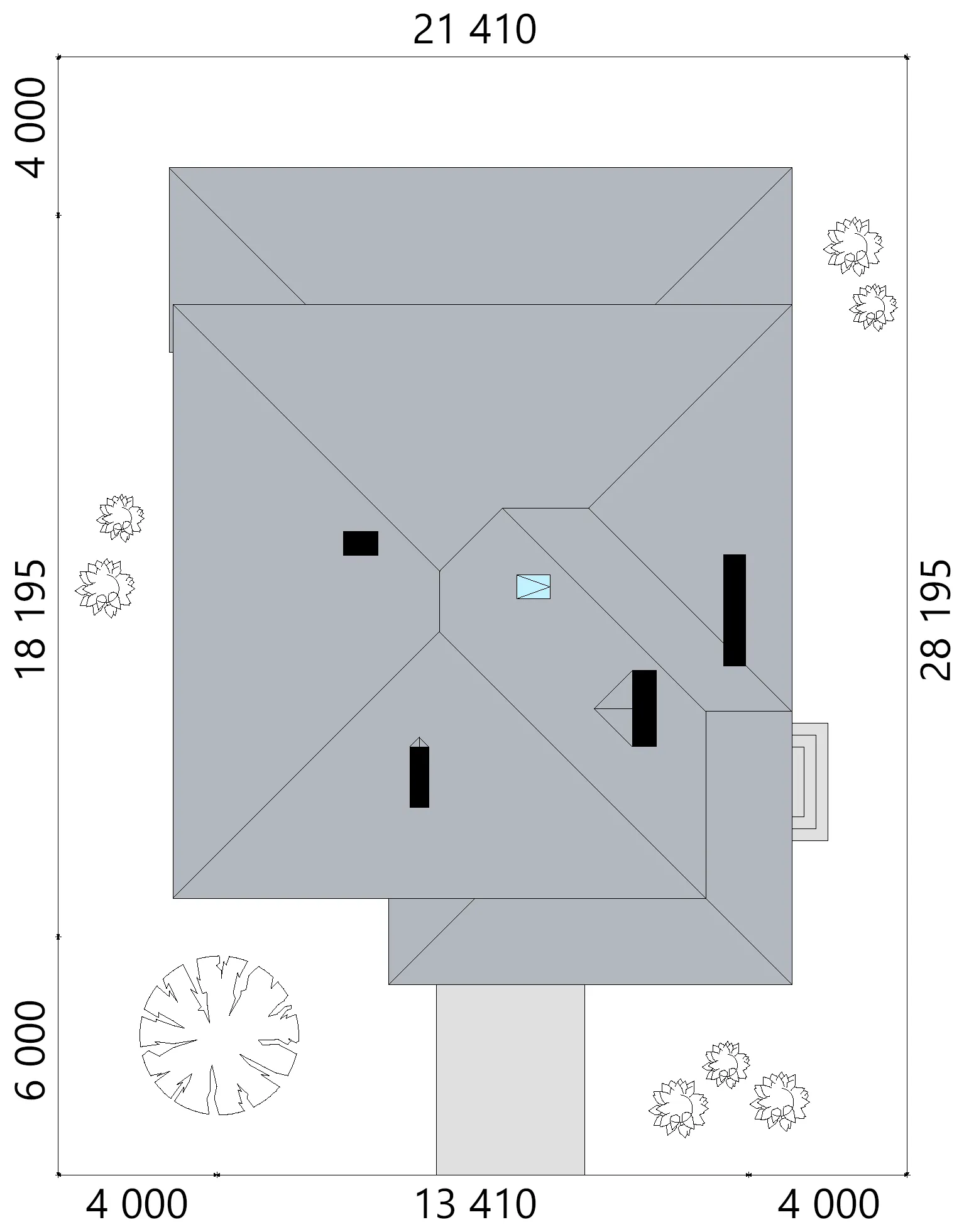

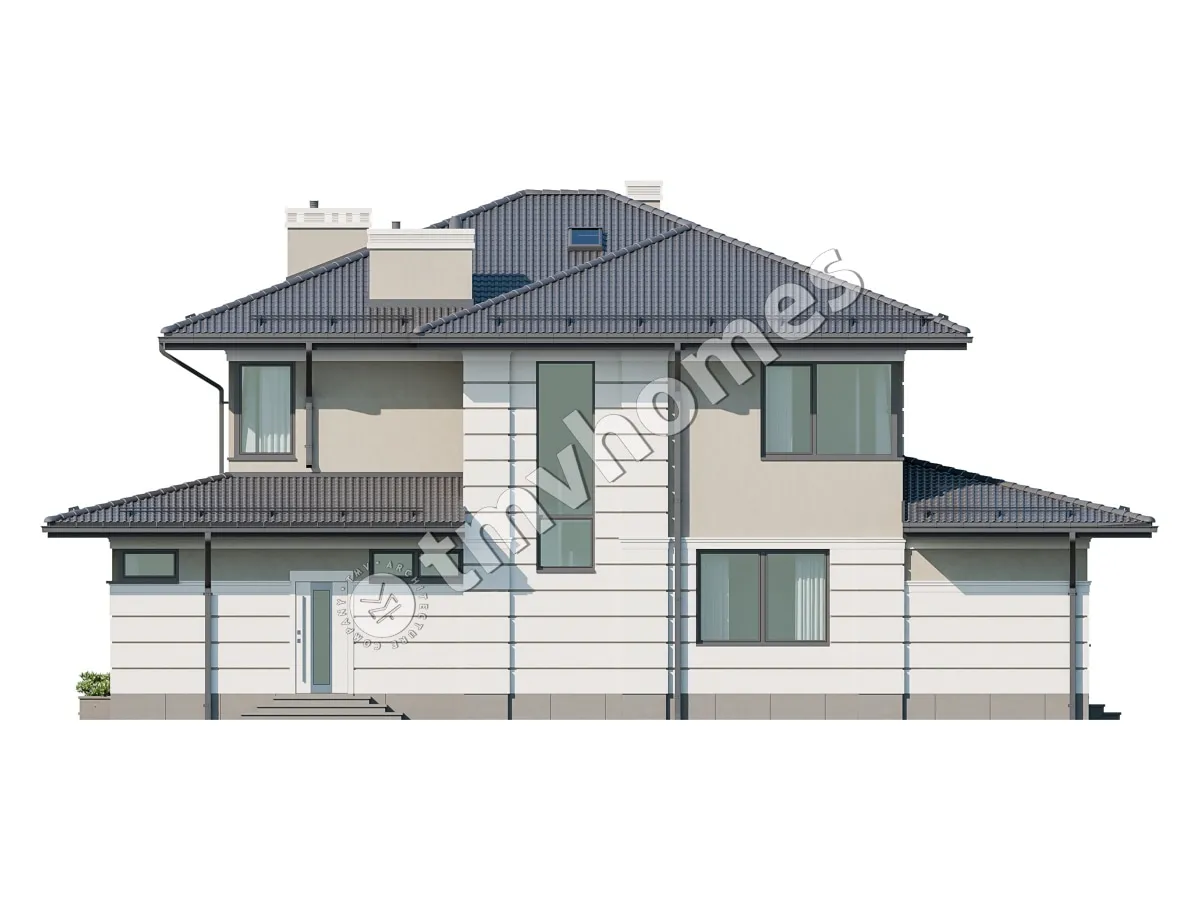

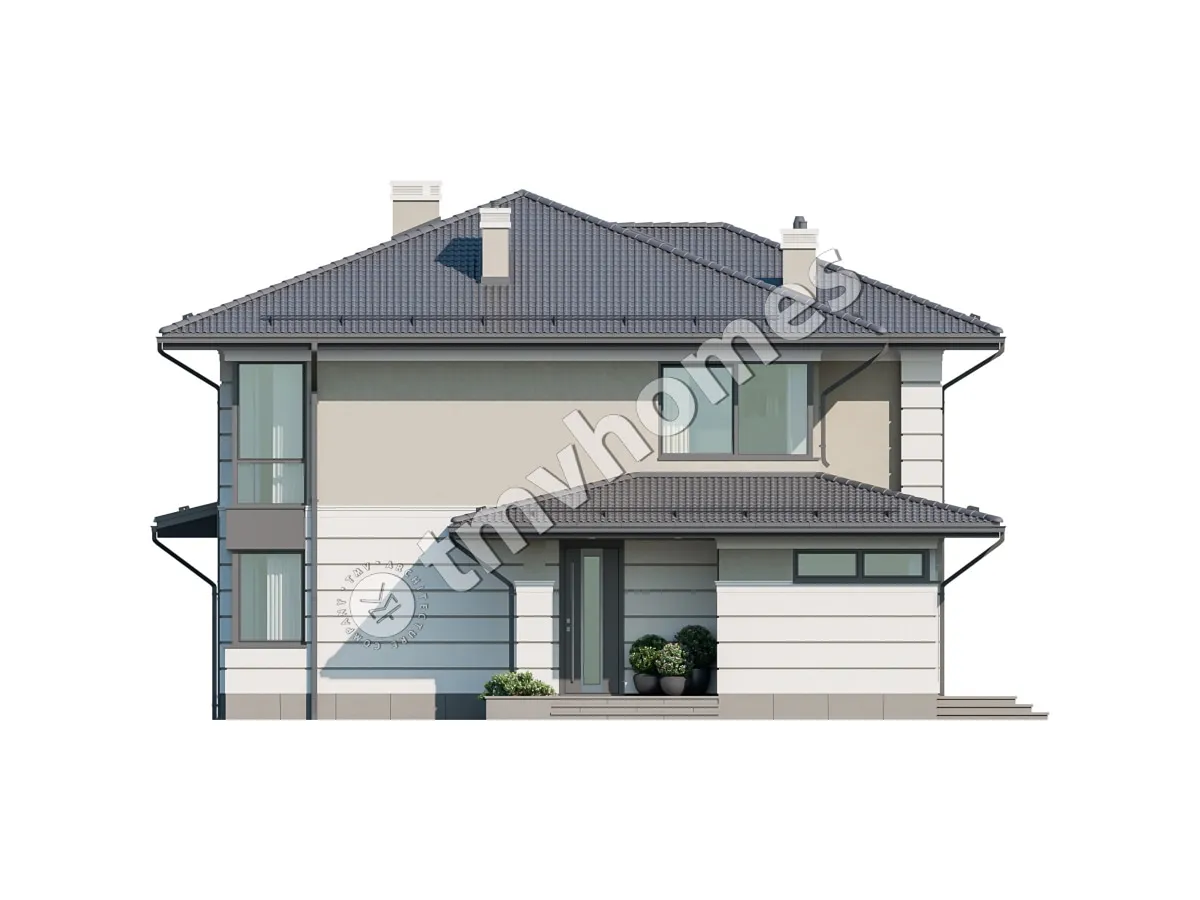

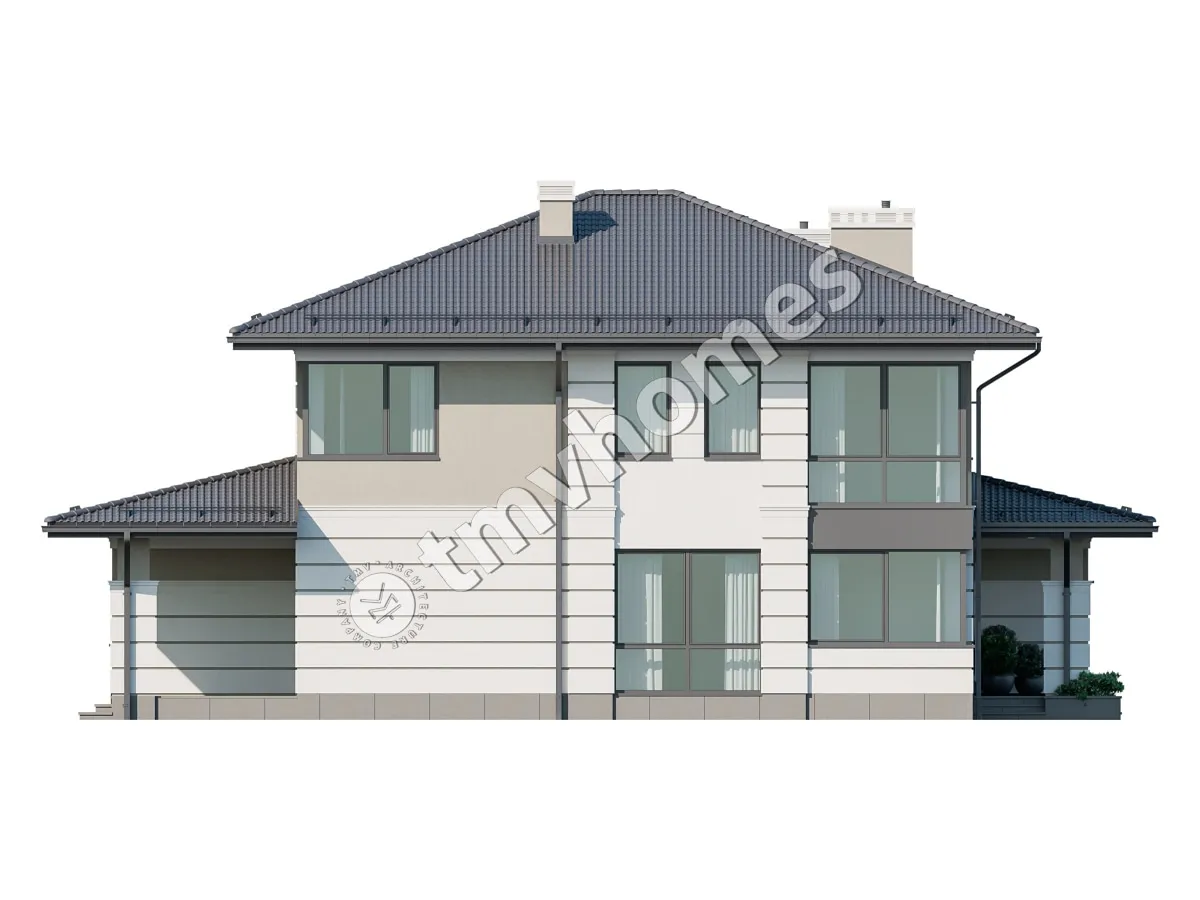

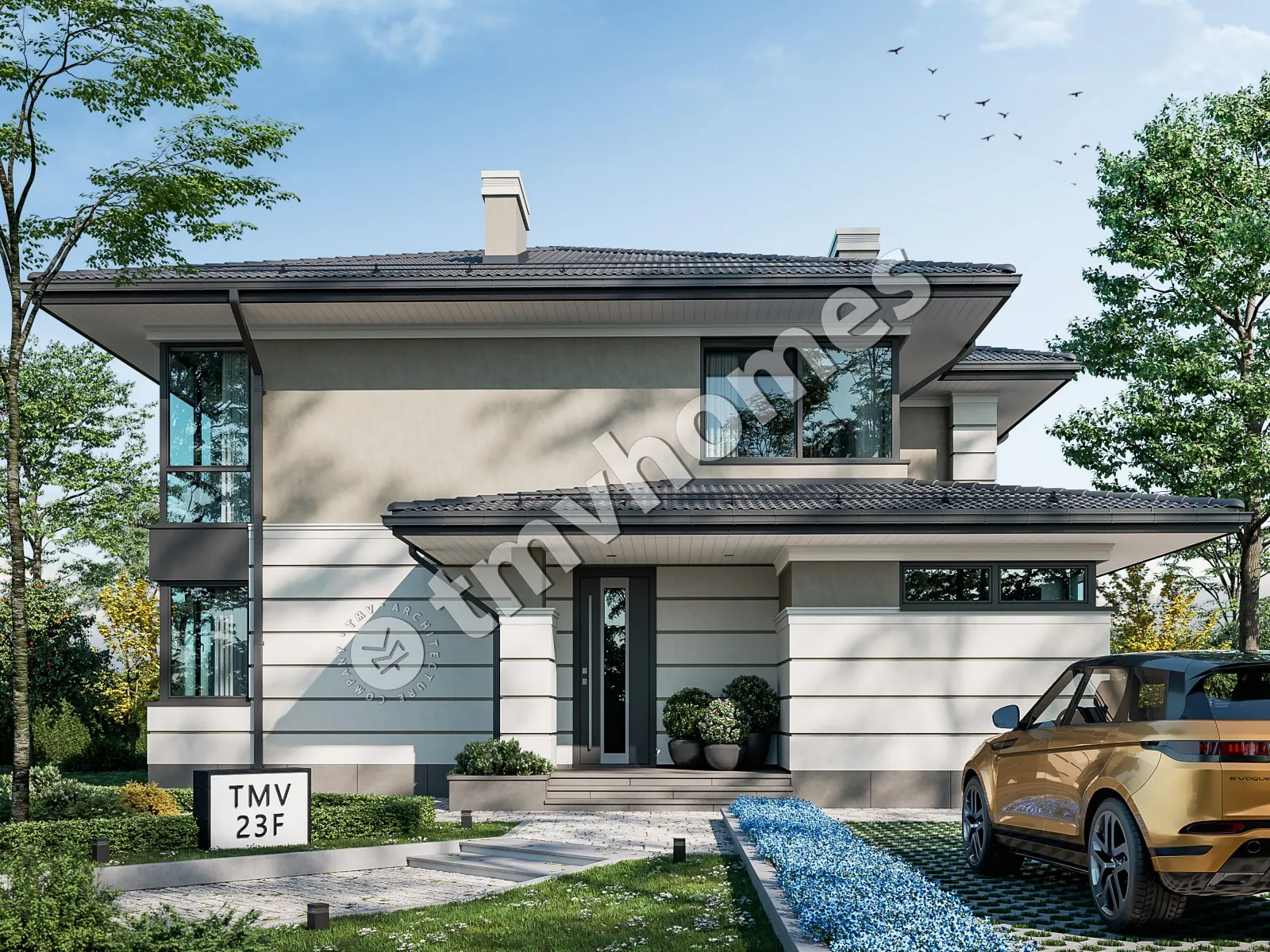

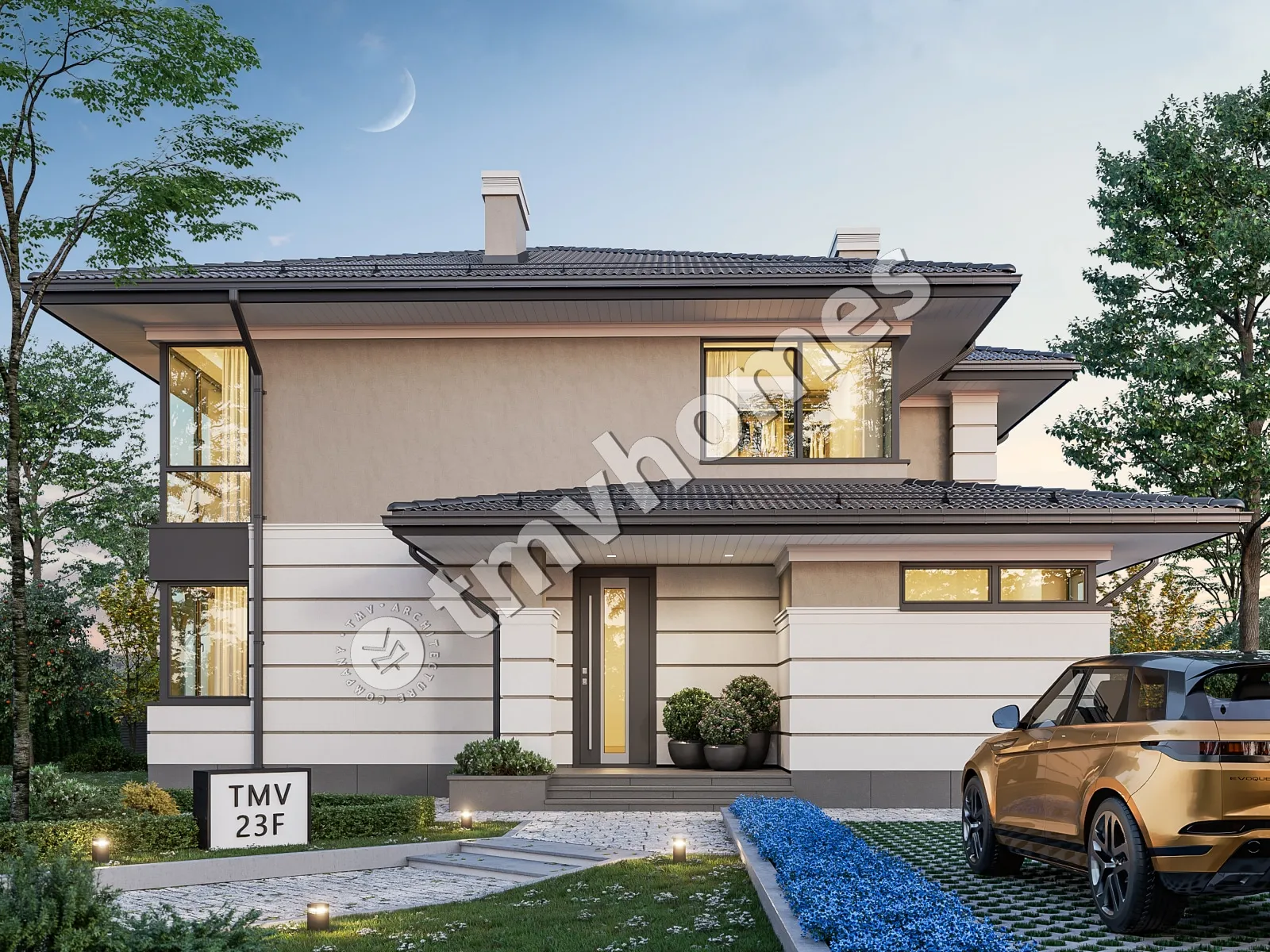

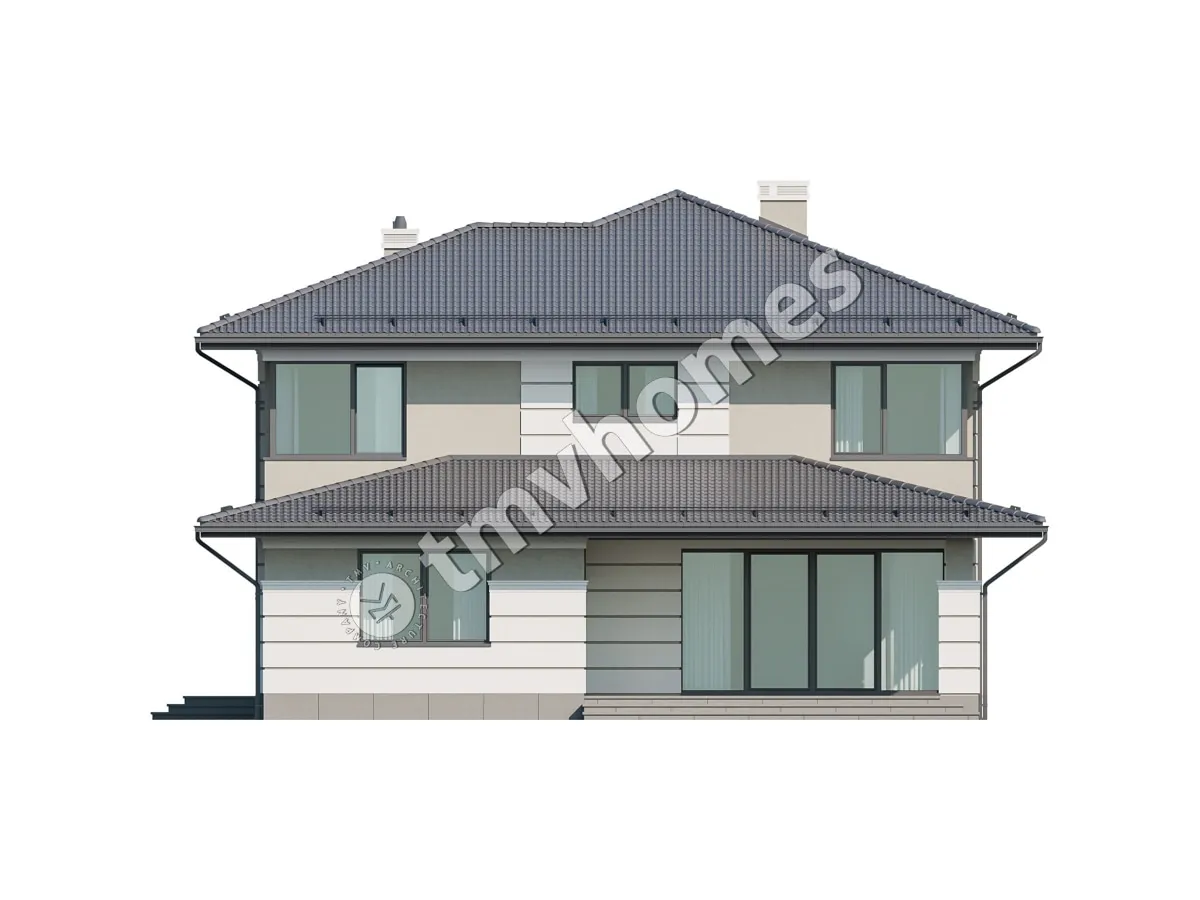

Plan 66123C is a 4-bedroom 3-story house plan with 3,002 Sq Ft of living space, designed in a contemporary European style with modern lines and a hip & valley roof at a 5/12 (22°) pitch. Stucco and panels share the facade, while large windows, a corner window and floor-to-ceiling glass give the elevations a crisp, open character. This single-family home measures 40'9" wide and 55'4" deep, with a height of 29'9".

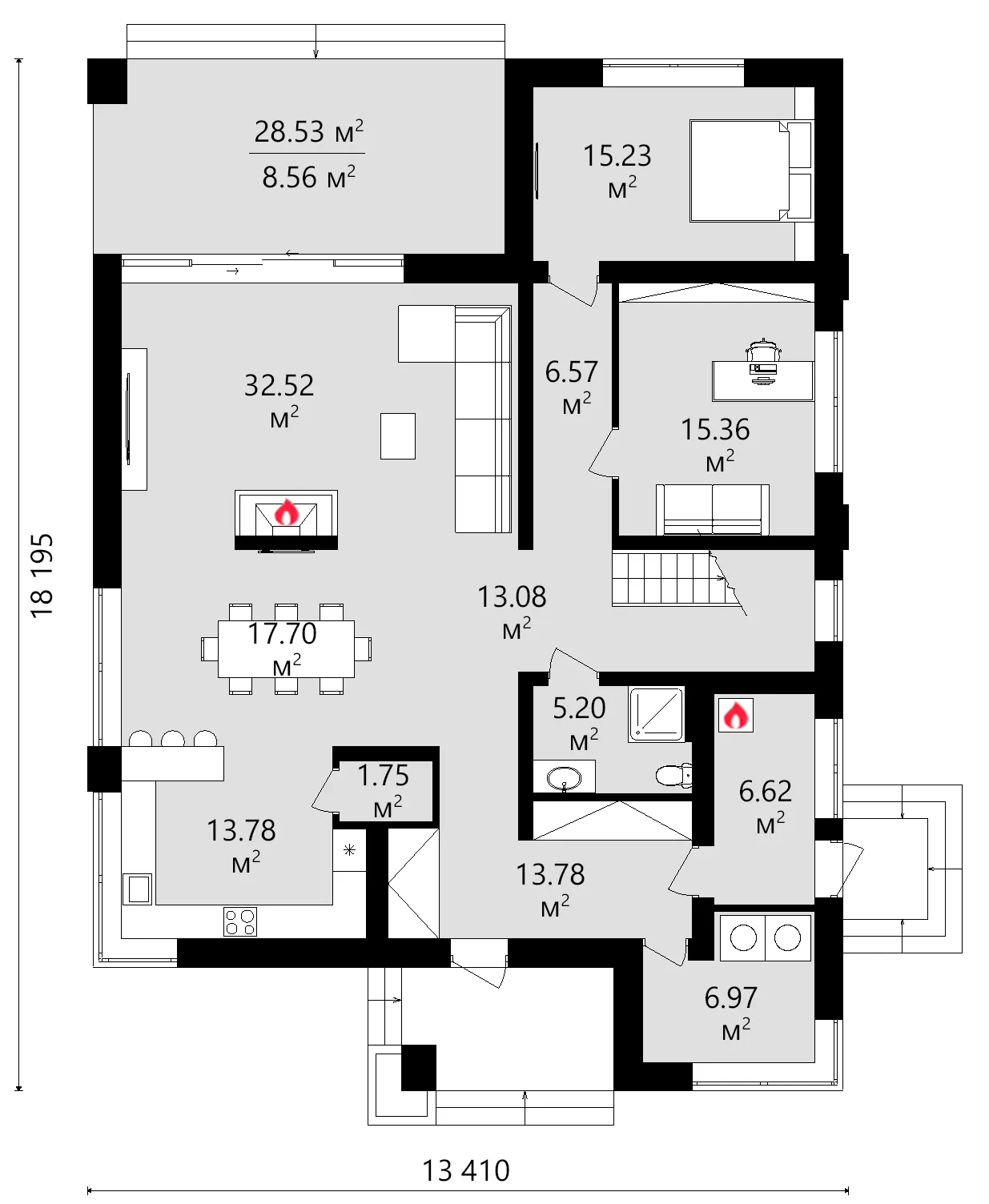

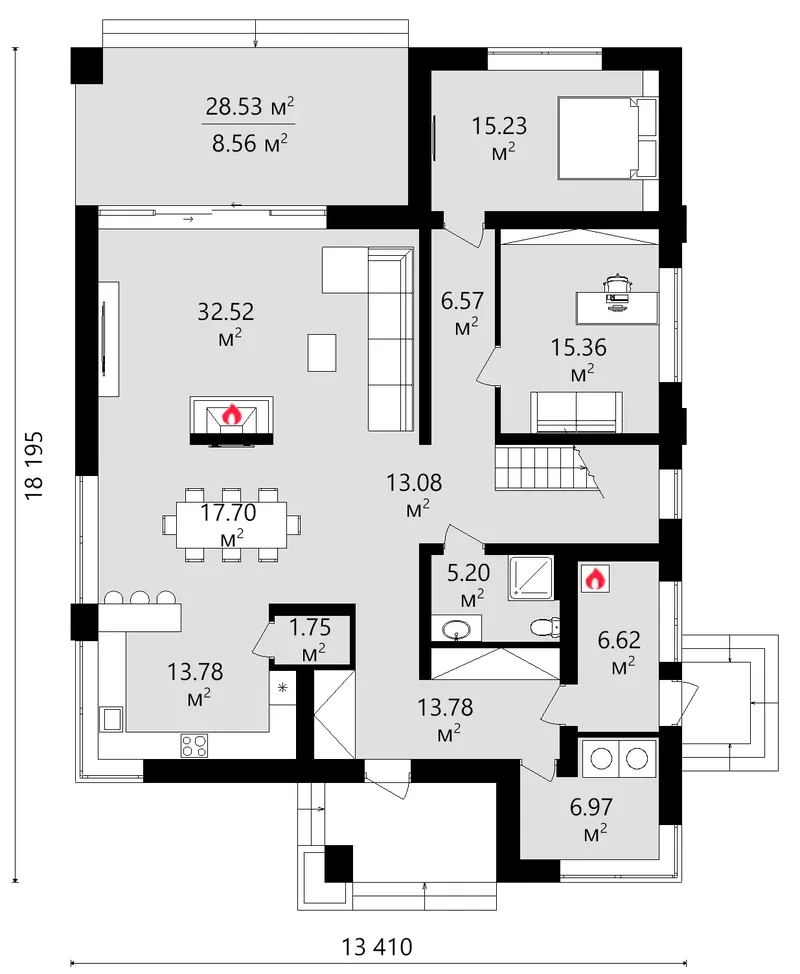

The entry leads into an open floor plan built around a large family room with a fireplace, where winter evenings naturally gather the whole household. The large kitchen opens onto this space and is planned for real daily use: a breakfast bar for quick meals and easy conversation with the cook, a breakfast nook for slower weekend mornings, and a corner window that brings daylight over the work area. A dedicated home office keeps remote work, paperwork or homework separate from family life.

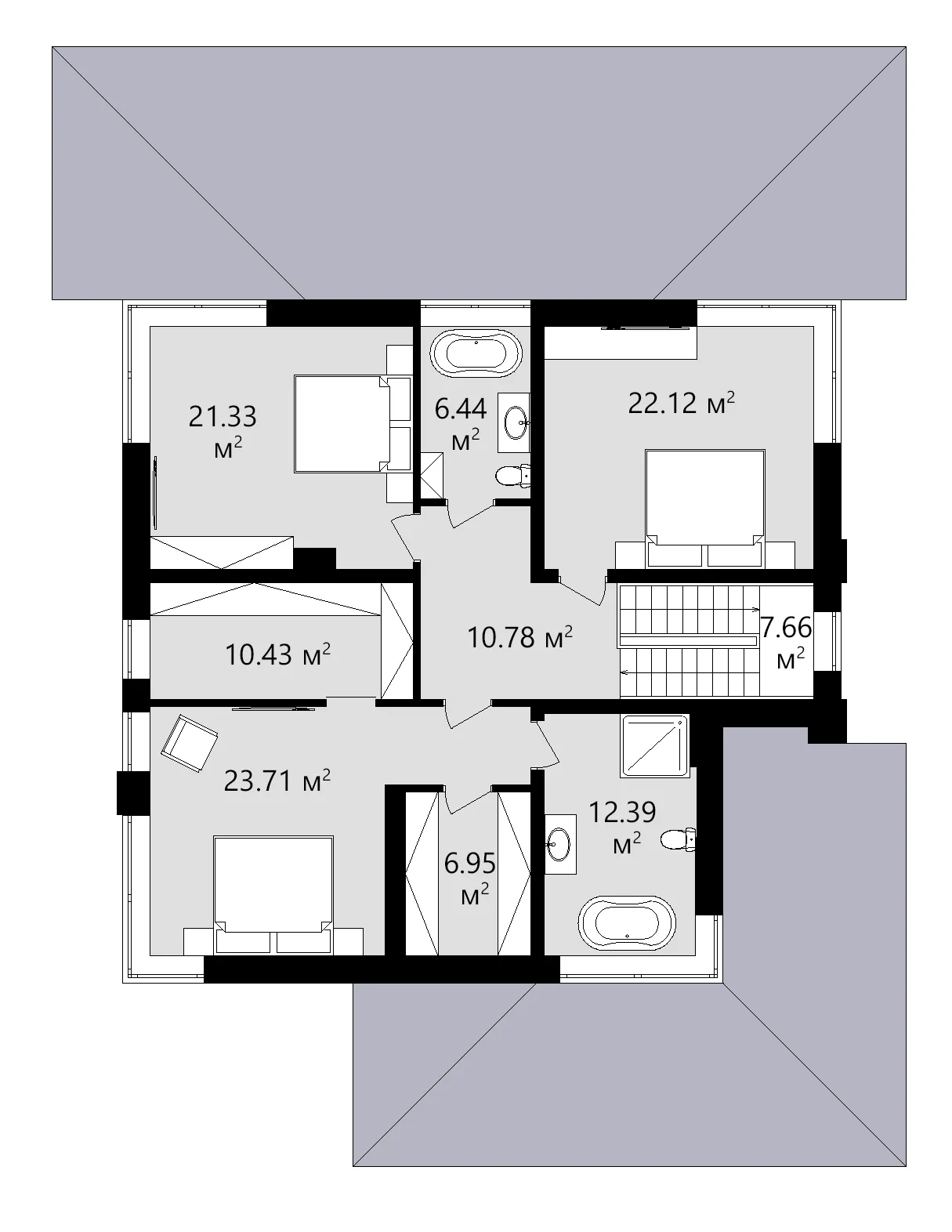

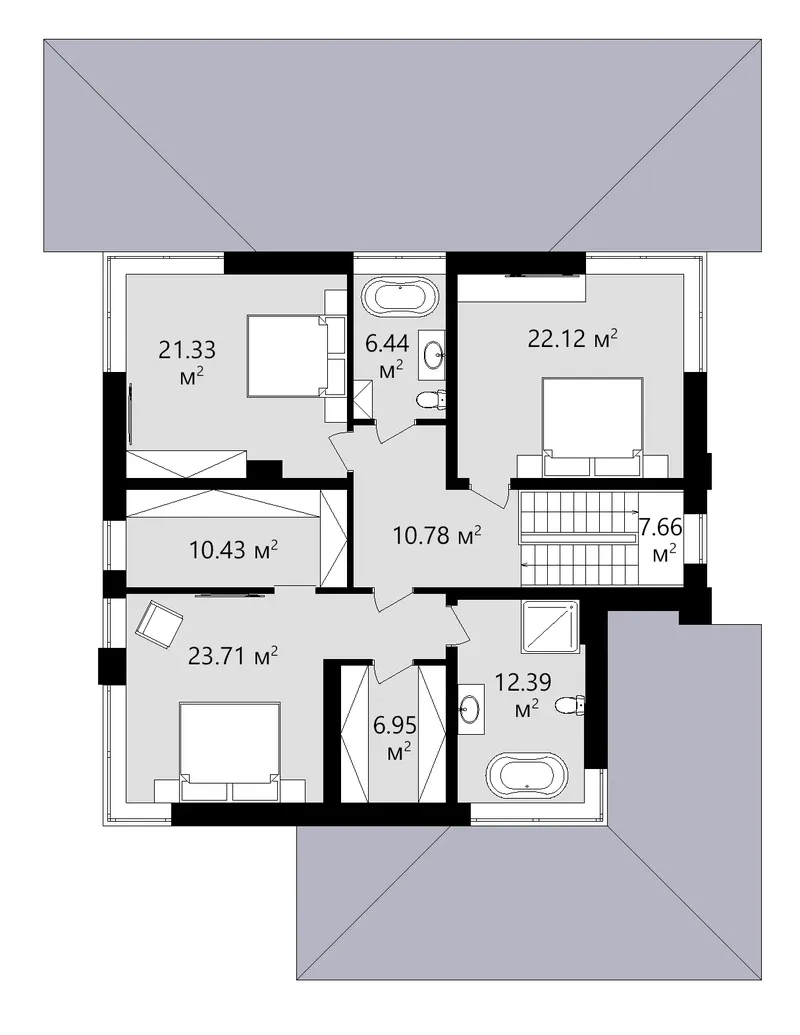

The four bedrooms are clustered together, keeping the sleeping quarters calm and close, which suits families with children. The master suite sits on the second floor and includes a walk-in closet, and three full bathrooms serve the household, so busy mornings run without a queue. The practical rooms are well thought out too: the laundry is on the main floor, close to everyday living, and a separate utility room keeps the home's equipment out of sight.

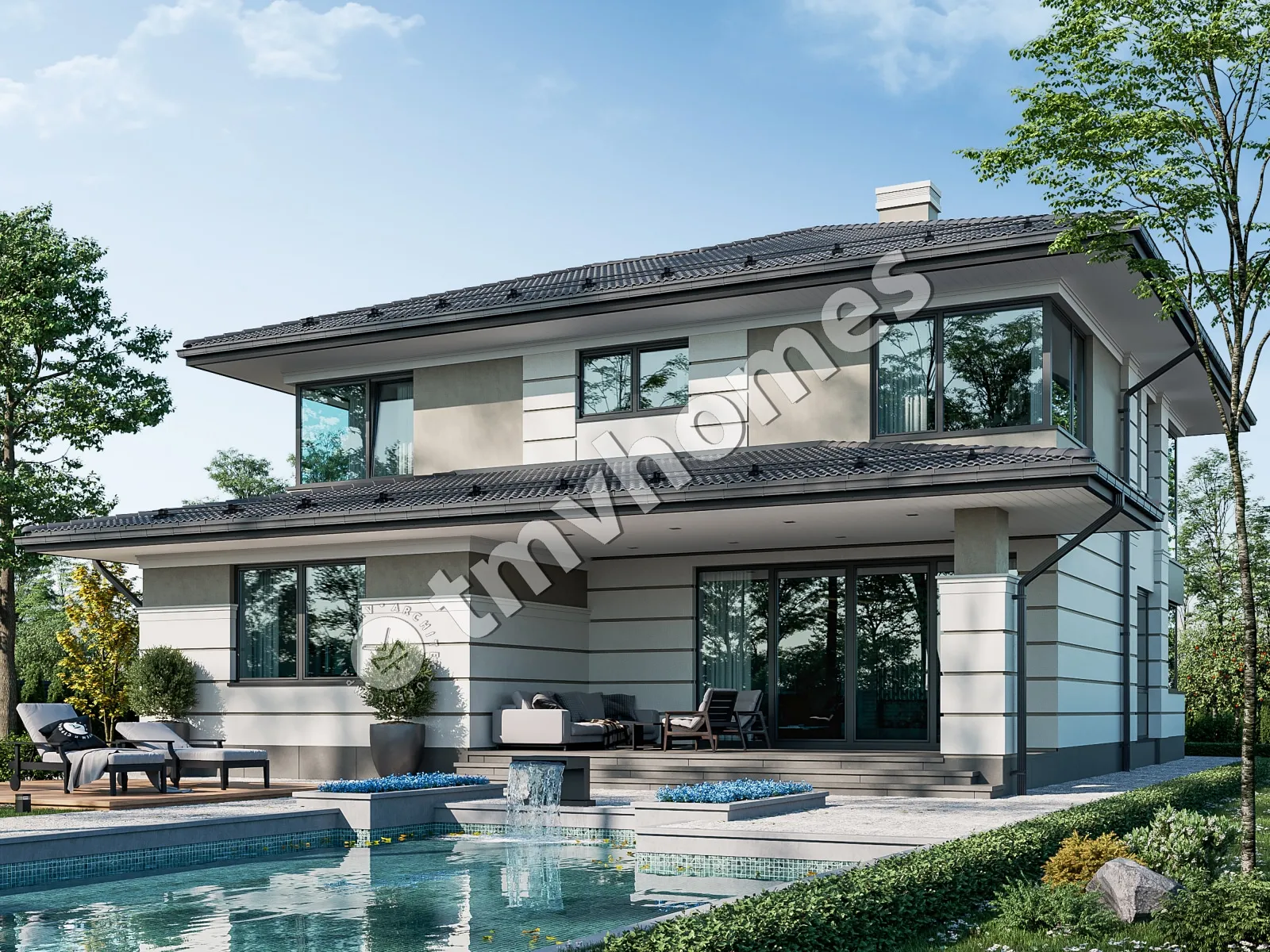

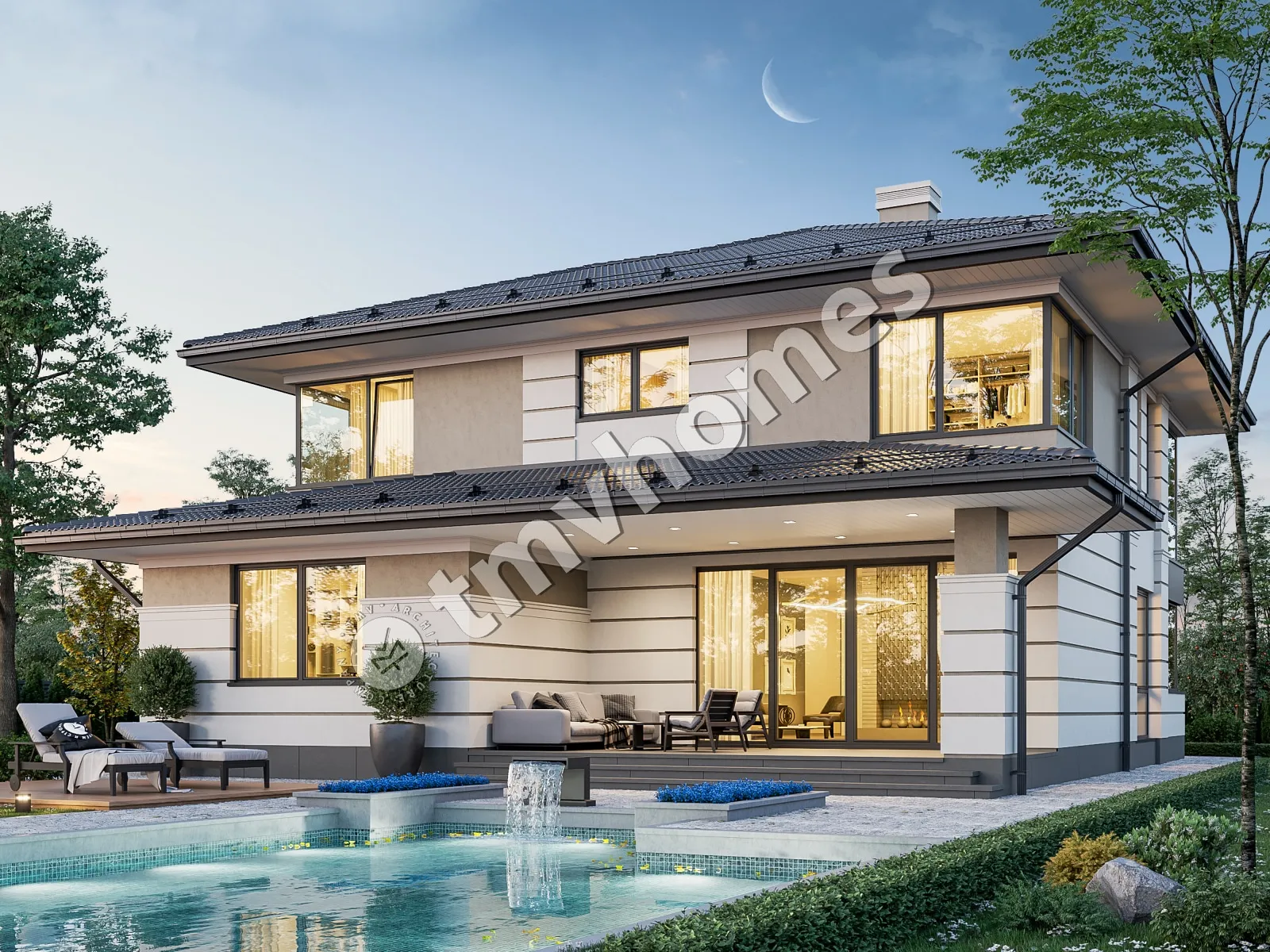

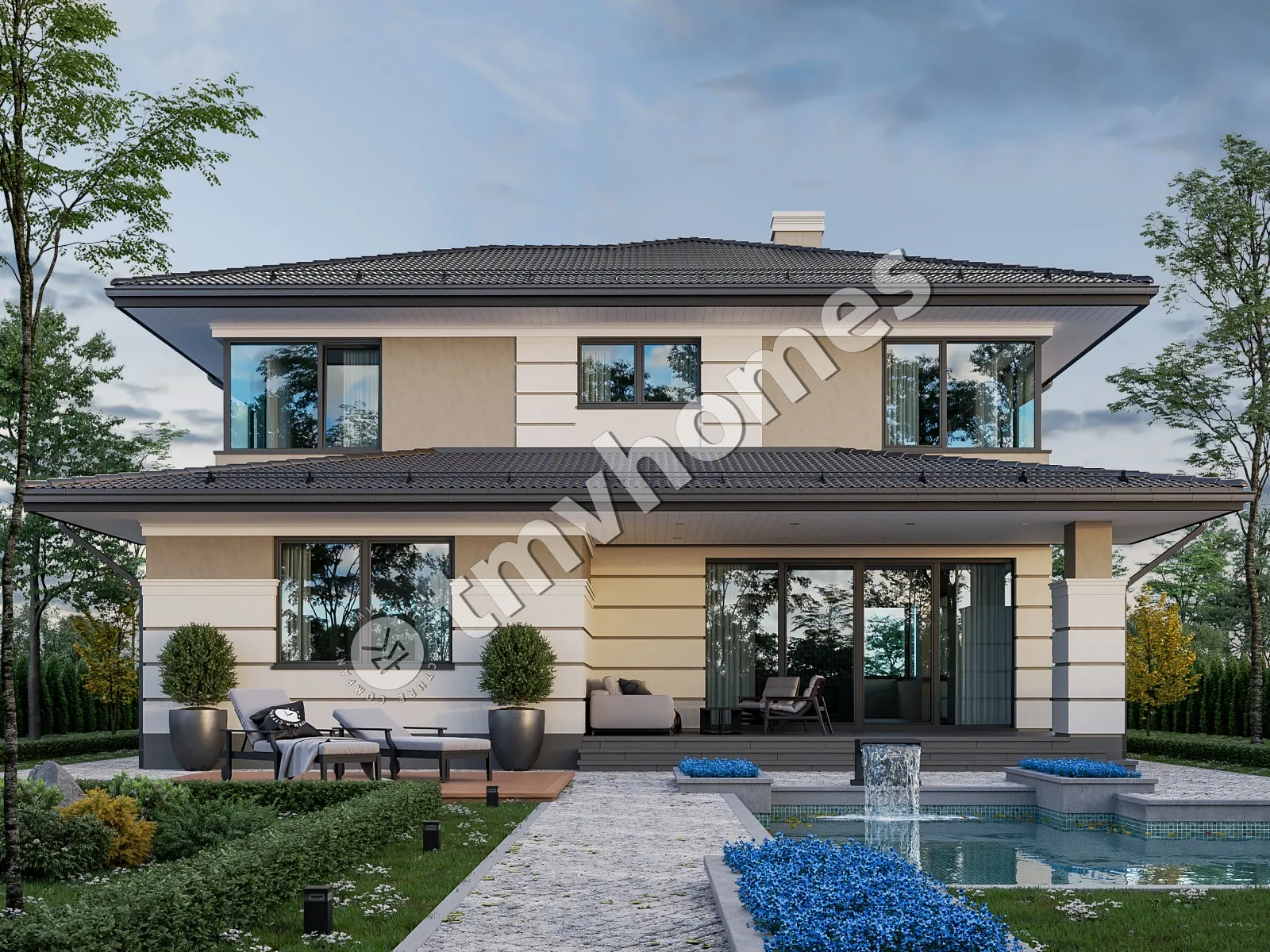

At the back, a covered rear porch extends the living area outdoors and stays sheltered for summer dinners or a quiet coffee at sunrise. The house has no basement and no garage; it stands on strip footings, and a slab or a concrete block foundation is also available on request. The exterior walls are framed in aerated concrete, with clay block or calcium silicate block offered as alternatives. For a family looking for a modern house plan with fireplace, generous glazing and room to grow across three levels, 66123C organizes 3,002 Sq Ft into a home that is both elegant and easy to live in.
