Renderings 2 – 2,760 Sq Ft Prairie 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 31288C
Renderings 3 – 2,760 Sq Ft Prairie 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 31288C Renderings 4 – 2,760 Sq Ft Prairie 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 31288C
14
Concept
Construction documents are prepared for the following countries:

2,760 Sq Ft Prairie T-Shaped 2-Story House Plan with 4 Bedrooms and 3 Bathrooms

Plan
31288C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2760
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

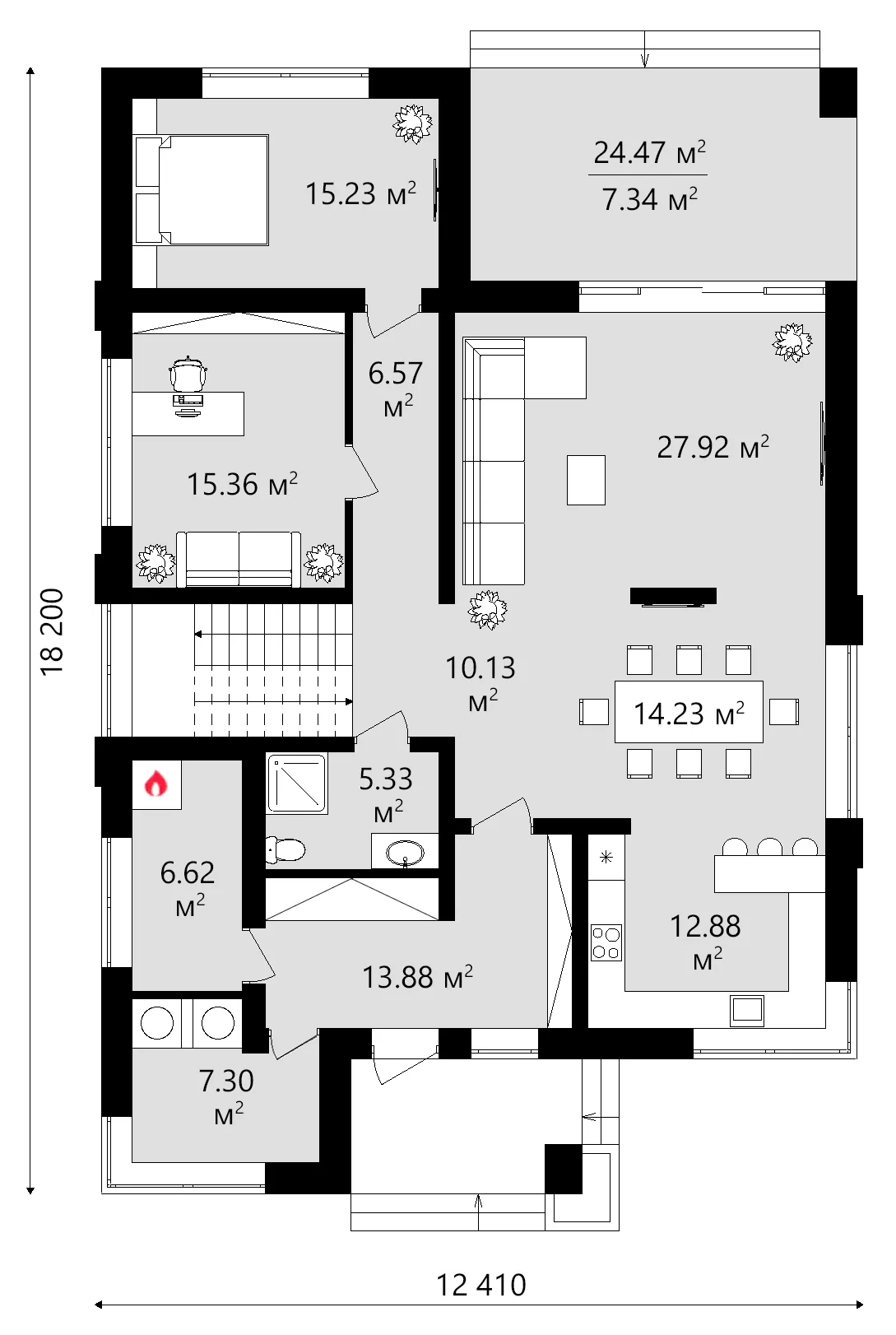

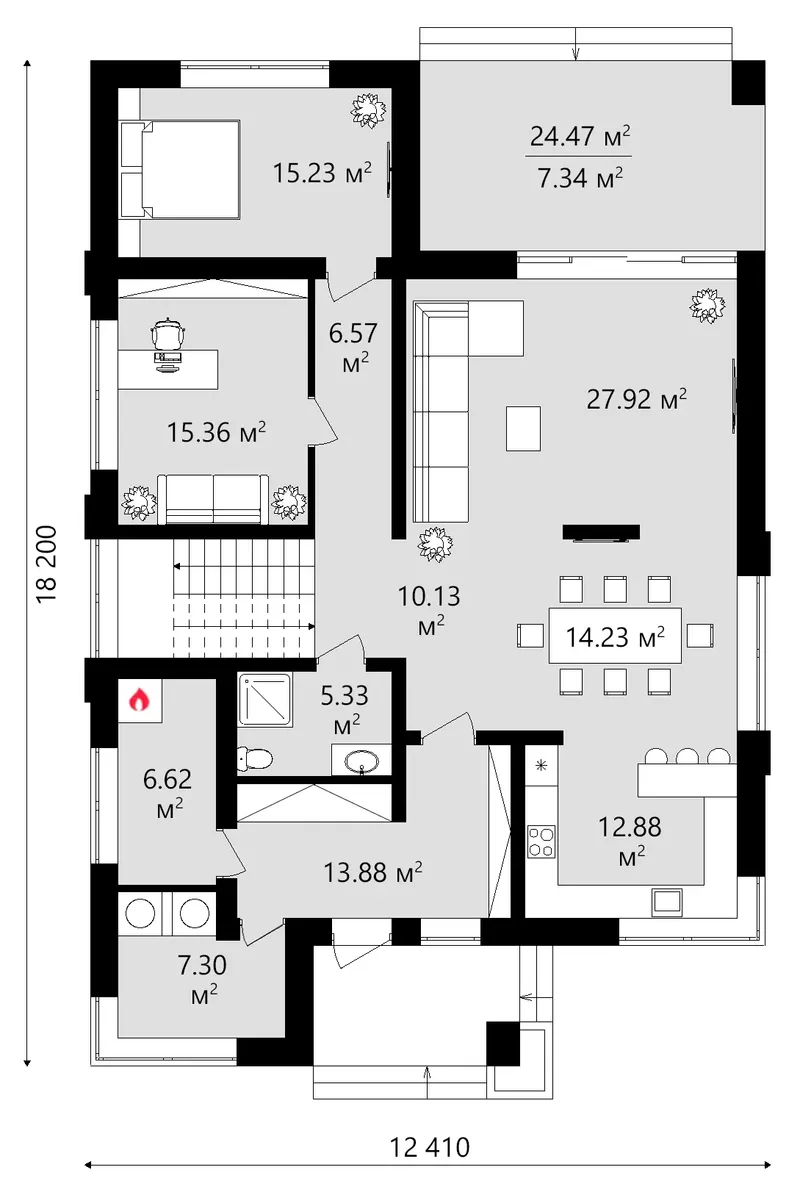

Main Floor
Main Floor 19 – 2,760 Sq Ft Prairie 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 31288C

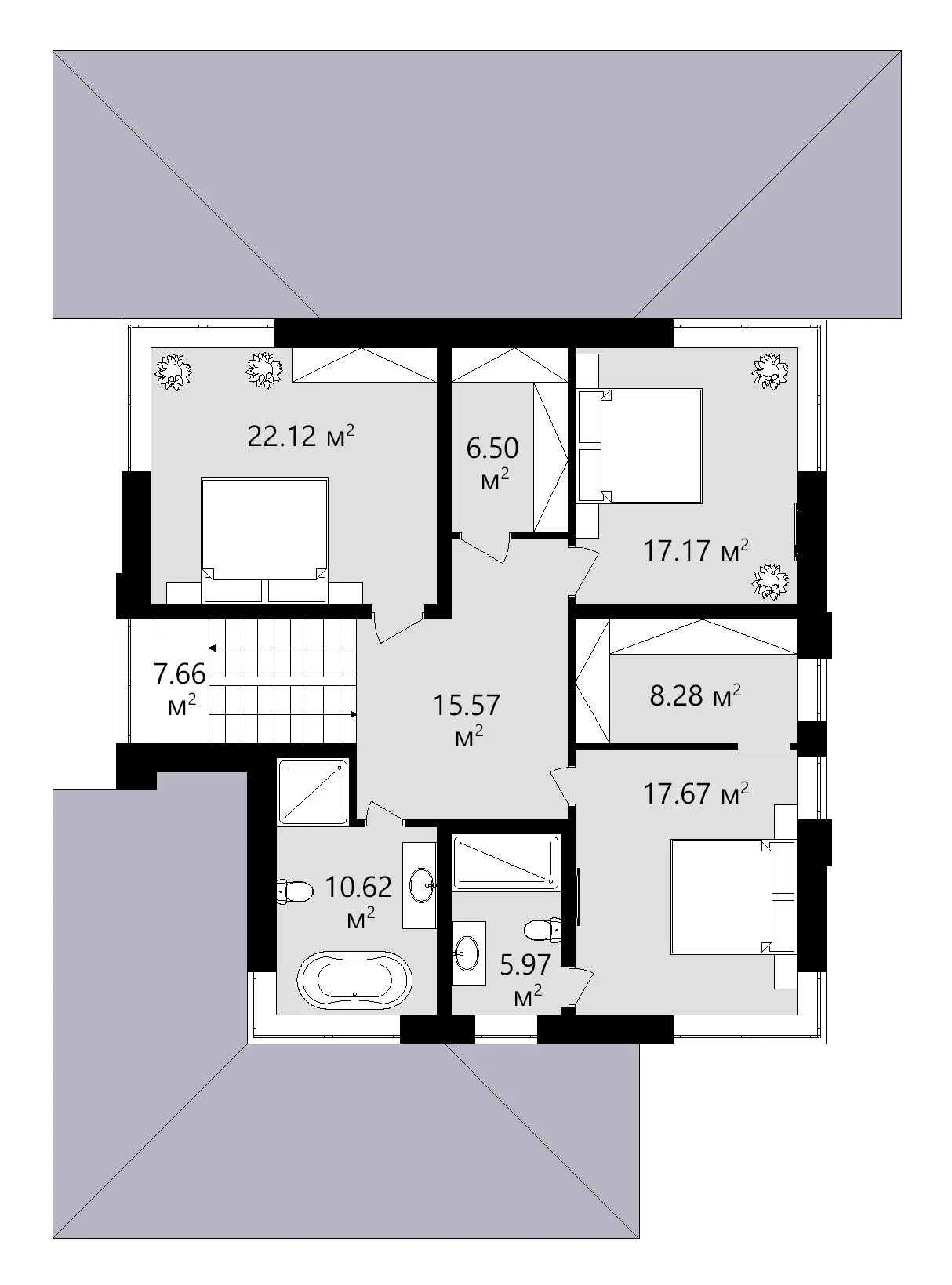

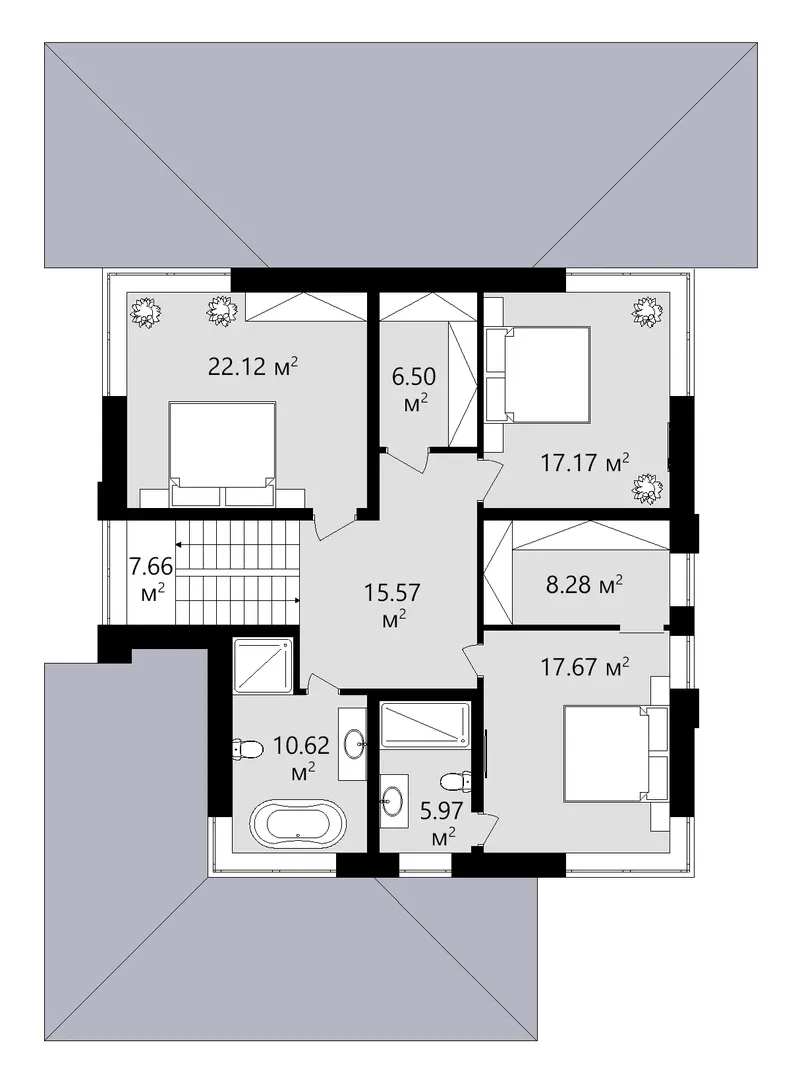

Second Floor
Second Floor 20 – 2,760 Sq Ft Prairie 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 31288C
Full Specs & Features
Area
Total Heated: 2759.87 ft²
Dimensions
Depth: 55'5" ft
Width: 37'8" ft
Height: 28'7" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Brick
Wood
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Laundry
Entry
Home Office
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Corner Window
Interior Features
Laundry On Main Floor
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
Modern
Prairie
Roof
Roof Area: 3707.74 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

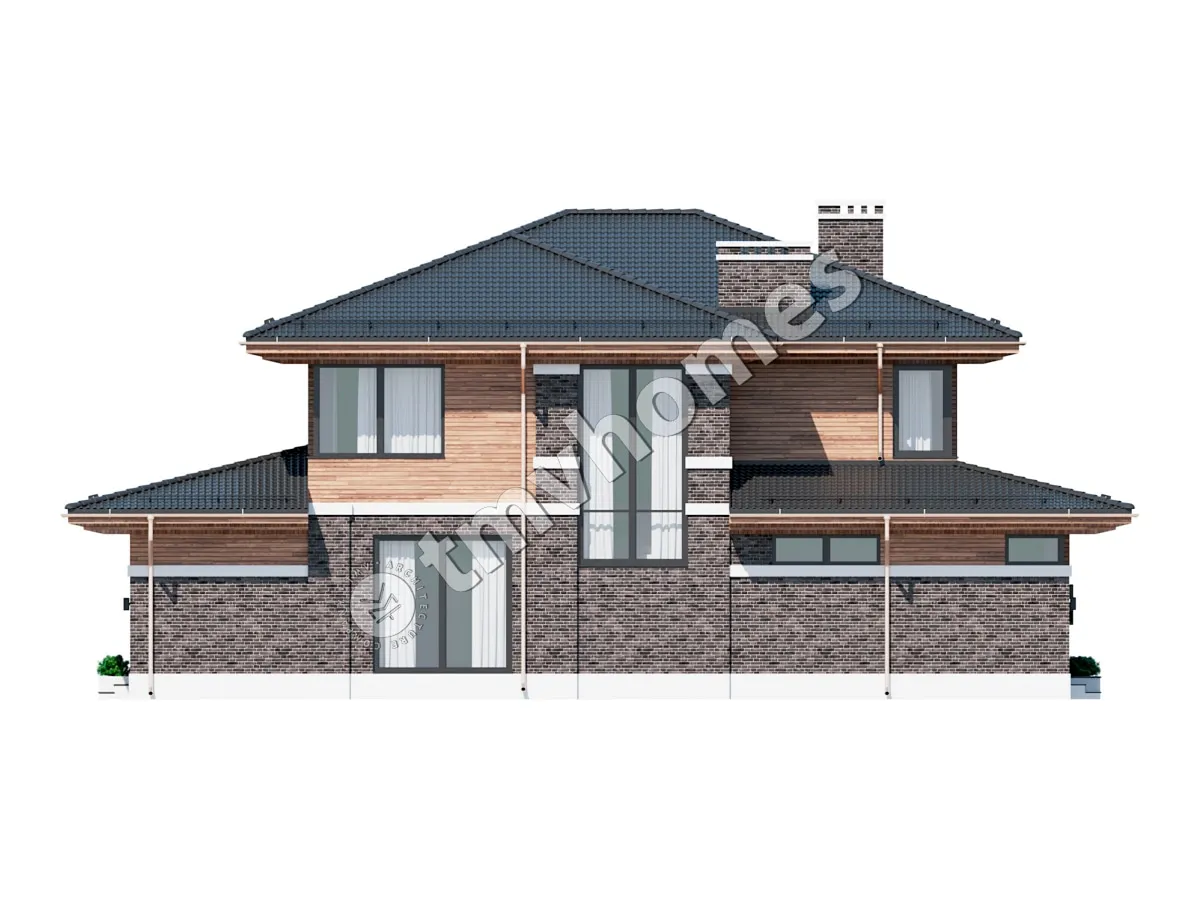

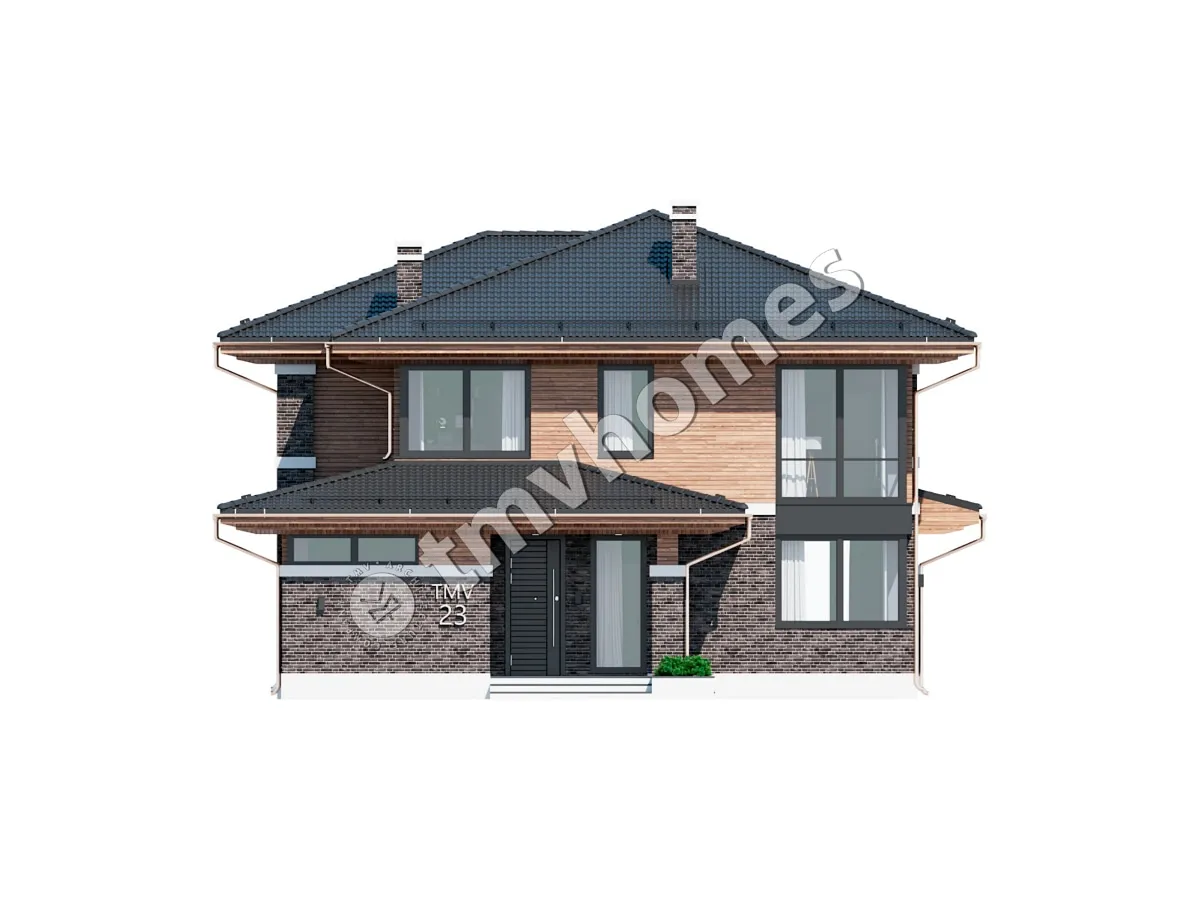

House design concept 31288C, available for purchase as a digital house design concept, is a T-shaped 2-story Prairie home for a single family of 4-6 people, with Total Heated 2,760 Sq Ft, 4 bedrooms and 3 bathrooms. Brick and wood on the facade give the house a warm texture, and the hip and valley roof with a 5/12 (22°) pitch keeps the low, horizontal Prairie profile. The footprint is 37'8" wide and 55'5" deep.

The entry opens into an open floor plan where a large great room and a large kitchen share one space, so whoever cooks stays part of the conversation. A breakfast bar handles quick meals, the breakfast nook hosts everyday dinners, and a corner window brings daylight to the counters. Large and floor-to-ceiling windows fill the great room with light, while a home office on the main floor keeps work apart from family life.

The primary bedroom sits on the second floor with a walk-in closet that keeps clothes out of the sleeping area, and the clustered bedrooms let parents stay close to the children at night. Three full bathrooms spare the family a morning queue. The laundry and the utility room on the main floor keep washing and household equipment away from the bedrooms.

A covered rear porch extends the living space outdoors in any weather. The house stands on strip footings, with a slab or a concrete block foundation as options; the exterior walls are aerated concrete, with ceramic hollow blocks or sand-lime blocks as alternatives. In figures: Total Heated 2,760 Sq Ft, 4 bedrooms and 3 bathrooms.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1320
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
