3,025 Sq Ft Modern 2-Story Family House Plan with 4 Bedrooms and 3 Bathrooms
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

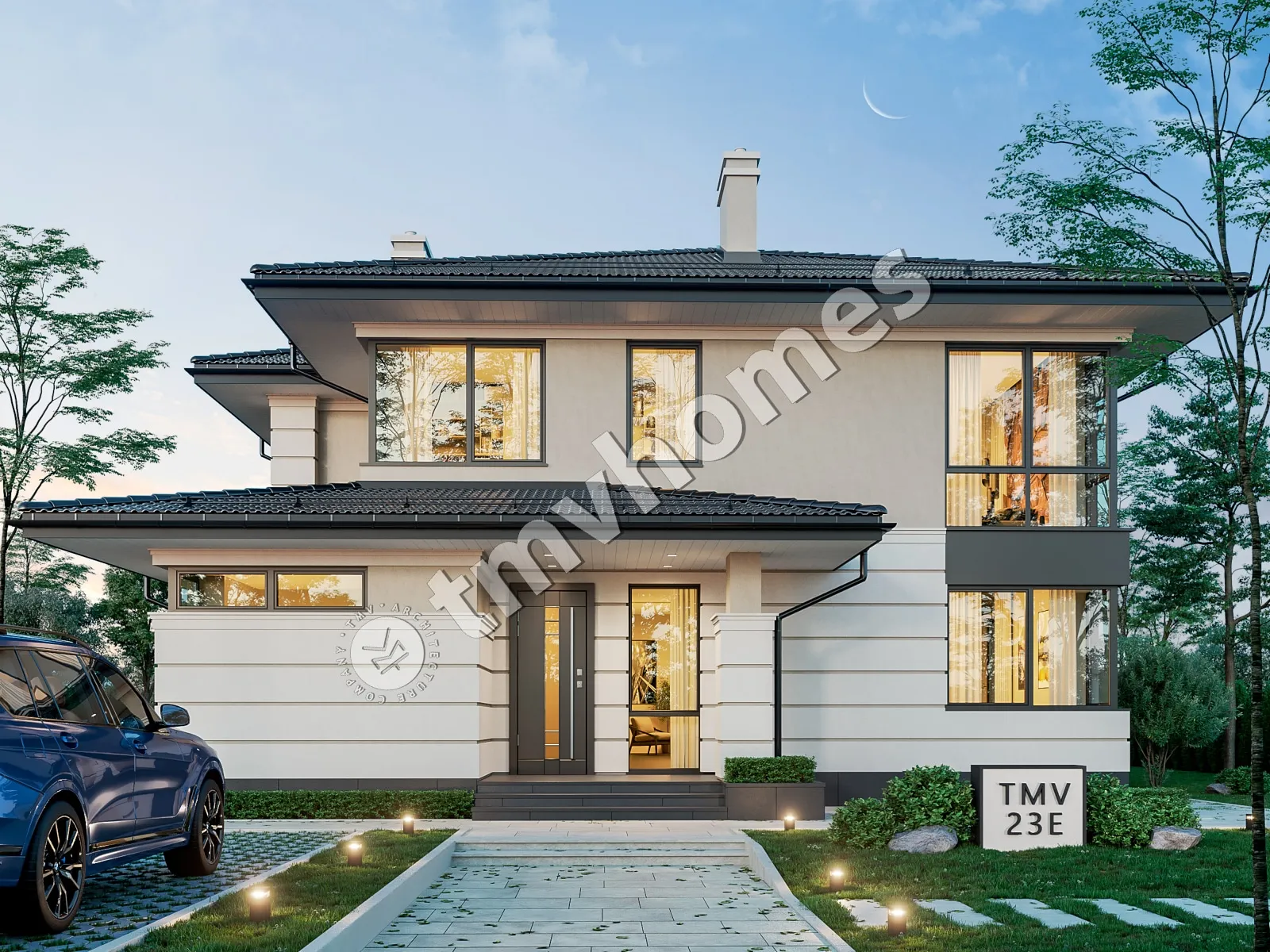

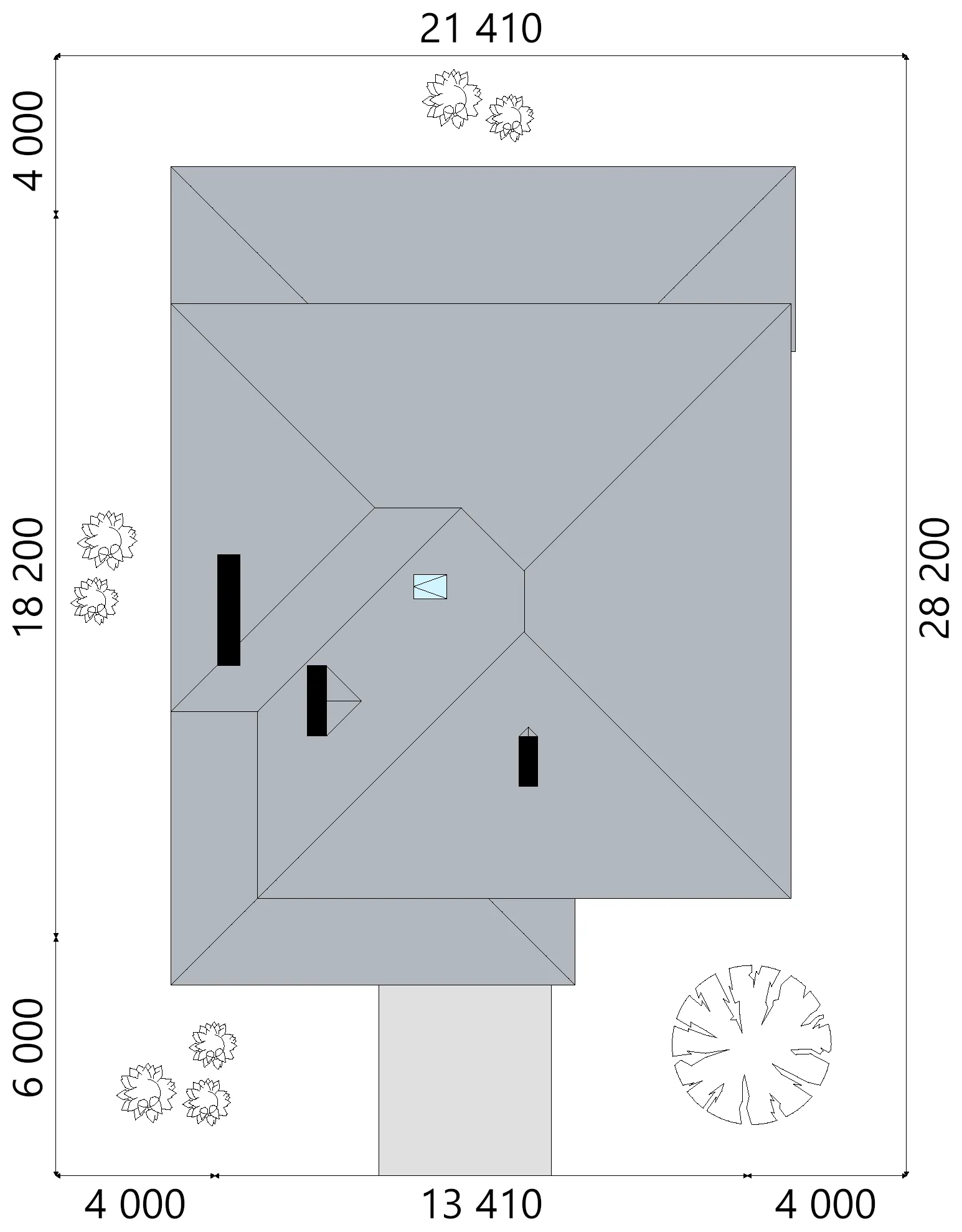

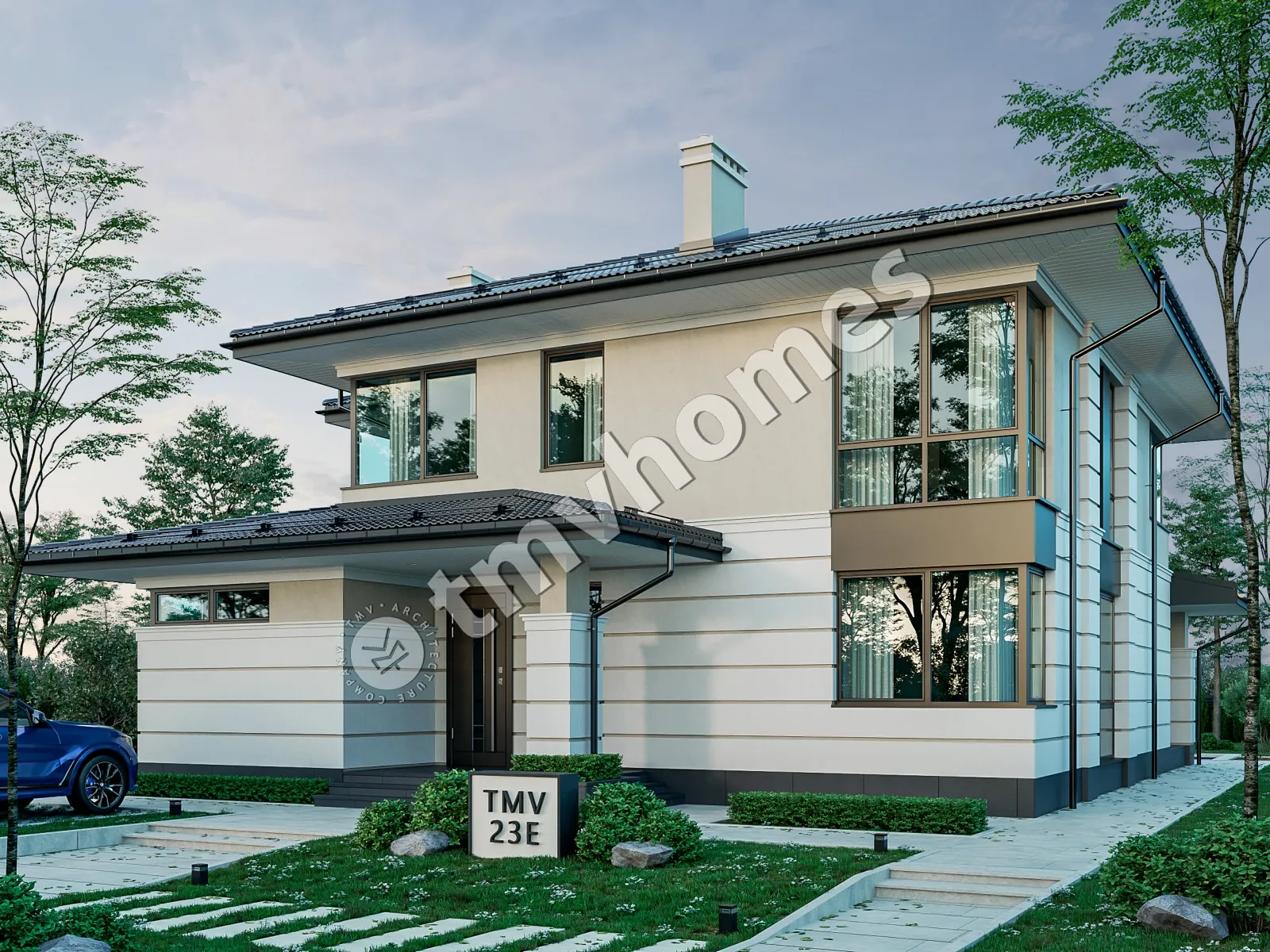

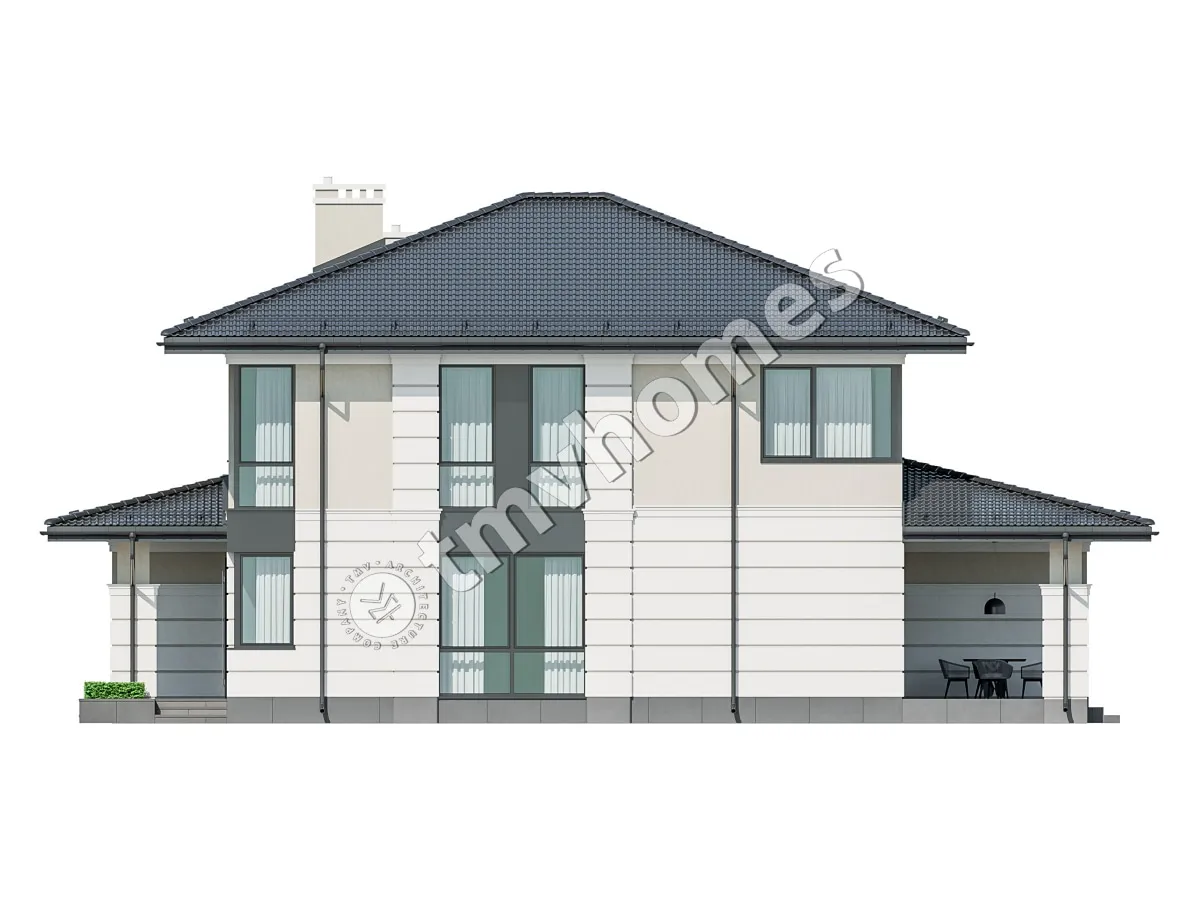

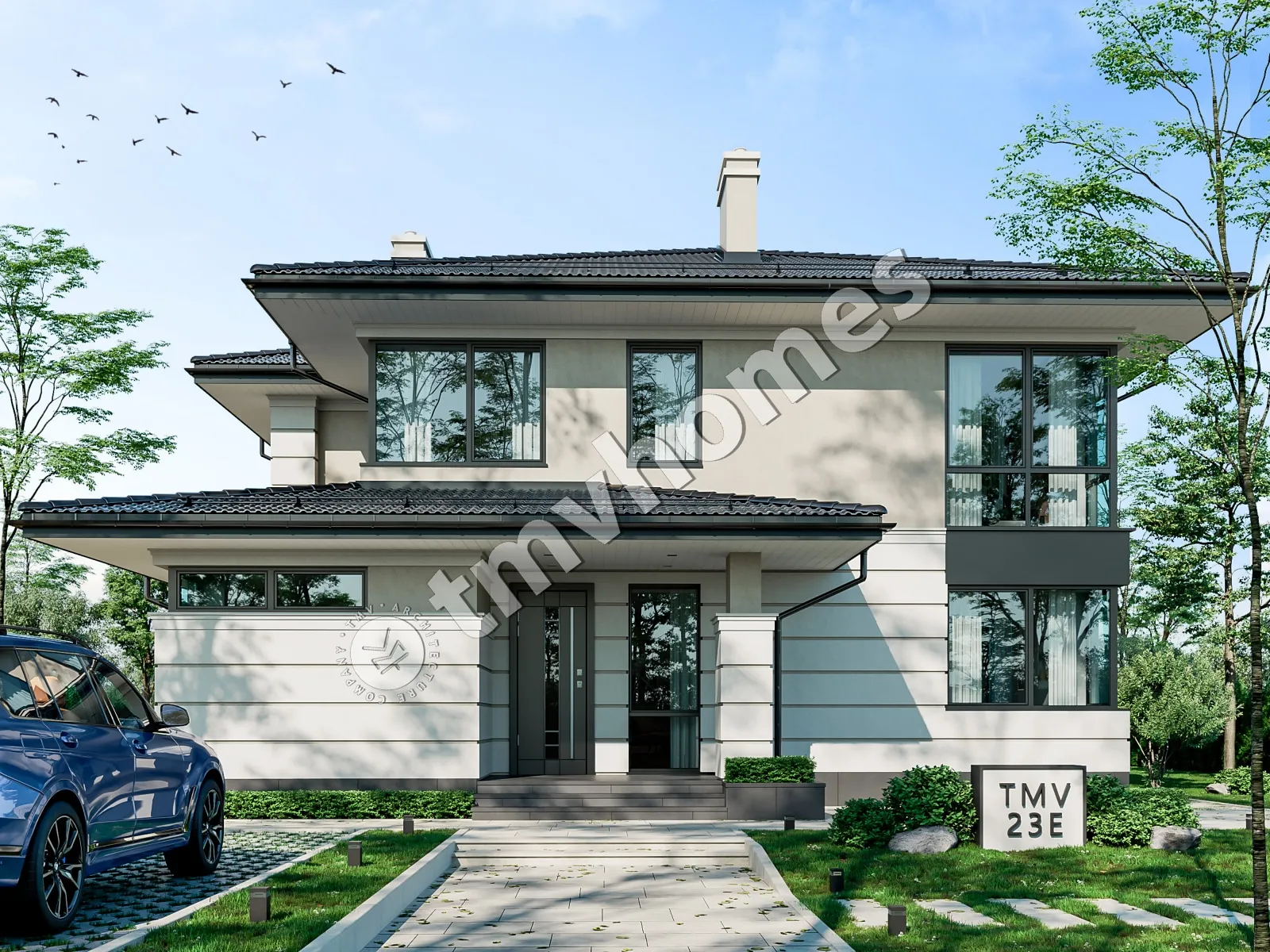

Plan 92269C is a 4-bedroom 3-story house plan in a contemporary European style, offering 3,025 Sq Ft of living space beneath a low hip and valley roof with a 3/12 (14°) pitch. Clean, modern lines are finished in stucco and panels, and the home measures 40'9" wide and 55'5" deep, with a height of 29'9". This single family modern house plan spreads four bedrooms and three full bathrooms across three levels, built for comfortable year-round family life.

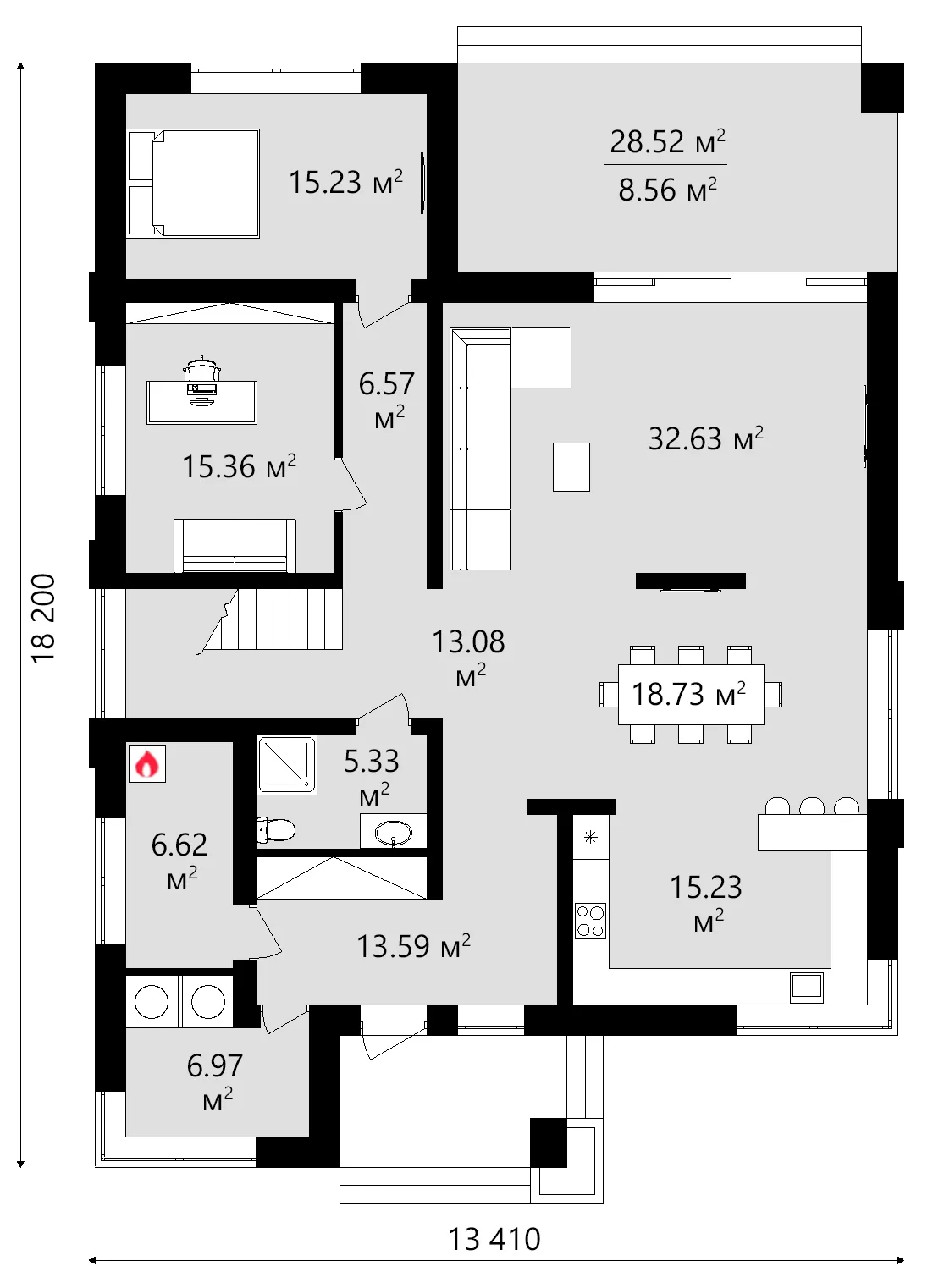

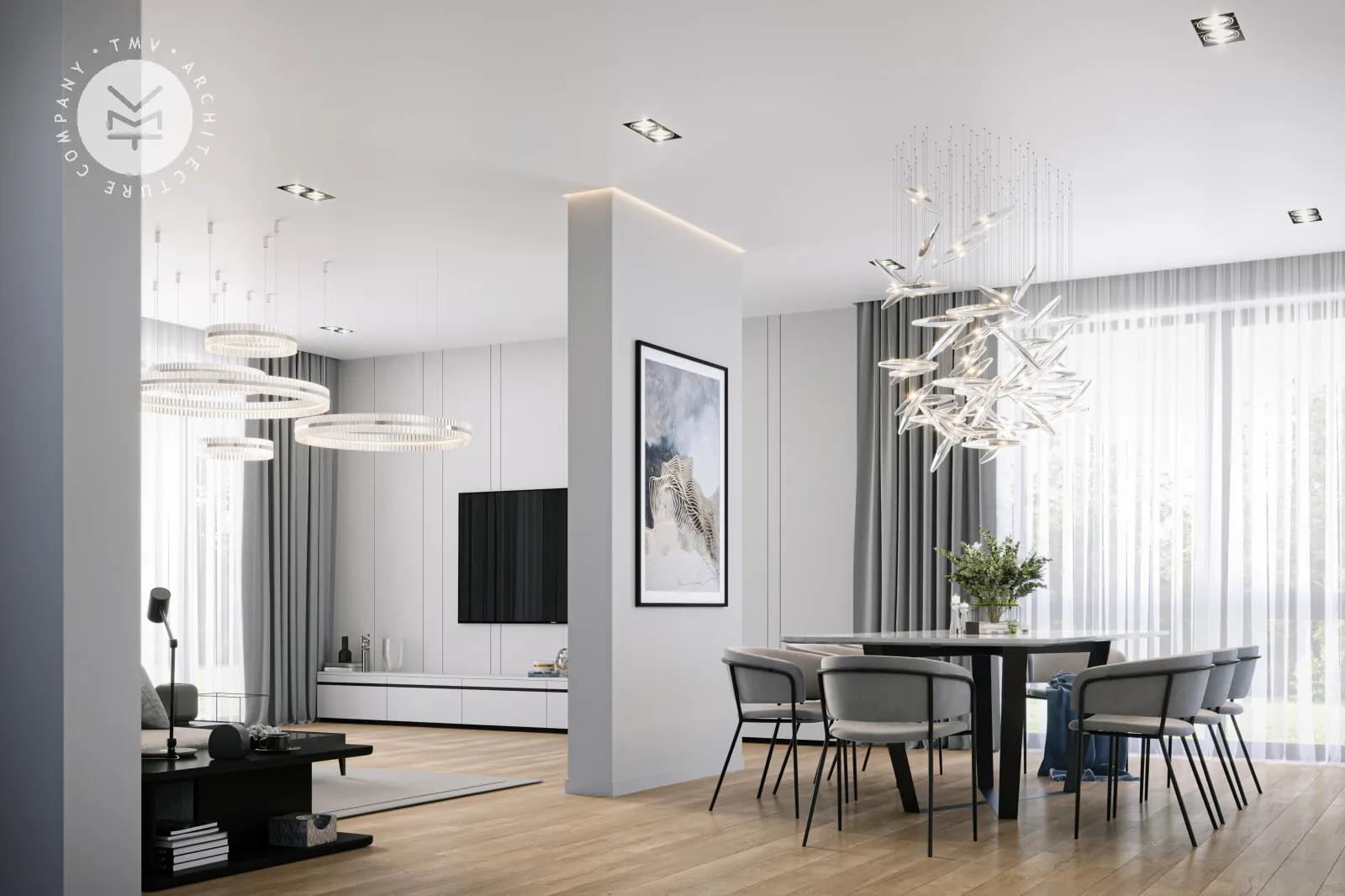

You arrive through a proper entry that keeps coats and shoes away from the main rooms, then step into an open floor plan where the large family room and the kitchen share one generous space. The large kitchen is organized around a breakfast bar for quick meals and conversation with whoever is cooking, while a breakfast nook set beside a corner window makes a bright place for the first coffee of the day. Large windows and floor-to-ceiling windows draw daylight deep into the living area and keep the view of the yard in sight from the sofa. A home office offers a quiet room for remote work, homework or paying the bills, separate from the everyday movement of the house.

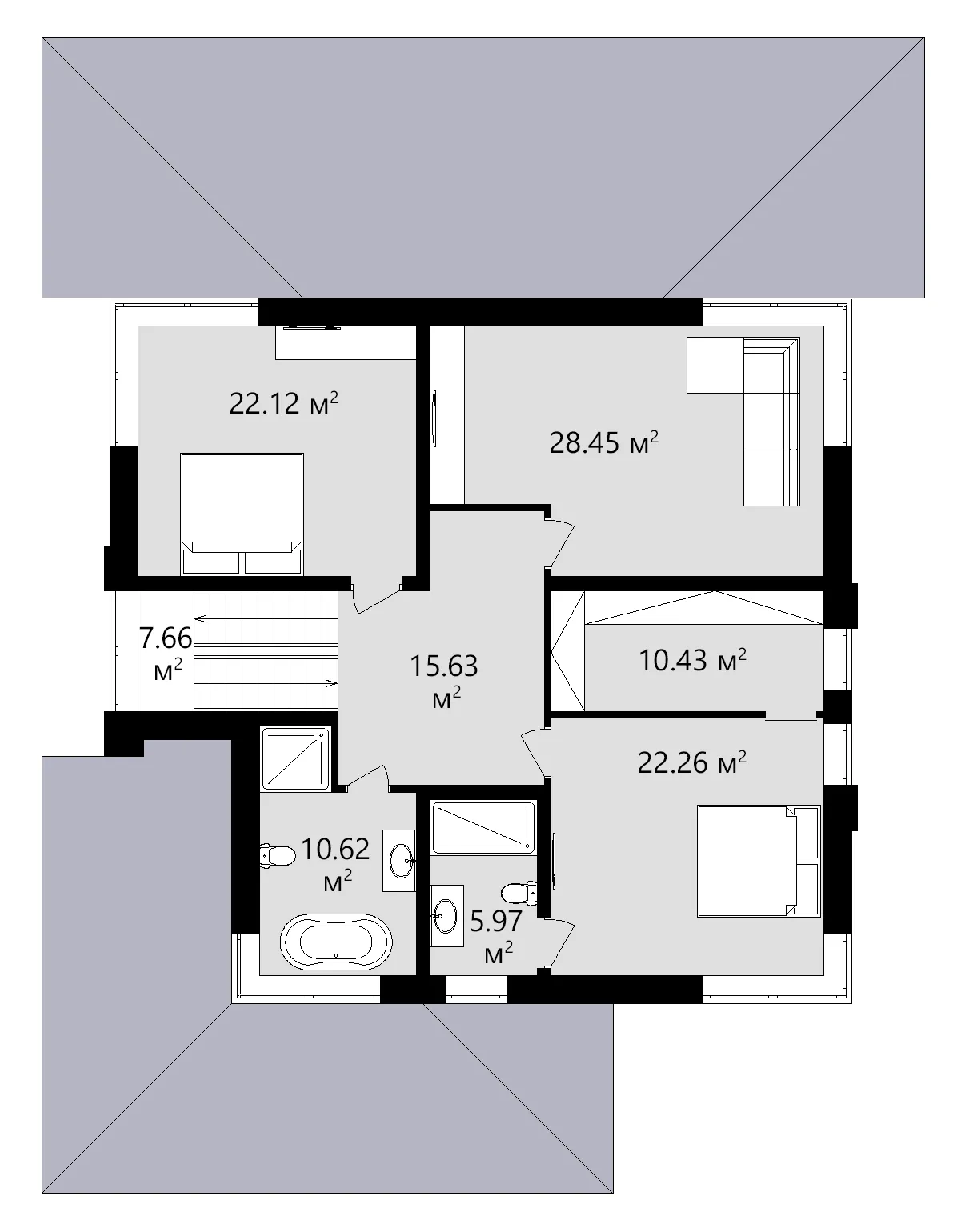

The bedrooms are clustered together, which keeps the sleeping quarters calm and close for families with children, and the master suite is placed on the second floor, away from the daytime spaces. A walk-in closet keeps clothing and seasonal things neatly out of sight, and three full bathrooms mean no morning queue. Practical rooms are handled with care: laundry on the main floor saves carrying baskets up and down the stairs, and a dedicated utility room keeps the mechanical equipment out of the living areas.

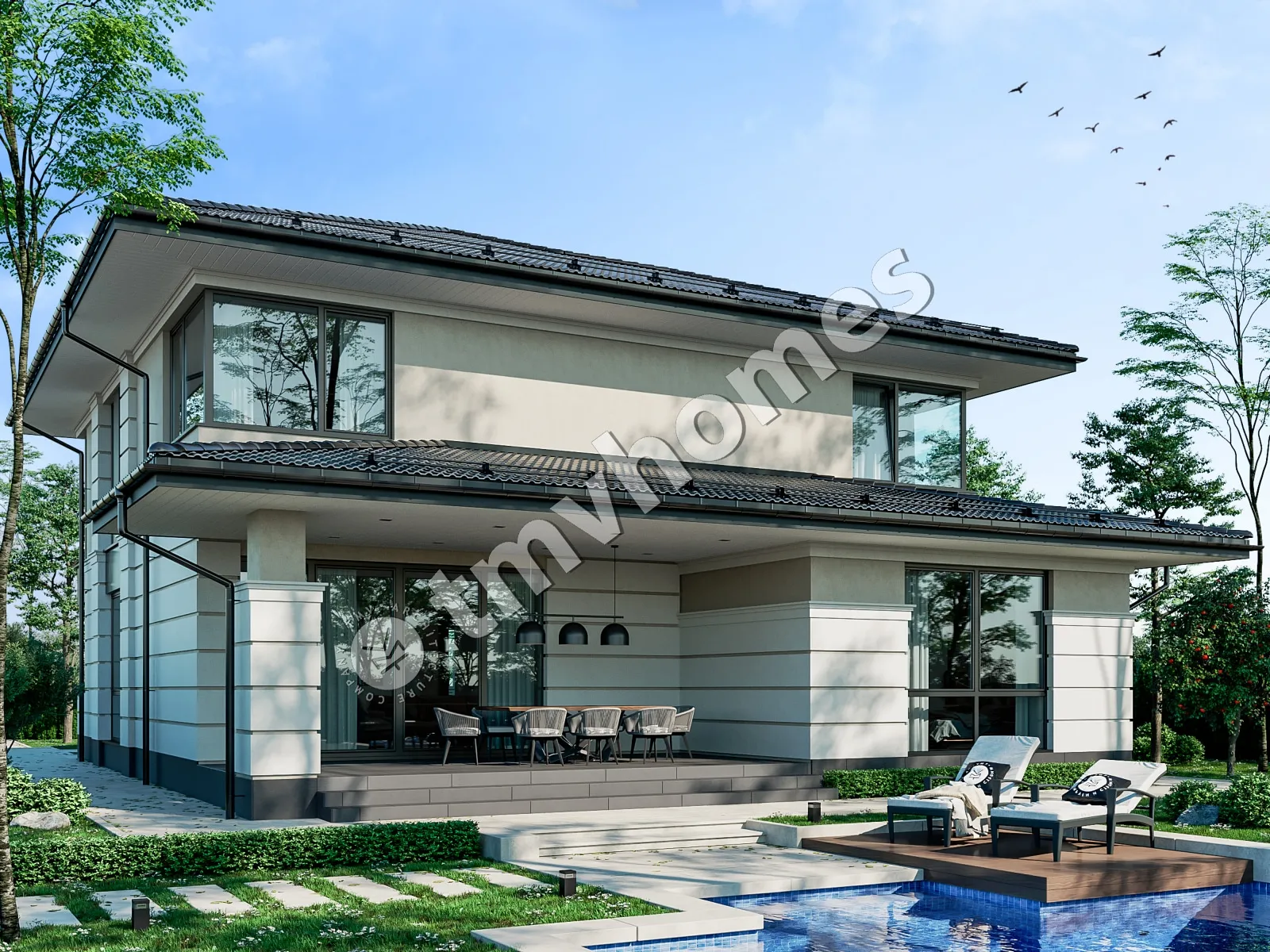

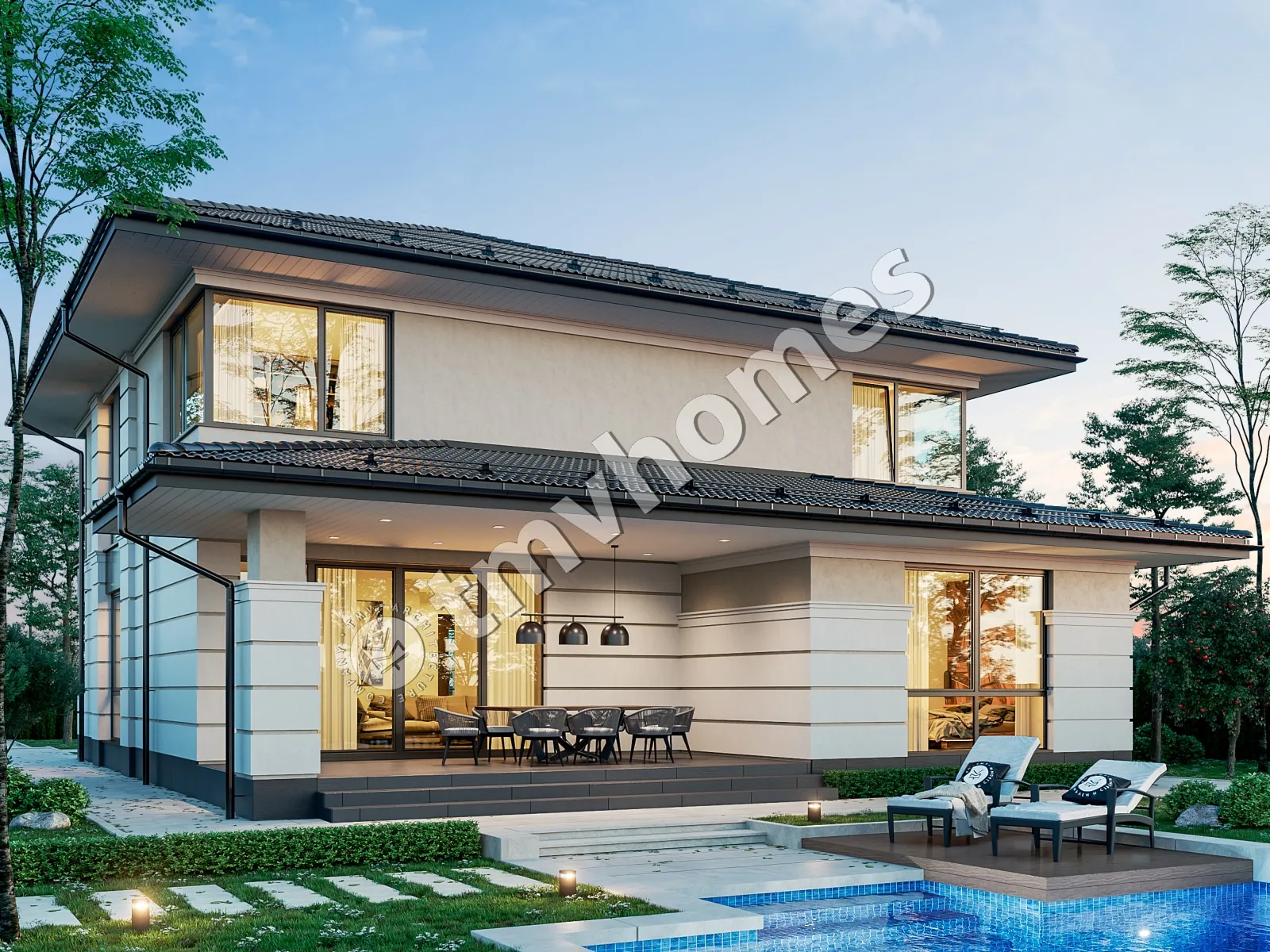

At the back, a covered rear porch extends the living space outdoors for long summer dinners, sheltered from sun and rain. The house stands on strip footings and has no basement; it is also available with a slab or a concrete block foundation. The exterior walls are framed in aerated concrete, with ceramic hollow blocks or calcium silicate blocks available on request. As a house plan without a garage, it devotes its whole footprint of 3,025 Sq Ft to the rooms where the family actually lives.
