2,760 Sq Ft Traditional 2-Story Family House Plan with 4 Bedrooms and 3 Bathrooms
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.
Design concept 79870C is a Traditional 2-story family house, Total Heated 2,760 Sq Ft, with 4 bedrooms and 3 bathrooms for 4-6 people, available for purchase as a digital house design concept. Stucco walls and a hip-and-valley roof give the house a classic, tidy exterior that sheds rain and snow in every direction.

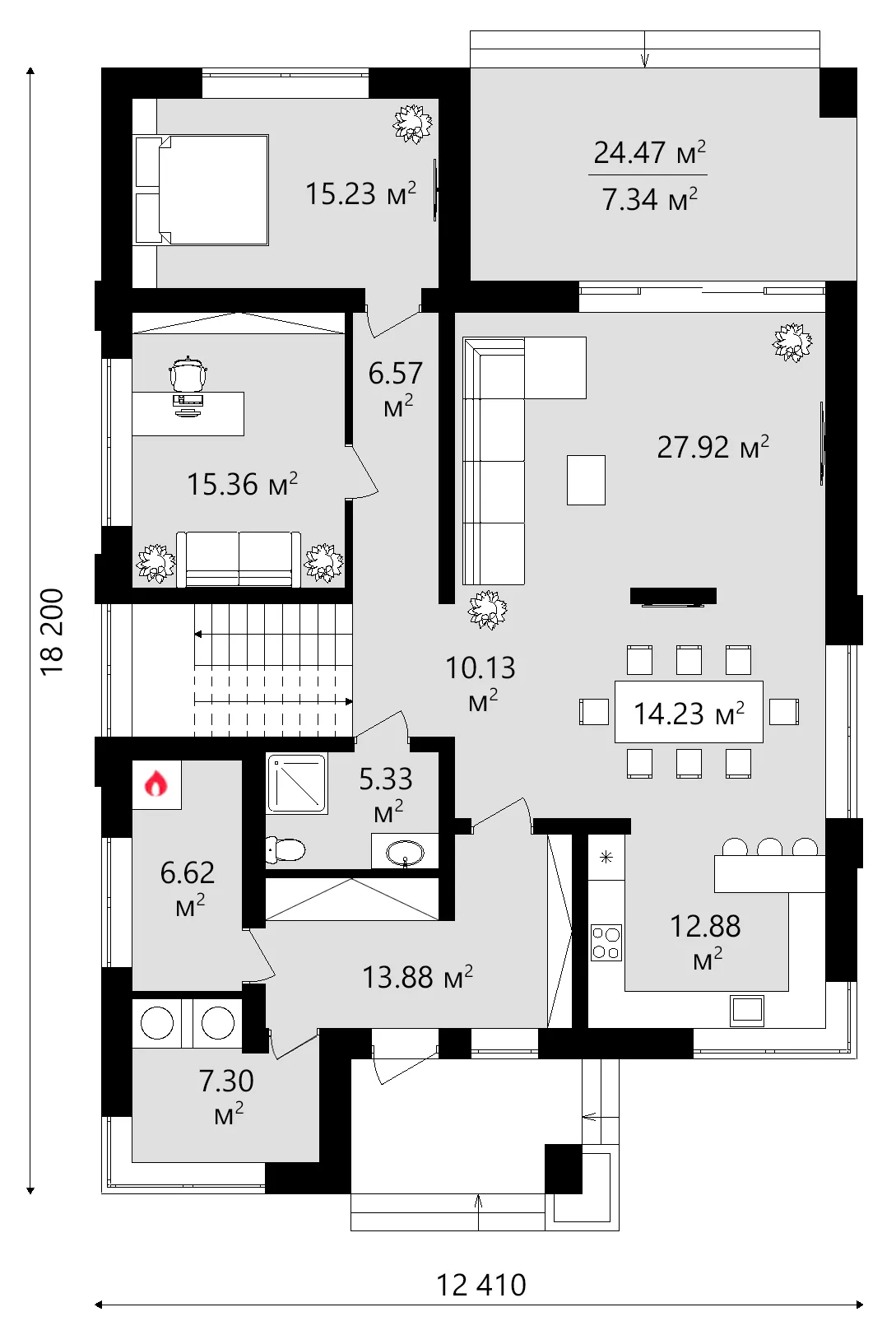

The entry leads into an open floor plan where the great room, the dining space and the large kitchen share one space, so the family stays together while cooking. A breakfast bar serves quick meals, the breakfast nook with a corner window makes a bright spot for mornings, and floor-to-ceiling windows fill the great room with daylight. A home office on the ground floor keeps work apart from the bedrooms.

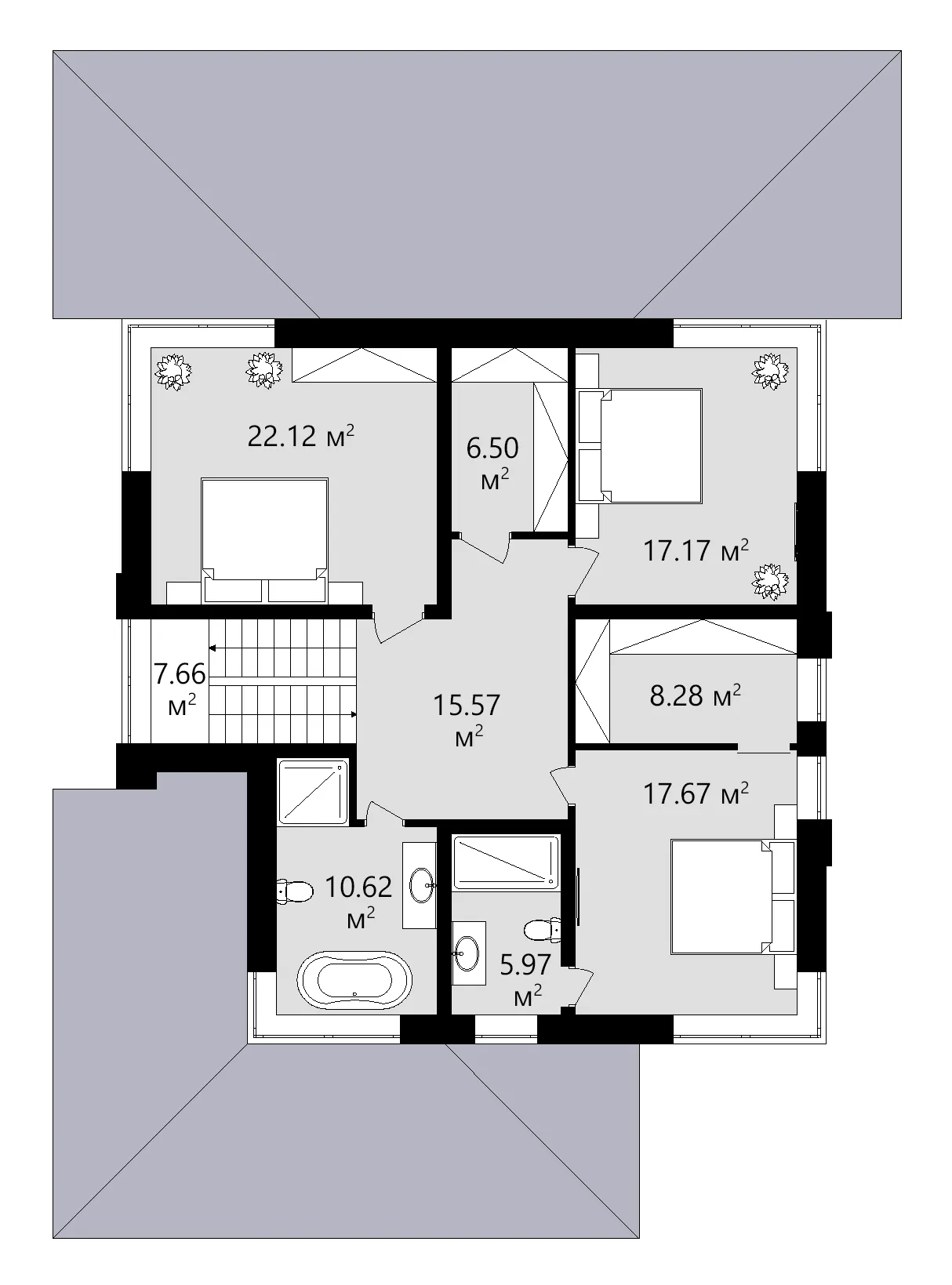

The bedrooms are clustered on the second floor, which keeps the night zone quiet and the walks between rooms short. The primary suite has a walk-in closet that keeps clothes out of the bedroom, and three full bathrooms shorten the morning queue. The laundry and a utility room keep chores and technical equipment away from the living areas.

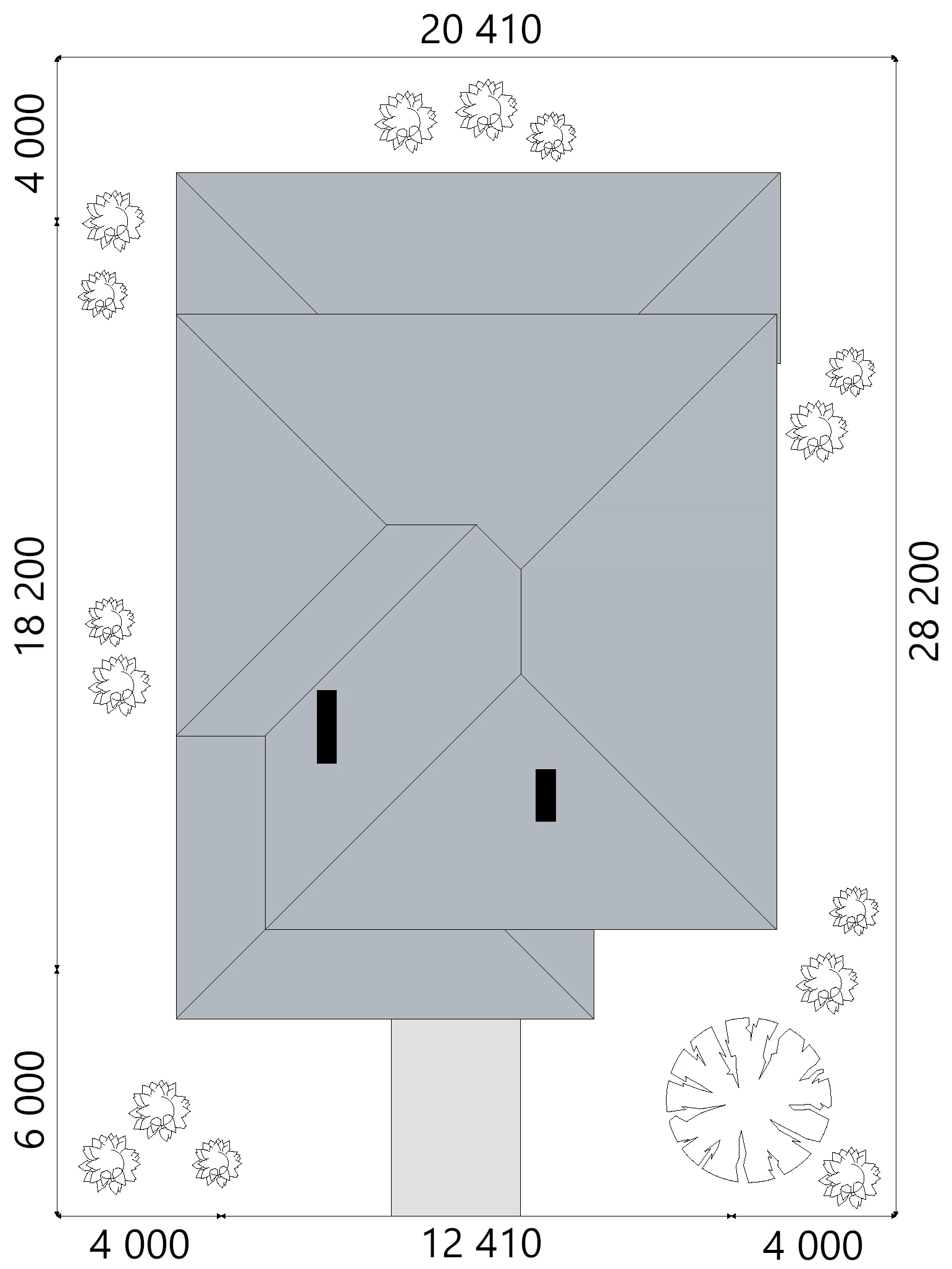

A covered rear porch extends the living space outdoors in any weather. The house is 37'8" wide and 55'5" deep. The main foundation is strip footings, with a slab or a block foundation as options; the exterior walls are aerated concrete, with clay hollow block or sand-lime block as alternatives. In figures: Total Heated 2,760 Sq Ft, 4 bedrooms and 3 bathrooms.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
Advanced Drafting & Design Co. Mooresville US$ 13,800
My Home Floor Plans Rosemead US$ 1,600
Plan & Simple LLC Austin US$ 5,520
