Main Images 2 – 2-Story House Plan 2830 ft², 4 Beds — 99219C
Main Images 7 – 2-Story House Plan 2830 ft², 4 Beds — 99219C Main Images 11 – 2-Story House Plan 2830 ft², 4 Beds — 99219C
6
Concept
Construction documents are prepared for the following countries:

2-Story House Plan 2830 ft²: 4 Beds, Home Office, 4 Baths, Open Floor Plan, 2-Car Garage

Plan
99219C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2830
Total Heated ft²
4 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

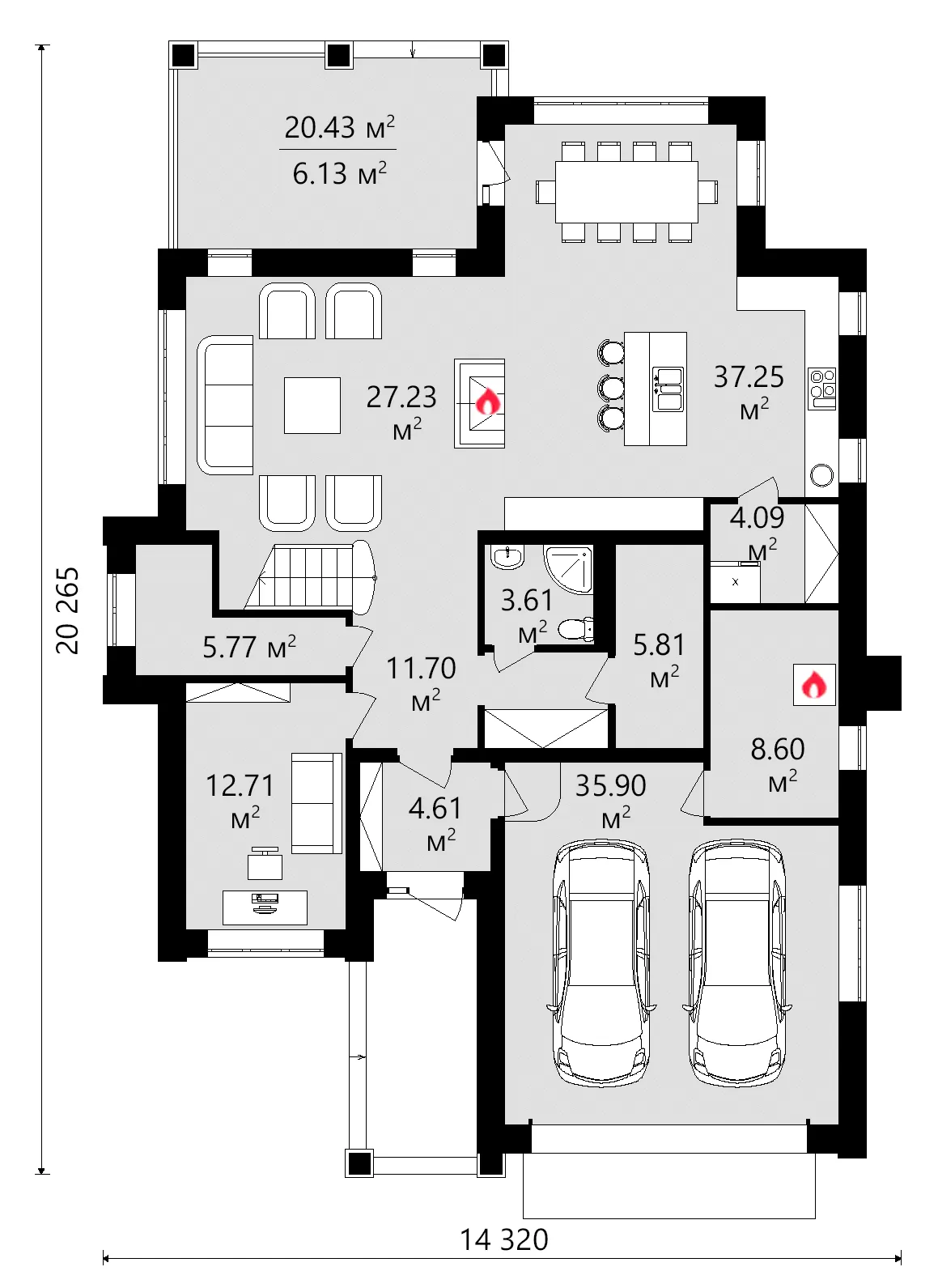

Main Floor
Main Floor 4 – 2-Story House Plan 2830 ft², 4 Beds — 99219C

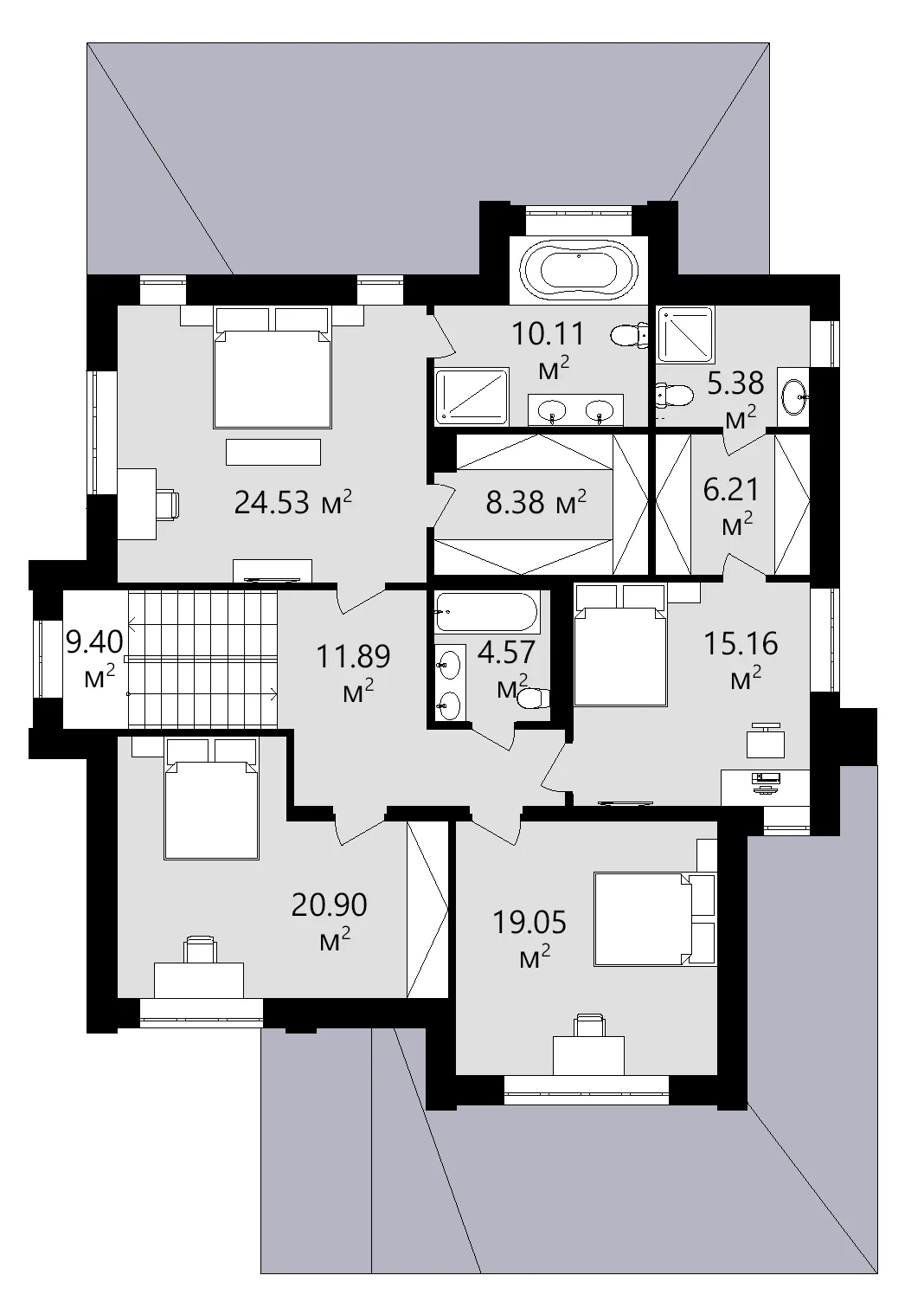

Second Floor
Second Floor 6 – 2-Story House Plan 2830 ft², 4 Beds — 99219C
Full Specs & Features
Area
Total Unheated: 386.42 ft²
Total Heated: 2829.83 ft²
Dimensions
Depth: 61'8" ft
Width: 43'6" ft
Height: 30'8" ft
Garage
Area: 386 ft²
Cars: 2
Front Entry
Extension Forward
Foundation
Ławy
Płyta (Optional)
Z bloczków (Optional)
Exterior Wall Framing
Beton komórkowy
Pustak ceramiczny (Optional)
Bloczek silikatowy (Optional)
Exterior Wall Materials
Stucco
Rooms
Full bathrooms: 4
Bedrooms: 4
Utility room
Entry
Home Office
Storage
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Island
Interior Features
Fireplace in Family Room
Second Floor Master
2 Master Suites
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Architectural Style
Classical
Neoclassical
Transitional
American

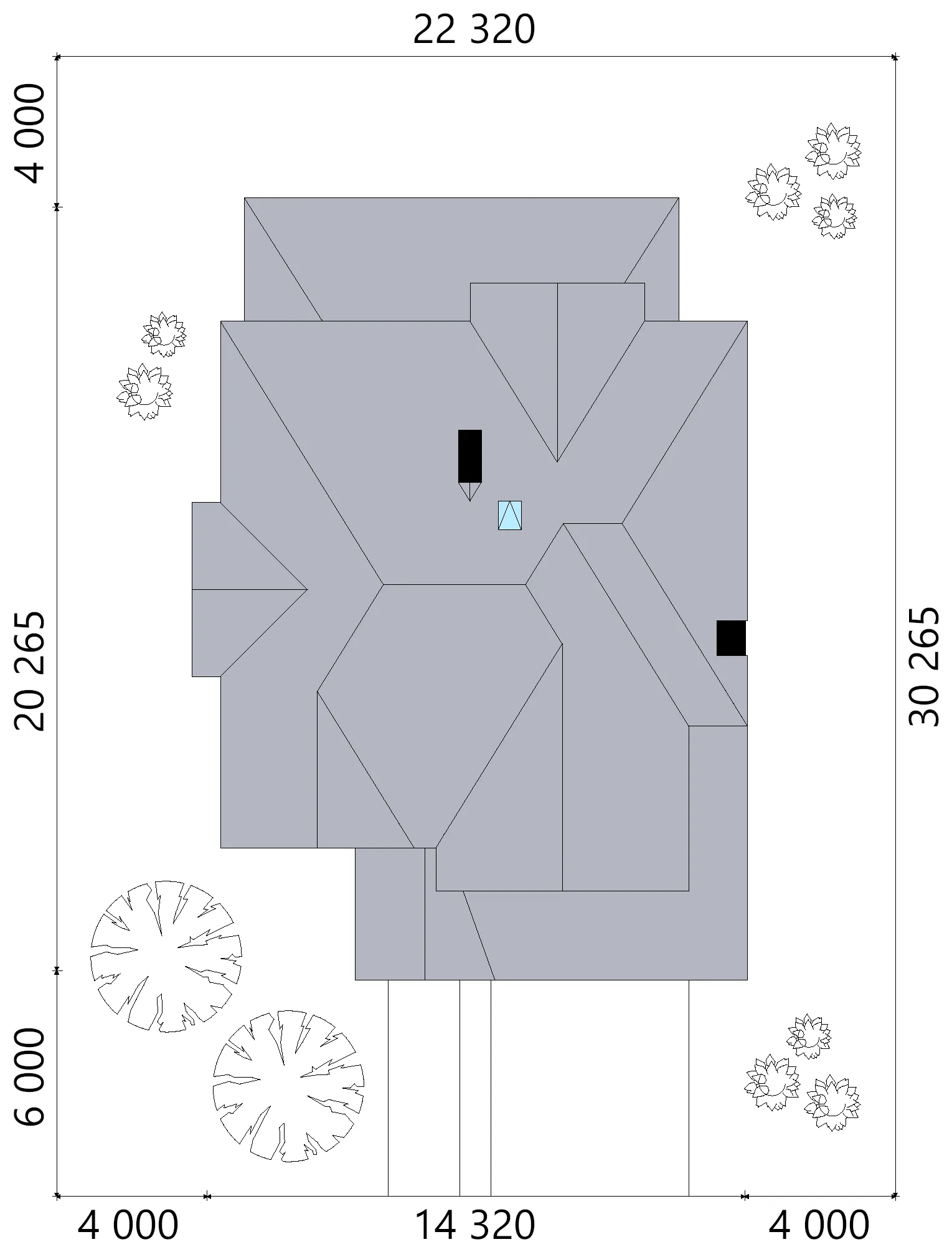

Roof
Roof Area: 3613.44 ft²
Hip & Valley
Roof Pitch: 9/12 (37°)

Plan 99219C is a 4-bedroom 3-story house plan with 2830 ft² of living space, a Neoclassical stucco exterior and a hip and valley roof set at a 9/12 pitch. This single-family home pairs Classical and Neoclassical character with a Transitional, distinctly American layout. It has four bedrooms, four full bathrooms and a two-car garage. The house measures 43'6" wide and 61'8" deep, with a height of 30'8".

The entry opens toward an open floor plan built around a large family room with a fireplace, the natural gathering place on winter evenings. The family room flows into a large kitchen designed for real cooking and easy company. A central island and a breakfast bar give space for both preparation and quick meals. The breakfast nook holds the everyday table, and the walk-in pantry keeps groceries and small appliances out of sight. A dedicated home office gives a quiet place to work away from the main living area, which suits families who split their days between work and home.

The bedrooms are clustered, so the private rooms stay close together and apart from the daily activity below. The layout includes two master suites, with a second-floor master, which makes this a practical choice for multigenerational living or for hosting long-term guests in comfort. Walk-in closet space adds generous storage for clothing. With four full bathrooms, no bedroom has to share in a hurry on a busy morning. A utility room and separate storage handle laundry, seasonal items and household equipment, so the living spaces stay uncluttered.

Outside, the covered rear porch extends the family room into the open air for slow mornings and summer dinners. The front-entry two-car garage extends forward of the main facade and gives direct, convenient parking. This house plan has no basement and stands on strip footings, and it is also available with a slab or a concrete block foundation. The exterior walls are framed in autoclaved aerated concrete, with ceramic hollow block or calcium silicate block also available on request. The stucco finish and the 9/12 hip roof give the home a calm, timeless presence on any street.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1476
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
