2,760 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.
House design concept 15943C, available for purchase in digital form, describes a modern 2-story single-family home with a total heated area of 2,760 Sq Ft, 4 bedrooms and 3 bathrooms. The layout comfortably serves 4-6 people, and a hip-and-valley roof over stone and brick veneer walls gives the exterior a solid look. The house measures 39'0" wide and 56'4" deep.

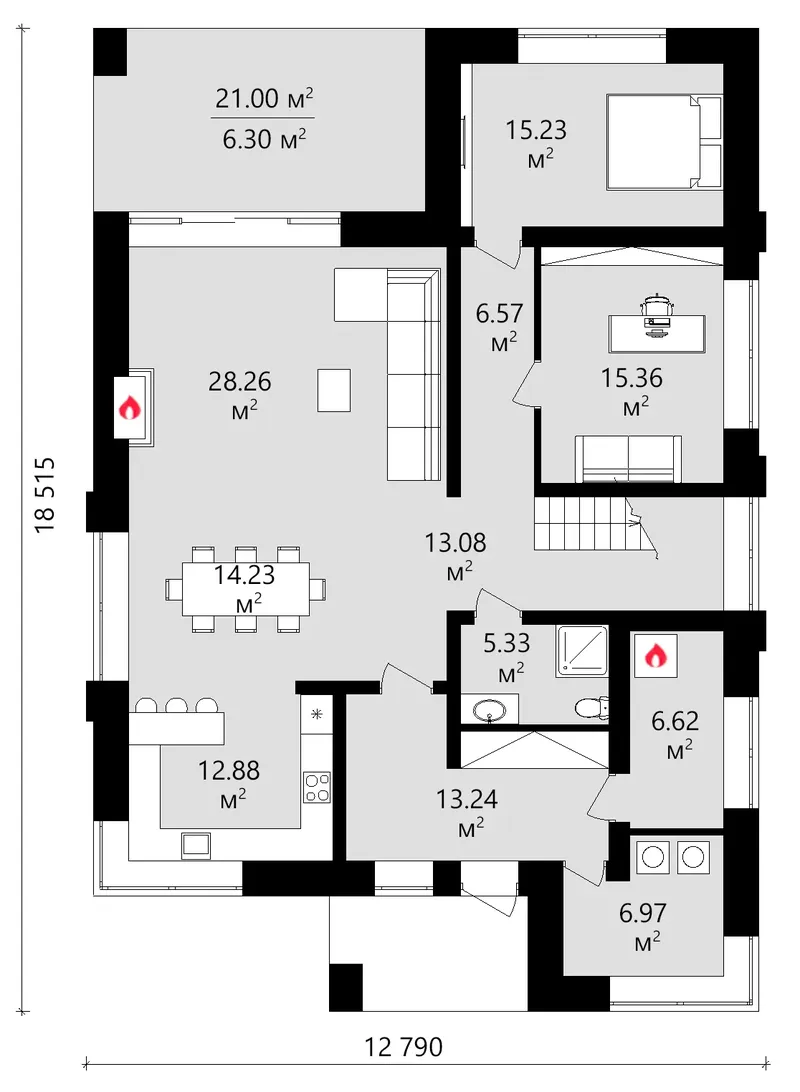

An entry leads into an open floor plan where a large great room with a fireplace becomes the gathering point for the whole family. The large kitchen pairs a breakfast bar for quick meals with a breakfast nook lit by a corner window. A home office on the main floor keeps work apart from the bedrooms.
The primary suite sits on the second floor, and its walk-in closet keeps clothes organized away from the sleeping area. Laundry on the main floor saves trips up and down the stairs, and a separate utility room keeps household equipment out of the living spaces.
A covered rear porch extends daily life outdoors in any weather, while large windows, floor-to-ceiling glazing and a corner window fill the rooms with daylight. The house stands on strip footings, with a slab or a concrete block foundation as options. The exterior walls are built of aerated concrete blocks, with clay hollow blocks or calcium silicate blocks as alternatives. In figures: a total heated area of 2,760 Sq Ft, 4 bedrooms and 3 bathrooms.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
