2,774 Sq Ft Prairie H-Shaped Single-Story House Plan with 4 Bedrooms, 5 Bathrooms and 2-Car Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej

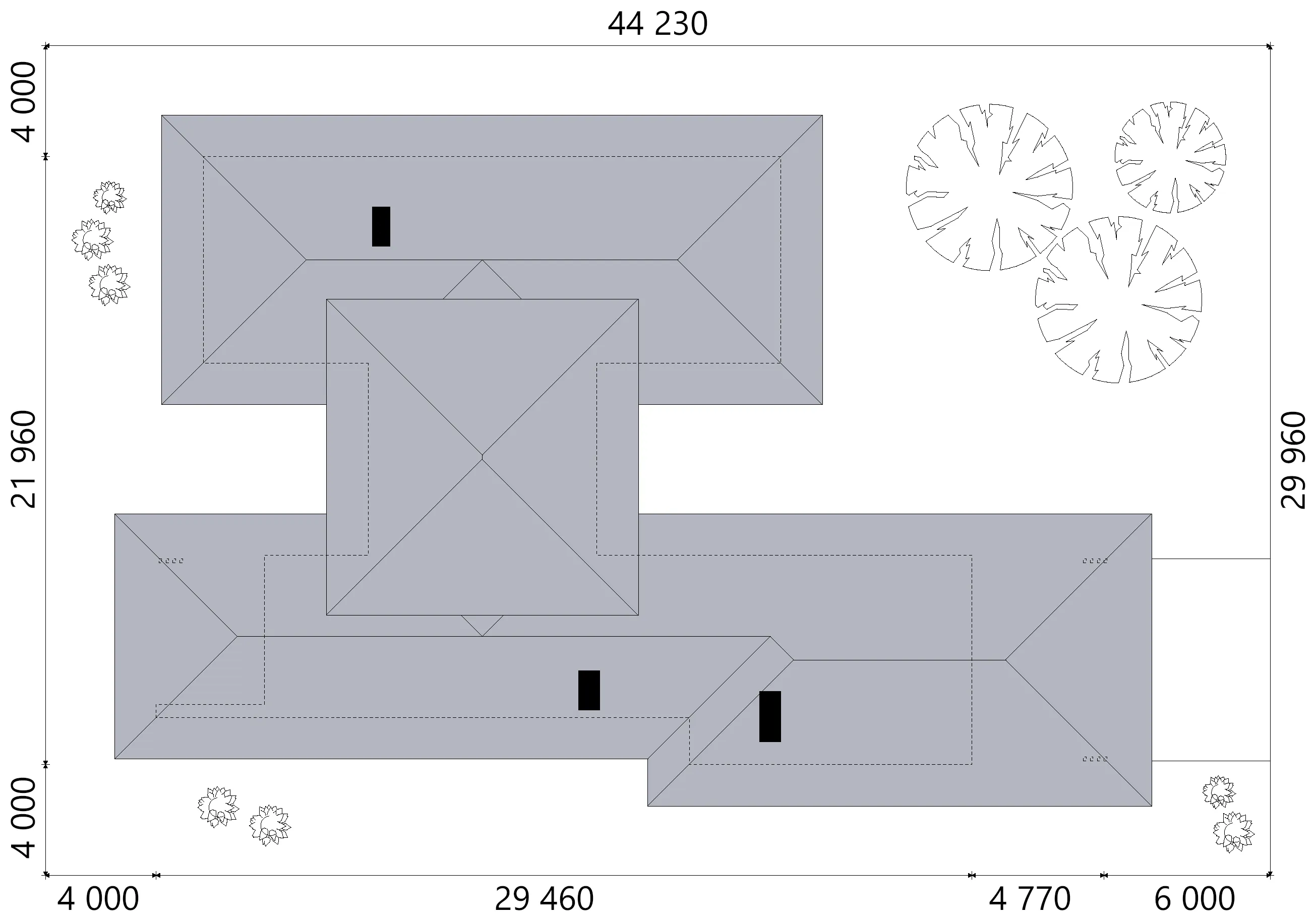

Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.
The 33083C house design concept is a Prairie H-shaped single-story single family home with 4 bedrooms, 5 bathrooms and a 2-car garage, designed for 4-6 people. A hip and valley roof with a low 3/12 pitch keeps the profile long and horizontal, and the H-shaped footprint wraps the rooms around the outdoor living space. The facade combines wood with flexible ceramic for a warm, textured exterior.
The entry leads into an open floor plan centered on a large great room open to the roof above, which gives the day zone volume. Floor-to-ceiling, panoramic and corner windows bring daylight deep inside. The large kitchen has an island and a breakfast bar for quick meals, a breakfast nook for the family table and a walk-in pantry for bulk supplies. A home office on the main floor gives a quiet place to work.
All bedrooms are on one level. The main floor primary suite has a walk-in closet and its own bathroom, while the other bedrooms are clustered together in one part of the house. Five full bathrooms ease the morning routine, and the utility room and storage keep household equipment out of the living spaces.
The covered rear porch with an outdoor kitchen and outdoor fireplace extends living outdoors through the seasons. The 2-car garage has front entry for a direct driveway. The house measures 66'9" wide and 104'3" deep. Strip footings are standard, with a slab or block foundation as options; the exterior walls are aerated concrete, alternatively ceramic hollow block or sand-lime block. In figures: Total Heated 2,774 Sq Ft, 4 bedrooms, 5 bathrooms and a 2-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
Advanced Drafting & Design Co. Mooresville US$ 13,873
My Home Floor Plans Rosemead US$ 1,600
Plan & Simple LLC Austin US$ 5,549
