2,231 Sq Ft Prairie U-Shaped Single-Story House Plan with 3 Bedrooms, 3 Bathrooms and Carport
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje

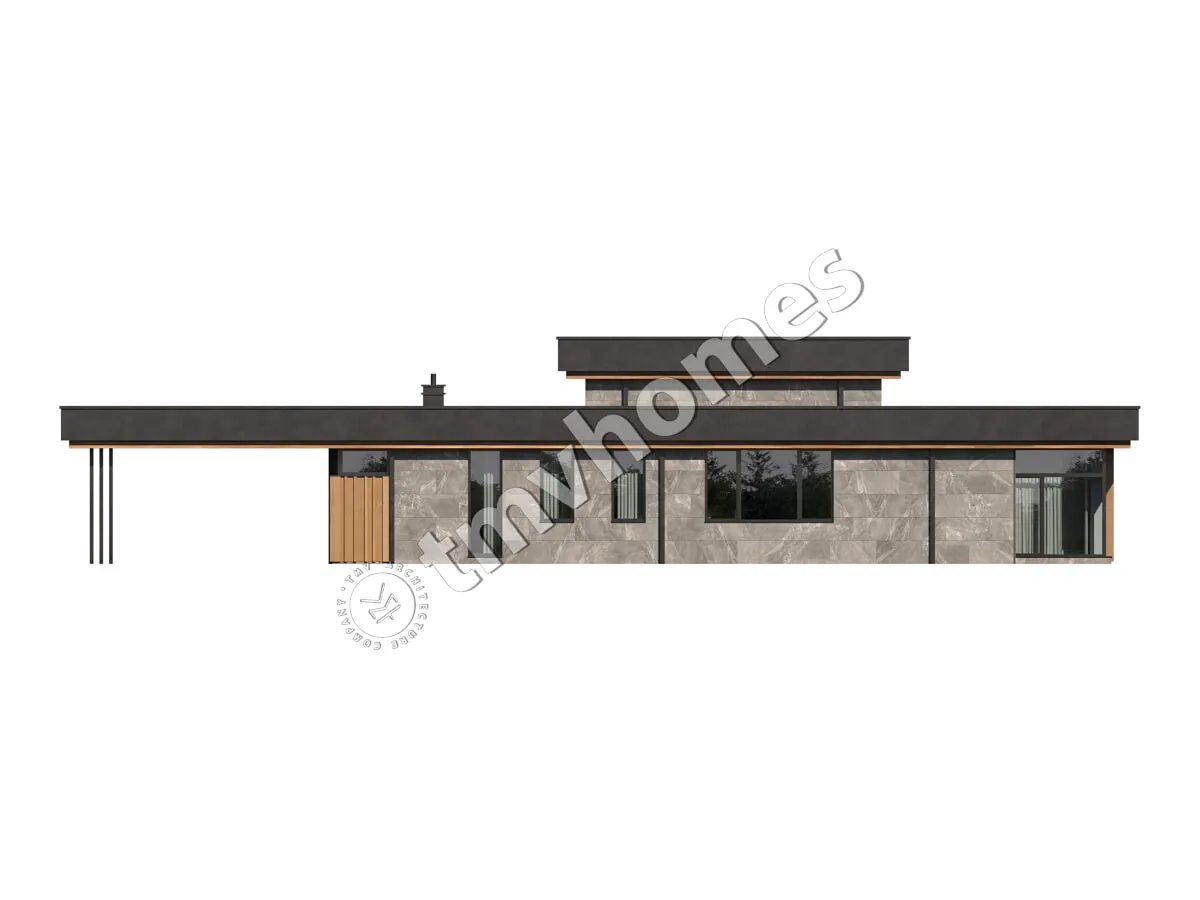

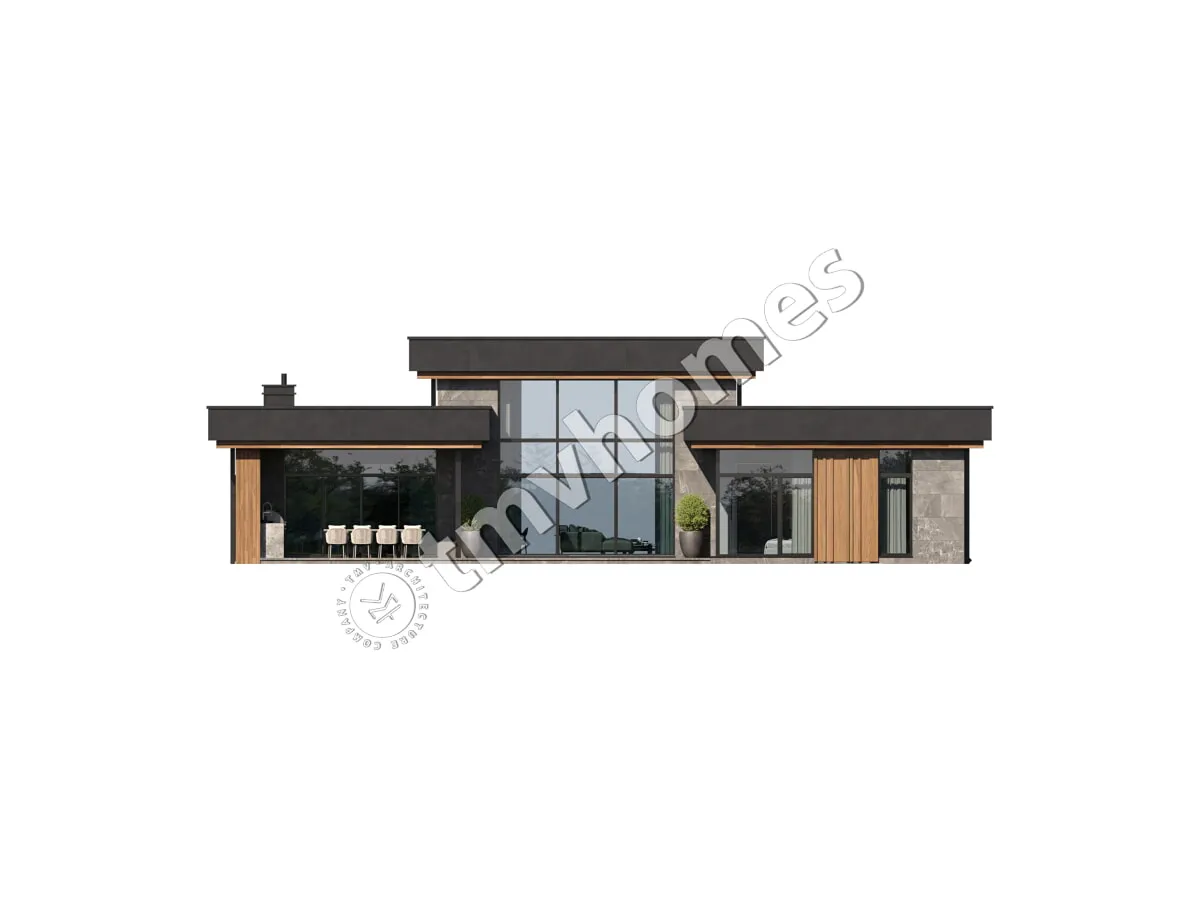

Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

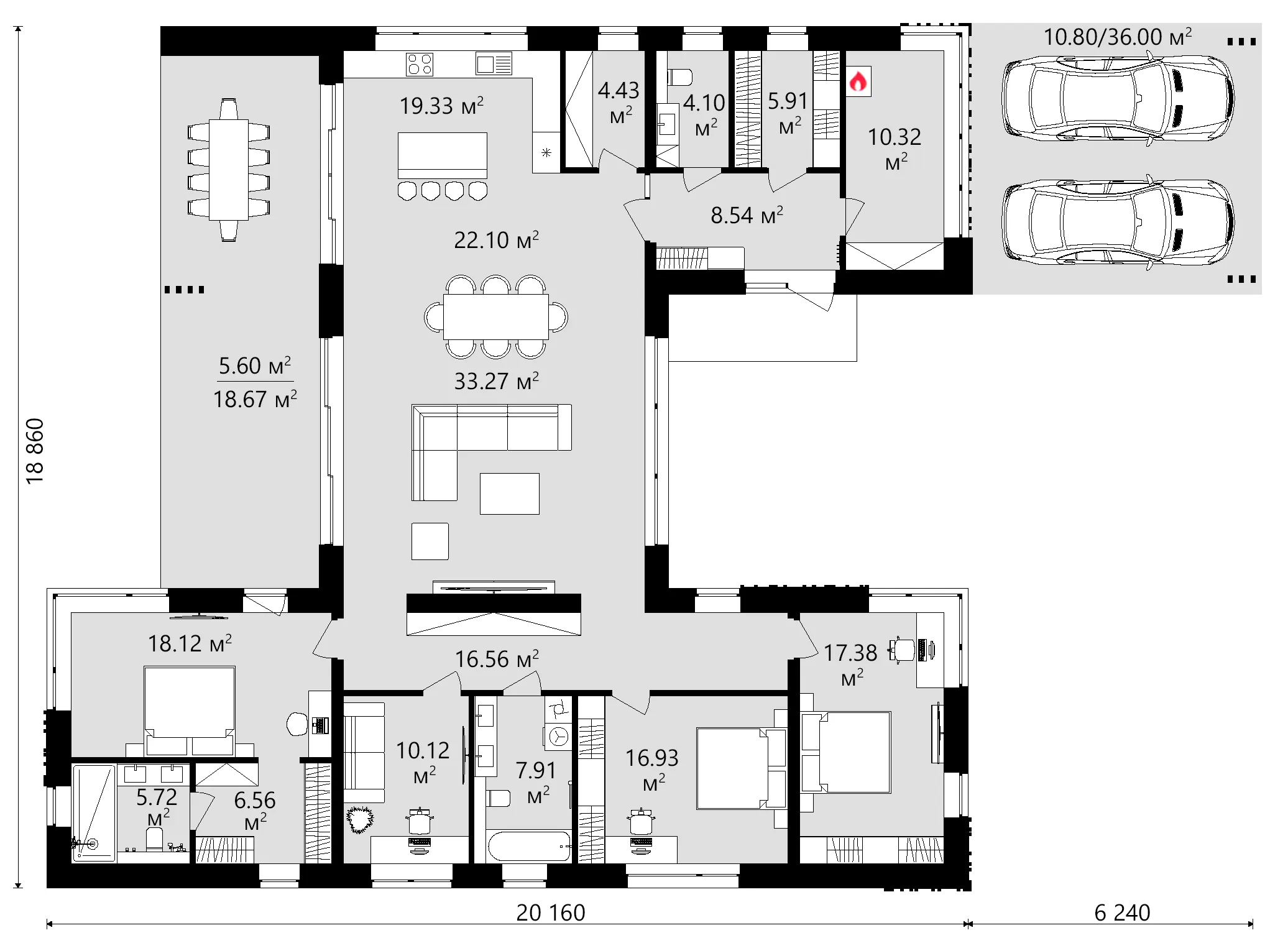

The 15823C digital house design concept describes a single-story Prairie single-family home with a U-shaped layout and a total heated area of 2,231 Sq Ft, designed for 3–4 people. It offers 3 bedrooms, 3 full bathrooms and a carport under a flat roof that keeps the low, horizontal lines of the style. The U-shaped footprint, 57'5" wide and 80'5" deep, brings daylight into more rooms.
An entry leads into an open floor plan where the large great room and the large kitchen share one space, so the cook stays part of the conversation. The kitchen has an island for prep work and a breakfast bar for quick meals. Panoramic, corner and floor-to-ceiling windows fill the interior with natural light. A home office on the main floor gives a quiet place for remote work.
The bedrooms are clustered together on one level, which keeps the night zone compact and the parents close to the children. The primary suite has a walk-in closet that holds clothes without extra wardrobes. Three full bathrooms shorten the morning queue, and a utility room gathers the technical side of the house in one place.
A covered rear porch extends the living space outdoors even on rainy days. The carport shelters two cars from snow and sun. Wood, tile and panel cladding give the exterior a varied texture. The standard foundation is strip footings, with a slab or a block foundation as options to suit the soil; the walls are planned in aerated concrete, with clay block or calcium silicate block as alternatives. In figures: a total heated area of 2,231 Sq Ft, 3 bedrooms, 3 bathrooms and a 2-car carport.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
Advanced Drafting & Design Co. Mooresville US$ 11,157
My Home Floor Plans Rosemead US$ 1,450
Plan & Simple LLC Austin US$ 4,463
