2,633 Sq Ft Modern H-Shaped Single-Story House Plan with 3 Bedrooms, 3 Bathrooms and Carport
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje

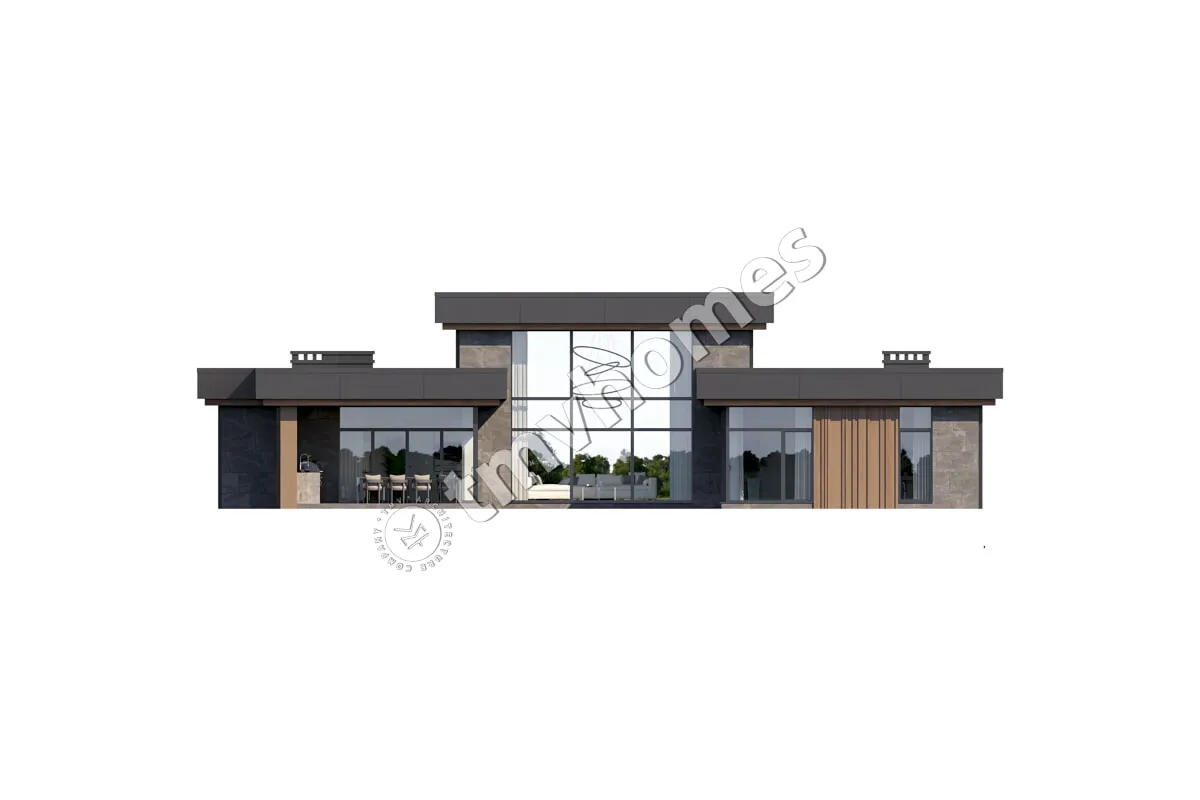

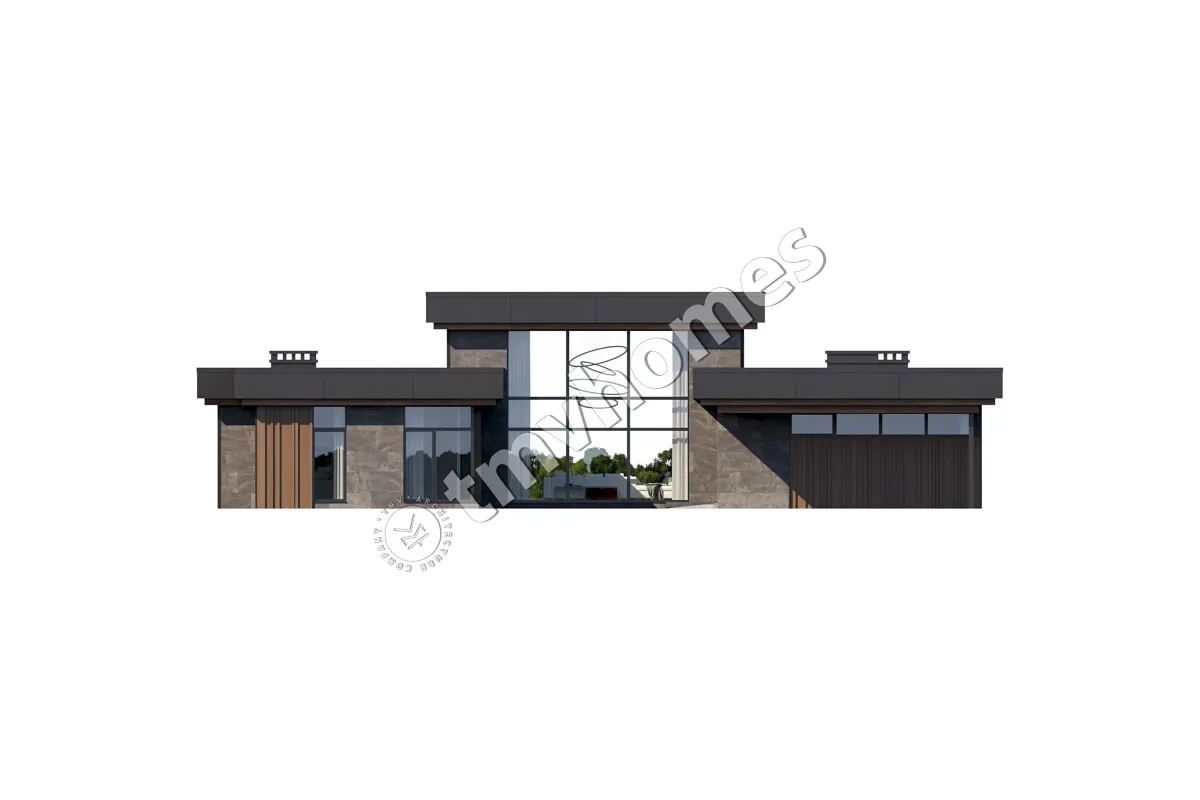

Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

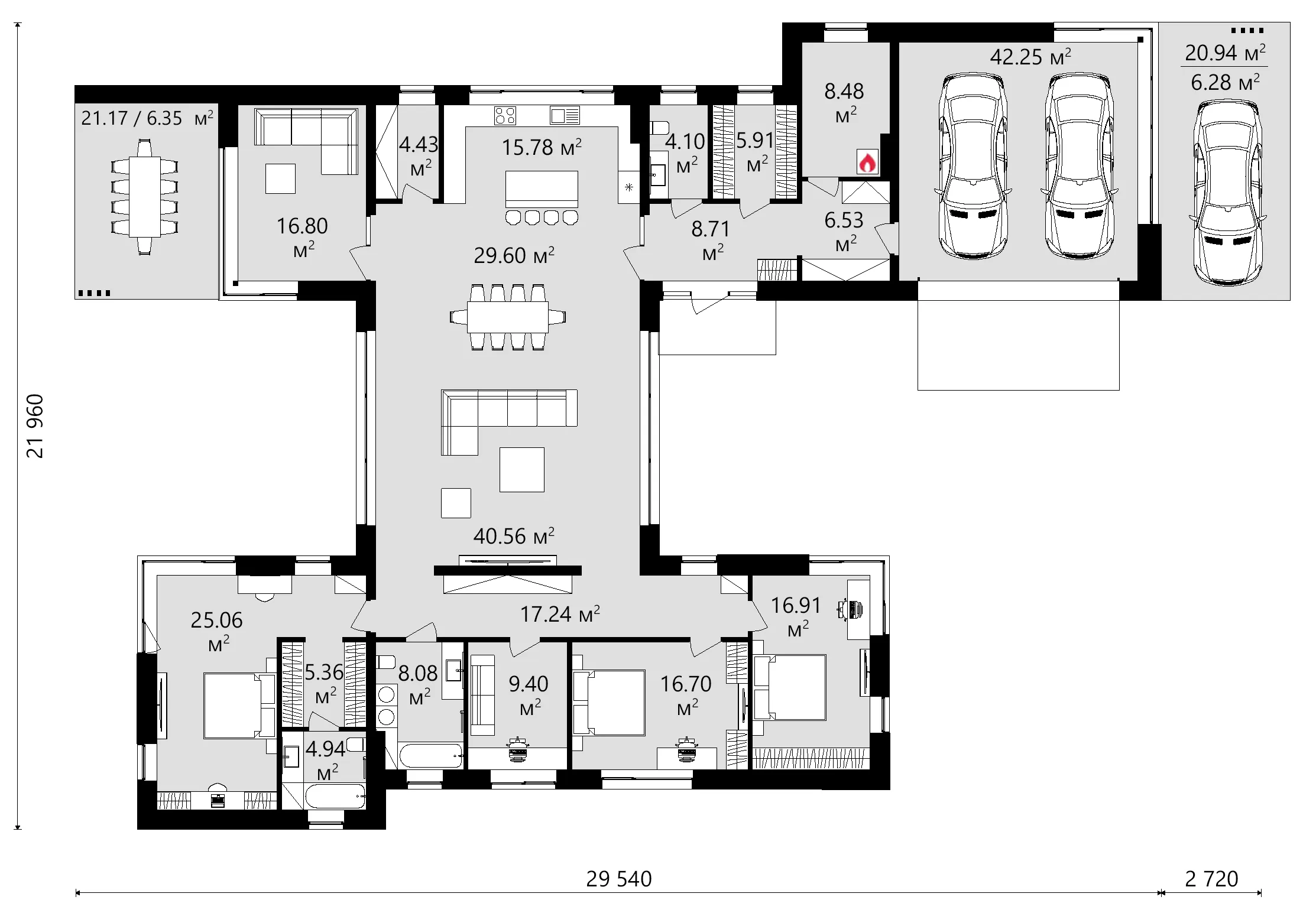

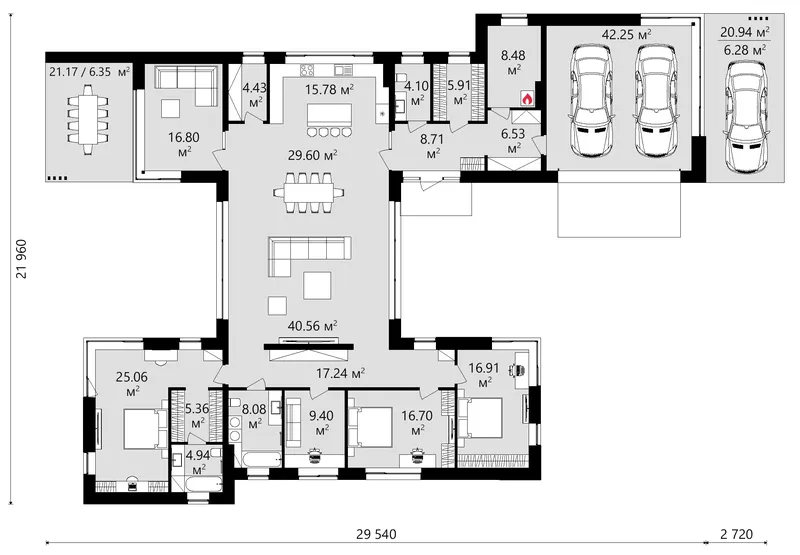

Plan 11806C is a modern single-story house design concept with an H-shaped layout, Total Heated 2,633 Sq Ft, 3 bedrooms and 3 bathrooms, available for purchase in digital form. The house is designed for a family of 3-4 people and places every room on one level under a flat roof. It is 66'9" wide and 98'5" deep, and wood, panels and flexible ceramic give the facade a varied texture.
The entry leads into an open floor plan where a large family room and a large kitchen with an island and a breakfast nook share daylight from window walls, panoramic, corner and floor-to-ceiling windows. A walk-in pantry keeps supplies out of sight. A home office lets you work undisturbed, and a bonus/flex room adapts to hobbies or guests.
Three clustered bedrooms form a quiet night zone, including the main-floor primary suite with a walk-in closet, and three full bathrooms spare everyone a morning queue. Laundry on the main floor, a utility room and storage keep chores and household equipment on the same level.
A covered side porch offers shaded time outdoors, and the front-entry carport shelters two vehicles. Strip footings are standard, with a slab or block foundation as options; exterior walls are aerated concrete, alternatively ceramic hollow block or silicate block. In figures: Total Heated 2,633 Sq Ft, 3 bedrooms, 3 bathrooms and a 2-car carport.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
