Renderings 2 – 2,823 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 18457C
Renderings 3 – 2,823 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 18457C Renderings 4 – 2,823 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 18457C
8
Concept
Construction documents are prepared for the following countries:

2,823 Sq Ft Modern 2-Story House Plan with 4 Bedrooms, 3 Bathrooms and 2-Car Garage

Plan
18457C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2823
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

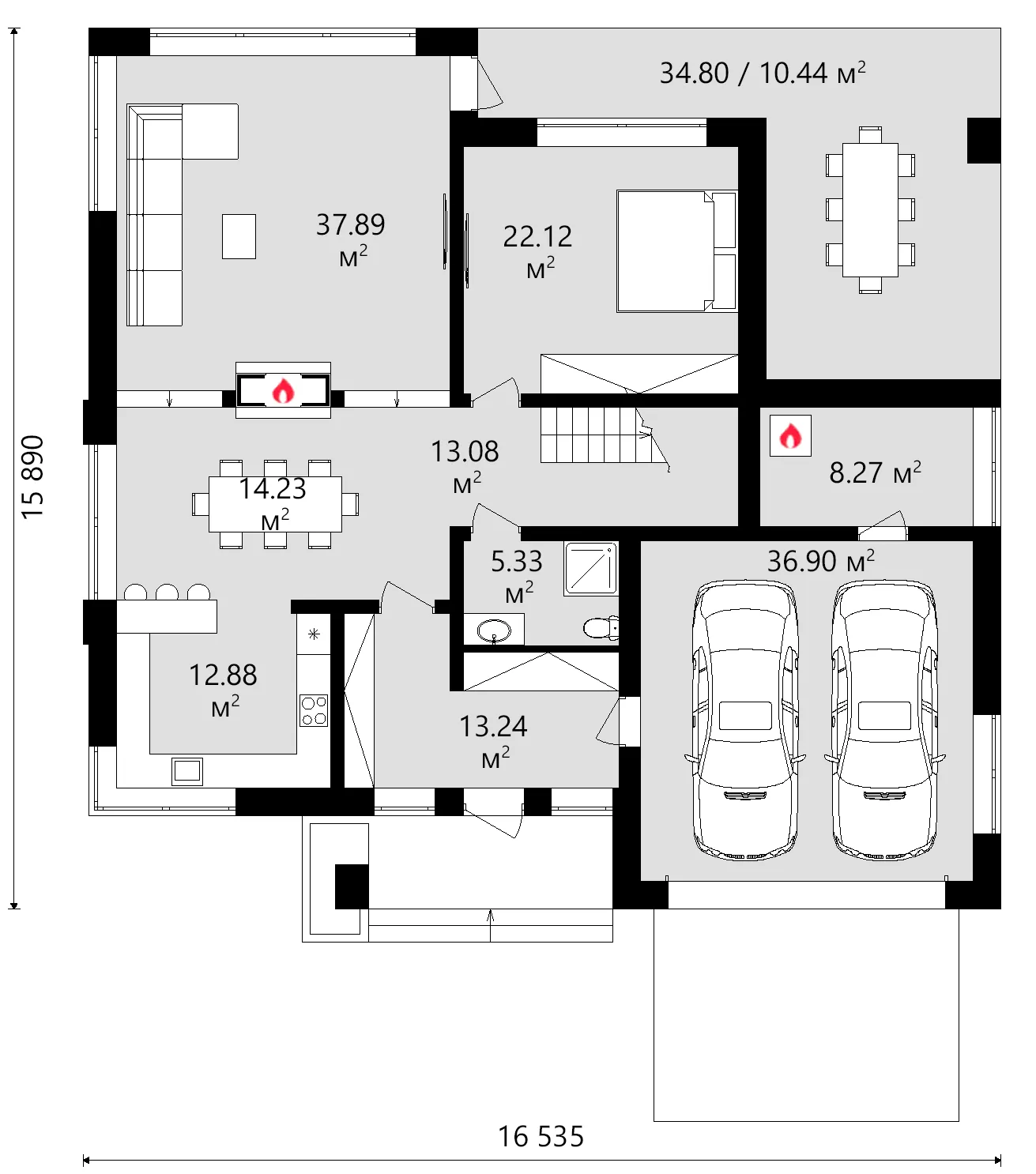

Main Floor
Main Floor 13 – 2,823 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 18457C

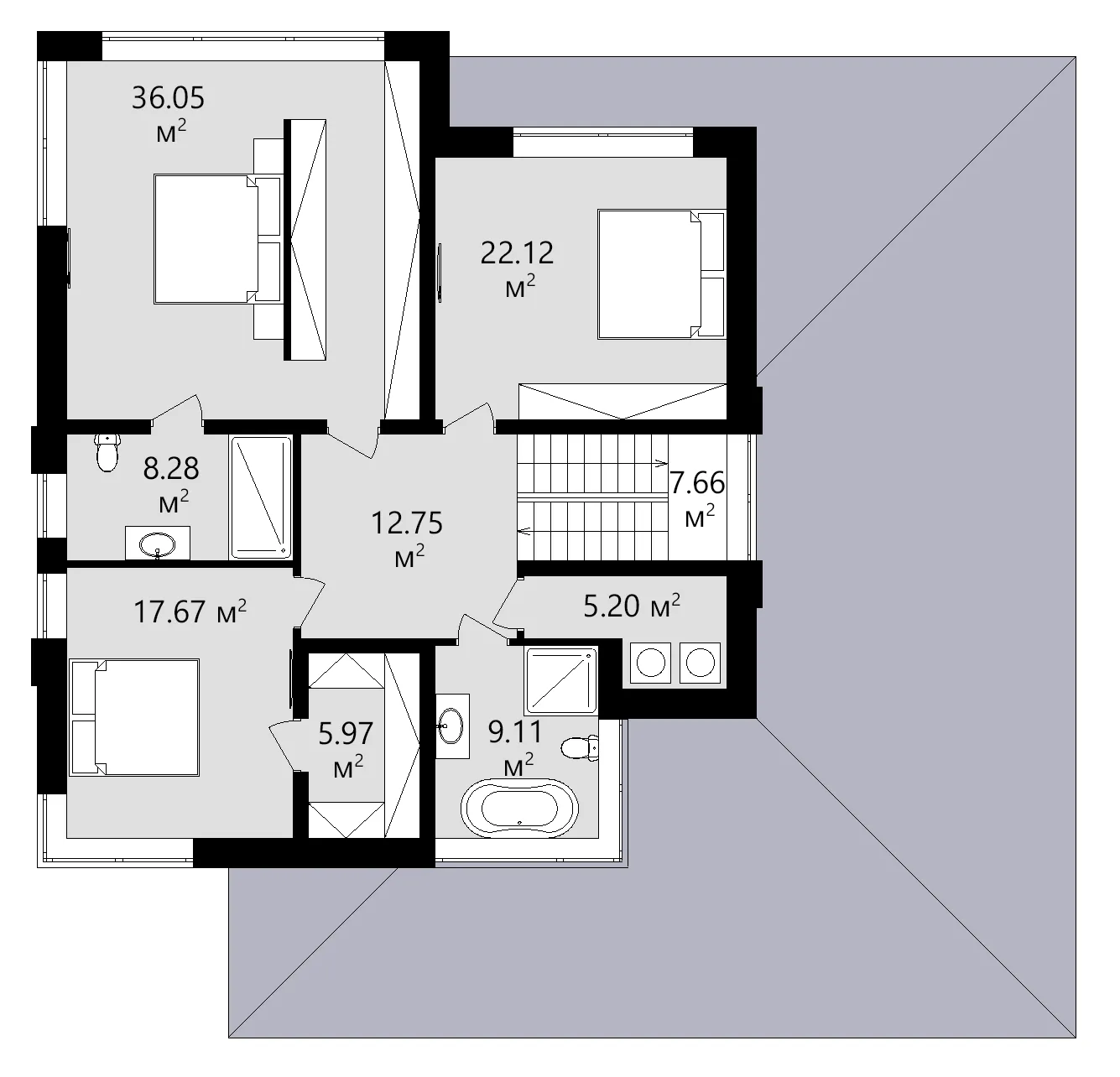

Second Floor
Second Floor 14 – 2,823 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 18457C
Full Specs & Features
Area
Total Unheated: 397.19 ft²
Total Heated: 2823.27 ft²
Dimensions
Depth: 48'4" ft
Width: 50'4" ft
Height: 27'8" ft
Garage
Area: 397 ft²
Cars: 2
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Laundry
Entry
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Corner Window
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Closed Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern
Roof

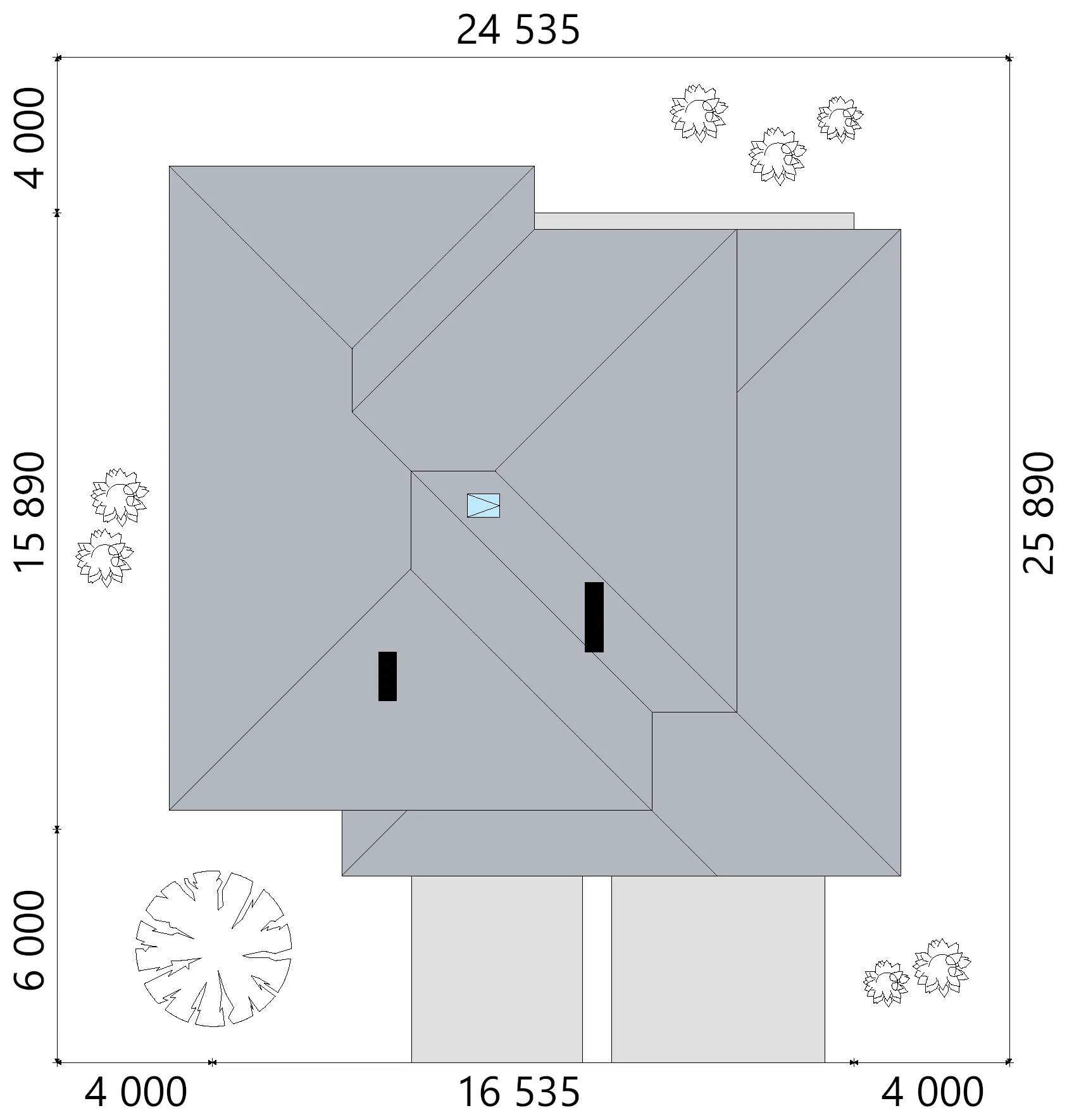

Roof Area: 4165.63 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

House design concept 18457C is a modern two-story single-family home with Total Heated 2,823 Sq Ft, 4 bedrooms, 3 full bathrooms and a 2-car garage. Sized for 4-6 people, it combines stone/brick veneer and wood with a hip and valley roof at a 5/12 pitch that sheds water on every side.

The entry leads into a closed floor plan that keeps cooking noise away from the living spaces. The large family room centers on a fireplace for cozy evenings. The large kitchen has a breakfast bar for quick meals and a breakfast nook with a corner window for relaxed mornings. Large windows, including floor-to-ceiling glass, bring in plenty of daylight, and a utility room keeps equipment out of sight.

The primary suite is on the second floor, with the bedrooms clustered together for a quiet night zone. It has a walk-in closet for organized storage, and the laundry on the same floor saves carrying baskets up and down the stairs.

A covered front porch shelters arriving guests, and a covered rear porch extends living outdoors in any weather. The front-entry 2-car garage opens straight to the driveway. The house rests on strip footings, with slab or block foundations as options, and its walls are aerated concrete, with ceramic or sand-lime block as alternatives. The footprint is 50'4" wide and 48'4" deep. In figures: Total Heated 2,823 Sq Ft, 4 bedrooms, 3 bathrooms and a 2-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
US$1444
