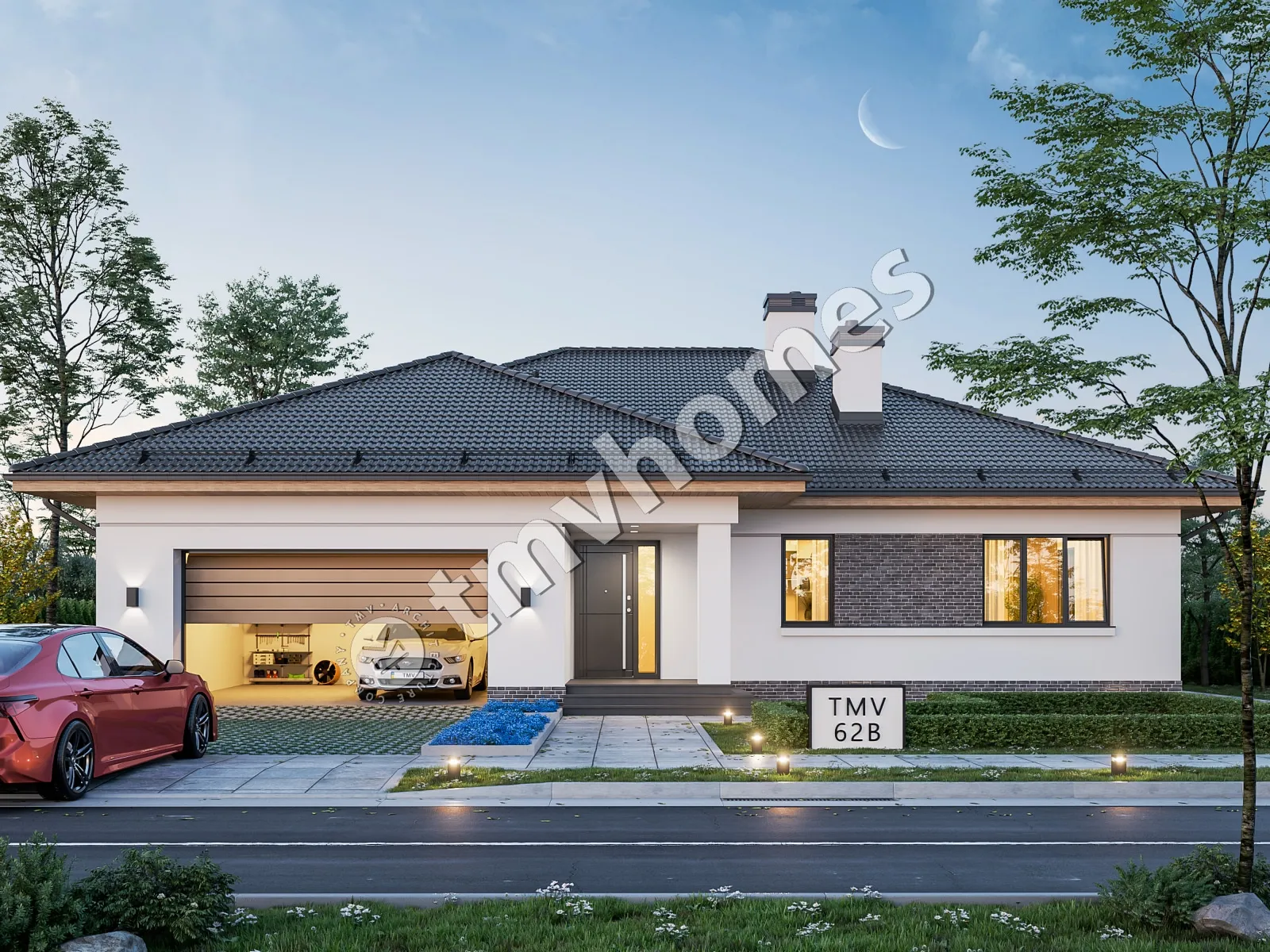

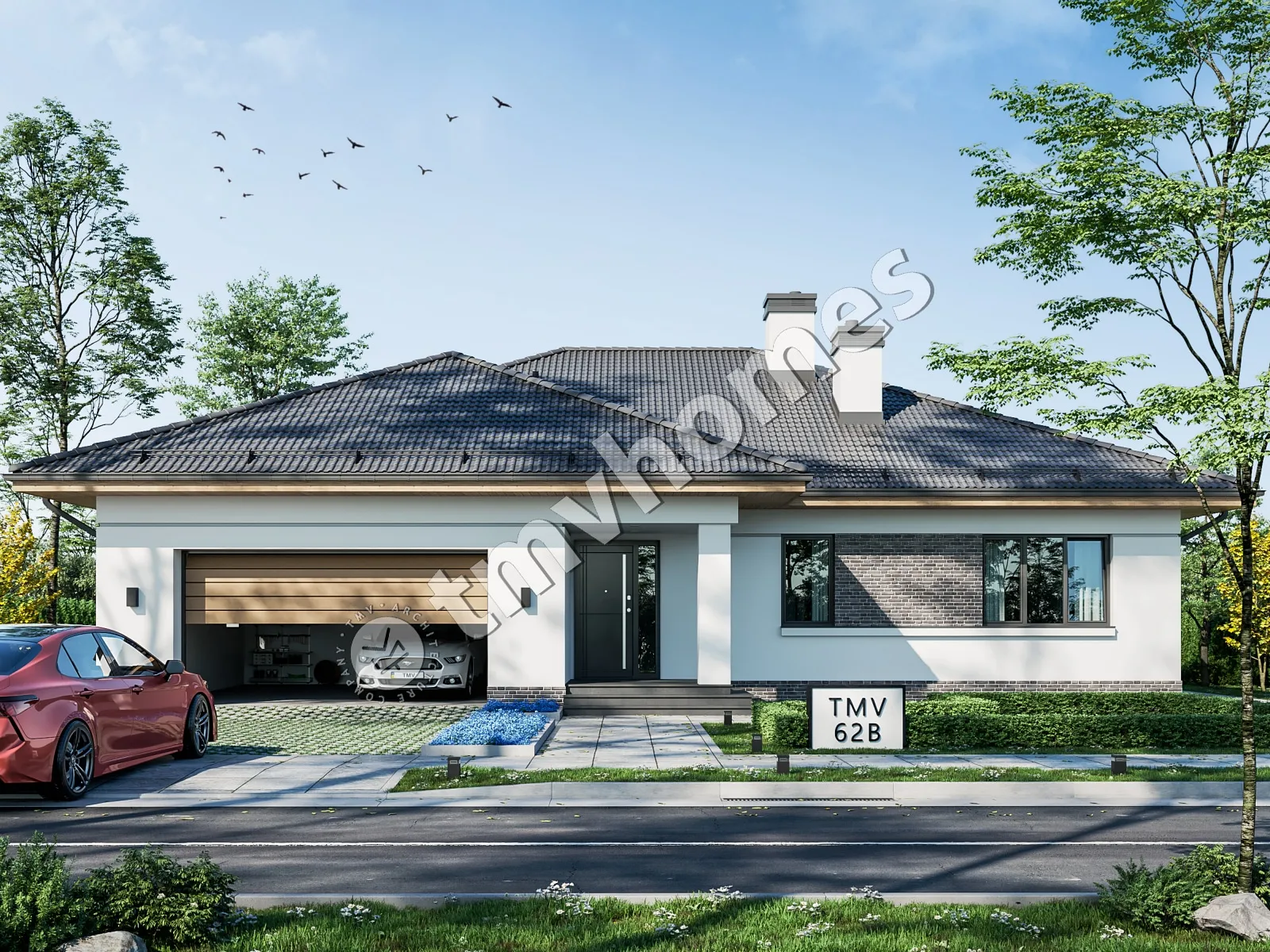

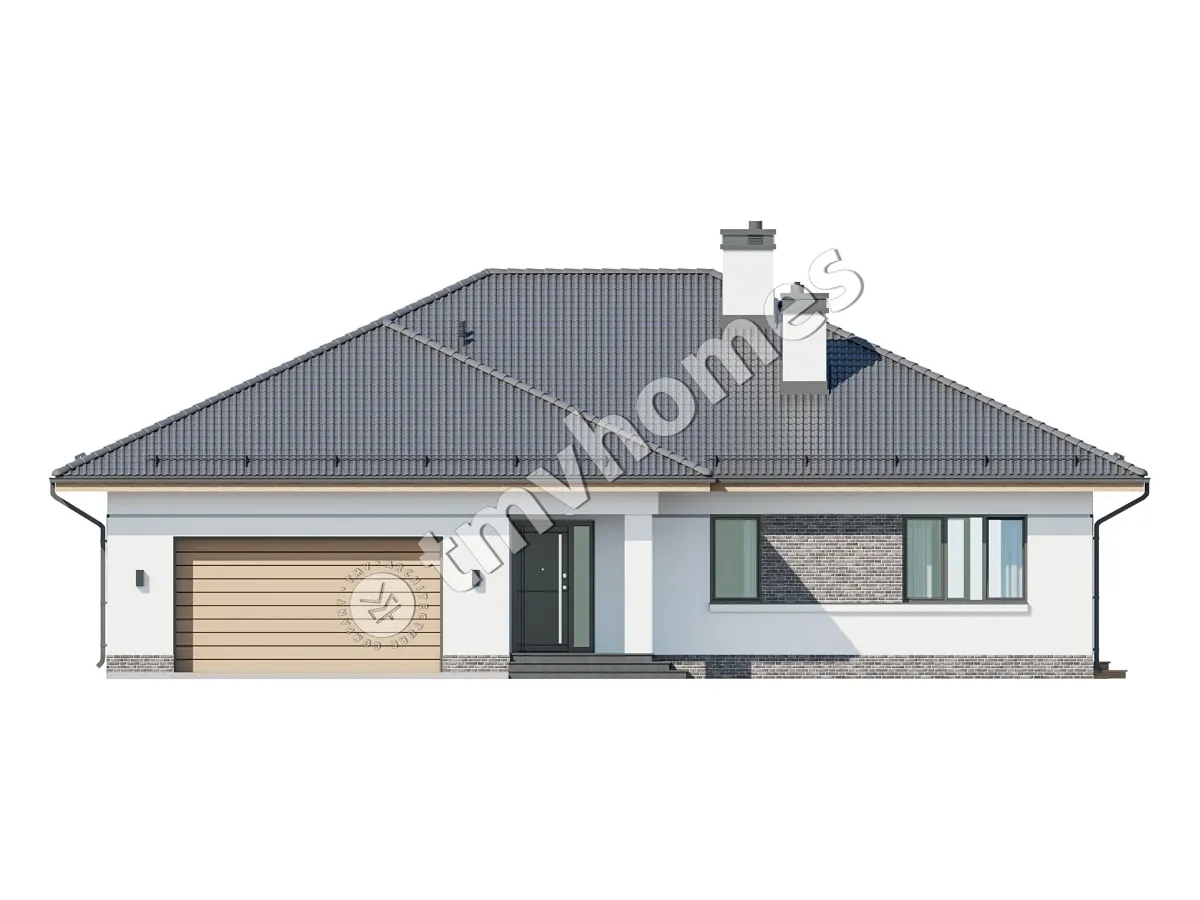

Renderings 2 – 2,052 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 2-Car Garage – 82318C
Renderings 3 – 2,052 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 2-Car Garage – 82318C Renderings 4 – 2,052 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 2-Car Garage – 82318C
6
Concept
Construction documents are prepared for the following countries:

2,052 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms, 2 Bathrooms and 2-Car Garage

Plan
82318C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2052
Total Heated ft²
2 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

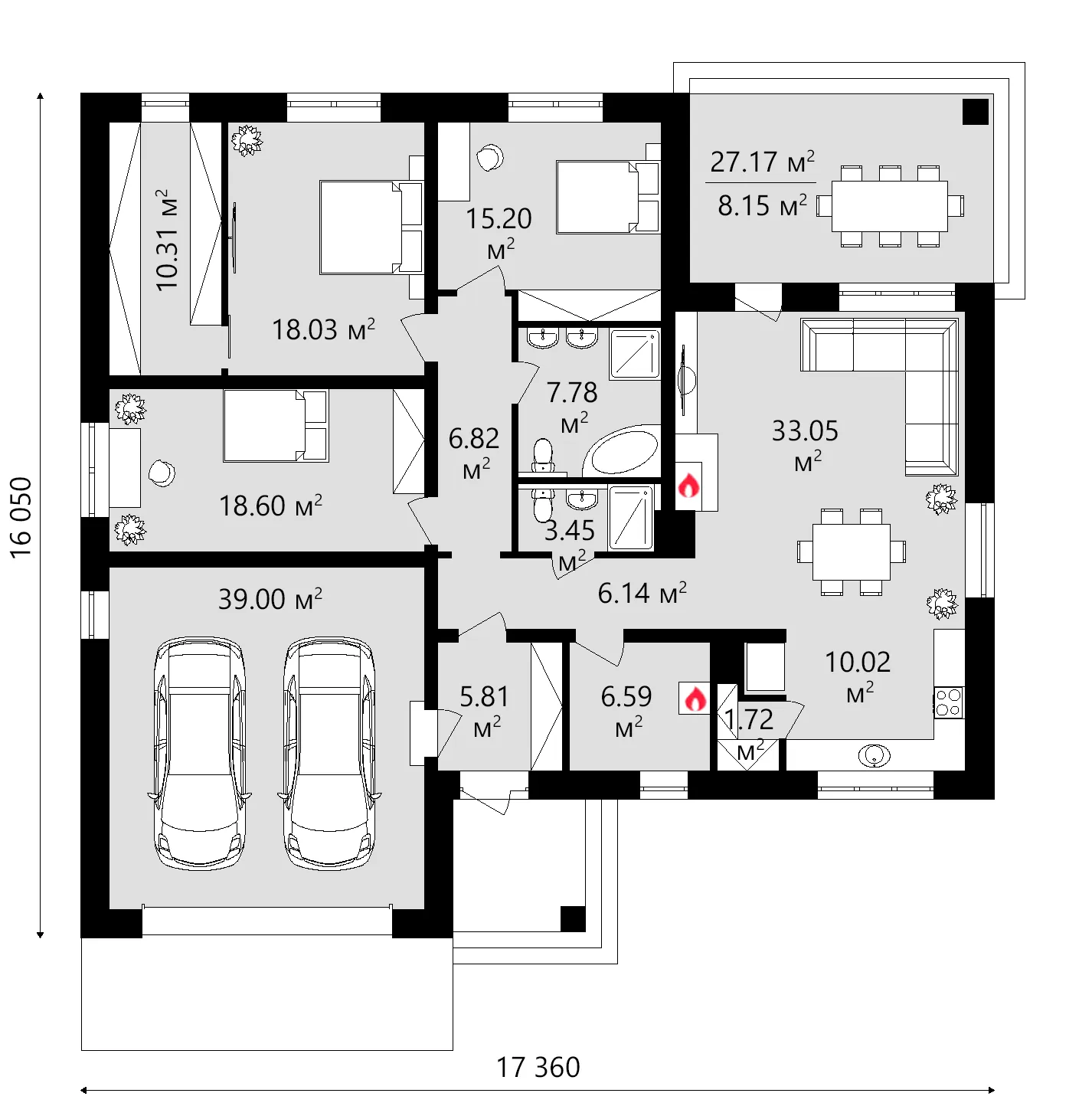

Floor Plans
Main Floor

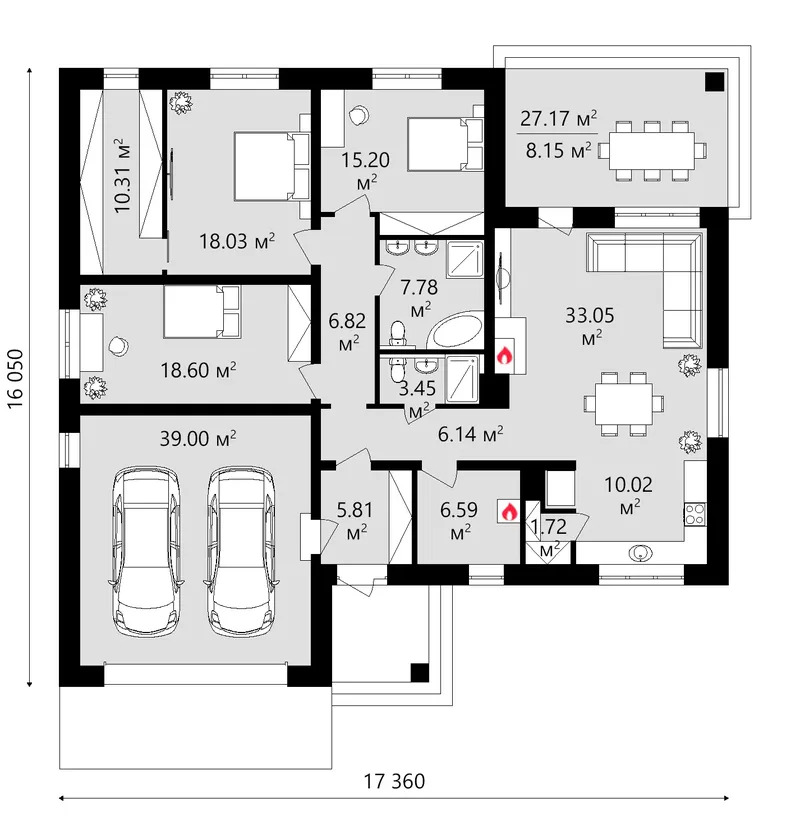

Main Floor 8 – 2,052 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 2-Car Garage – 82318C
Full Specs & Features
Area
Total Heated: 2052.35 ft²
Dimensions
Depth: 48'9" ft
Width: 52'9" ft
Garage
Cars: 2
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 2
Bedrooms: 3
Utility room
Entry
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Interior Features
Fireplace in Family Room
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Exterior Features

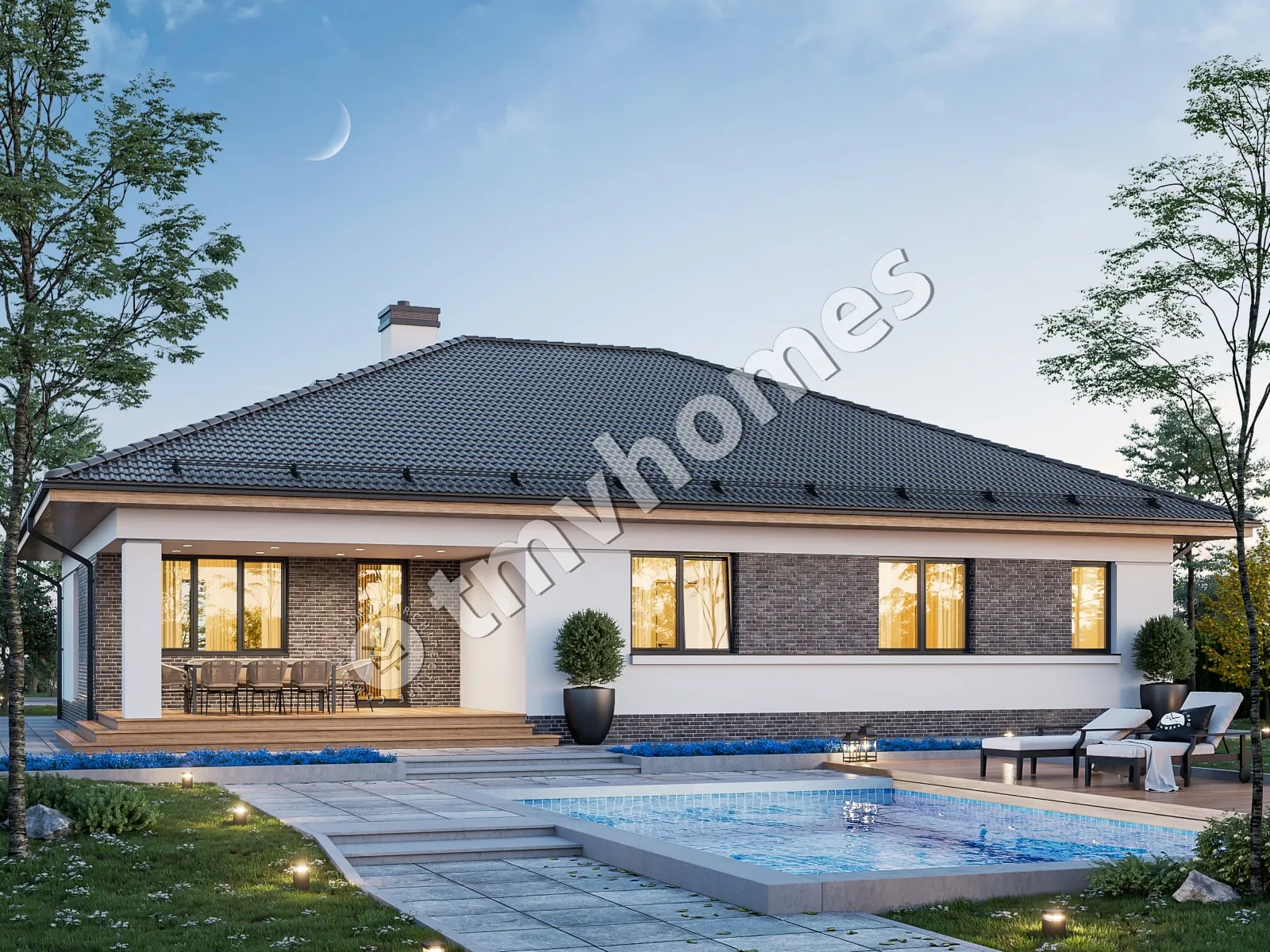

Covered Rear Porch
Architectural Style
Bungalow
European
Traditional

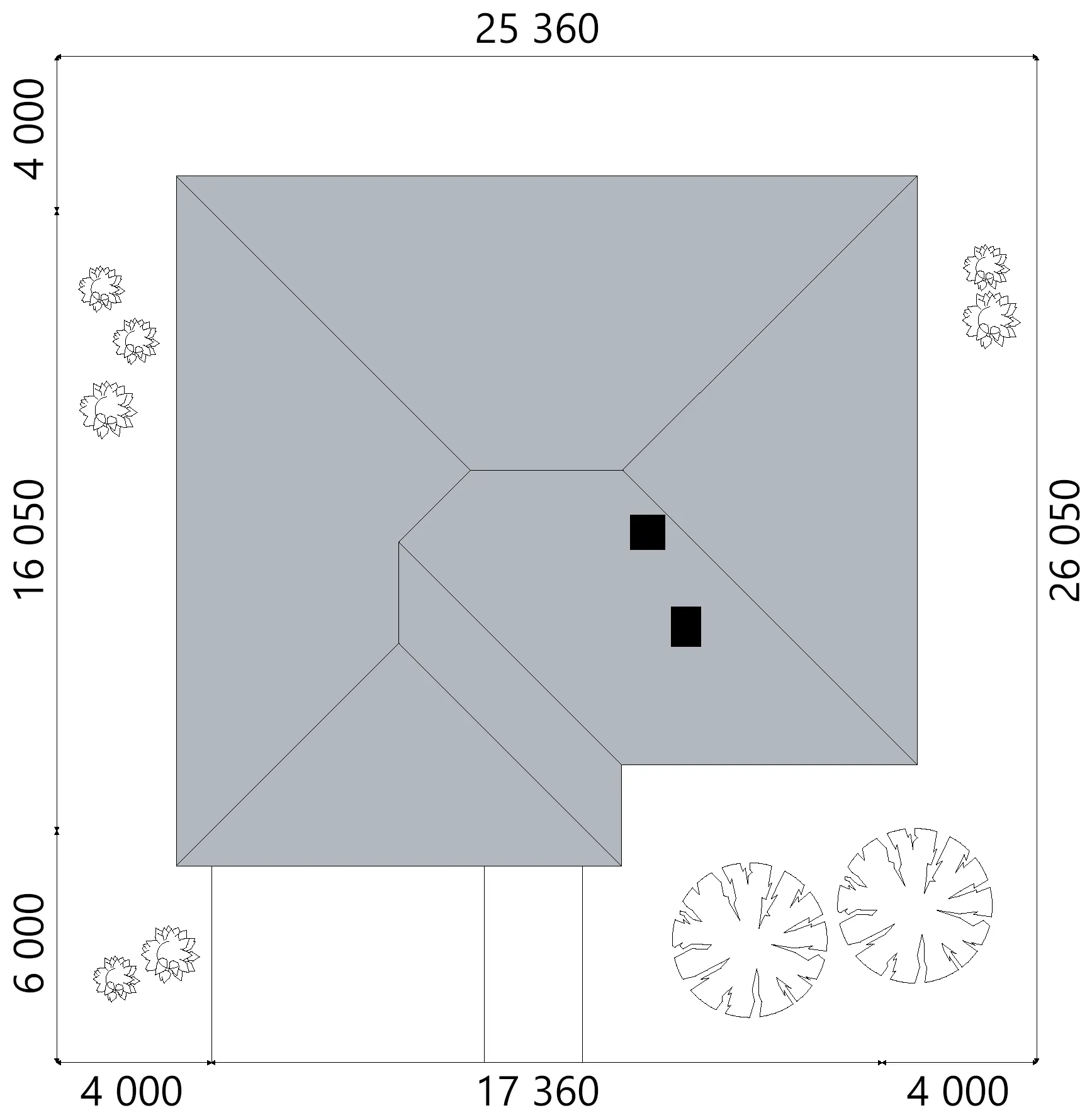

Roof
Roof Area: 3831.95 ft²
Hip
Roof Pitch: 6/12 (26°)

Design concept 82318C is a Traditional single-story single-family house, available as a digital house design concept, with a total heated area of 2,052 Sq Ft and designed for a household of 3-4 people. All rooms sit on one level, so daily routines run without stairs.

An entry leads into an open floor plan where the large family room, the kitchen and the breakfast nook share one space, so whoever cooks stays part of the conversation. A fireplace in the family room warms cold evenings, and the walk-in pantry keeps bulk groceries off the counters.

The three bedrooms are clustered in one part of the house, which keeps the sleeping area quiet and close together for a family with children. The main floor primary bedroom has a walk-in closet that holds the whole wardrobe in one place, and two full bathrooms shorten the morning rush. A utility room keeps household equipment out of the living areas.

The covered rear porch offers a shaded place for outdoor meals. The front-entry 2-car garage suits a lot with street access at the front. Strip footings form the base foundation, with slab or block foundations as options; exterior walls are aerated concrete, with ceramic hollow block or calcium silicate block as alternatives. Stone/brick veneer and stucco finish the facade, and the hip roof with a 6/12 pitch stands up well to wind. The footprint measures 52'9" wide by 48'9" deep. The house offers a total heated area of 2,052 Sq Ft, 3 bedrooms, 2 bathrooms and a 2-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
