1,670 Sq Ft Bungalow T-Shaped Single-Story House Plan with 3 Bedrooms, 2 Bathrooms and Carport
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

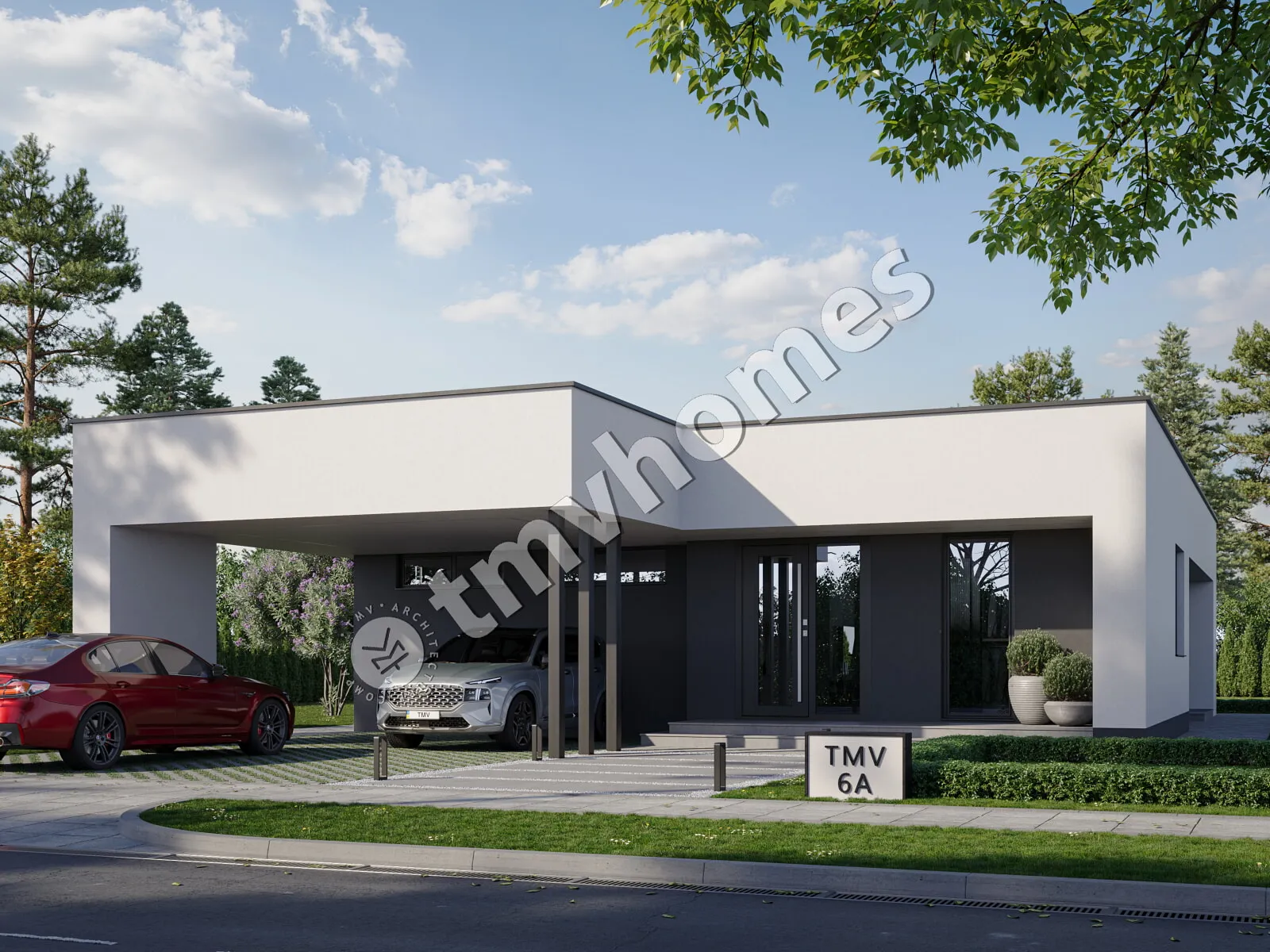

Digital house design concept 56534C is a single-story T-shaped Bungalow with a total heated 1,670 Sq Ft, 3 bedrooms and 2 bathrooms. Planned as a single family home for 3-4 people, the house pairs stucco walls with a flat roof, which gives the layout a clean, low profile.
The entry receives guests and keeps coats and shoes away from the living space. The open floor plan joins the great room, the large kitchen and the breakfast nook, so cooking, meals and conversation share one space. Large and floor-to-ceiling windows bring daylight deep into the day zone.
The 3 bedrooms are clustered together on one level, which keeps the night zone quiet and the distances between rooms short. The main floor primary suite has a walk-in closet that keeps clothing out of the bedroom, and 2 bathrooms serve the household without morning queues. A utility room gathers household chores in one place.

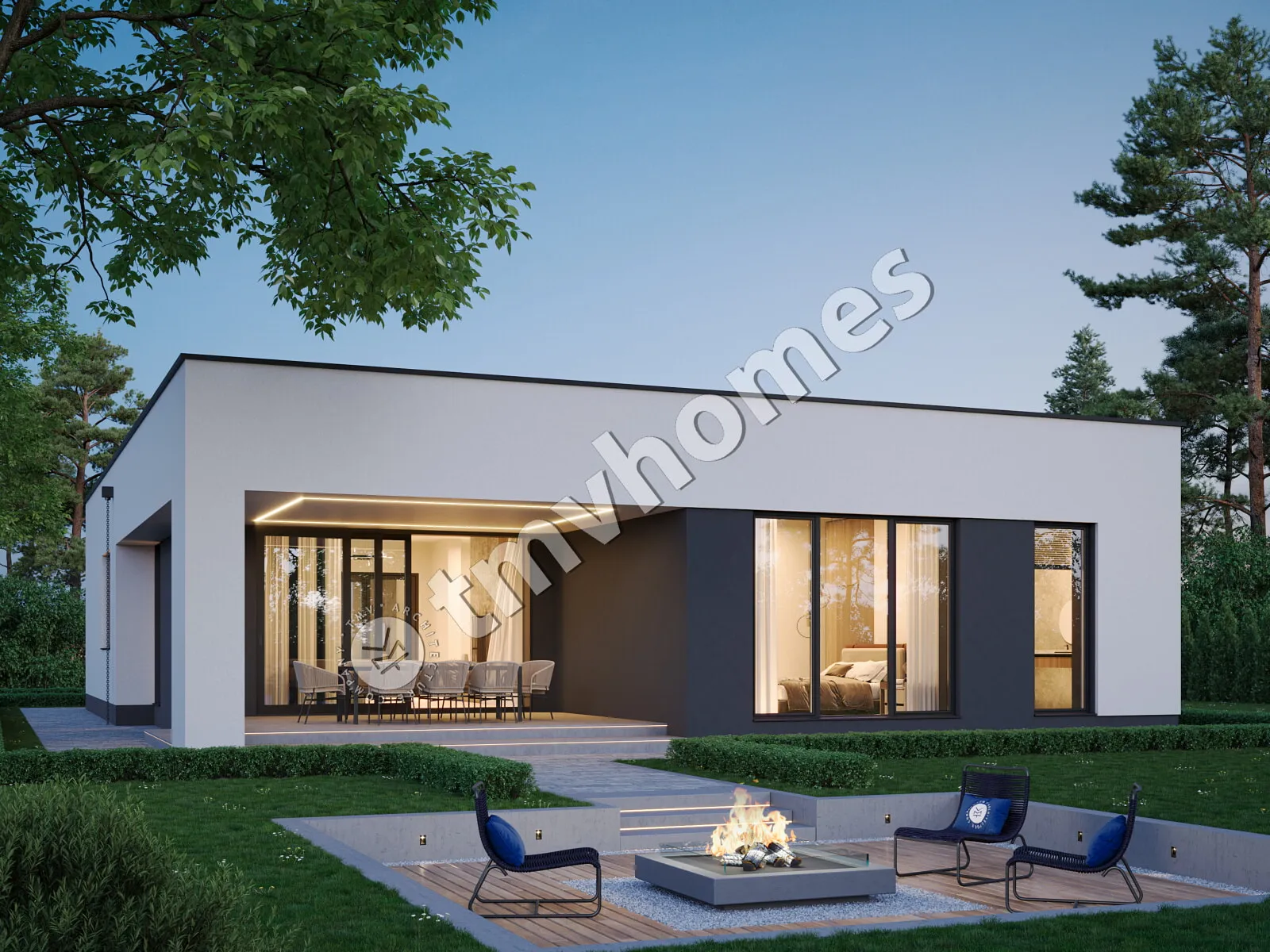

The covered rear porch gives a shaded spot for outdoor meals in any weather. A carport for 2 cars protects the vehicles from rain and snow. The main foundation is strip footings, with a slab or a block foundation as options to suit the soil; the walls are aerated concrete, with ceramic hollow blocks or sand-lime blocks as alternatives. The house measures 40'5" wide and 64'8" deep. In figures: a total heated 1,670 Sq Ft, 3 bedrooms, 2 bathrooms and a 2-car carport.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
