1,650 Sq Ft Modern T-Shaped Single-Story House Plan with 3 Bedrooms, 2 Bathrooms and 2-Car Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.
The 65036C house design concept is a modern single-story, T-shaped single-family home with Total Heated 1,650 Sq Ft, designed for a household of 3-4 people. A flat roof and stucco exterior give the house crisp, simple lines, and the T-shaped footprint gives the plan clearly defined wings.

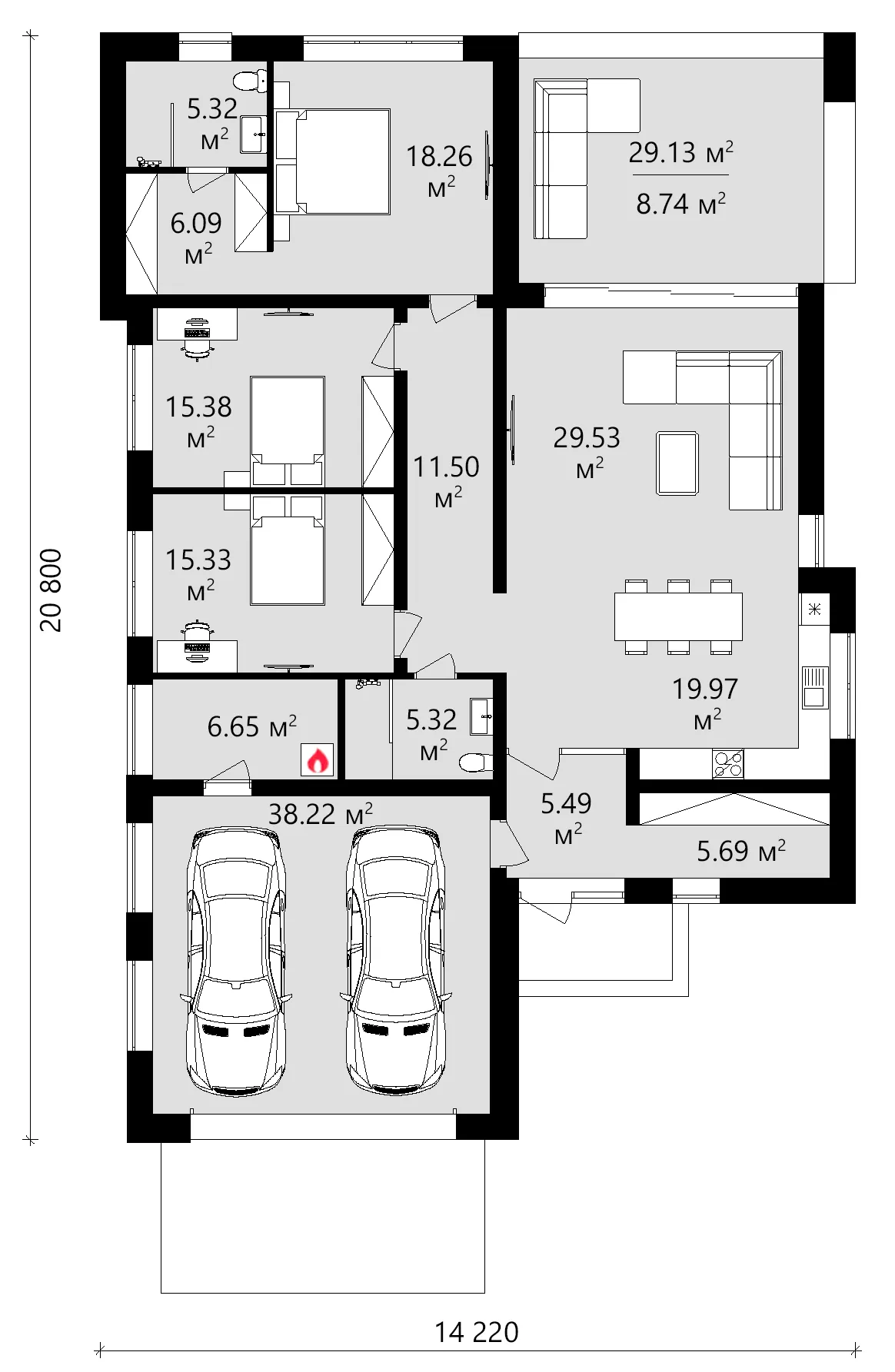

The entry leads into an open floor plan where a large great room and a large kitchen share one space, so cooking never cuts you off from family life. A breakfast nook handles quick everyday meals, large windows bring daylight deep into the living area, and floor-to-ceiling windows open the view to the yard.
All 3 bedrooms are clustered on one level, which keeps the family close and the home free of stairs. The main-floor primary suite includes a walk-in closet that keeps clothing organized in one place, and 2 full bathrooms ease the morning routine. A utility room keeps household equipment out of the living spaces.
The covered rear porch offers shaded space for dining and relaxing outdoors. The 2-car garage extends forward with front entry, giving direct access from the street-side driveway. The main foundation is strip footings, with a slab or a concrete block foundation as options; exterior walls are aerated concrete (AAC), with clay block or calcium silicate block as alternatives. The house measures 43'3" wide and 63'4" deep and offers Total Heated 1,650 Sq Ft, 3 bedrooms, 2 bathrooms and a 2-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
Advanced Drafting & Design Co. Mooresville US$ 8,250
My Home Floor Plans Rosemead US$ 1,300
Plan & Simple LLC Austin US$ 3,300
