1,949 Sq Ft Traditional L-Shaped 1.5-Story House Plan with 3 Bedrooms, 2 Bathrooms and 1-Car Garage
222
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

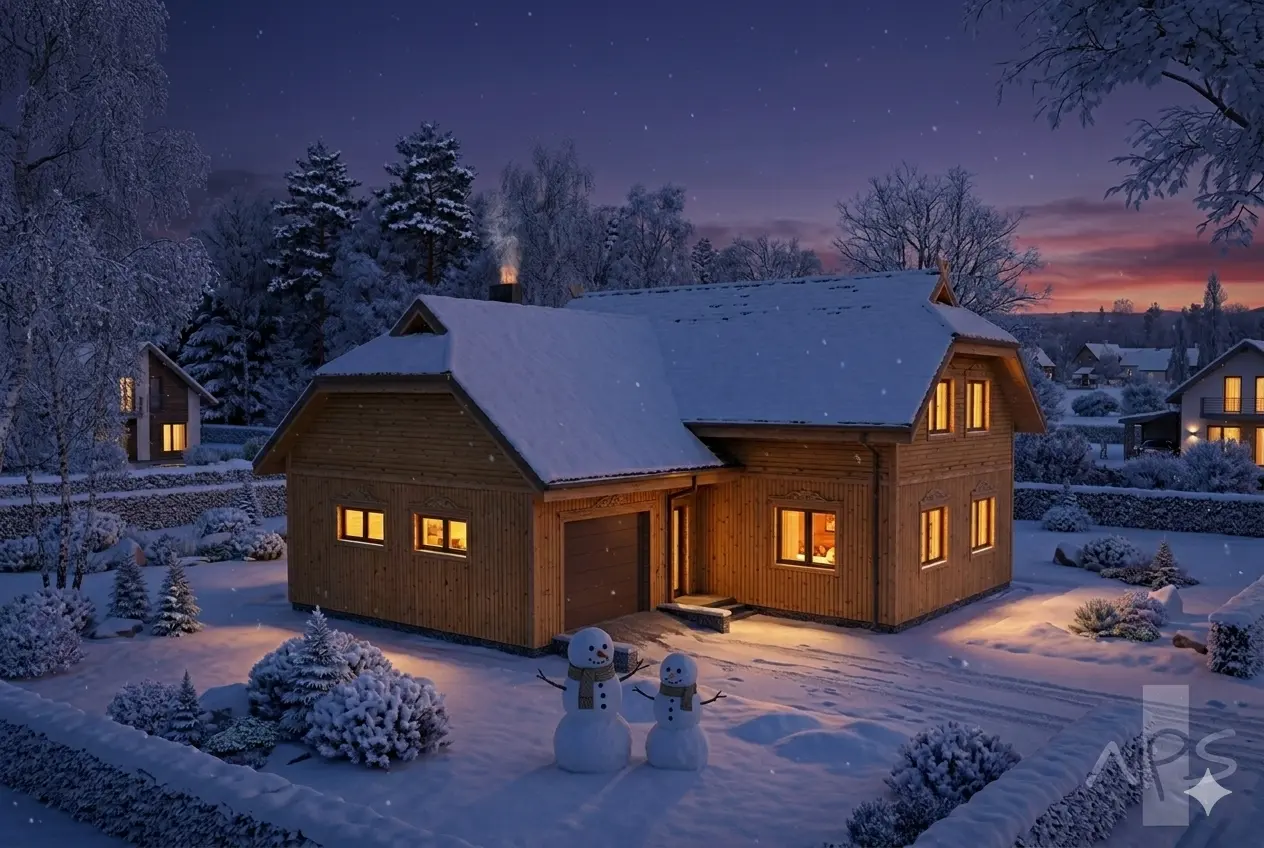

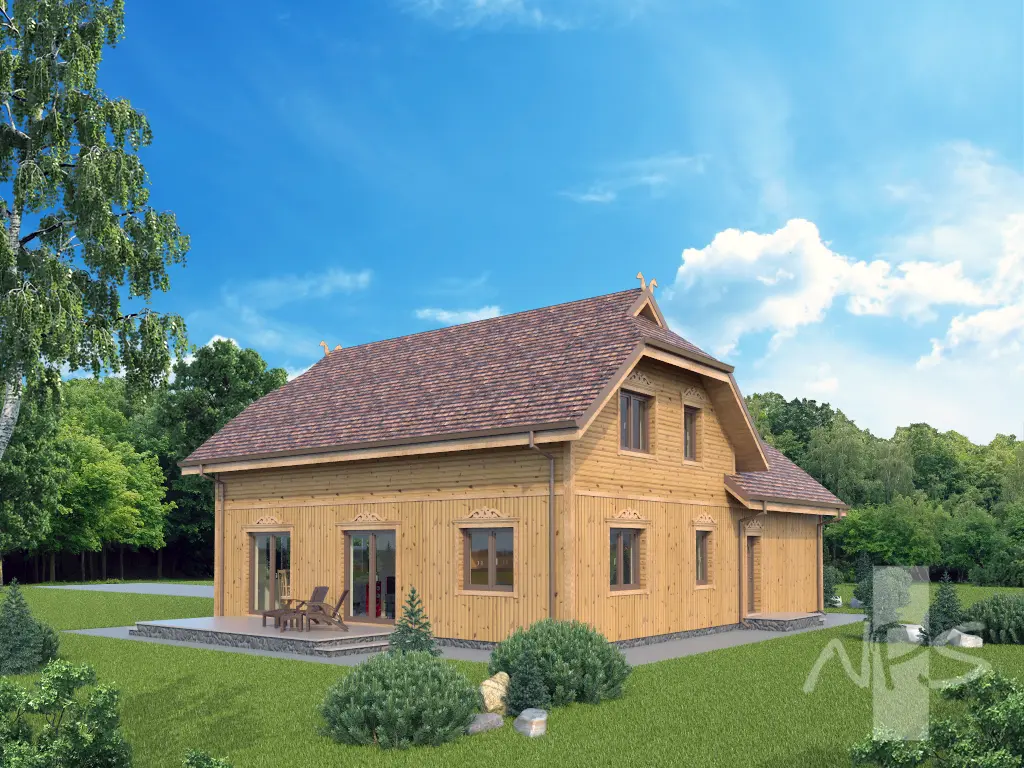

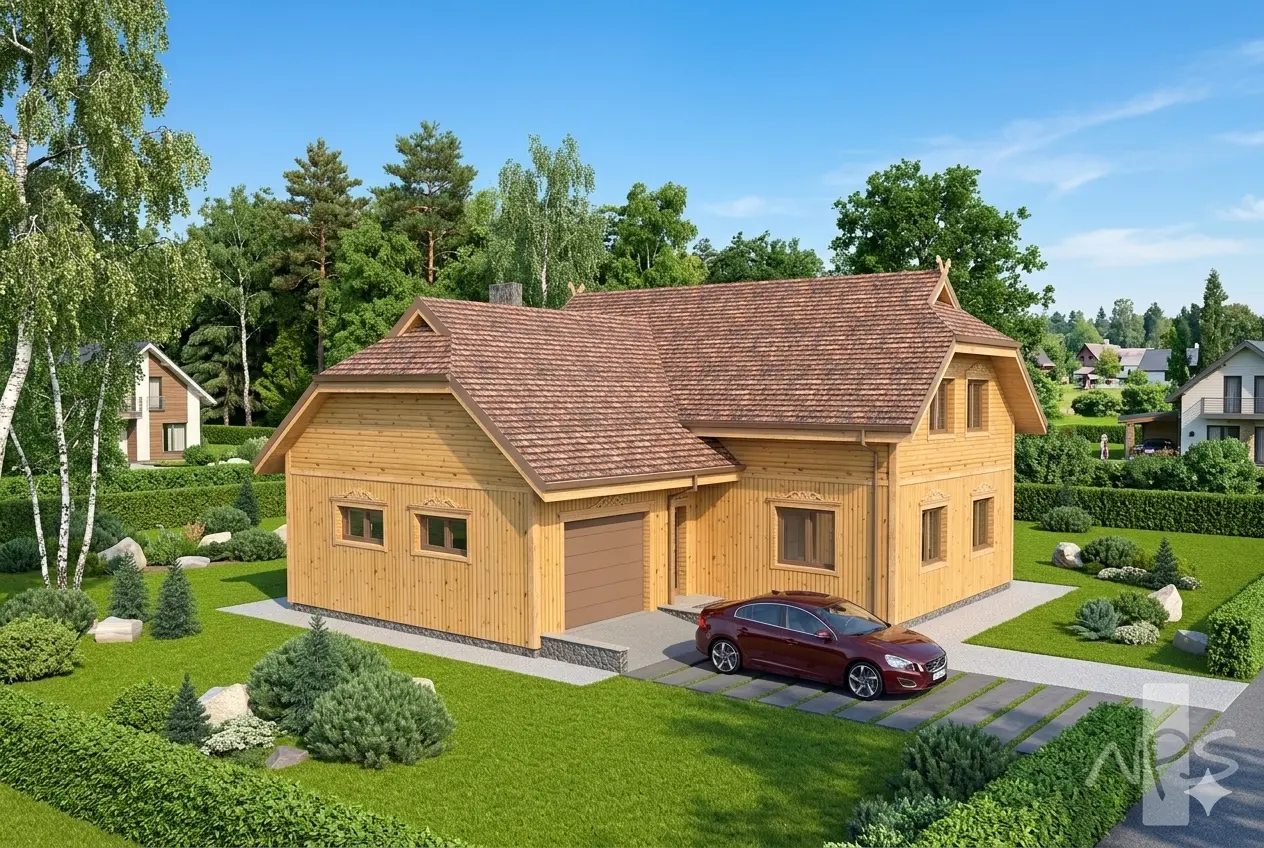

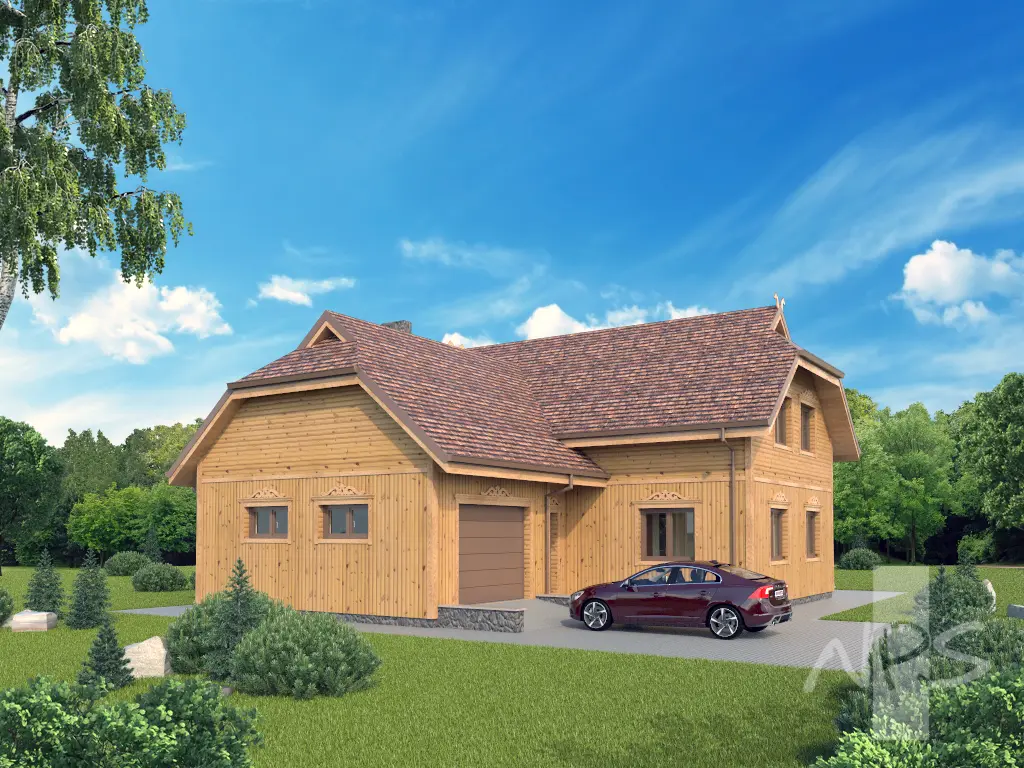

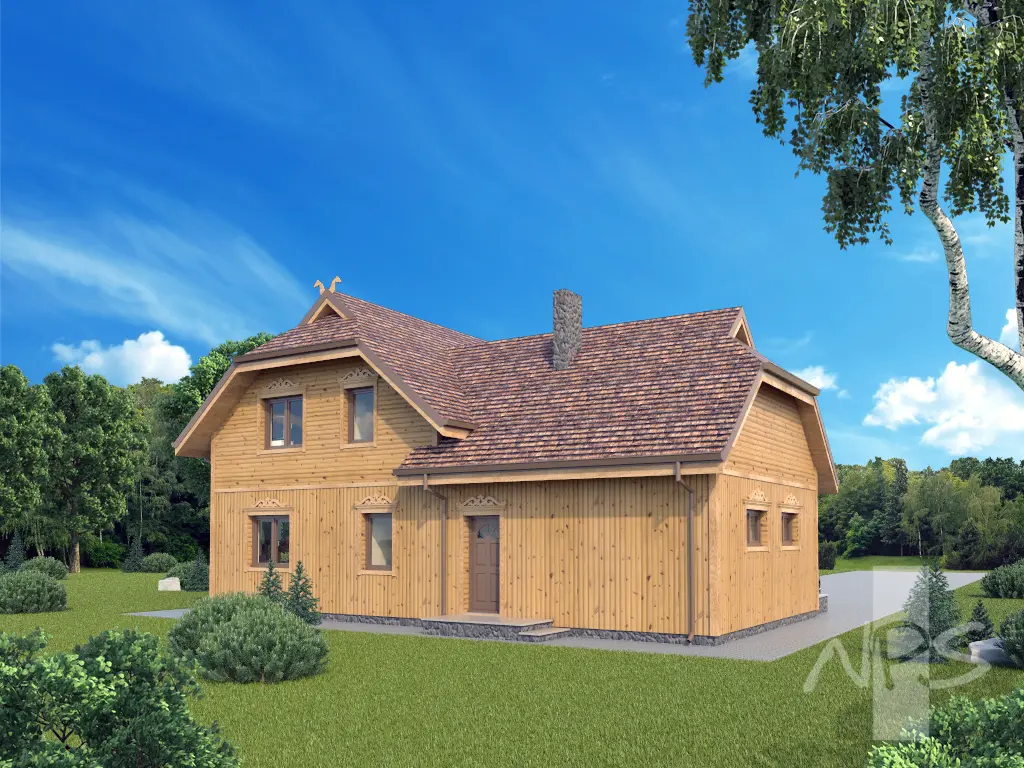

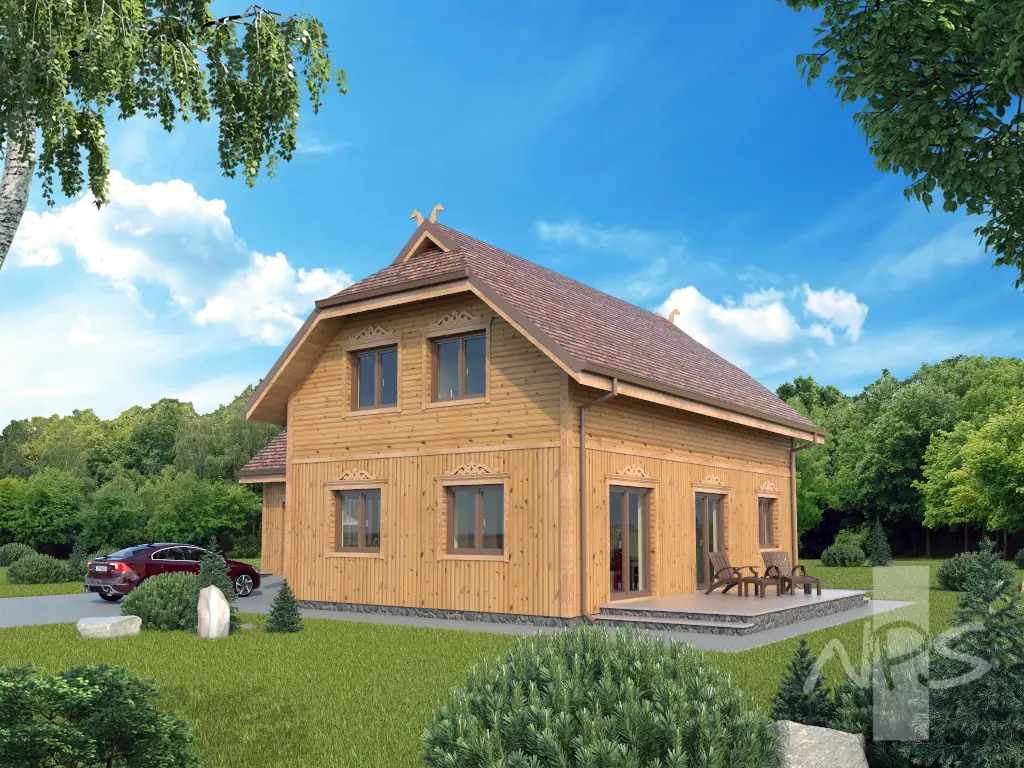

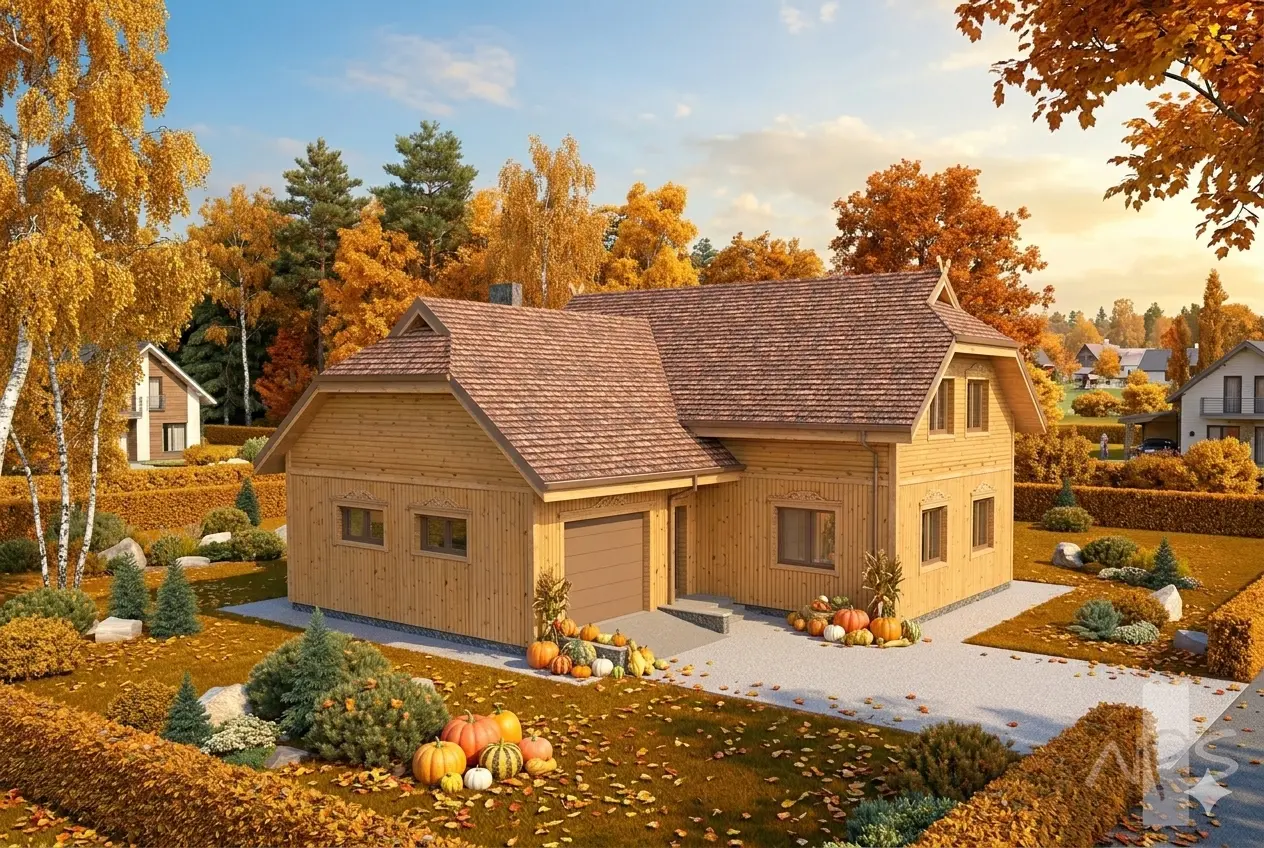

House design concept 20395R is a Traditional L-shaped 1.5-story single-family home with a total heated area of 1,949 Sq Ft, 3 bedrooms, 2 bathrooms and an attached 1-car garage, designed for 3-4 people. The gable roof with Dutch gable and jerkinhead ends has a 10/12 (40°) pitch that gives the upper floor usable height, and the wood exterior gives the house a warm look.

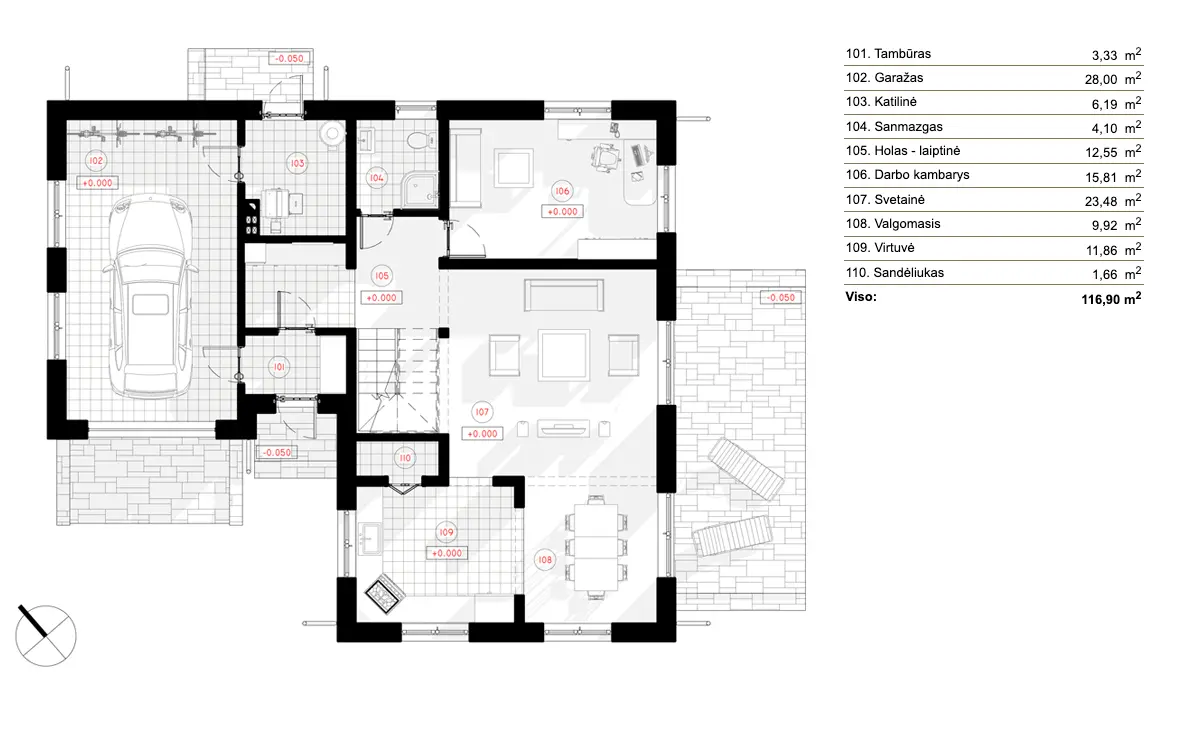

The entry keeps coats and shoes away from the living spaces. The closed floor plan gives the kitchen its own room, the breakfast nook serves quick everyday meals, and the walk-in pantry keeps supplies within reach. The living room is open to below, which adds height and light, and the home office offers a quiet place to work.

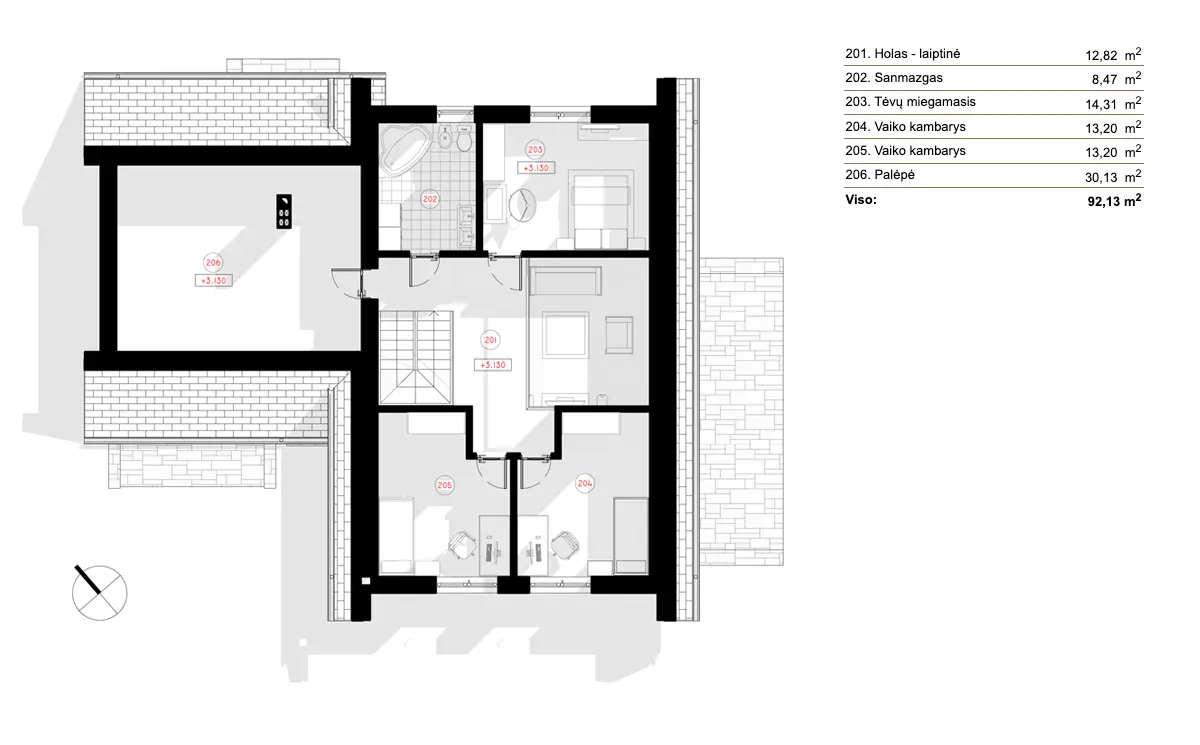

The bedrooms are clustered on the upper floor together with the primary bedroom, so the family sleeps close together. The loft overlooks the space below and works as a reading or play corner, while the bonus room above the garage adds space for guests or hobbies. Two full bathrooms serve the household, and the utility room keeps laundry in one place.
A deck extends daily life outdoors. The attached front-entry garage keeps one car close to the house and suits a driveway straight from the street. The house rests on a bored pile foundation, with slab, strip or block foundation as options, and its walls are sand-lime block, with aerated concrete, ceramic block or timber frame as alternatives. The footprint measures 44'3" wide by 38'2" deep. In figures: total heated area 1,949 Sq Ft, 3 bedrooms, 2 bathrooms and a 1-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
Advanced Drafting & Design Co. Mooresville US$ 9,744
My Home Floor Plans Rosemead US$ 1,450
Plan & Simple LLC Austin US$ 3,898
