1-Story House Plan 2012 ft²: 4 Beds, 3 Baths, Open Floor Plan, 2-Car Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

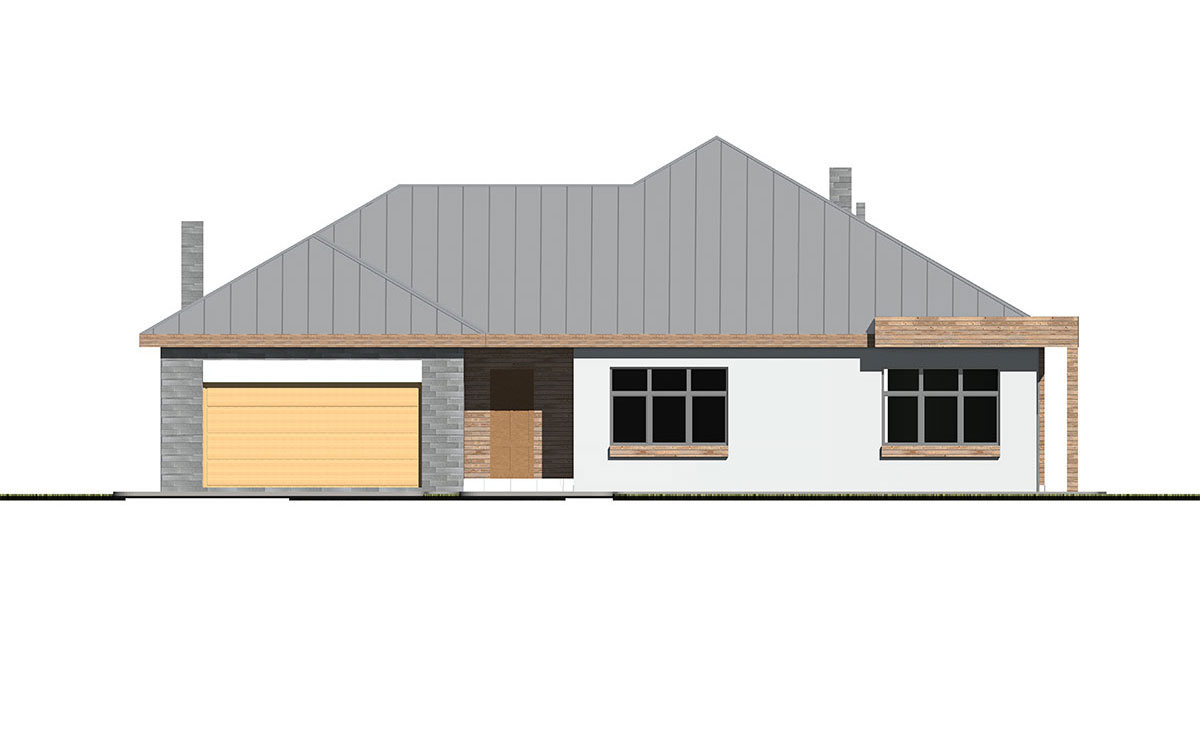

Plan 23040C is a 4-bedroom single-story house plan with 2012 ft² of living space, drawn in a Bungalow, European and Transitional spirit under a hip and valley roof with skylights and a gentle 3/12 pitch. Stone/brick veneer, wood and stucco share the facade, so this traditional single-family home looks layered and carefully finished from the street. The house is 27'0" wide and 59'0" deep, and its exterior walls are framed in autoclaved aerated concrete, with clay block, sand-lime block or wood framing also available on request.

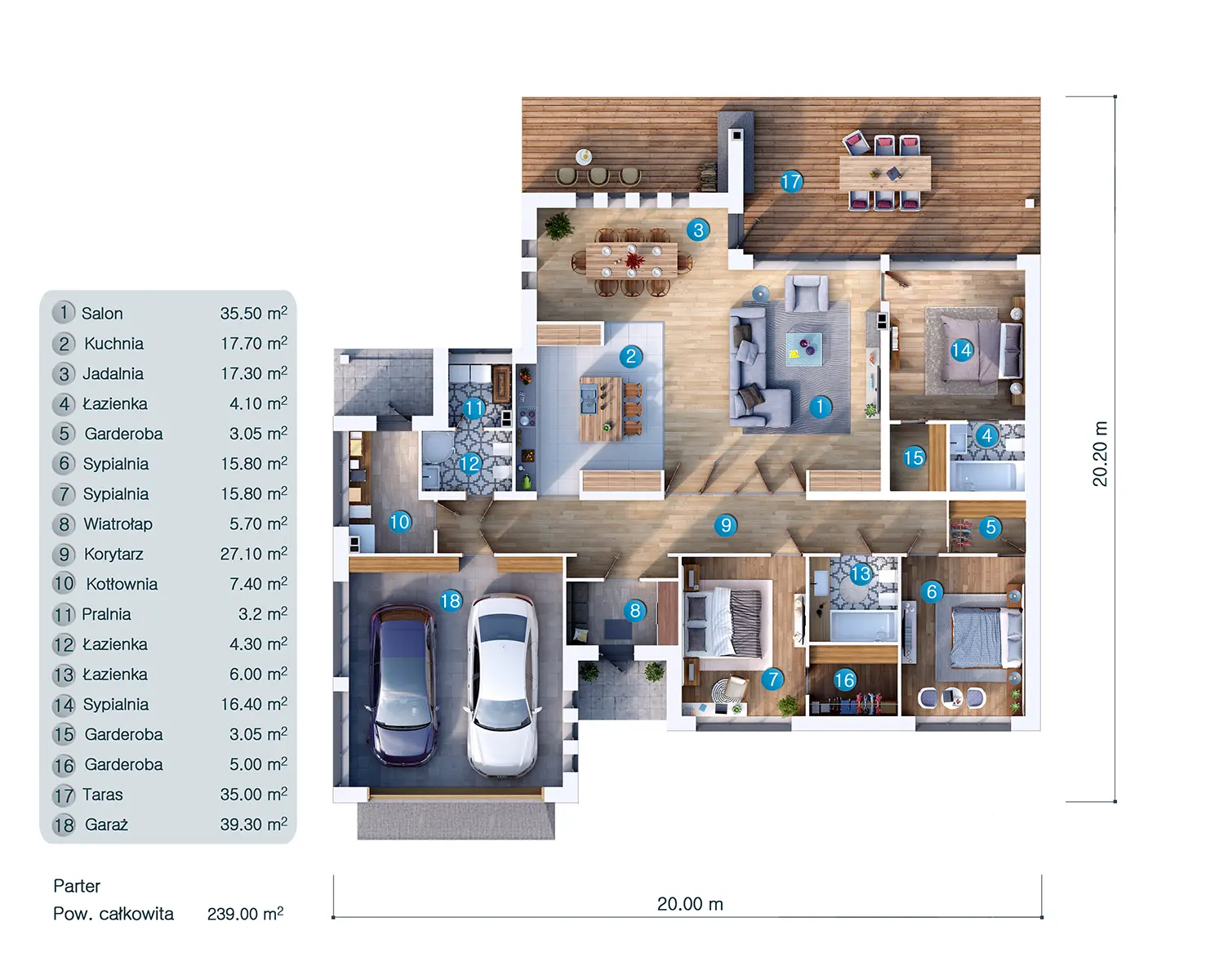

The entry opens into an open floor plan built around a large family room. Vaulted ceilings lift the space, and a fireplace in the family room anchors it on winter evenings. The large kitchen sits within the same open concept area, with an island for cooking and casual meals and a breakfast nook for slower mornings. Large windows and floor-to-ceiling windows bring daylight deep into the living spaces, and the skylights add more from above.
All four bedrooms are clustered together, which keeps the sleeping wing quiet and close. The main floor master suite has a walk-in closet, and with three full bathrooms nobody waits in line, whether the extra rooms serve children, guests or a home office. The laundry is on the main floor, next to a separate utility room, so the everyday chores stay on one level with no stairs to carry baskets up and down.

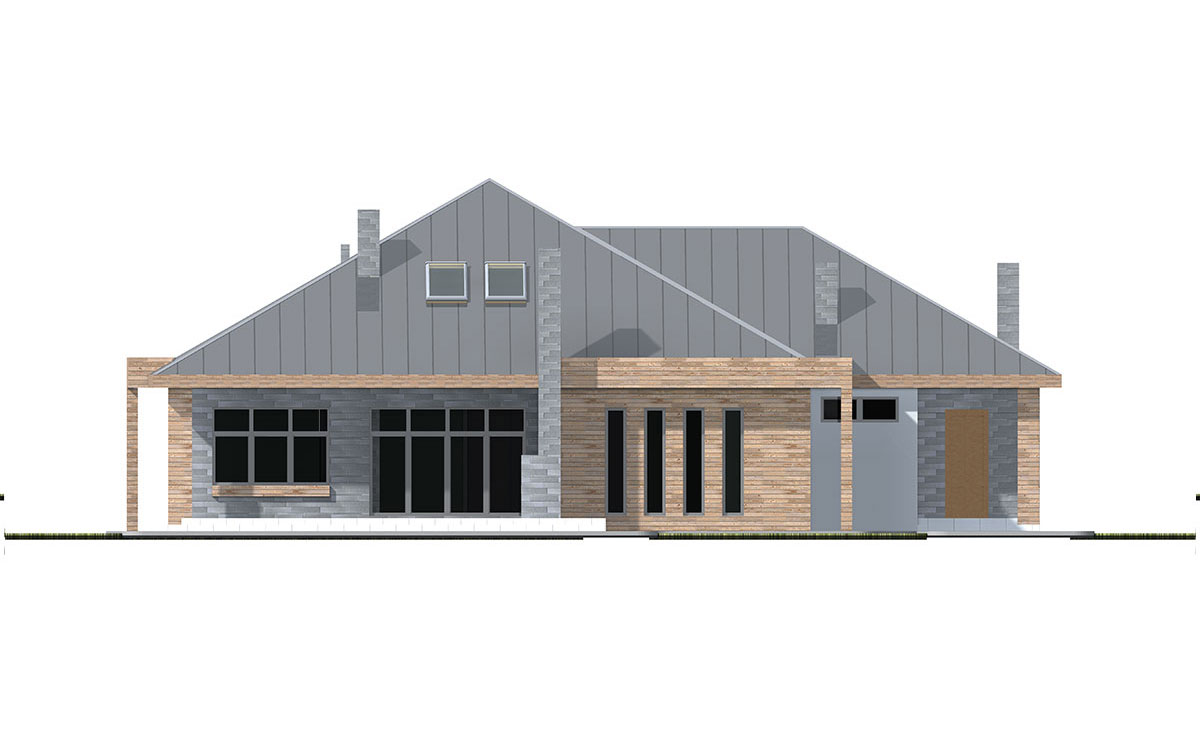

Outside, a covered rear porch and a deck extend the living space, and an outdoor fireplace makes the porch usable well into the cooler months. The attached 2-car garage has front entry, giving direct access from the driveway. The house has no basement and stands on strip footings; a slab or a concrete block foundation is also available on request. For a family looking for a one-level house plan with a fireplace both inside and out, this design keeps every daily space on a single, comfortable floor.
