1-Story House Plan 2375 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, 2-Car Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
plan_plan_package_title
Plan 66131C is a 3-bedroom single-story house plan with 2375 ft² of living space, a contemporary European design with clean modern lines and a hip and valley roof pitched at 7/12 (30°). The exterior combines stone/brick veneer, wood and stucco, and the house measures 74'7" wide and 52'6" deep. Everything sits on one level: three bedrooms, three full bathrooms, a home office and an attached 2-car garage, so the plan suits a growing family as well as a couple planning to stay for decades.
The heart of the home is an open floor plan that joins a large family room with an equally generous kitchen. Vaulted ceilings lift the main living area, and the fireplace in the family room gives the space a natural focal point on winter evenings. The kitchen is built for real cooking and gathering, with an island for prep and casual meals and a breakfast nook for slower mornings. Large windows, panoramic windows and floor-to-ceiling windows bring daylight deep into the rooms and keep the view of the backyard part of daily life.

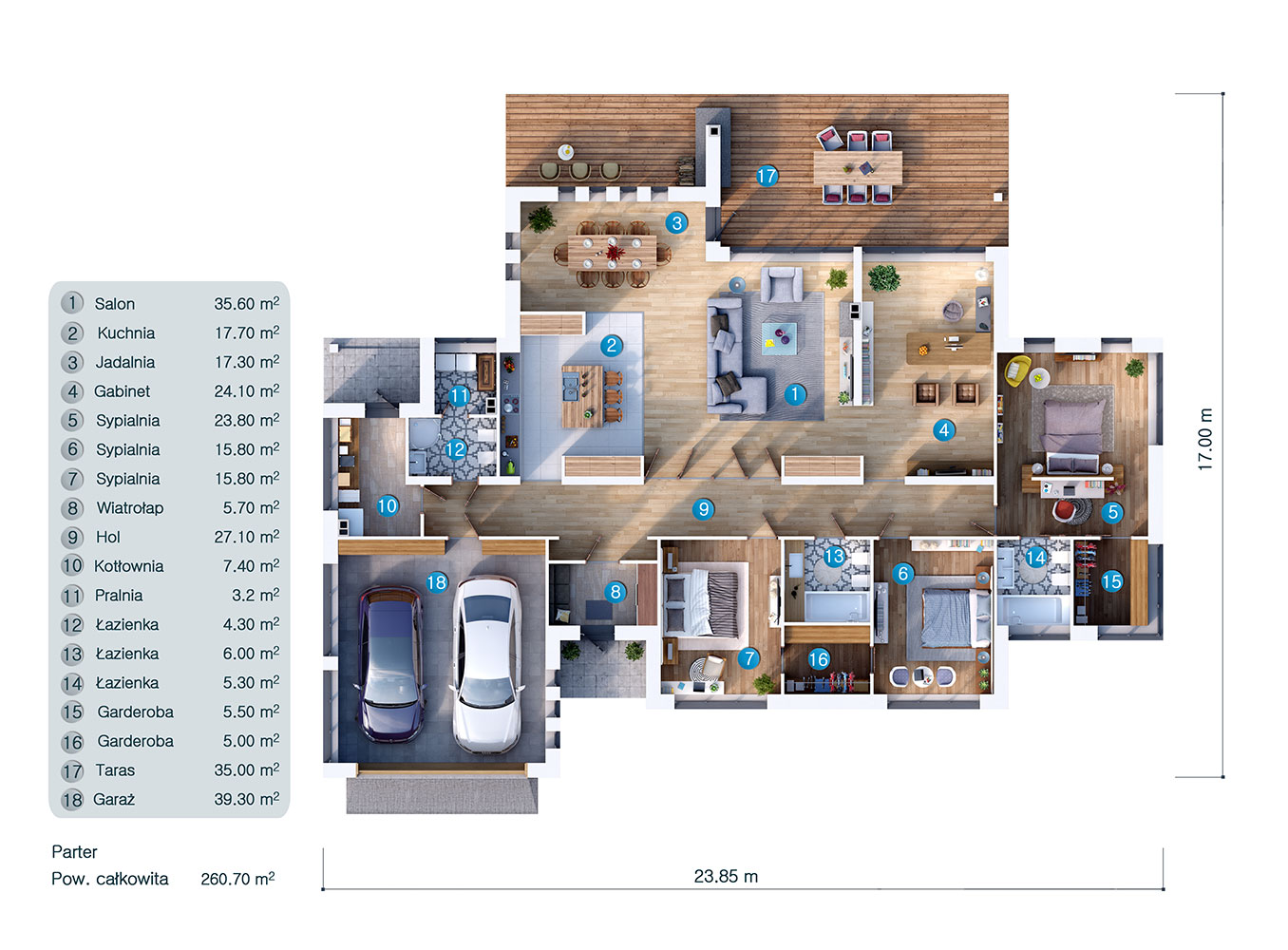

The bedrooms are clustered together, which keeps the sleeping wing calm and separate from the activity of the kitchen and family room. The main floor master includes a walk-in closet, and with three full bathrooms no one waits in line in the morning. A defined entry welcomes guests, while the home office offers a quiet place to work. The practical rooms are well thought out: a laundry and a separate utility room keep household chores and mechanical equipment out of the living areas.

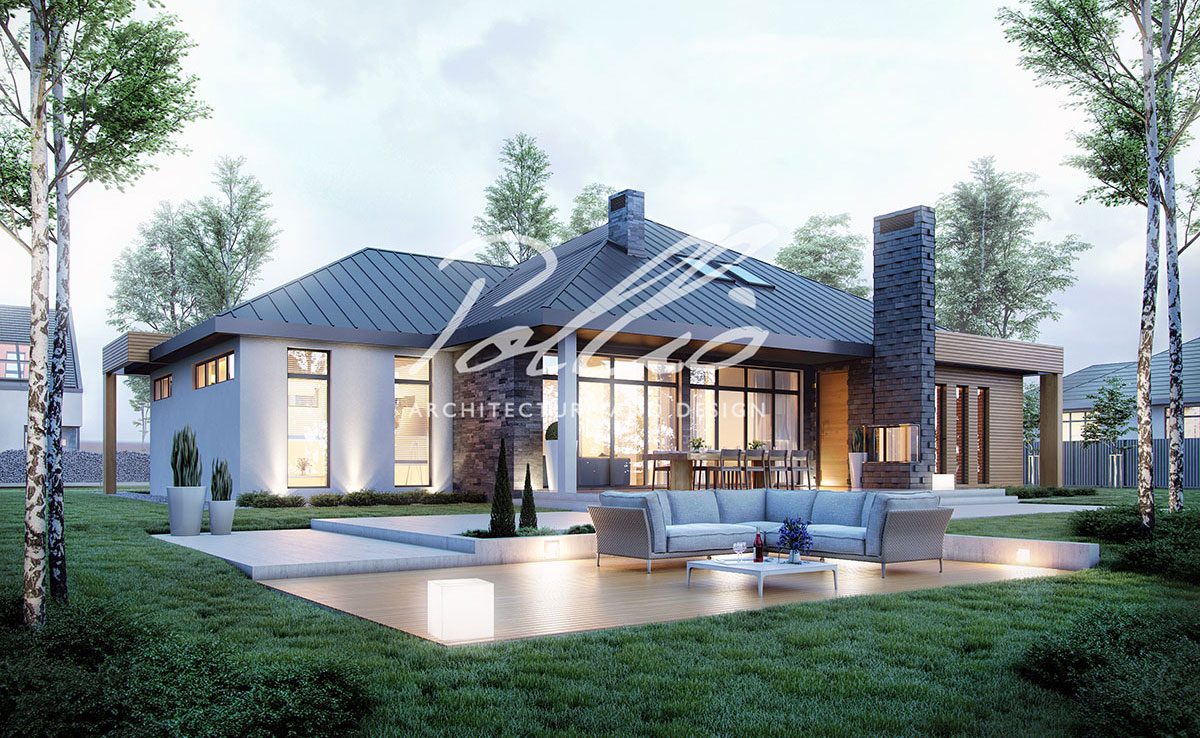

Outside, this house plan with fireplace offers a second hearth as well: an outdoor fireplace and an outdoor kitchen extend the living space beyond the walls, alongside a covered rear porch and a deck for summer dinners and long evenings outdoors. The front-entry 2-car garage is attached to the house. The plan has no basement and is designed for strip footings, and it is also available with a slab or a concrete block foundation. The exterior walls are drawn in aerated concrete block, with clay block, calcium silicate block and wood frame construction available on request.
