2-Story House Plan 2453 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, 2-Car Garage
Opis techniczny
Rzuty kondygnacji
Rzut więźby dachowej
Rzut dachu
Przekroje
Elewacje
Zestawienie stolarki okiennej i drzwiowej
Zawiera opis techniczny
Rzuty fundamentów
Płyty stropowe w skali
Rysunki detali konstrukcyjnych
Zbrojenie słupów
Zbrojenie wieńców
Zbrojenie nadproży
Zestawienie stali konstrukcyjnej
Zestawienie drewna na więźbę
Instalacja wodno-kanalizacyjna
Instalacja ogrzewania
Instalacja gazowa
Instalacja elektryczna
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
plan_plan_package_title
Plan 39013C is a 3-bedroom three-story modern house plan of 2453 ft², a contemporary single-family home with a flat roof, crisp high-tech lines and exterior walls finished in stucco and panels. Large windows, panoramic glazing and floor-to-ceiling windows open the clean volumes to the outdoors, and the house measures 58'4" wide and 35'8" deep. Three bedrooms, three full bathrooms and an attached two-car garage make it a complete family residence arranged over three levels.
Beyond the entry, an open floor plan joins a large family room and a large kitchen into one generous living space. The family room is anchored by a fireplace, so this is a true house plan with fireplace for winter evenings, while tall glass keeps the room bright through the day. The kitchen pairs a breakfast bar, handy for quick meals and conversation while cooking, with a breakfast nook for slower mornings. A sunroom extends the living area toward the light, and a home office offers a quiet place to work without leaving the house.

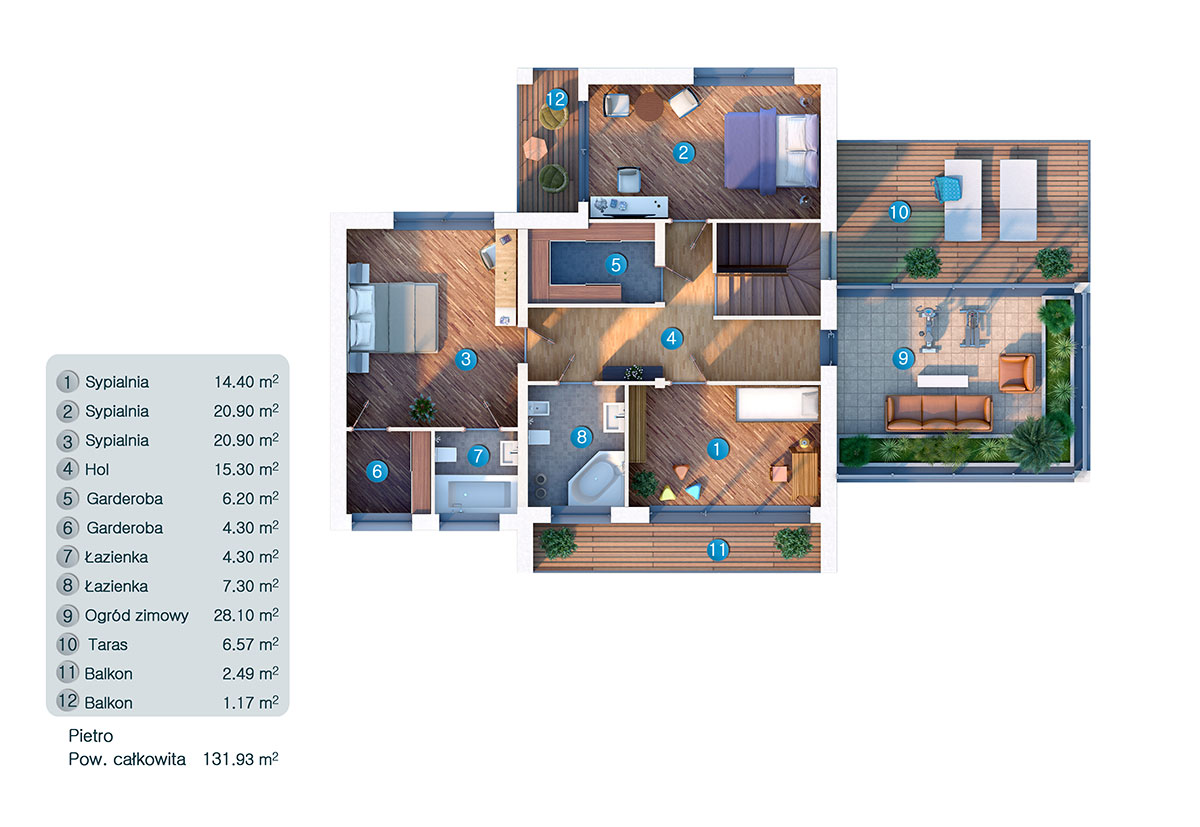

The master suite is placed on the second floor, away from the daytime rooms, and comes with a walk-in closet. With three full bathrooms for three bedrooms, family members and guests are never left waiting. A utility room and dedicated storage take care of the everyday practicalities, keeping laundry, equipment and seasonal things out of the living spaces.
The house stands on strip footings, with a slab or a concrete block foundation also available on request, and there is no basement. The exterior walls are built of aerated concrete blocks, and the plan is also available with clay hollow blocks, calcium silicate blocks or wood framing. The front-entry two-car garage has an upstairs level, and its roof serves as a garage rooftop deck, an extra outdoor room above the driveway. A balcony and a deck add more places to sit outside, completing a 3 bedroom house plan that brings modern architecture and everyday comfort together.
