1,752 Sq Ft Modern U-Shaped Single-Story House Plan with 3 Bedrooms, 2.5 Bathrooms and 2-Car Garage
222
This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.
You have two options for modifying this house plan:
1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.
2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

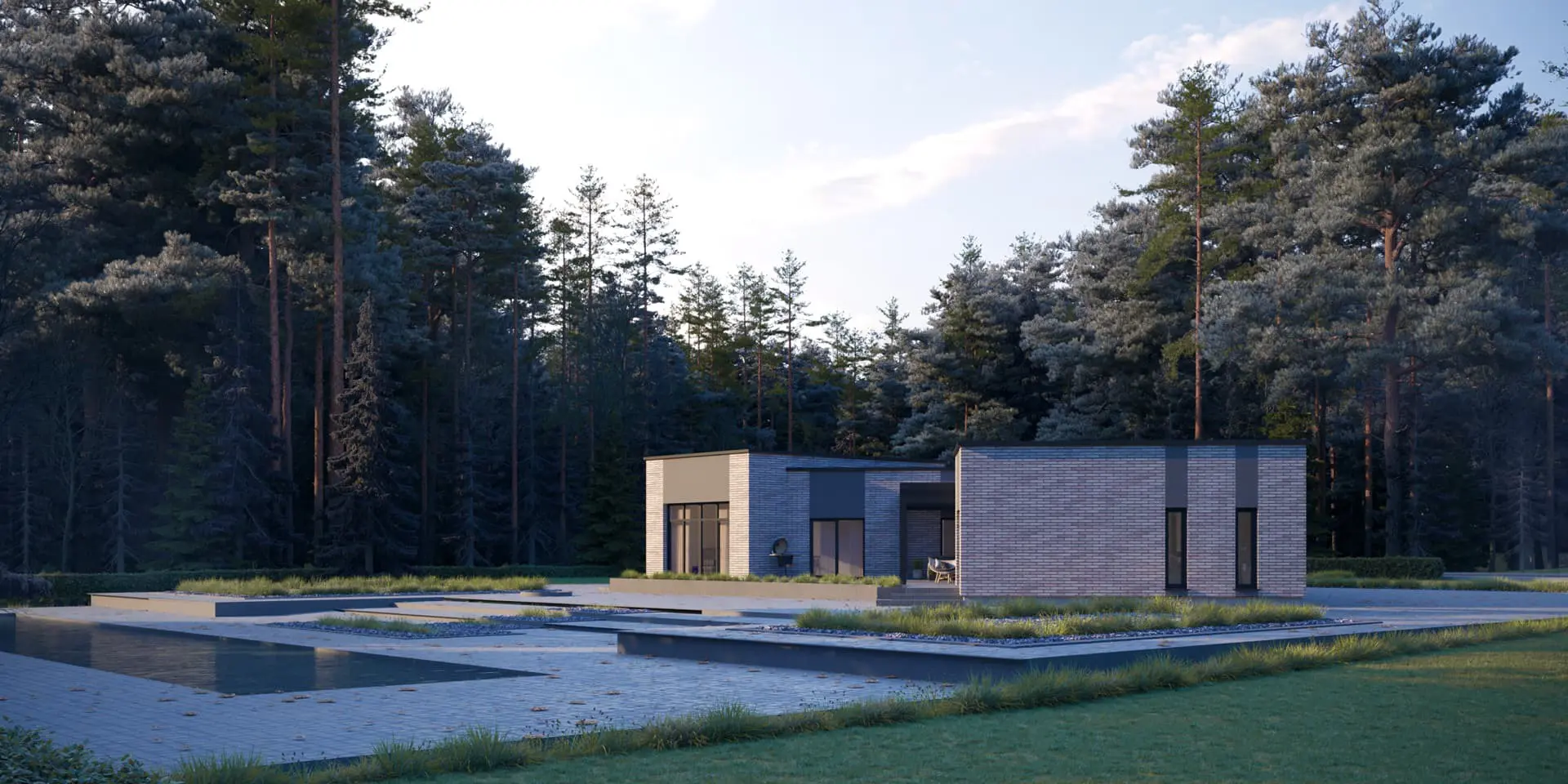

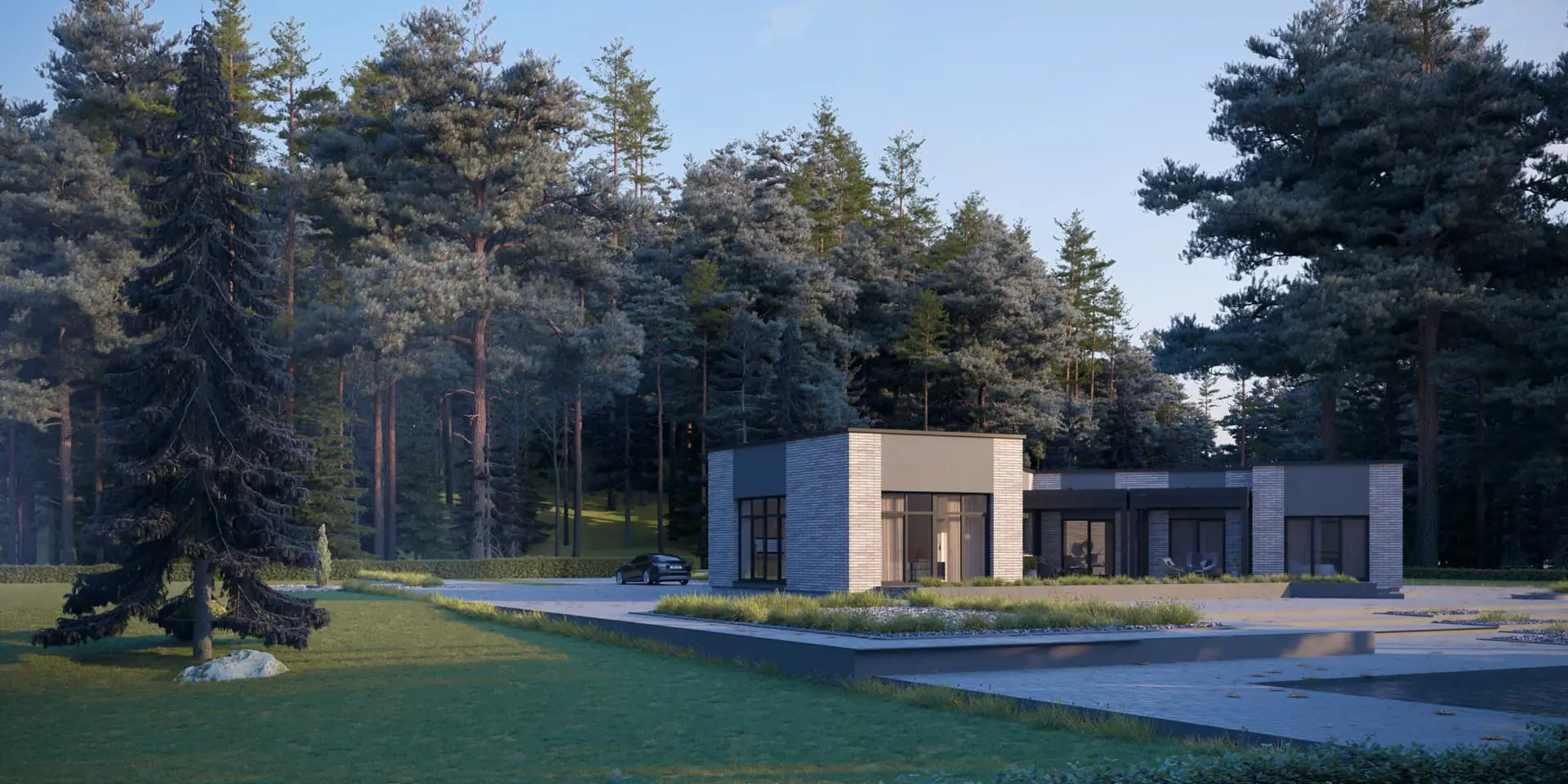

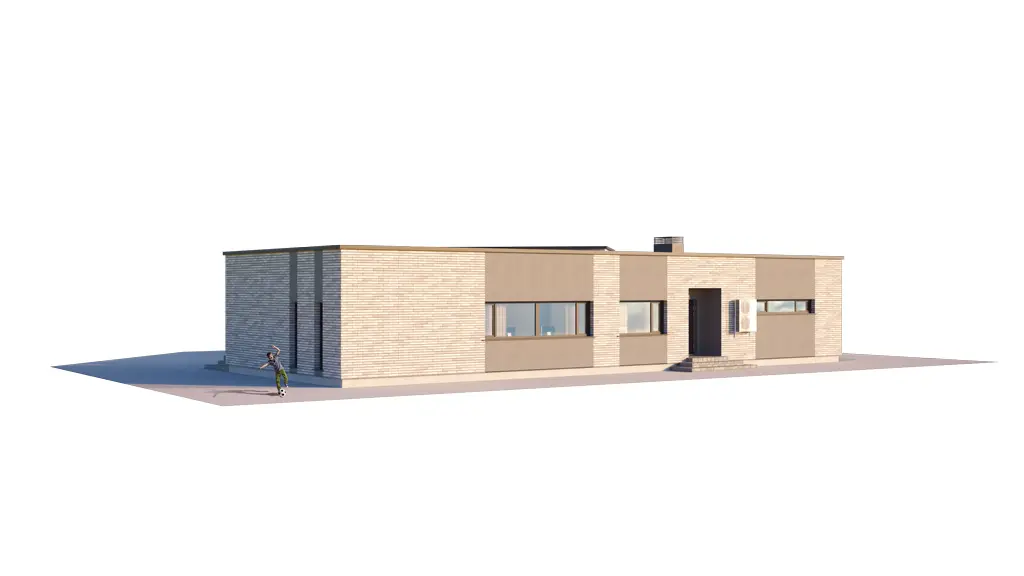

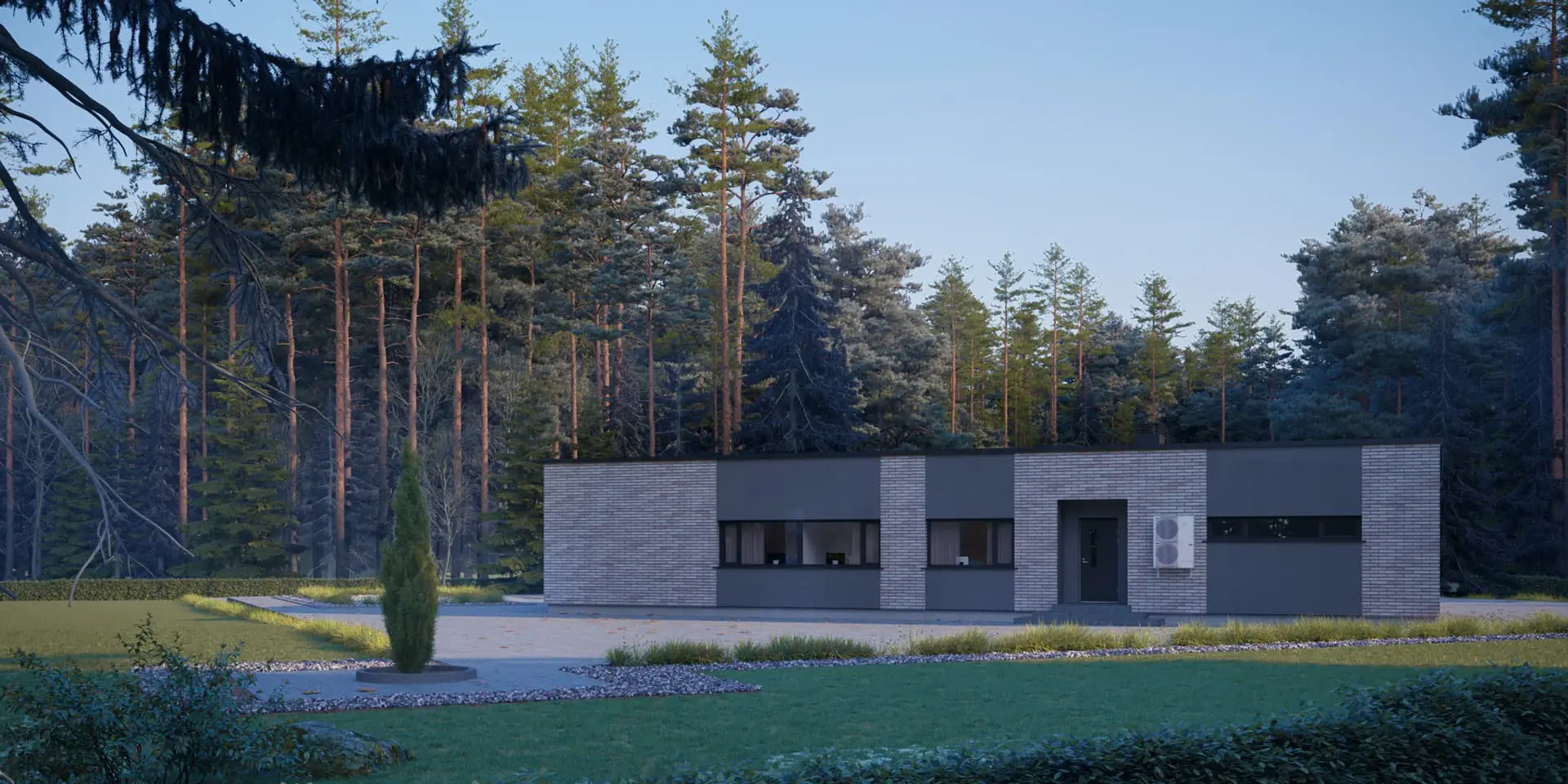

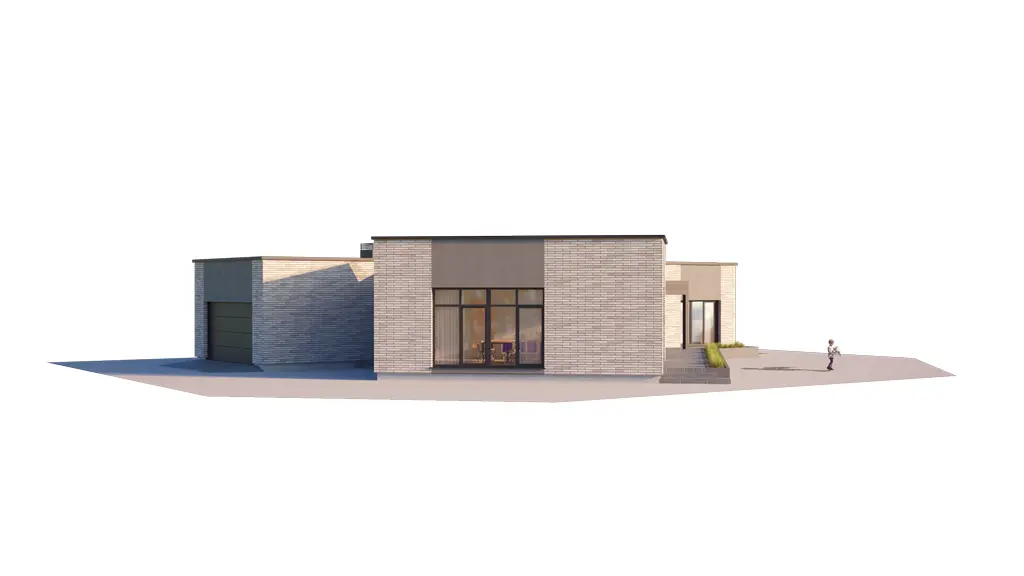

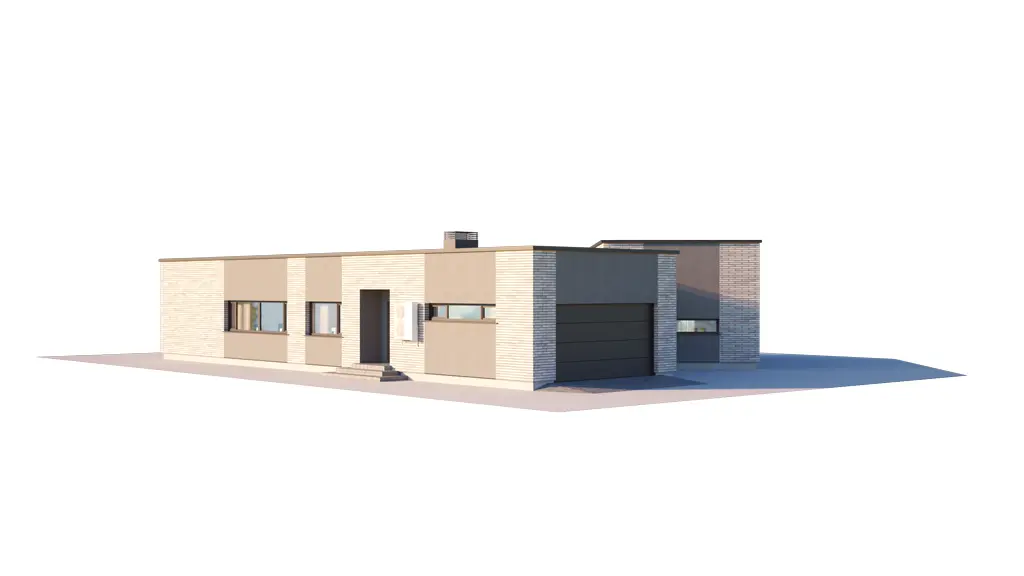

Digital house design concept 18196R is a modern U-shaped single-story single-family home with a total heated area of 1,752 Sq Ft. The layout holds 3 bedrooms and 2.5 bathrooms for a family of 3-4 people. The flat roof and the facade of stucco with stone or brick veneer give the house clean lines.

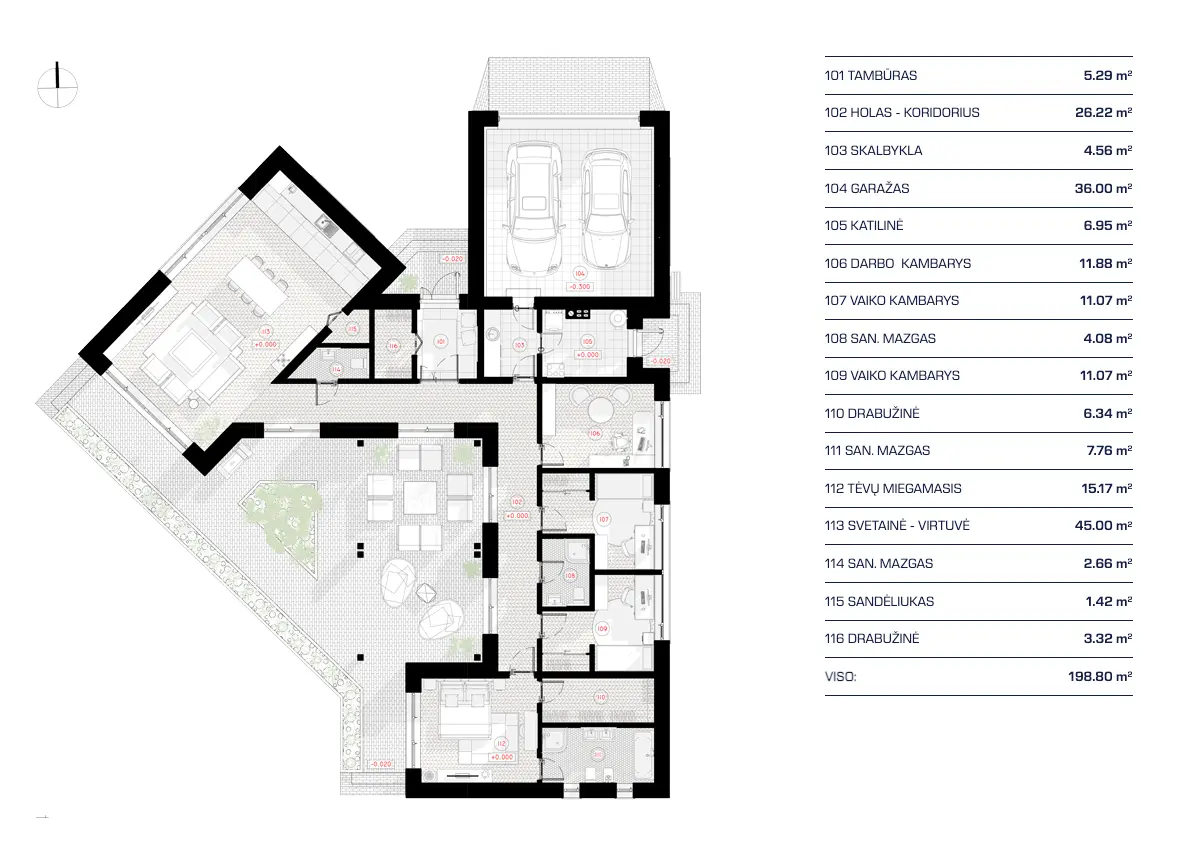

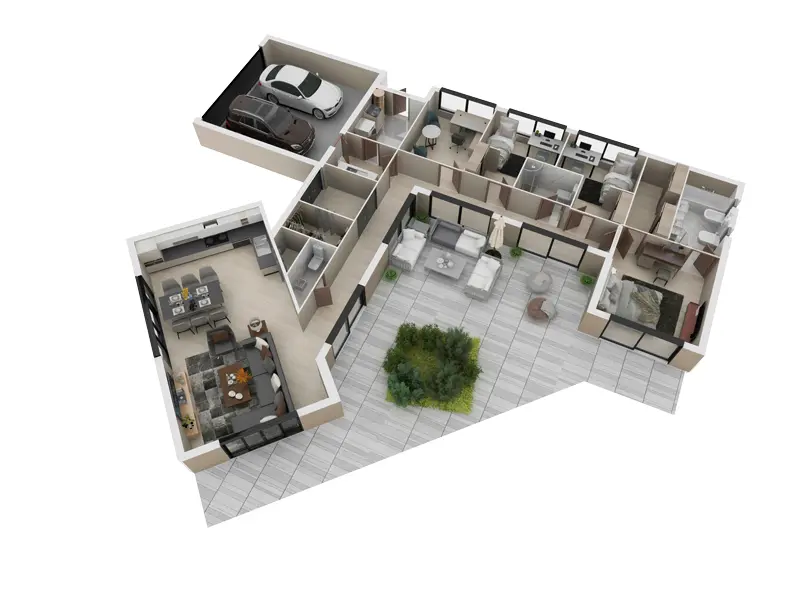

The entry leads into an open floor plan where the large family room, the large kitchen and the breakfast nook form one great room for daily life and gatherings. A walk-in pantry keeps supplies out of sight, and floor-to-ceiling windows bring daylight into the living space. A home office gives a quiet place for remote work.
All bedrooms sit on one level and are clustered together, so parents stay close to the children at night. The primary bedroom on the main floor has a walk-in closet that holds the whole wardrobe without extra furniture. The laundry is in the utility room on the main floor and shortens the way with the washing, while a separate storage room keeps seasonal items.

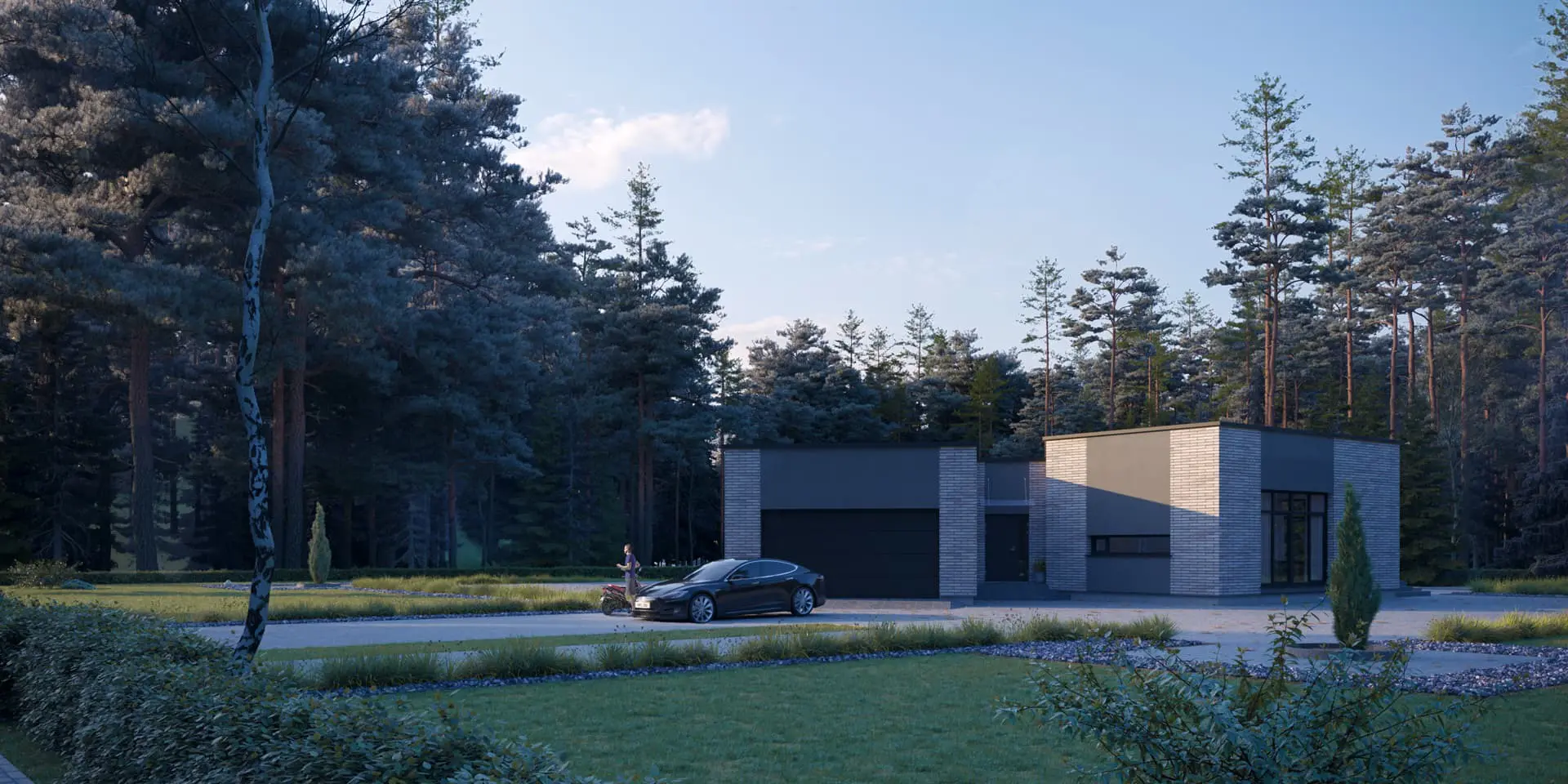

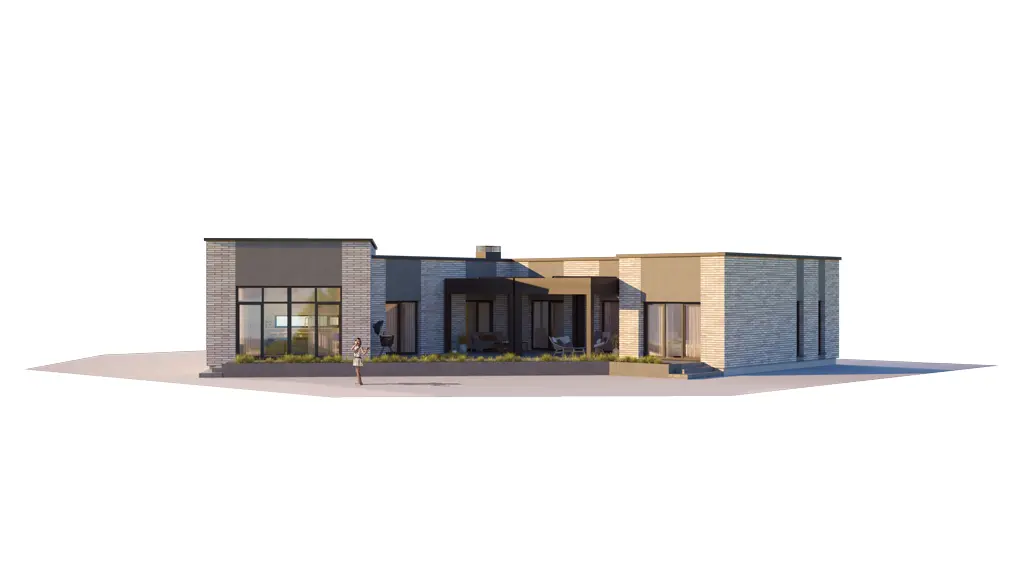

Outside, a covered rear porch, a patio and a deck offer space for outdoor dining and rest, and the courtyard between the wings of the house creates a sheltered corner. The 2-car front-entry garage extends forward, which keeps the backyard private. The main foundation is a slab, with bored pile, strip or block foundations as options; the exterior walls are sand-lime block, with aerated concrete, ceramic block or framed construction as alternatives. With a width of 63'1" and a depth of 73'3", the house suits a wide lot. The figures: total heated 1,752 Sq Ft, 3 bedrooms, 2.5 bathrooms and a 2-car garage.
The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
